Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

12 part groups · 35 illustrations

Illustrations

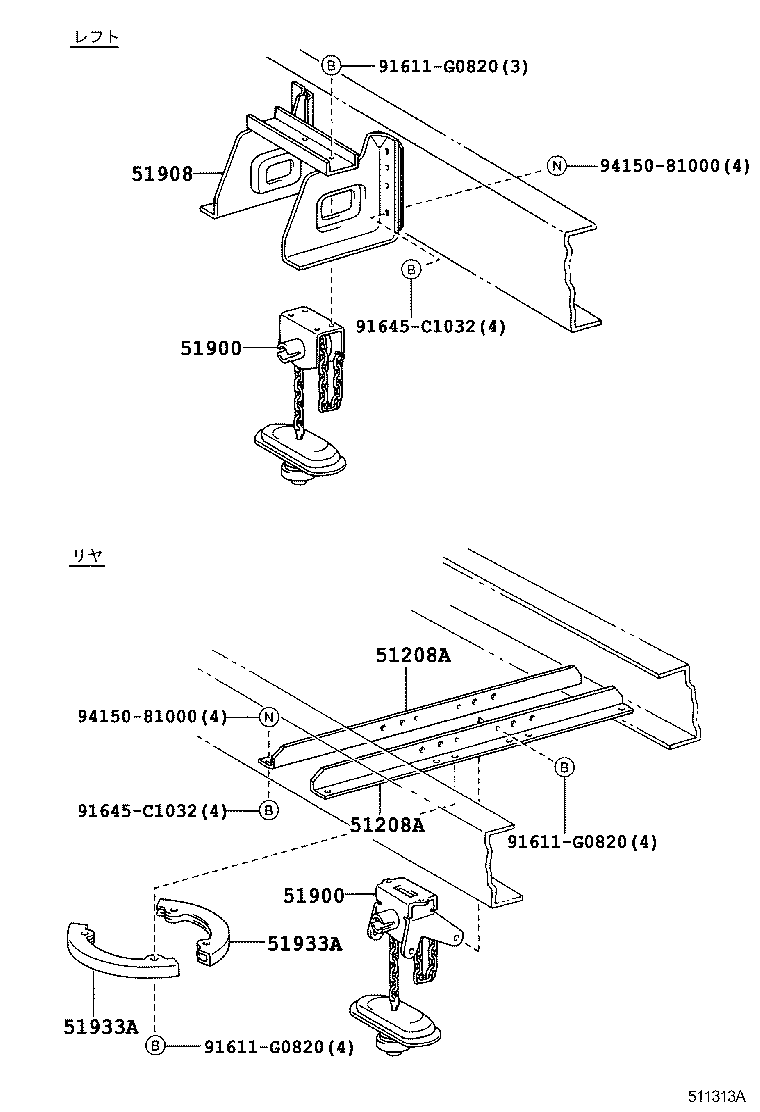

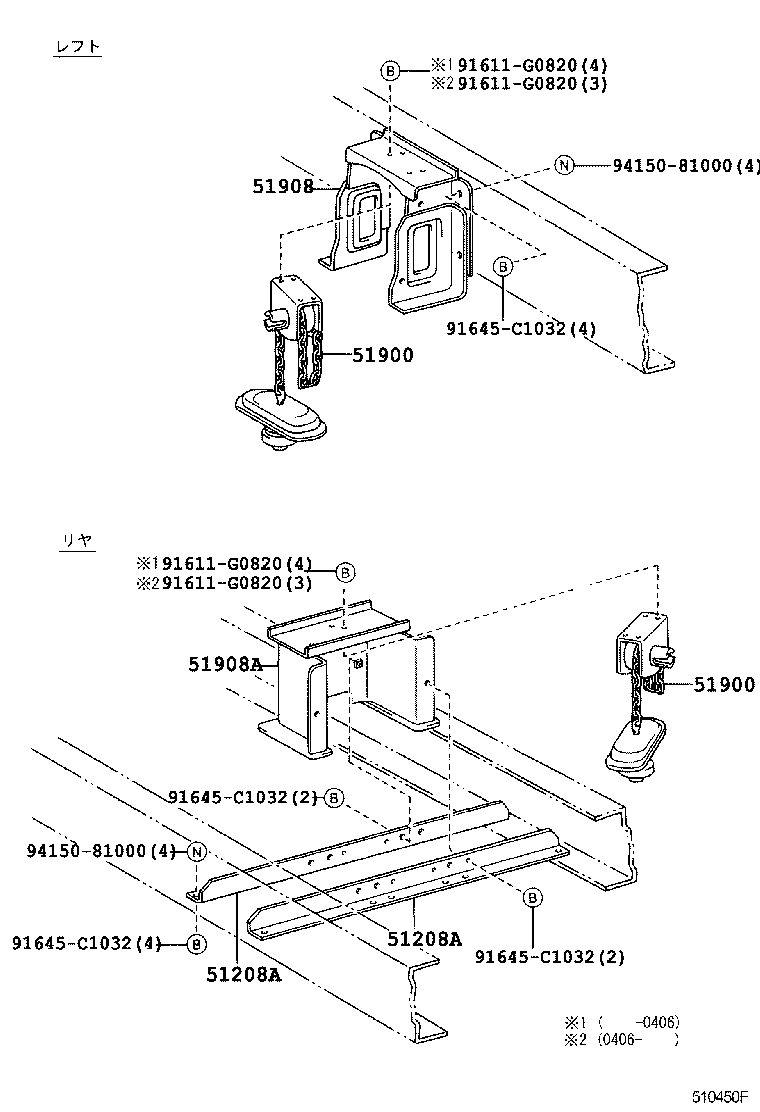

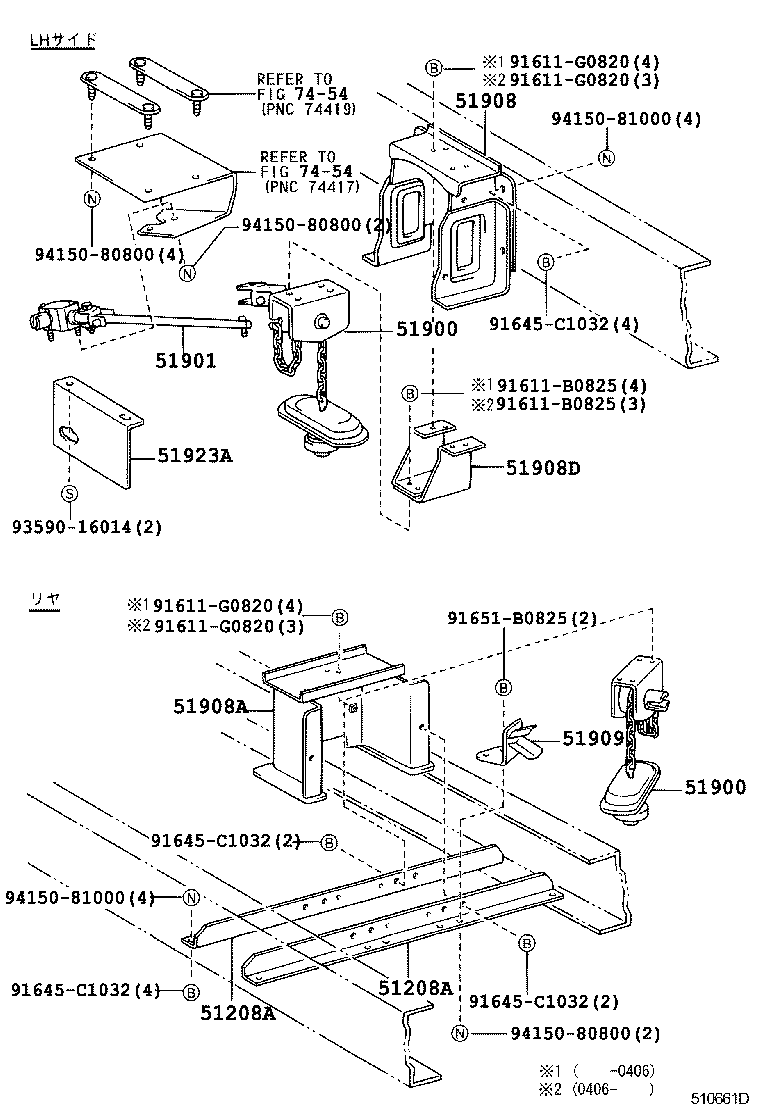

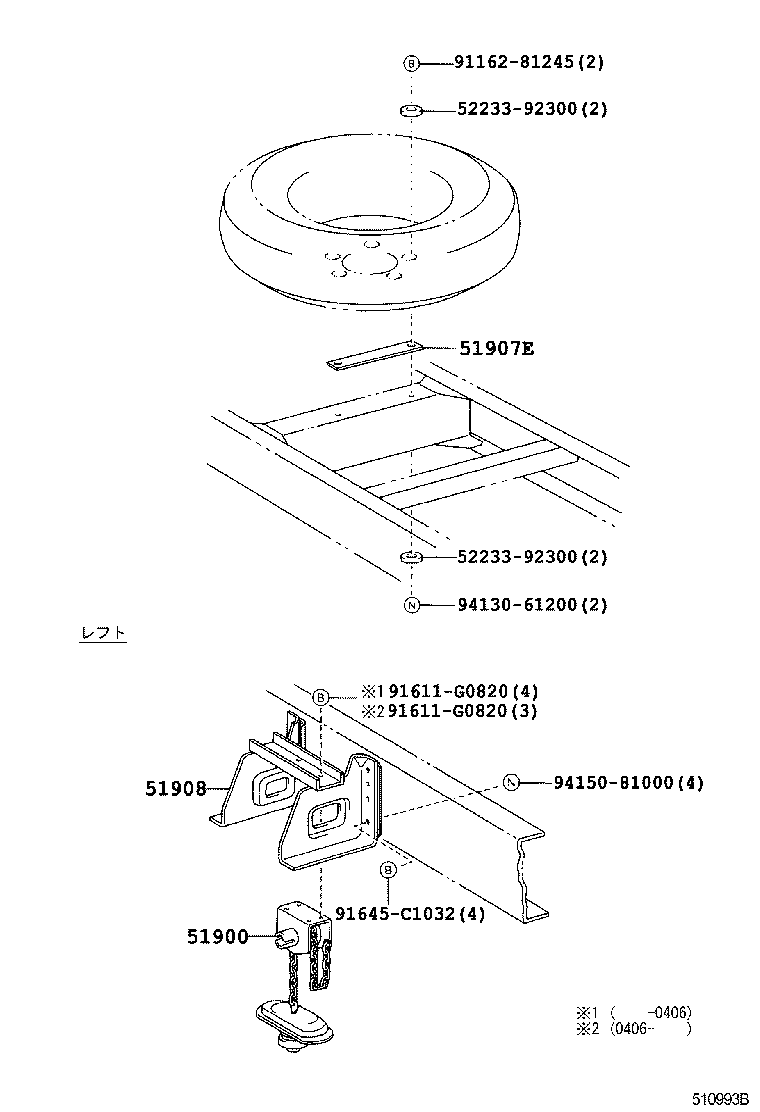

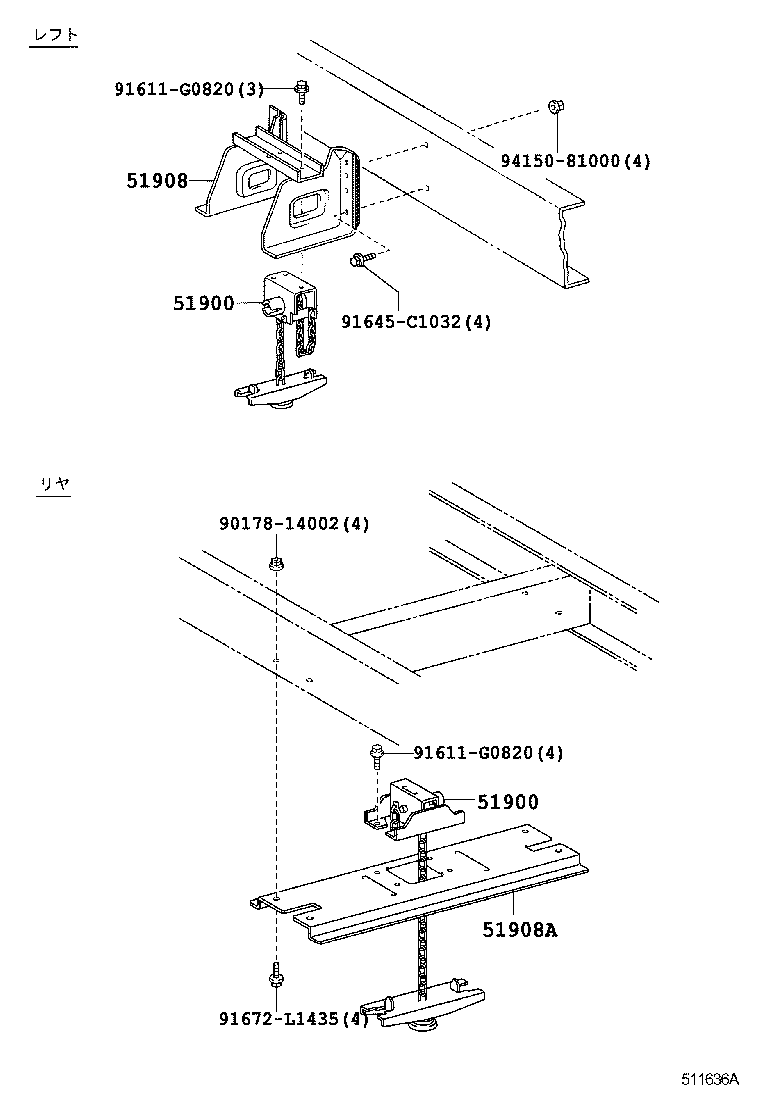

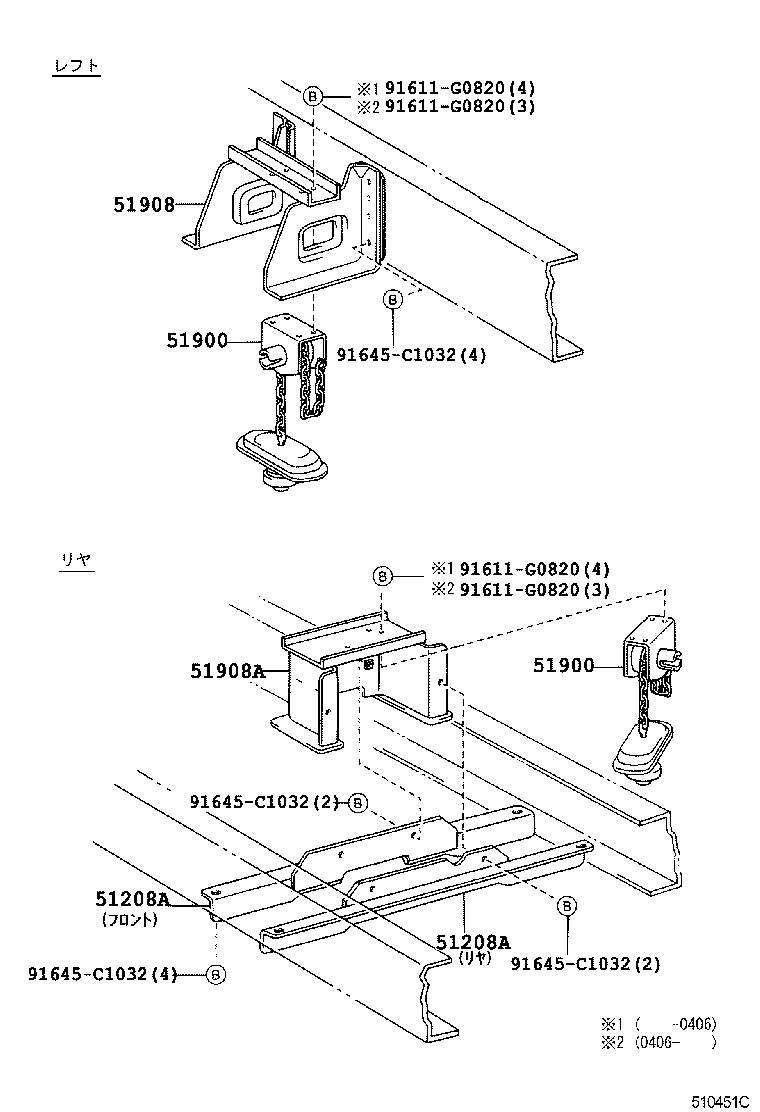

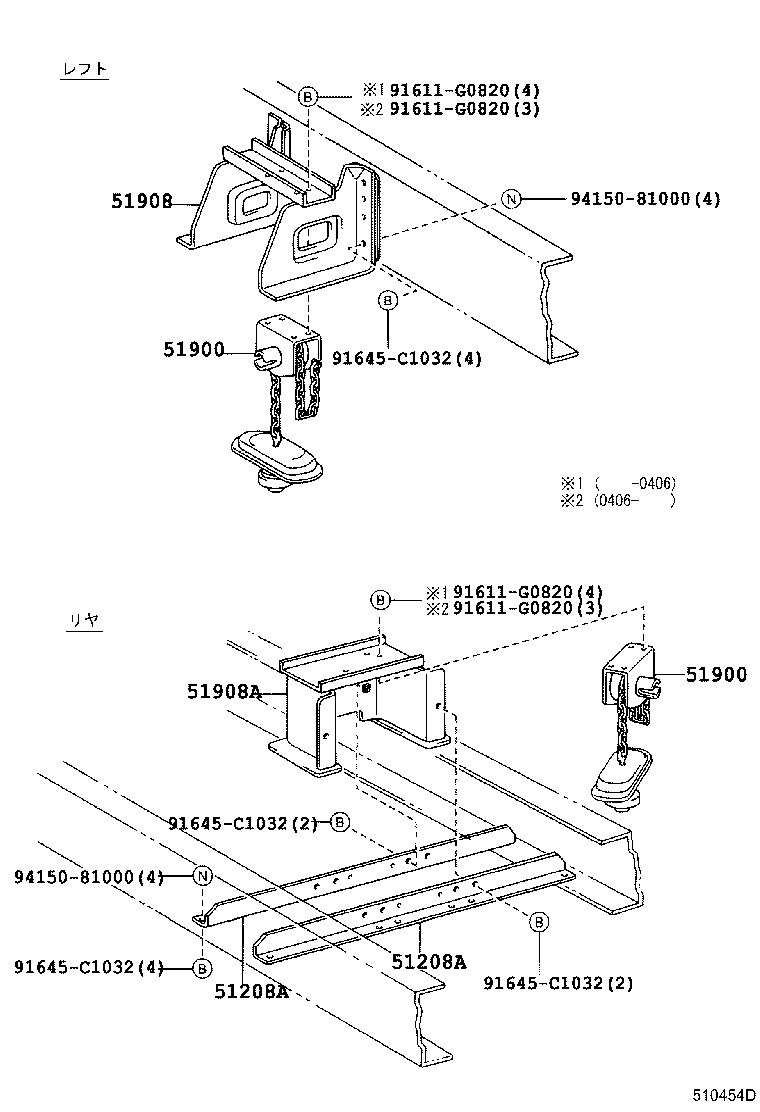

Figure 510448 510448 1999-05 → 2004-06 Figure 510448 510448 1999-05 → 2006-10 Figure 510448 510448 1999-05 → — Figure 510448 510448 2005-05 → 2006-10 Figure 510448 510448 2005-05 → 2006-10 Figure 510448 510448 2005-05 → — Figure 510449C 510449C 1999-05 → 2004-06 Figure 510449C 510449C 2004-06 → 2005-05 Figure 510450F 510450F 1999-05 → 2006-10 Figure 510661D 510661D 2000-11 → 2006-10 Figure 510451C 510451C 1999-05 → 2006-10 Figure 510452F 510452F 1999-05 → 2004-06 Figure 510452F 510452F 2004-06 → 2006-10 Figure 510453D 510453D 1999-06 → 2006-10 Figure 510454D 510454D 1999-05 → — Figure 510455D 510455D 1999-05 → 2002-06 Figure 510455D 510455D 1999-05 → 2006-10 Figure 510455D 510455D 1999-05 → — Figure 510455D 510455D 1999-07 → 2006-10 Figure 510455D 510455D 2003-10 → 2006-10 Figure 510455D 510455D 2003-10 → 2006-10 Figure 510456E 510456E 1999-05 → 2004-06 Figure 510456E 510456E 1999-05 → 2004-06 Figure 510456E 510456E 2004-06 → — Figure 510456E 510456E 2004-06 → — Figure 510457E 510457E 1999-05 → 2004-06 Figure 510457E 510457E 1999-05 → 2006-10 Figure 510457E 510457E 2003-06 → 2004-06 Figure 510457E 510457E 2004-06 → 2006-10 Figure 510457E 510457E 2004-06 → 2006-10 Figure 510993B 510993B 2002-06 → 2004-06 Figure 510993B 510993B 2004-06 → 2006-10 Figure 511313A 511313A 2005-05 → 2006-10 Figure 511635 511635 2006-10 → — Figure 511636A 511636A 2006-10 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51901 Rod Sub-assy, Spare Wheel Carrier
51907E Retainer Sub-assy, Spare Tire Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51908A Bracket Sub-assy, Spare Wheel Mounting
51908D Bracket Sub-assy, Spare Wheel Carrier, RH
51909 Hinge Sub-assy, Spare Wheel Carrier
51919B Spacer, Spare Wheel Carrier
51923A Guide, Spare Whell Carrier Handle
51933A Stopper, Spare Wheel, NO.1
66273 Guide, Spare Tire Carrier
