Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 4 illustrations

Illustrations

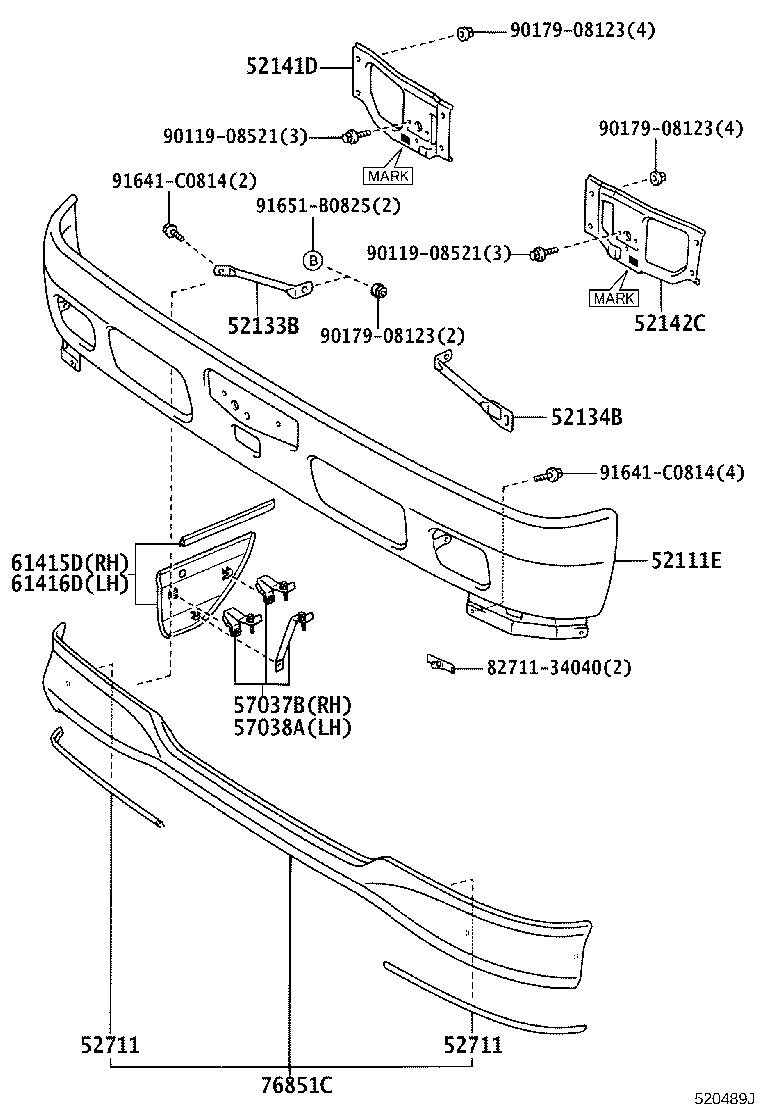

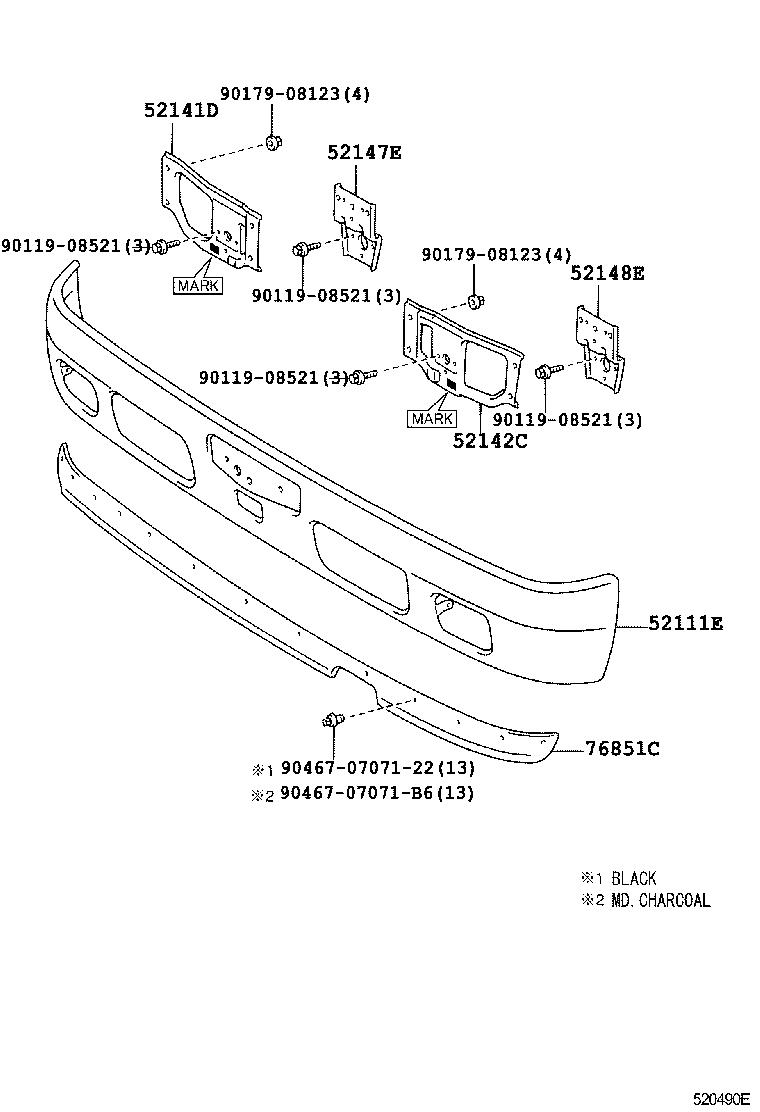

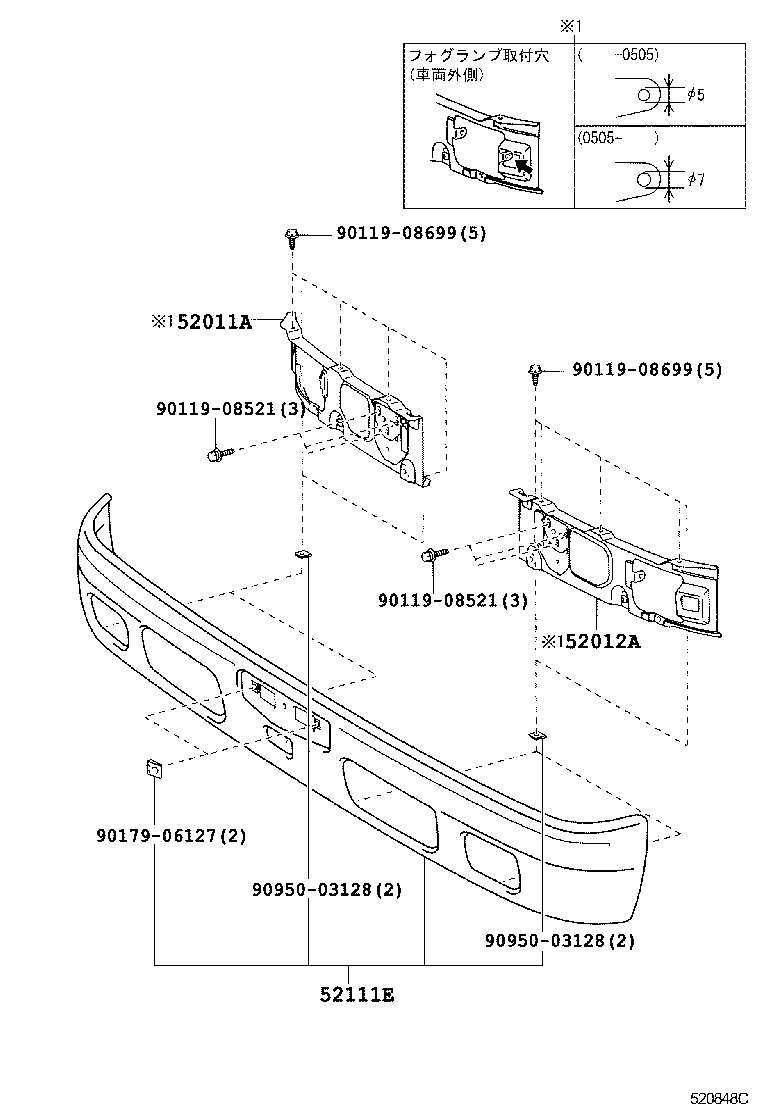

Figure 521336B 521336B 1999-05 → — Figure 520489J 520489J 1999-05 → — Figure 520490E 520490E 1999-07 → 2004-06 Figure 520848C 520848C 2002-06 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52111E Bar, Front Bumper
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52711 Moulding, Front Bumper
57037B Stay Sub-assy, Front Step, RH
57038A Stay Sub-assy, Front Step, LH
61415D Panel, Front Step Under, RH
61416D Panel, Front Step Under, LH
76851C Front Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
