Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 3 illustrations

Illustrations

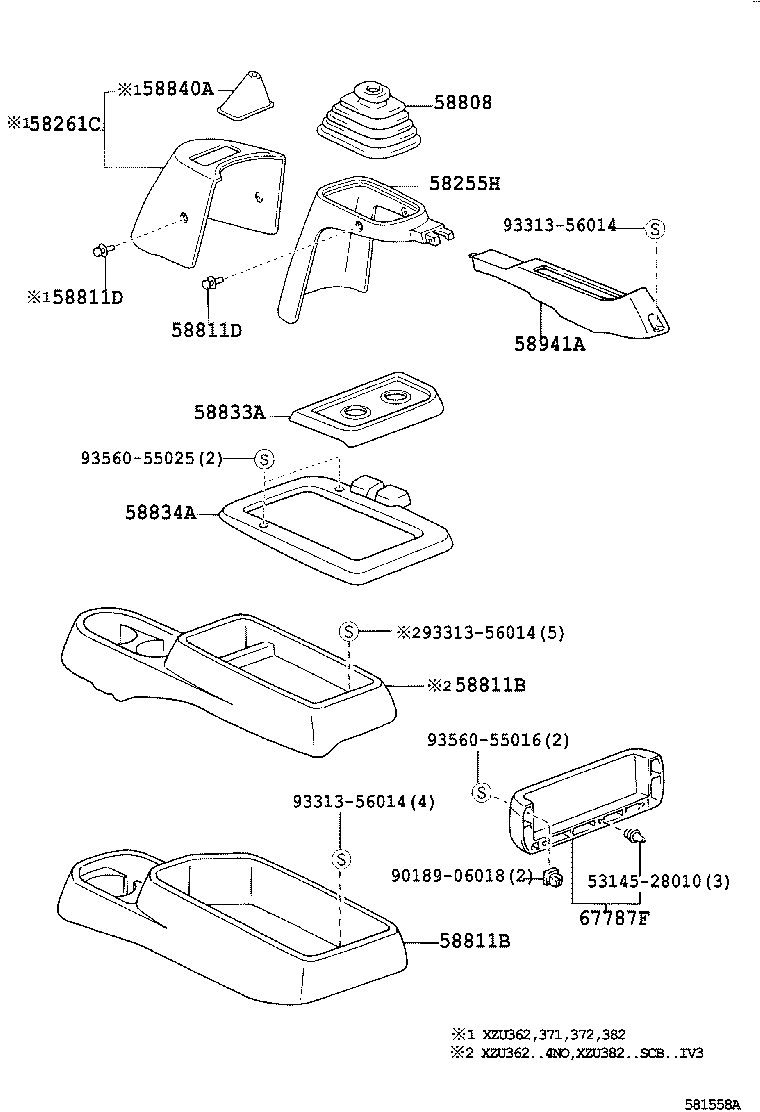

Figure 580990A 580990A 1999-05 → 2002-06 Figure 581558A 581558A 2002-06 → — Figure 580991C 580991C 1999-05 → —

Part groups

PNCDescription
55388B Bracket, Console Mounting, RH
55389A Bracket, Console Mounting, LH
55670B Register Assy, Instrument Panel, Center
58255H Cover, Shift Lever Boot
58261C Cover, Transmission
58808 Cover Sub-assy, Shifting Hole
58811B Box, Console
58811D Clip(FOR CONSOLE BOX)
58833A Cover, Console, Upper
58834A Cover, Console, Lower
58840A Cover Assy, Shifting Hole
58909B Retainer Sub-assy, Console Compartment
58910E Box Assy, Console, Rear
58941A Cover, Parking Brake Hole
66990S Console Box Cup Holder
67787F Pocket, Rear Door Trim, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
