Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

24 part groups · 14 illustrations

Illustrations

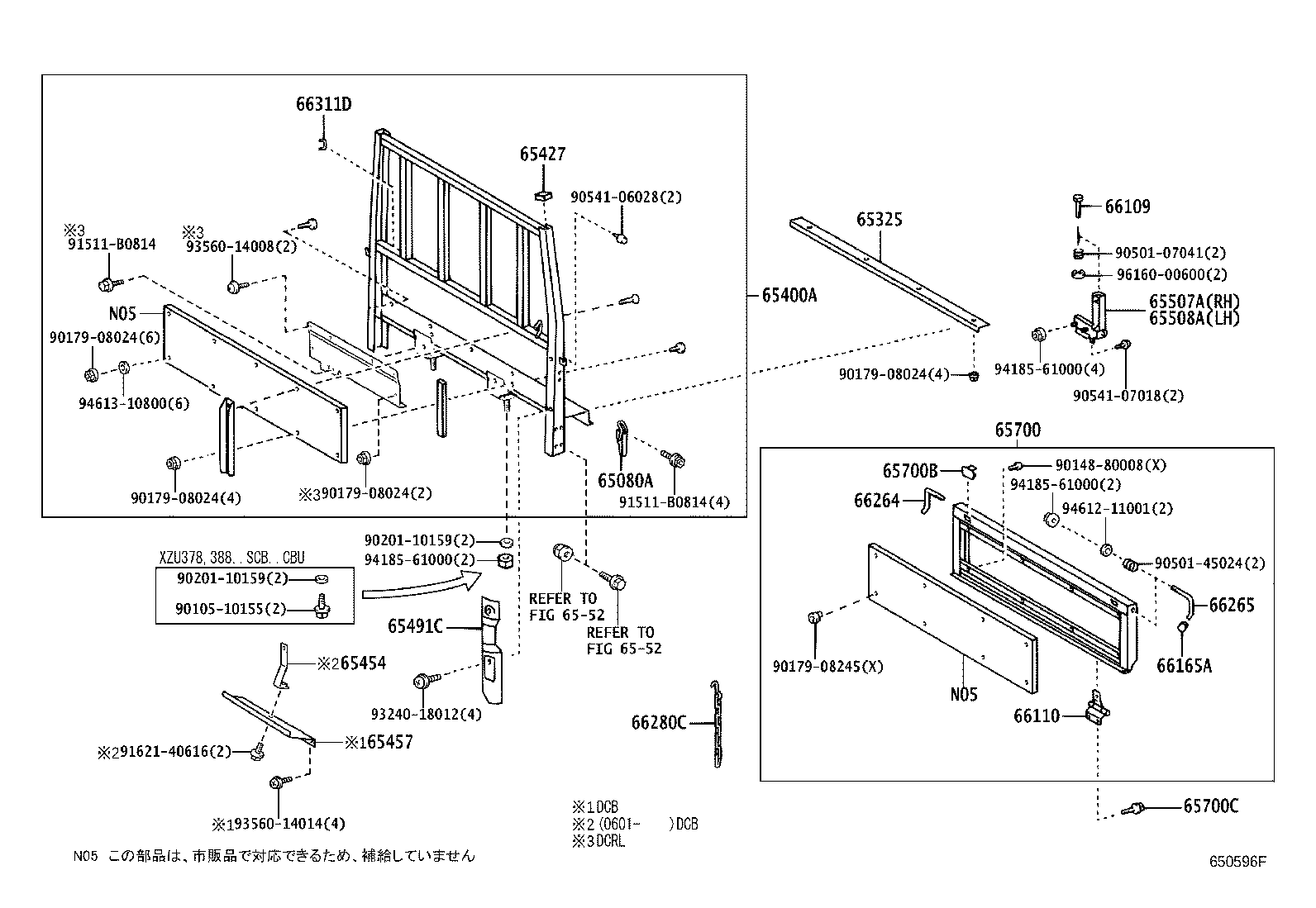

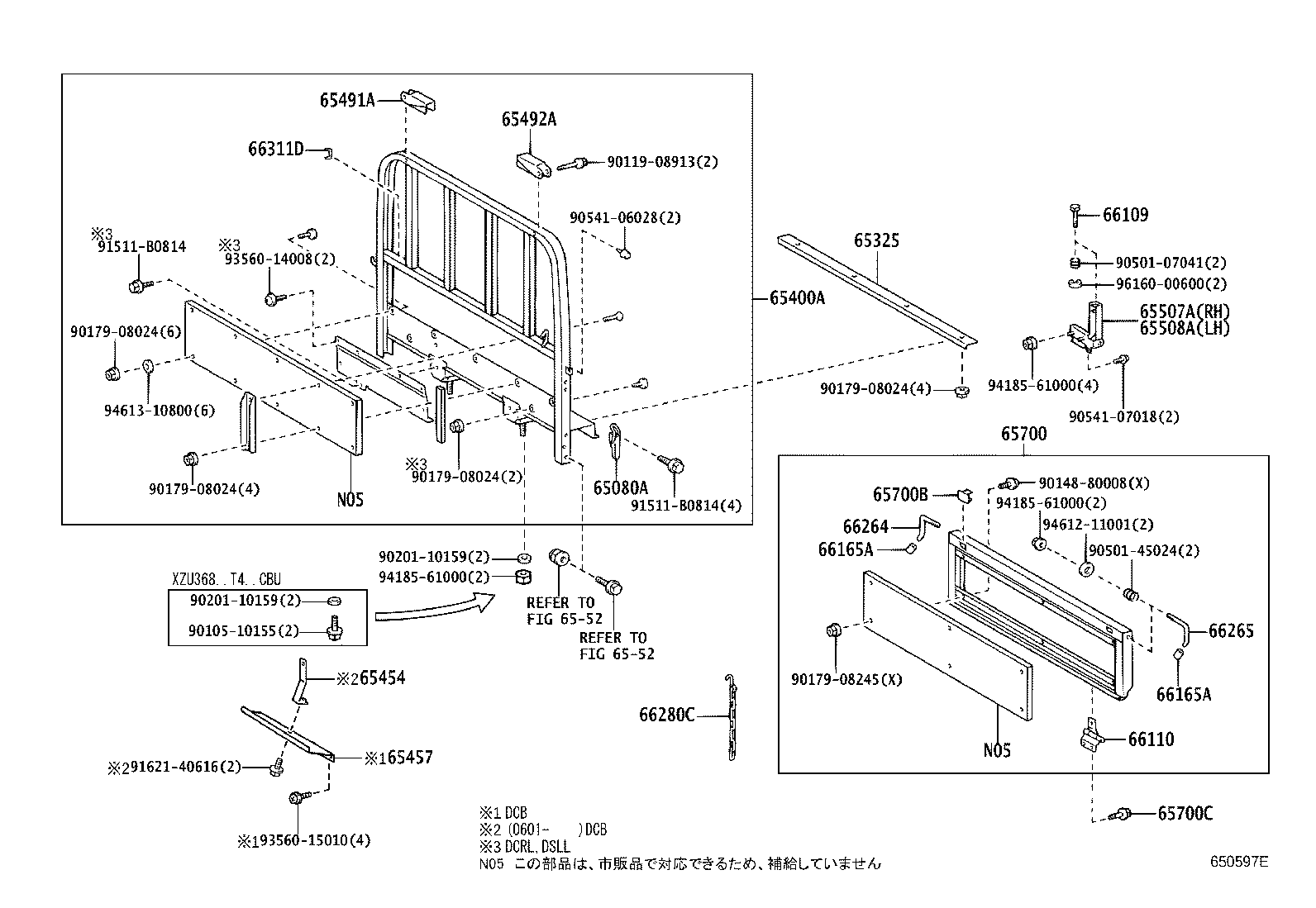

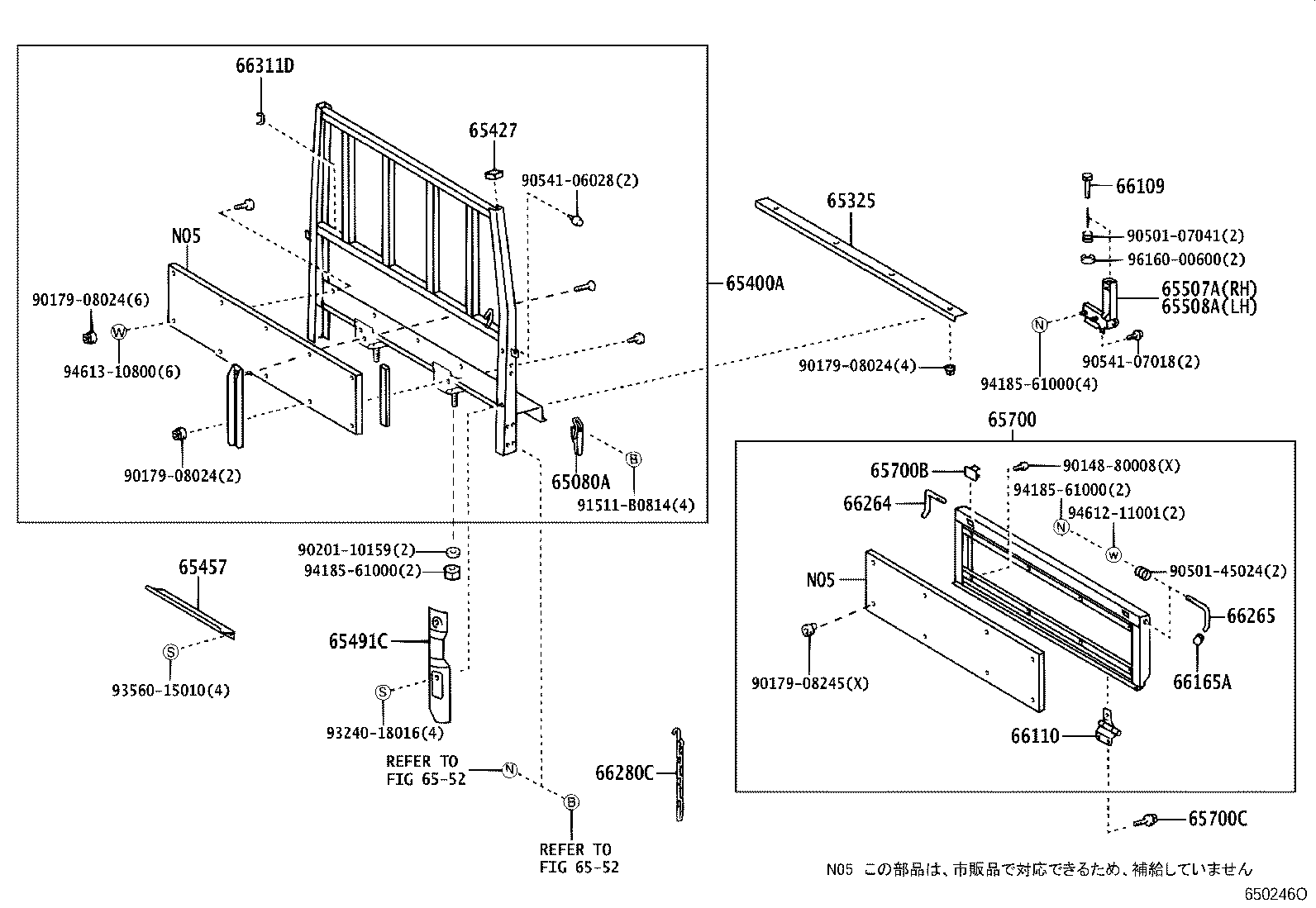

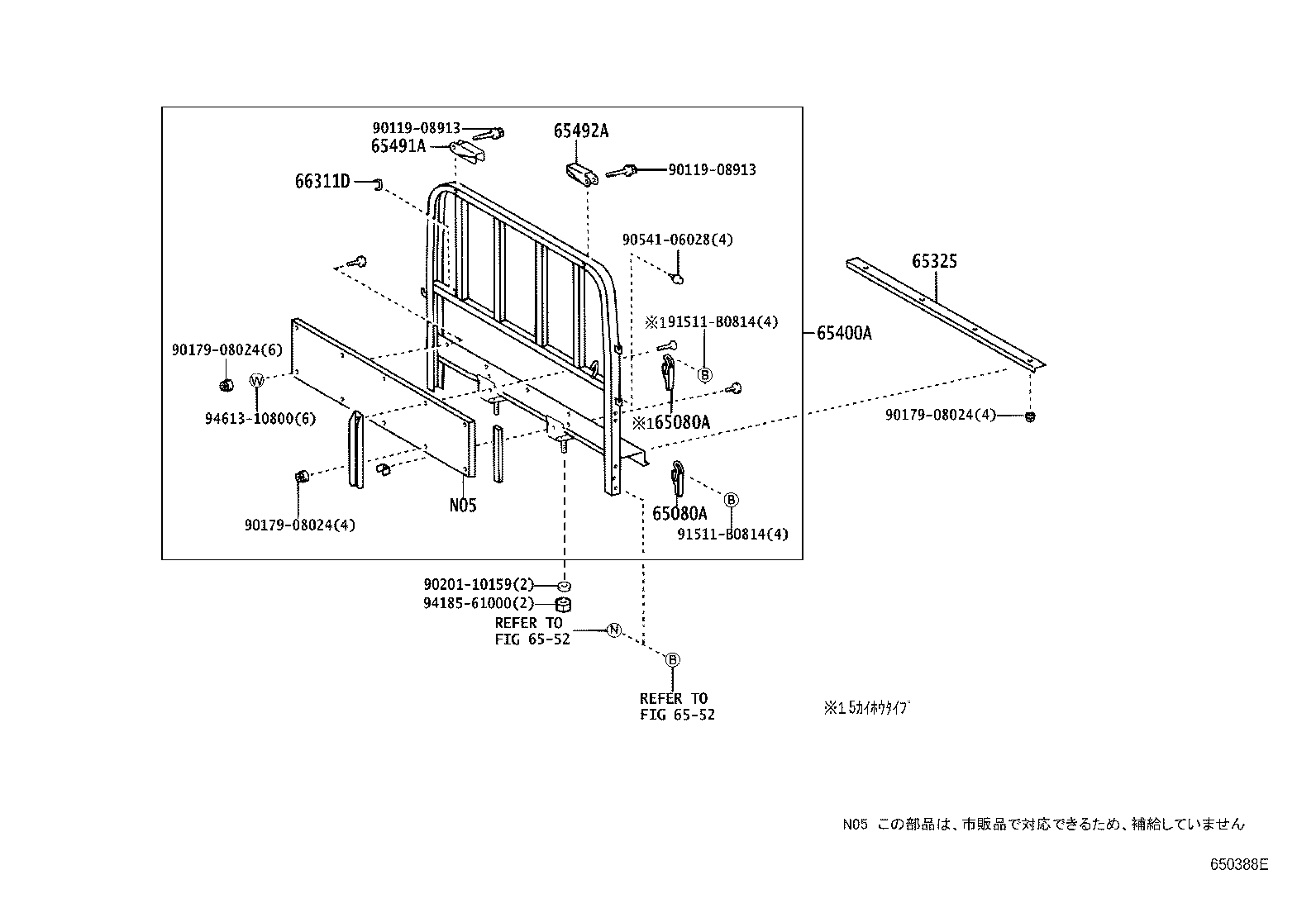

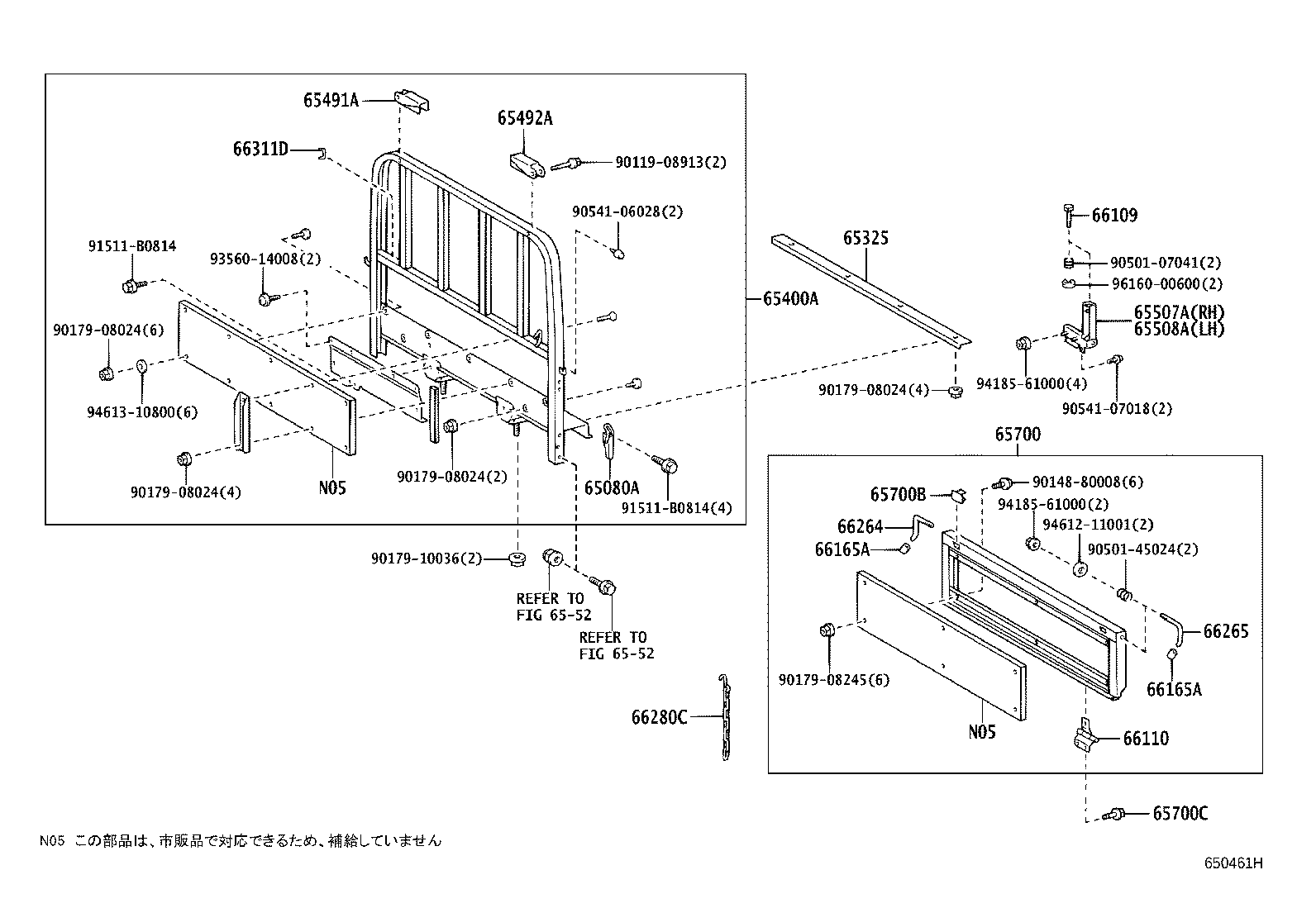

Figure 650245M 650245M 1999-05 → 2004-06 Figure 650245M 650245M 2002-06 → 2004-06 Figure 650245M 650245M 2002-10 → 2004-06 Figure 650245M 650245M 2003-06 → 2004-06 Figure 650246O 650246O 1999-05 → 2004-06 Figure 650246O 650246O 2002-06 → 2004-06 Figure 650246O 650246O 2002-10 → 2004-06 Figure 650246O 650246O 2003-06 → 2004-06 Figure 650461H 650461H 2003-10 → 2004-06 Figure 650244E 650244E 1999-06 → — Figure 650388E 650388E 2000-05 → 2003-06 Figure 650388E 650388E 2003-06 → — Figure 650596F 650596F 2004-06 → — Figure 650597E 650597E 2004-06 → —

Part groups

PNCDescription
65080A Handle Assy, Side Gate Latch
65325 Plate, Floor Board, Front
65400A Guard Assy, Rear Body
65427 Cover, Guard Frame
65454 Stay, Baffle Dust
65457 Plate, Baffle Dust Rear Body
65491A Stop, Guard Frame Load Slide, RH
65491C Protector, Guard Flame, Lower
65492A Stop, Guard Frame Load Slide, LH
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65700 Gate Assy, Rear Body Tail
65700B Plug, Hole(FOR TAIL GATE)
65700C Bolt, W/Washer(FOR TAIL GATE)
66109 Handle Sub-assy, Side Gate Support Corner
66110 Hinge Assy, Tail Gate
66121A Bolt, Tail Gate Male
66165A Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66264 Handle, Tail Gate Latch, RH
66265 Handle, Tail Gate Latch, LH
66280C Chain Assy, Tail Gate
66311D Hook, Rope
66311J Hook, Rope
