Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

12 part groups · 17 illustrations

Illustrations

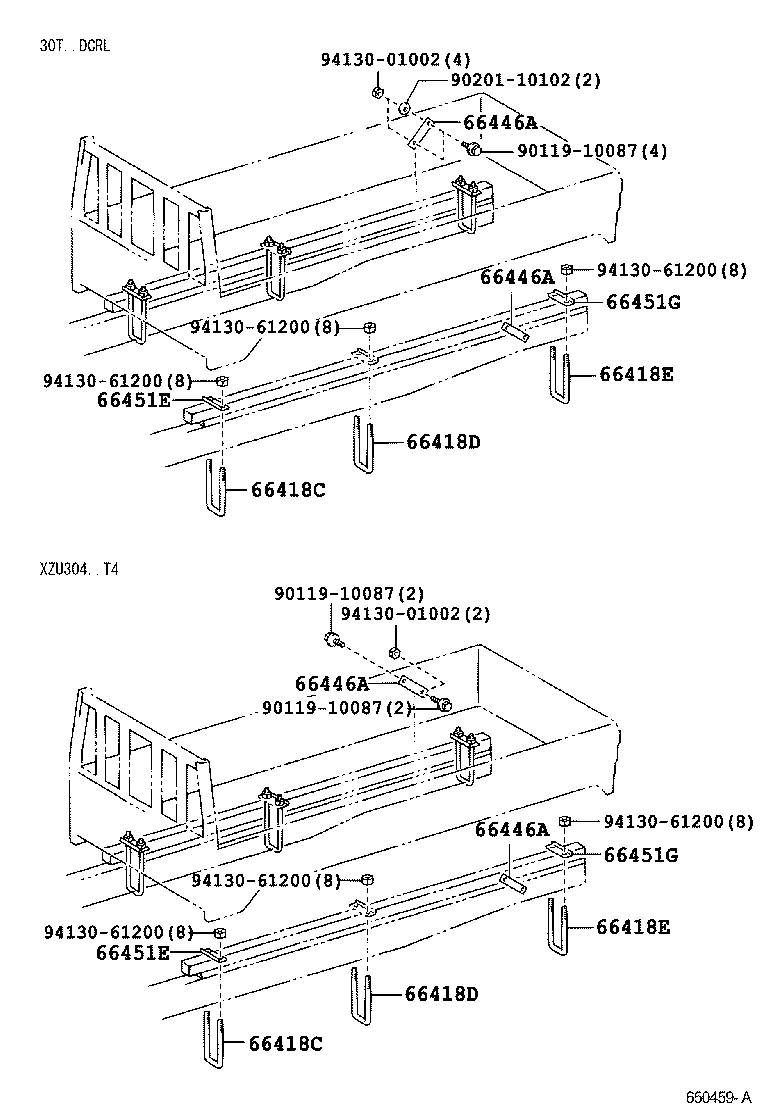

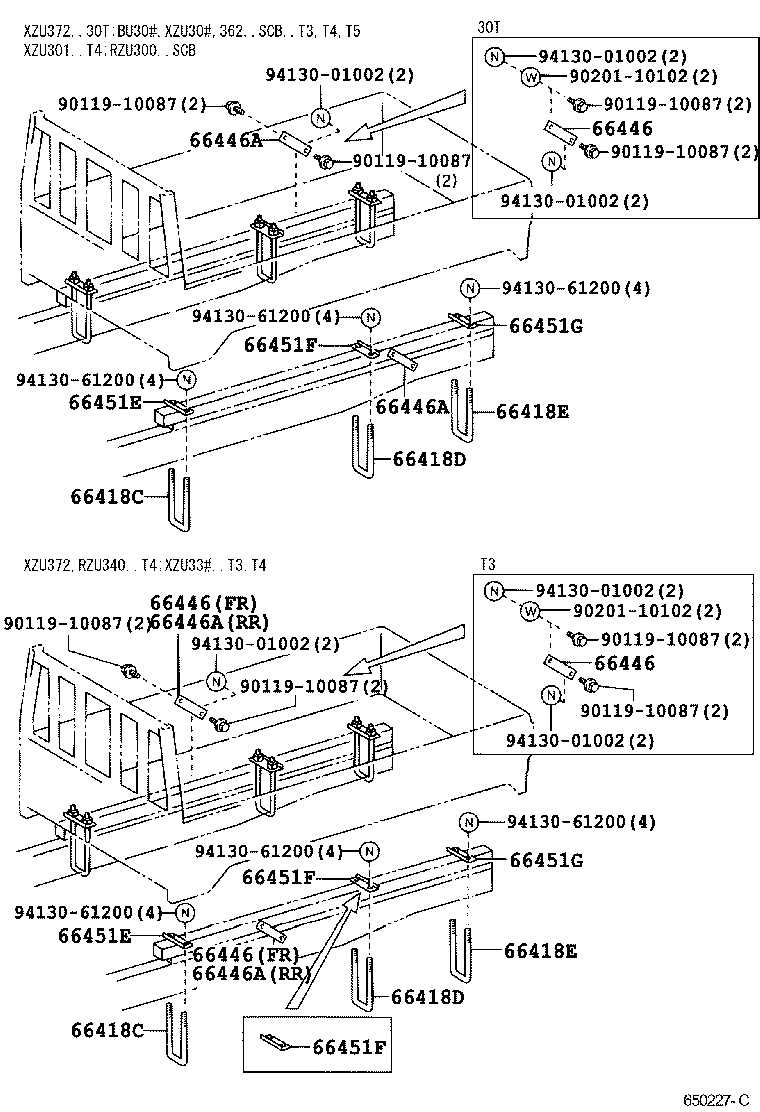

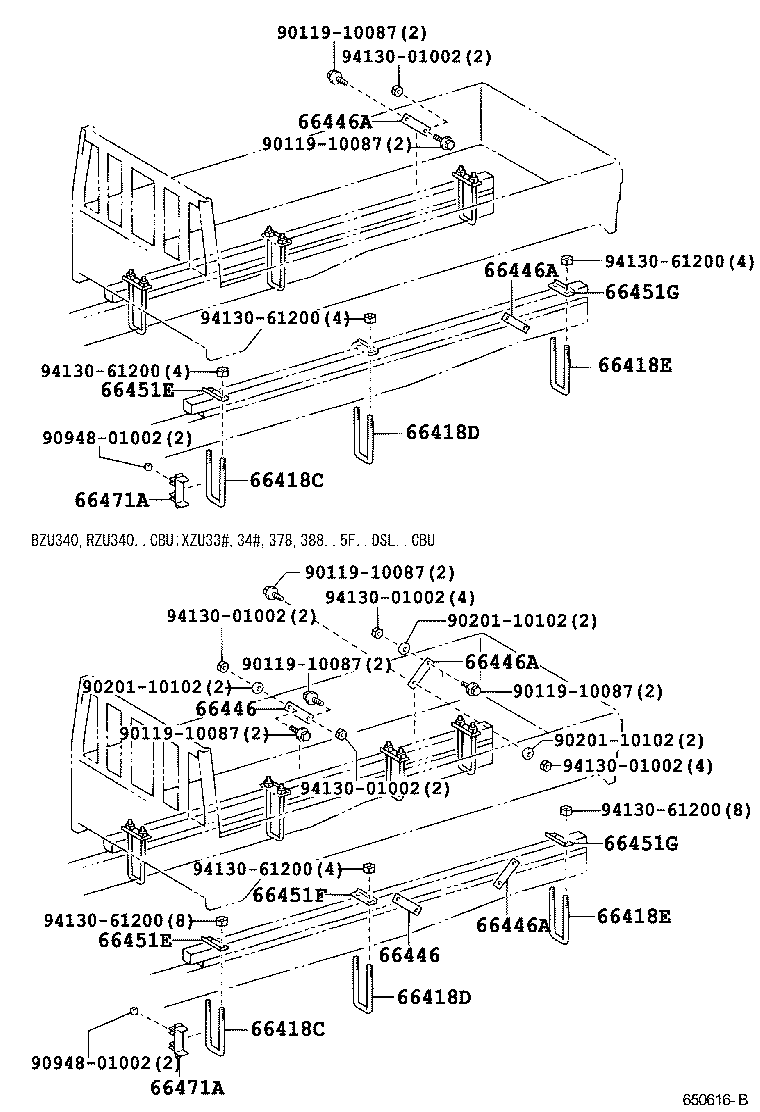

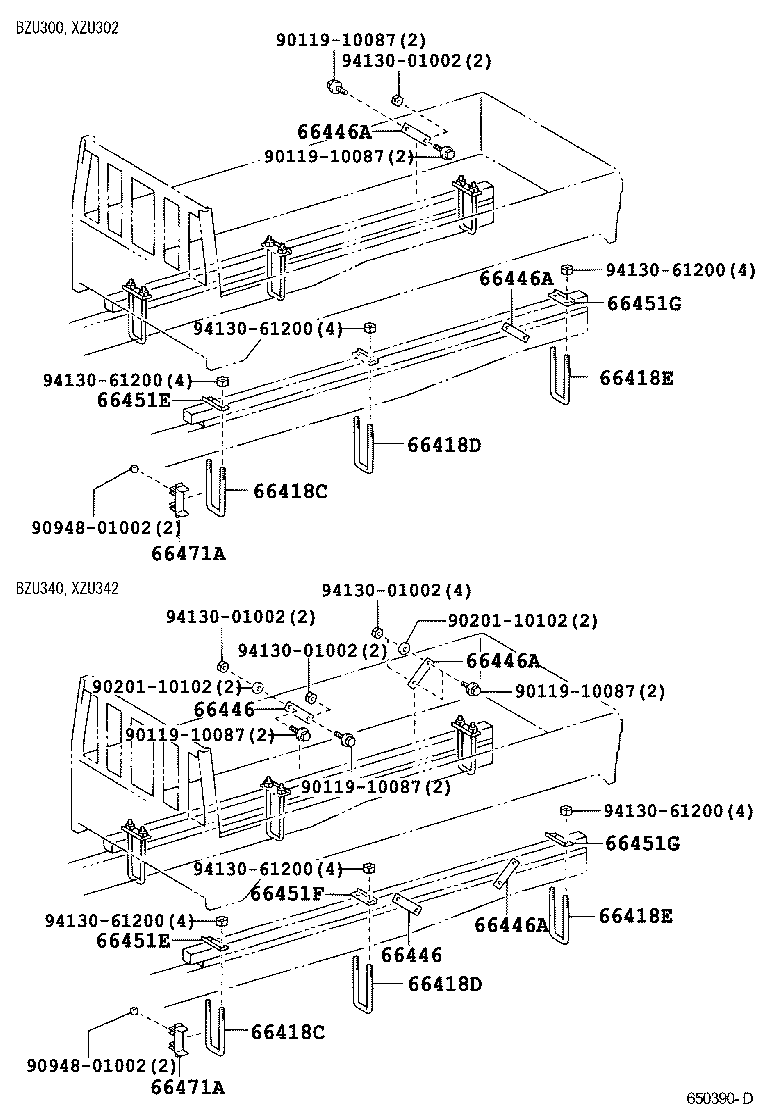

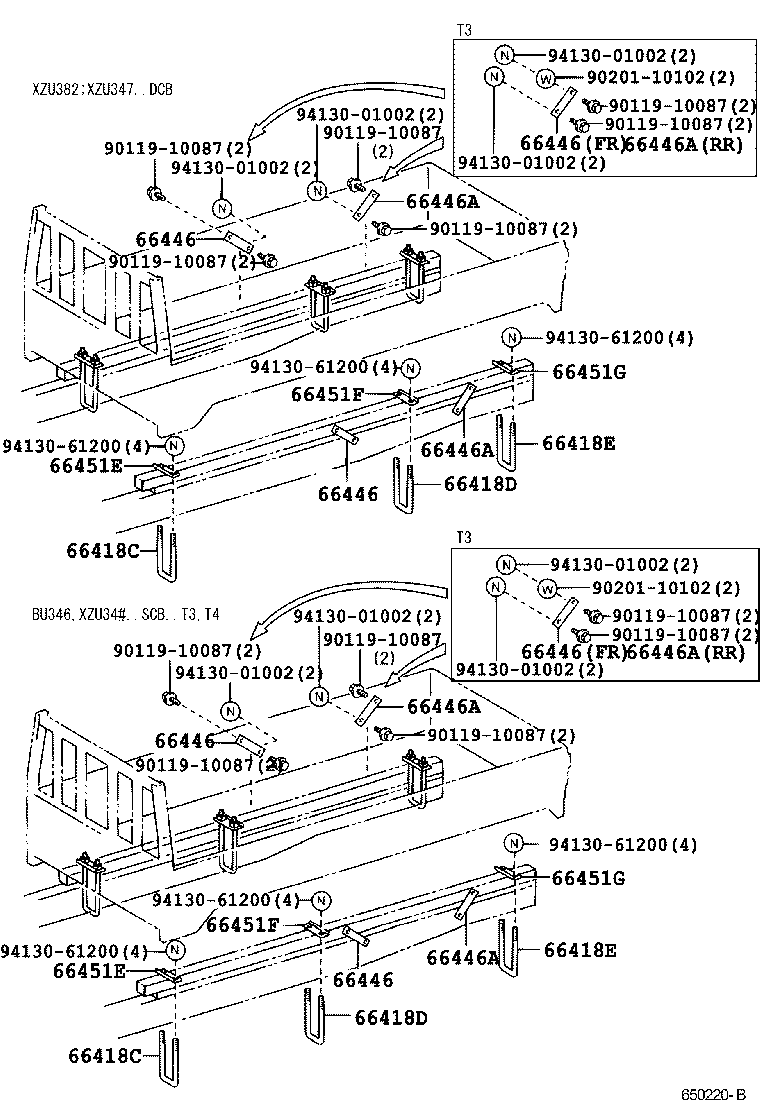

Figure 650221A 650221A 1999-05 → 2004-06 Figure 650221A 650221A 2004-06 → — Figure 650222A 650222A 1999-05 → 2004-06 Figure 650222A 650222A 2004-06 → — Figure 650223A 650223A 1999-05 → 2004-06 Figure 650223A 650223A 2004-06 → — Figure 650220B 650220B 1999-05 → 2004-06 Figure 650227C 650227C 1999-05 → 2004-06 Figure 650227C 650227C 2000-05 → 2002-06 Figure 650219D 650219D 1999-05 → 2004-06 Figure 650219D 650219D 2004-06 → — Figure 650391D 650391D 2002-06 → 2004-06 Figure 650391D 650391D 2004-06 → — Figure 650390D 650390D 2002-06 → 2004-06 Figure 650390D 650390D 2004-06 → — Figure 650459A 650459A 2003-10 → 2004-06 Figure 650616B 650616B 2004-06 → —

Part groups

PNCDescription
66418 Bolt, Mounting
66418C Bolt, U, Front
66418D Bolt, U, Center
66418E Bolt, U, Rear
66439 Shim, Support
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66446A Brace, Frame TO Rear Body Floor
66451E Plate, U Bolt, Front
66451F Plate, U Bolt, Center
66451G Plate, U Bolt, Rear
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
