Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

21 part groups · 8 illustrations

Illustrations

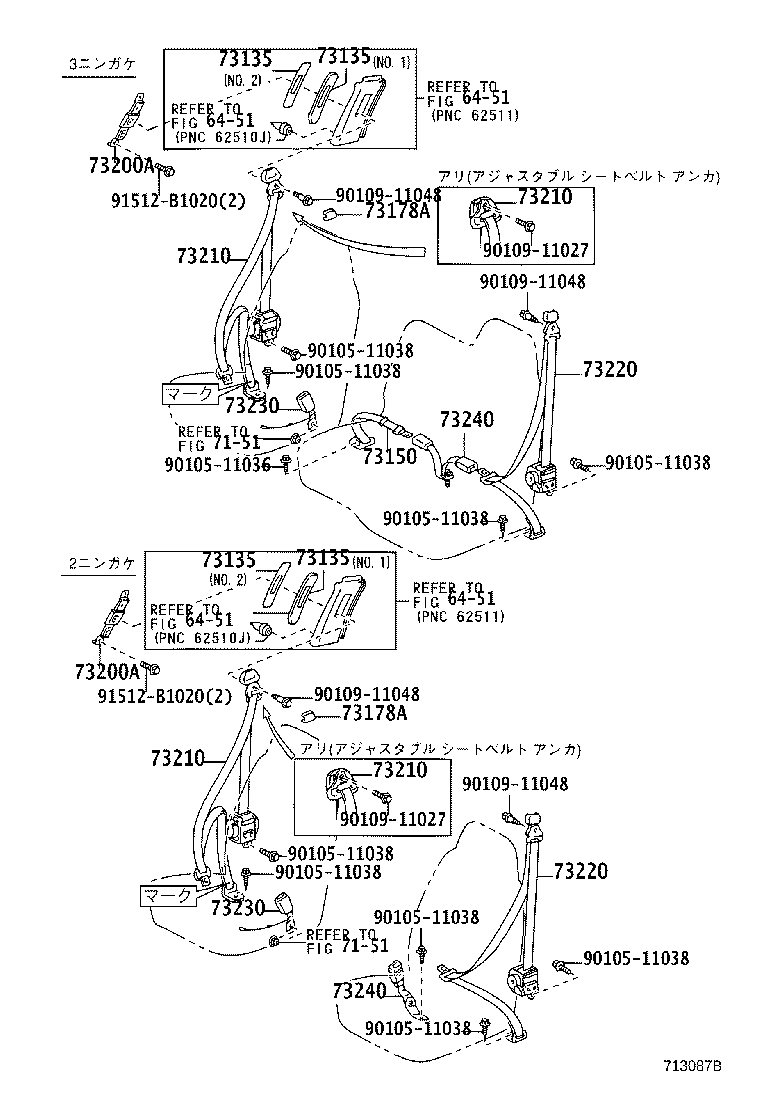

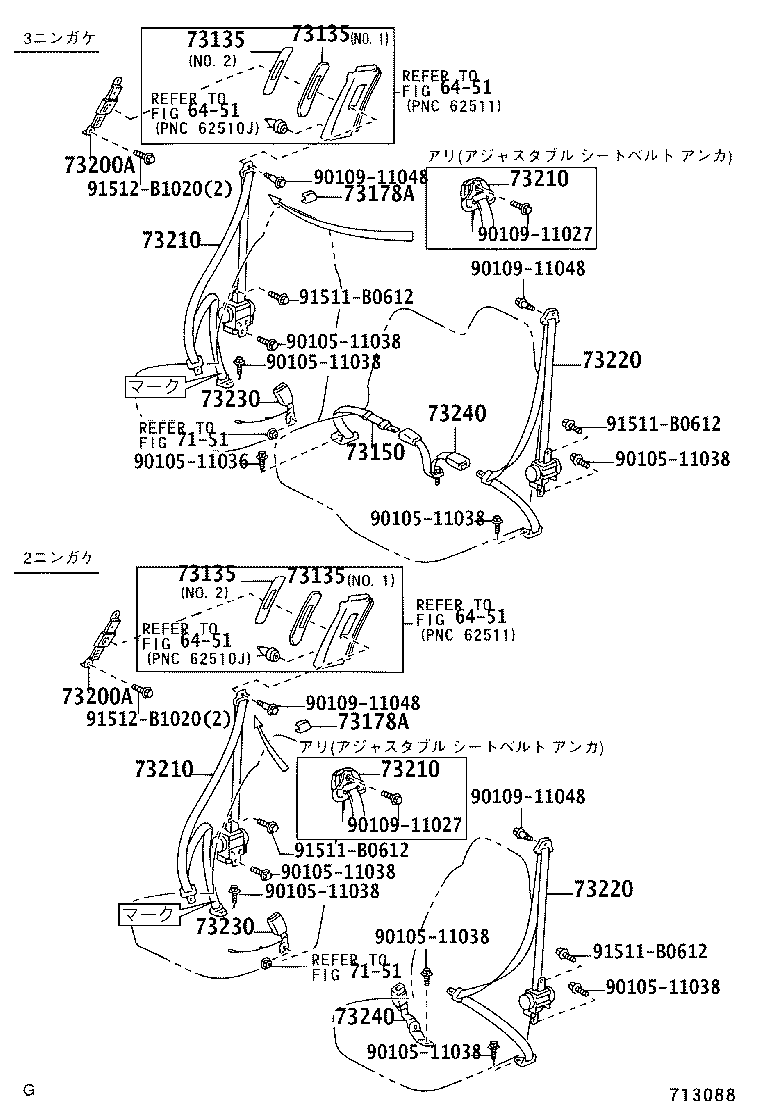

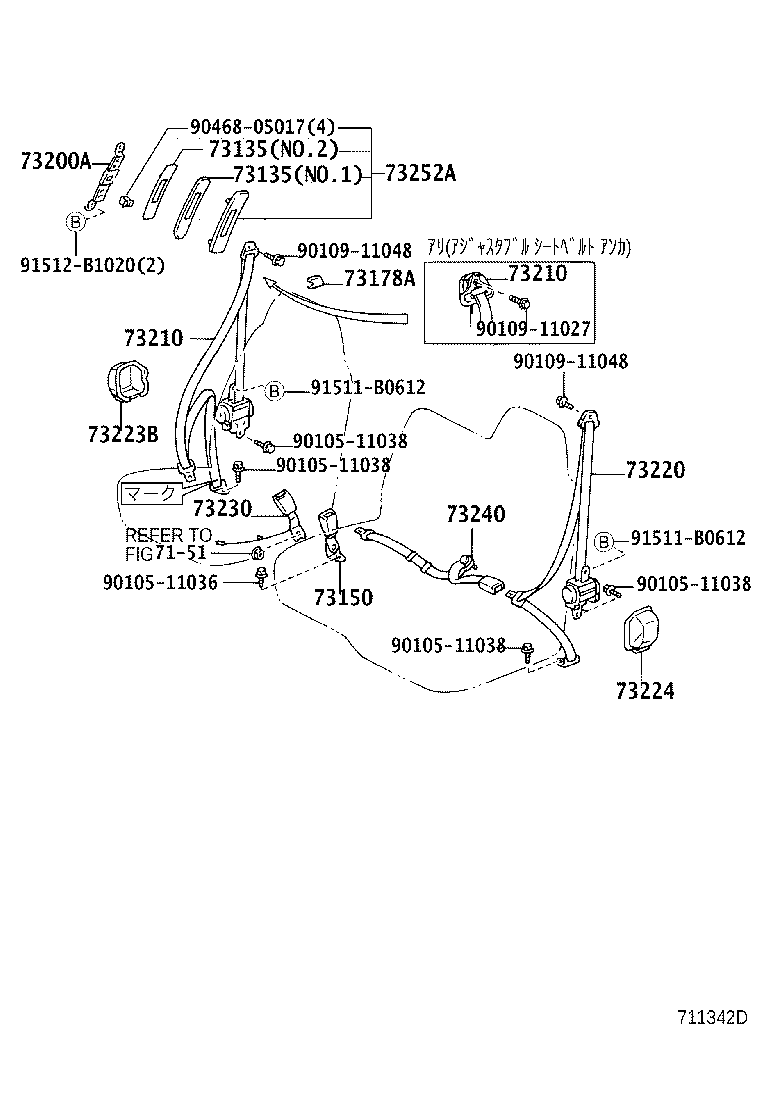

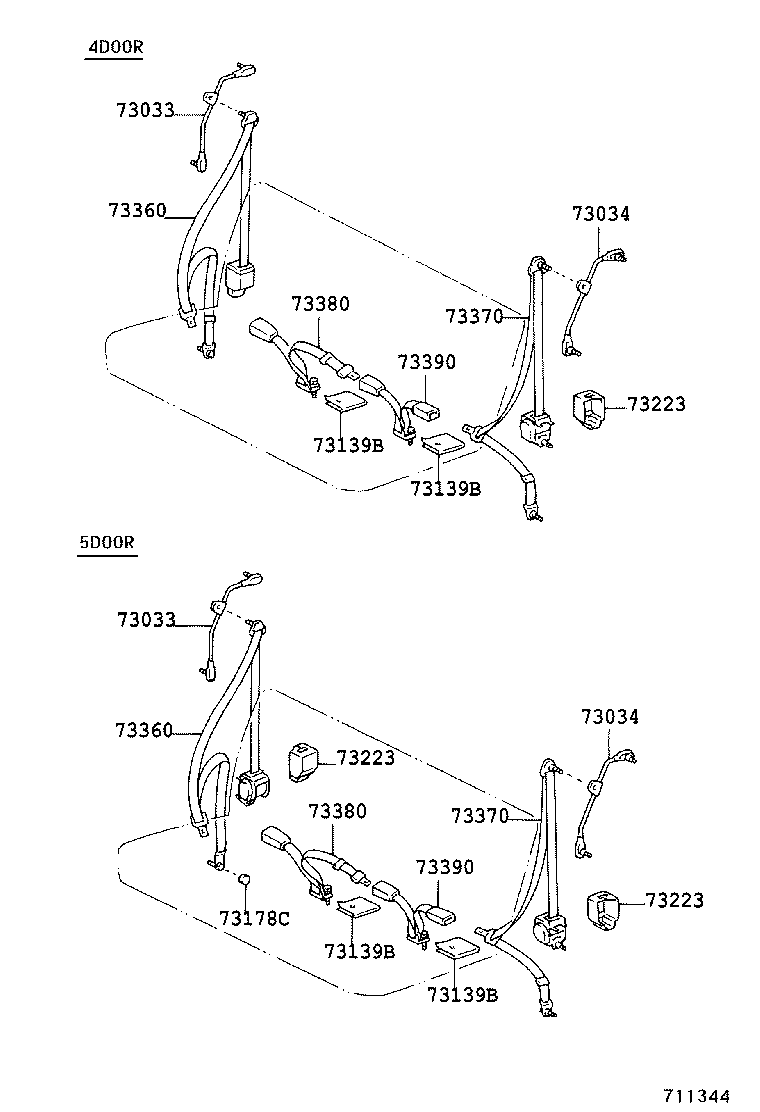

Figure 711341F 711341F 1999-05 → 2004-06 Figure 713087B 713087B 2003-10 → 2004-06 Figure 713087B 713087B 2004-06 → — Figure 713088A 713088A 2003-10 → 2004-06 Figure 713088A 713088A 2004-06 → — Figure 711342D 711342D 1999-05 → — Figure 711343 711343 1999-05 → — Figure 711344 711344 1999-05 → —

Part groups

PNCDescription
73033 Plate Sub-assy, Rear Shoulder Belt Anchor, RH
73034 Plate Sub-assy, Rear Shoulder Belt Anchor, LH
73135 Cover, Shoulder Belt Anchorage Plate
73139B Cover, Seat Belt Anchor
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252 Cover, Shoulder Belt Anchor Adjust, RH
73252A Cover, Shoulder Belt Anchor Adjust
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
