Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

14 part groups · 10 illustrations

Illustrations

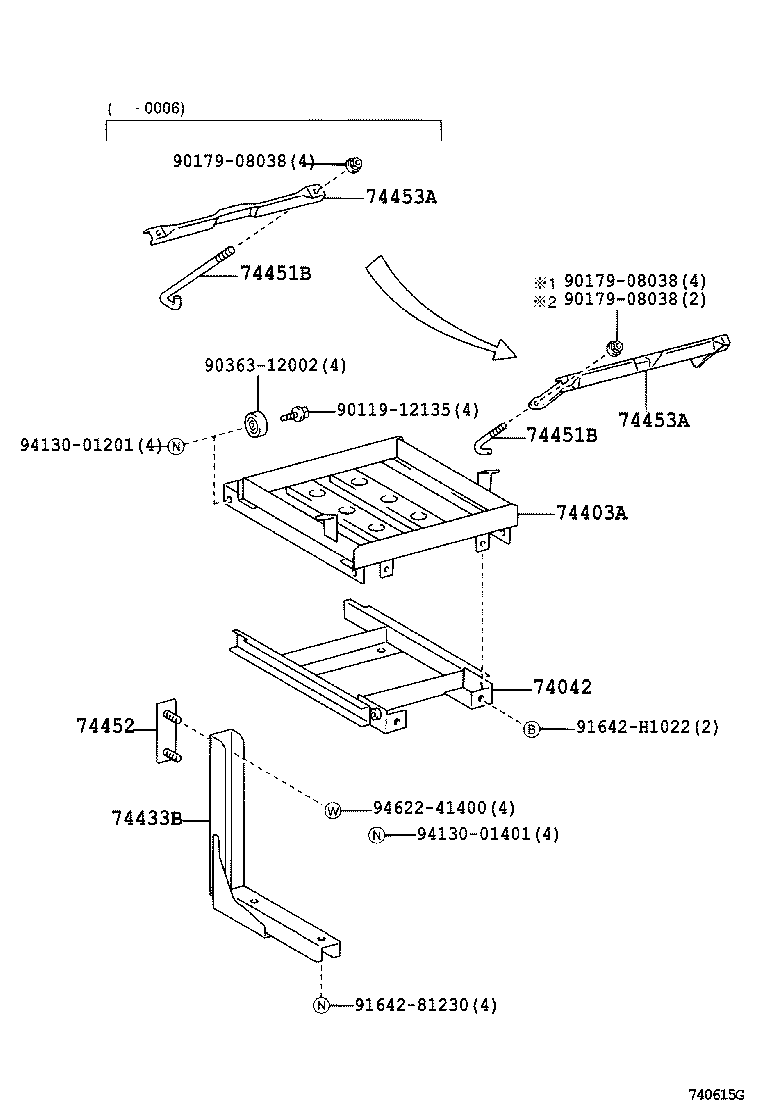

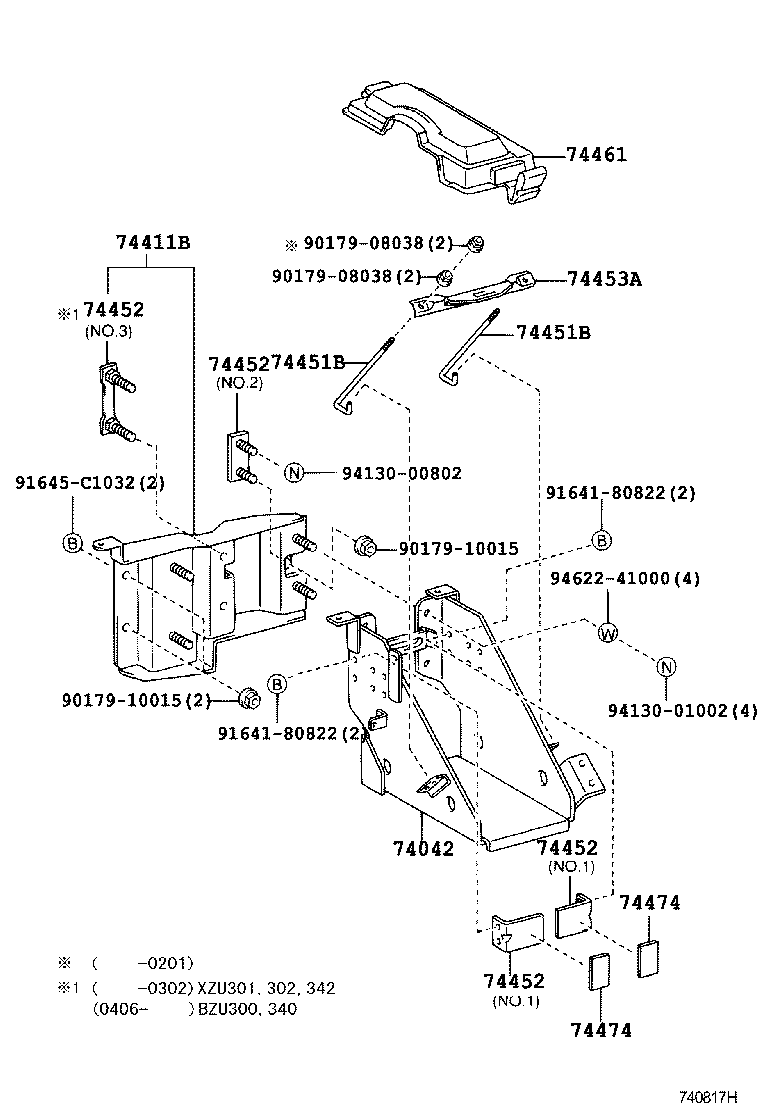

Figure 740605C 740605C 1999-05 → — Figure 740613C 740613C 1999-05 → — Figure 740613C 740613C 1999-05 → — Figure 740613C 740613C 1999-05 → — Figure 740613C 740613C 2004-06 → — Figure 740614F 740614F 1999-08 → — Figure 740615G 740615G 1999-08 → 2004-06 Figure 740736B 740736B 2000-05 → — Figure 740737B 740737B 2000-05 → — Figure 740817H 740817H 2000-10 → —

Part groups

PNCDescription
74042 Bracket Sub-assy, Battery
74402C Bracket Sub-assy, Battery Carrier, Rear
74403A Carrier Sub-assy, Battery
74411B Bracket, Battery, Front
74417 Bracket, Battery Carrier
74419 Plate, Battery Seat
74433B Support, Battery Tray, NO.1
74451B Bolt, Battery Clamp
74452 Plate, Battery Set
74453A Bar, Battery Set Plate
74461 Cover, Battery
74473 Spacer, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
