Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

29 part groups · 23 illustrations

Illustrations

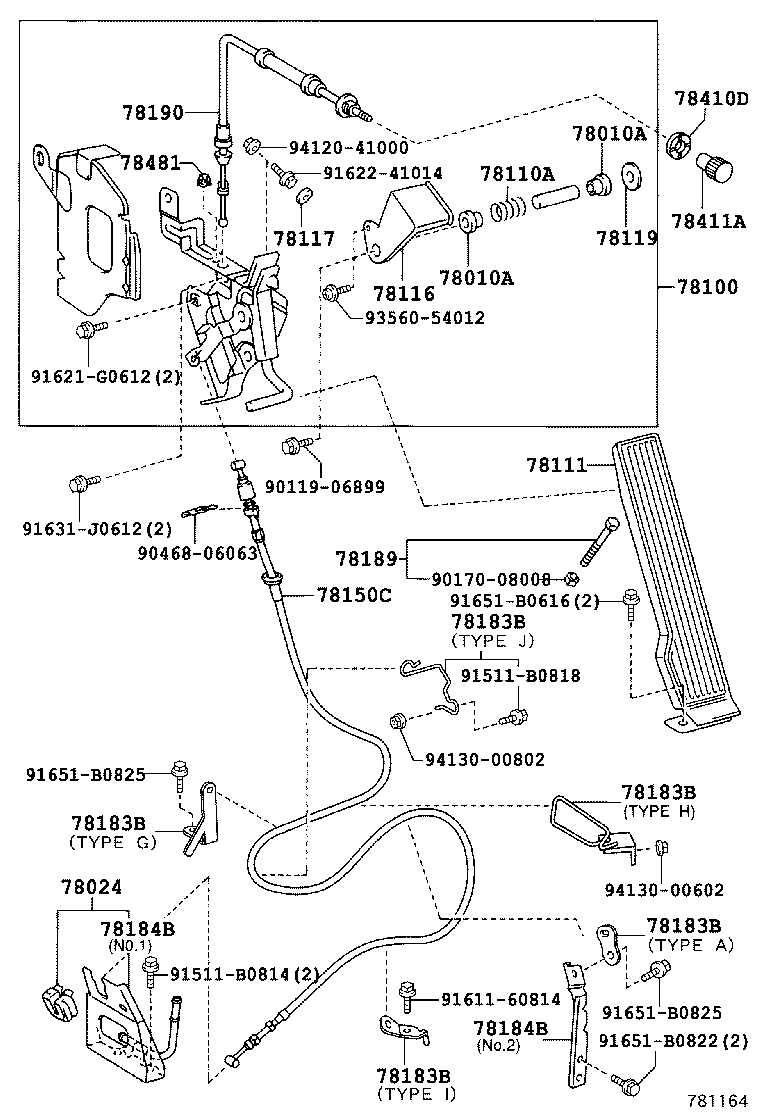

Figure 780398H 780398H 1999-05 → 2004-06 Figure 780794C 780794C 2003-10 → — Figure 780794C 780794C 2003-10 → — Figure 780794C 780794C 2004-06 → — Figure 780794C 780794C 2004-06 → — Figure 780842 780842 2004-06 → — Figure 780399K 780399K 1999-05 → — Figure 780399K 780399K 1999-05 → — Figure 780399K 780399K 1999-05 → — Figure 780400H 780400H 1999-05 → — Figure 780489F 780489F 2000-05 → 2007-03 Figure 780490E 780490E 2000-05 → 2007-03 Figure 780490E 780490E 2003-06 → 2007-03 Figure 780491D 780491D 2000-05 → — Figure 780491D 780491D 2003-06 → — Figure 781162 781162 2007-03 → — Figure 781164 781164 2007-03 → — Figure 780482B 780482B 1999-05 → — Figure 780484E 780484E 1999-05 → — Figure 780484E 780484E 1999-05 → — Figure 780483D 780483D 1999-05 → — Figure 780483D 780483D 1999-05 → — Figure 780483D 780483D 1999-05 → —

Part groups

PNCDescription
78010A Bush (FOR ACCELERATOR LINK)
78024 Bracket Sub-assy, Accelerator Control Cable

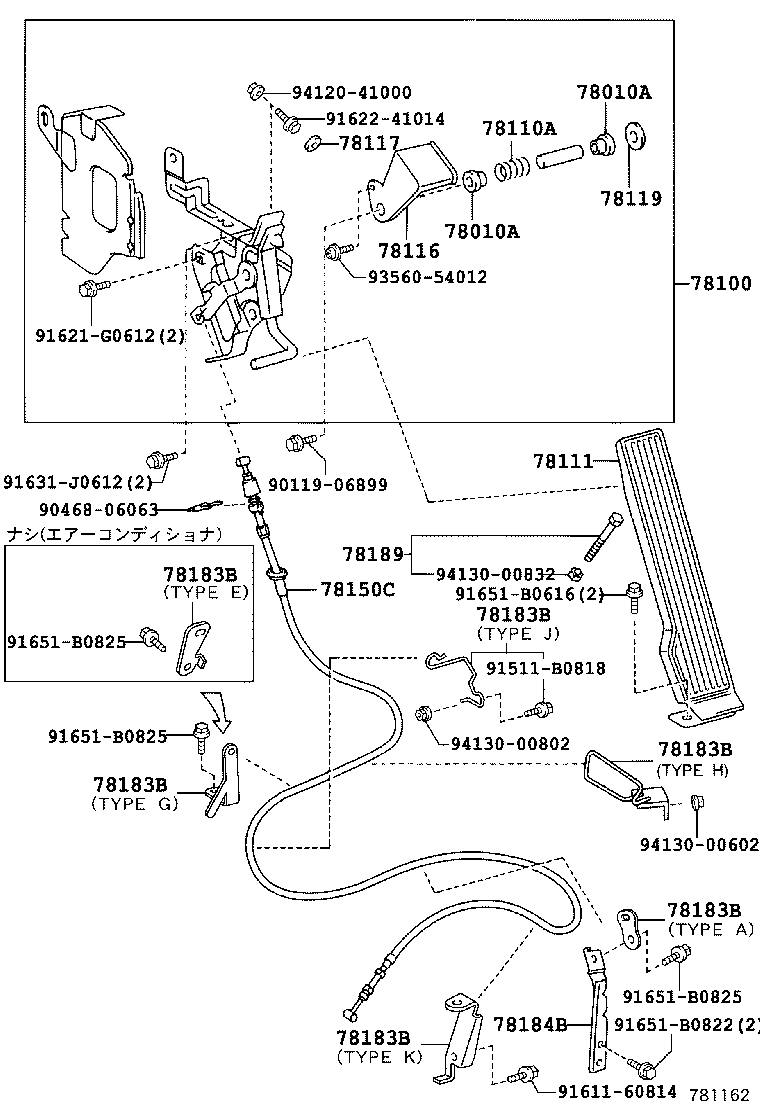

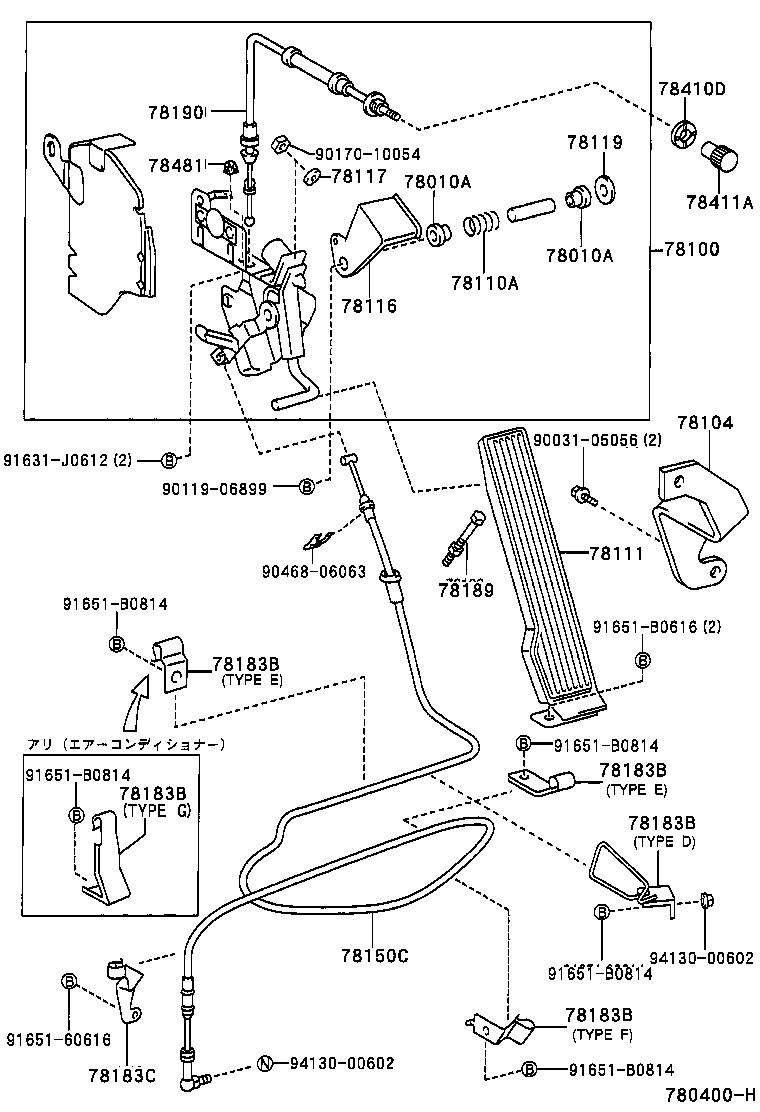

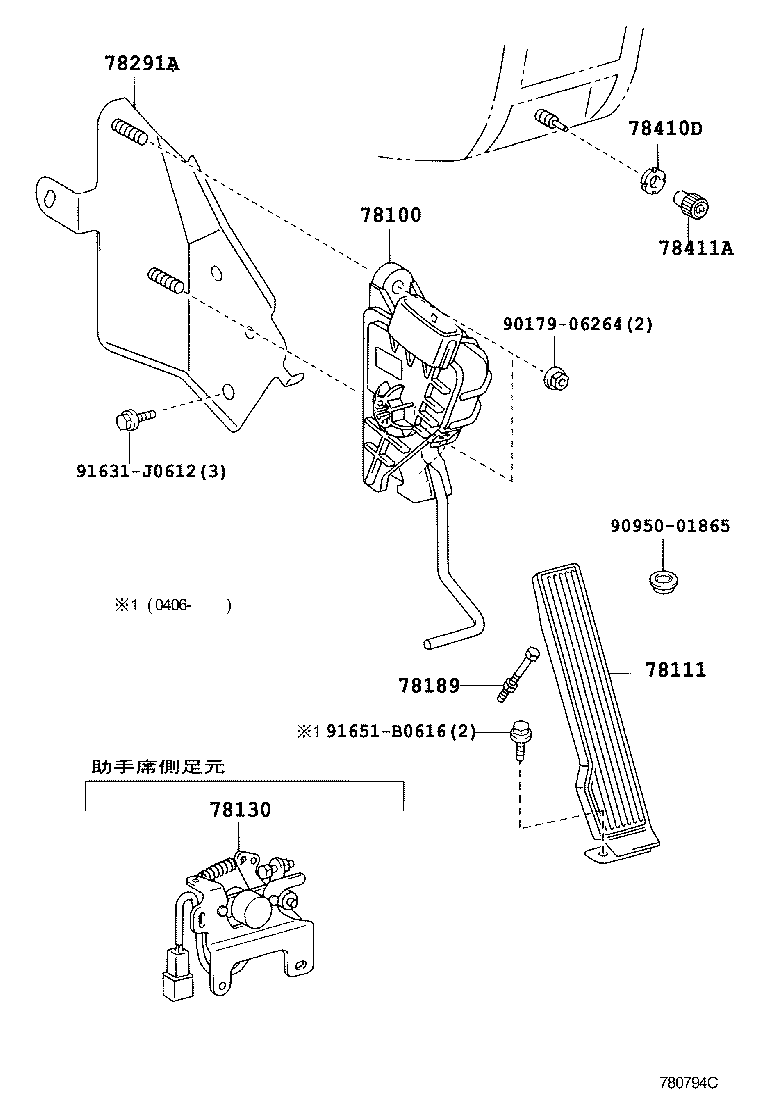

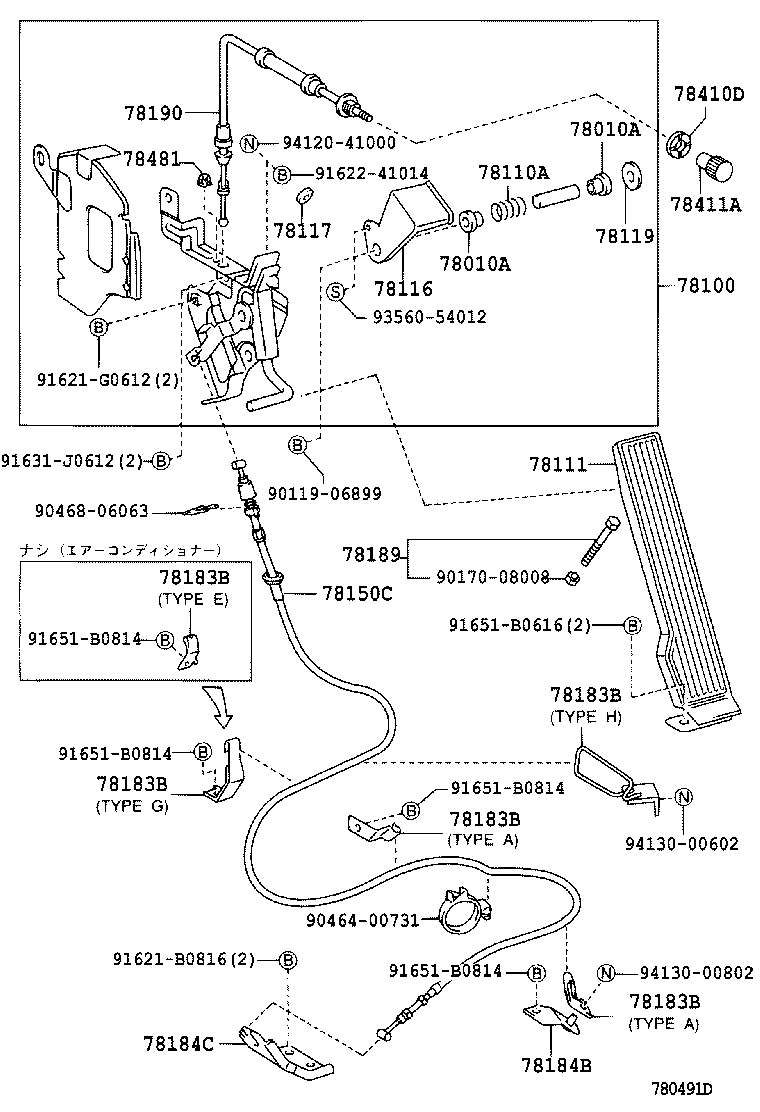

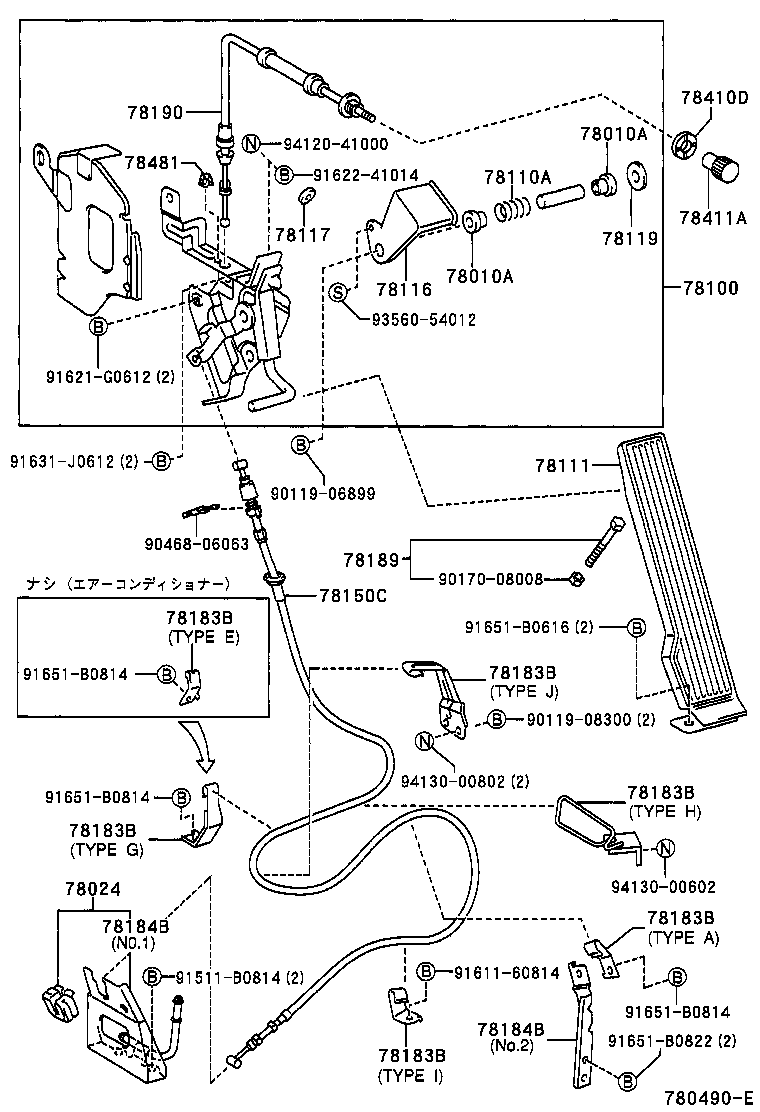

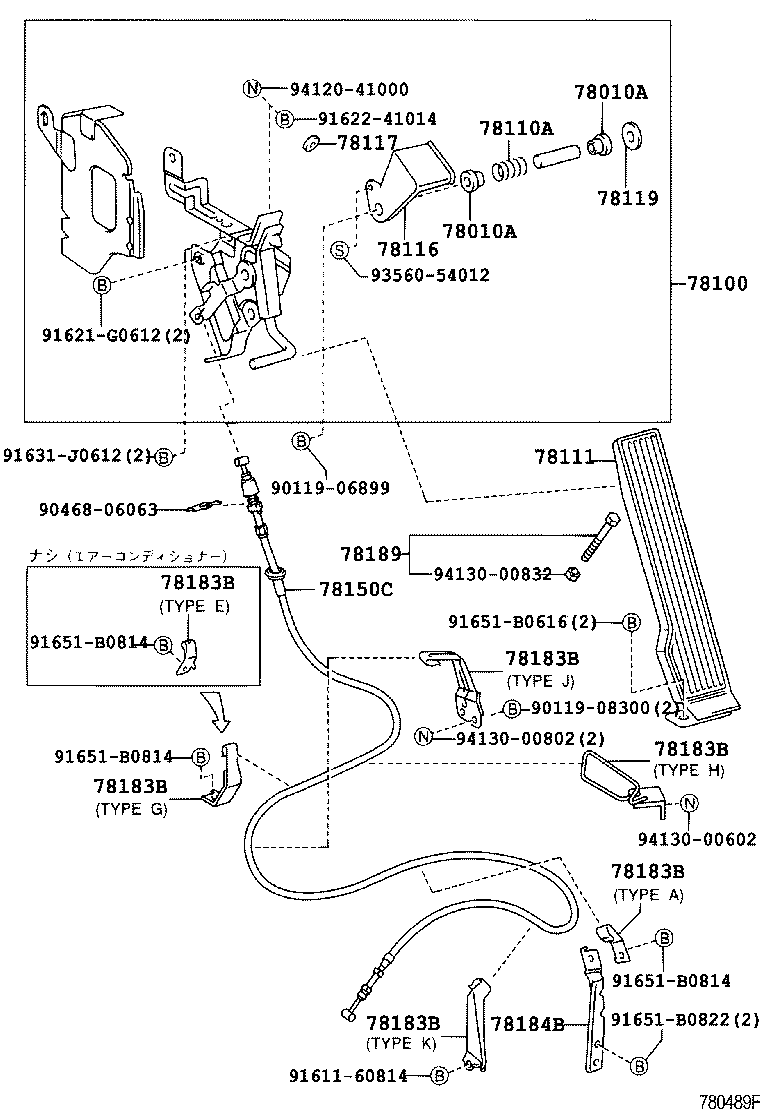

78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78116 Cover, Accelerator Pedal Rod
78117 Cushion (FOR ACCELERATOR ROD)
78118B Stopper, Accelerator Pedal
78119 Stopper, Accelerator Pedal Rod

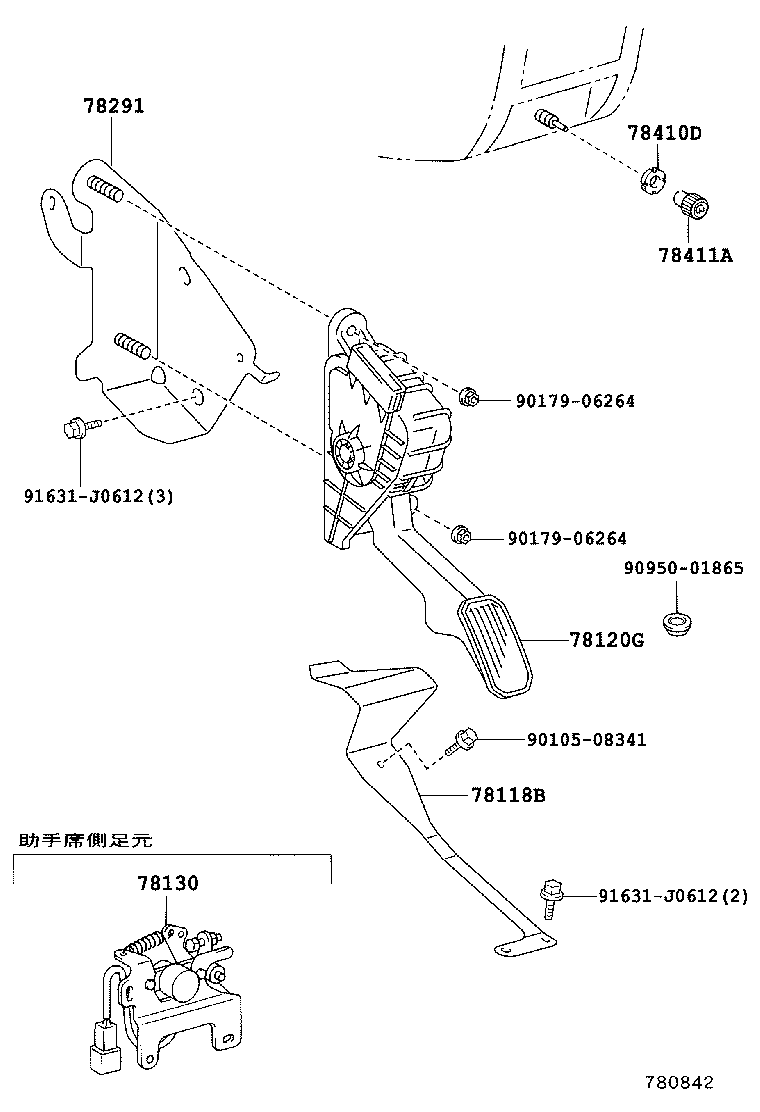

78120G Rod Assy, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78150C Wire Assy, Accelerator Flexible

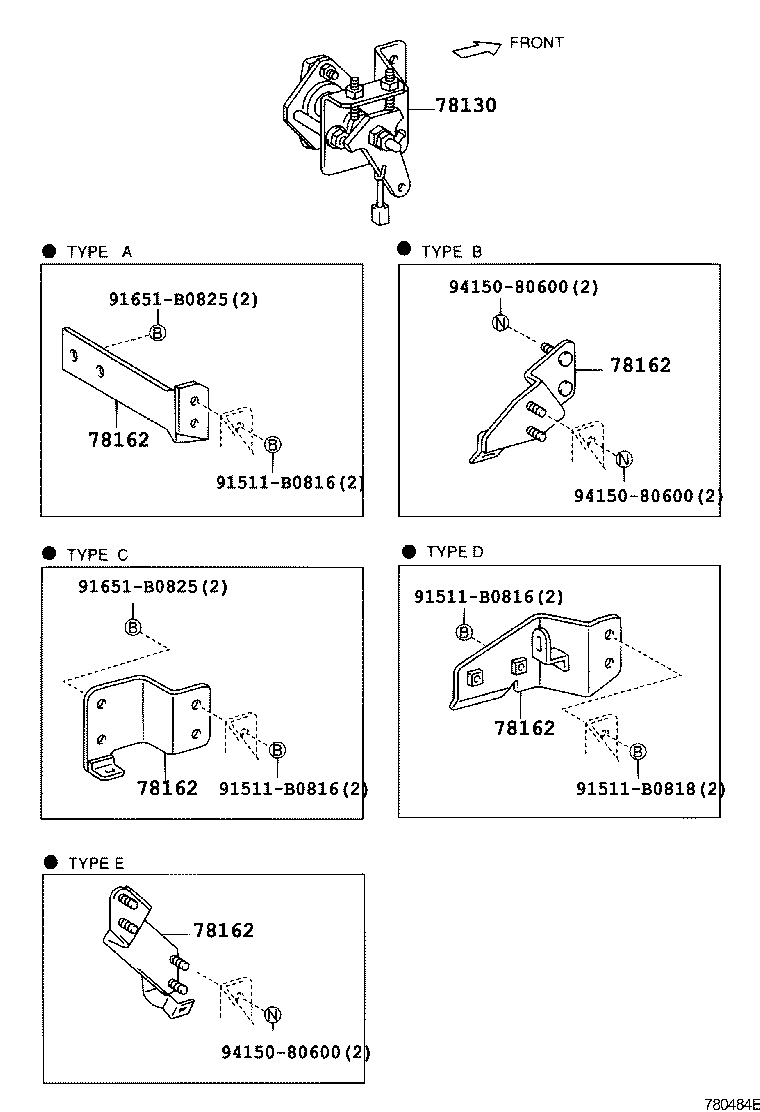

78162 Bracket, Control Bellcrank
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78183D Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78184E Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78190 Cable Assy, Accel Control W/Throttle
78199B Pin, Accelerator Control Rod Joint
78291 Pin, Accelerator Link Bracket
78291A Bracket, Accelerator Link
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78481 Clamp, Throttle Wire
