Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

8 part groups · 3 illustrations

Illustrations

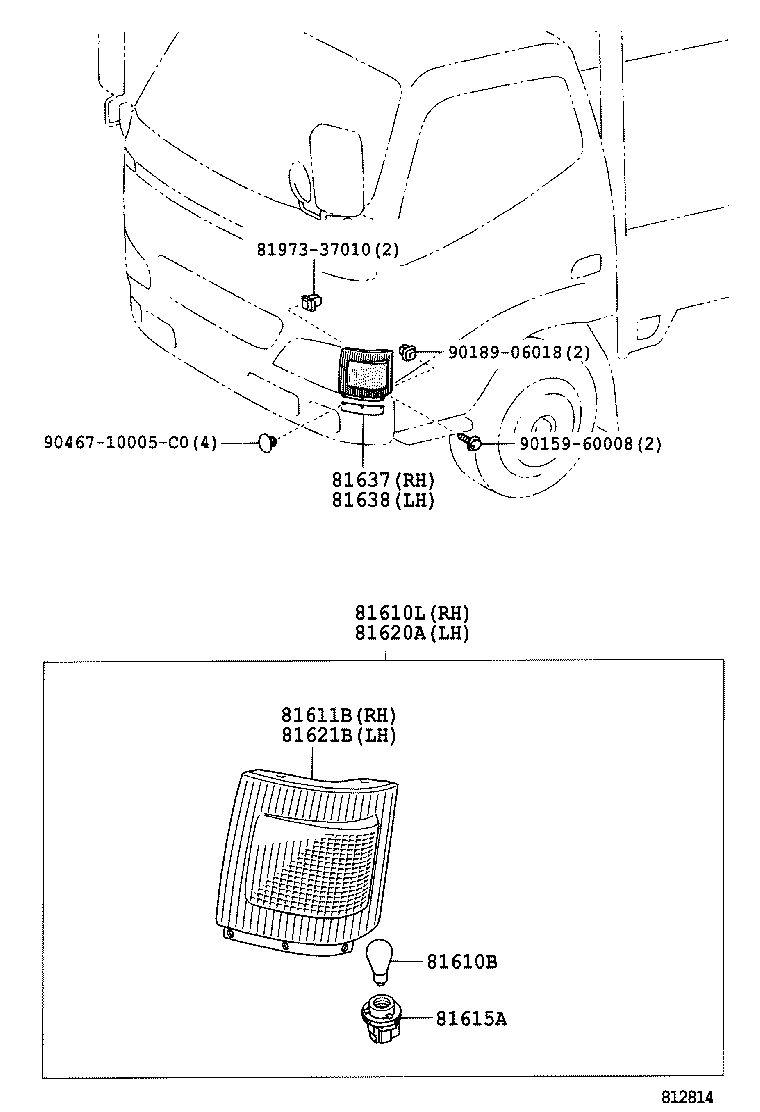

Figure 811099D 811099D 1999-05 → 2002-06 Figure 811099D 811099D 2002-06 → 2004-06 Figure 812814 812814 2004-06 → —

Part groups

PNCDescription
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81610L Lamp Assy, Clearance, RH
81611B Lens & Body, Clearance Lamp, RH
81615A Socket Plug, Clearance Lamp
81620A Lamp Assy, Clearance, LH
81621B Lens & Body, Clearance Lamp, LH
81637 Protector, Clearance Lamp, RH
81638 Protector, Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
