Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

22 part groups · 7 illustrations

Illustrations

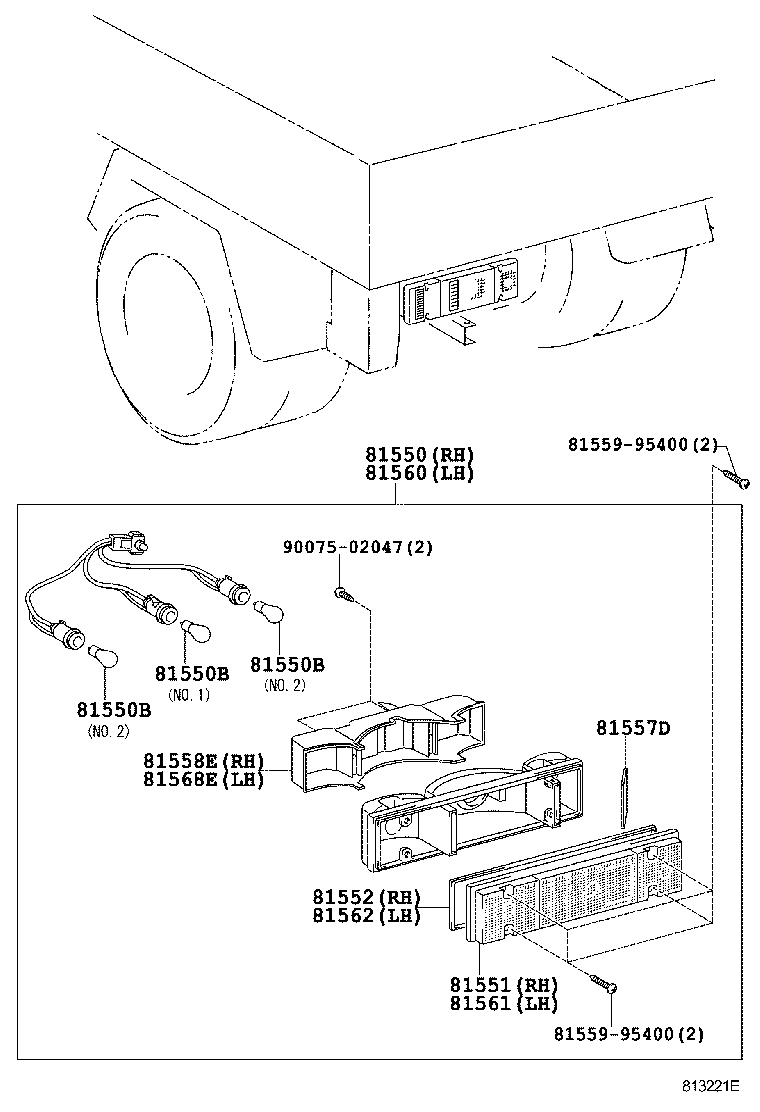

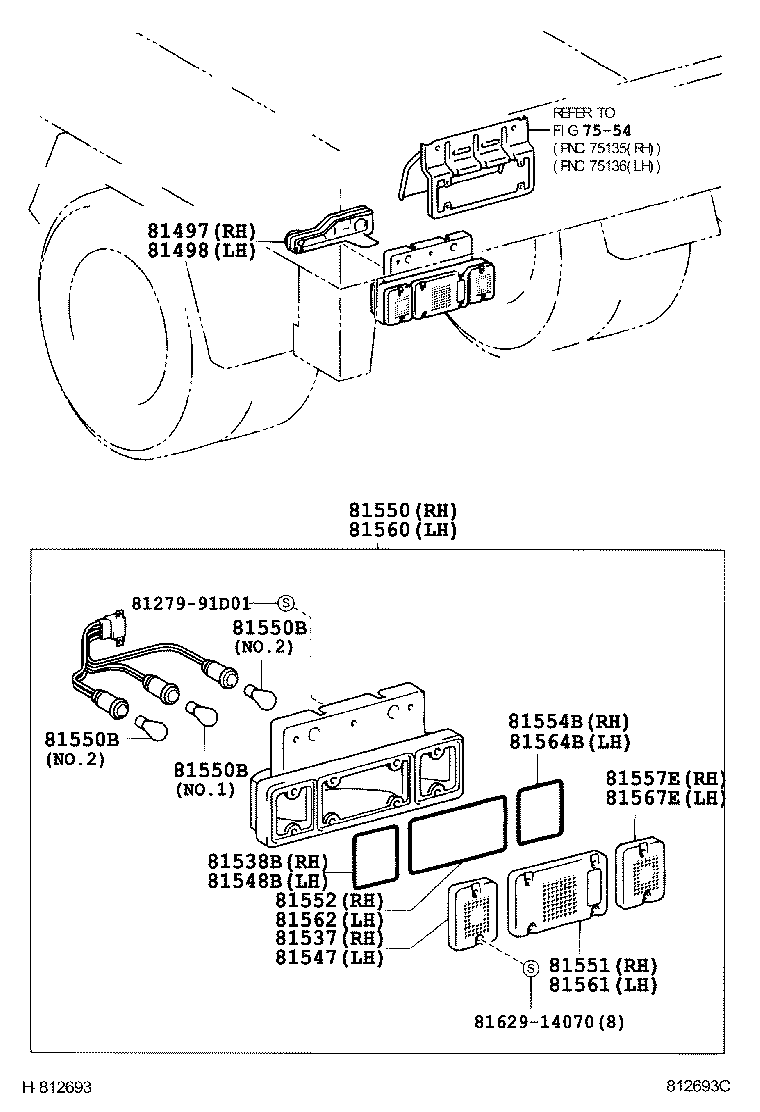

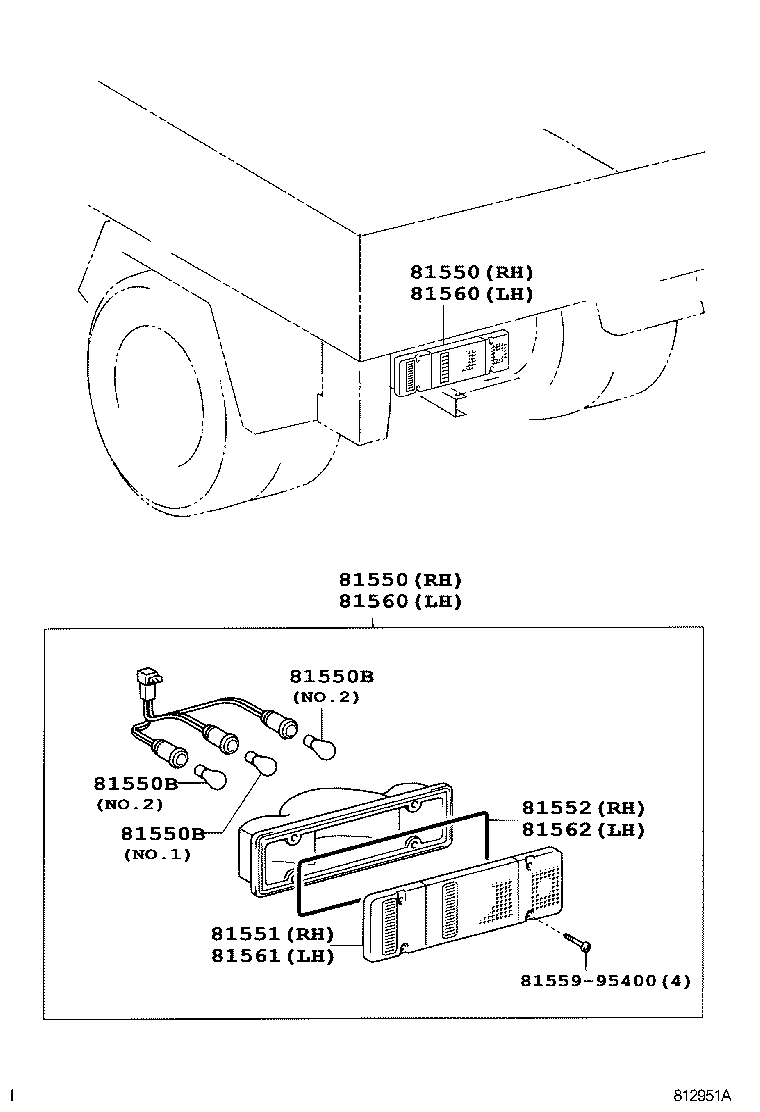

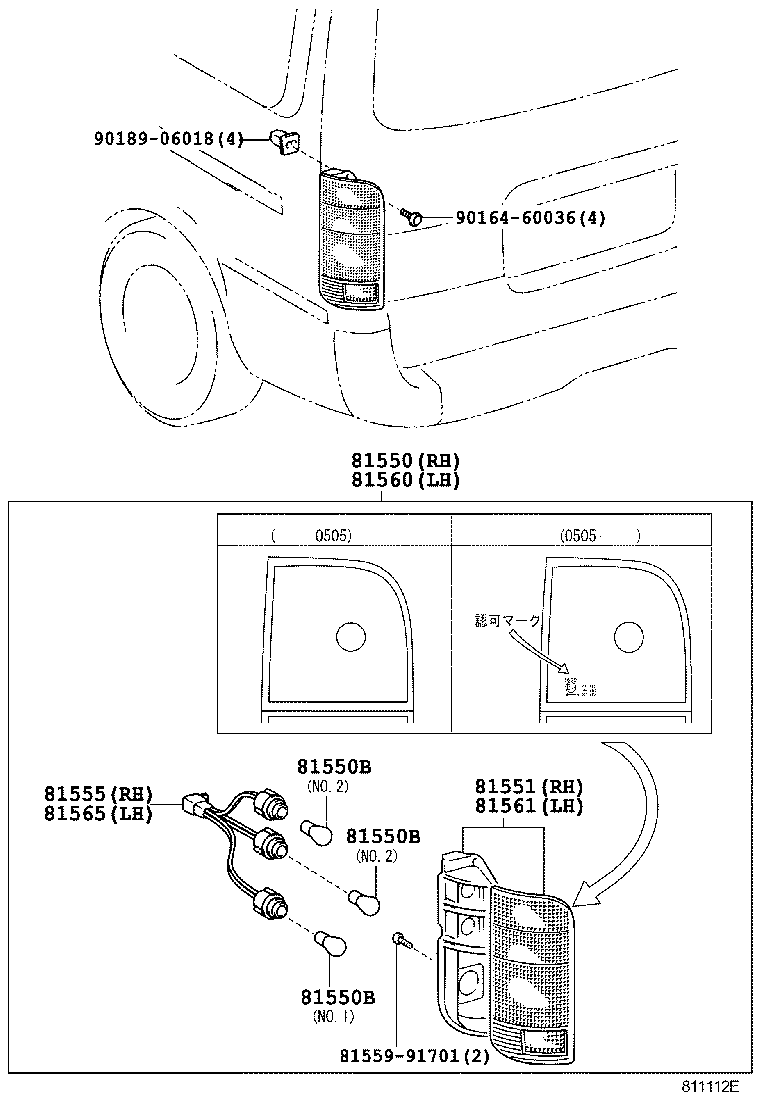

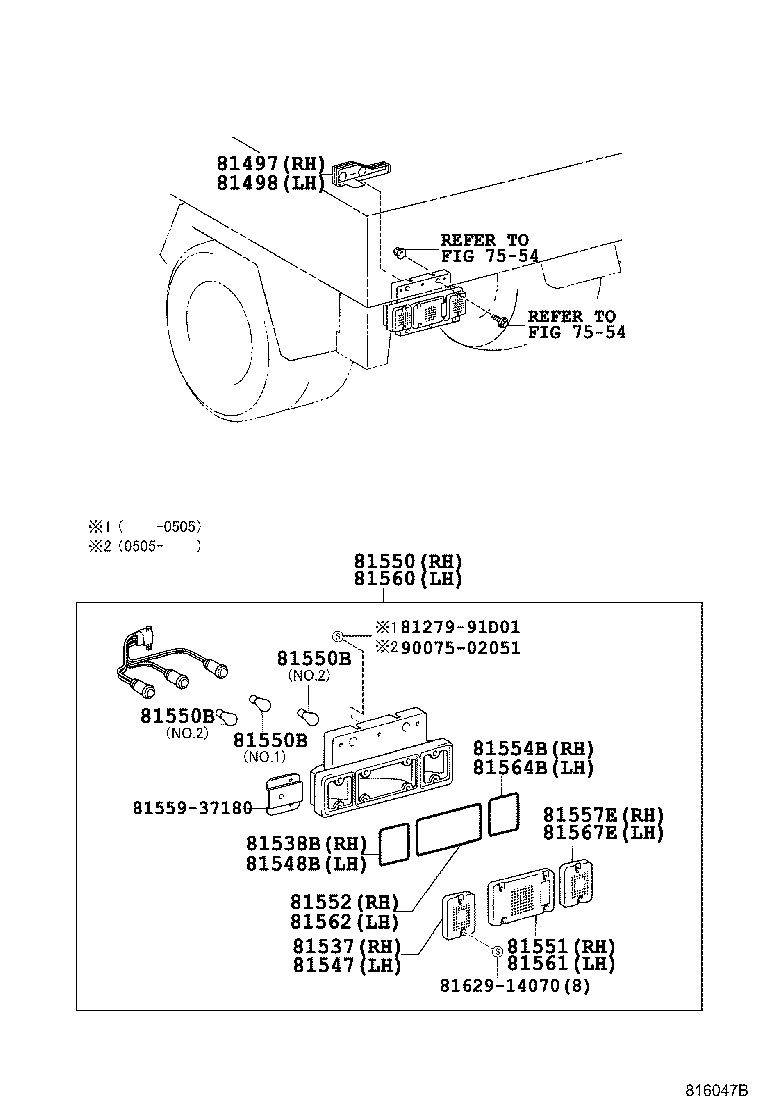

Figure 811113D 811113D 1999-05 → 2004-06 Figure 812693C 812693C 1999-05 → 2004-06 Figure 812951A 812951A 2004-06 → 2005-05 Figure 813221E 813221E 2005-05 → — Figure 813221E 813221E 2005-05 → — Figure 816047B 816047B 2004-06 → — Figure 811112E 811112E 1999-05 → 2006-10

Part groups

PNCDescription
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81537 Lens, Rear Combination Lamp, NO.3 RH
81538B Gasket, Rear Combination Lamp, NO.3 RH
81547 Lens, Rear Combination Lamp, NO.3 LH
81548B Gasket, Rear Combination Lamp, NO.3 LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554B Gasket, Rear Combination Lamp Body, NO.2 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81557D Reflector, Rear Combination Lamp
81557E Lens, Rear Combination Lamp, RH NO.2
81558E Cover, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564B Gasket, Rear Combination Lamp Body, NO.2 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81567E Lens, Rear Combination Lamp, LH NO.2
81568E Cover, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
