Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

8 part groups · 3 illustrations

Illustrations

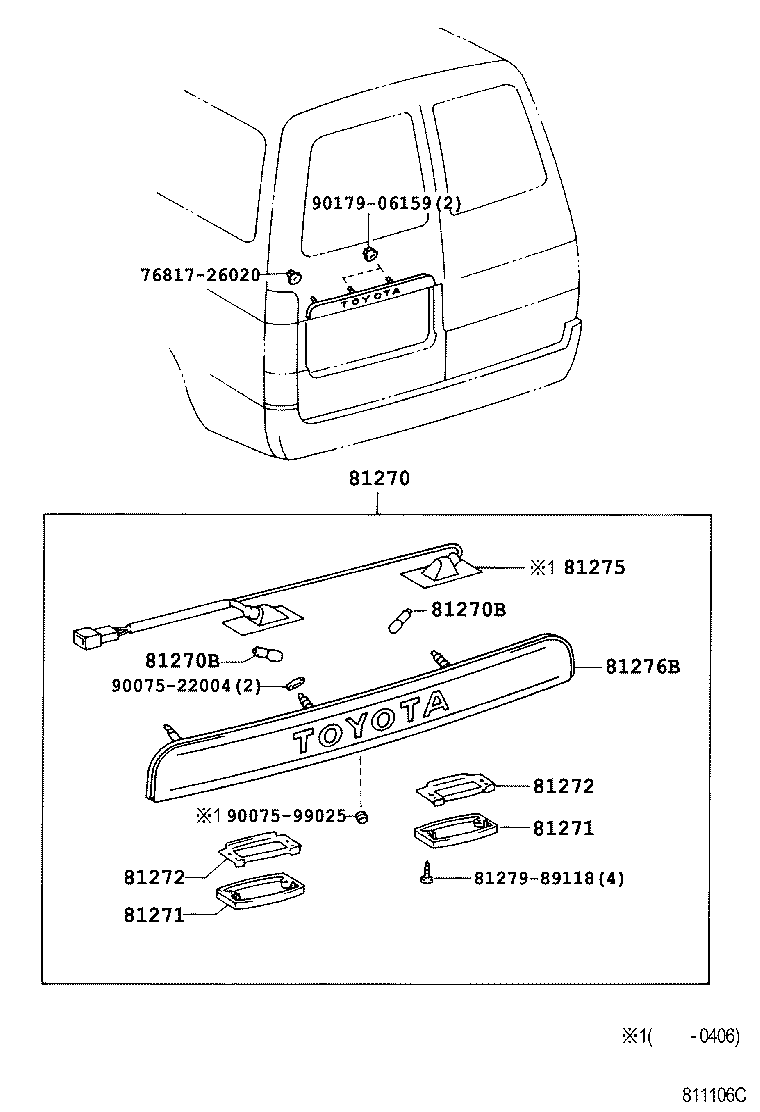

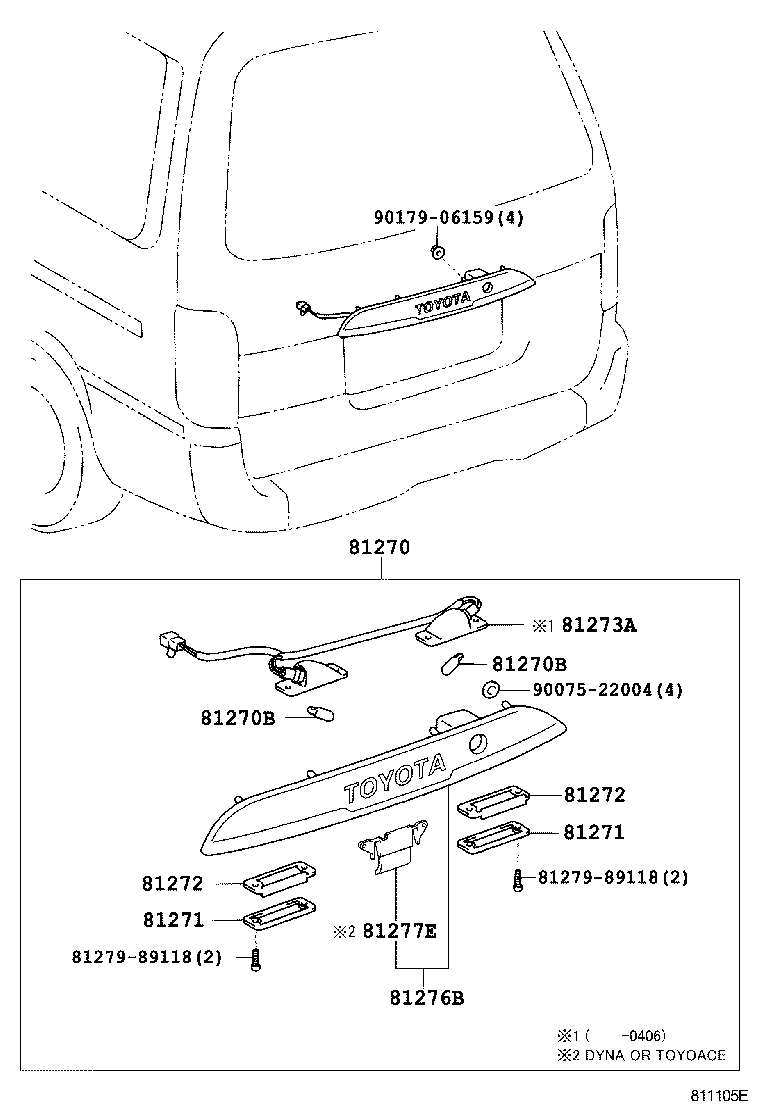

Figure 812682B 812682B 1999-05 → — Figure 811105E 811105E 1999-05 → 2006-10 Figure 811106C 811106C 1999-05 → 2006-10

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81273A Body, License Plate Lamp
81275 Socket And Wire, License Plate Lamp
81276B Cover, License Plate Lamp
81277E Handle, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
