Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

62 part groups · 33 illustrations

Illustrations

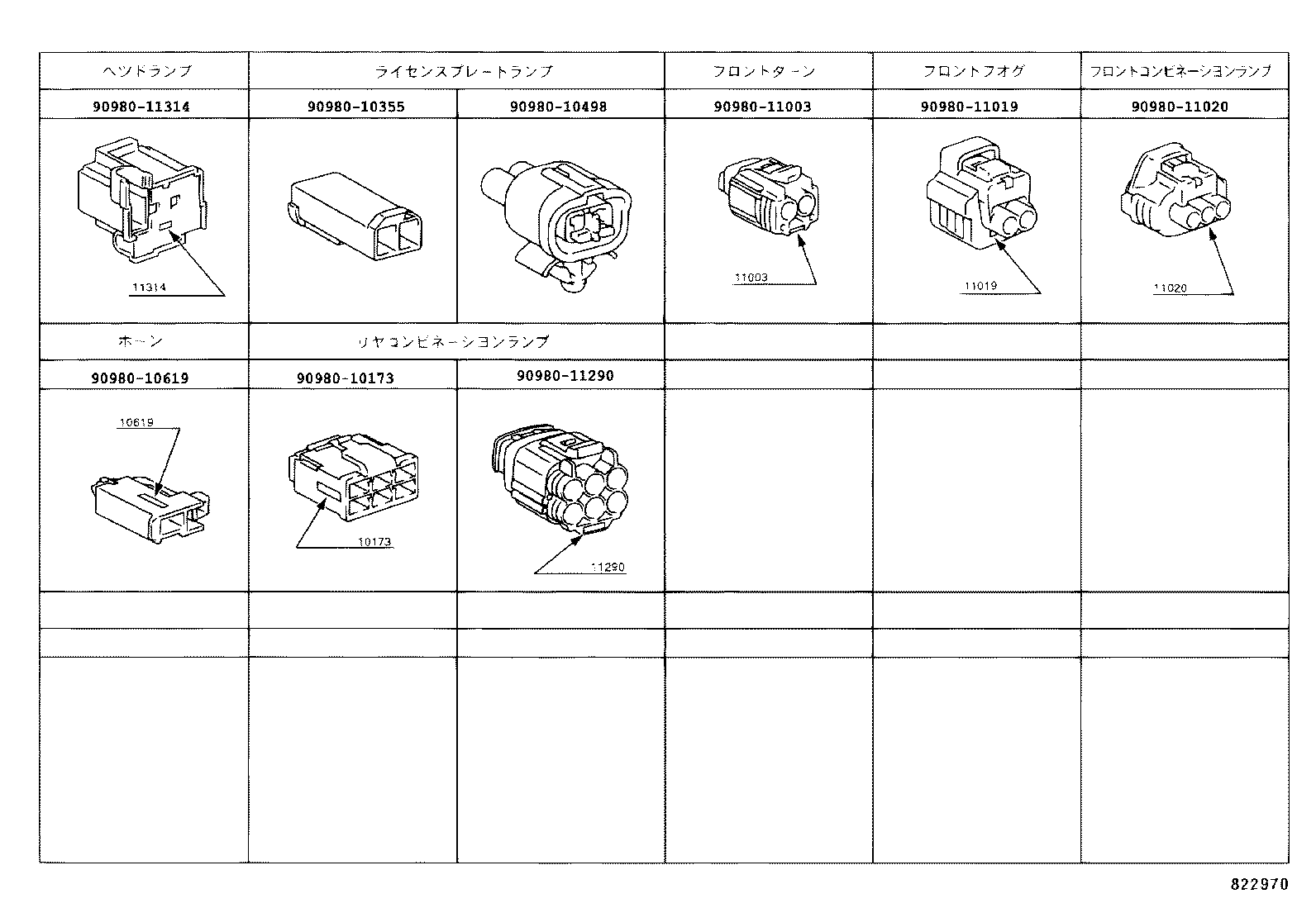

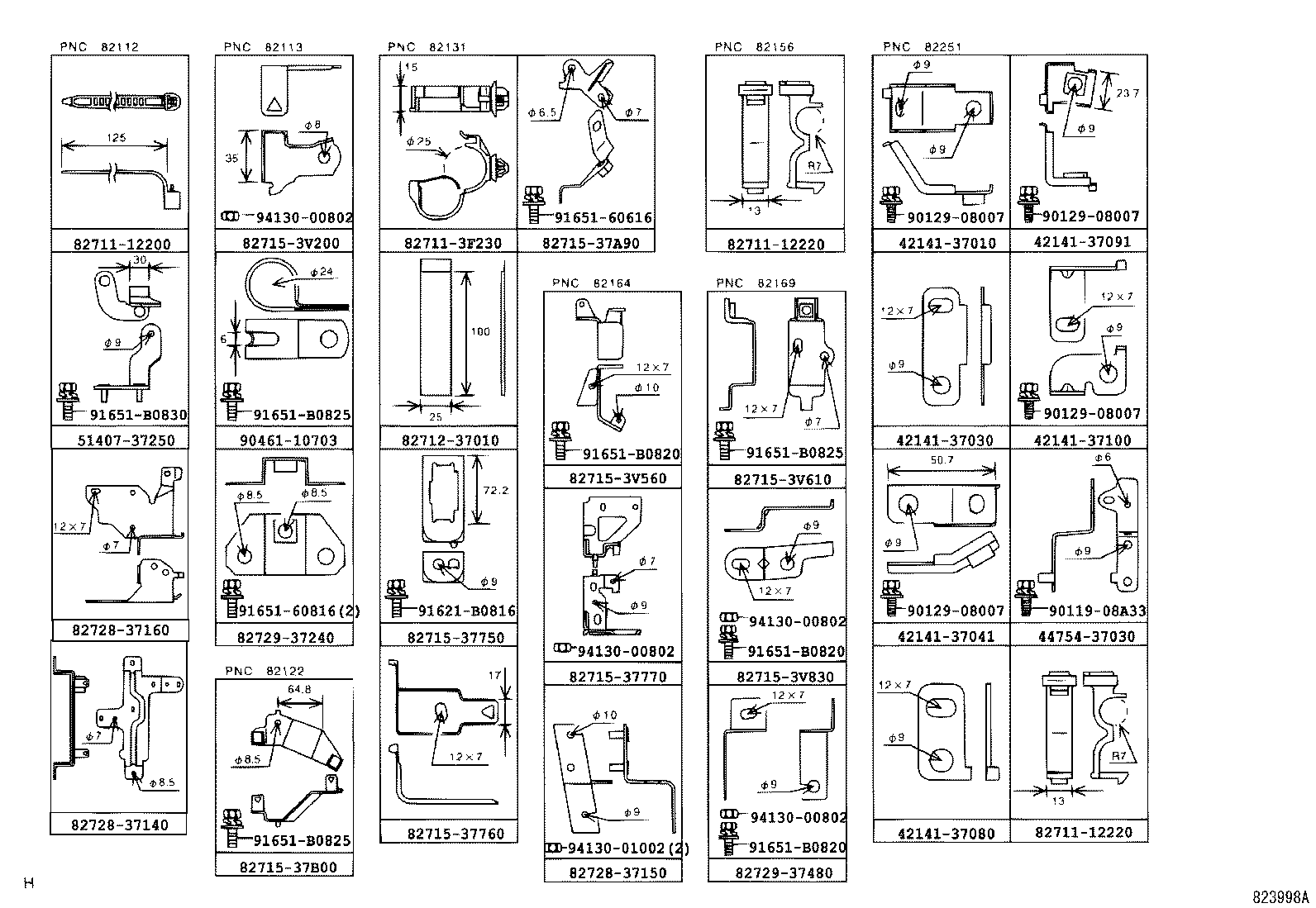

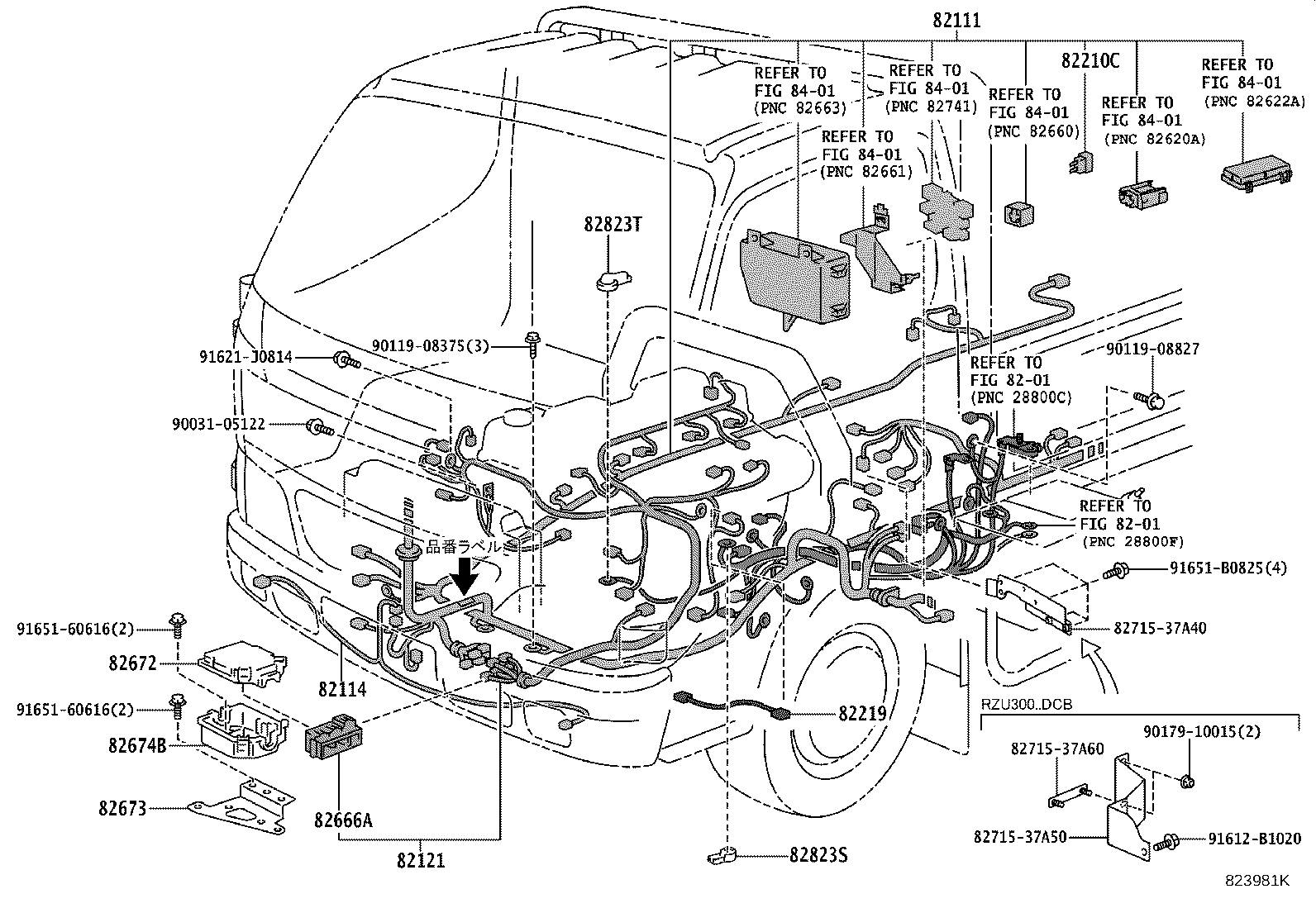

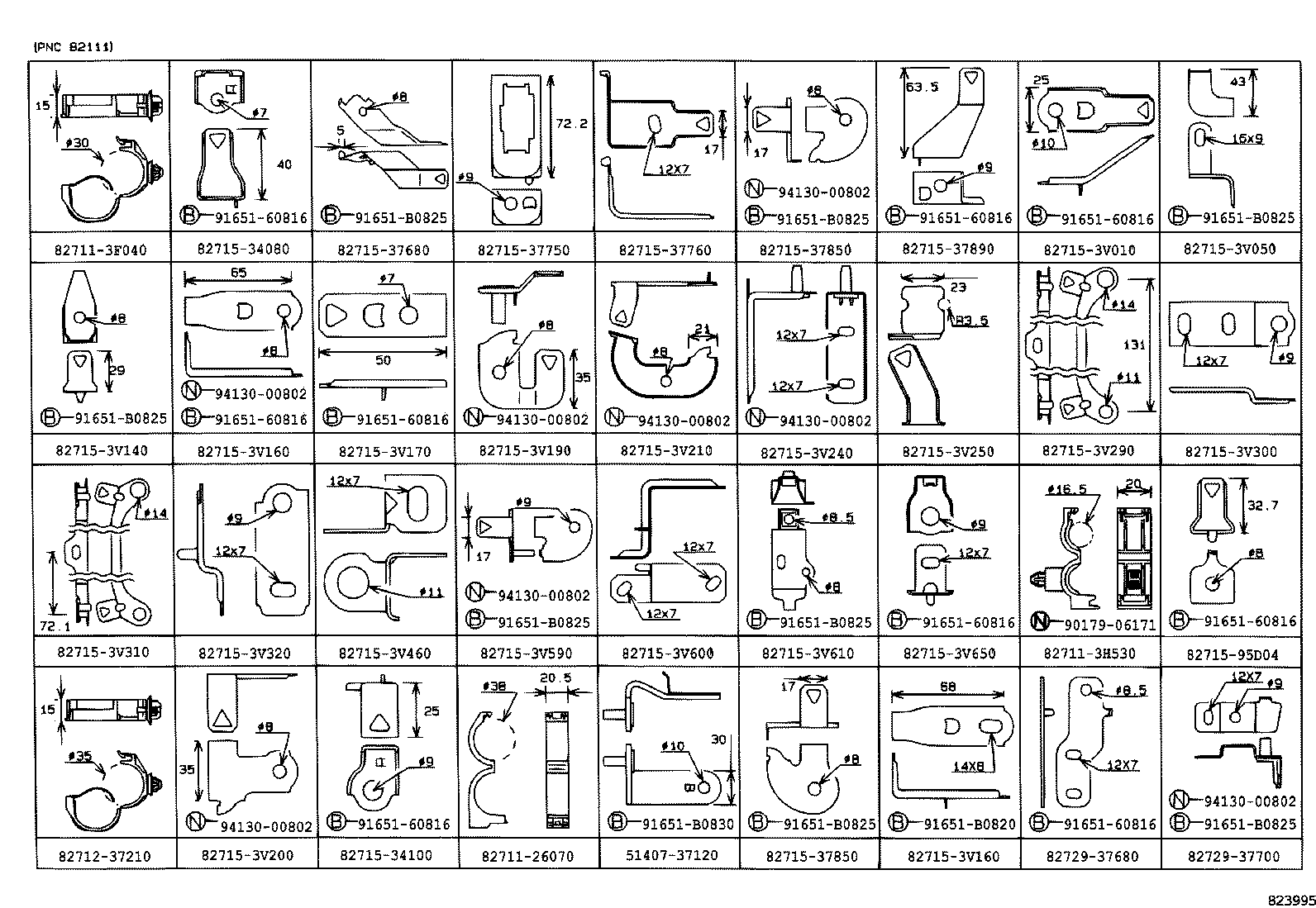

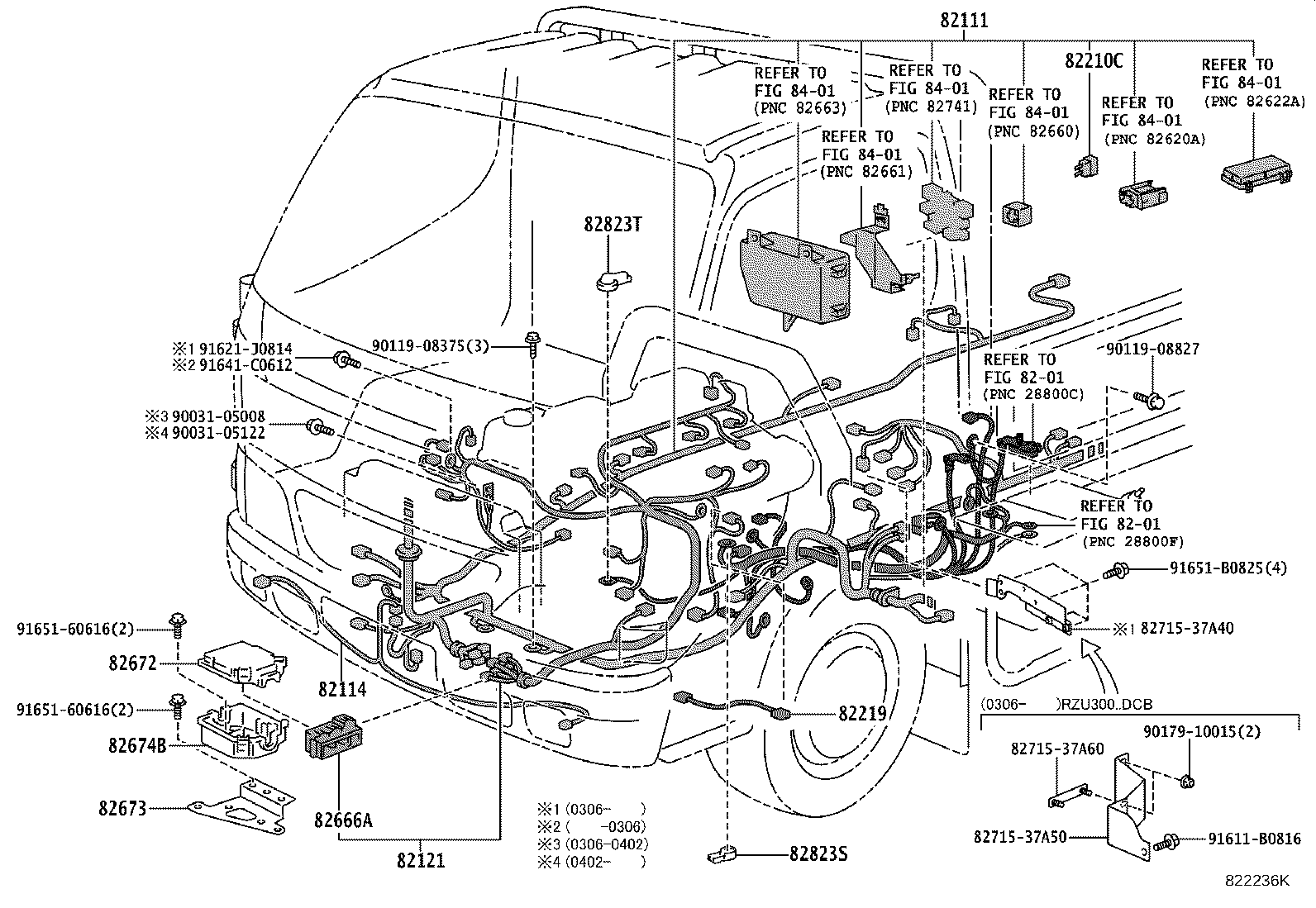

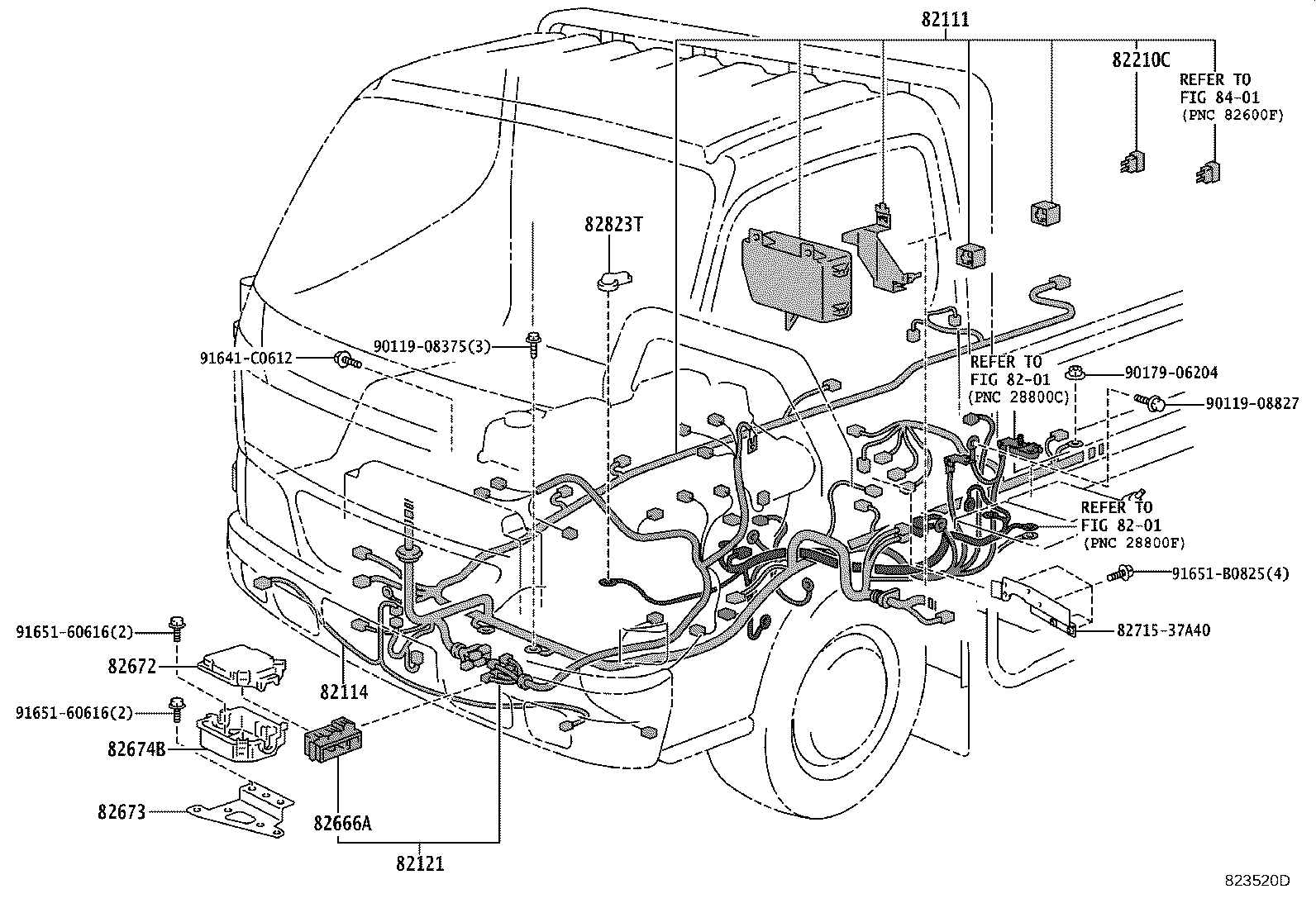

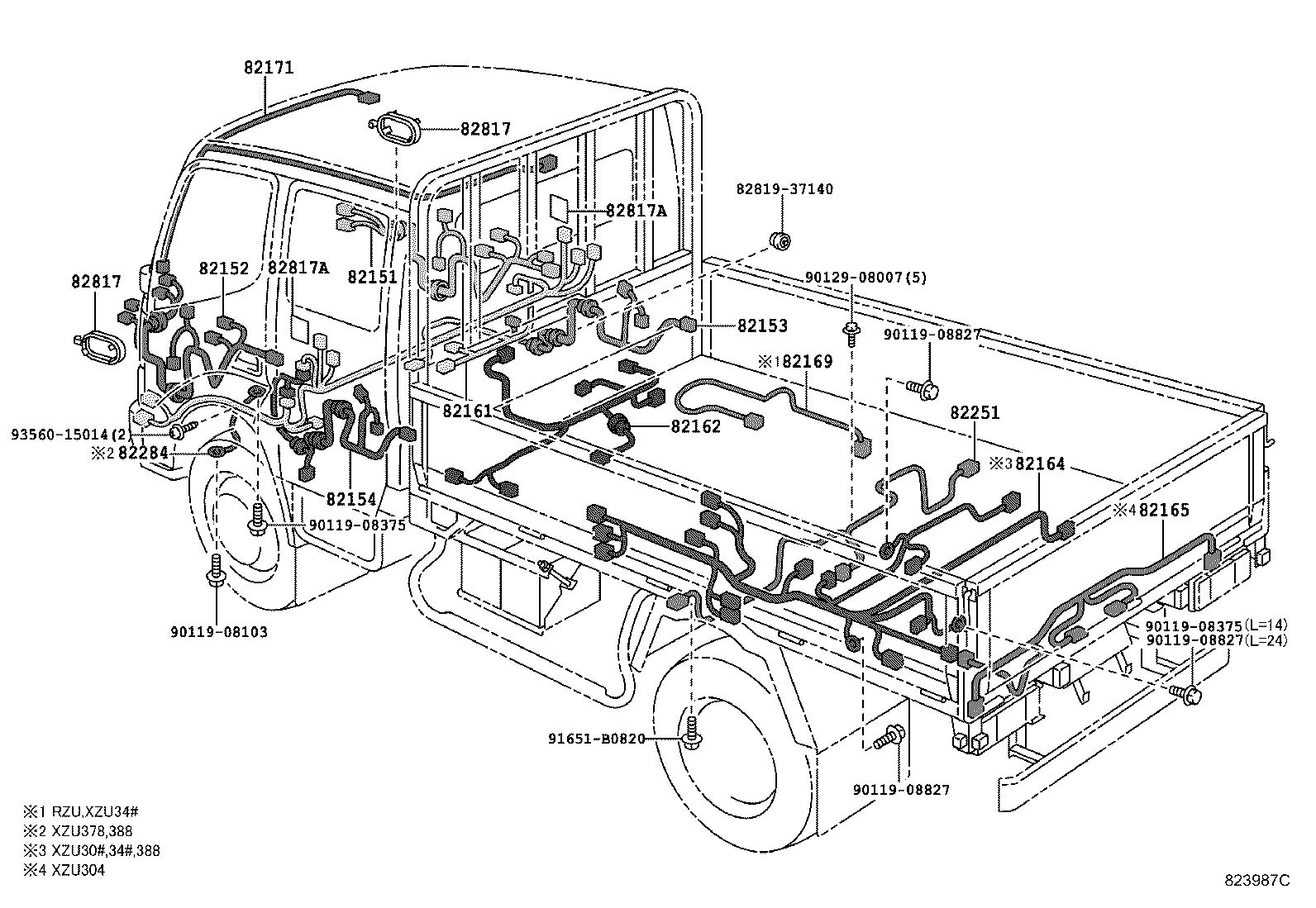

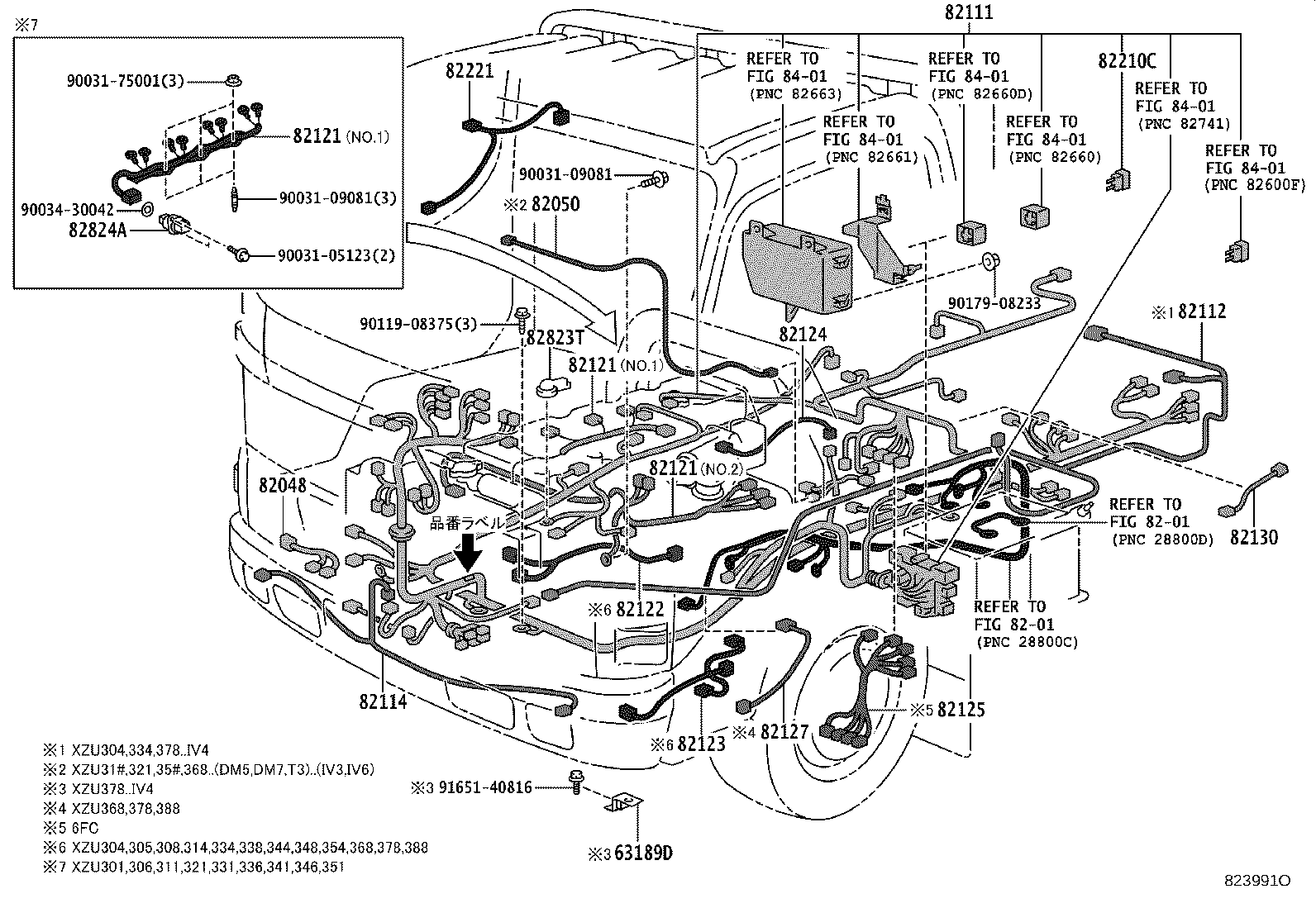

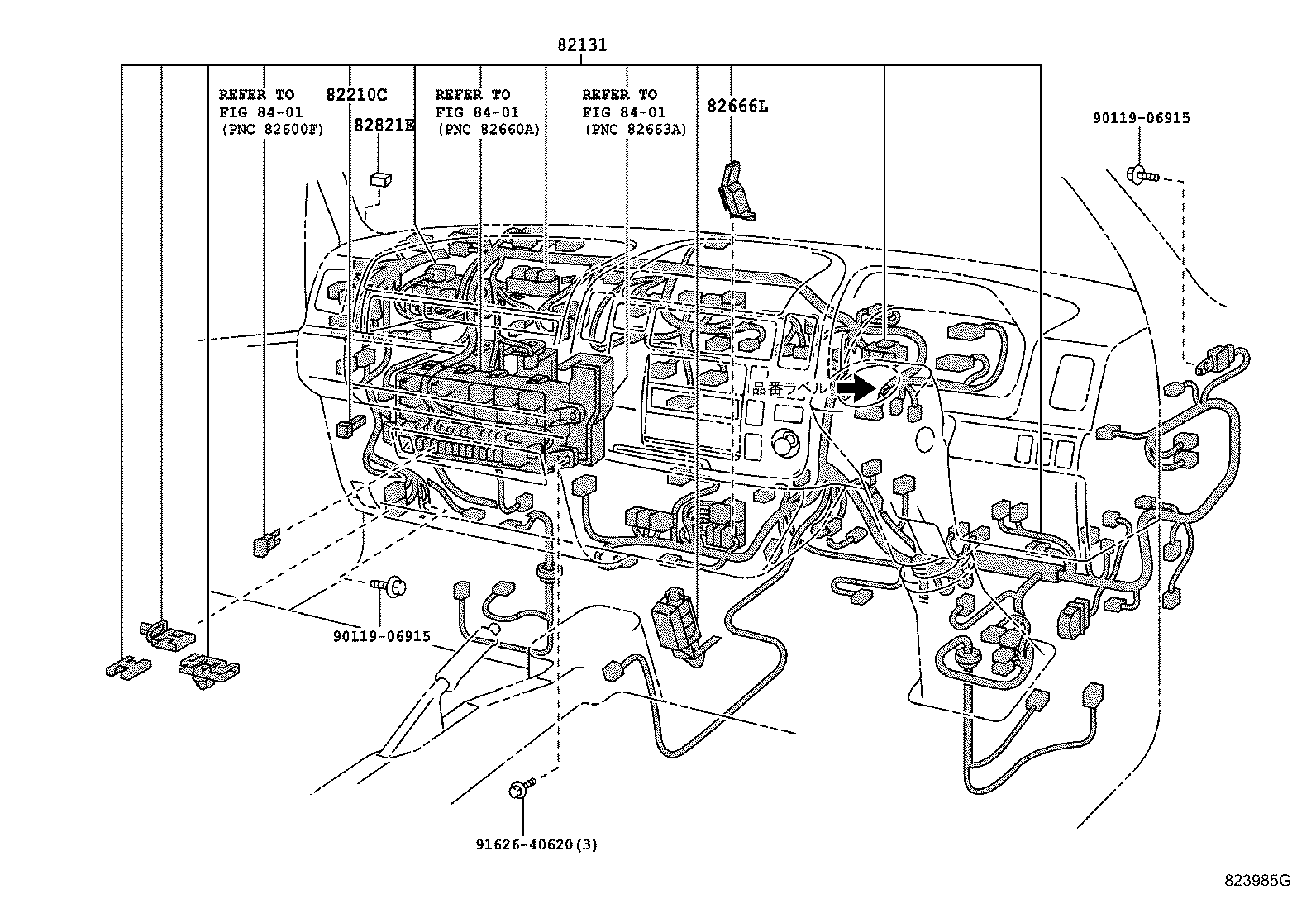

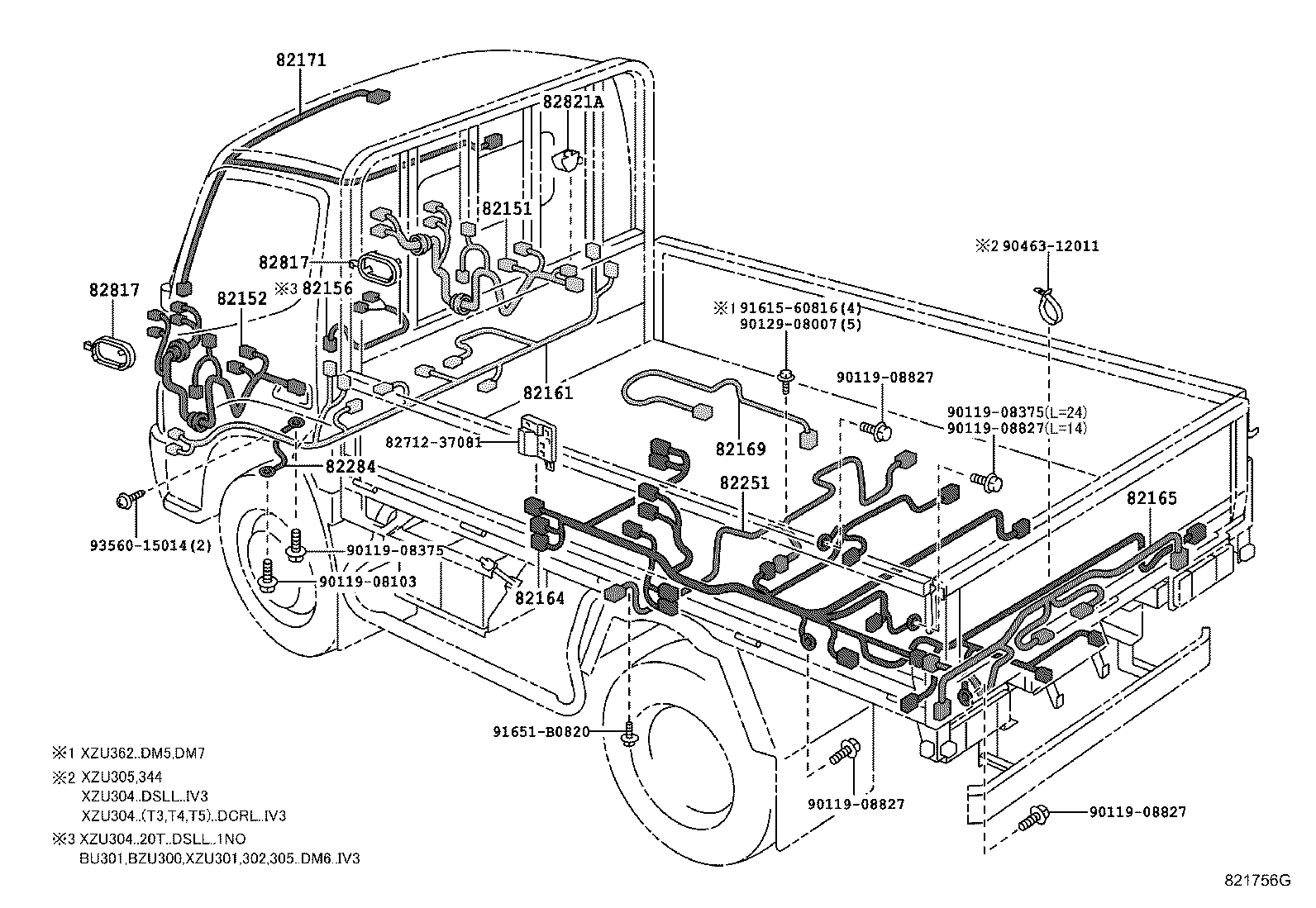

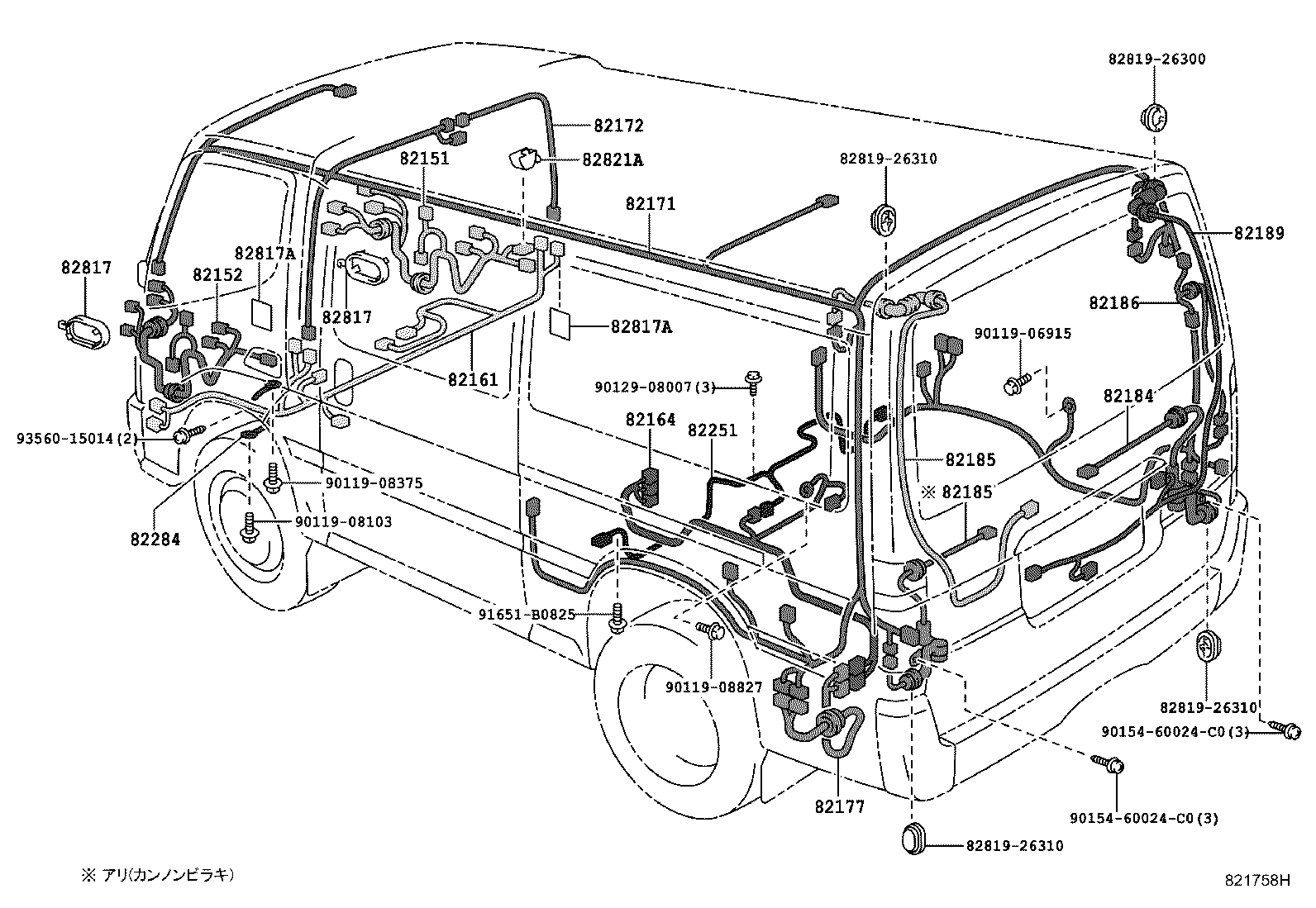

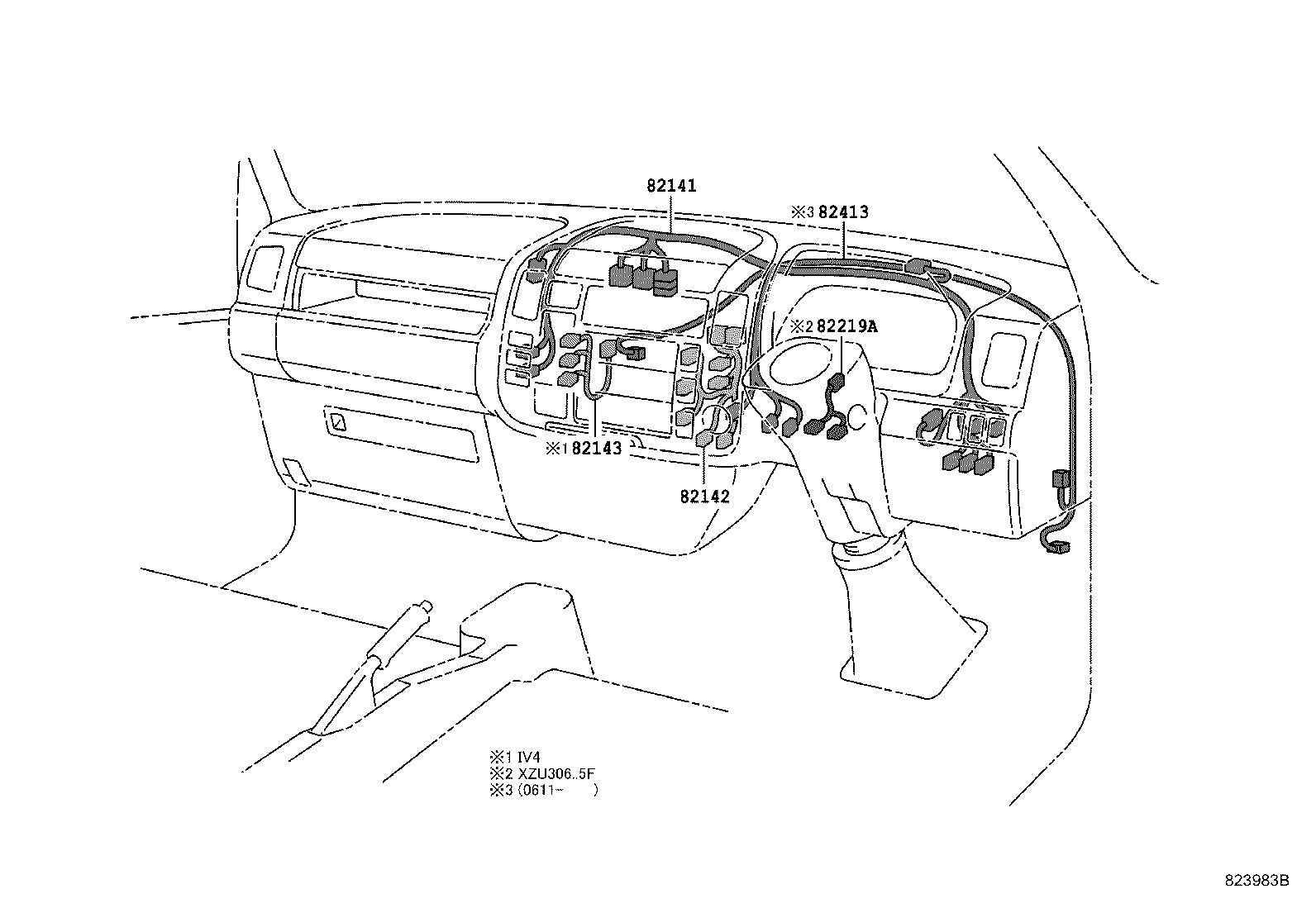

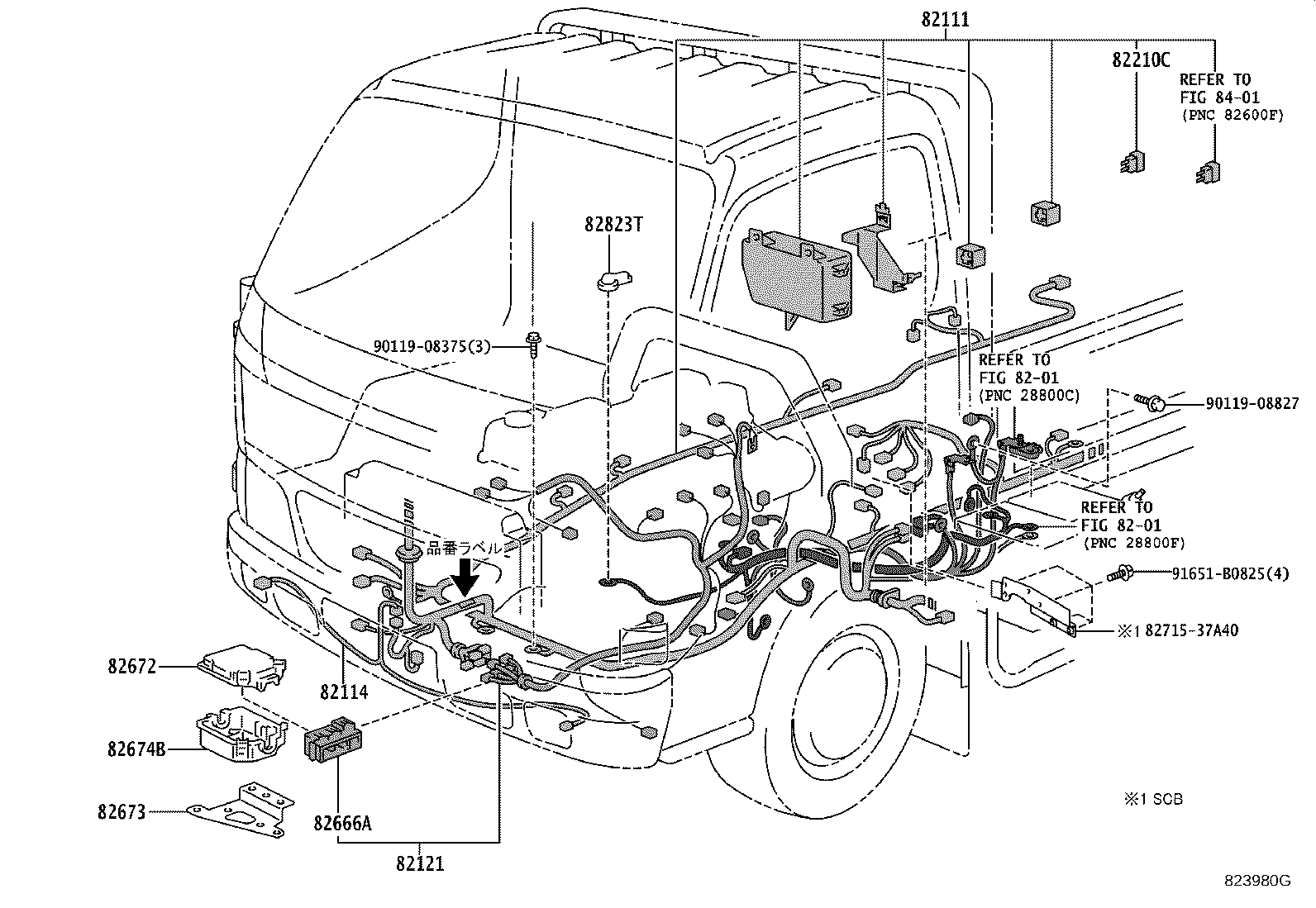

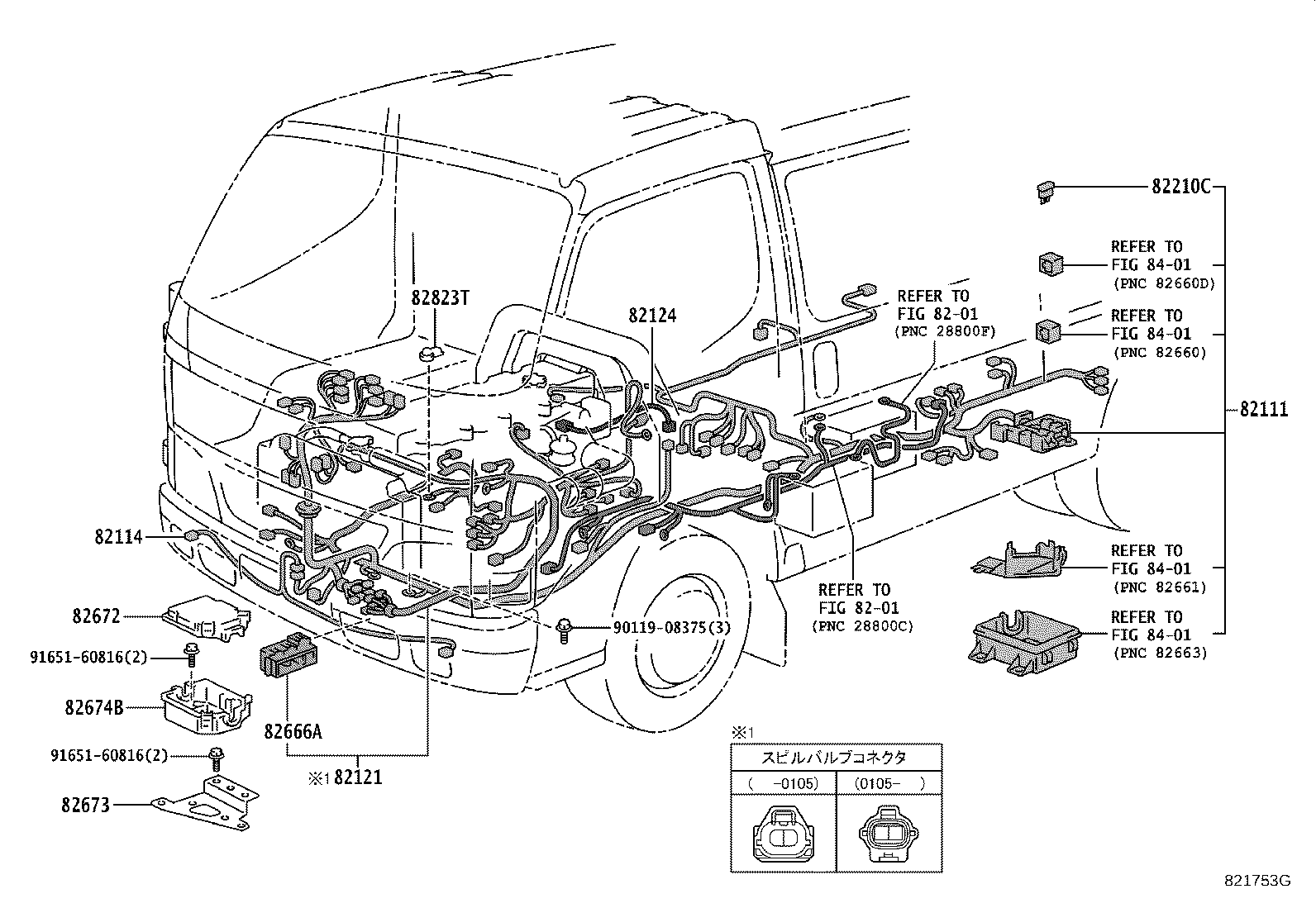

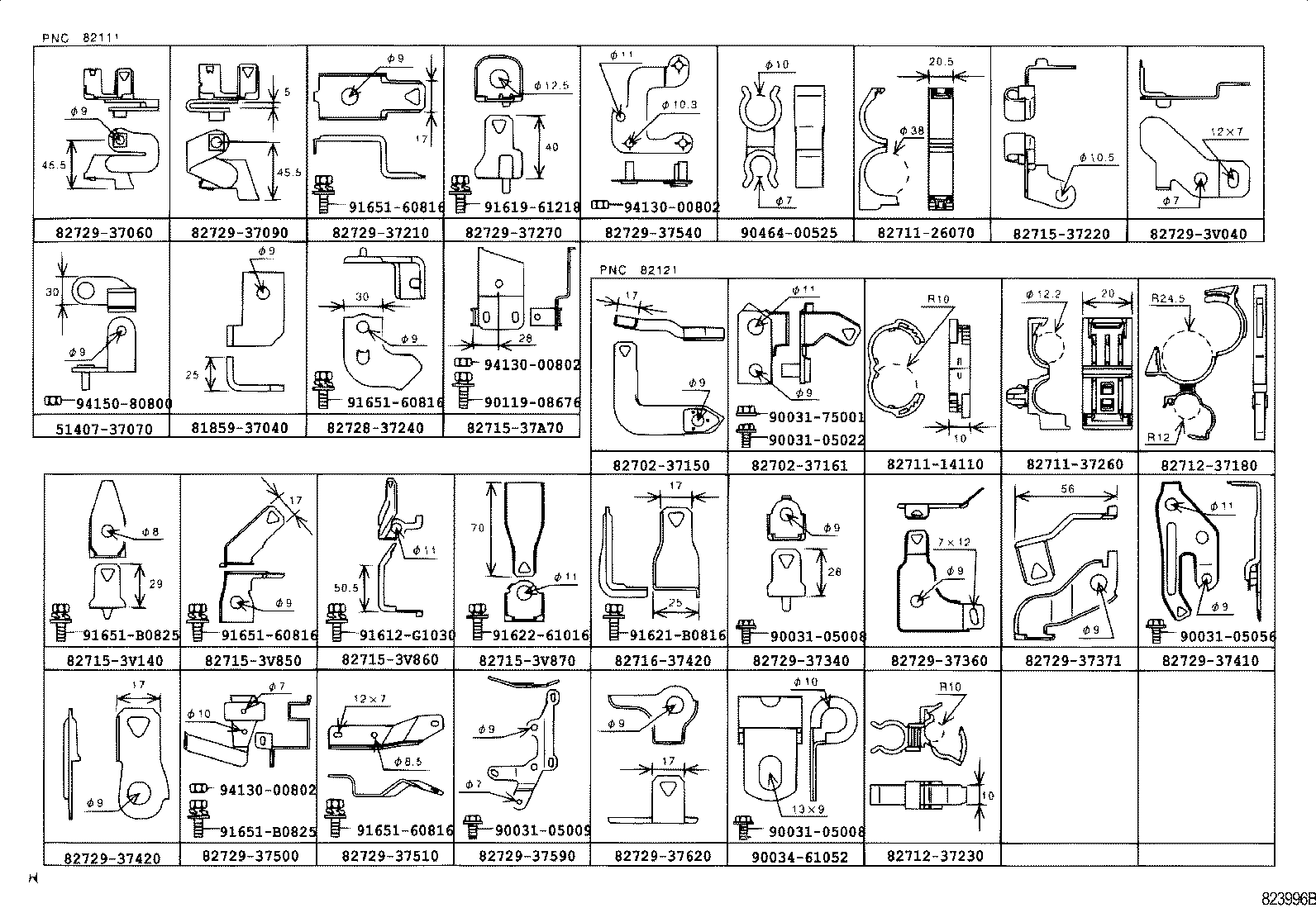

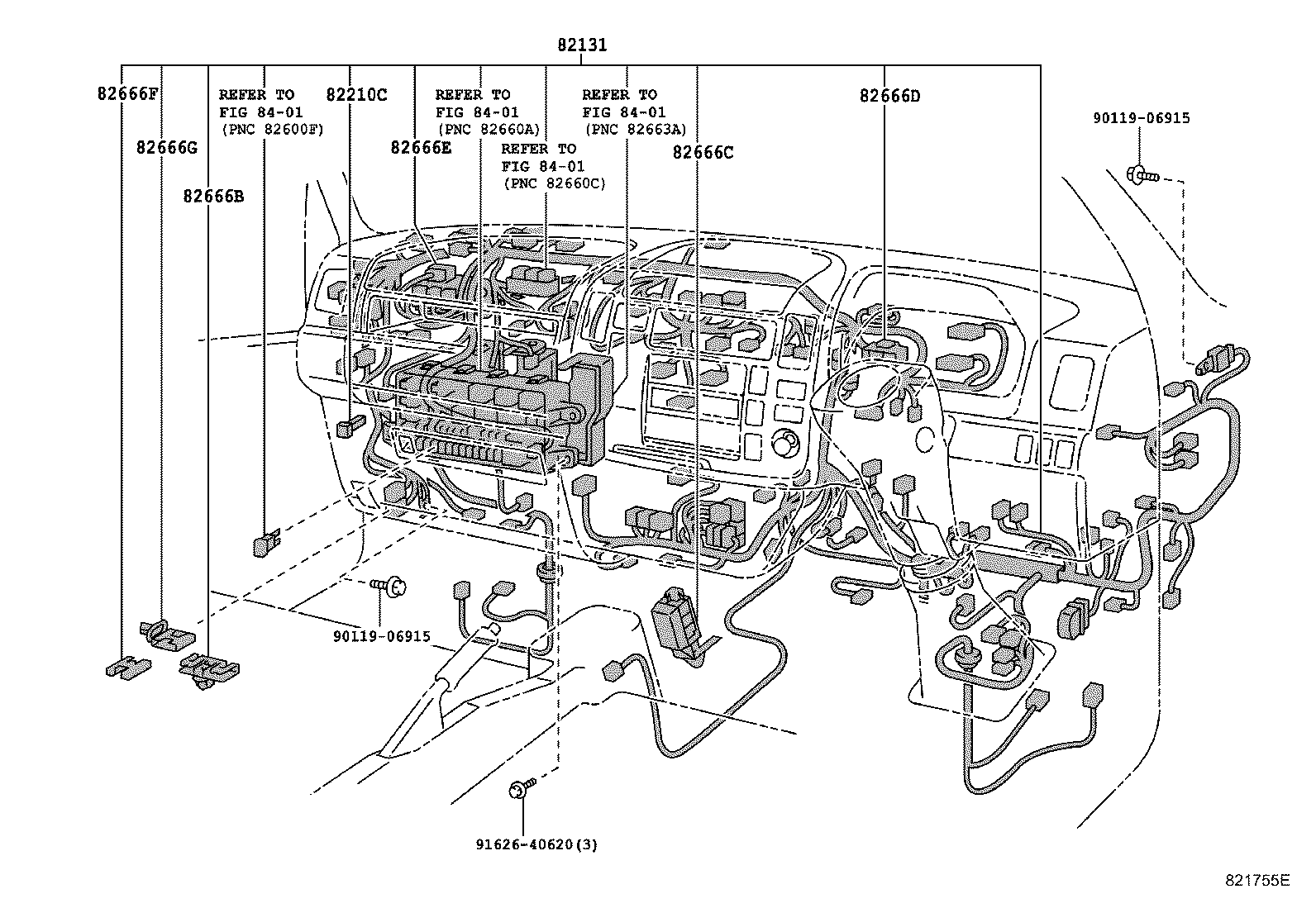

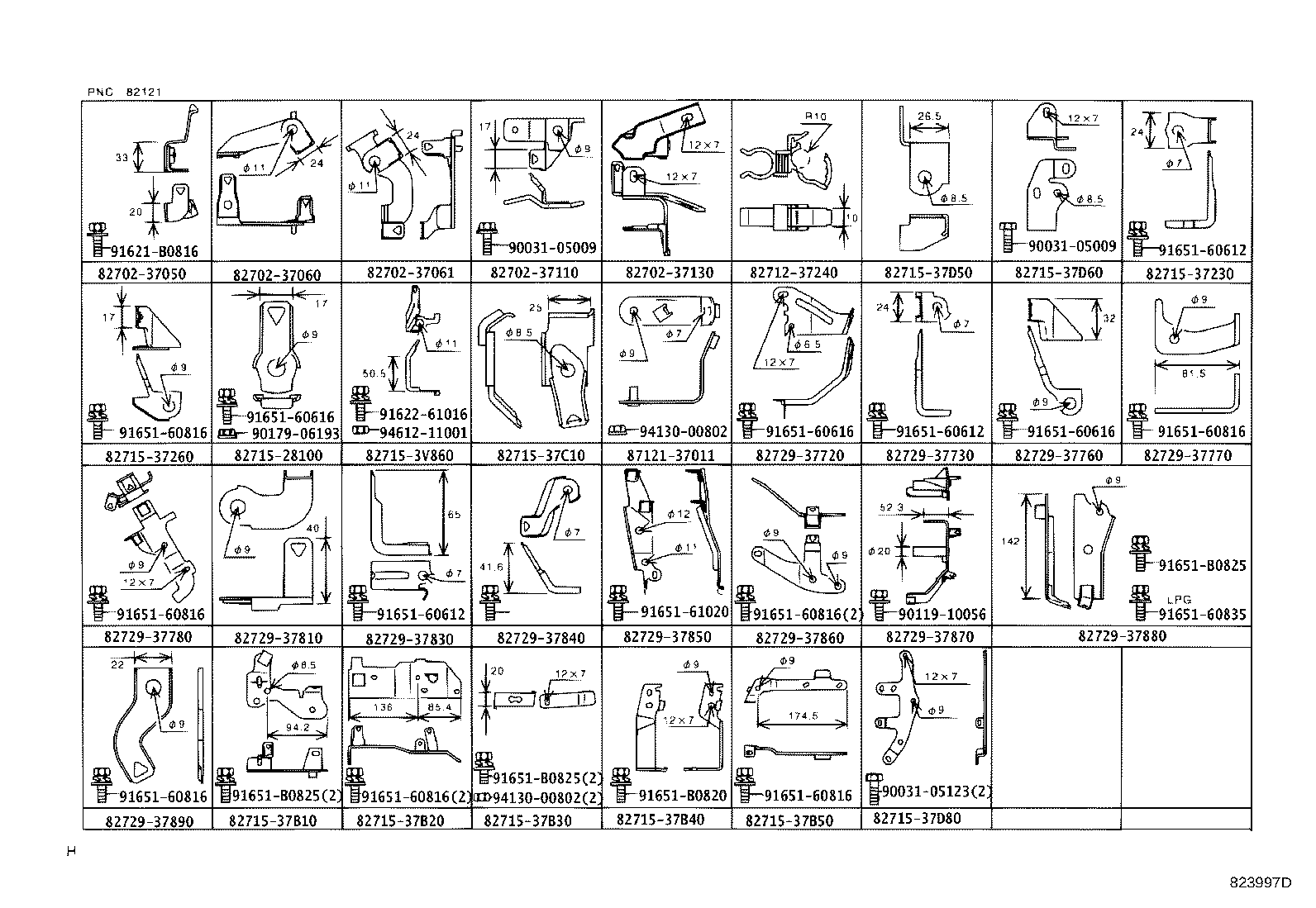

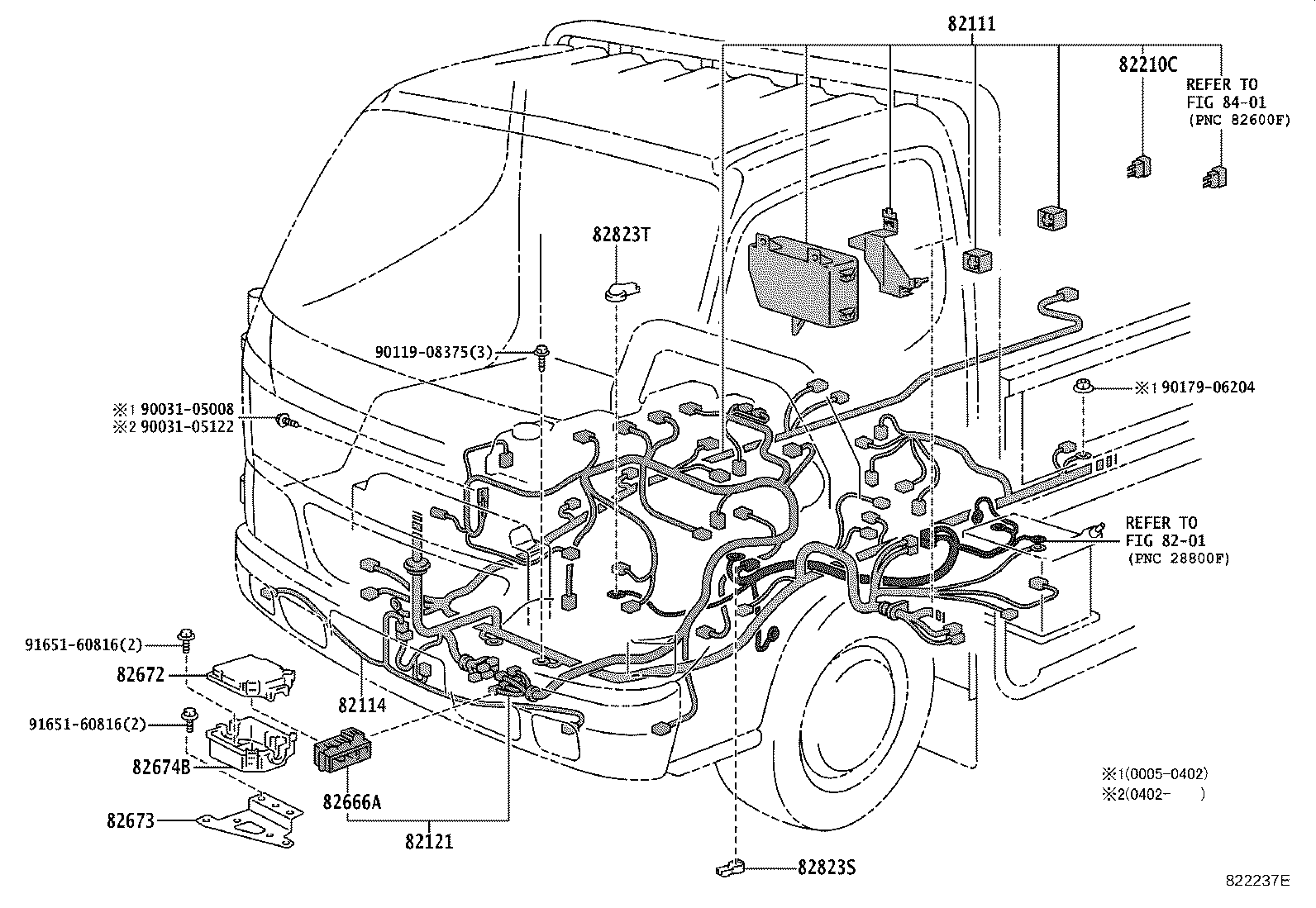

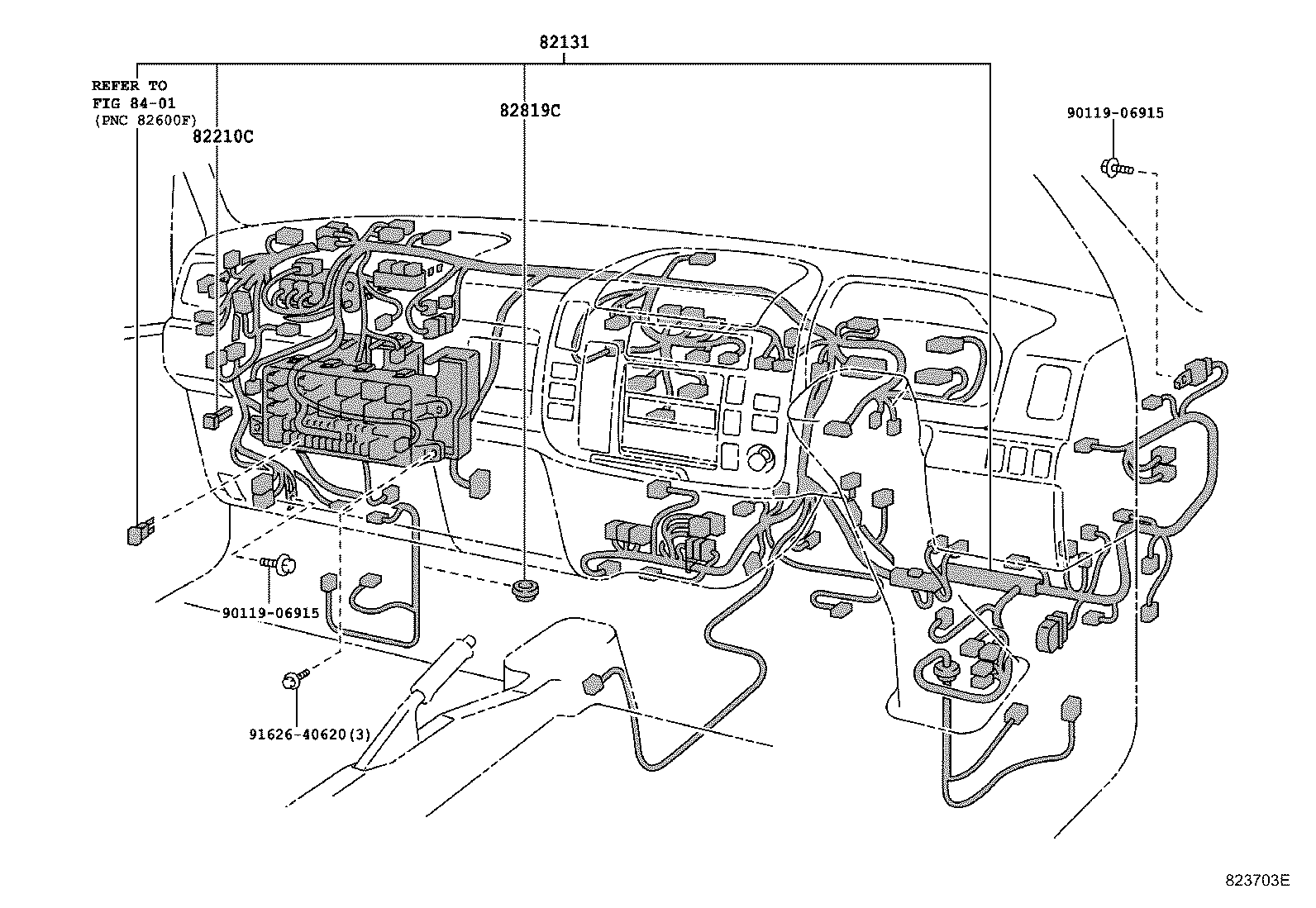

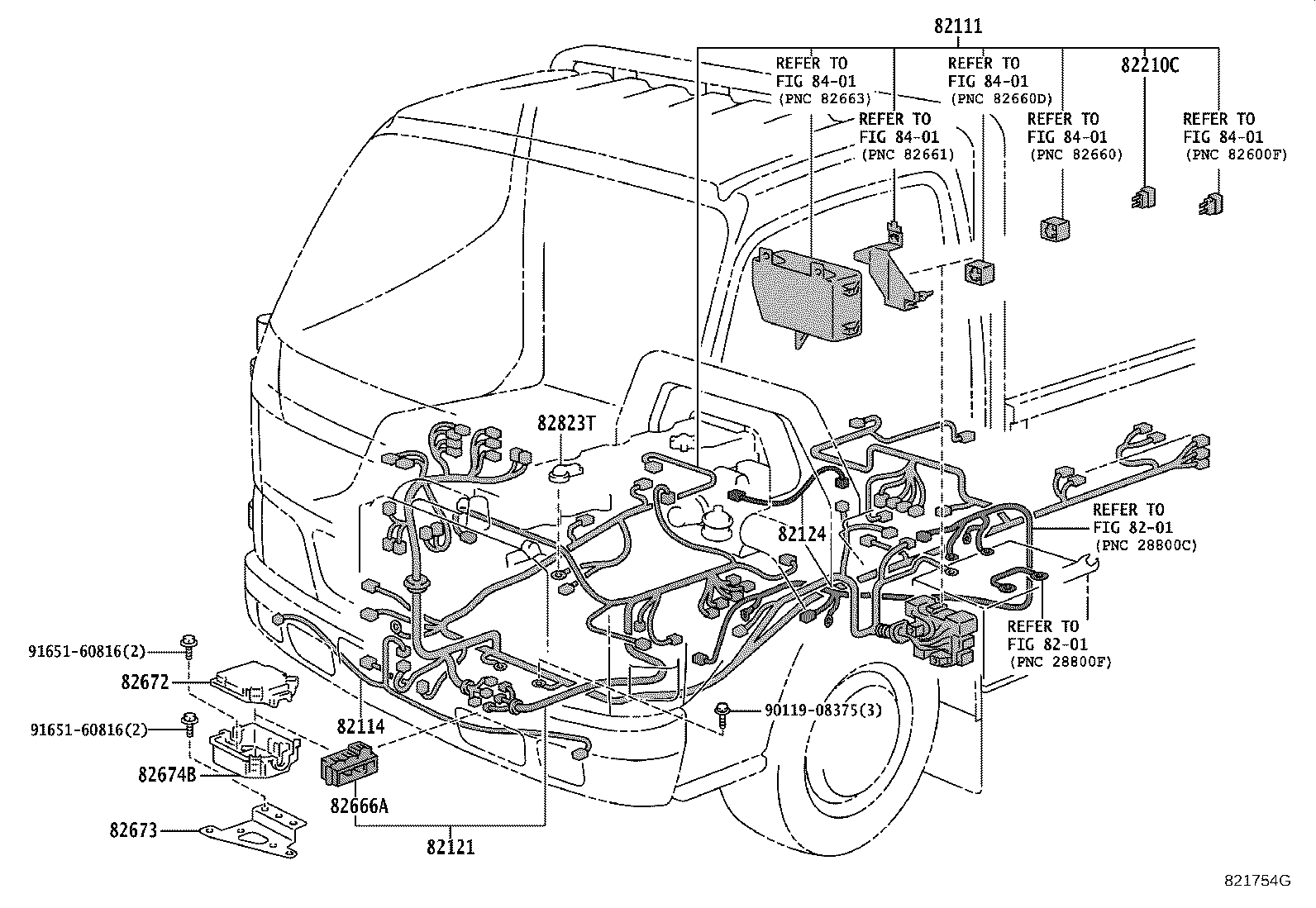

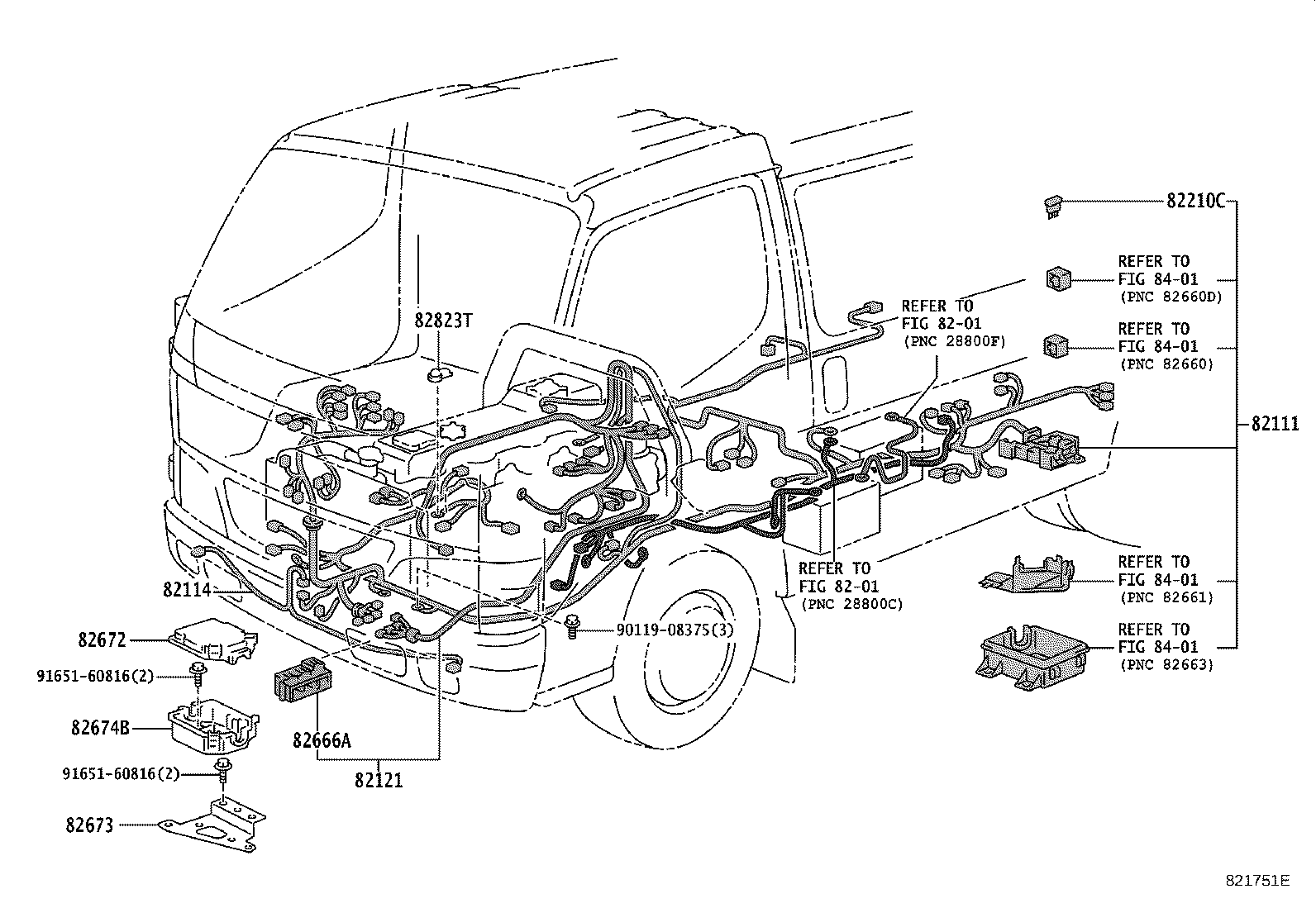

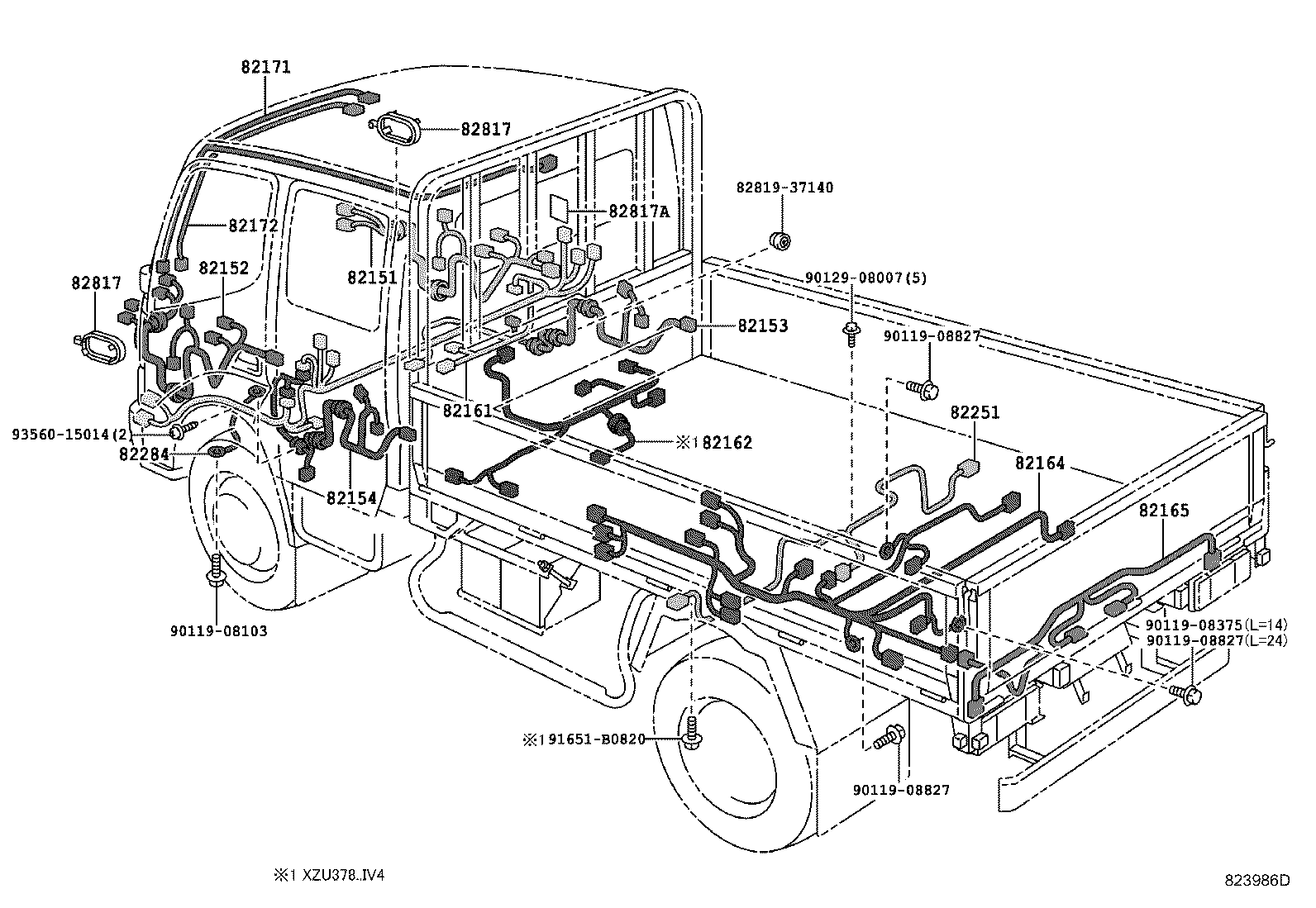

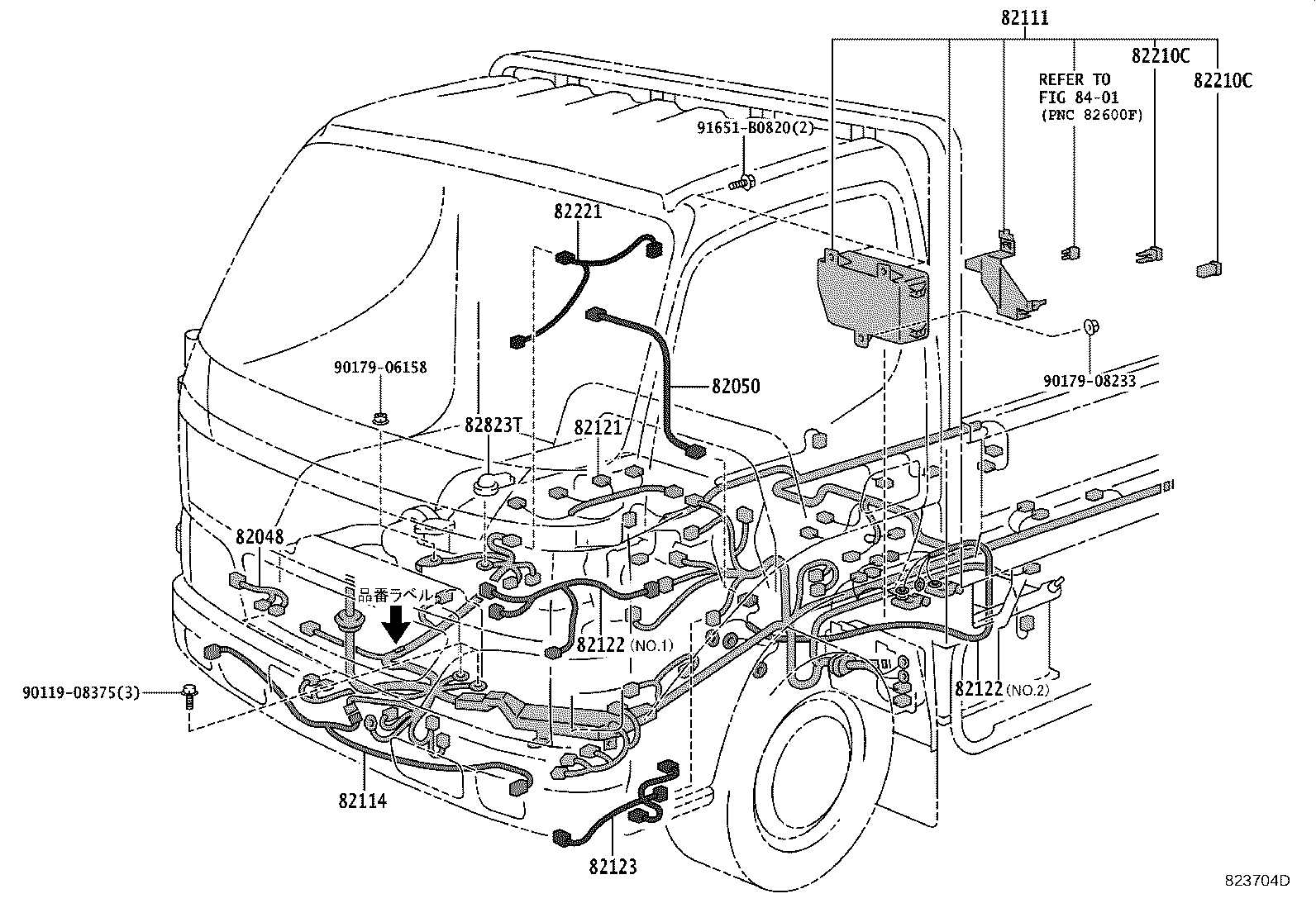

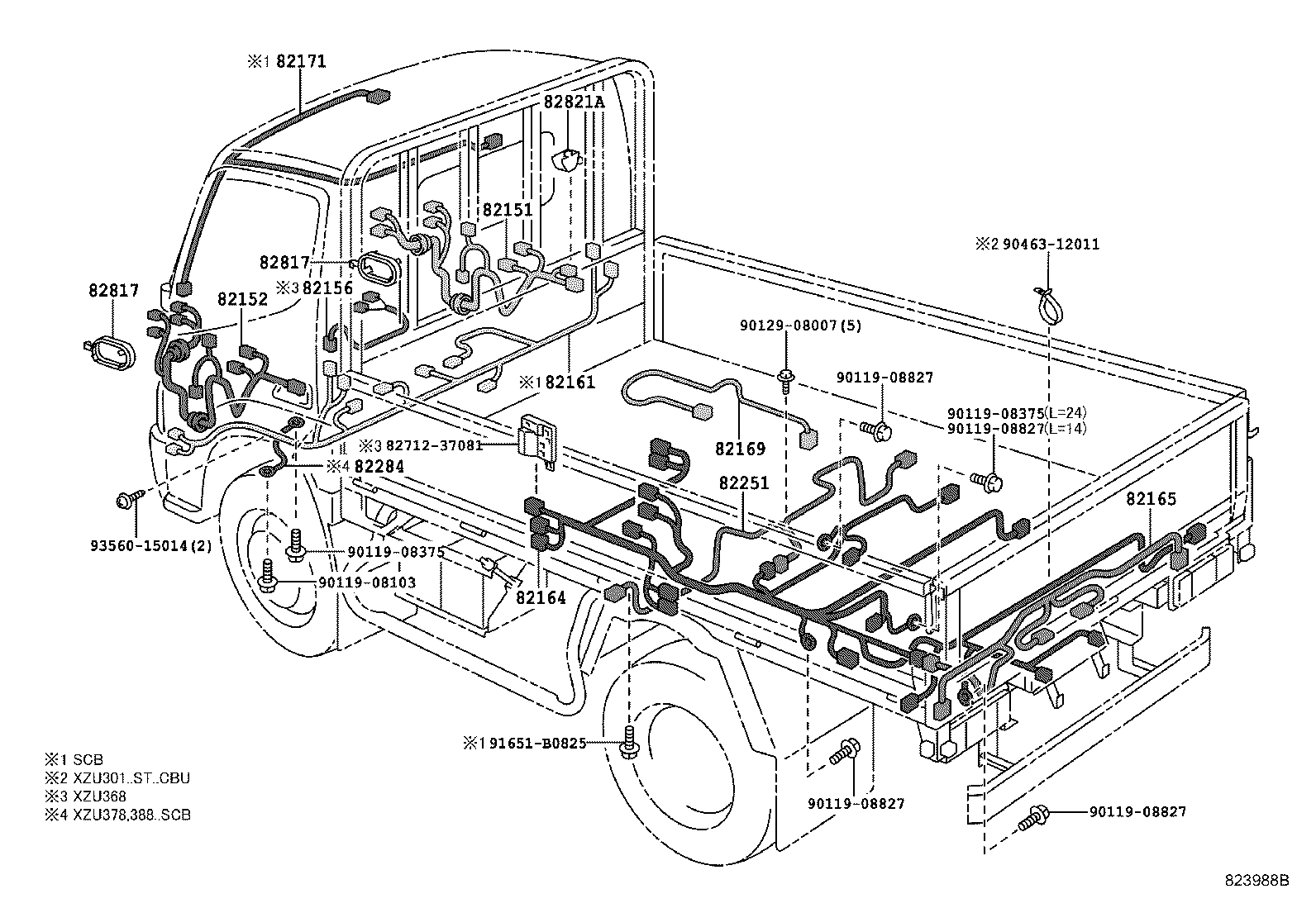

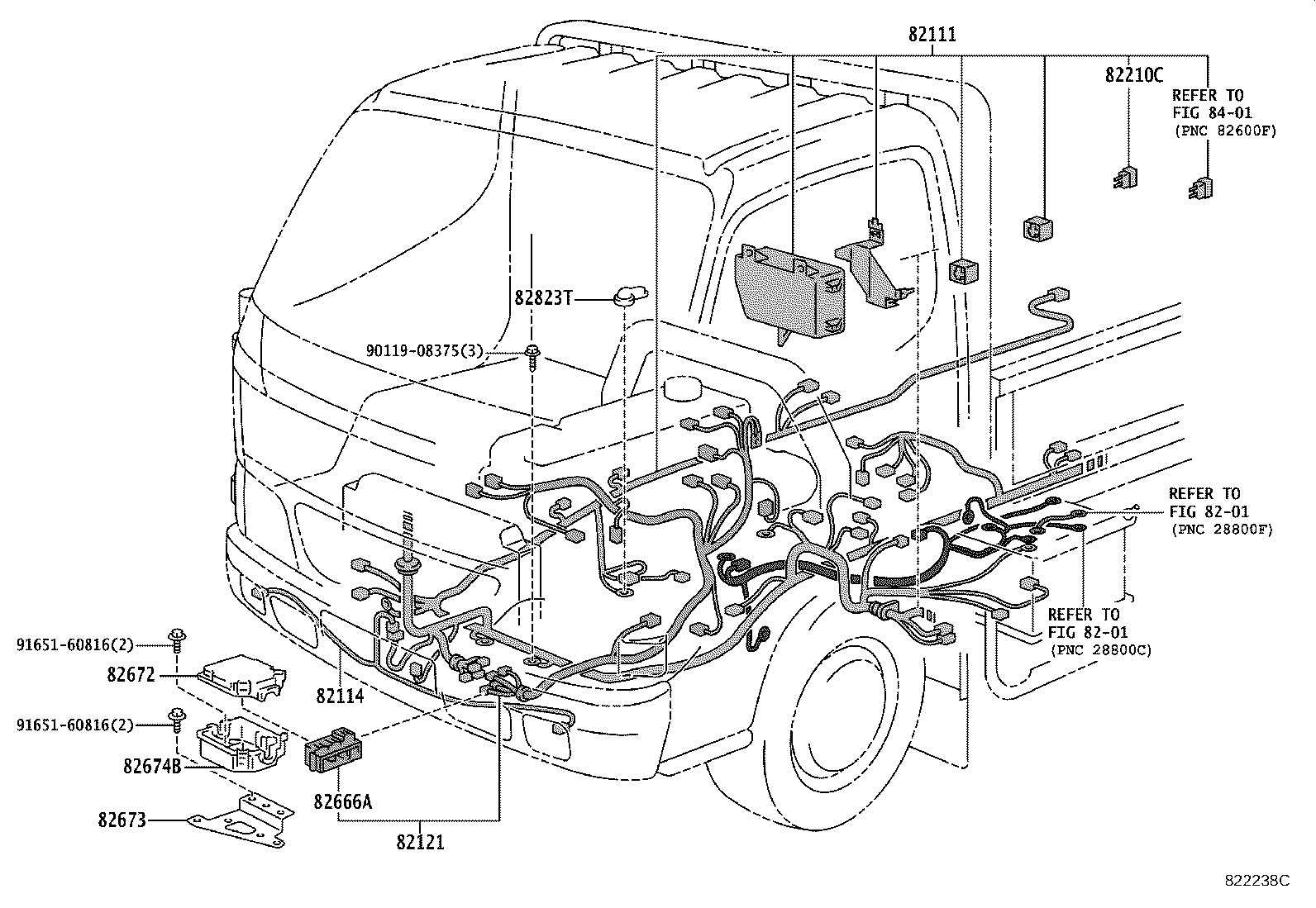

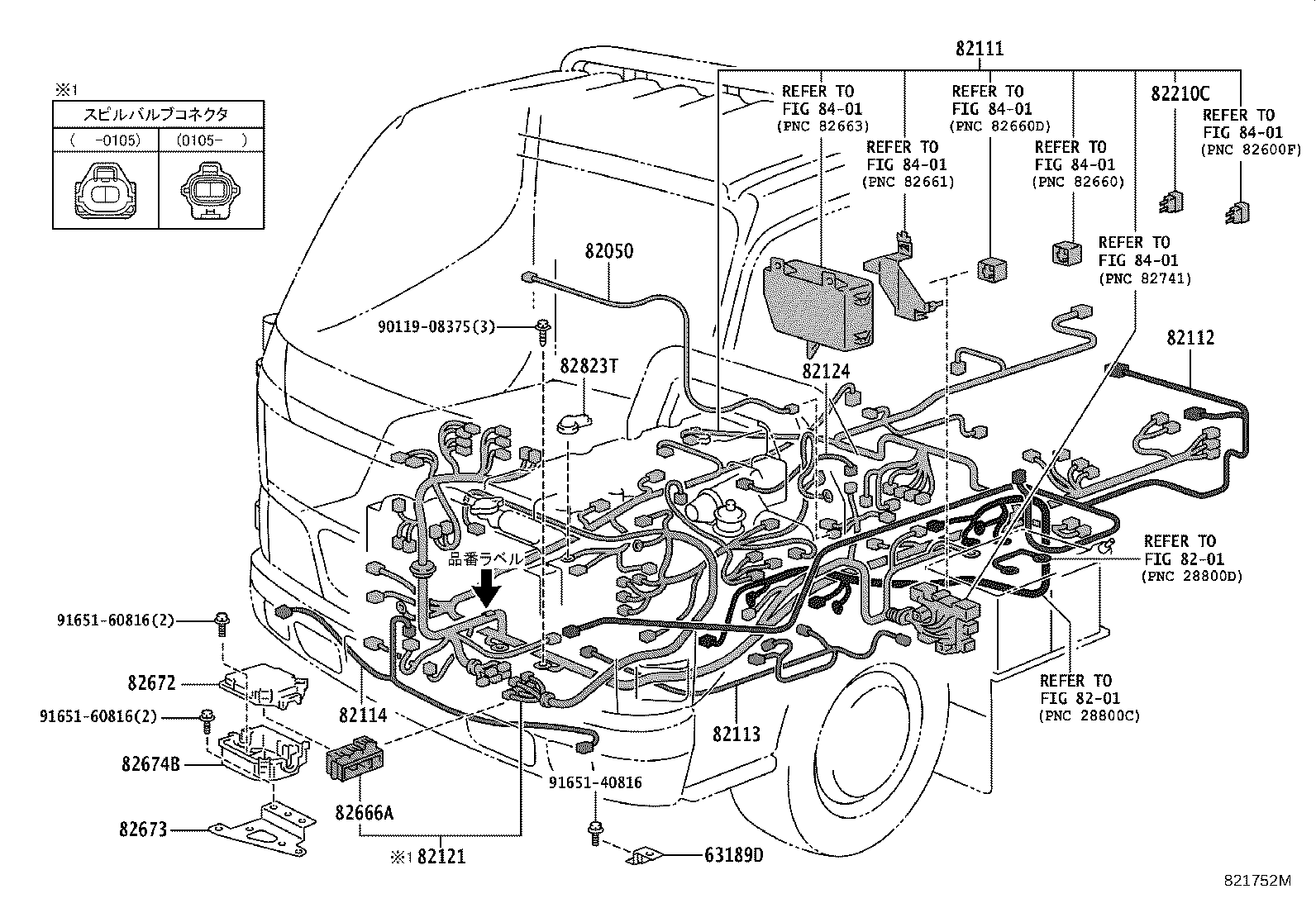

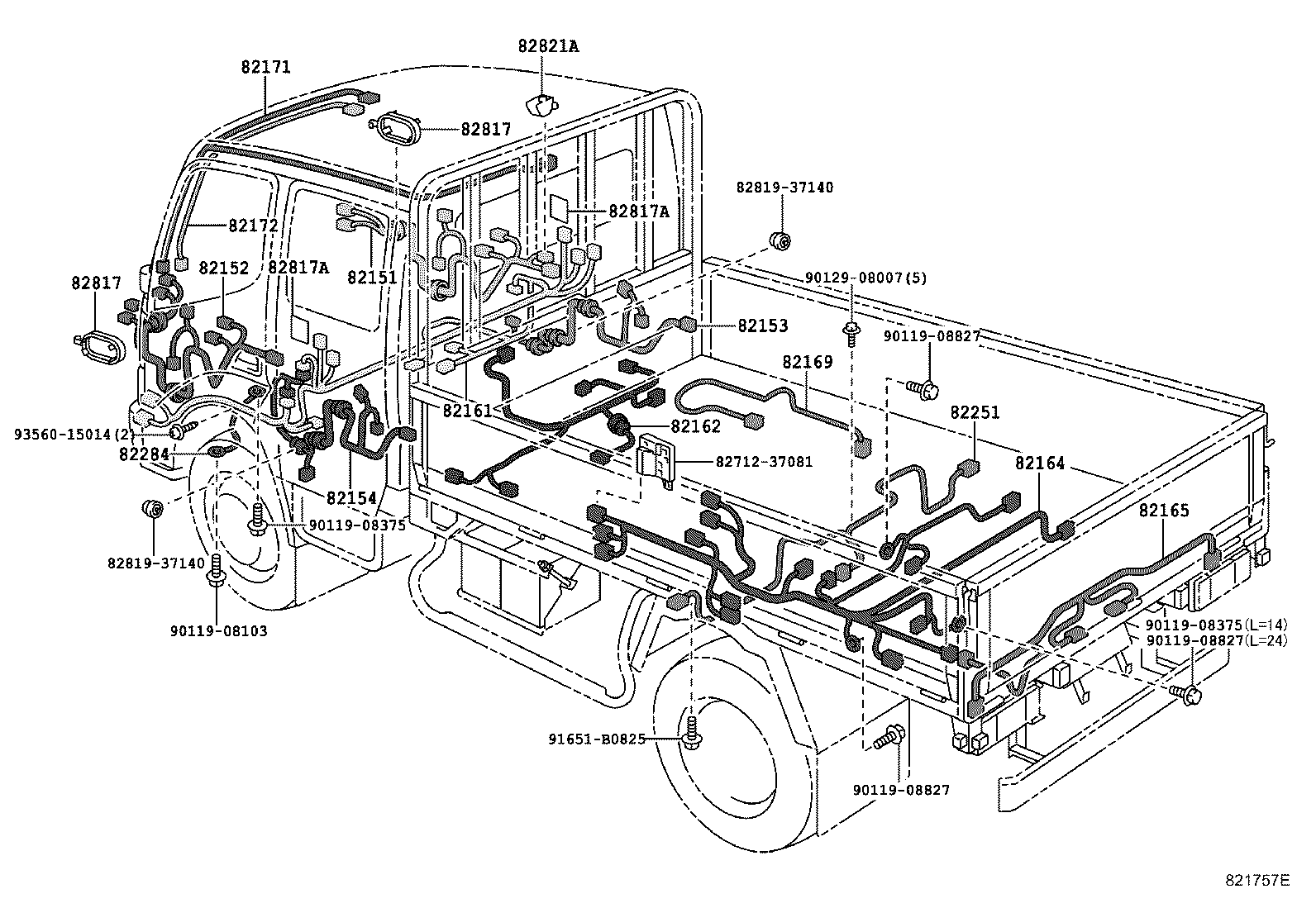

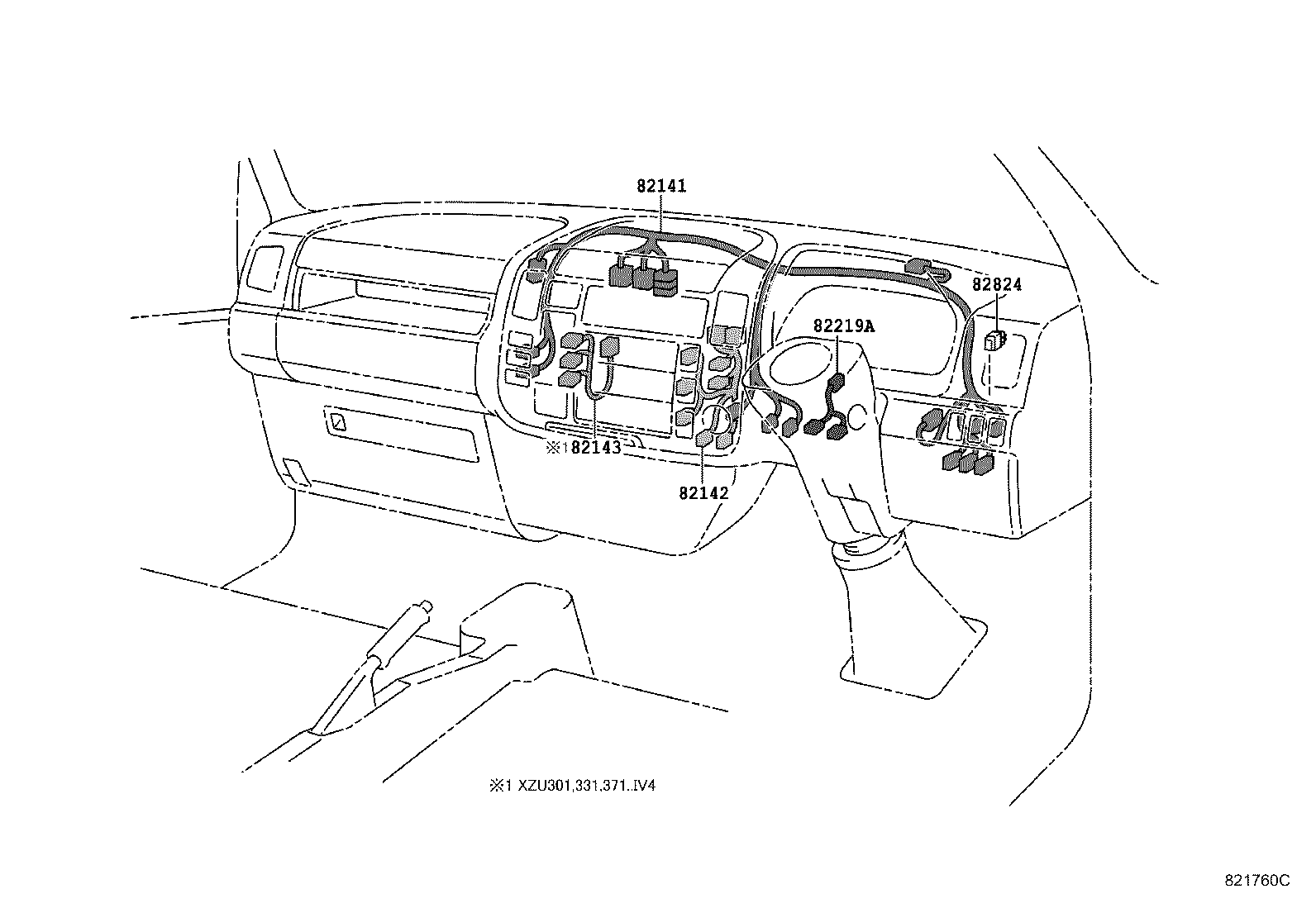

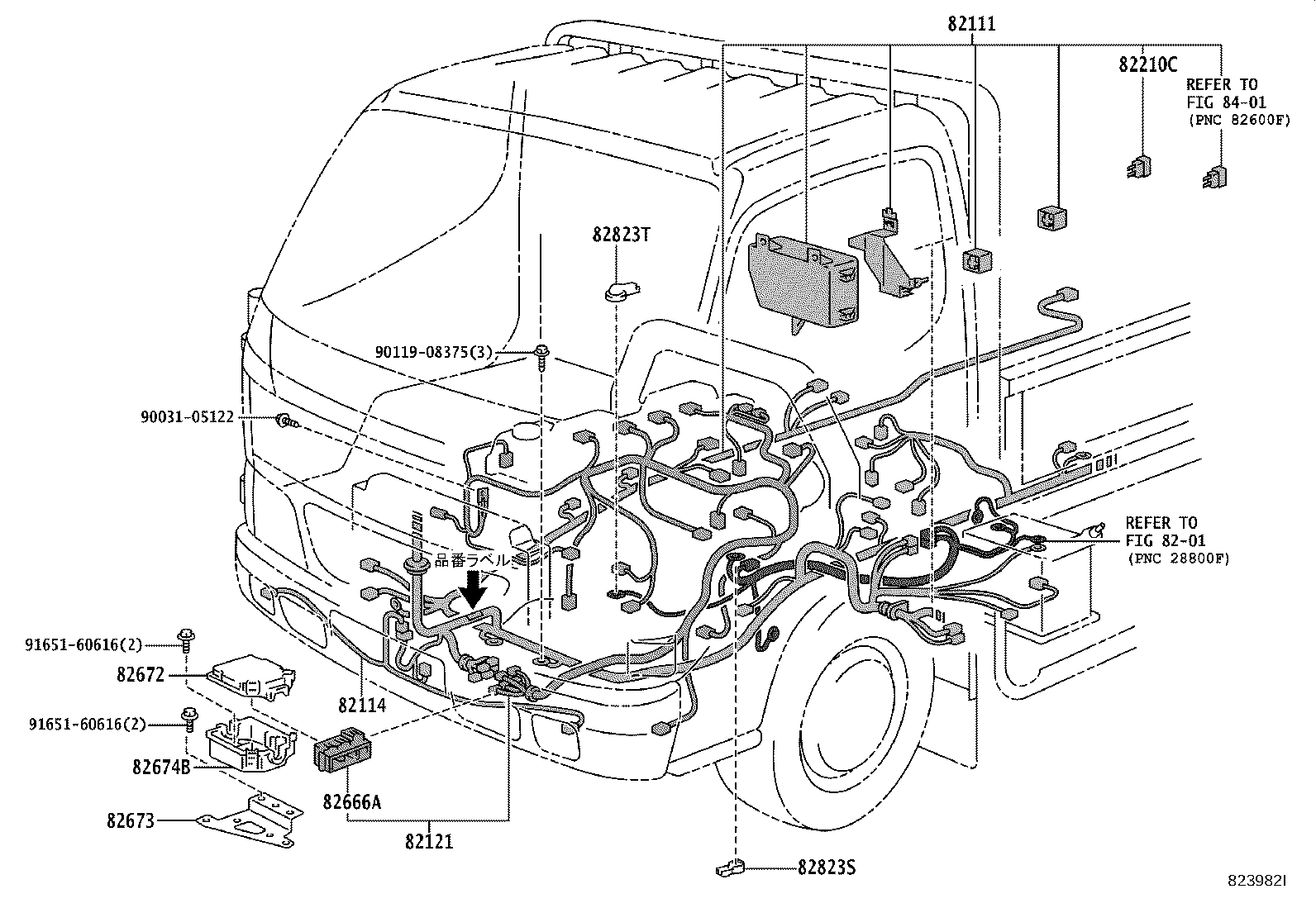

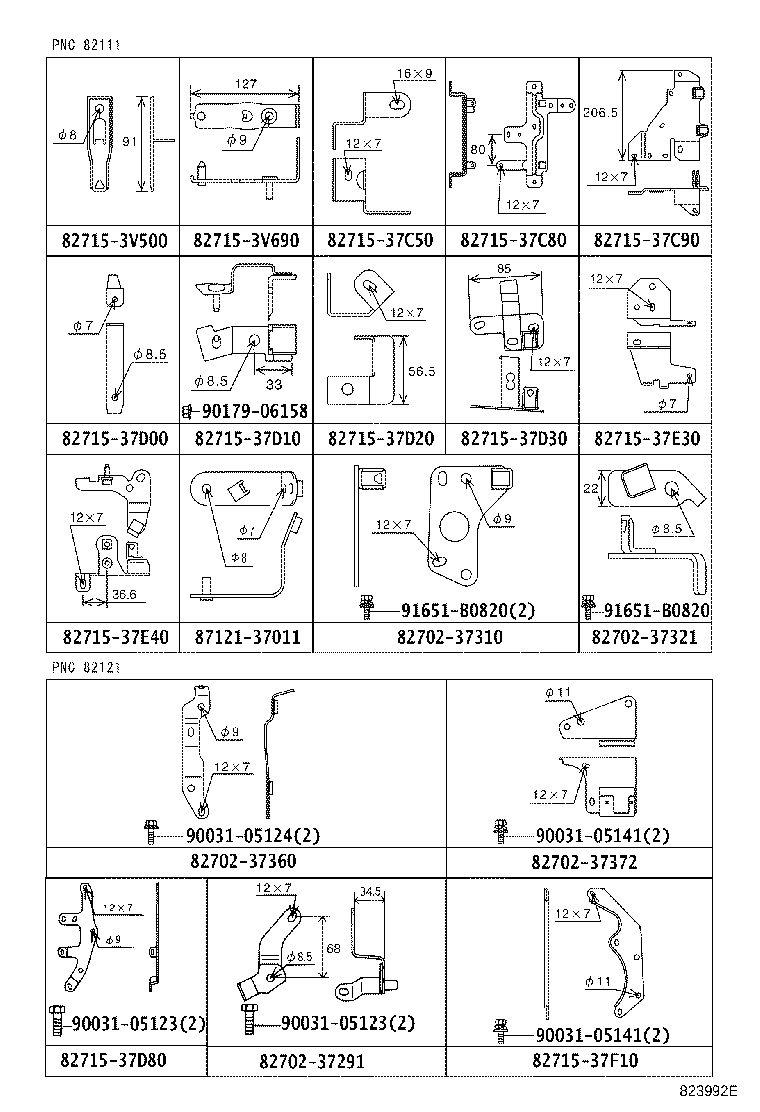

Figure 821750G 821750G 1999-05 → 2004-06 Figure 821751E 821751E 1999-05 → 2004-06 Figure 822236K 822236K 2000-05 → 2004-06 Figure 822237E 822237E 2000-05 → 2004-06 Figure 821752M 821752M 1999-05 → 2004-06 Figure 823520D 823520D 2003-06 → 2004-06 Figure 821753G 821753G 1999-05 → 2004-06 Figure 821754G 821754G 1999-05 → 2004-06 Figure 822238C 822238C 2000-05 → 2004-06 Figure 823704D 823704D 2003-10 → 2004-06 Figure 823980G 823980G 2004-06 → — Figure 823981K 823981K 2004-06 → — Figure 823982I 823982I 2004-06 → — Figure 823991O 823991O 2004-06 → — Figure 821760C 821760C 1999-05 → 2004-06 Figure 823983B 823983B 2004-06 → — Figure 821755E 821755E 1999-05 → 2004-06 Figure 823703E 823703E 2003-10 → 2004-06 Figure 823985G 823985G 2004-06 → — Figure 821756G 821756G 1999-05 → 2004-06 Figure 821757E 821757E 1999-05 → 2004-06 Figure 821758H 821758H 1999-05 → 2004-06 Figure 823986D 823986D 2004-06 → — Figure 823987C 823987C 2004-06 → — Figure 823988B 823988B 2004-06 → — Figure 823989D 823989D 2004-06 → — Figure 823995 823995 1999-05 → — Figure 823996B 823996B 1999-05 → — Figure 823997D 823997D 1999-05 → — Figure 823998A 823998A 1999-05 → — Figure 825223C 825223C 1999-05 → — Figure 823992E 823992E 2003-10 → — Figure 822970 822970 1999-05 → —

Part groups

PNCDescription
63189D Bracket, Wiring Harness Connector
82048 Wiring Sub-assy, Front Drive Indicator Lamp Switch
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82127 Wire, Differential
82130 Harness Assy, Chassis Wire
82131 Wire, Cowl
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82156 Wire, Slide Door
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82177 Wire, Rear Body
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82189 Wire, Back Door, NO.4
82210C Fusible Link
82219 Wire, Thermo Sensor
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82284 Wire, Earth
82413 Wire, Buzzer
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82674B Cover, Junction Block, Lower
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82819C Grommet, Wiring Harness
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
