Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

21 part groups · 14 illustrations

Illustrations

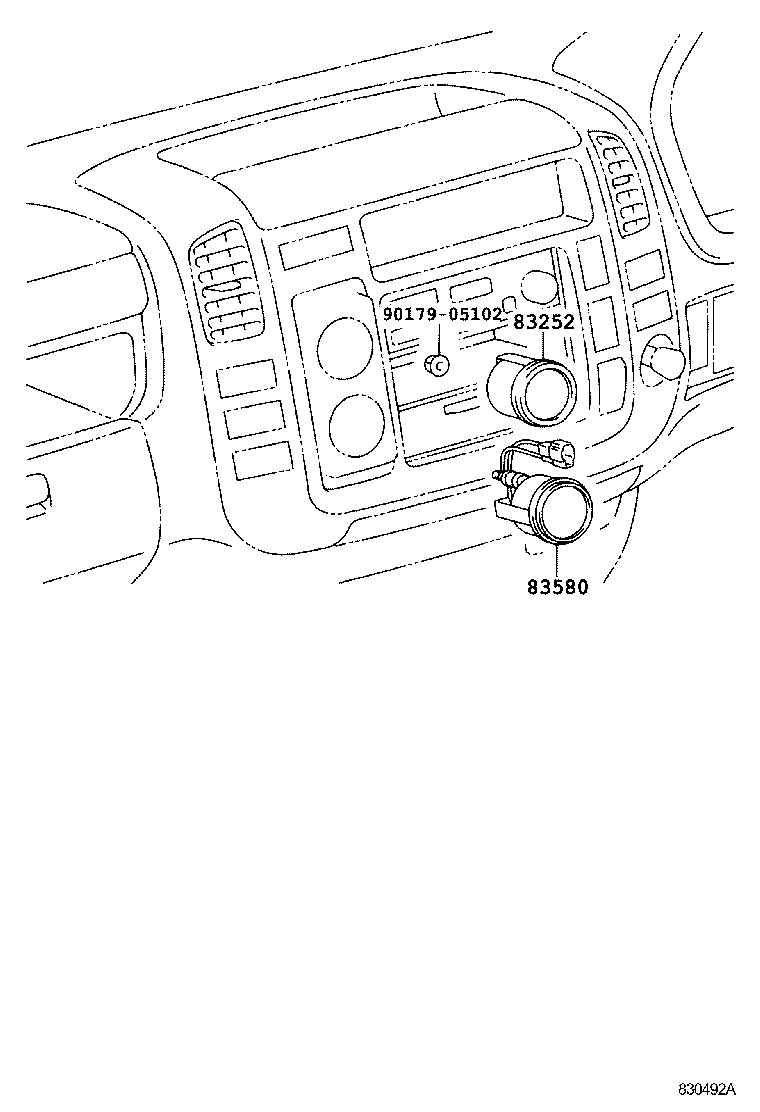

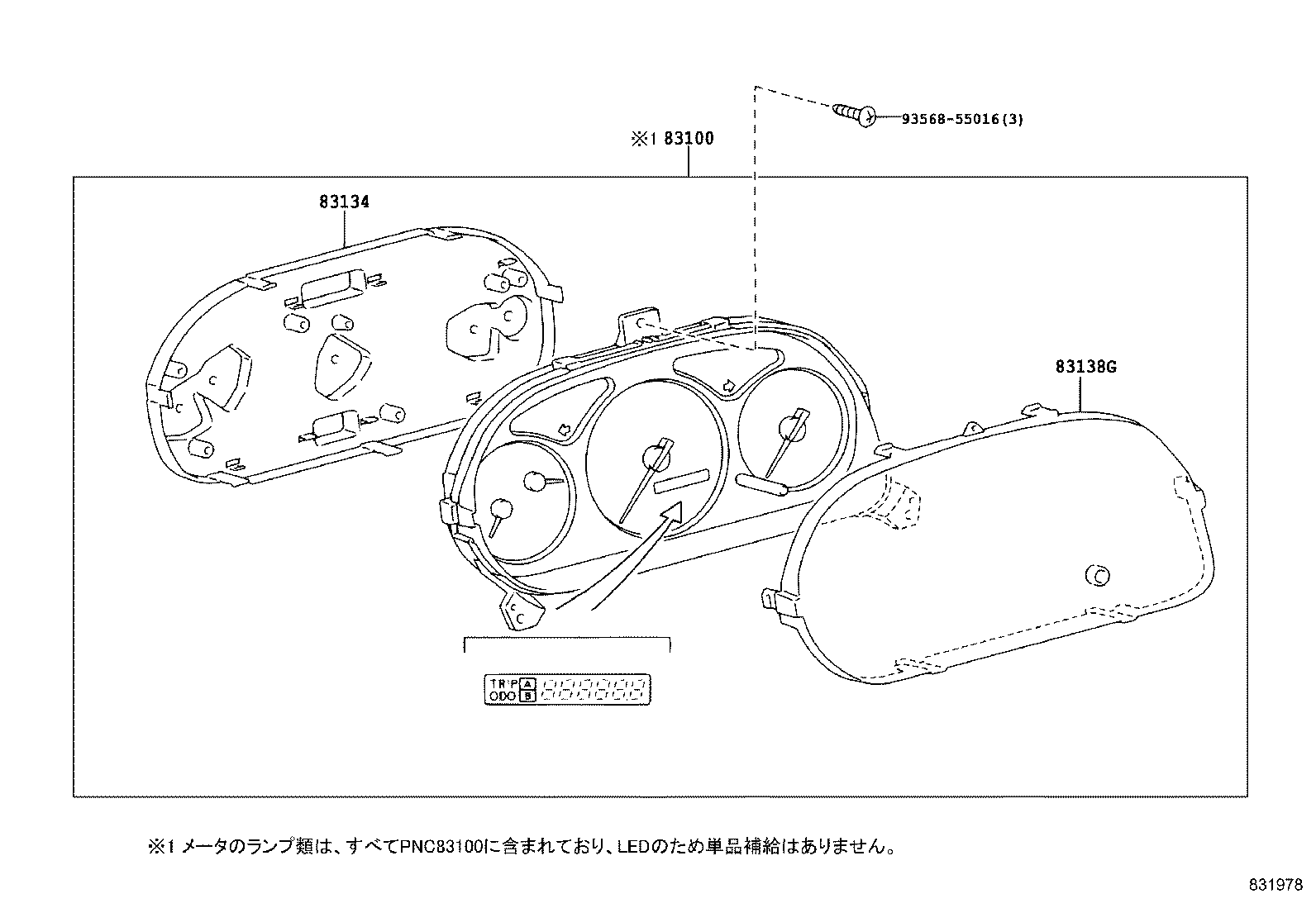

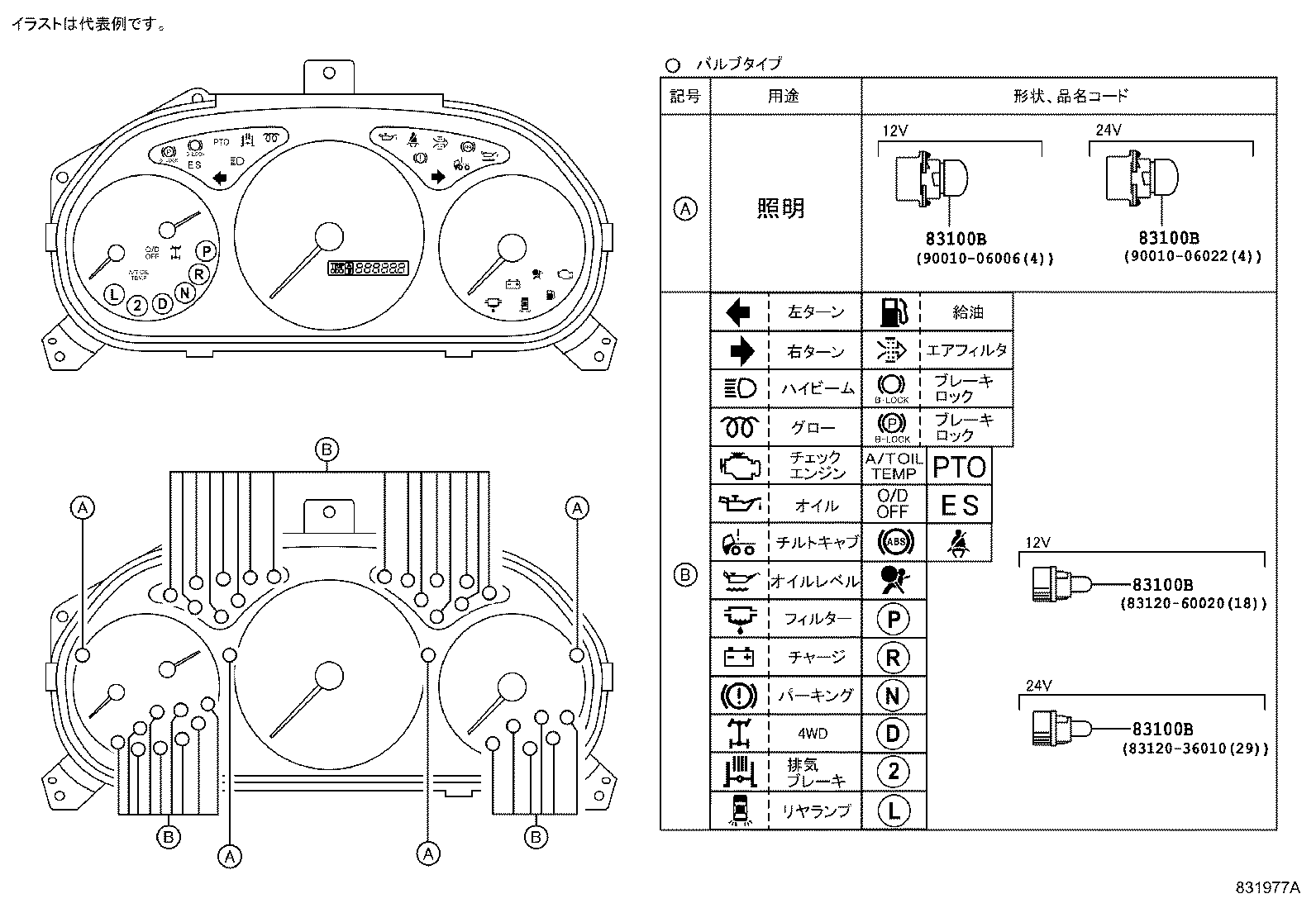

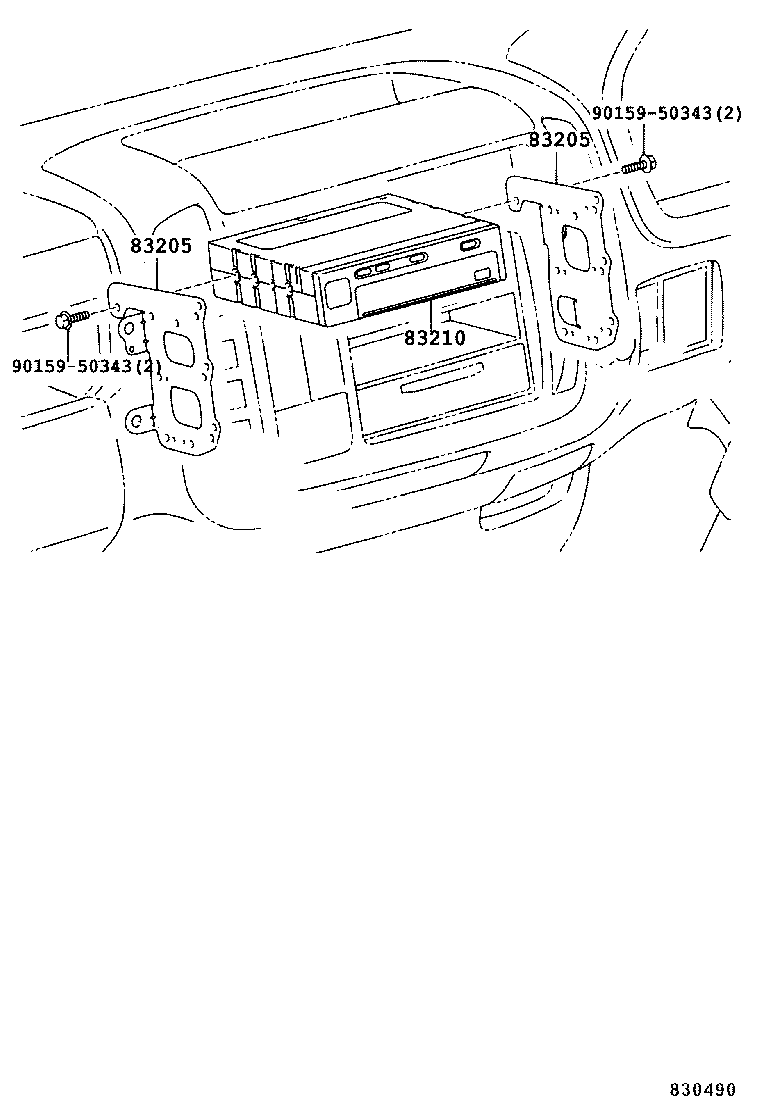

Figure 831510A 831510A 1999-05 → 2002-06 Figure 831978 831978 2002-06 → — Figure 831977A 831977A 1999-05 → 2002-06 Figure 830490 830490 1999-05 → — Figure 830492A 830492A 1999-08 → — Figure 830491C 830491C 1999-05 → 2004-06 Figure 830491C 830491C 2004-06 → — Figure 830491C 830491C 2004-06 → — Figure 830943 830943 2003-10 → 2004-06 Figure 830943 830943 2004-06 → — Figure 830945B 830945B 2004-06 → — Figure 831094 831094 2004-06 → — Figure 831095A 831095A 2004-06 → — Figure 830669 830669 2000-10 → —

Part groups

PNCDescription
82824Q Connector, Wiring Harness, NO.1(FOR SPEEDOMETER)
82824R Connector, Wiring Harness, NO.2(FOR SPEEDOMETER)
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83181A Sensor, Speedometer
83205 Bracket, Sub-assy, Tachograph
83210 Tachograph Assy
83242 Tachometer Assy, Engine
83252 Meter, Hour
83292 Computer, Combination Gage
83293 Computer, Total Counter Module
83310 Gage Assy, Fuel Receiver
83580 Gage Assy, Oil Temperature Receiver
83878 Resistor, Combination Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
