Toyota Dyna/Toyoace
1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan
Discontinued model
Data version 2007-10

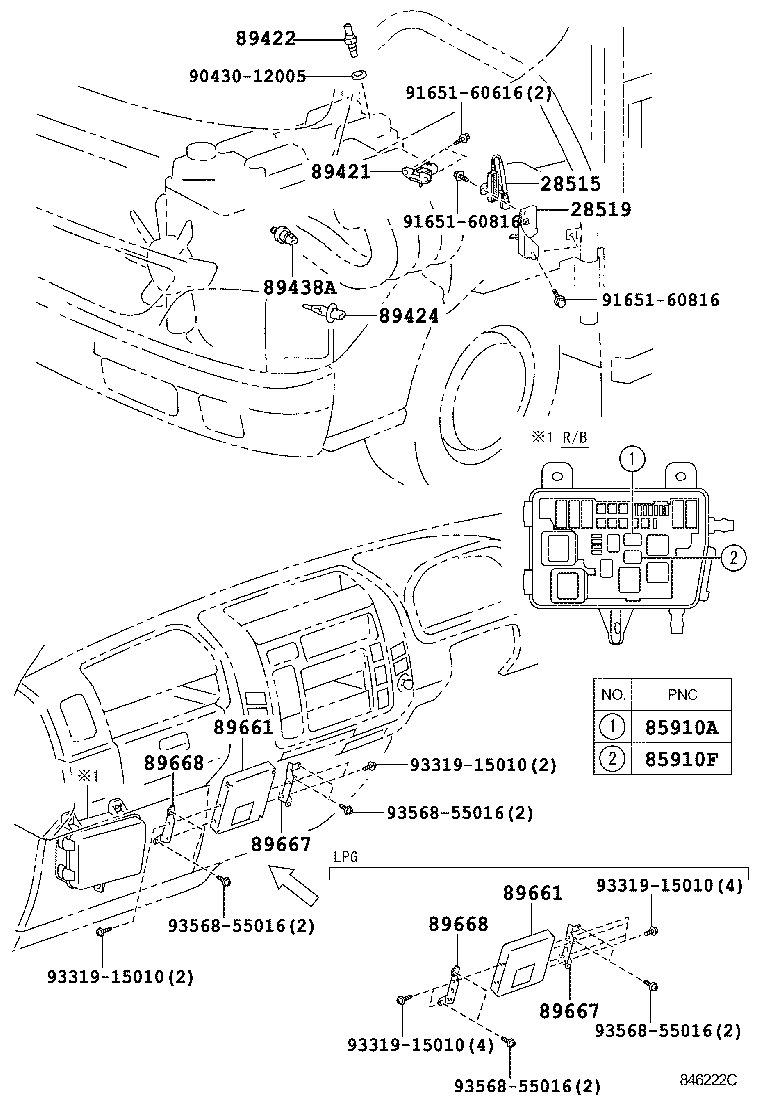

Electronic Fuel Injection System
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28515 | Resistor, Solenoid |
| 28519 | Bracket, Solenoid Resistor |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89438A | Switch, Power Steering Oil Pressure |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89669 | Bracket, Engine Control Computer, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
