Toyota Dyna/Toyoace
1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan
Discontinued model
Data version 2007-10
Heating & Air Conditioning - Heater Unit & Blower
18 part groups · 6 illustrations
Part groups

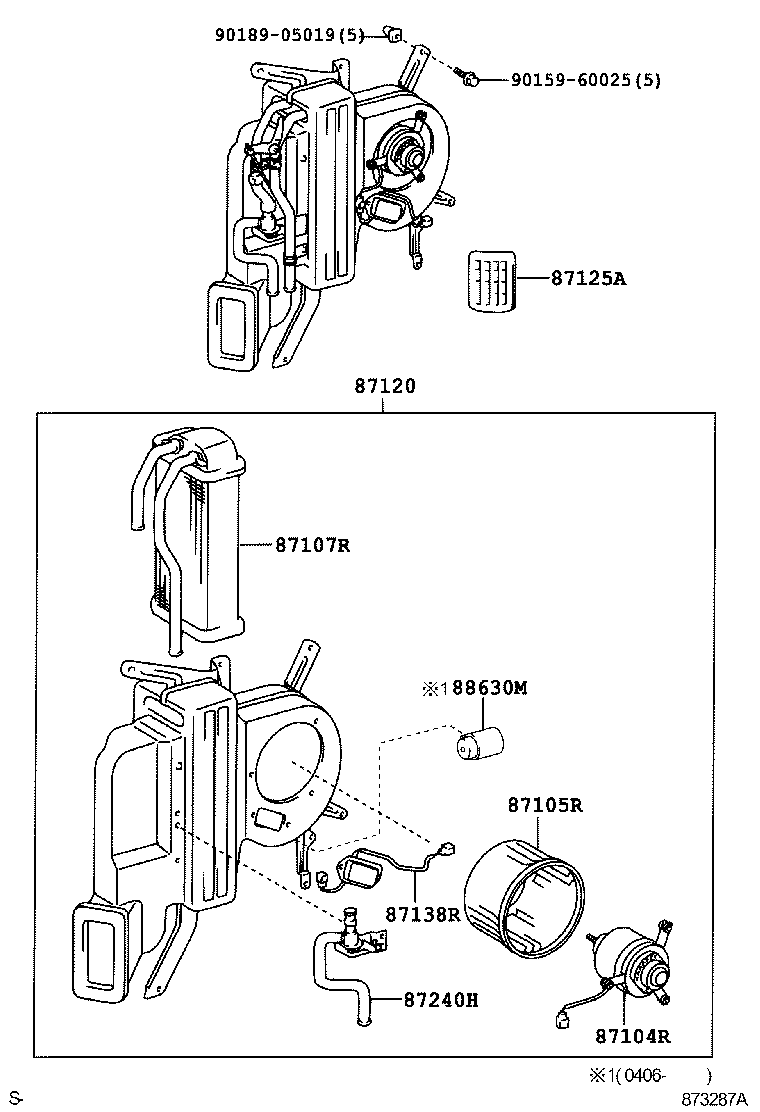

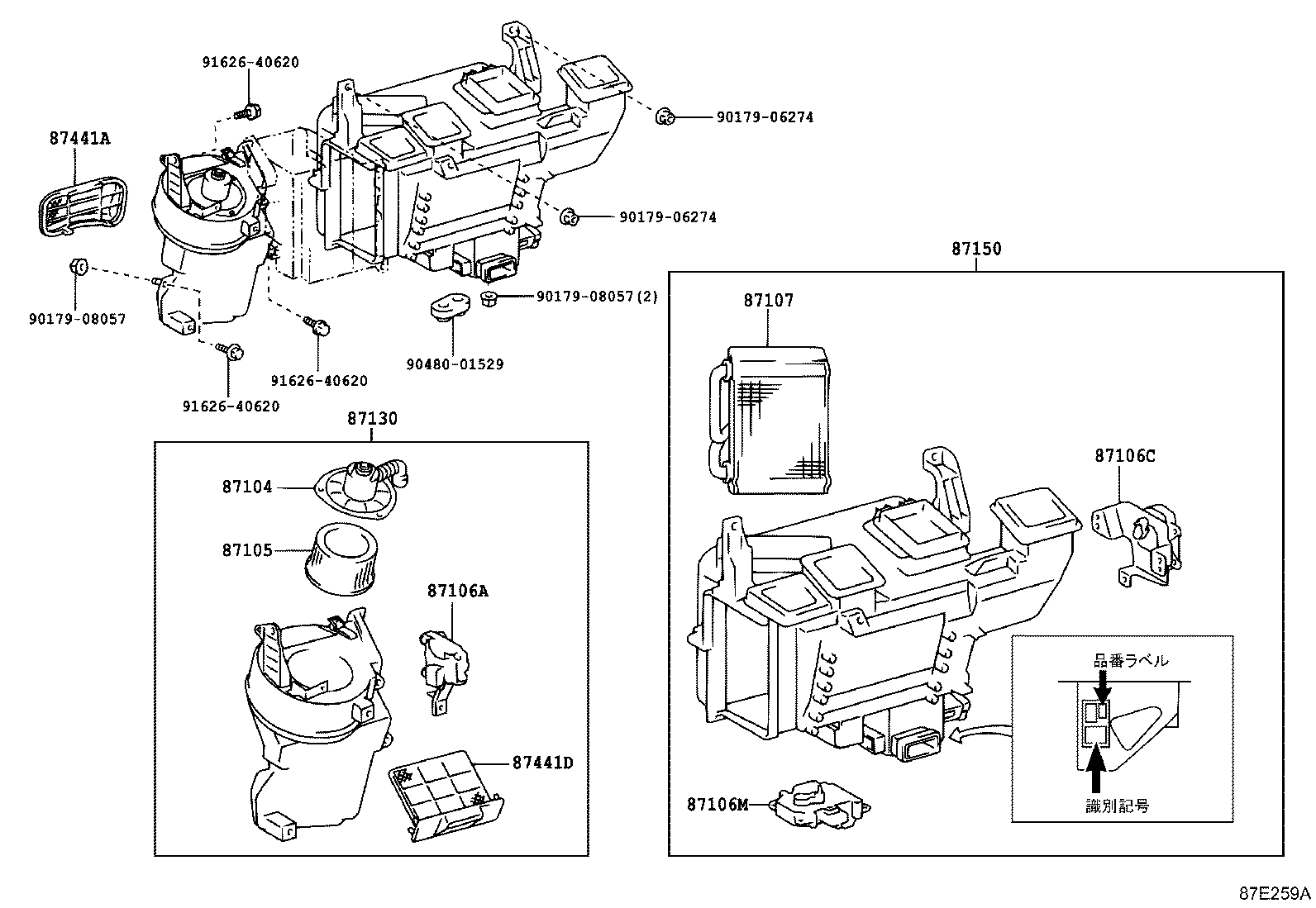

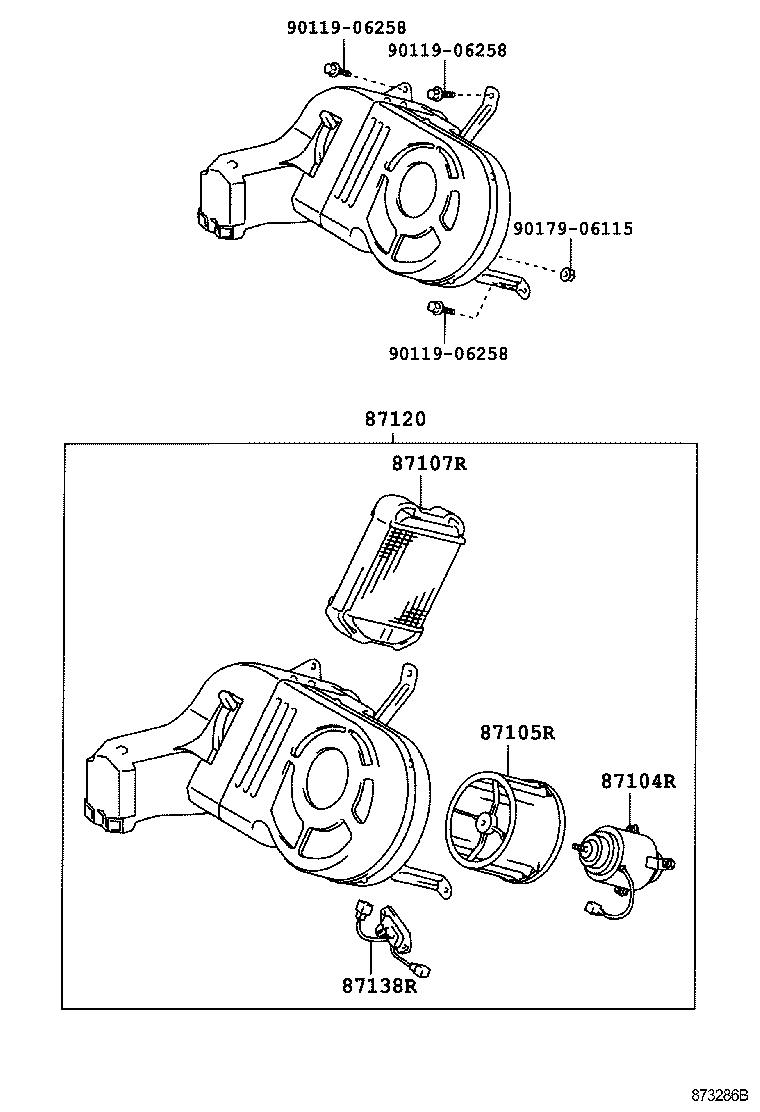

| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87106C | Servo Sub-assy, Damper(FOR BLOWER) |
| 87106M | Servo Sub-assy, Damper, NO.2 |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87120 | Heater Assy, Rear |
| 87125A | Grille, Air Outlet |
| 87130 | Blower Assy, Heater, Front |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87240H | Valve Assy, Water Unit |
| 87441A | Filter, Heater Air |
| 87441D | Filter, Heater Air, NO.2 |
| 88630M | Relay Assy, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
