Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

41 part groups · 10 illustrations

Illustrations

Figure 873293E 873293E 1999-05 → — Figure 87D337 87D337 1999-05 → — Figure 873294F 873294F 1999-05 → 2004-06 Figure 876961 876961 2004-06 → — Figure 873295 873295 1999-05 → 2004-06 Figure 873295 873295 2004-06 → — Figure 873299B 873299B 1999-05 → — Figure 873296B 873296B 1999-08 → 2004-06 Figure 873296B 873296B 2004-06 → — Figure 873297 873297 1999-05 → 2004-06

Part groups

PNCDescription
55519 Plate, Heater Control Name
55519R Plate, Heater Control Name

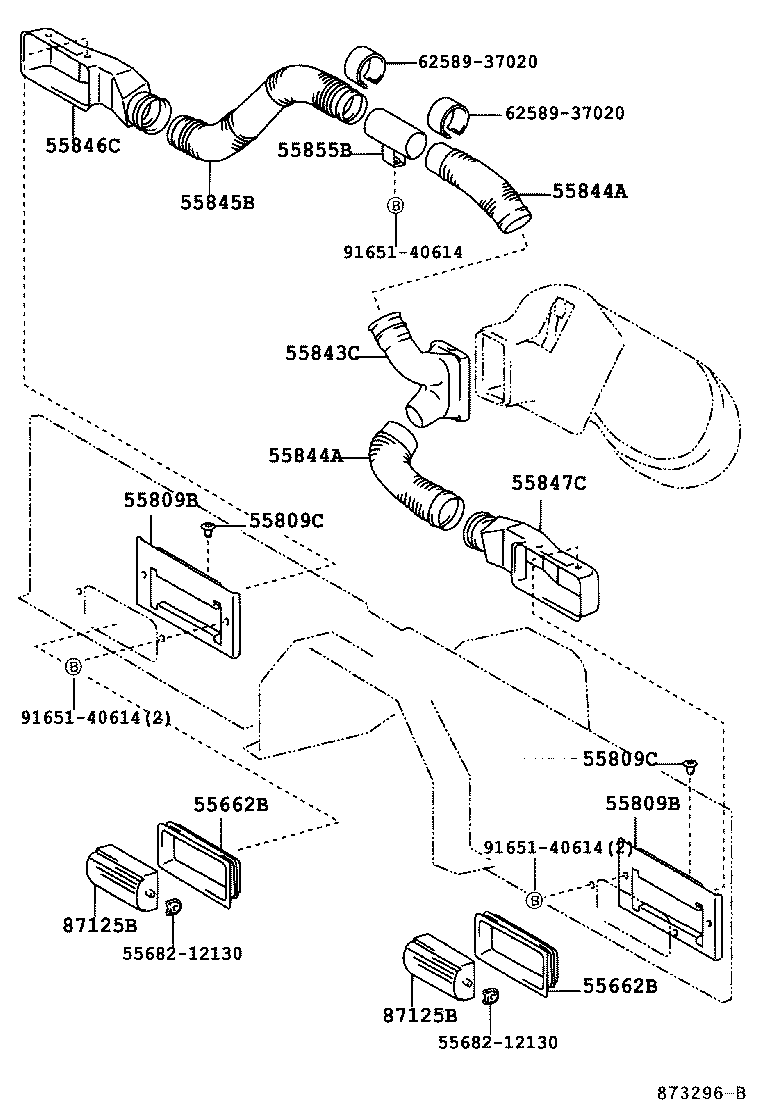

55662B Bezel, Rear Heater
55809B Bracket, Air Duct Retainer
55809C Clip, Air Duct Retainer Bracket

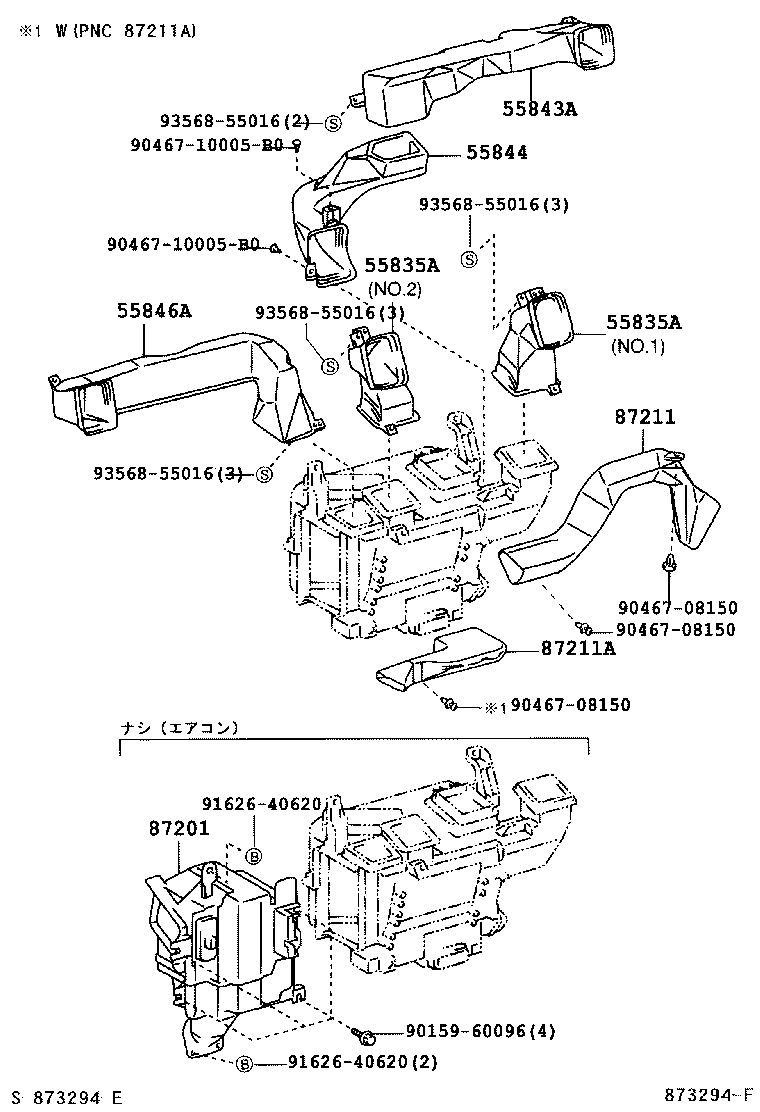

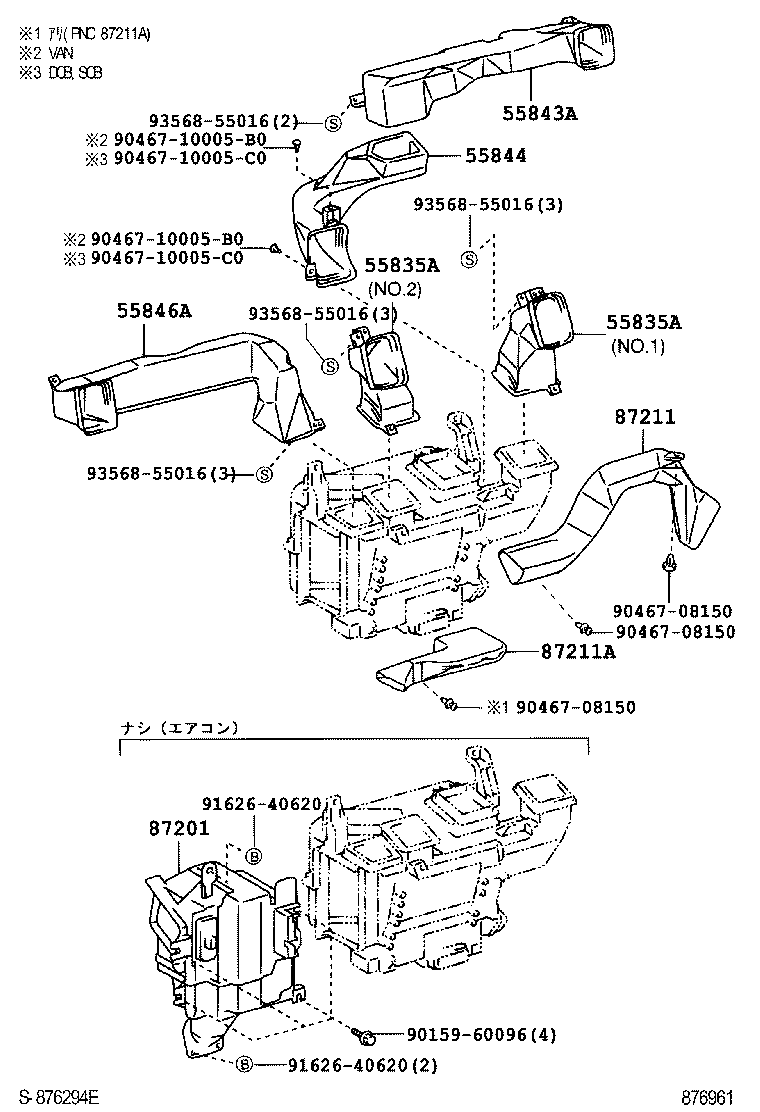

55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55843C Duct, Rear Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55844A Duct, Rear Heater TO Register, NO.2
55845B Duct, Rear Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55846C Duct, Rear Heater TO Register, NO.4
55847C Duct, Rear Heater TO Register, NO.5
55855B Bracket, Air Duct Register Mounting
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905K Knob, Heater Control, NO.4
55905L Knob, Heater Control, NO.5
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
55937R Knob, Heater Control Lever
87125B Grille, Heater Air Outlet
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88611A Knob, Cooler Control Switch
88619A Panel, Control

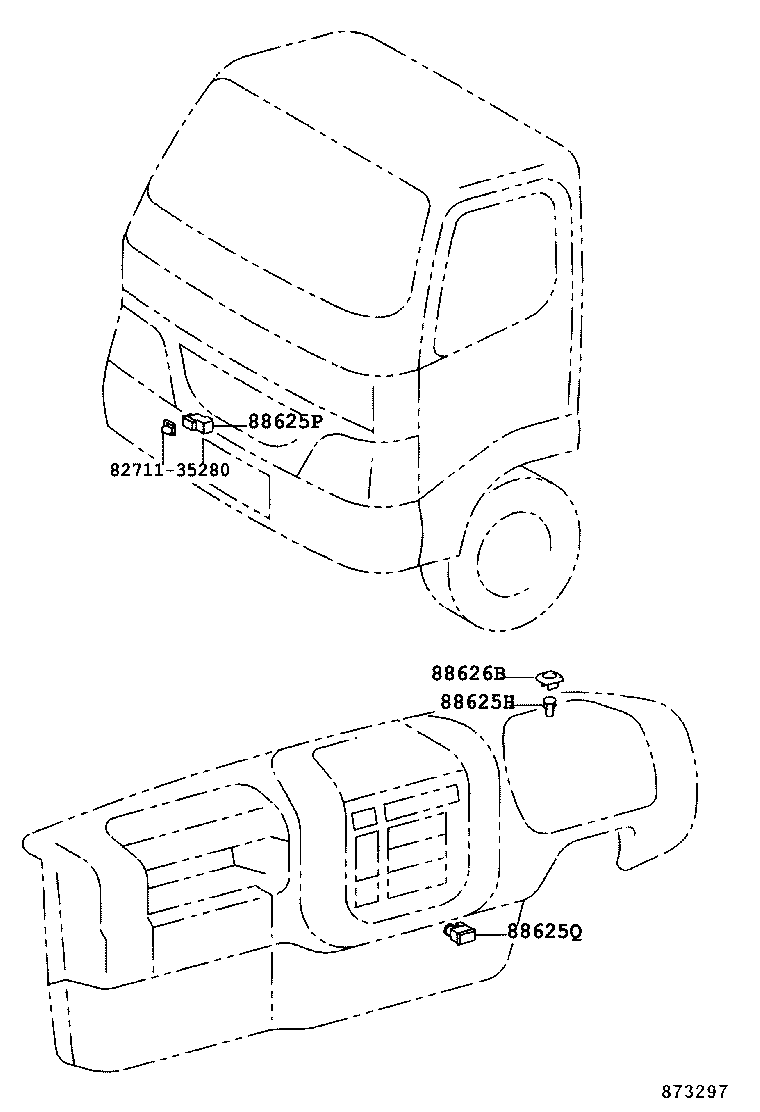

88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88626B Holder, Thermistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
