Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

40 part groups · 36 illustrations

Illustrations

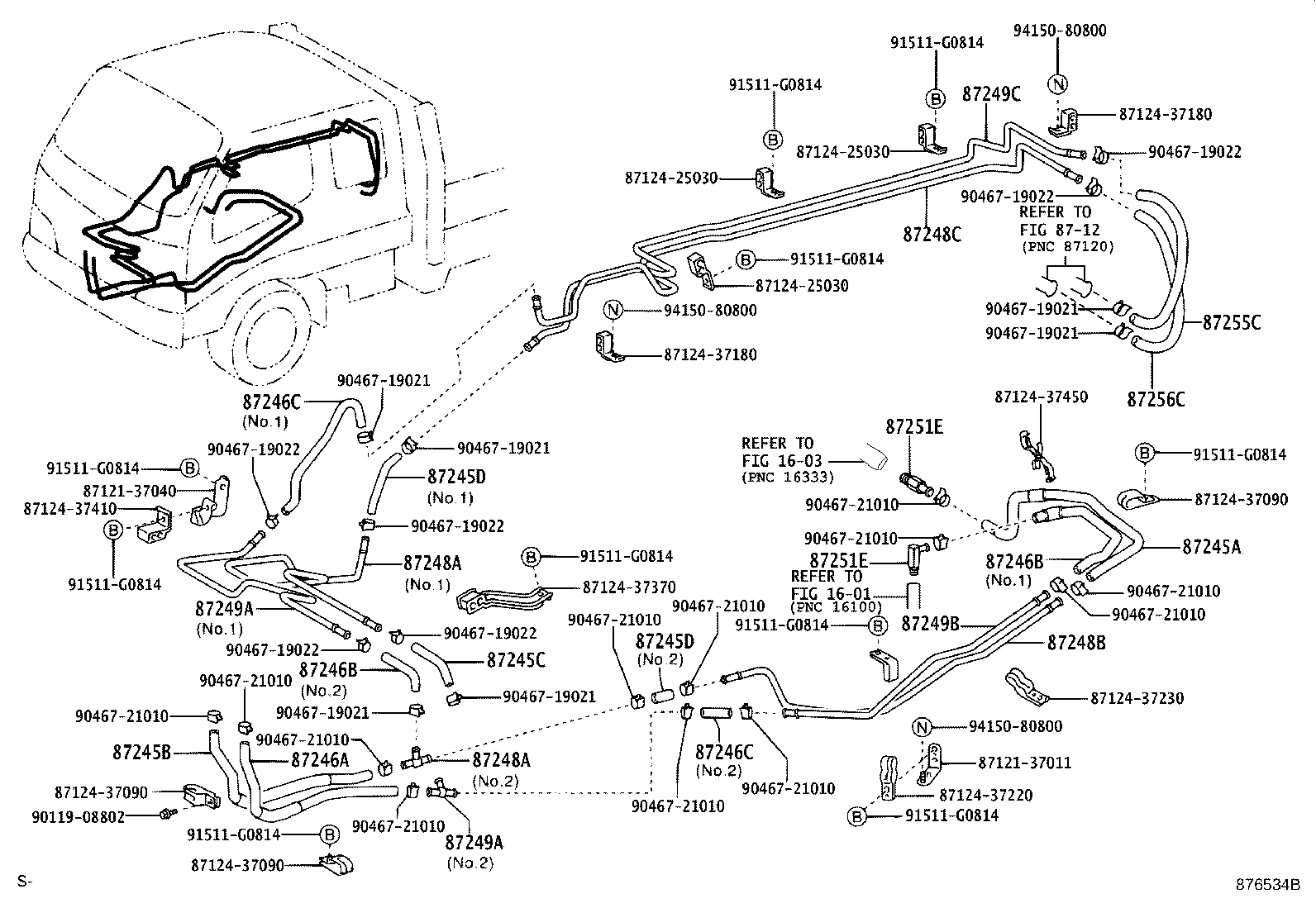

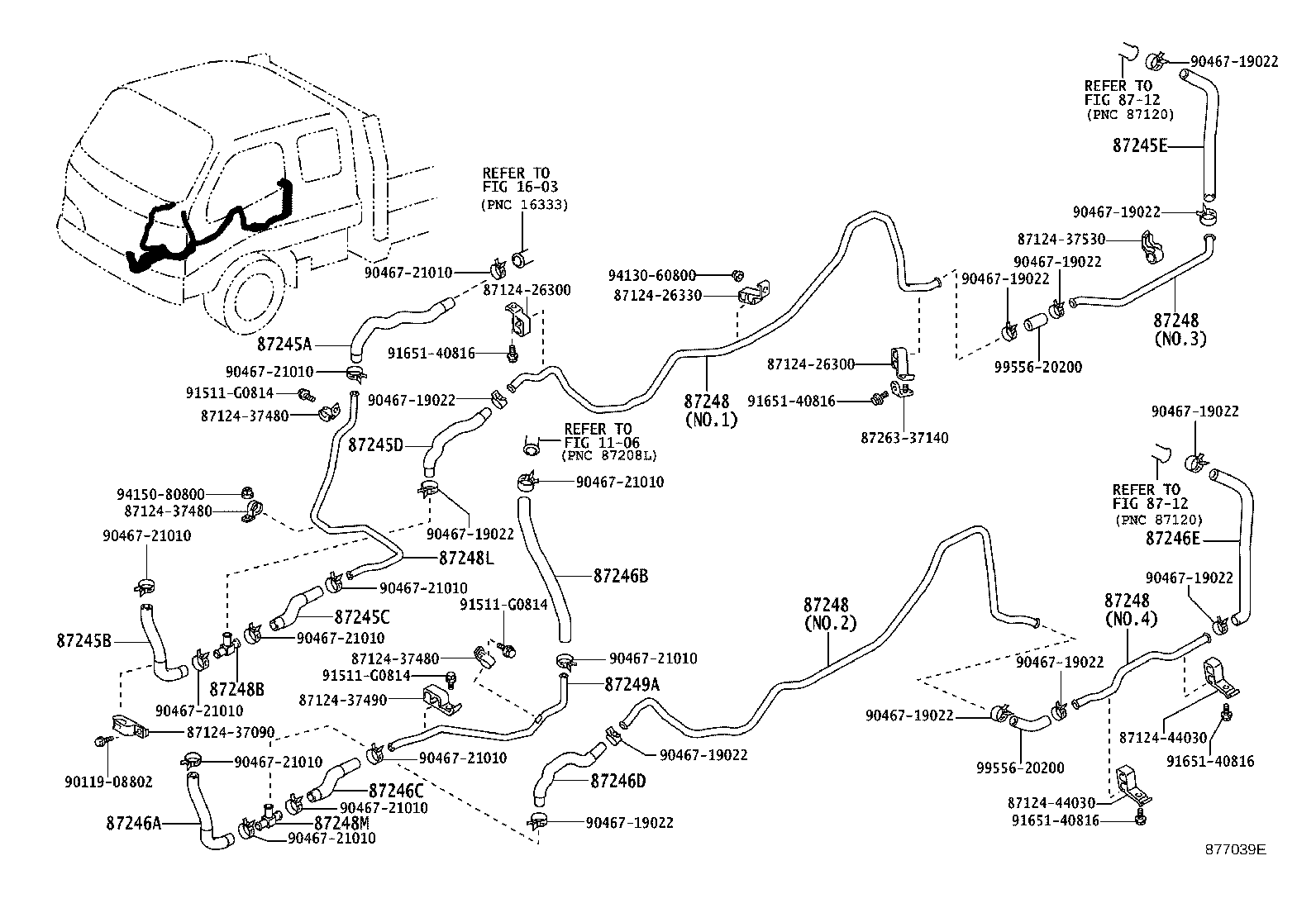

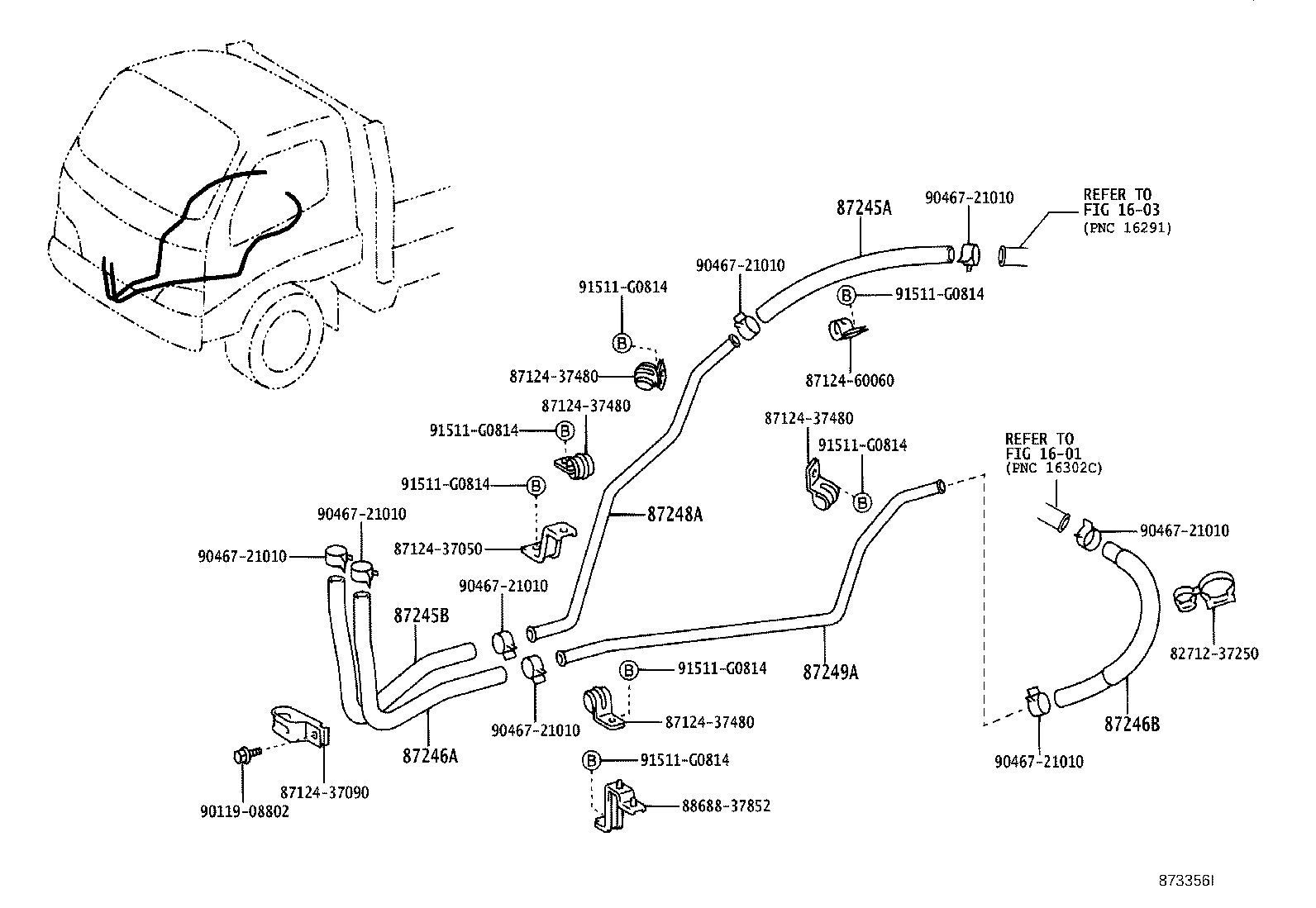

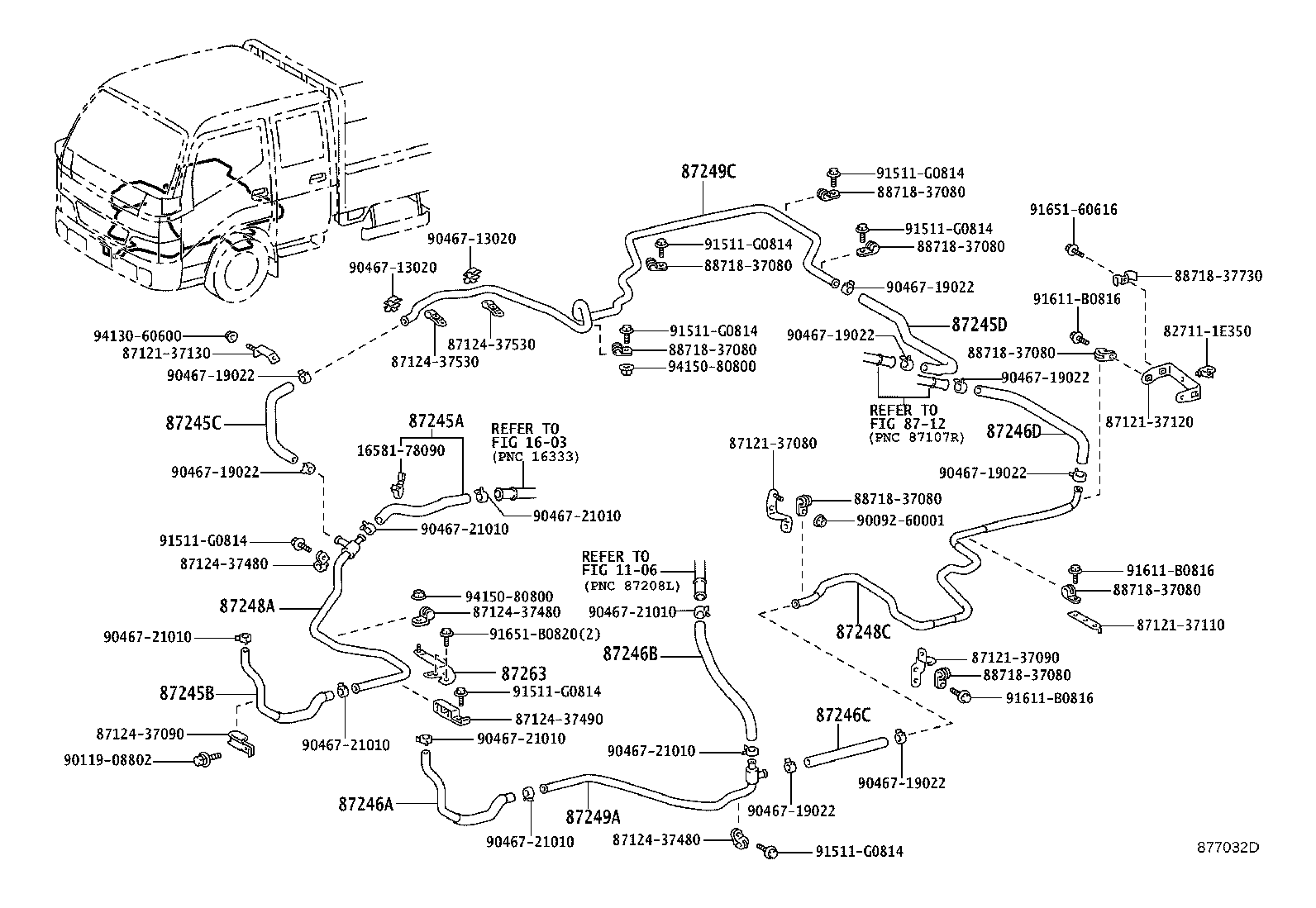

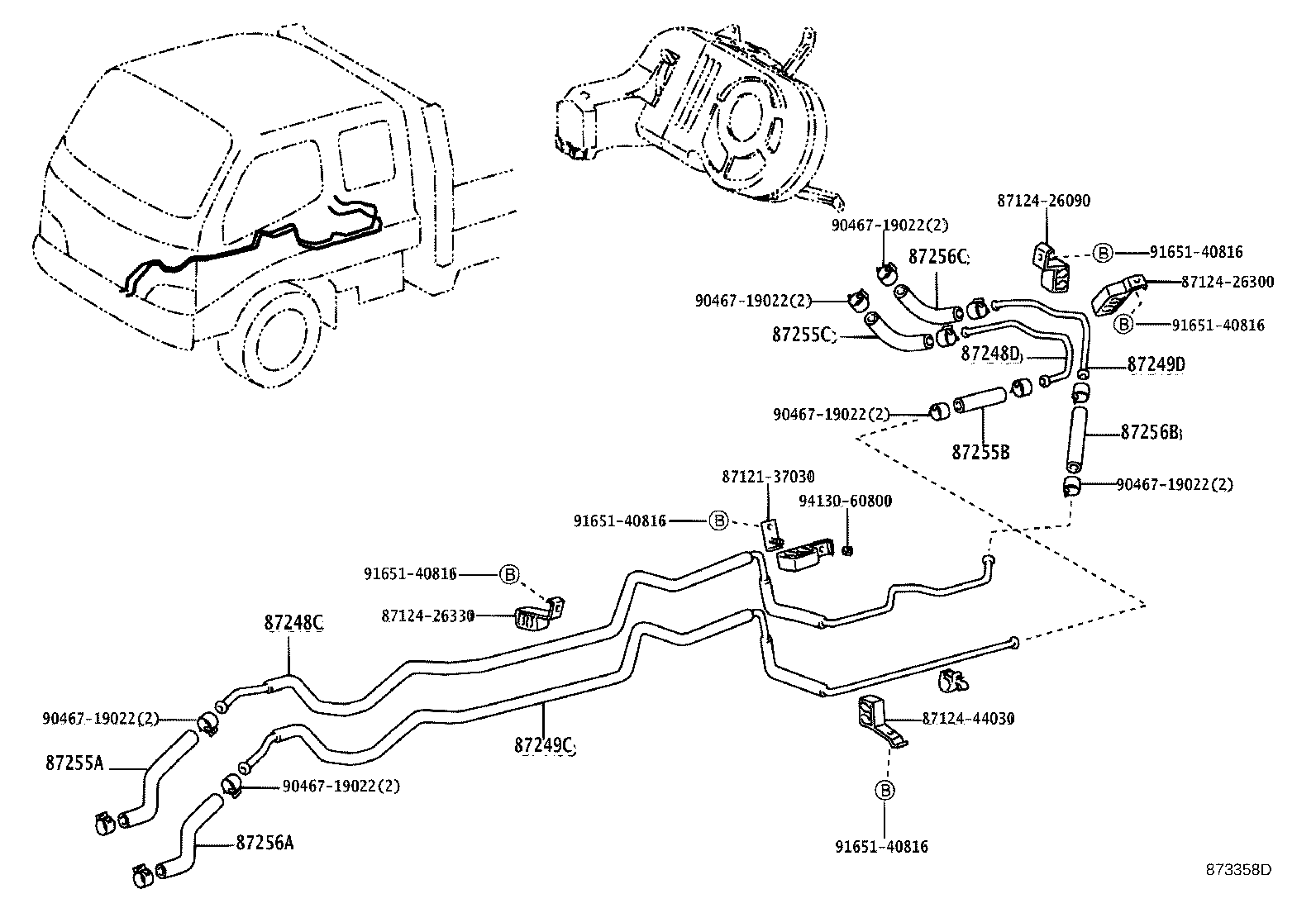

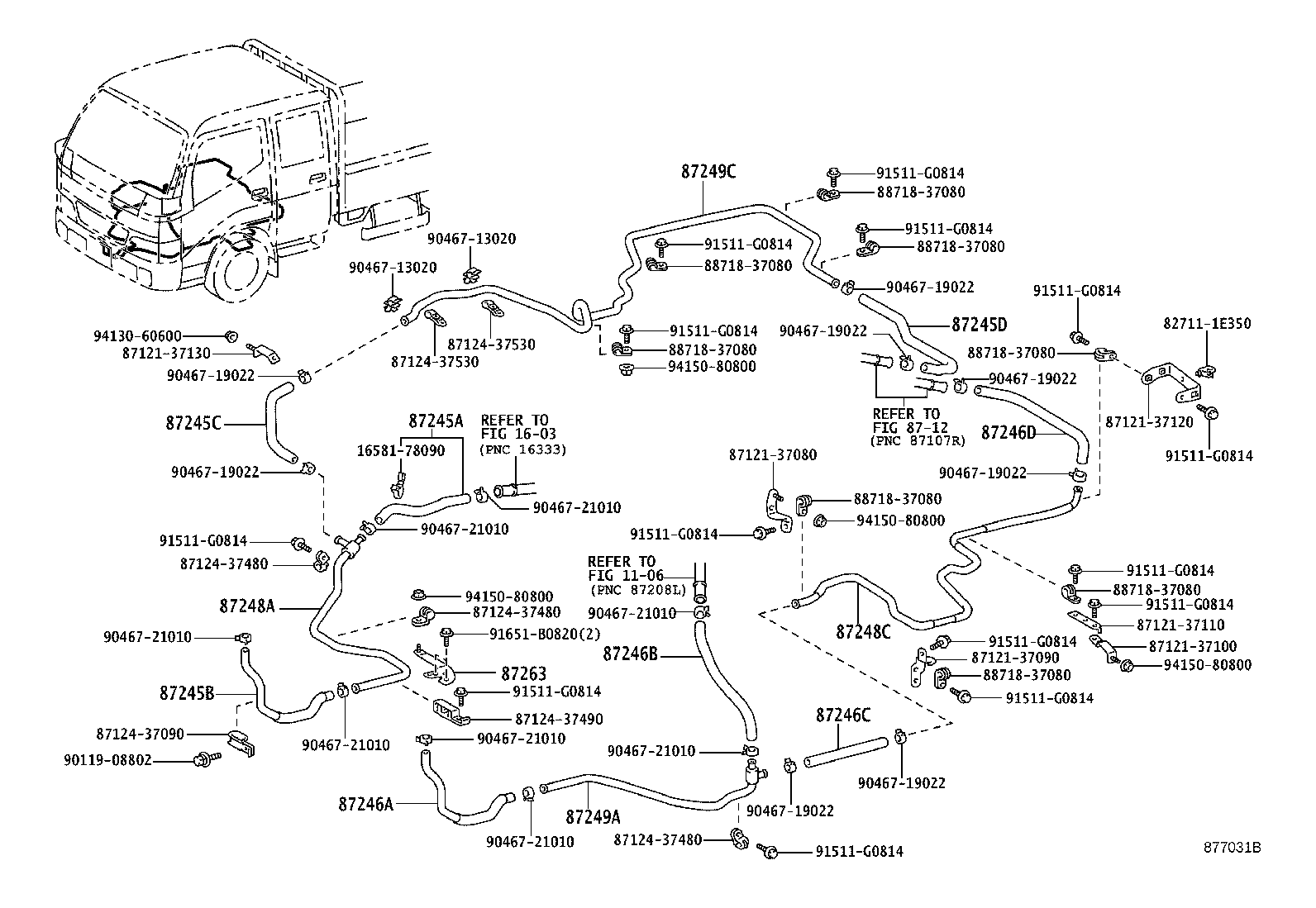

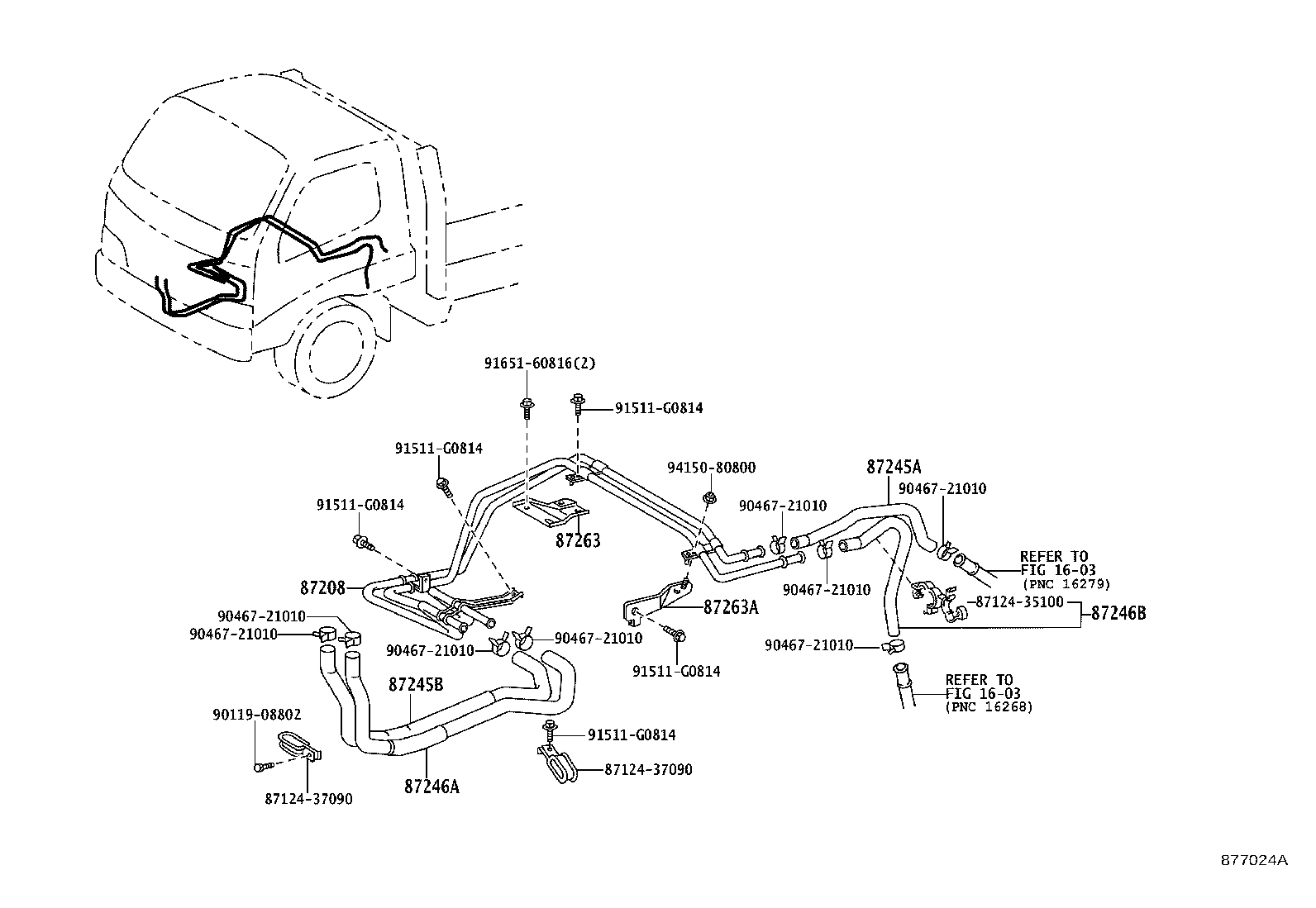

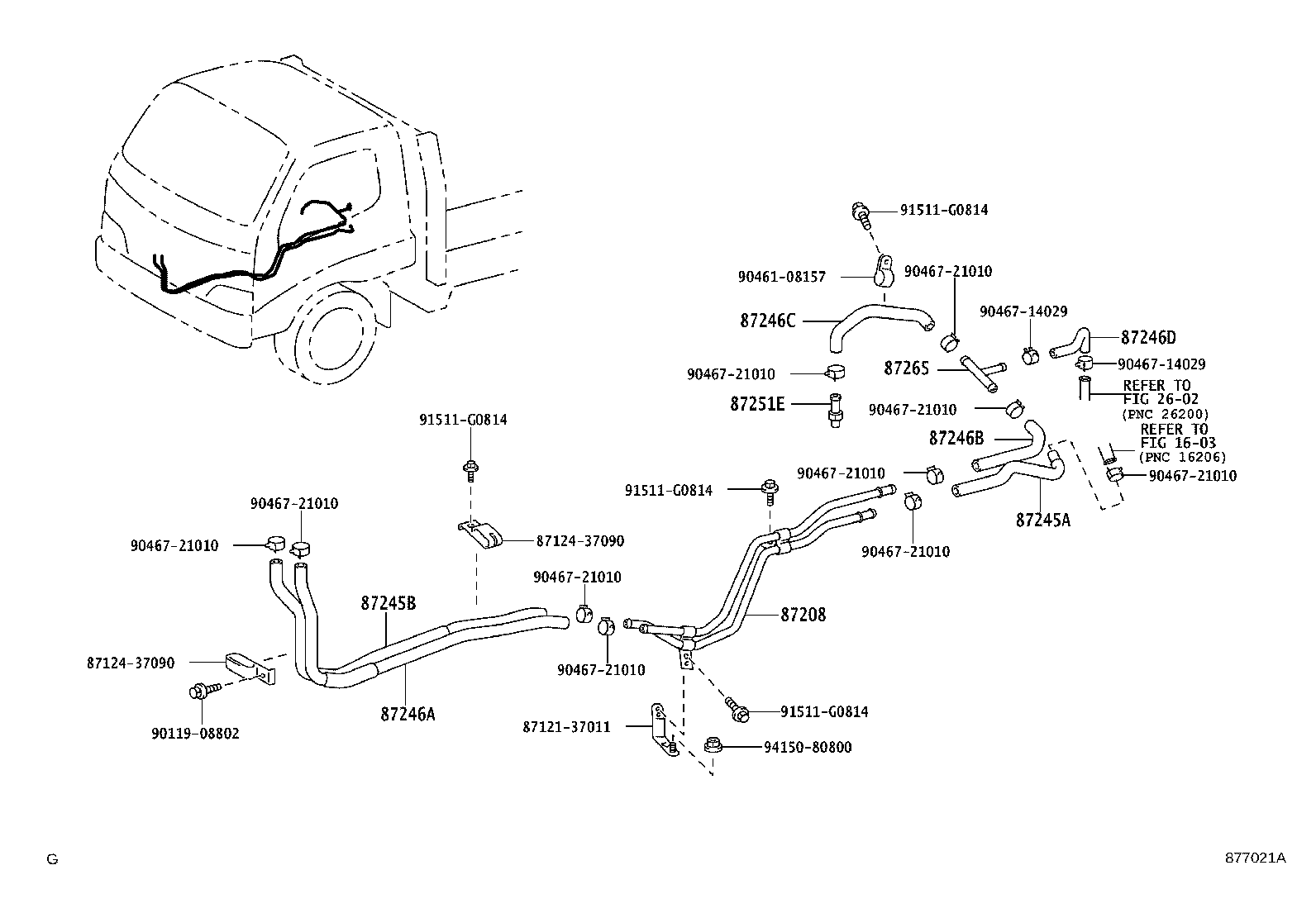

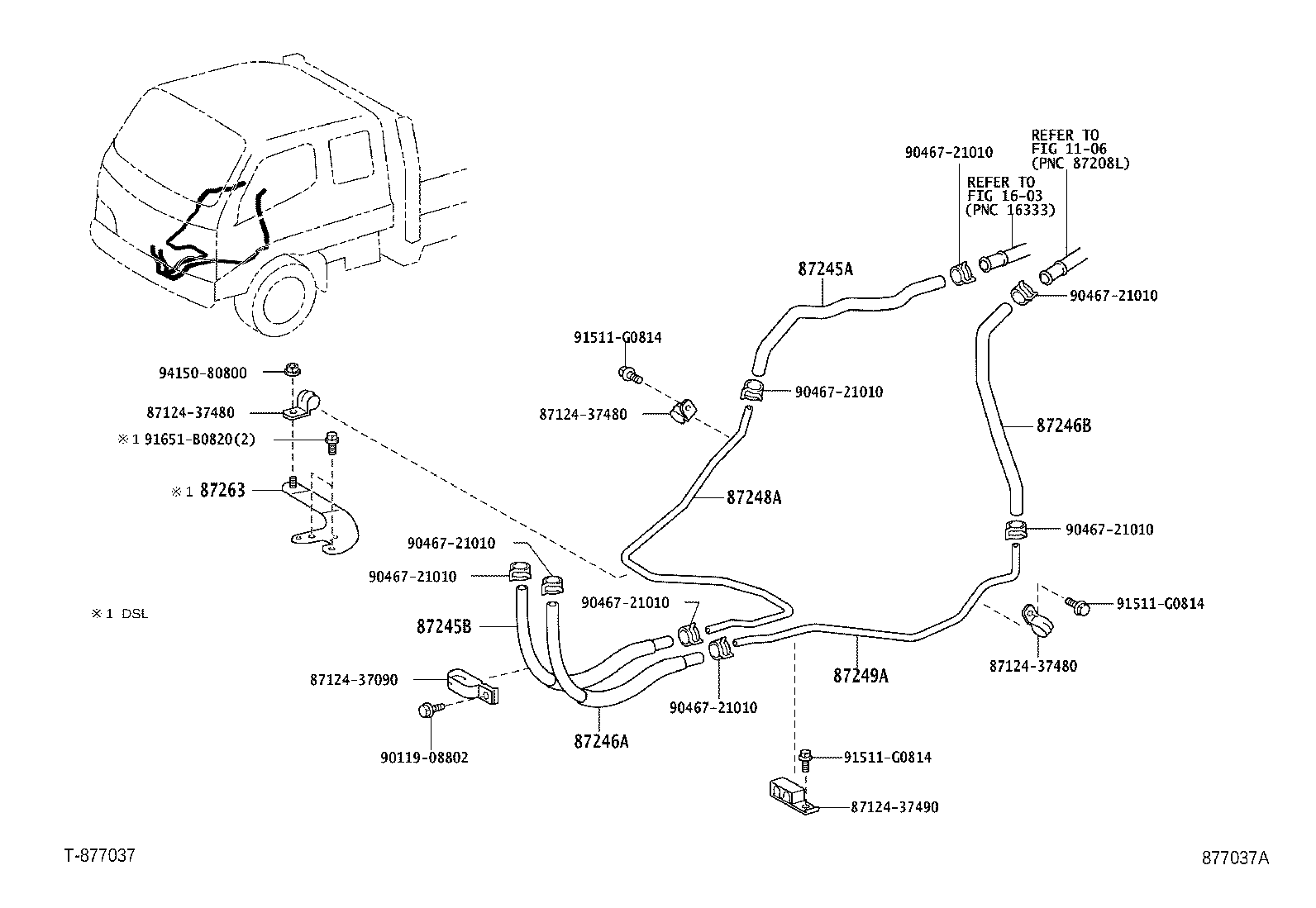

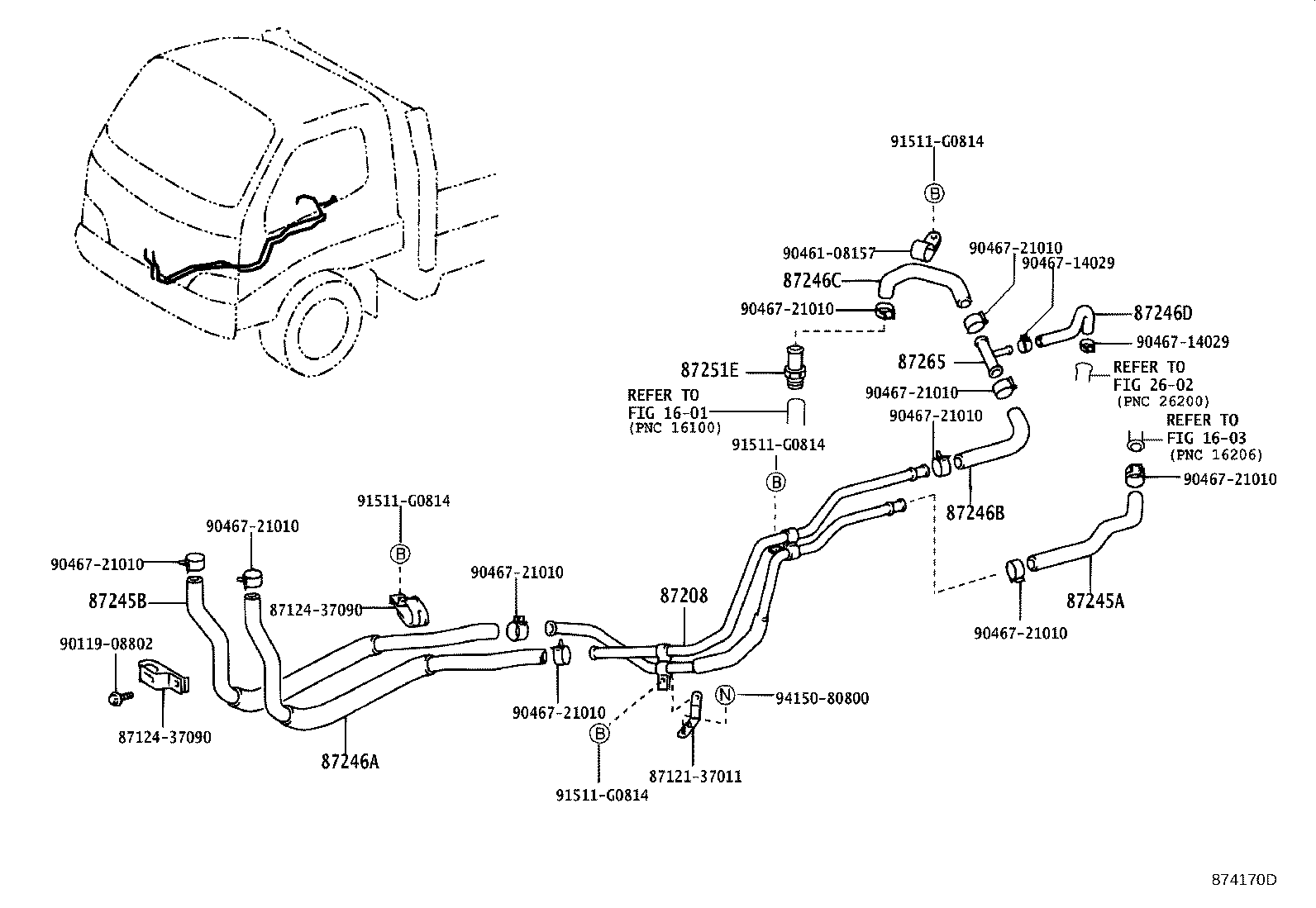

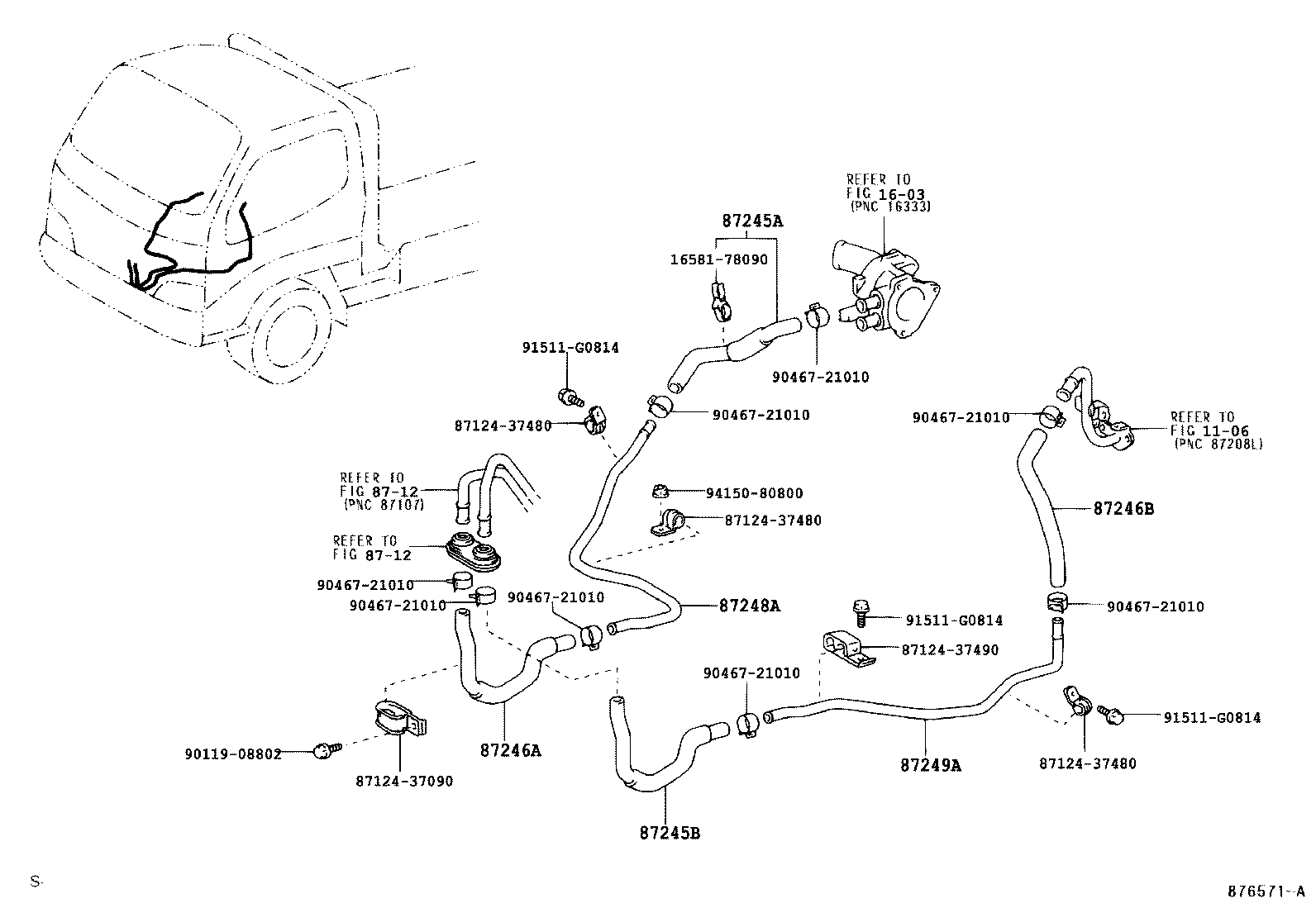

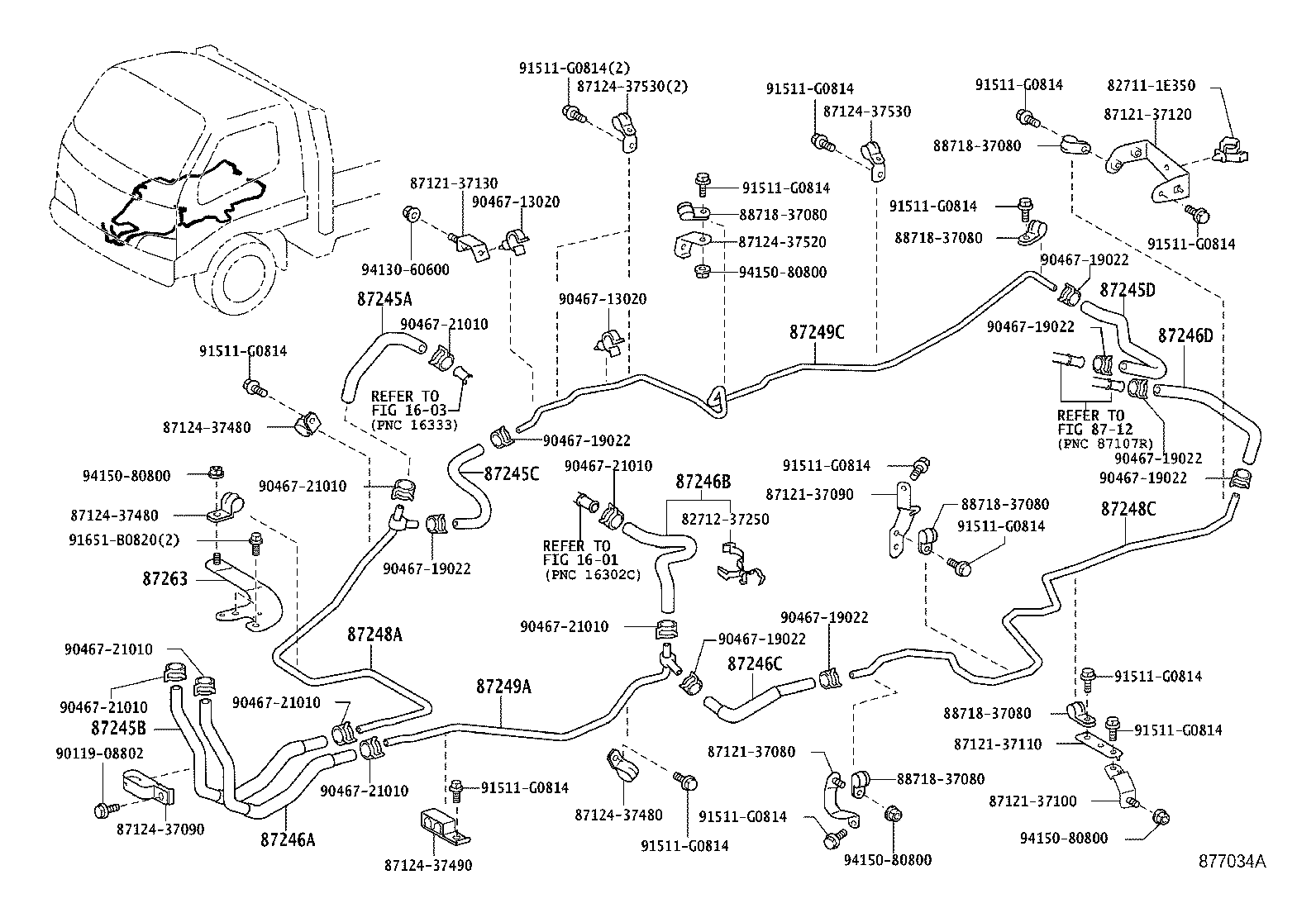

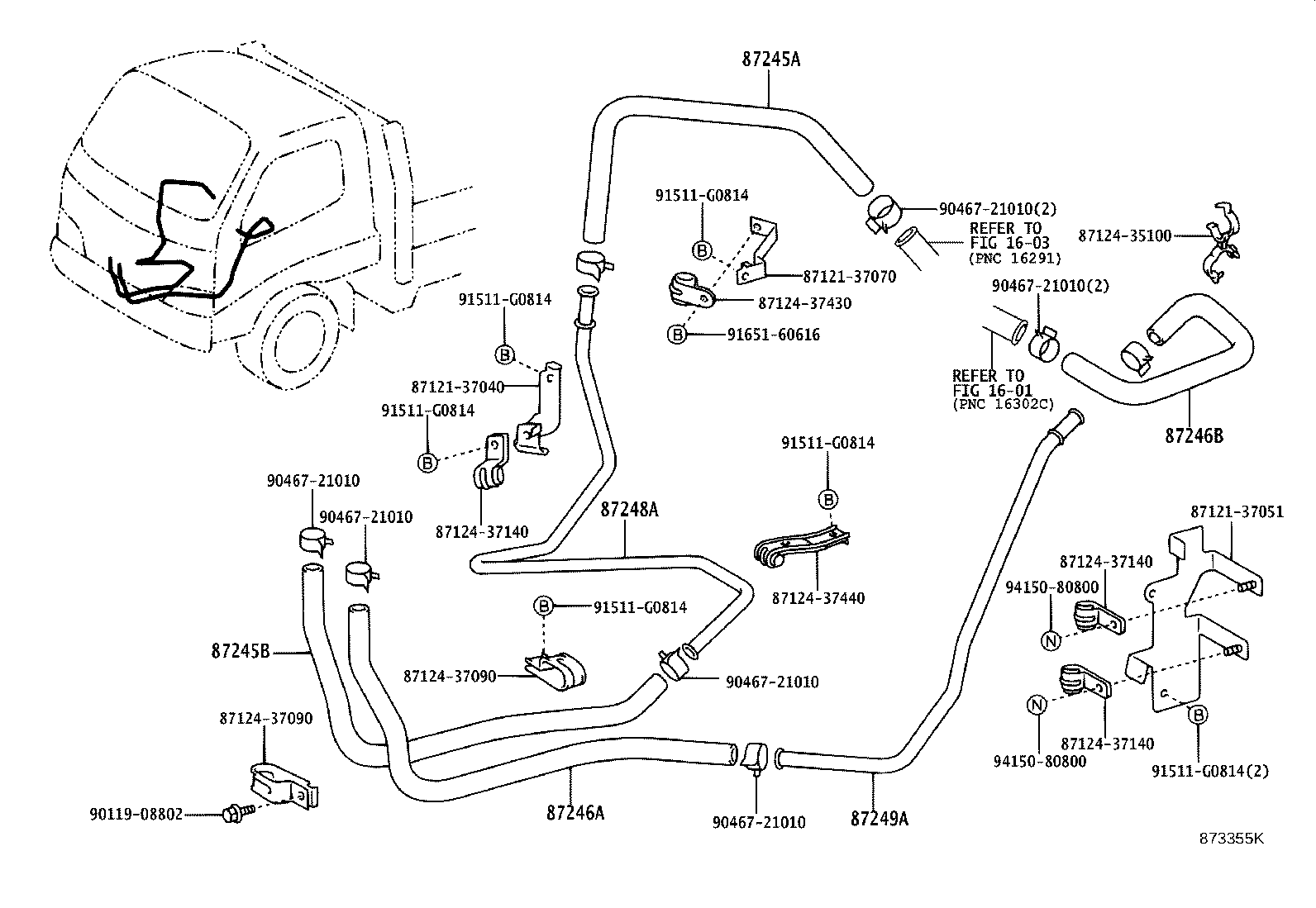

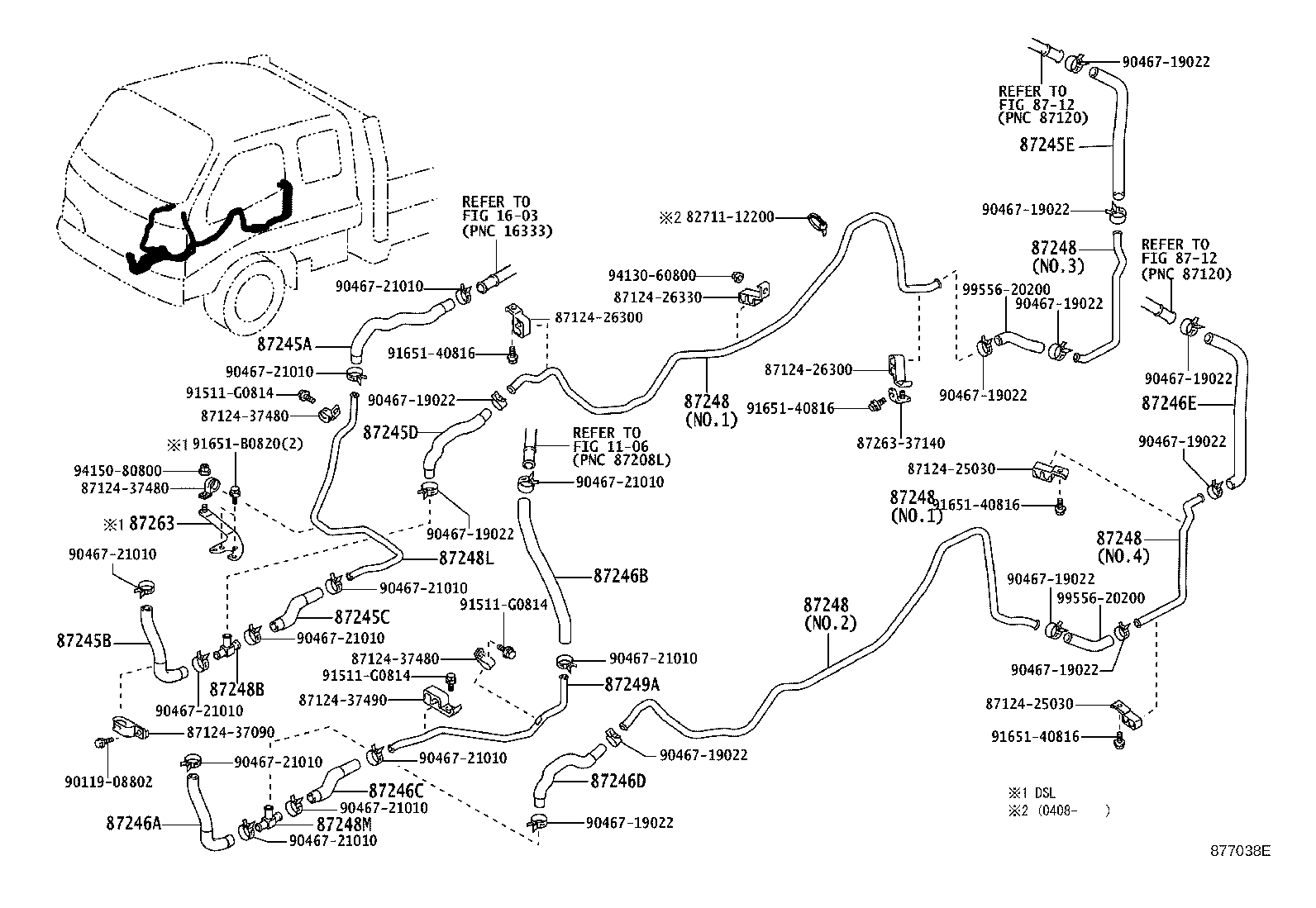

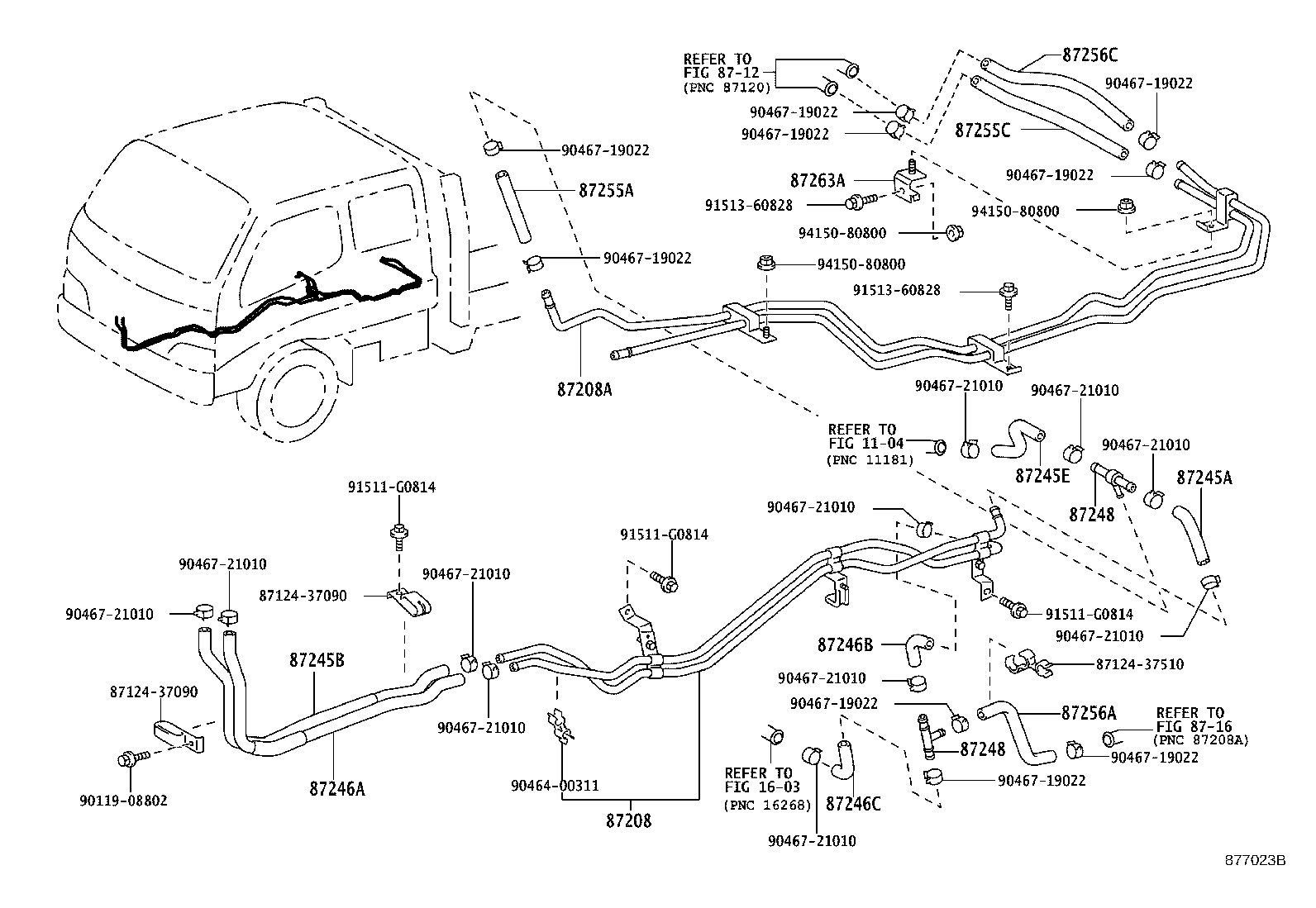

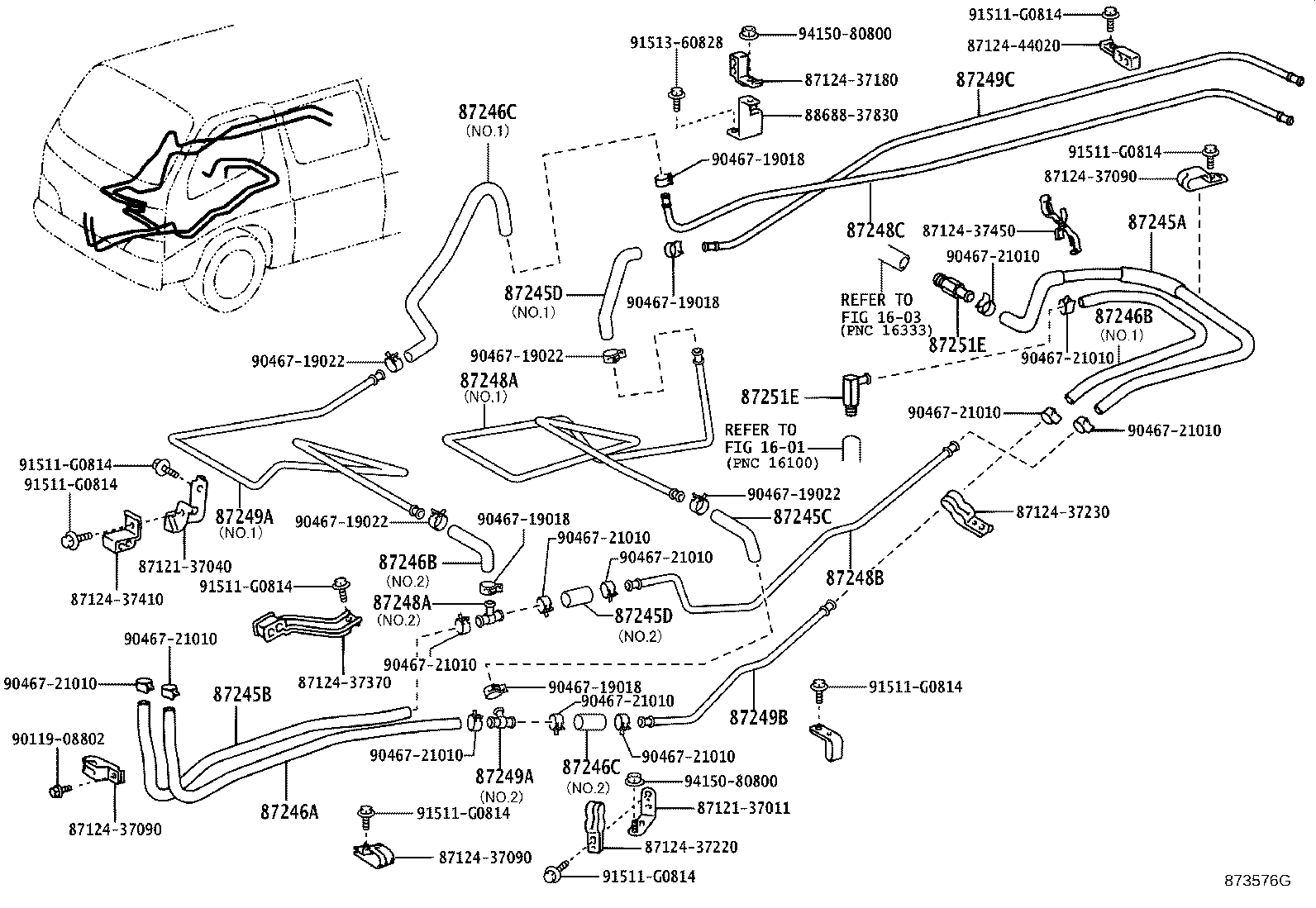

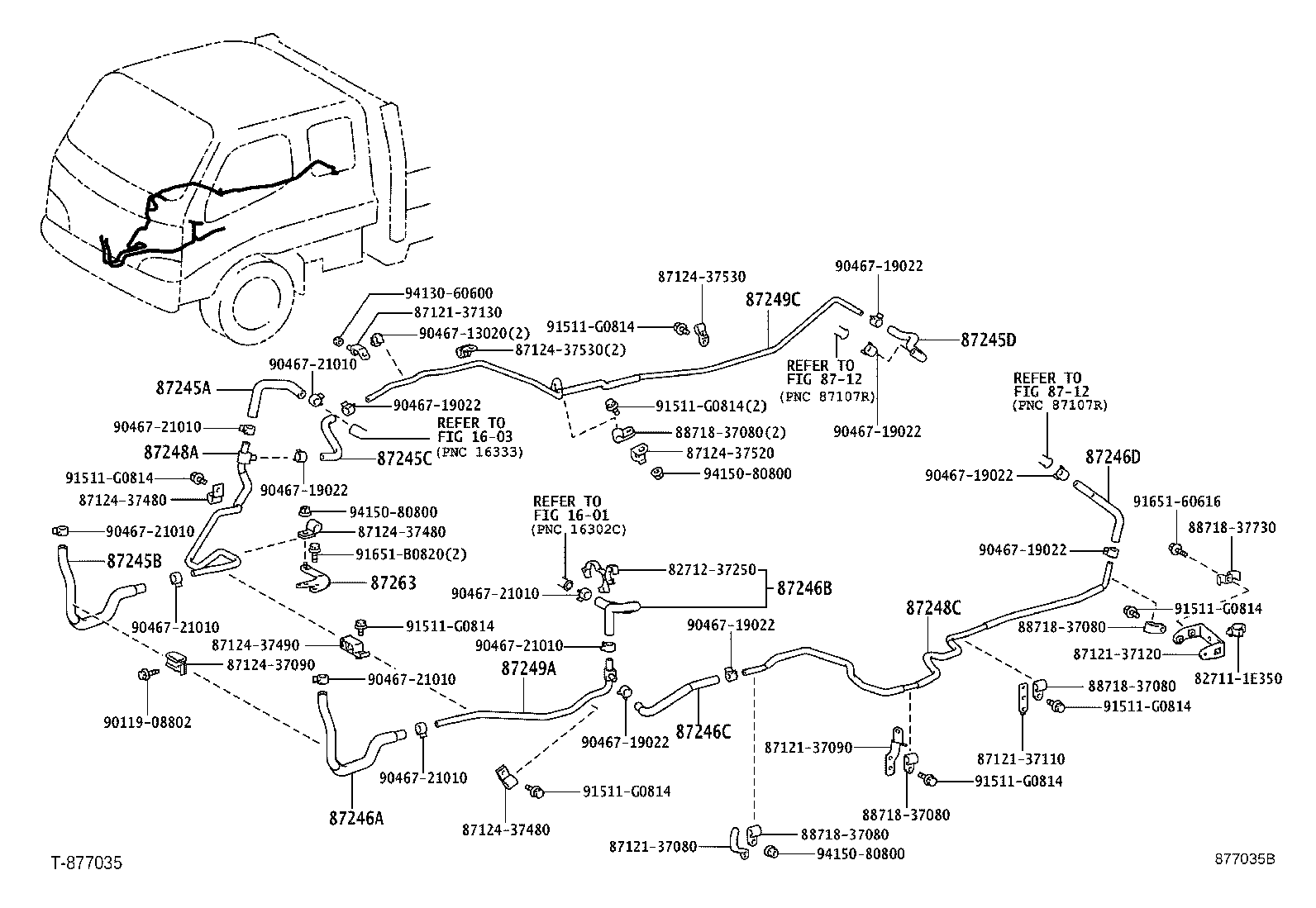

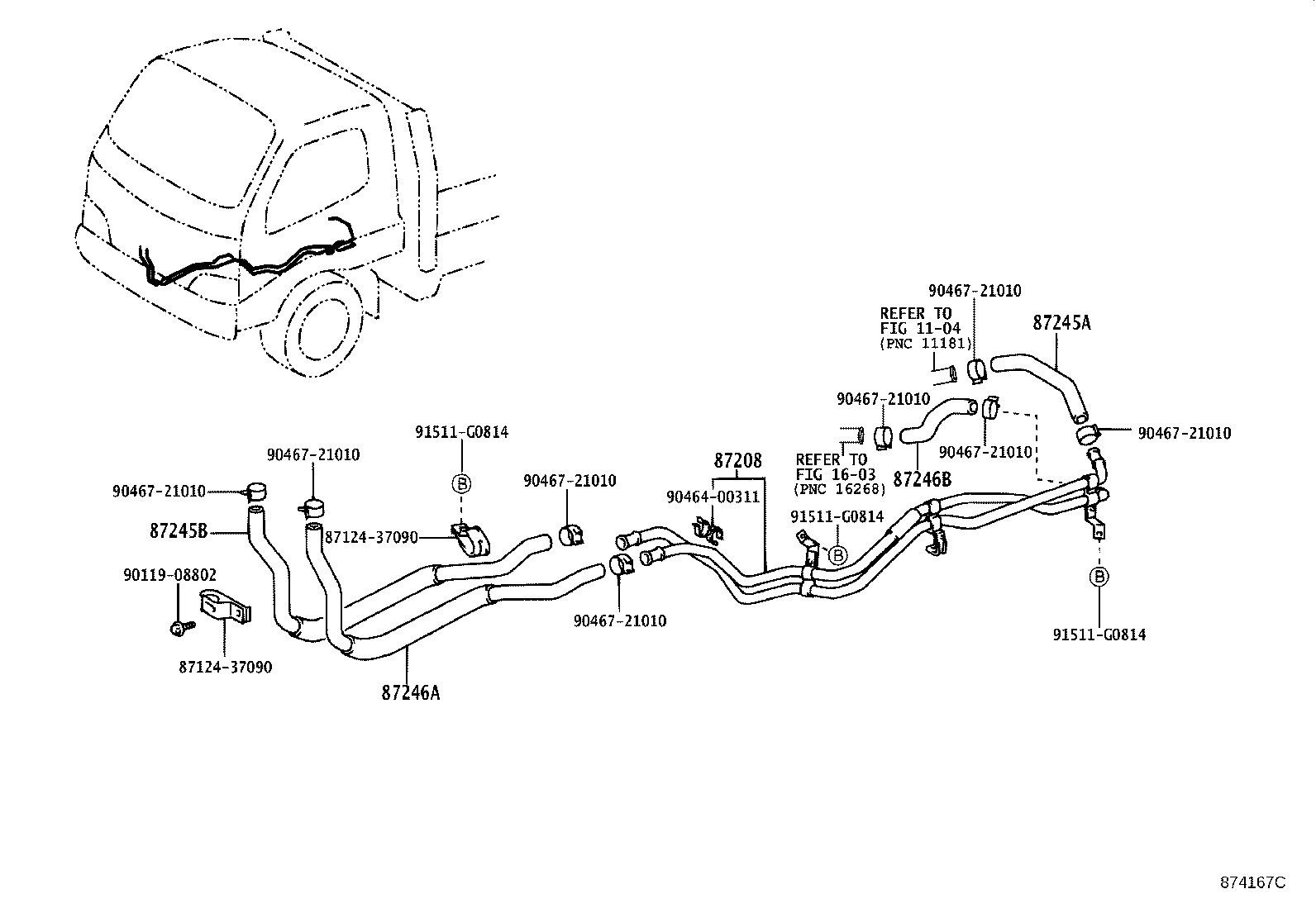

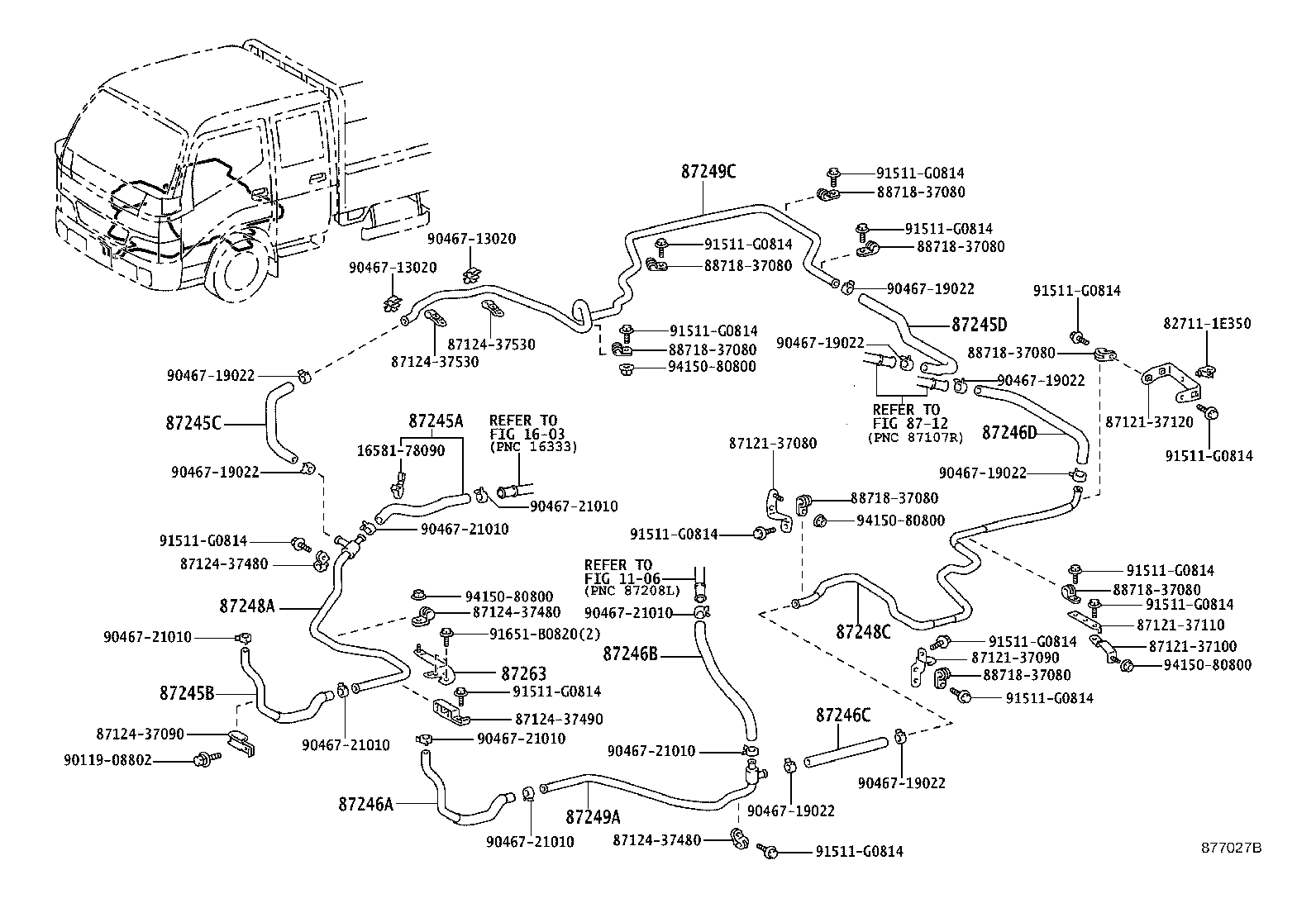

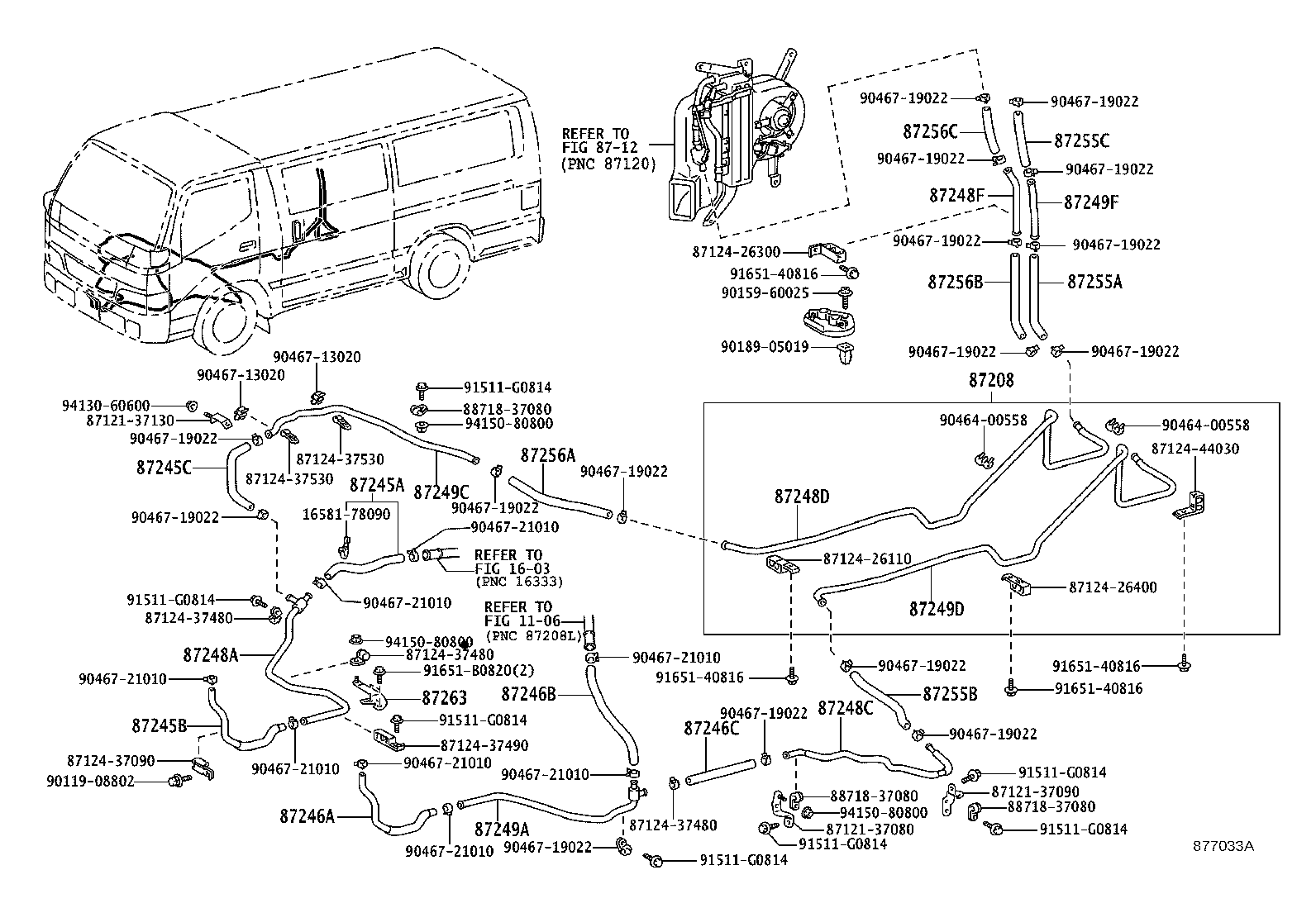

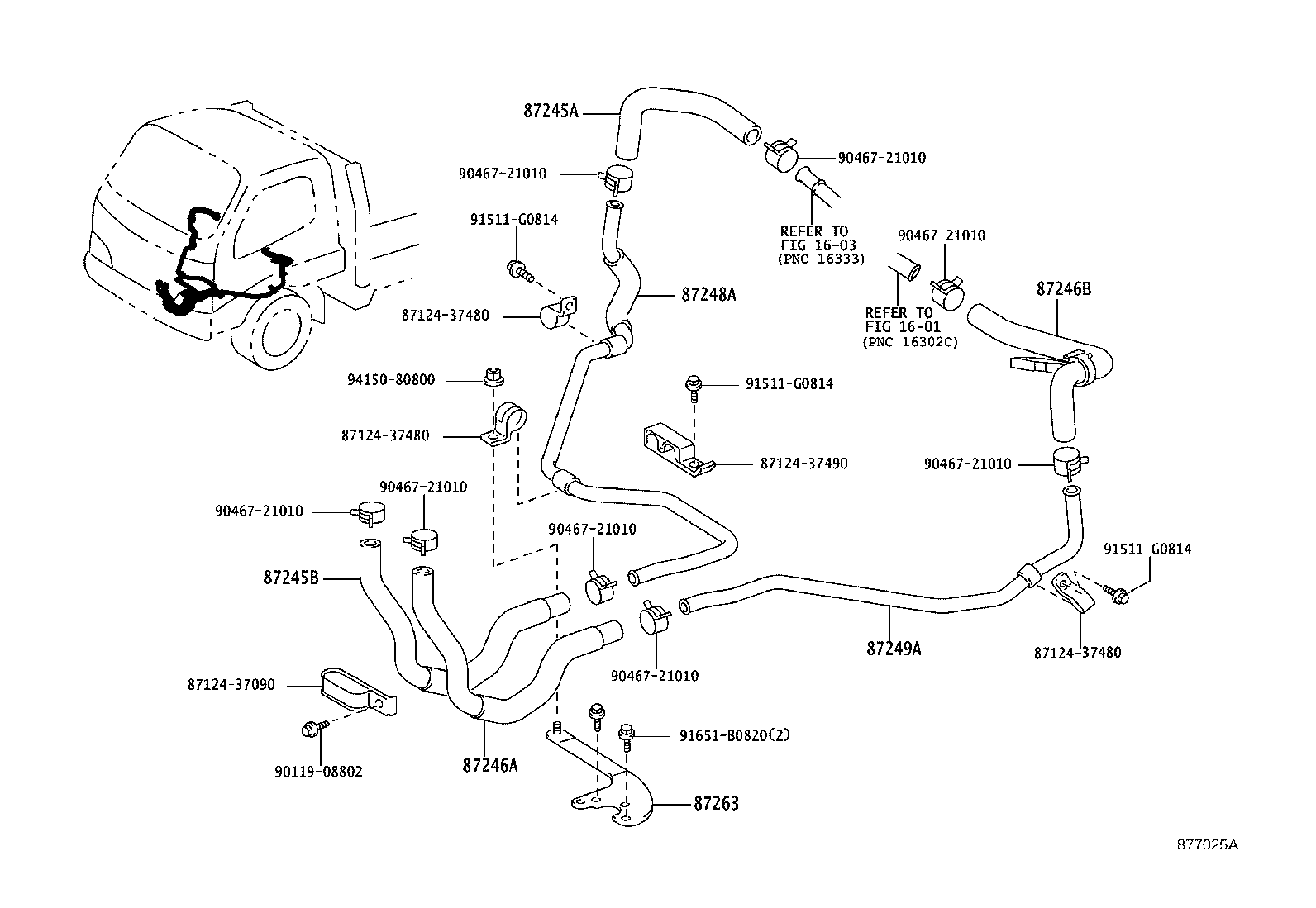

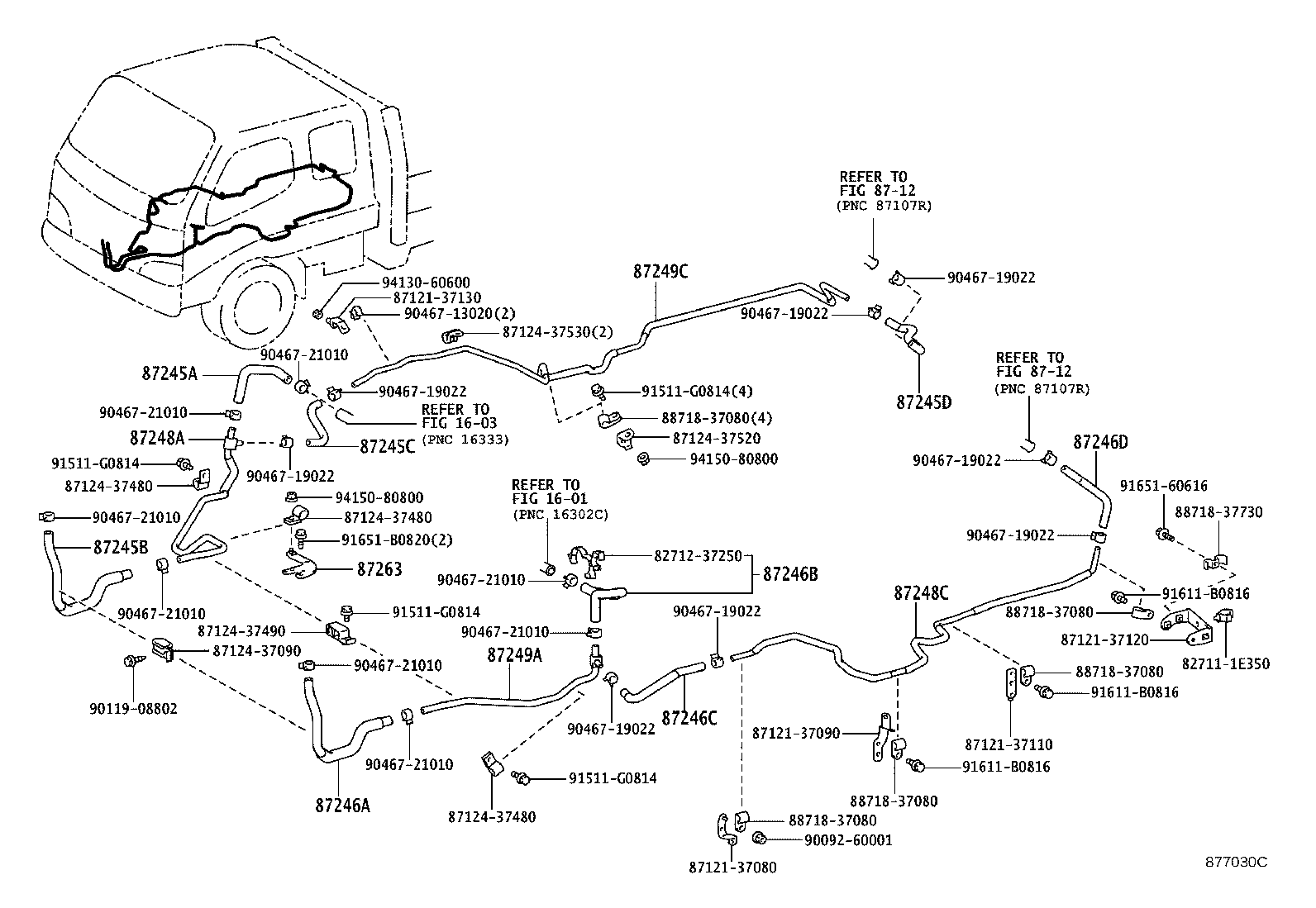

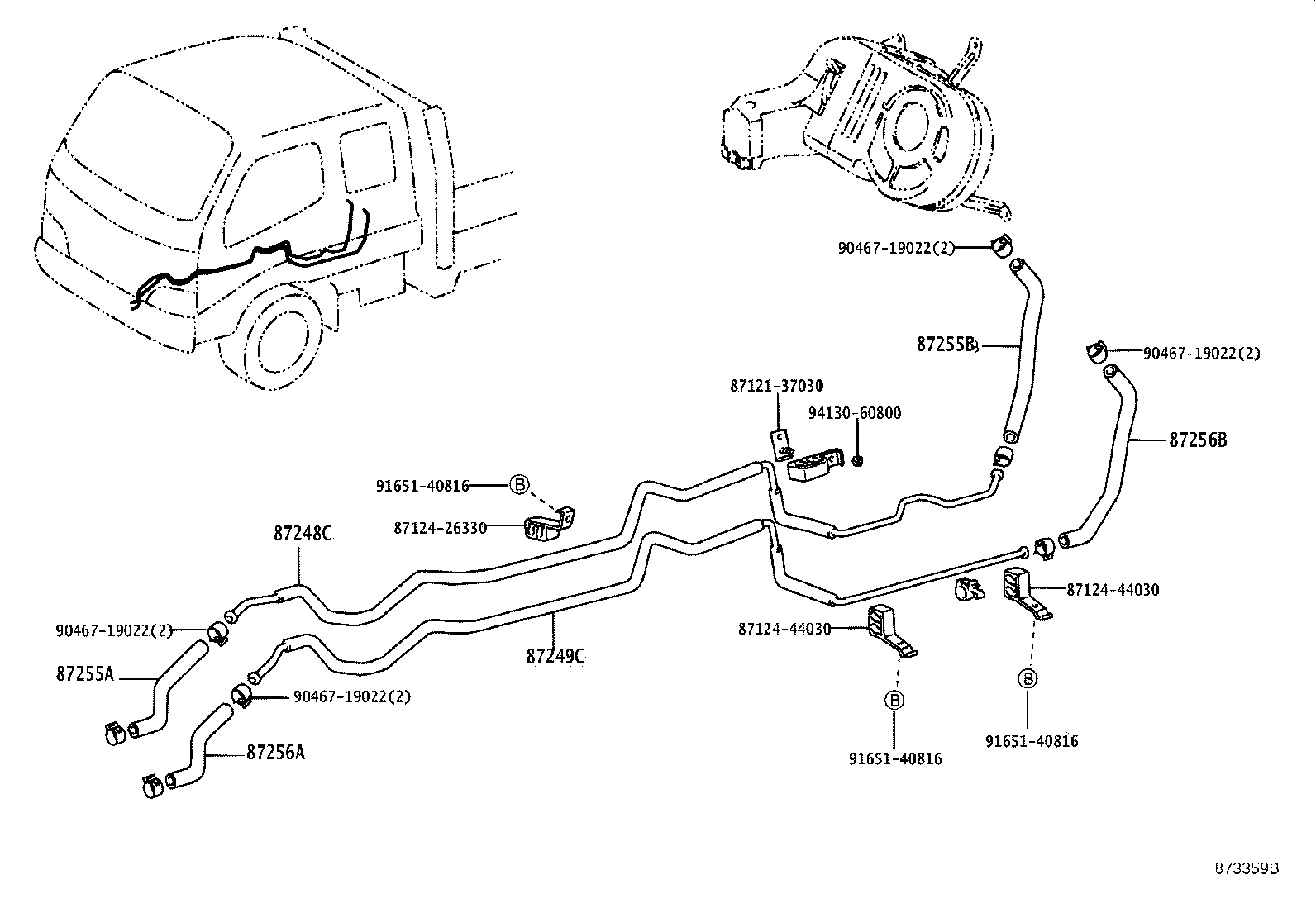

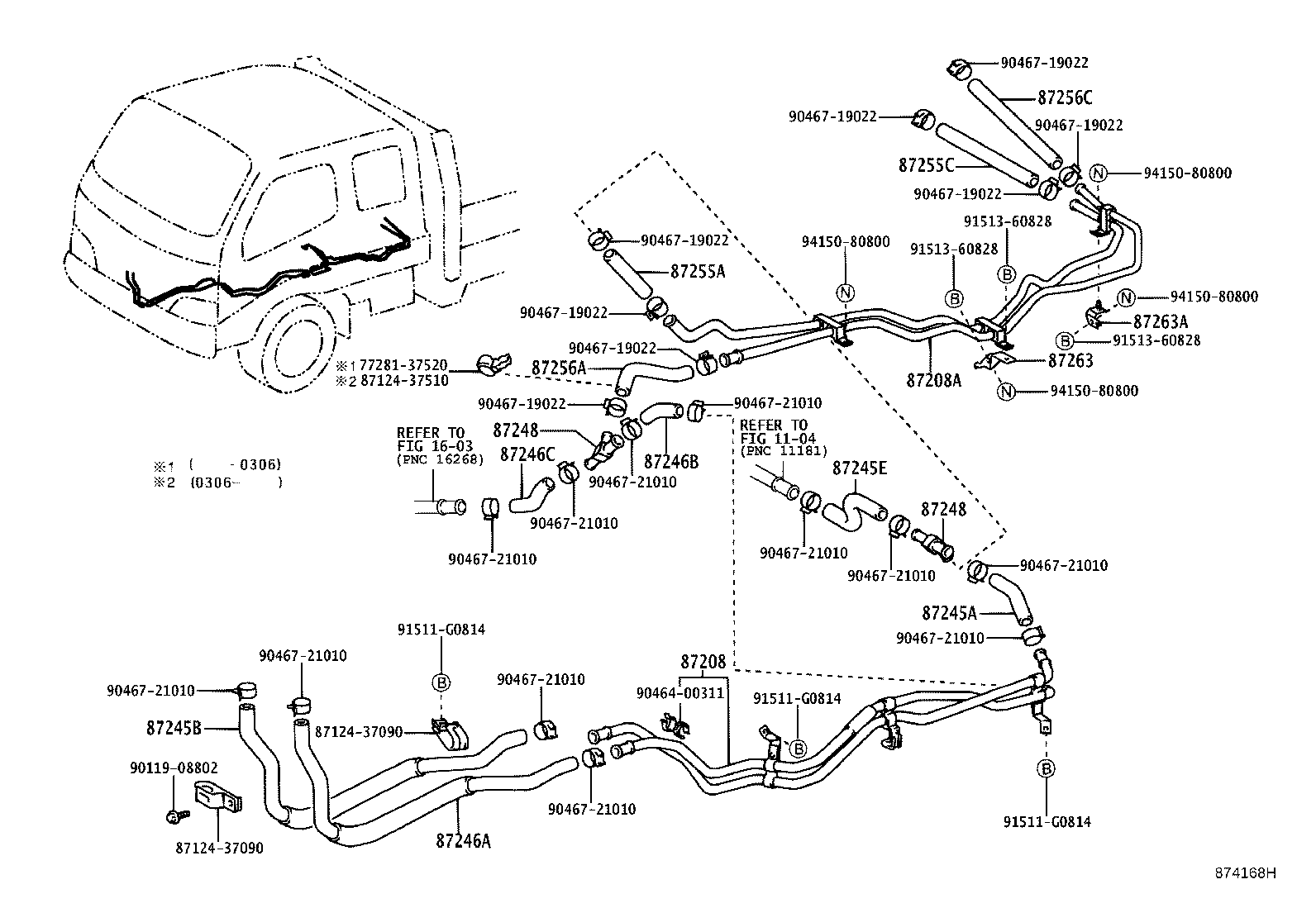

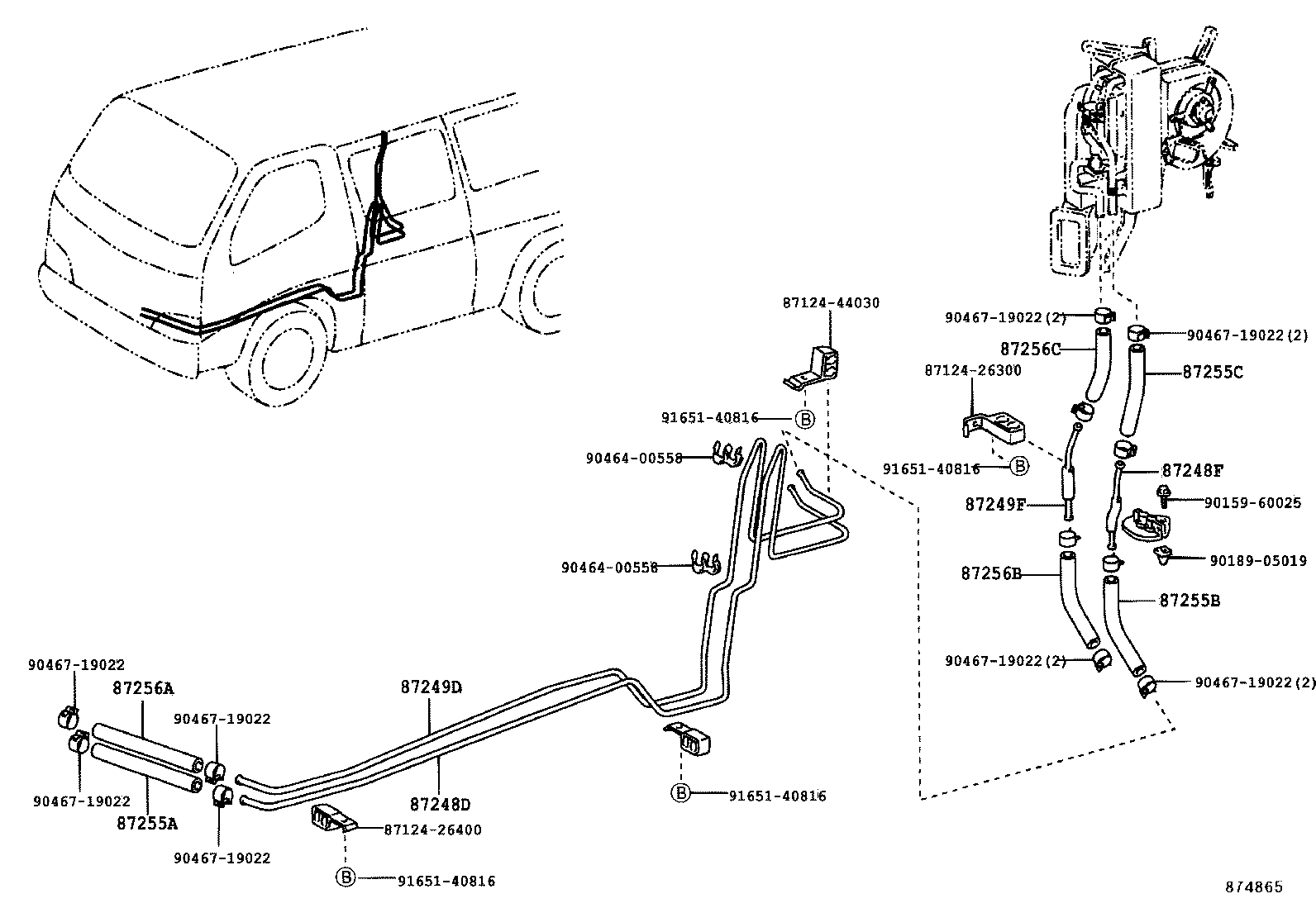

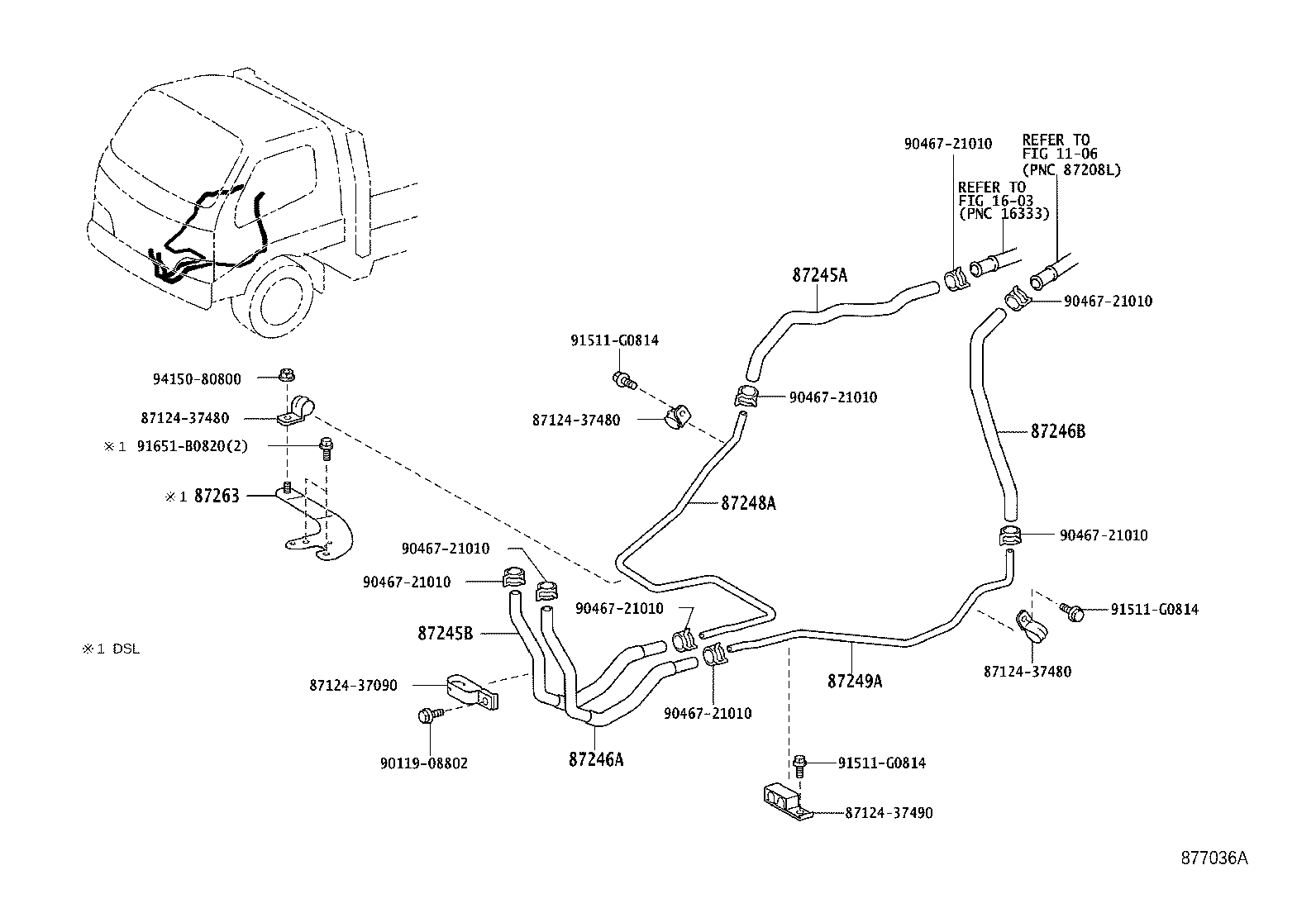

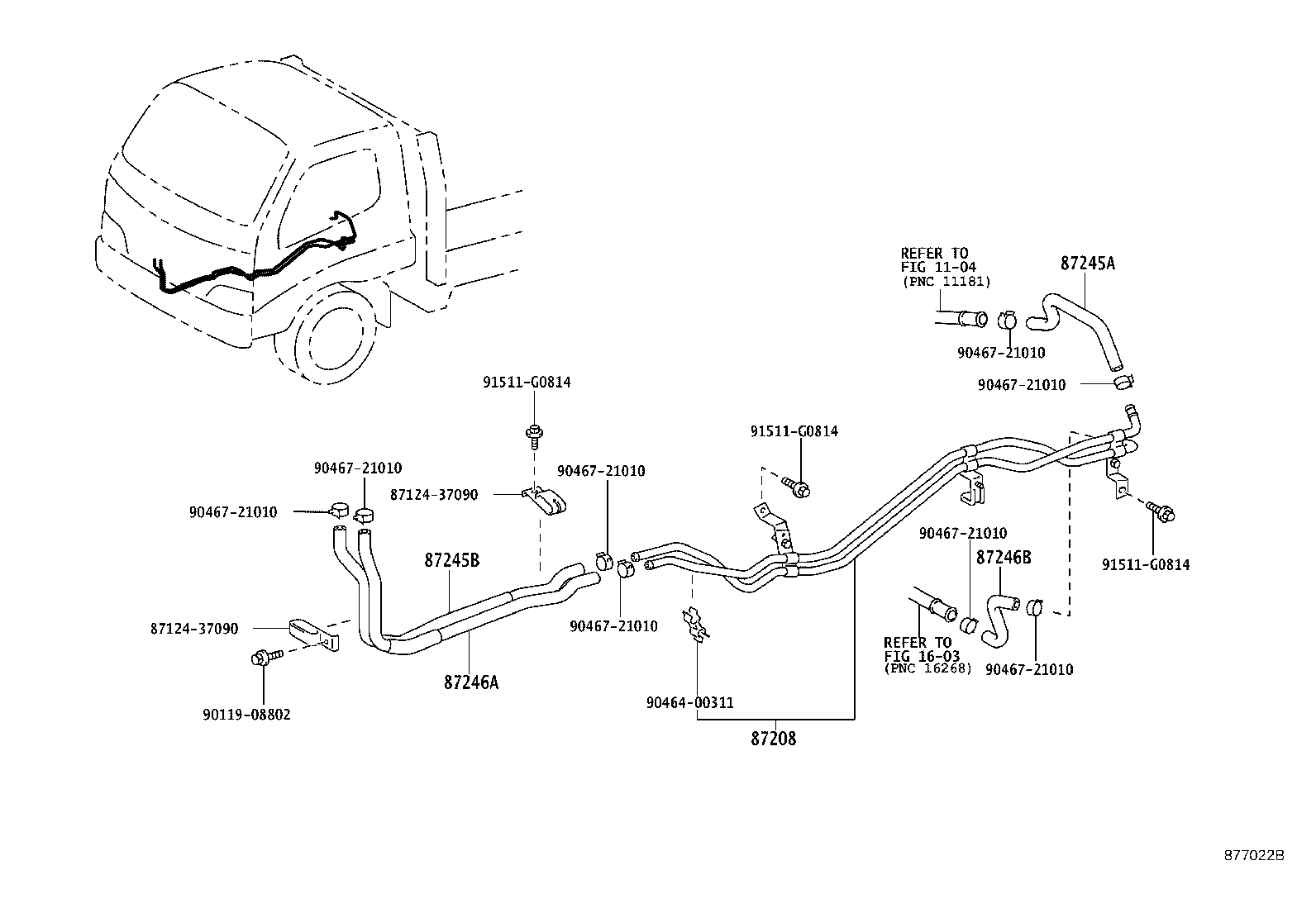

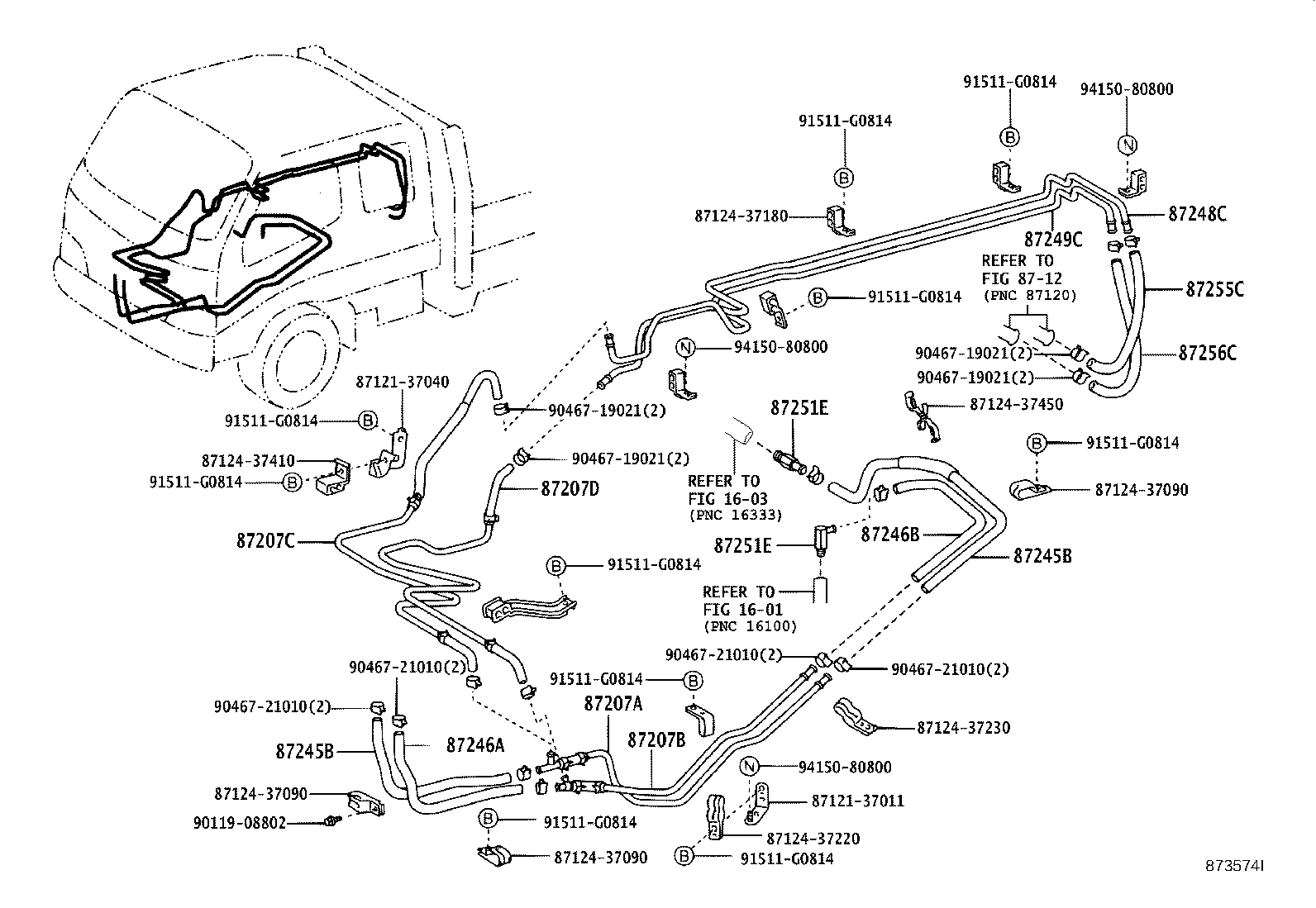

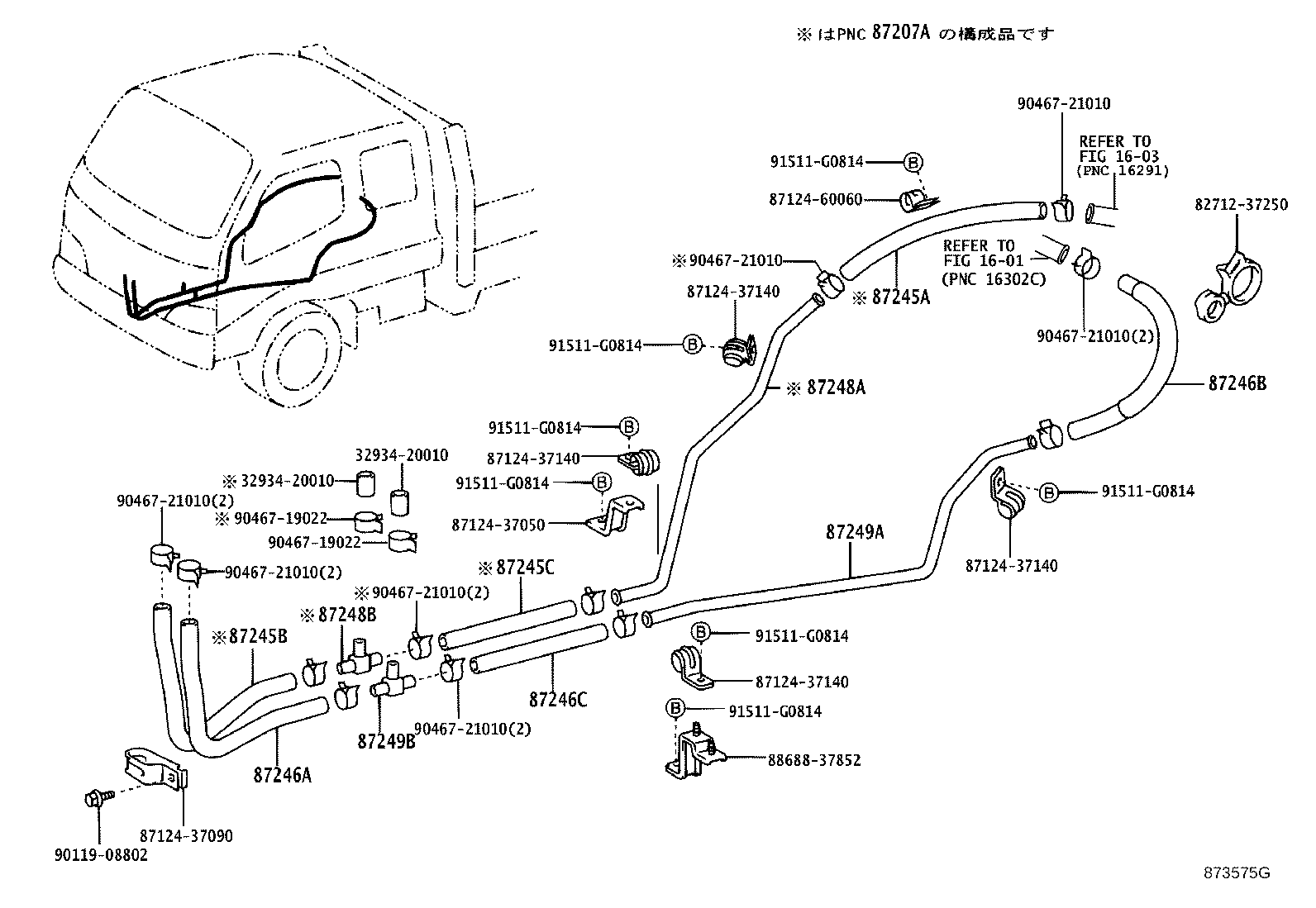

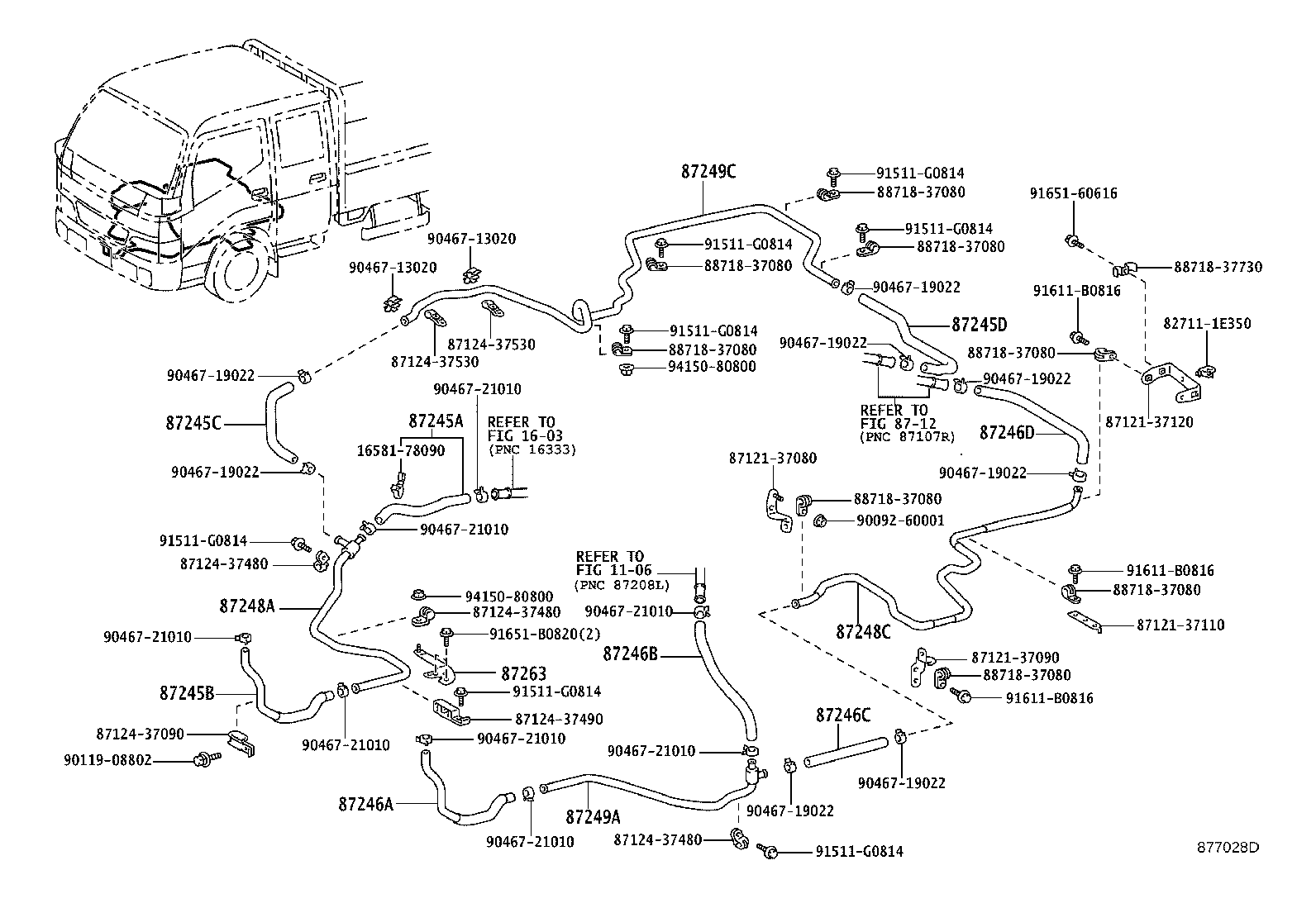

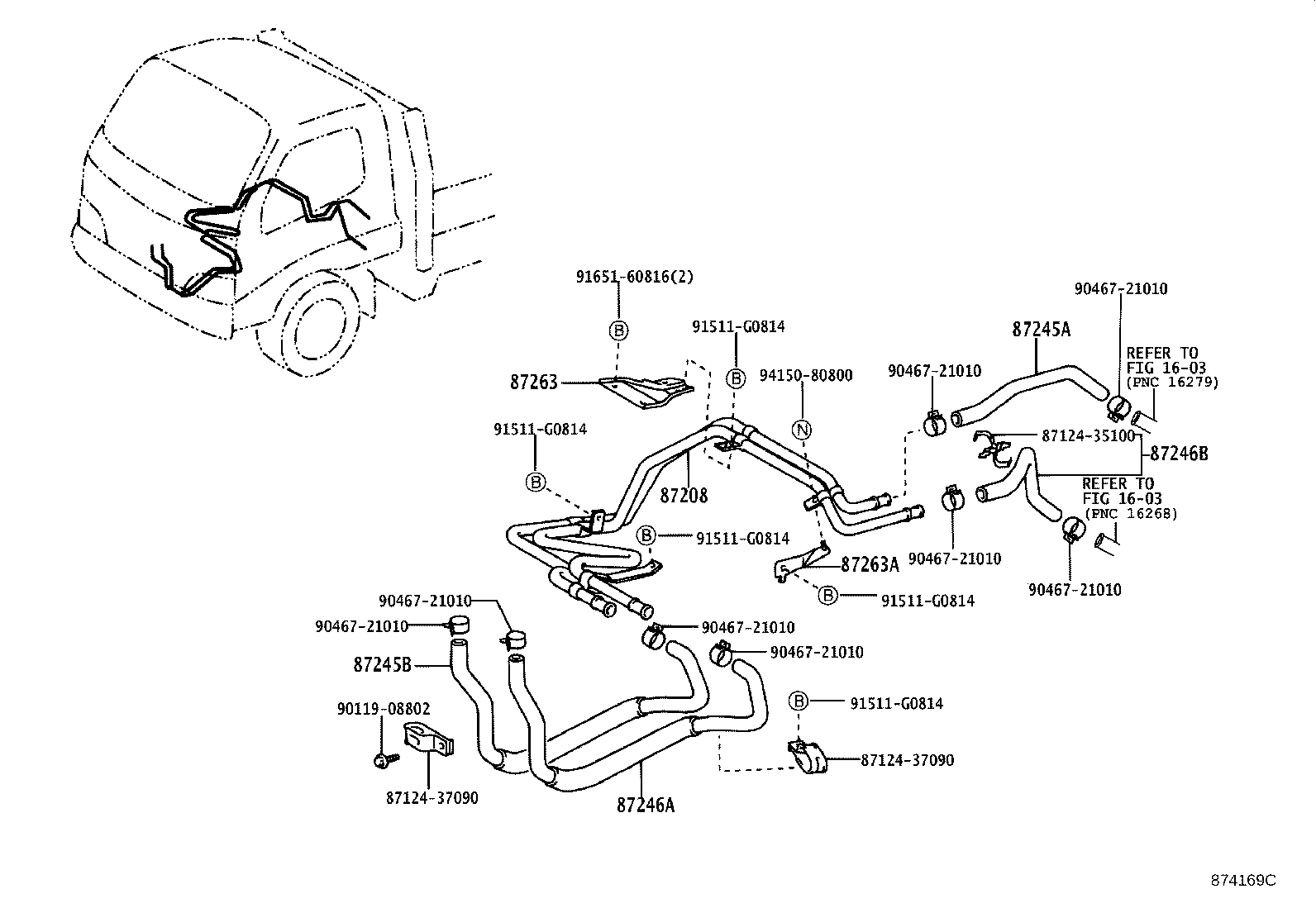

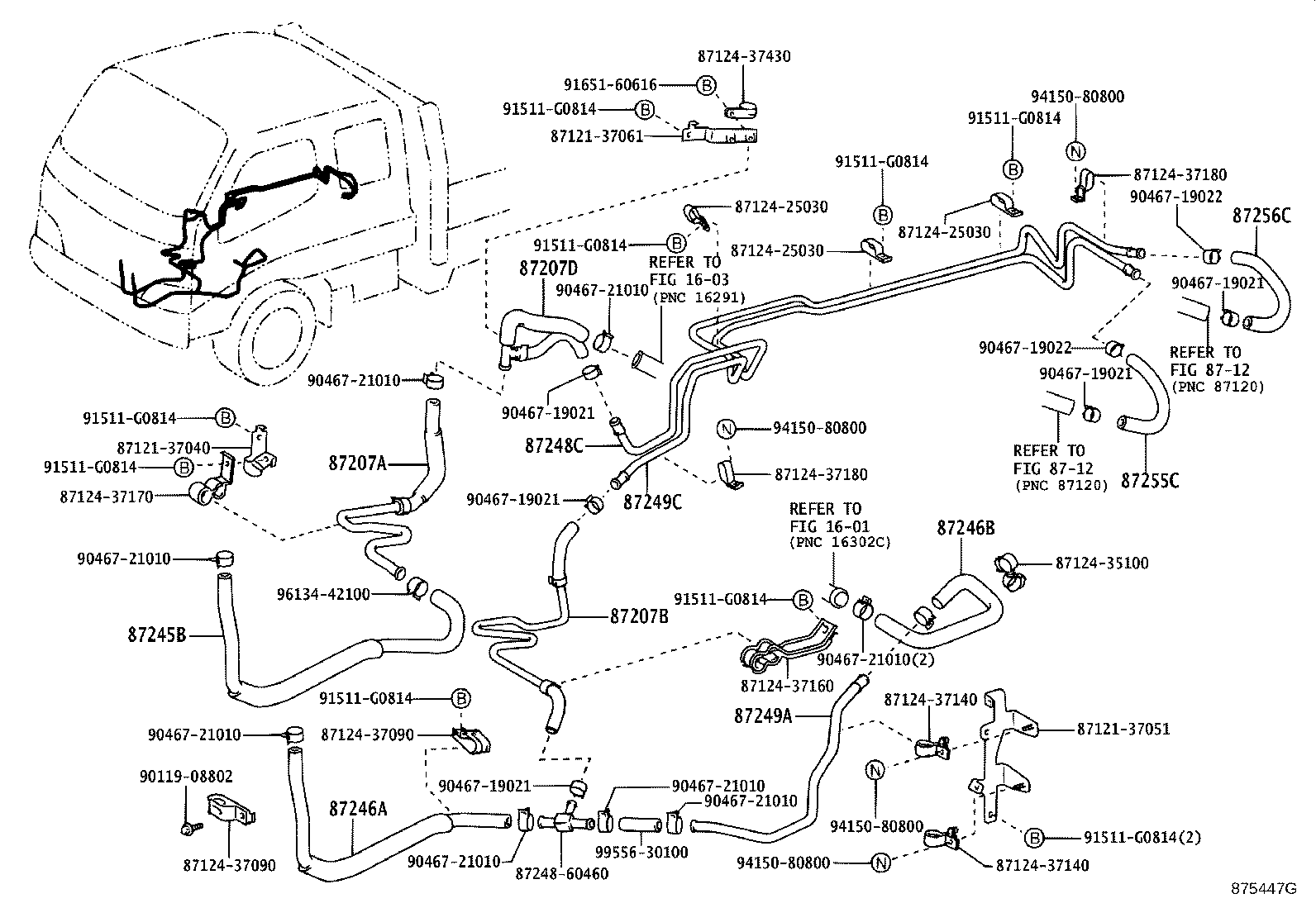

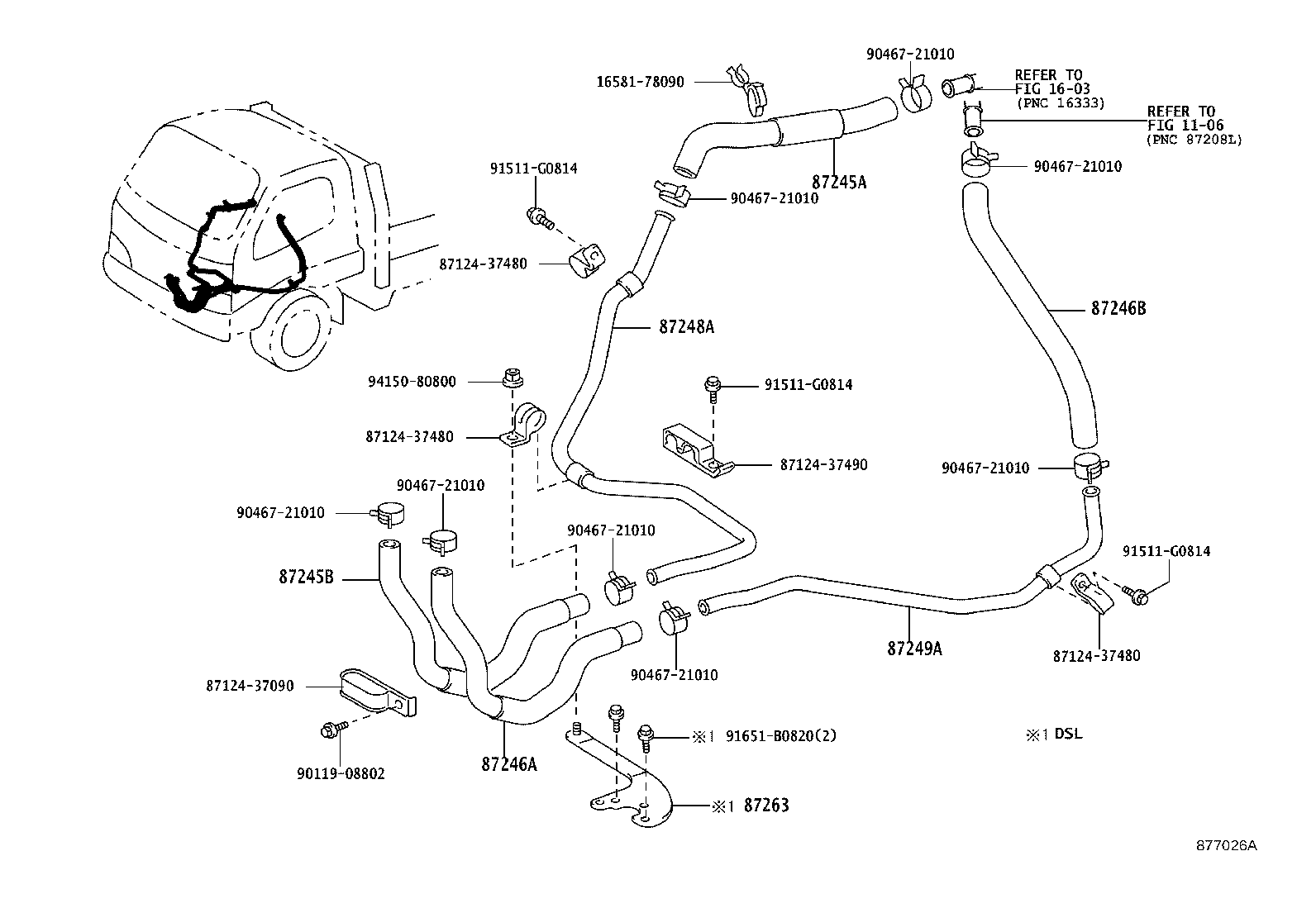

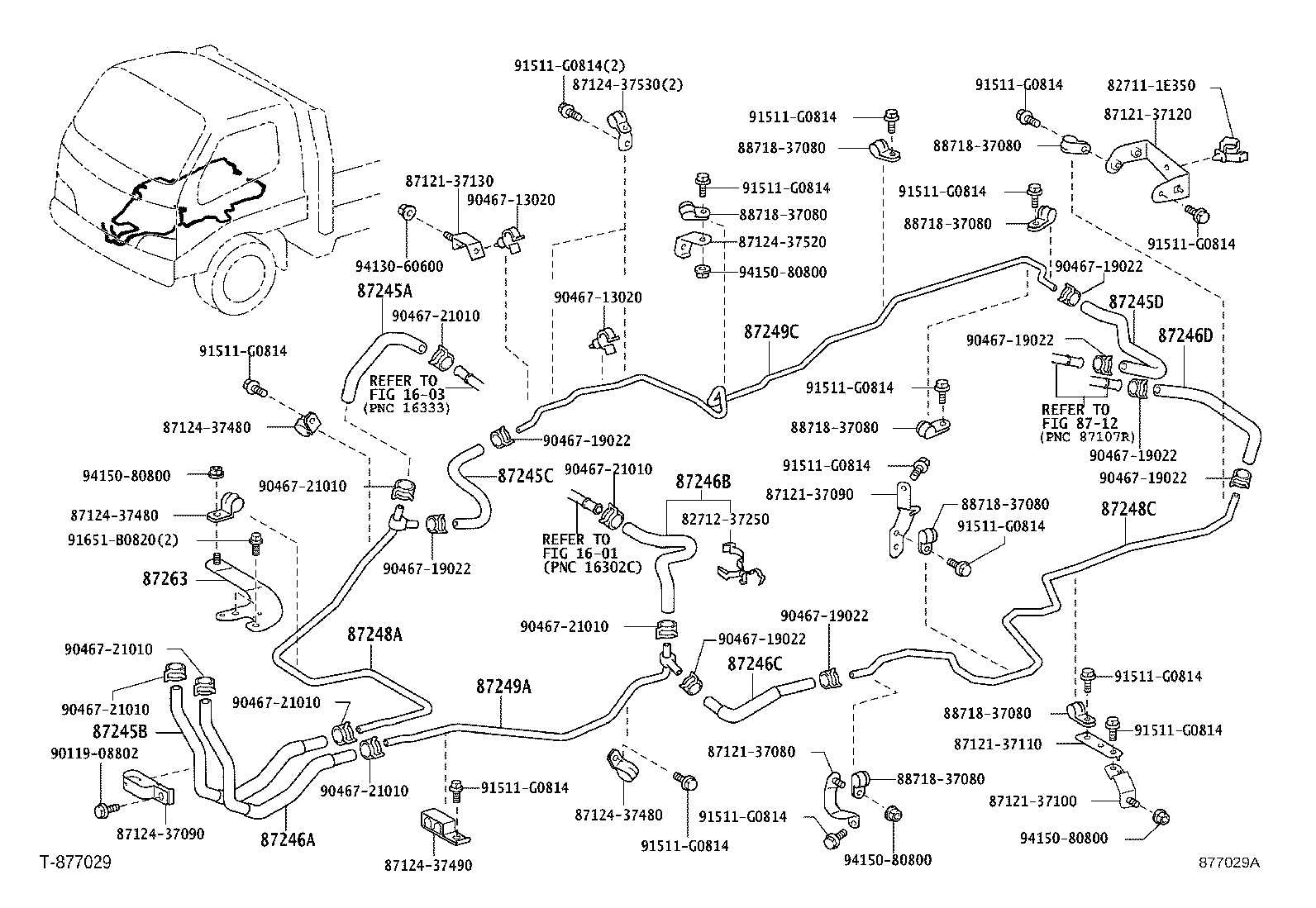

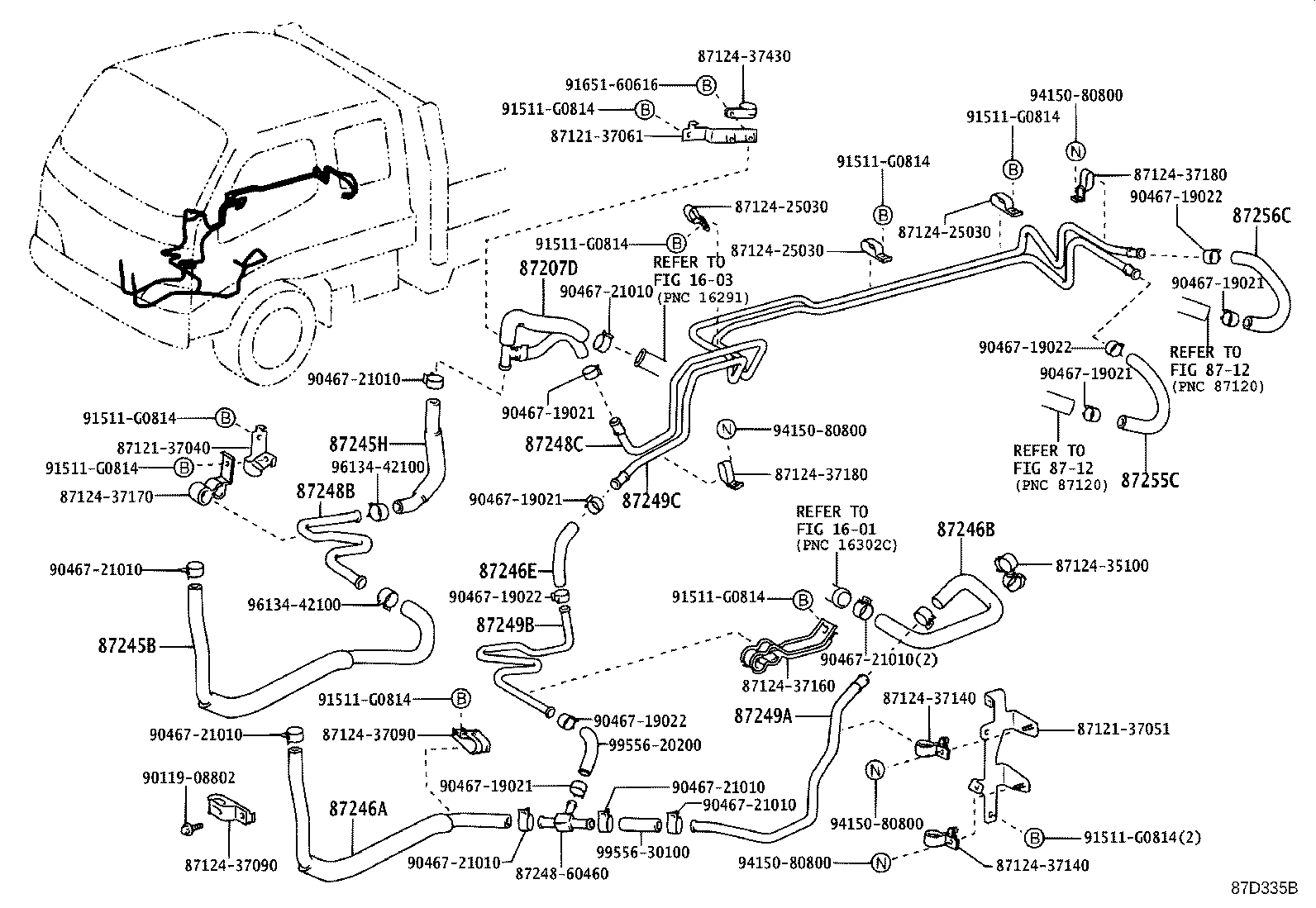

Figure 873354I 873354I 1999-05 → 2004-06 Figure 873355K 873355K 1999-05 → 2004-06 Figure 873356I 873356I 1999-07 → 2004-06 Figure 873574I 873574I 1999-05 → 2003-04 Figure 876534B 876534B 2003-04 → 2004-06 Figure 875447G 875447G 1999-05 → 2001-06 Figure 87D335B 87D335B 2001-06 → — Figure 873575G 873575G 1999-08 → 2004-06 Figure 873359B 873359B 1999-08 → 2004-06 Figure 873358D 873358D 1999-08 → 2004-06 Figure 873576G 873576G 1999-05 → 2004-06 Figure 874865 874865 1999-05 → 2004-06 Figure 874167C 874167C 2000-05 → 2004-06 Figure 874168H 874168H 2000-05 → 2004-06 Figure 874169C 874169C 2000-05 → 2004-06 Figure 874170D 874170D 2000-05 → 2004-06 Figure 876571A 876571A 2003-10 → 2004-06 Figure 877021A 877021A 2004-06 → — Figure 877022B 877022B 2004-06 → — Figure 877023B 877023B 2004-06 → — Figure 877024A 877024A 2004-06 → — Figure 877025A 877025A 2004-06 → — Figure 877026A 877026A 2004-06 → — Figure 877027B 877027B 2004-06 → — Figure 877028D 877028D 2004-06 → — Figure 877029A 877029A 2004-06 → — Figure 877030C 877030C 2004-06 → — Figure 877031B 877031B 2004-06 → — Figure 877032D 877032D 2004-06 → — Figure 877033A 877033A 2004-06 → — Figure 877034A 877034A 2004-06 → — Figure 877035B 877035B 2004-06 → — Figure 877036A 877036A 2004-06 → — Figure 877037A 877037A 2004-06 → — Figure 877038E 877038E 2004-06 → — Figure 877039E 877039E 2004-06 → —

Part groups

PNCDescription
87207A Pipe & Hose Sub-assy, Water A
87207B Pipe & Hose Sub-assy, Water B
87207C Pipe & Hose Sub-assy, Water C
87207D Pipe & Hose Sub-assy, Water D
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87248L Pipe, Heater Water, L
87248M Pipe, Heater Water, M
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87251E Joint, Water, NO.2
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87263 Bracket, Heater Water Pipe, NO.1
87263A Bracket, Heater Water Pipe, NO.2
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
