Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

58 part groups · 60 illustrations

Illustrations

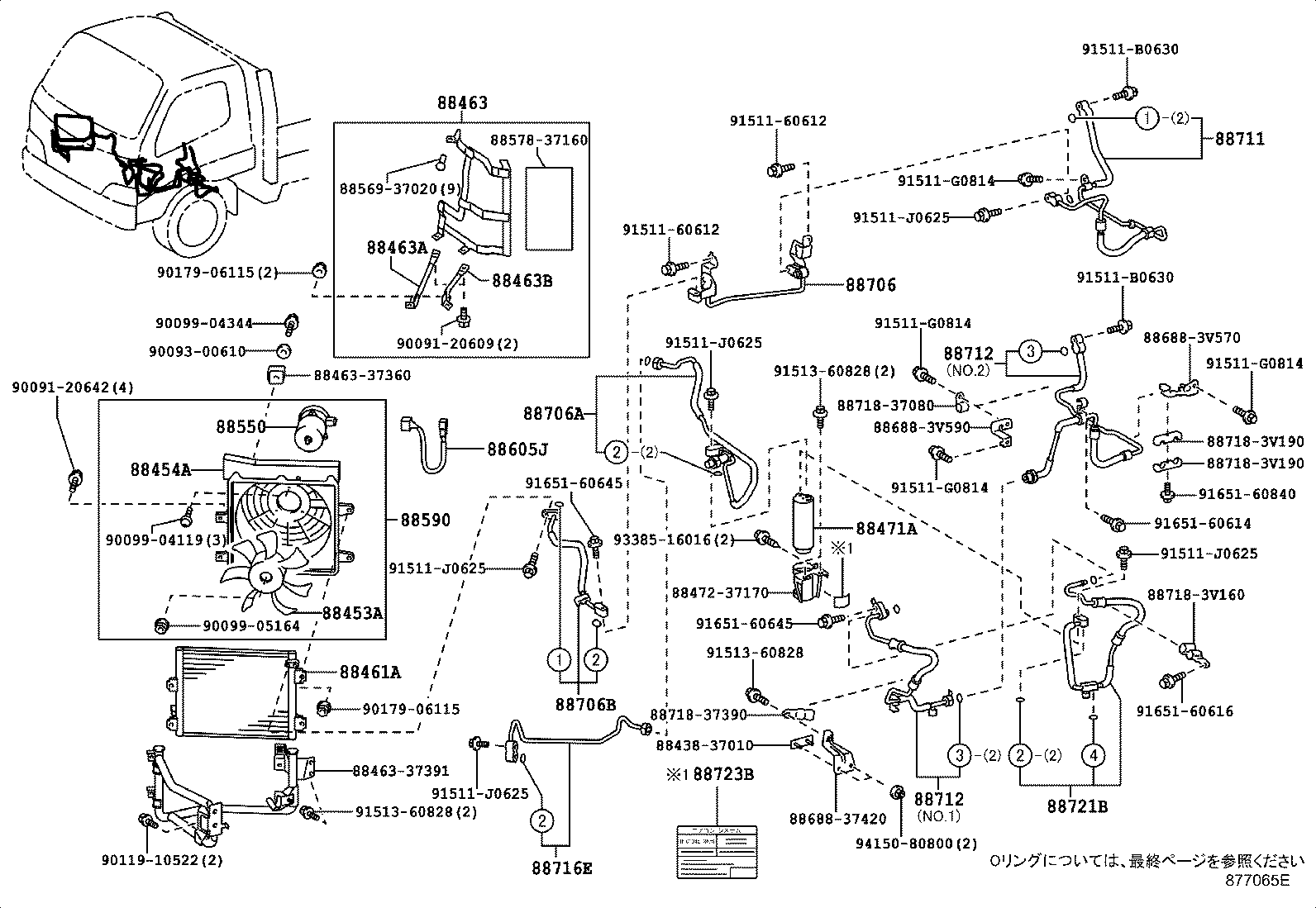

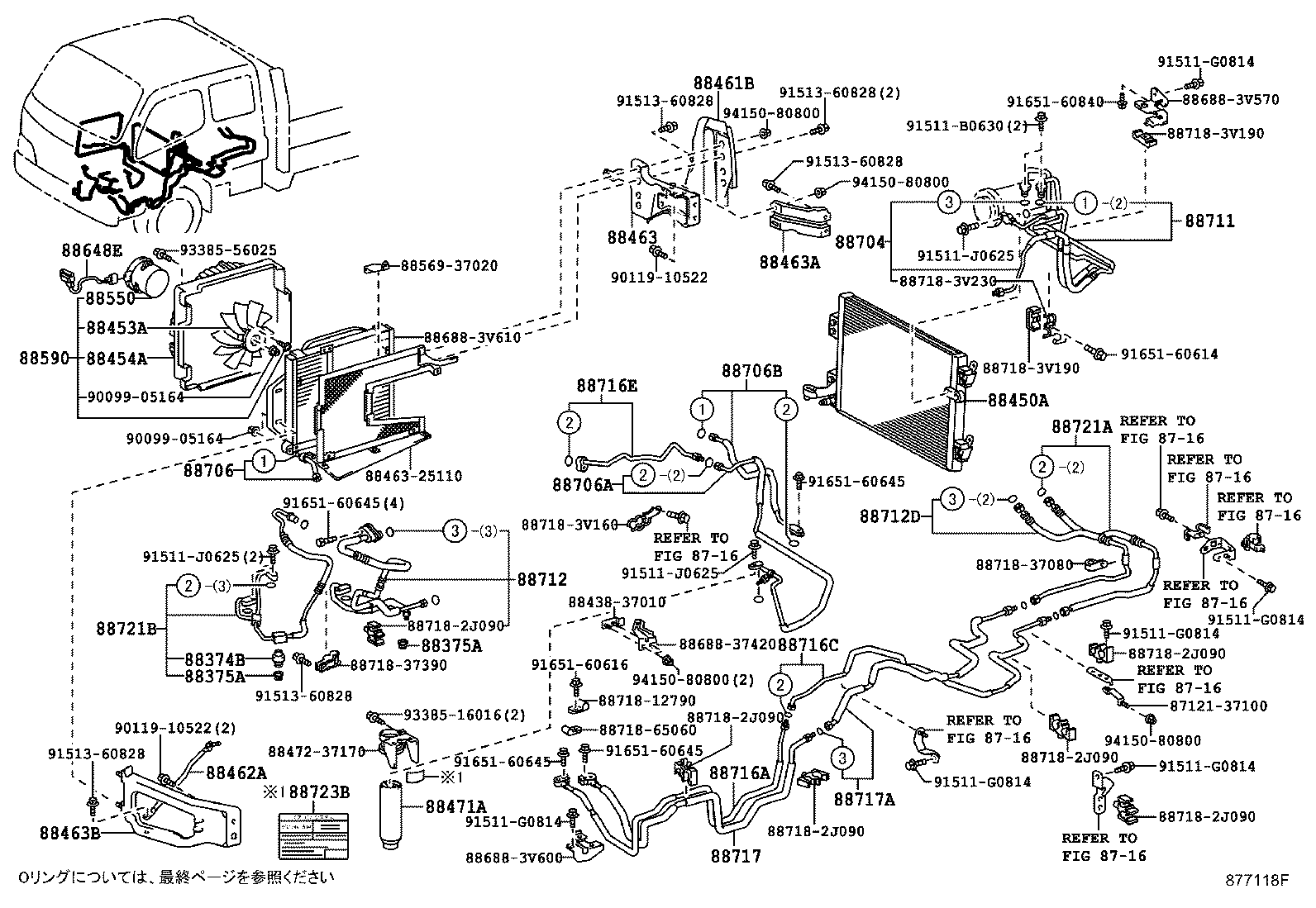

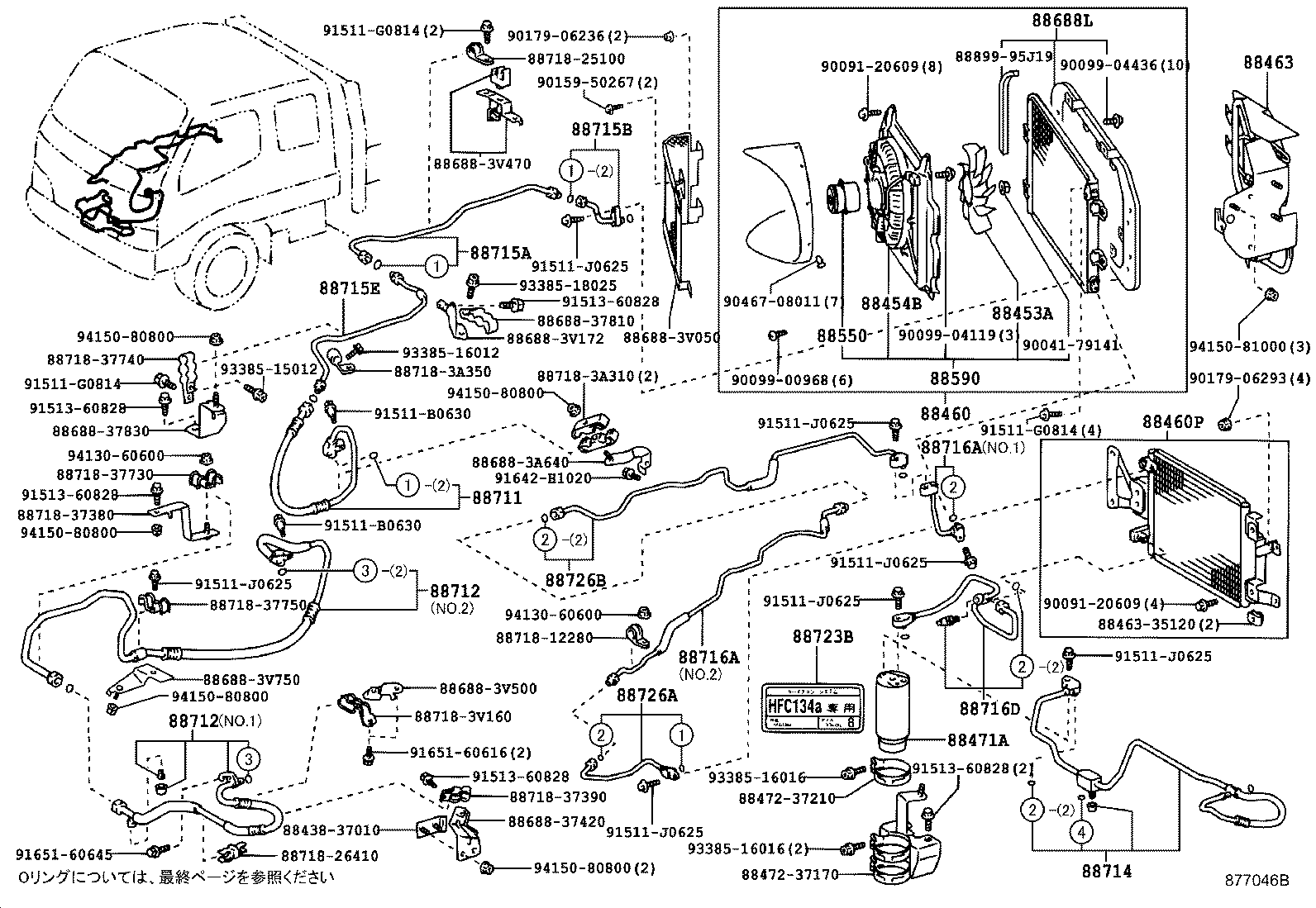

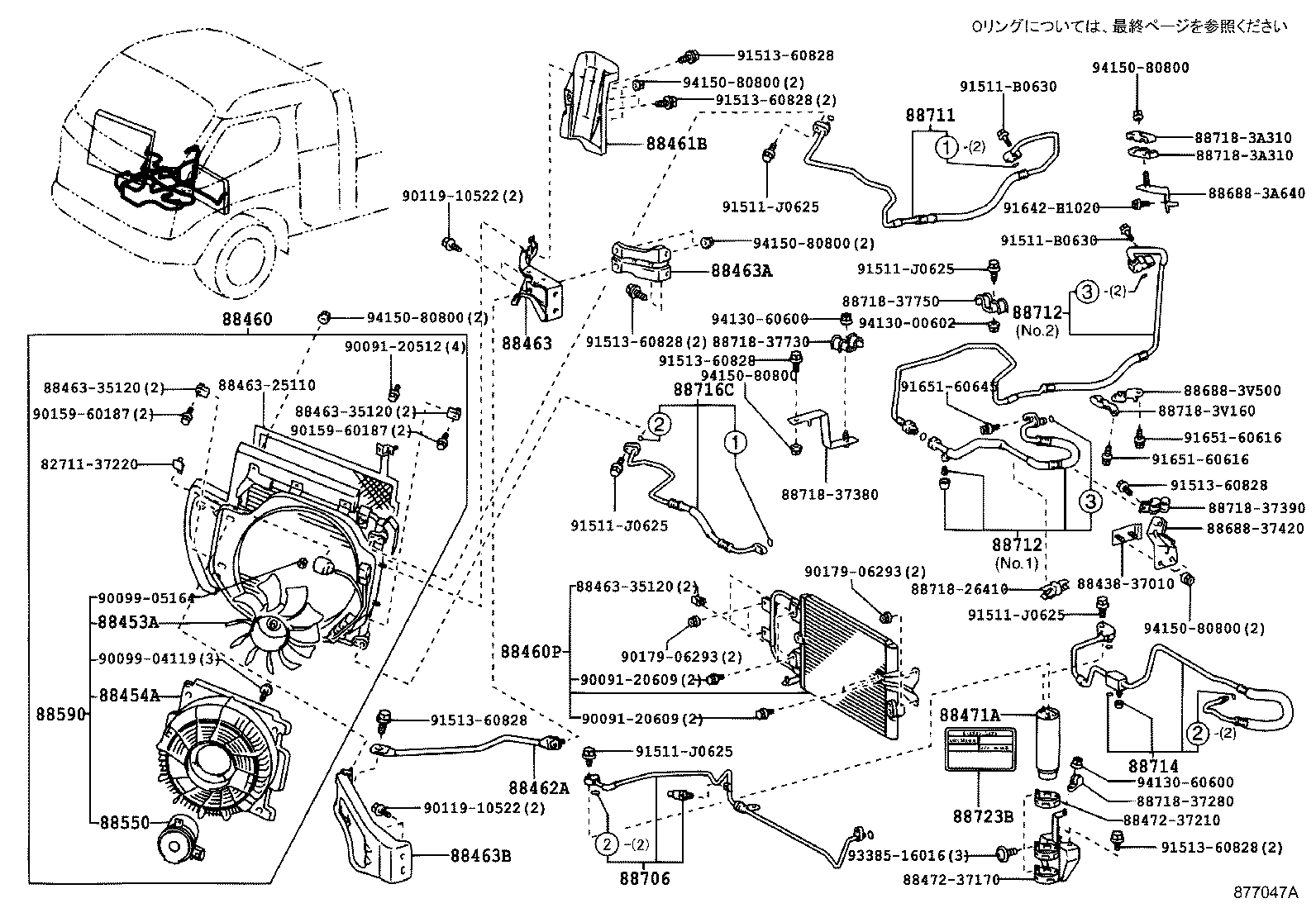

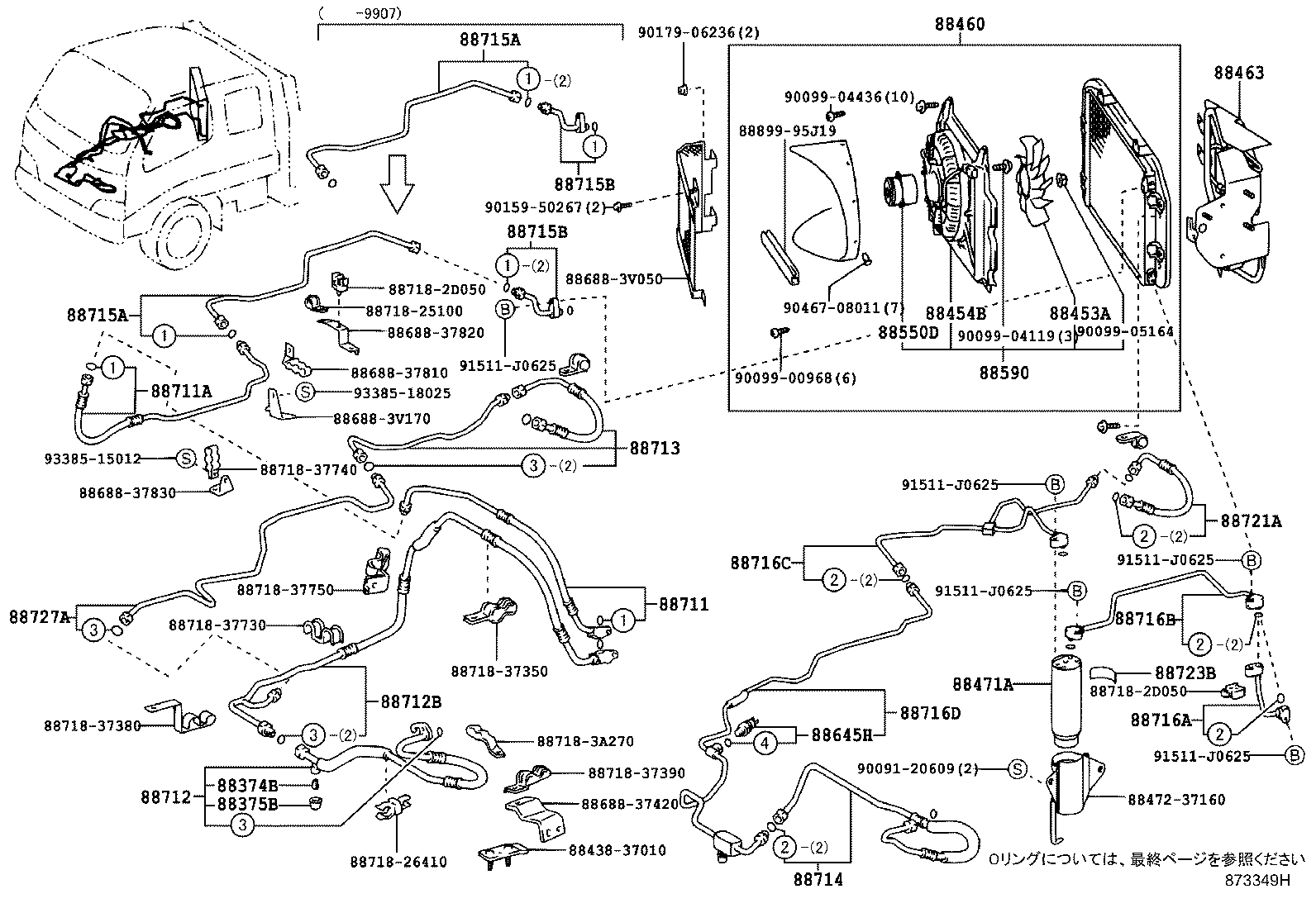

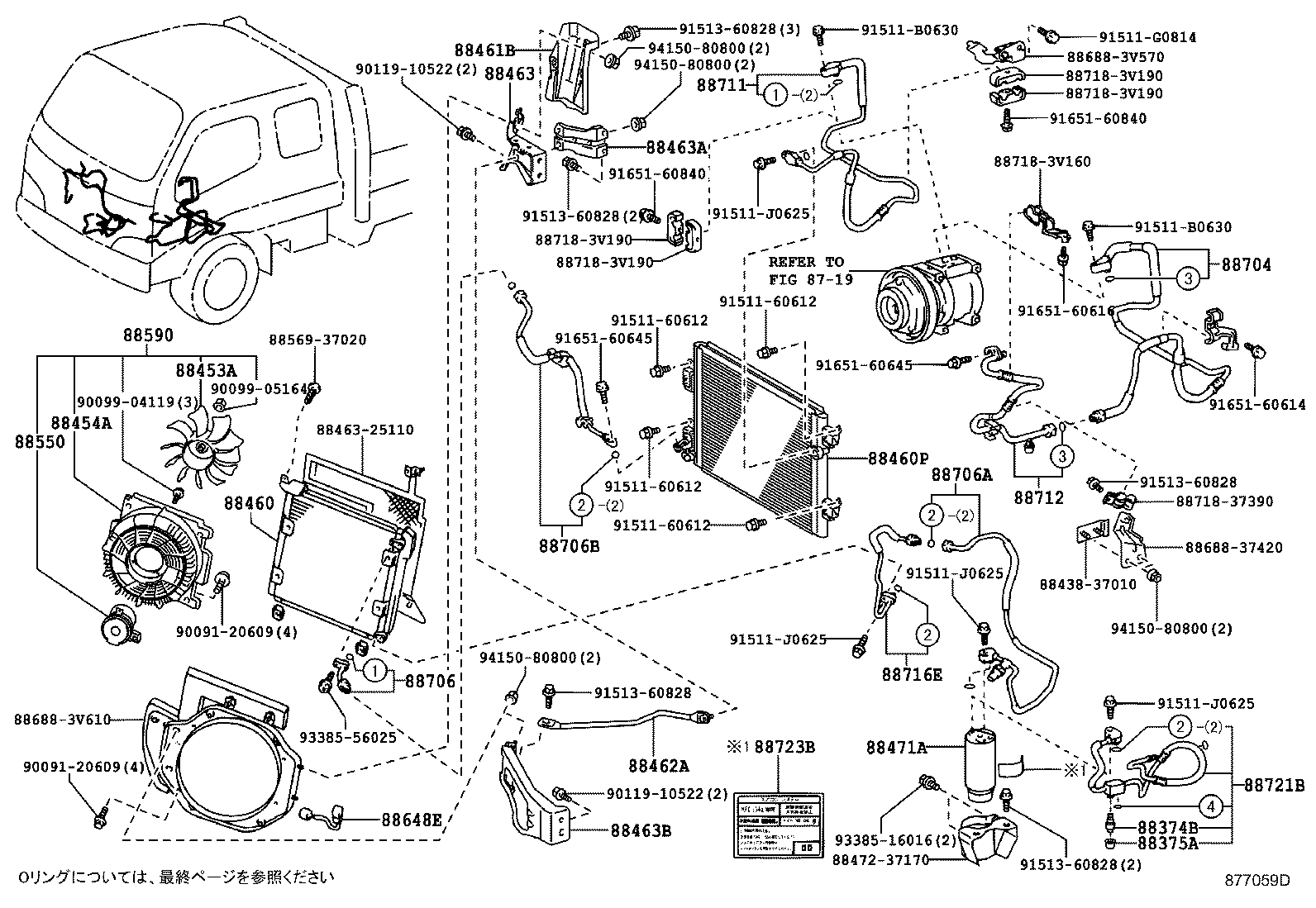

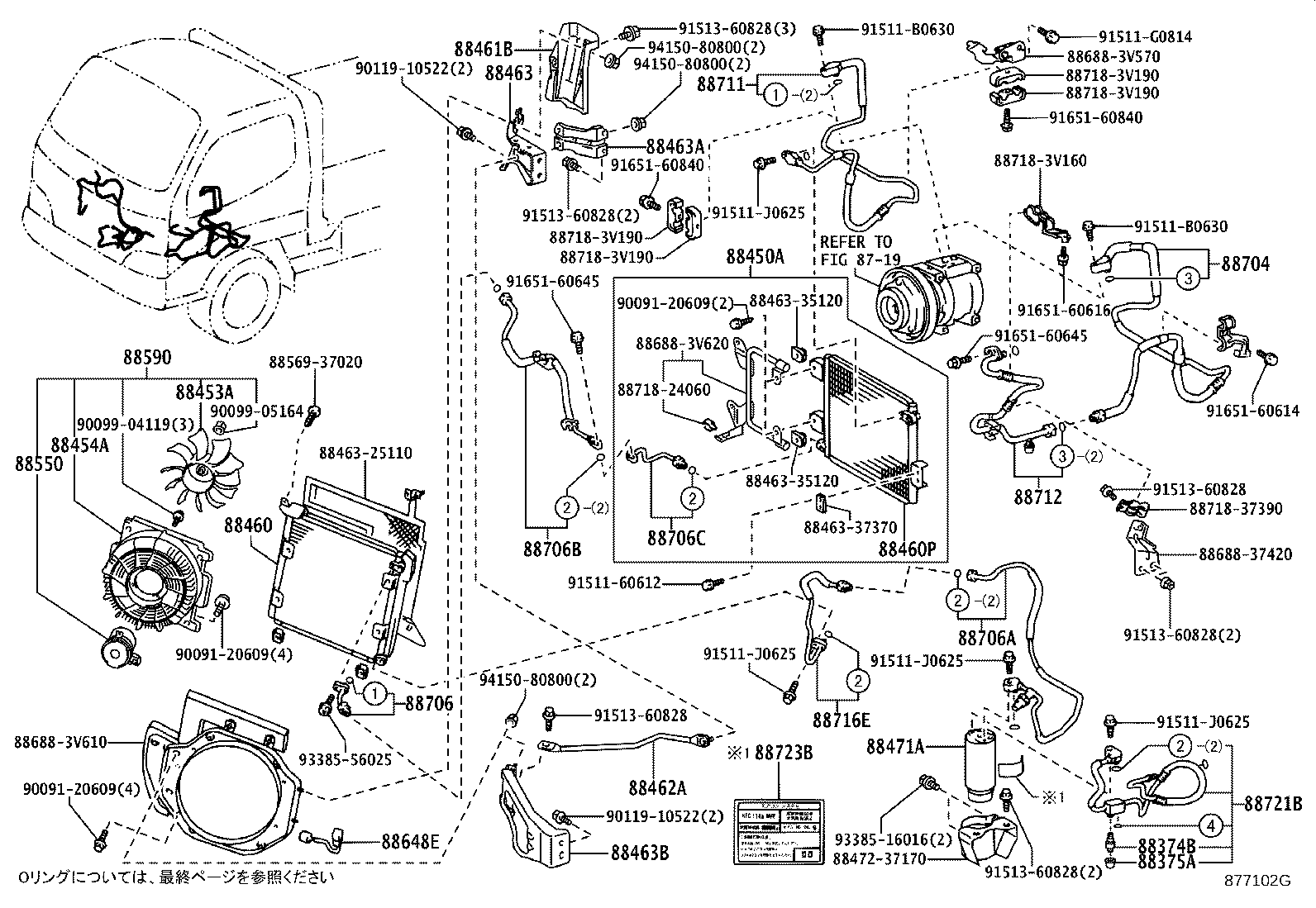

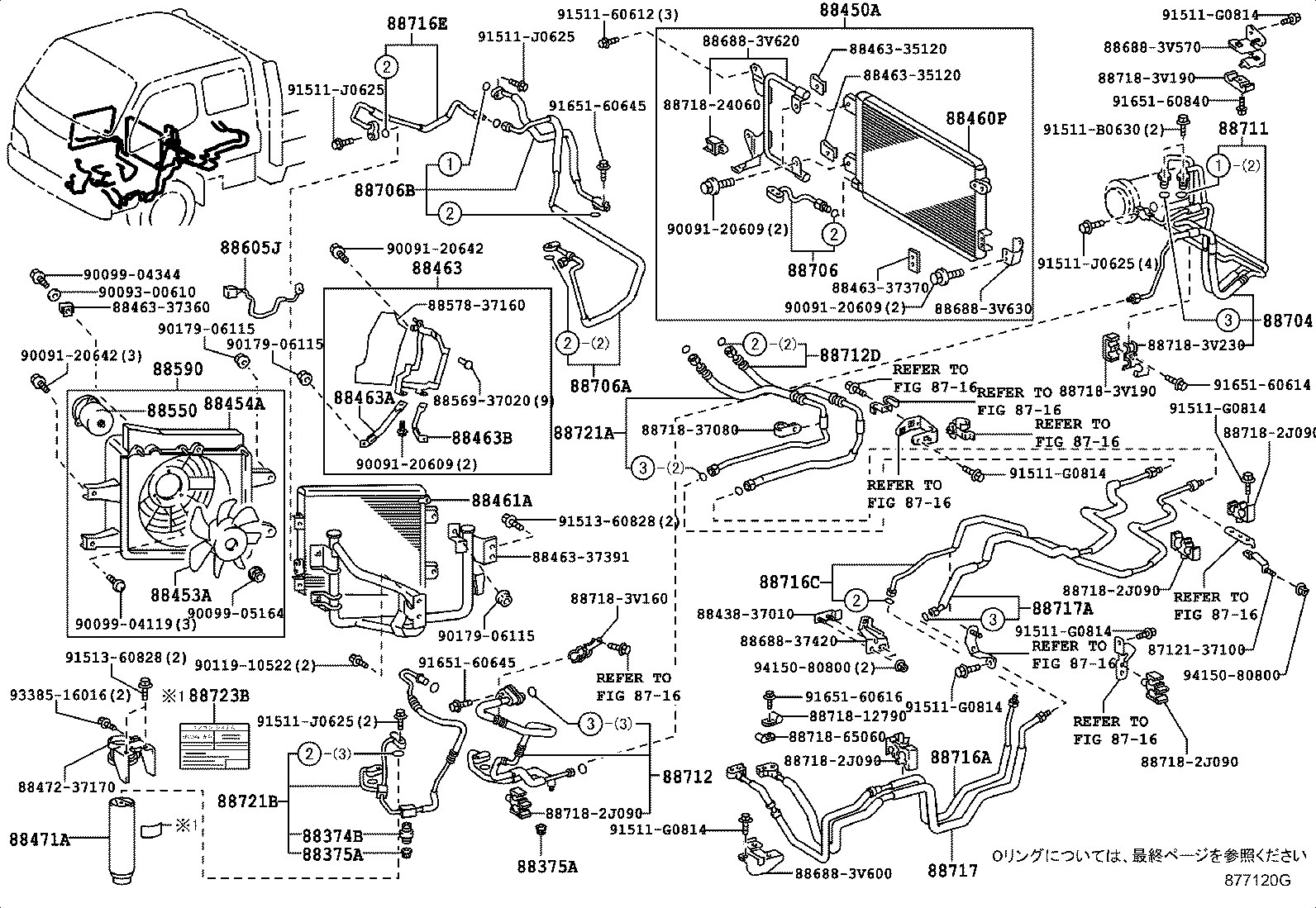

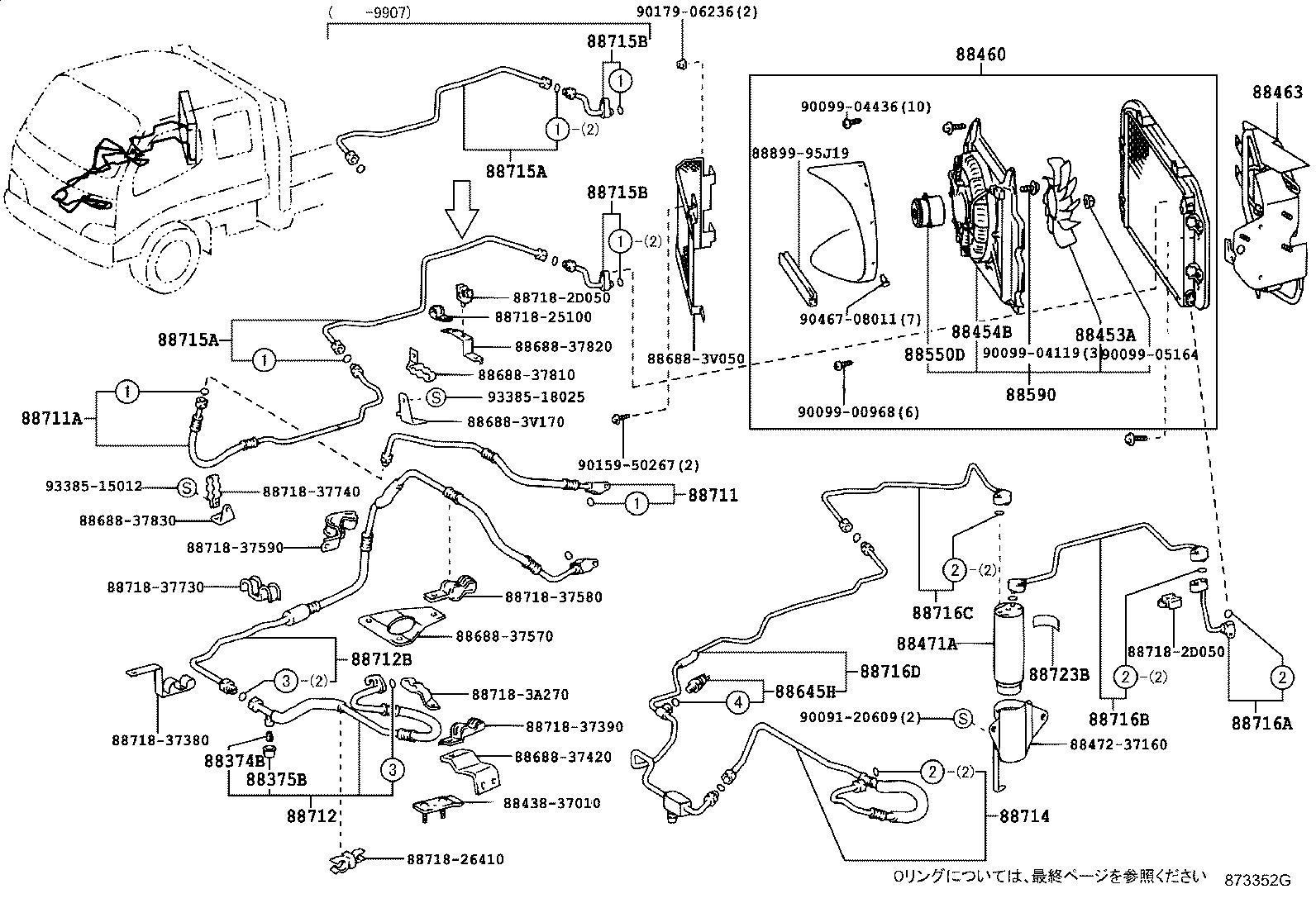

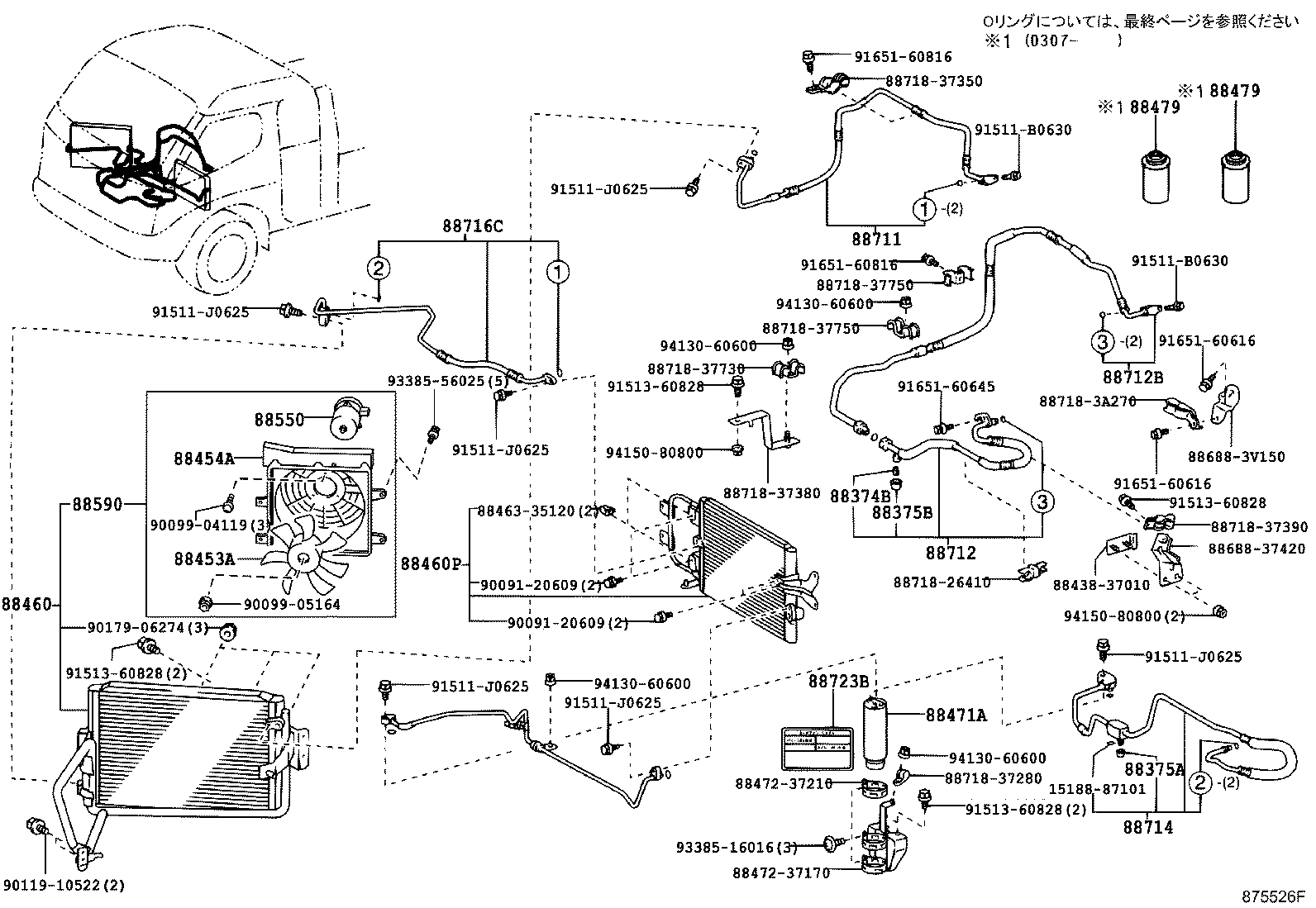

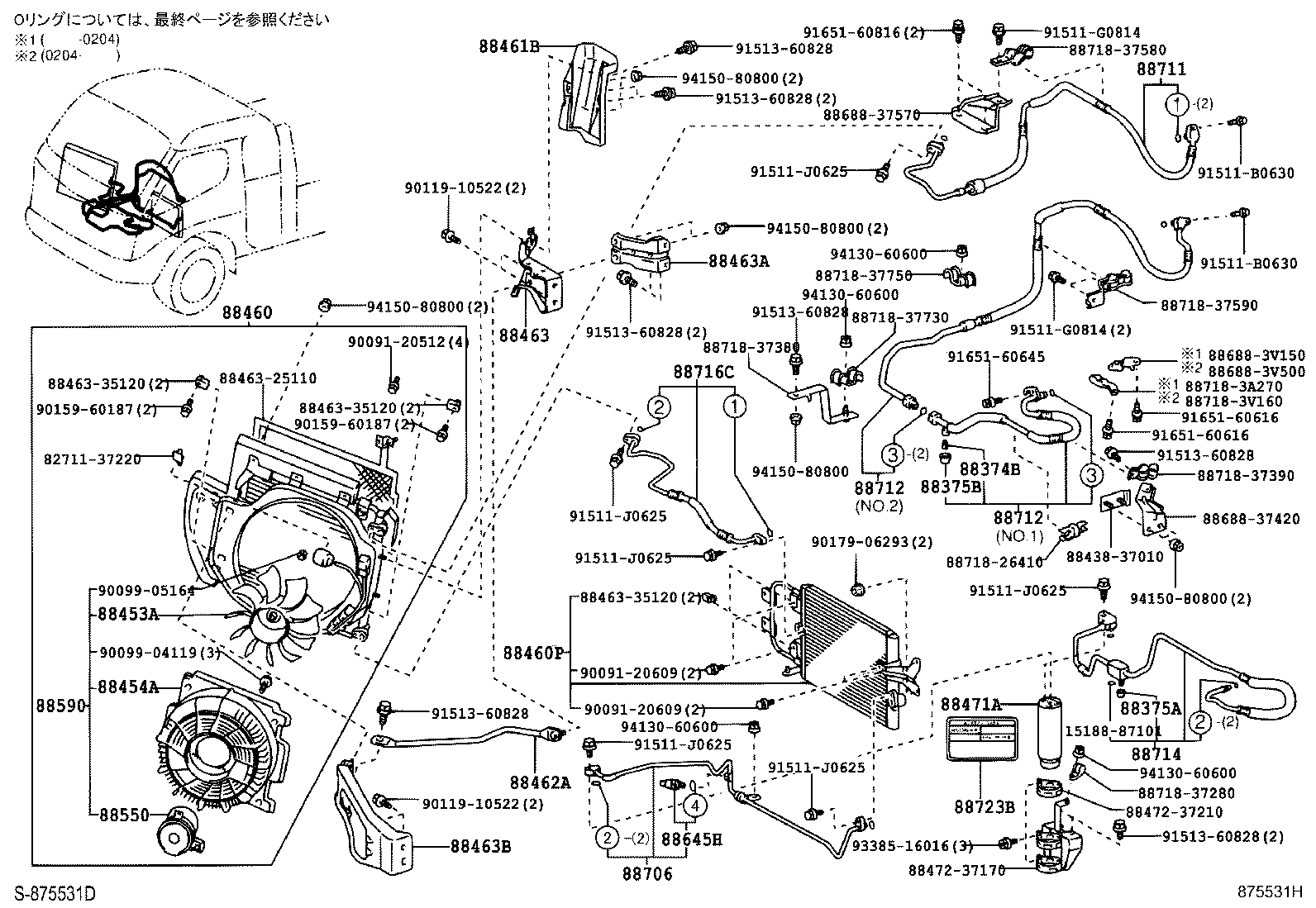

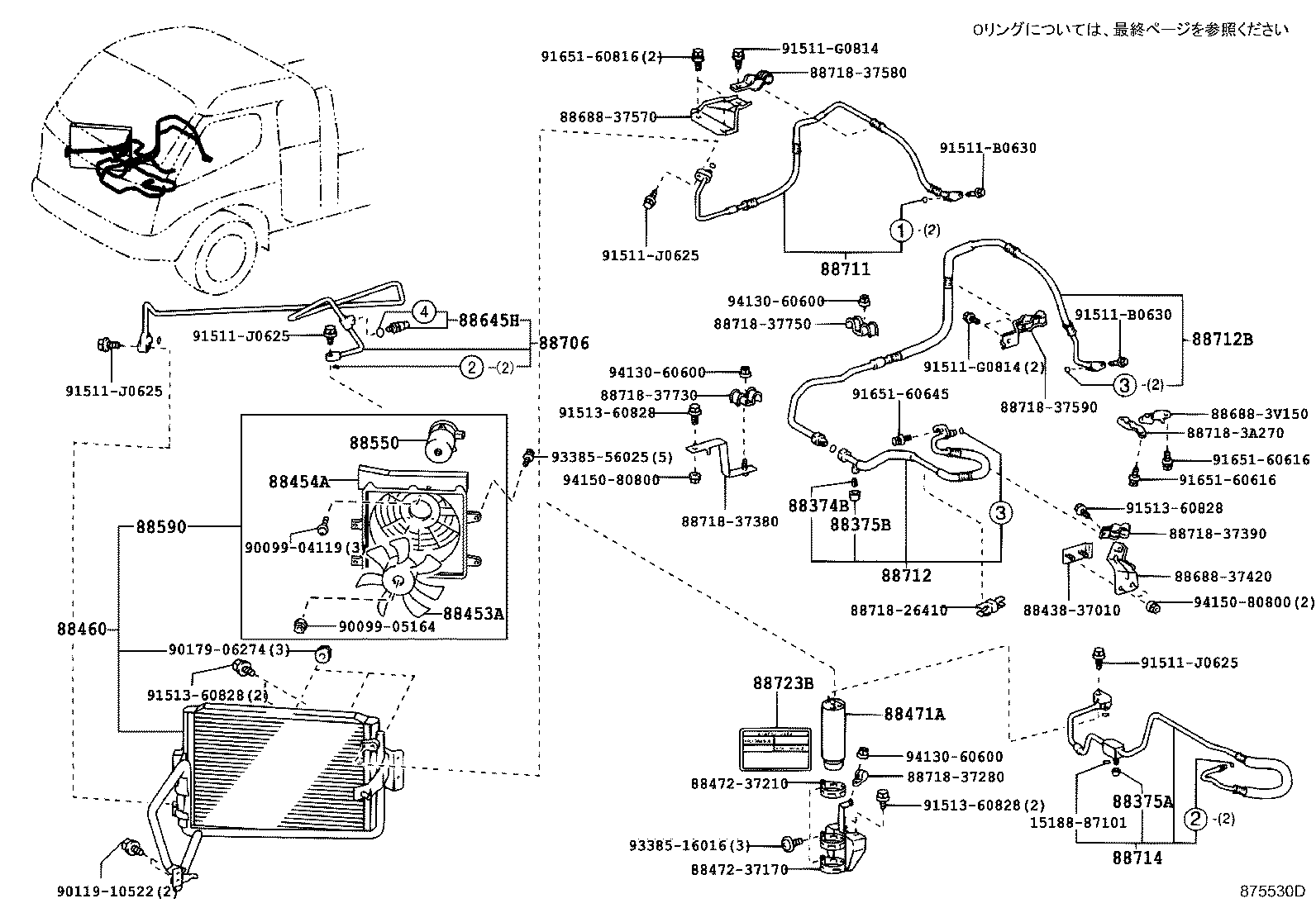

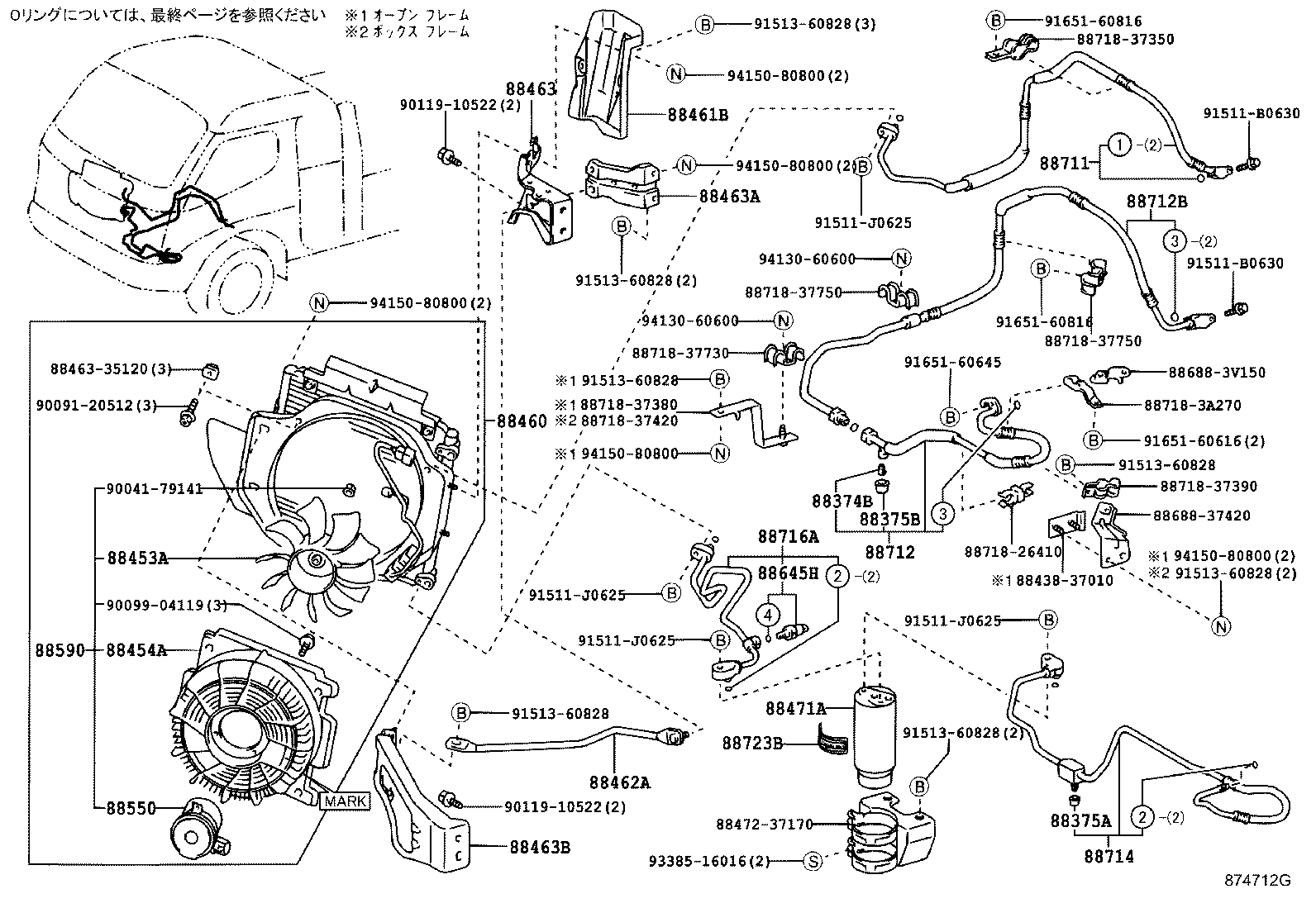

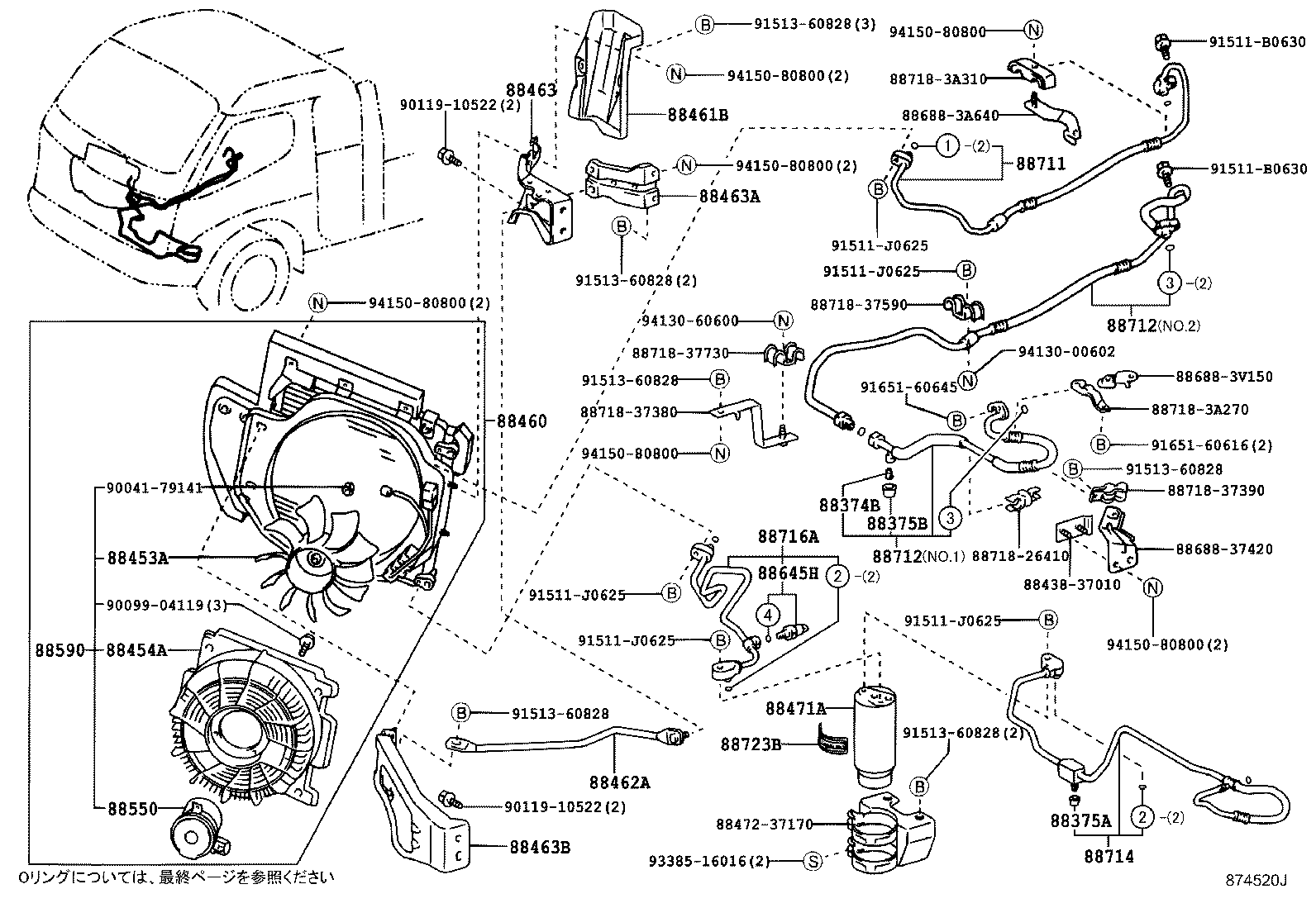

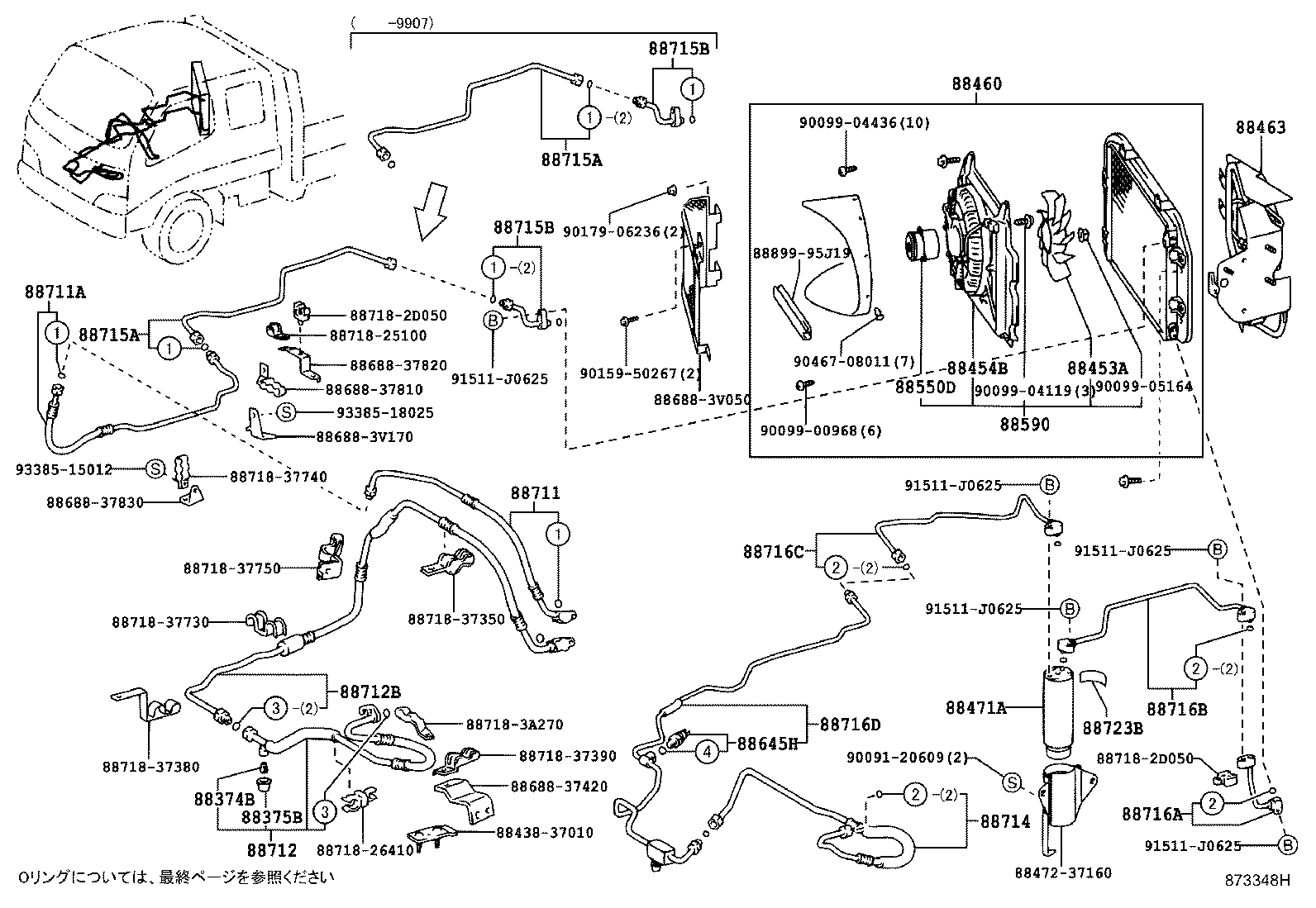

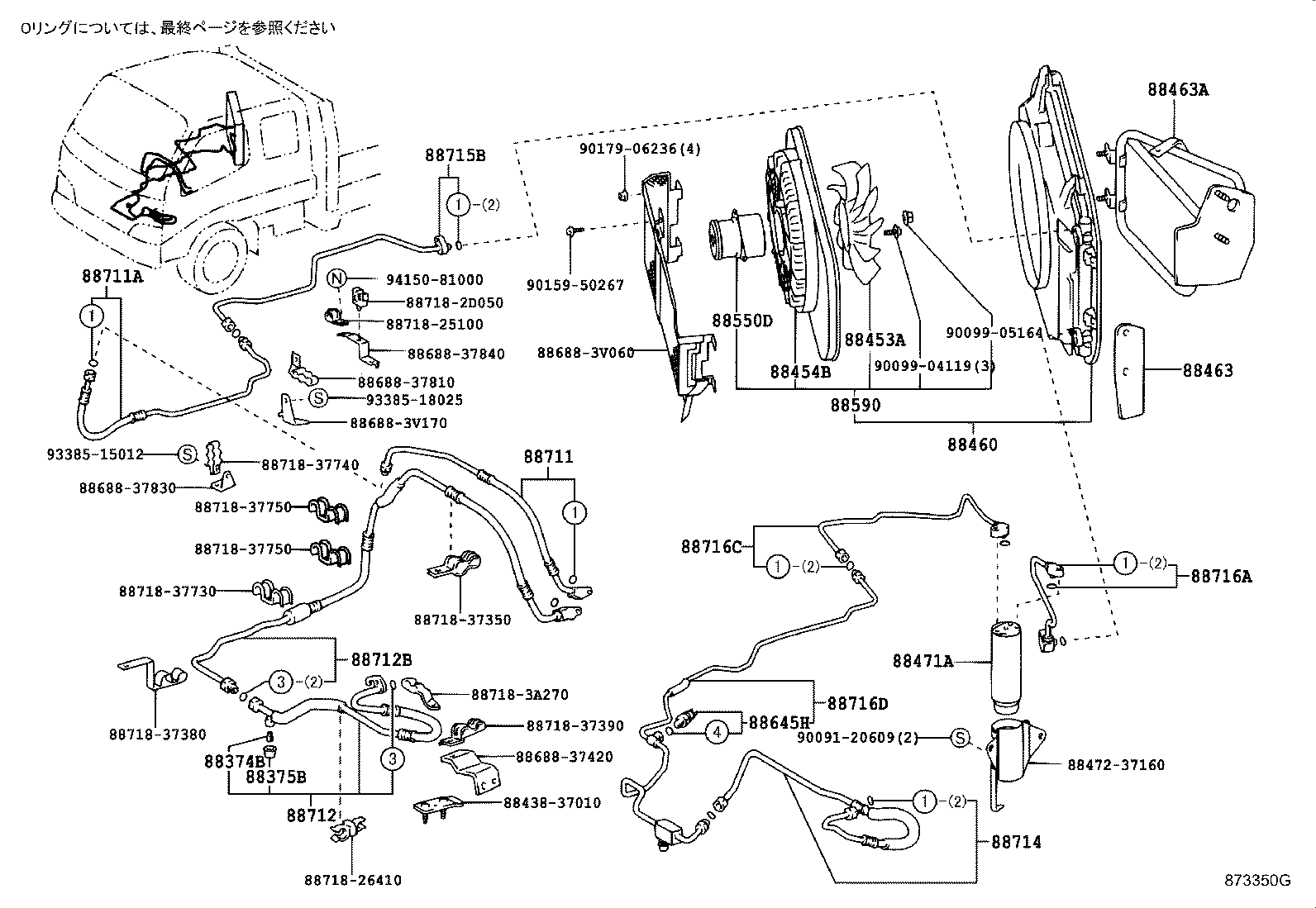

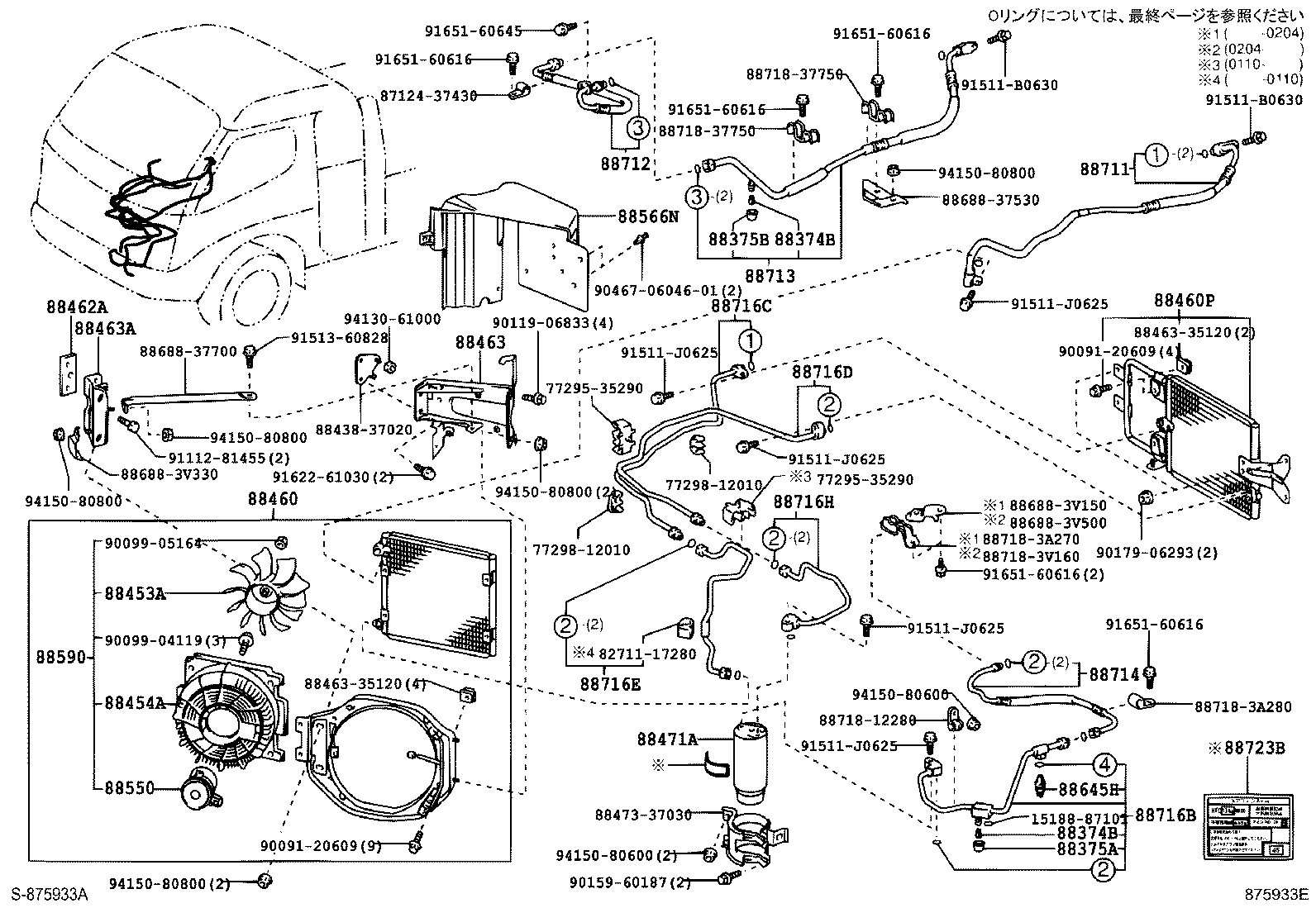

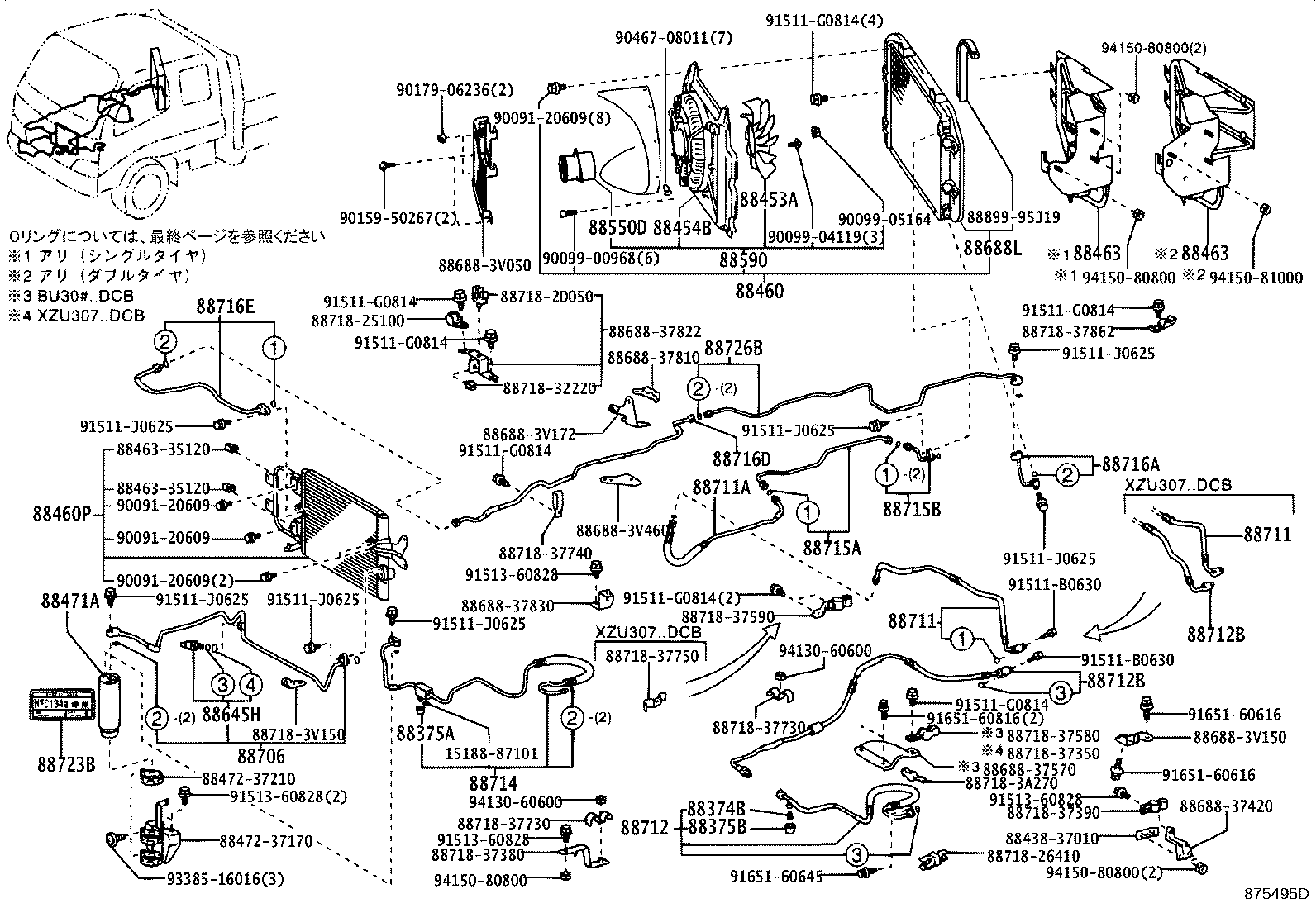

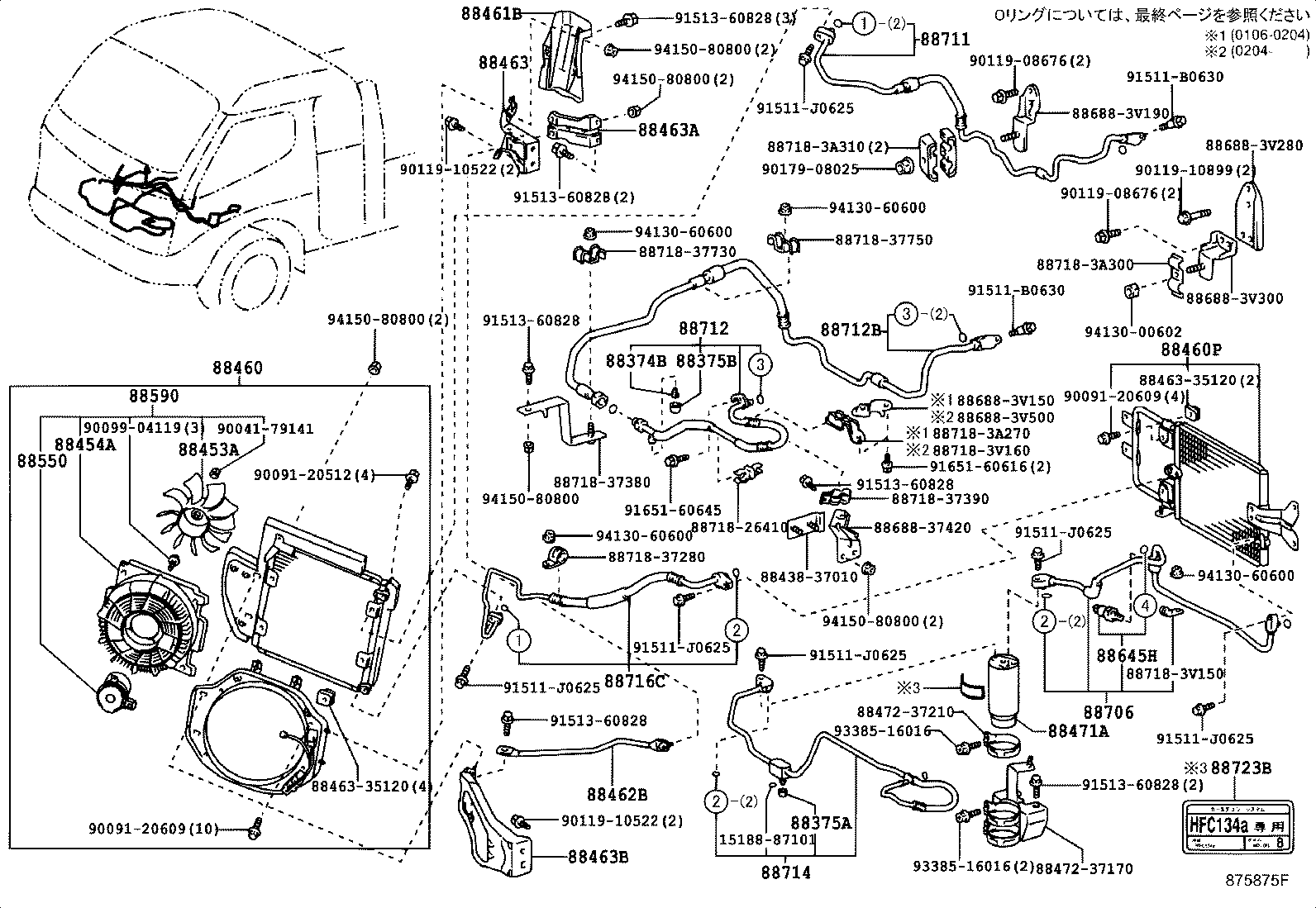

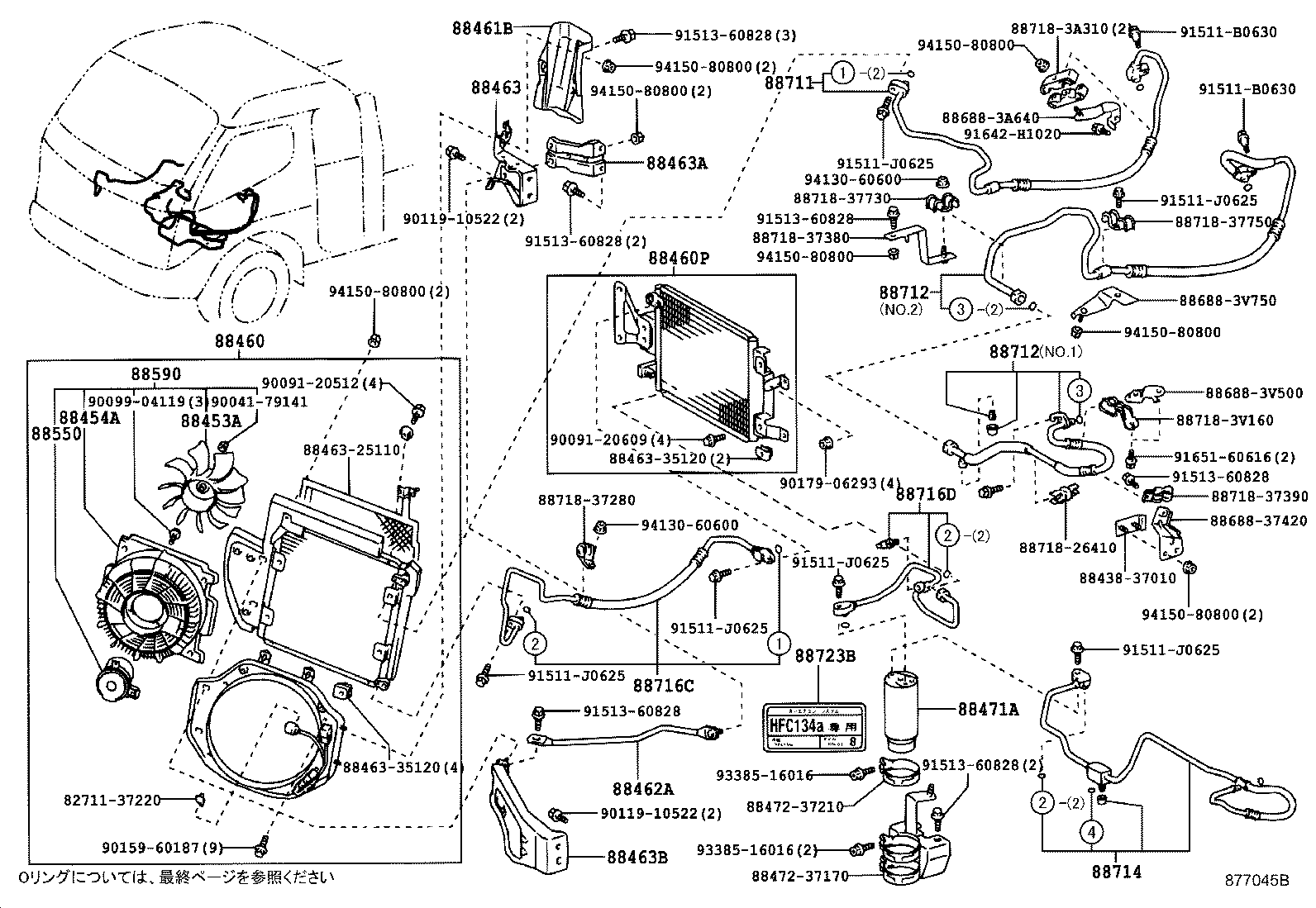

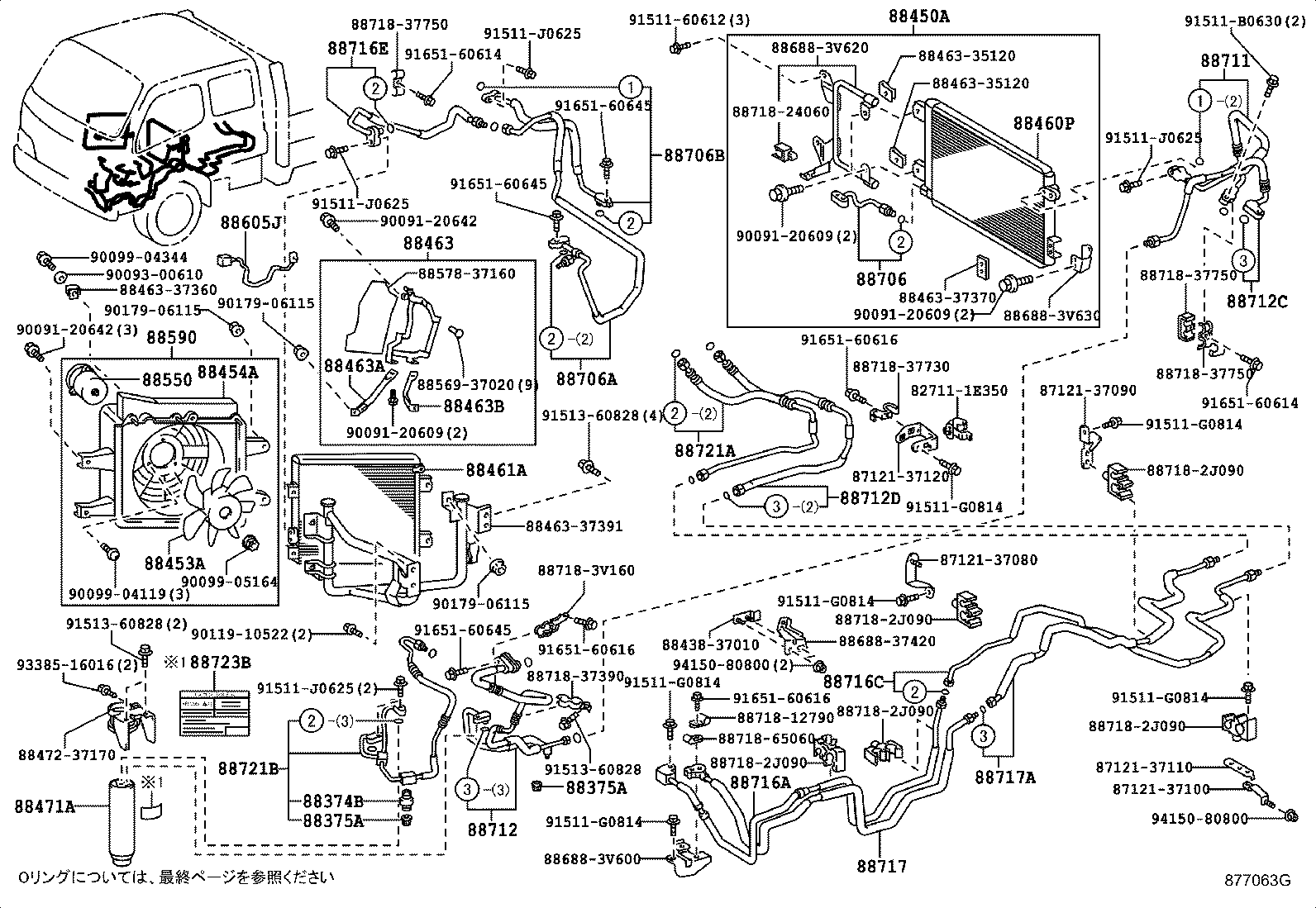

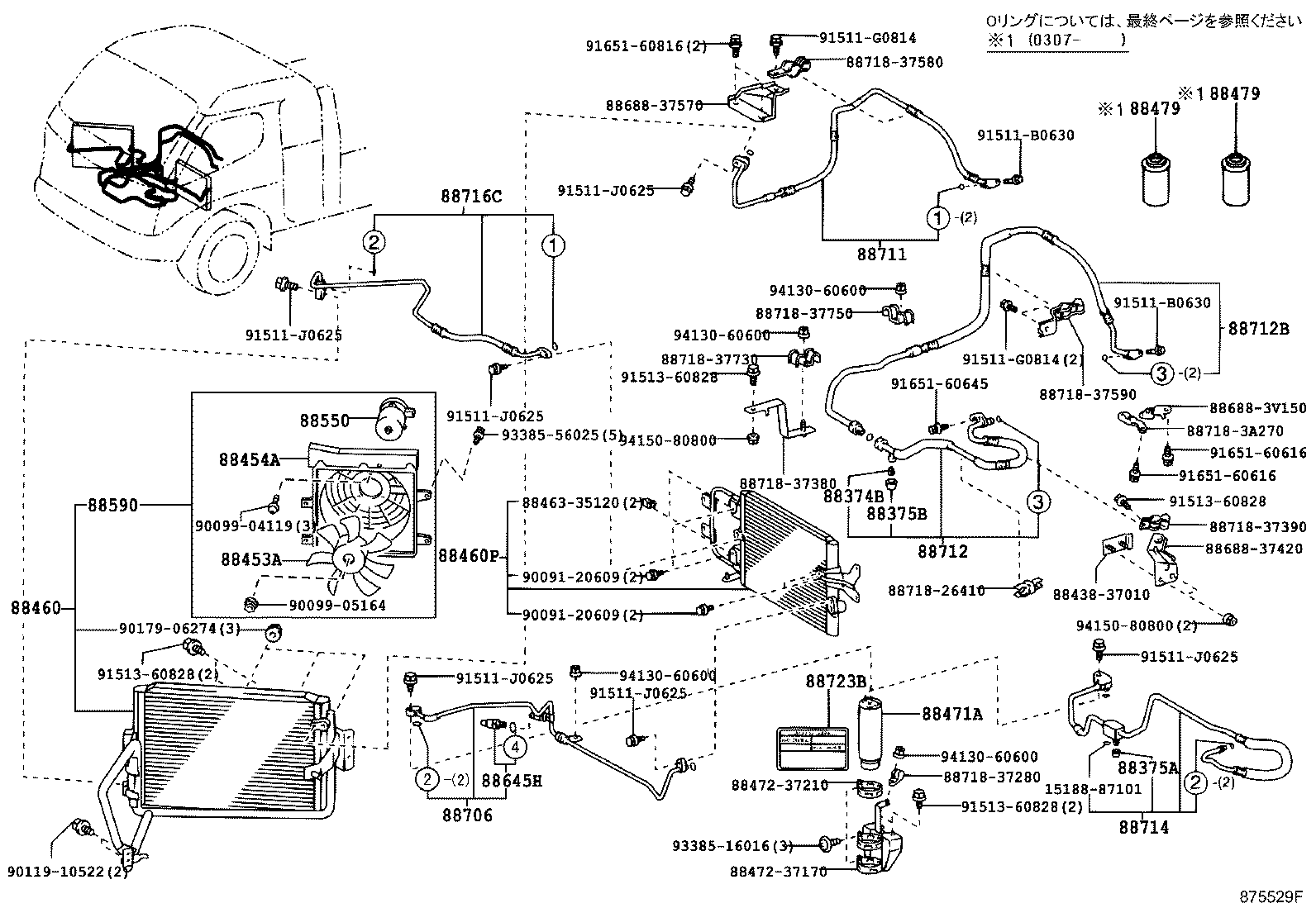

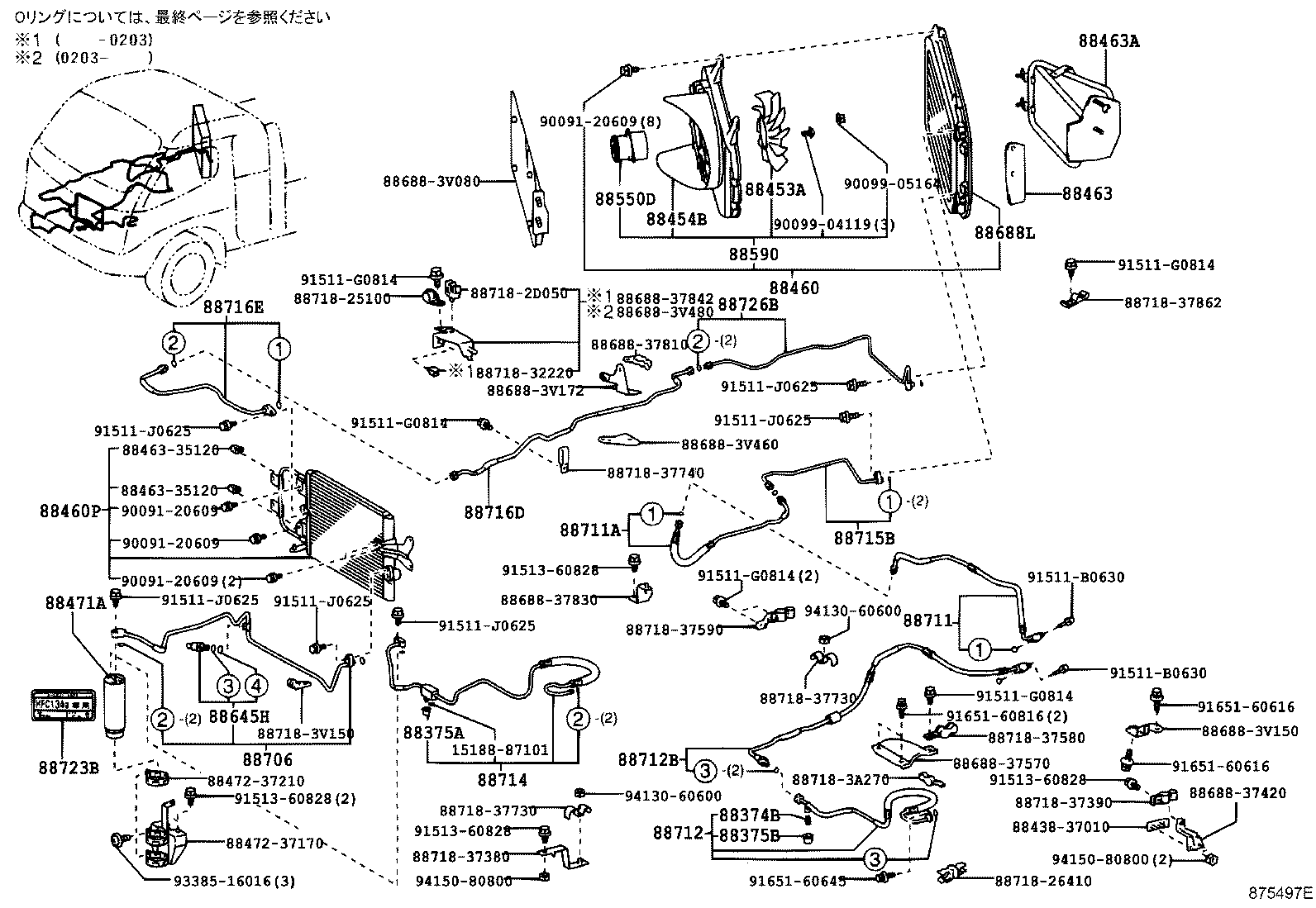

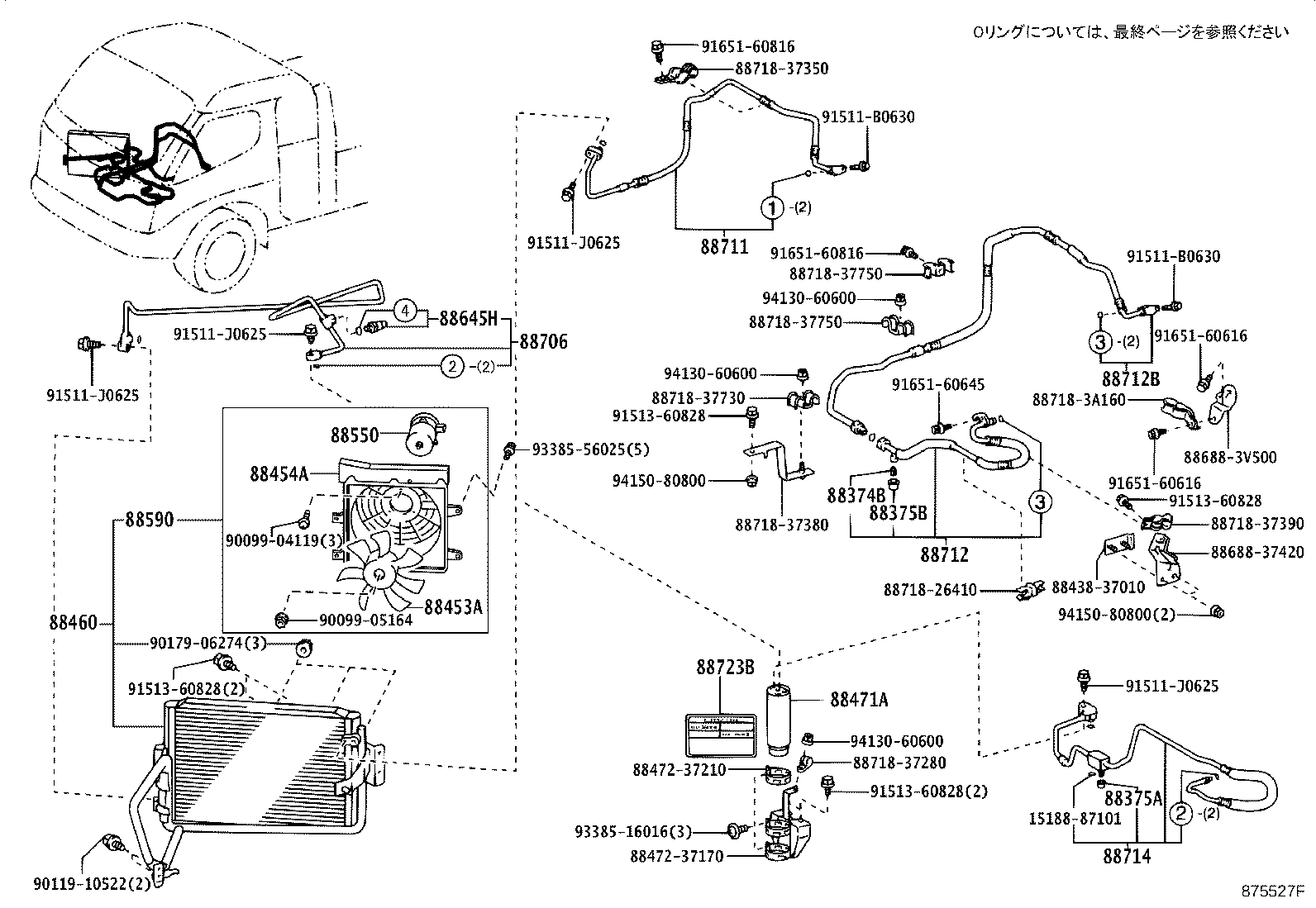

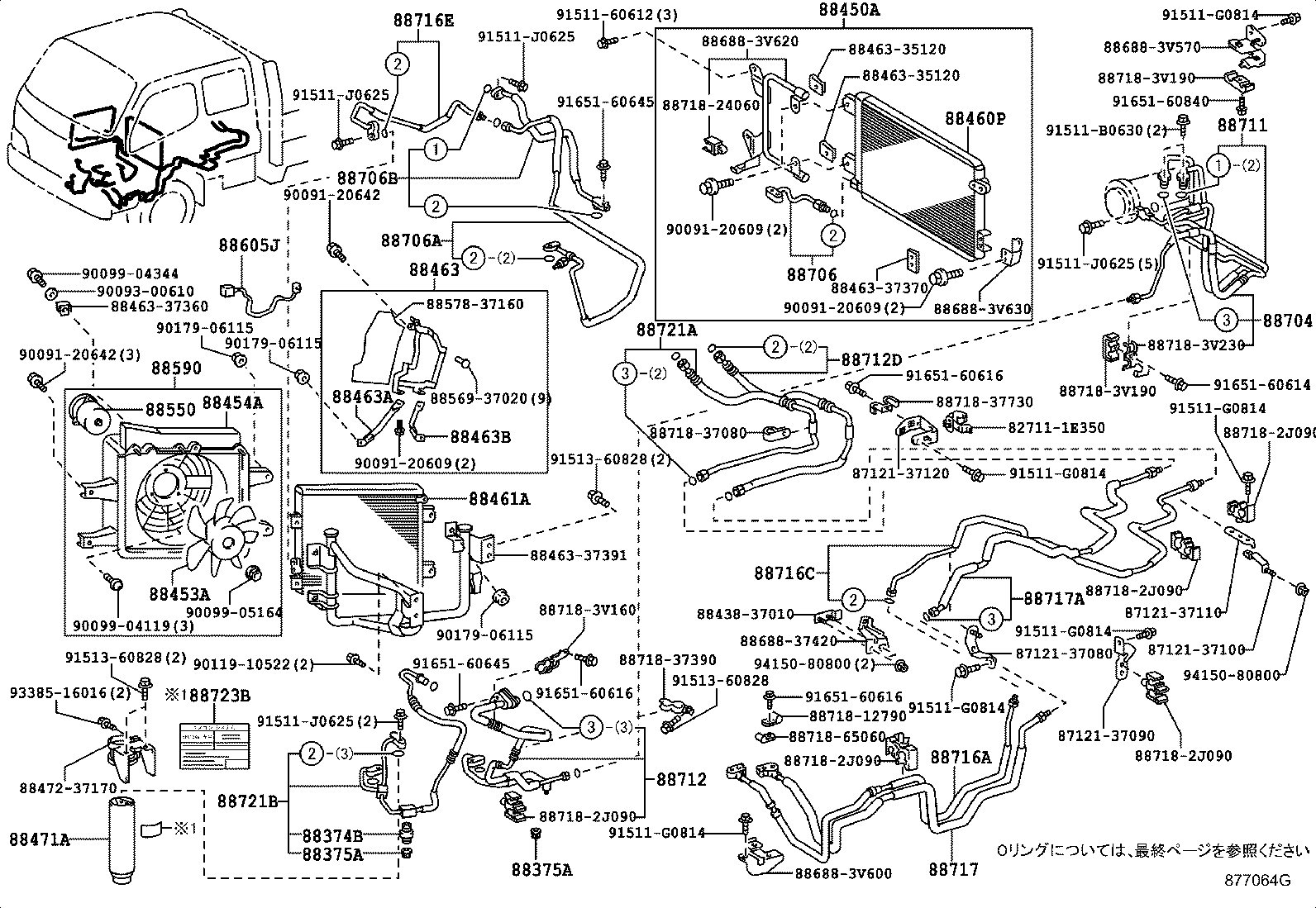

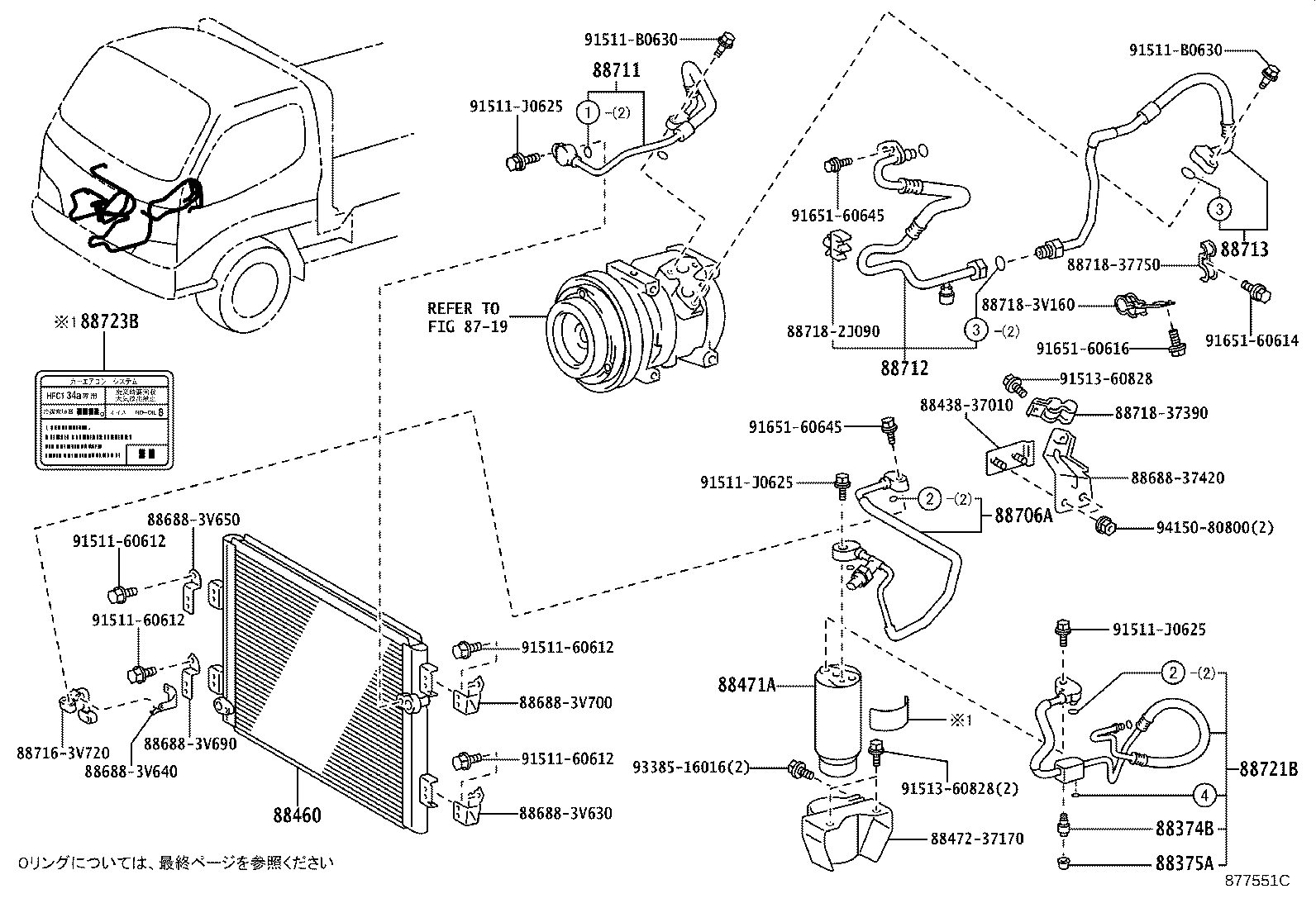

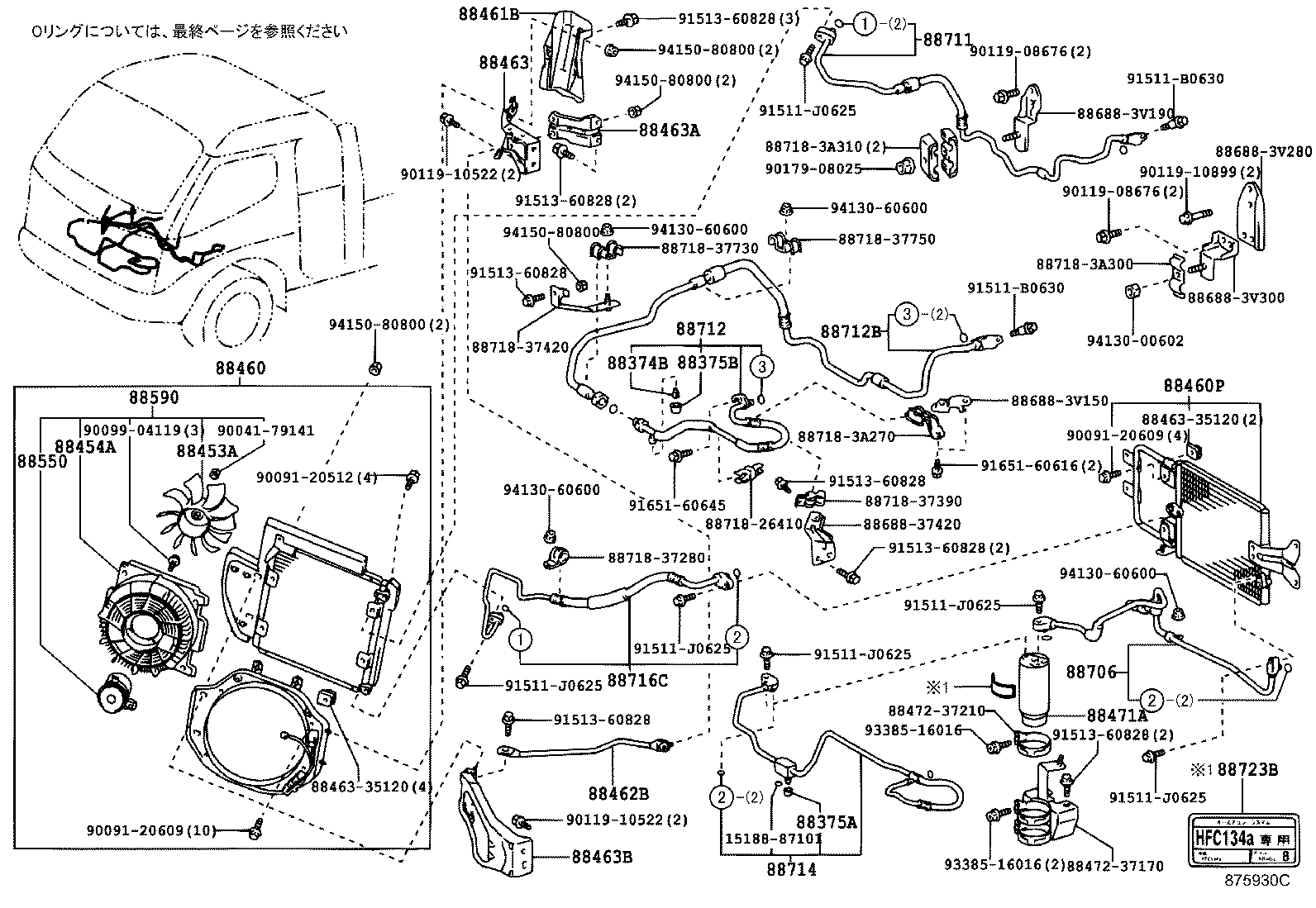

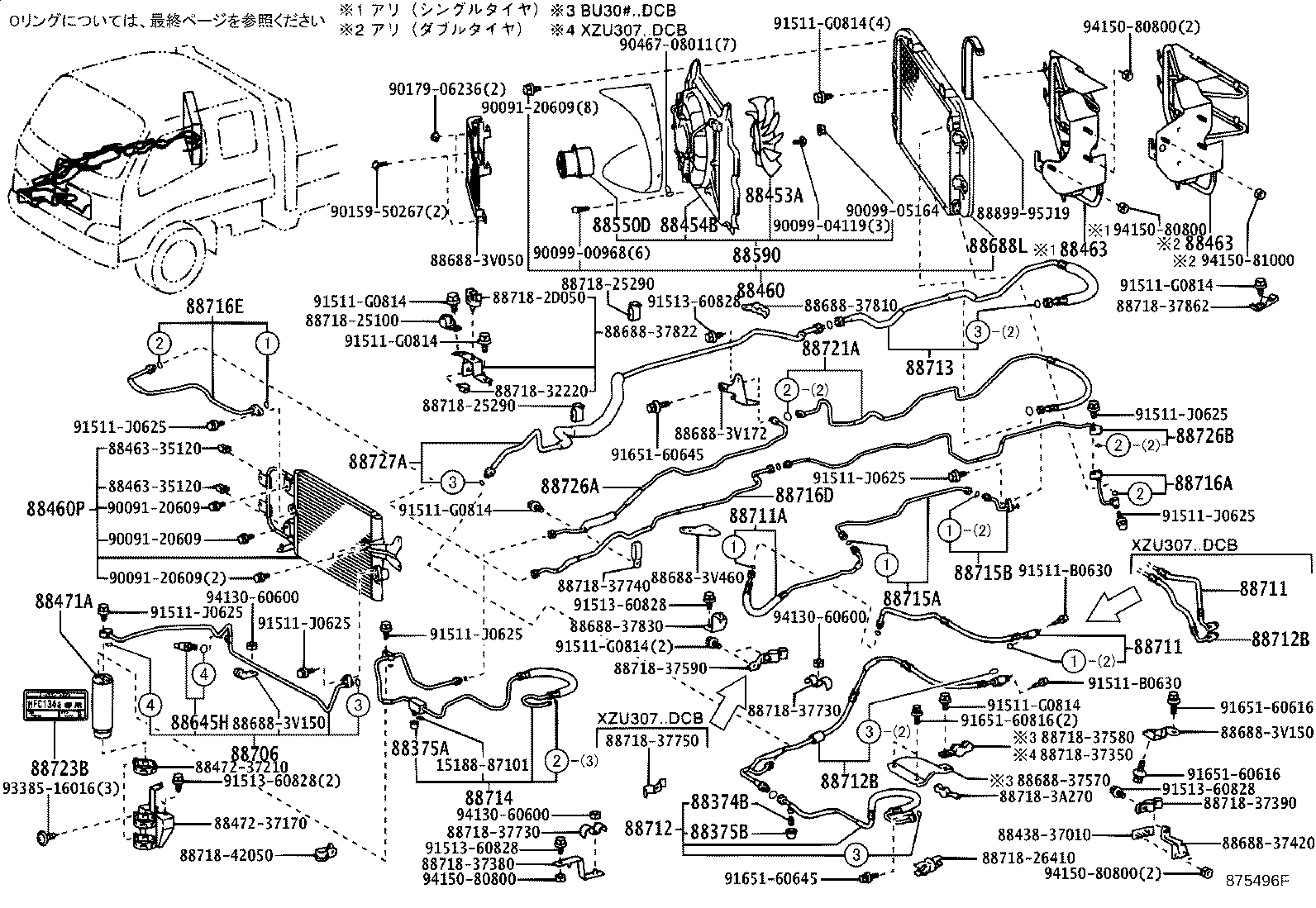

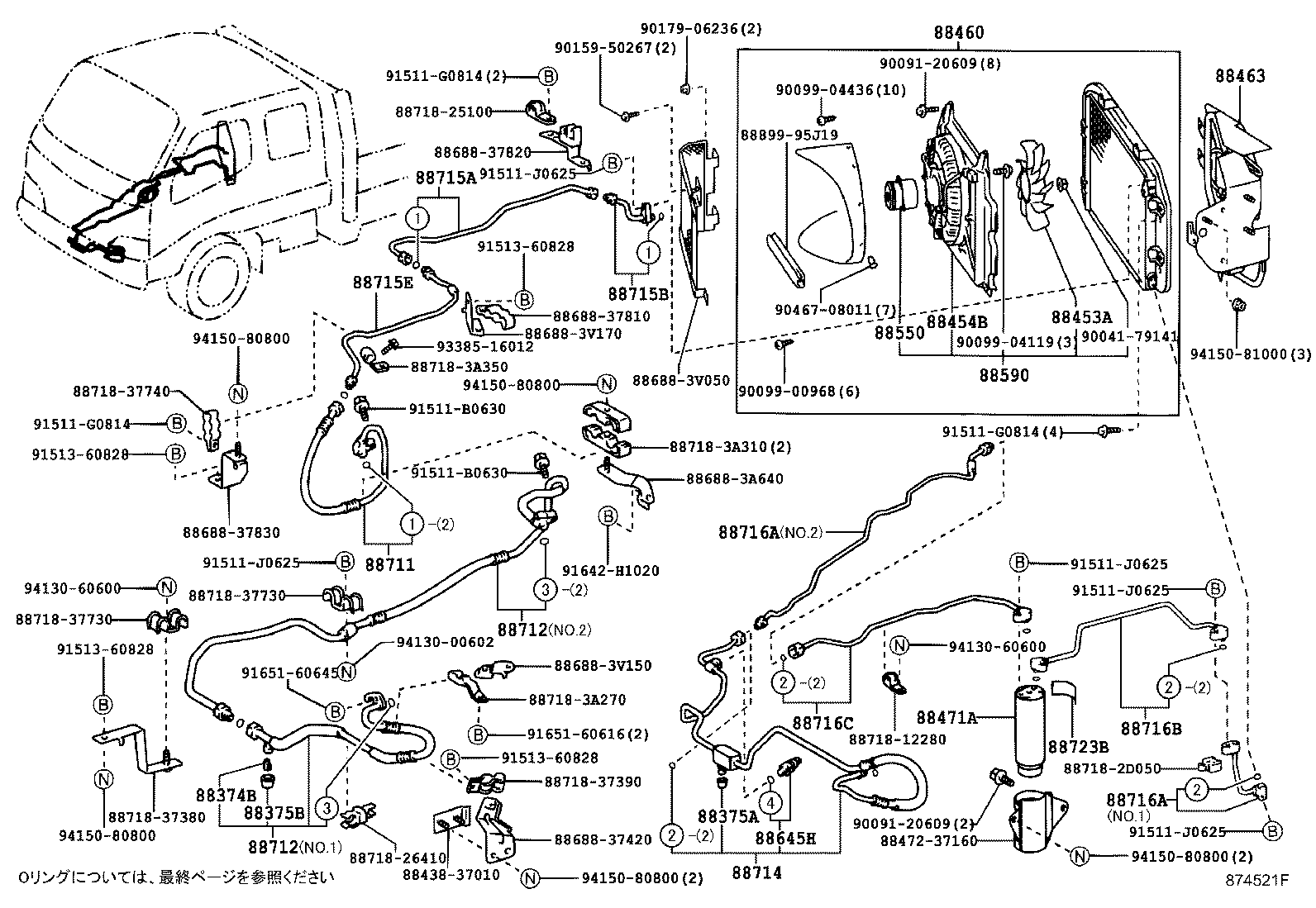

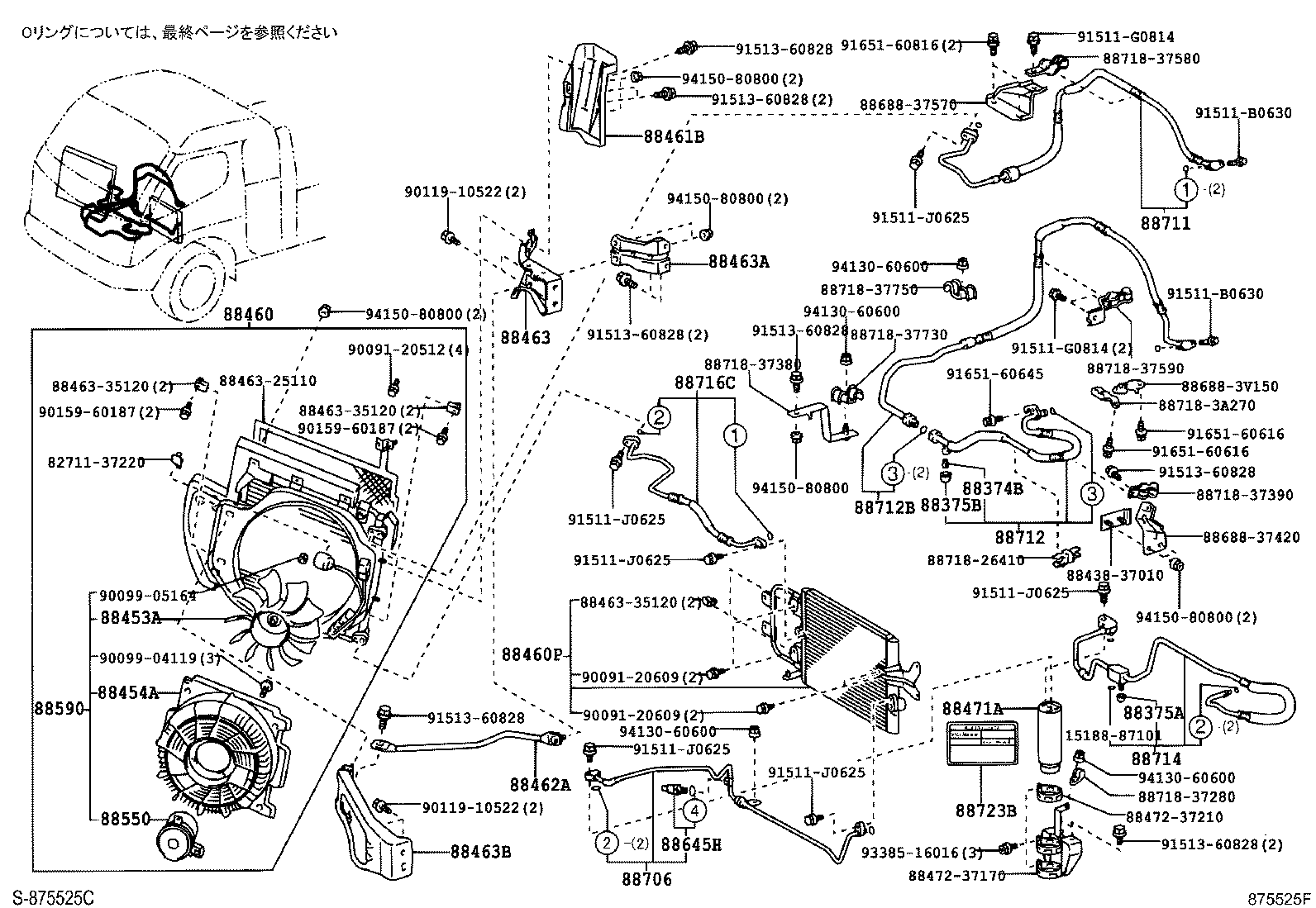

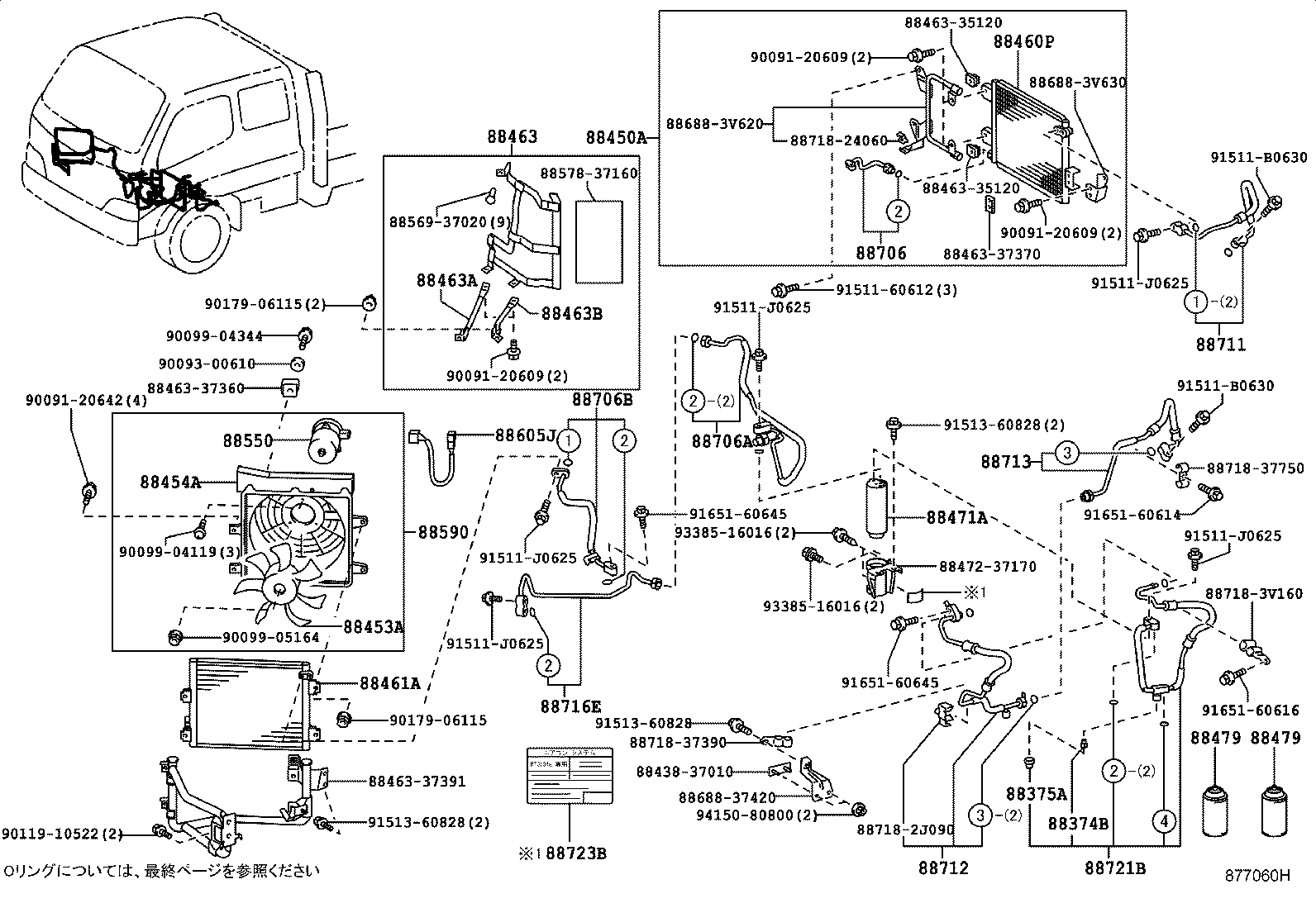

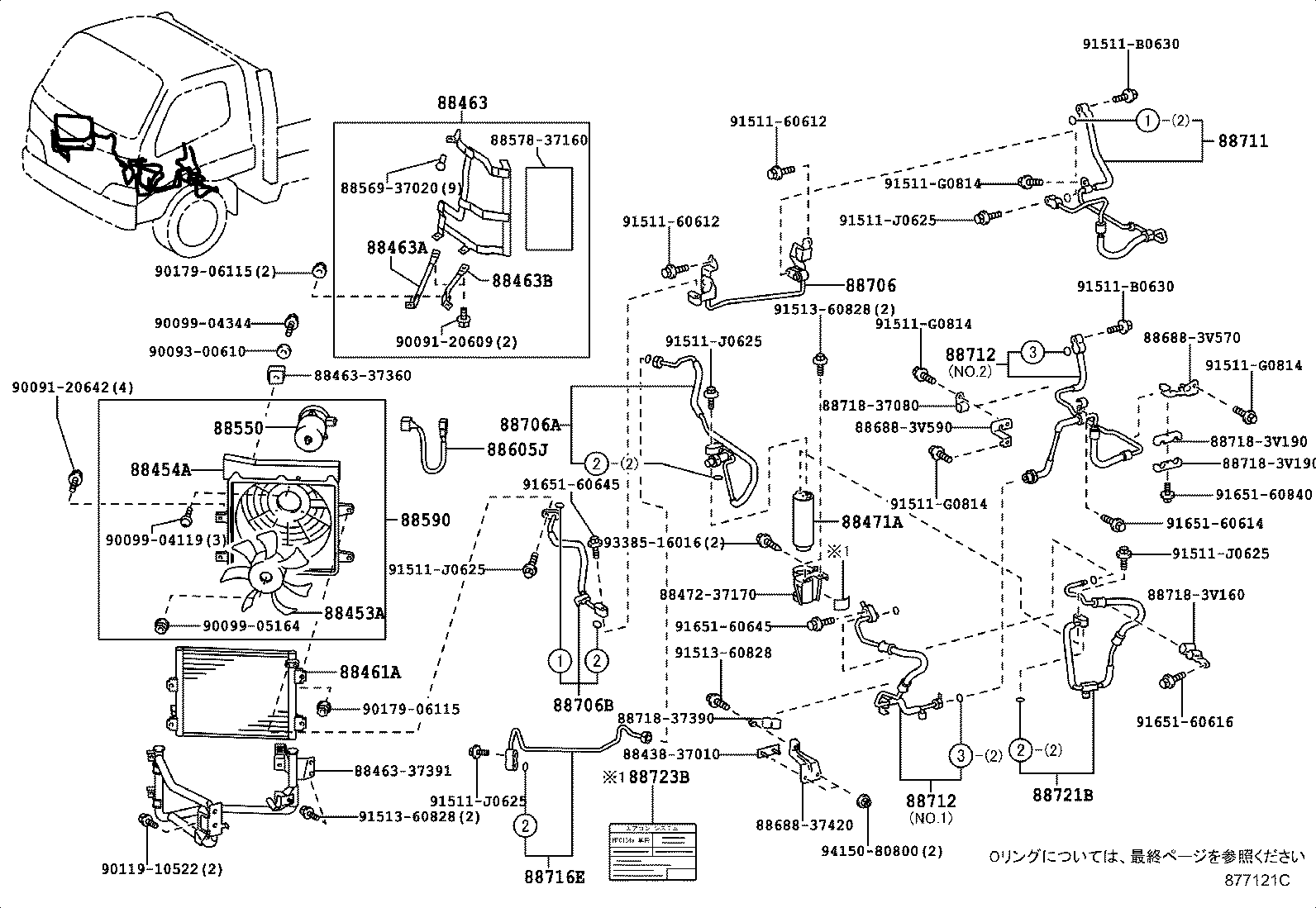

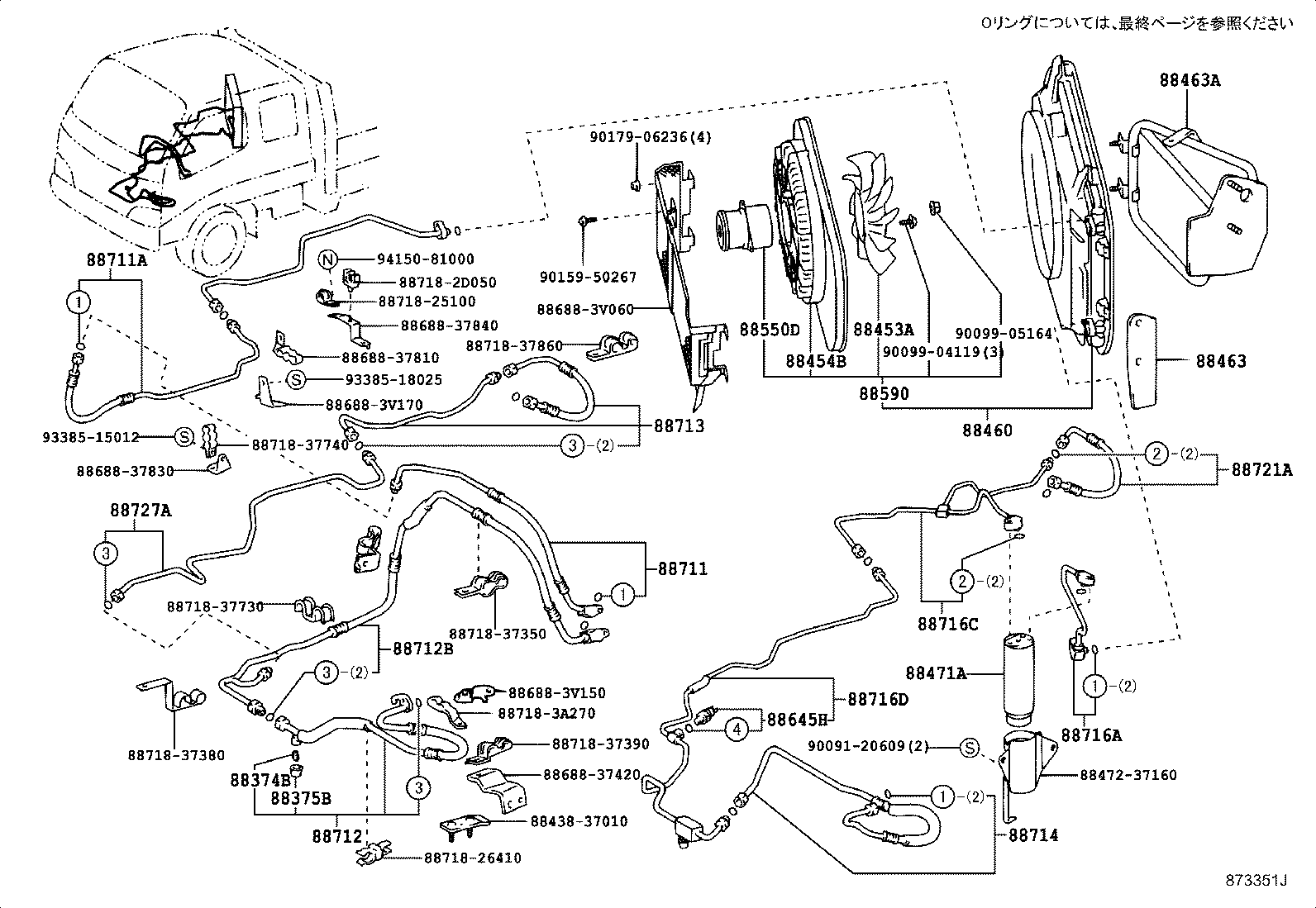

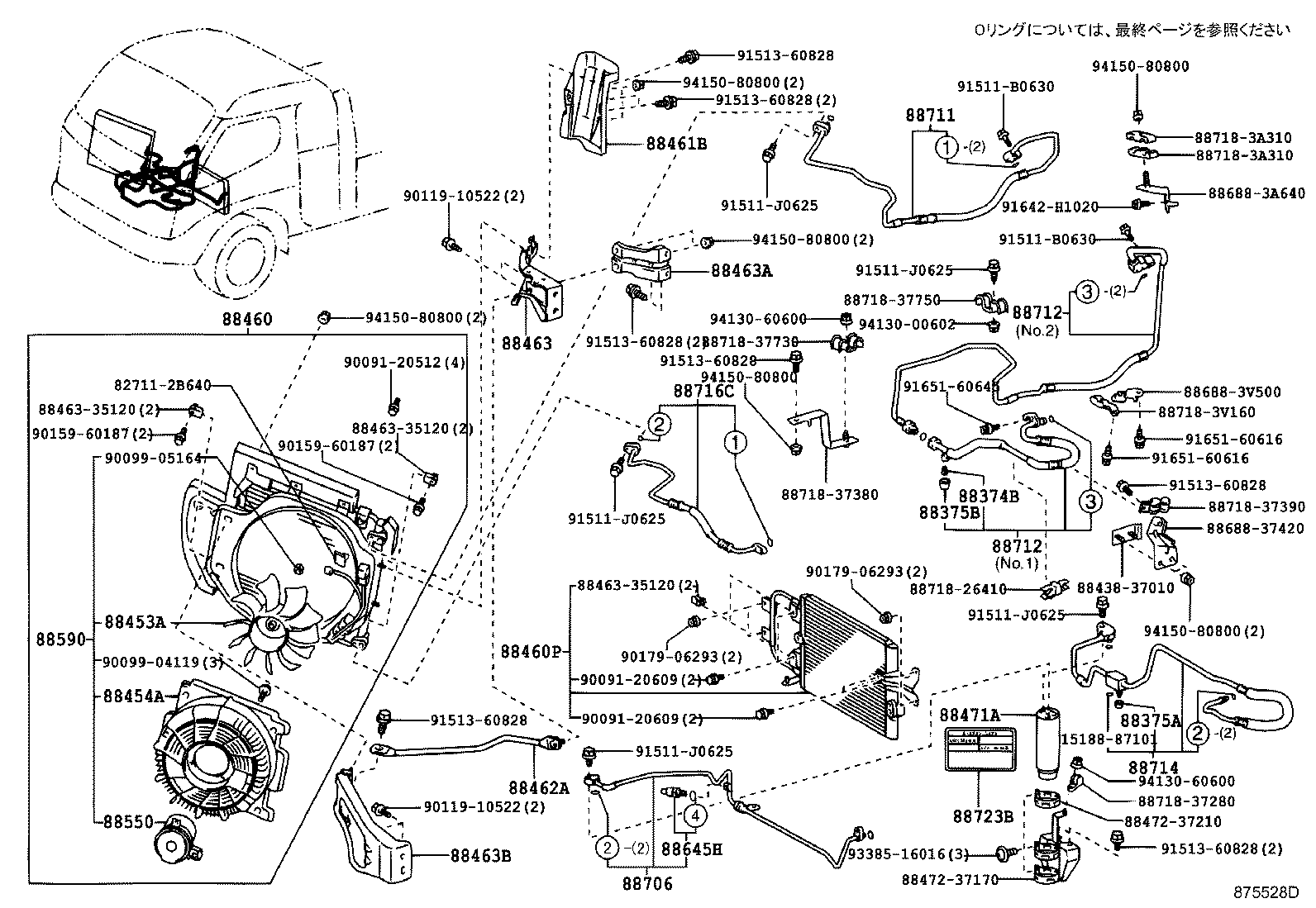

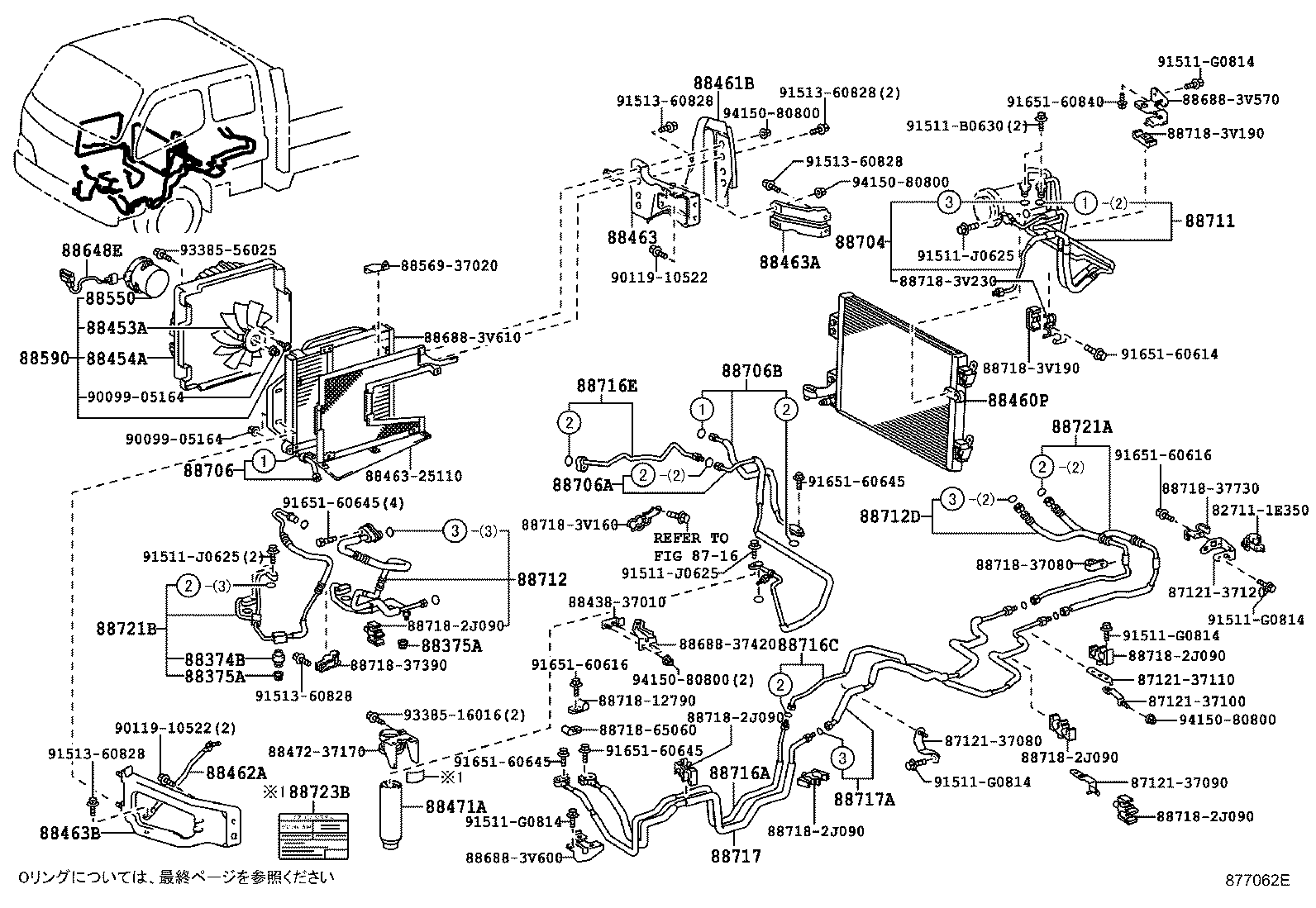

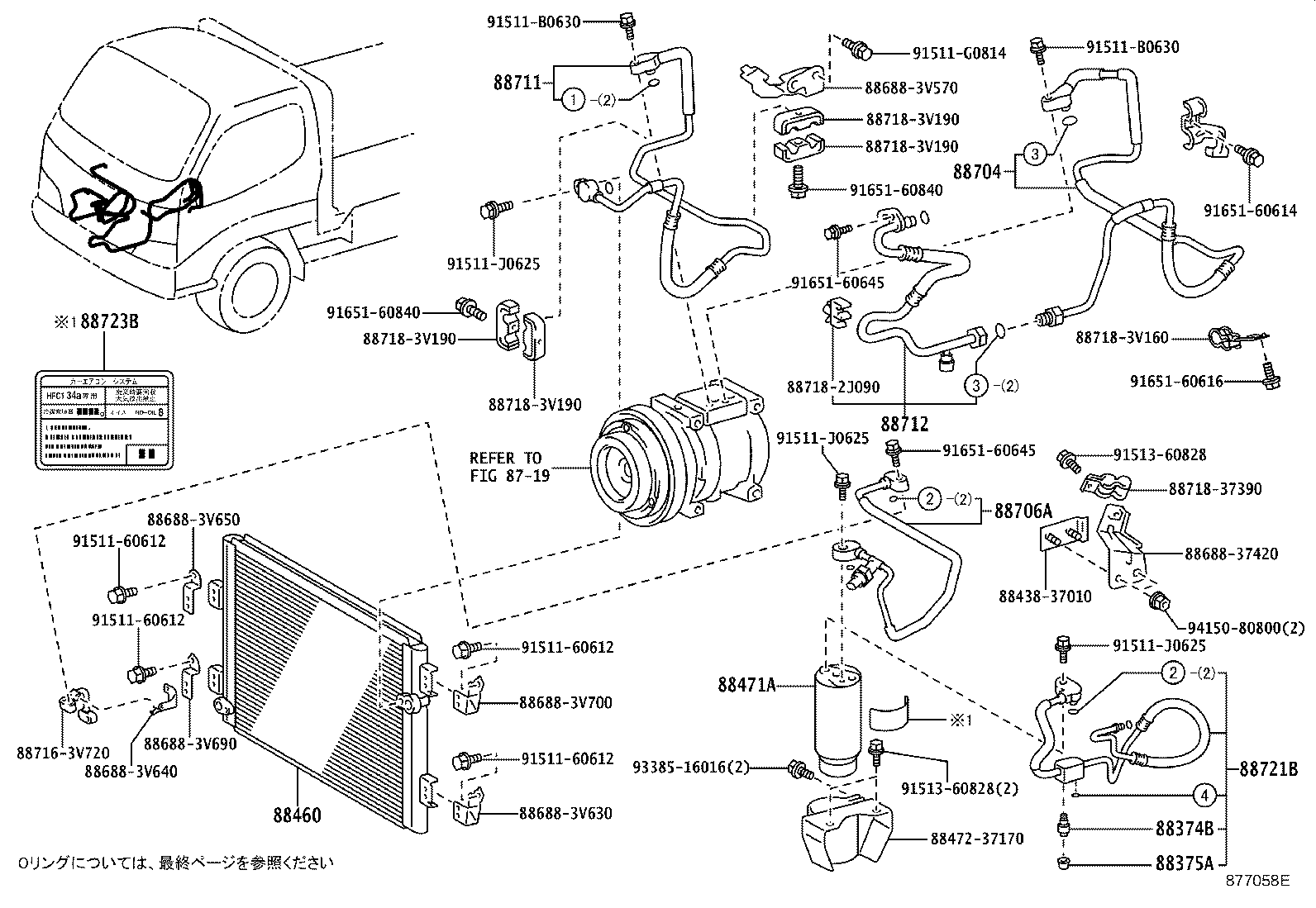

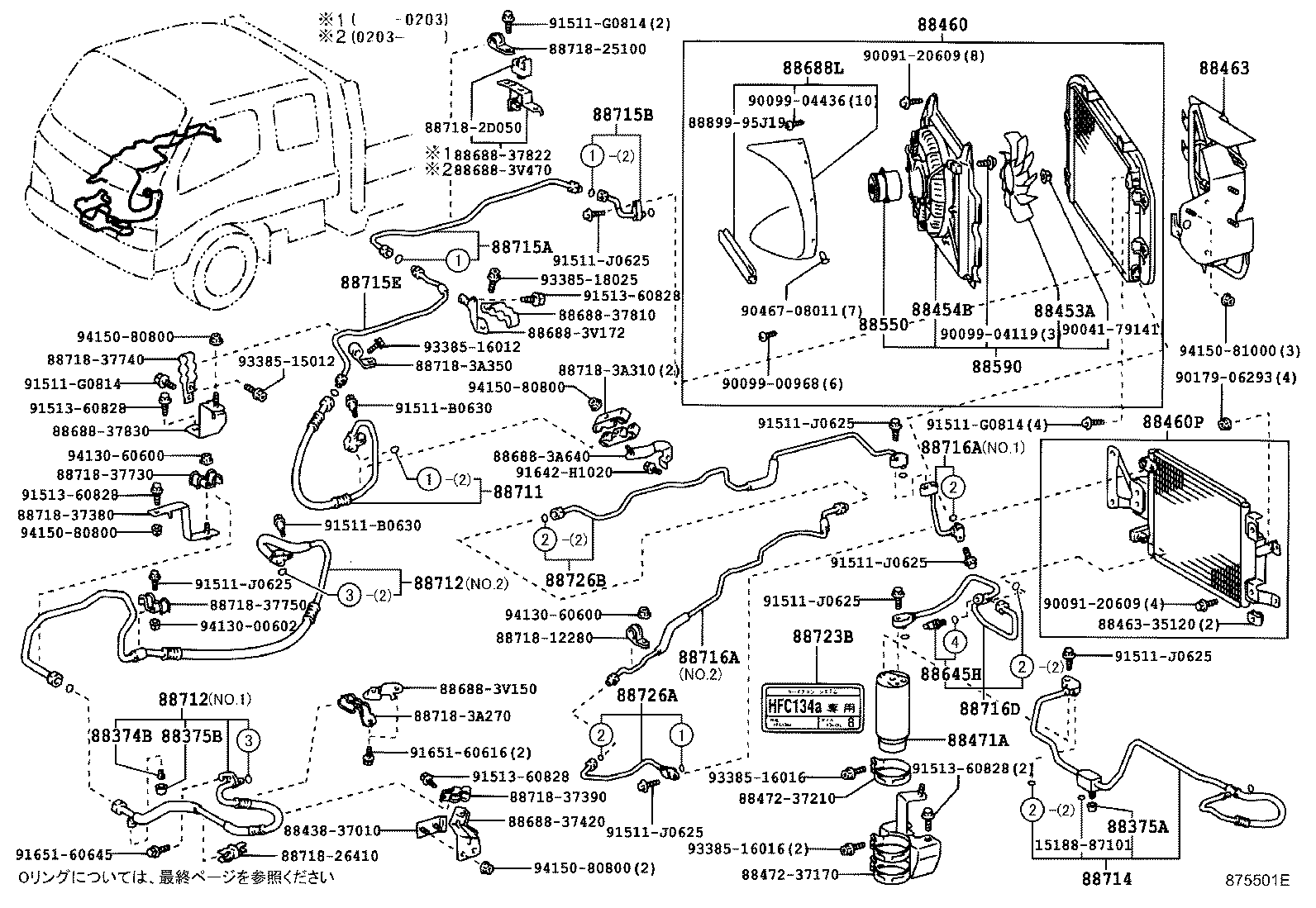

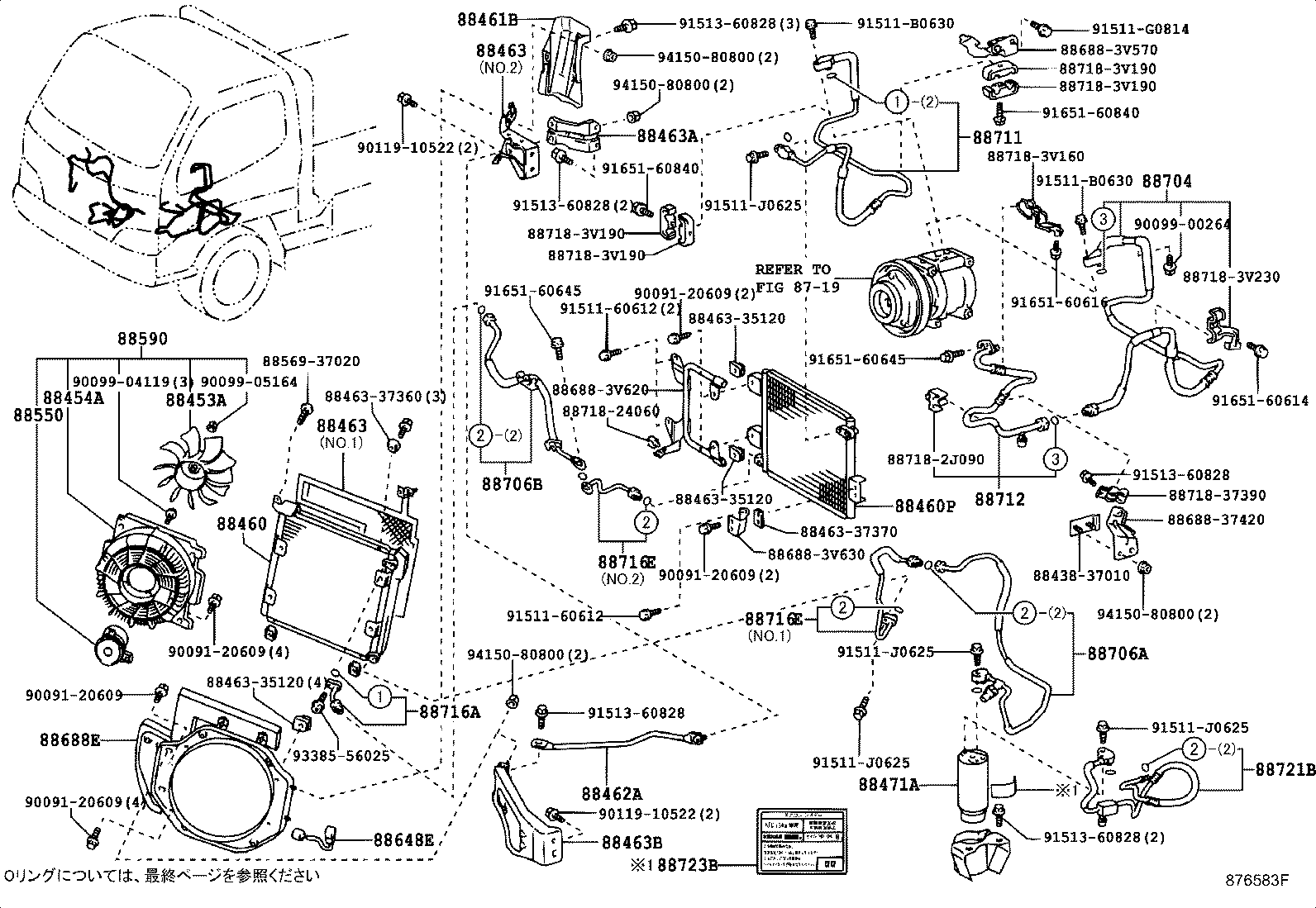

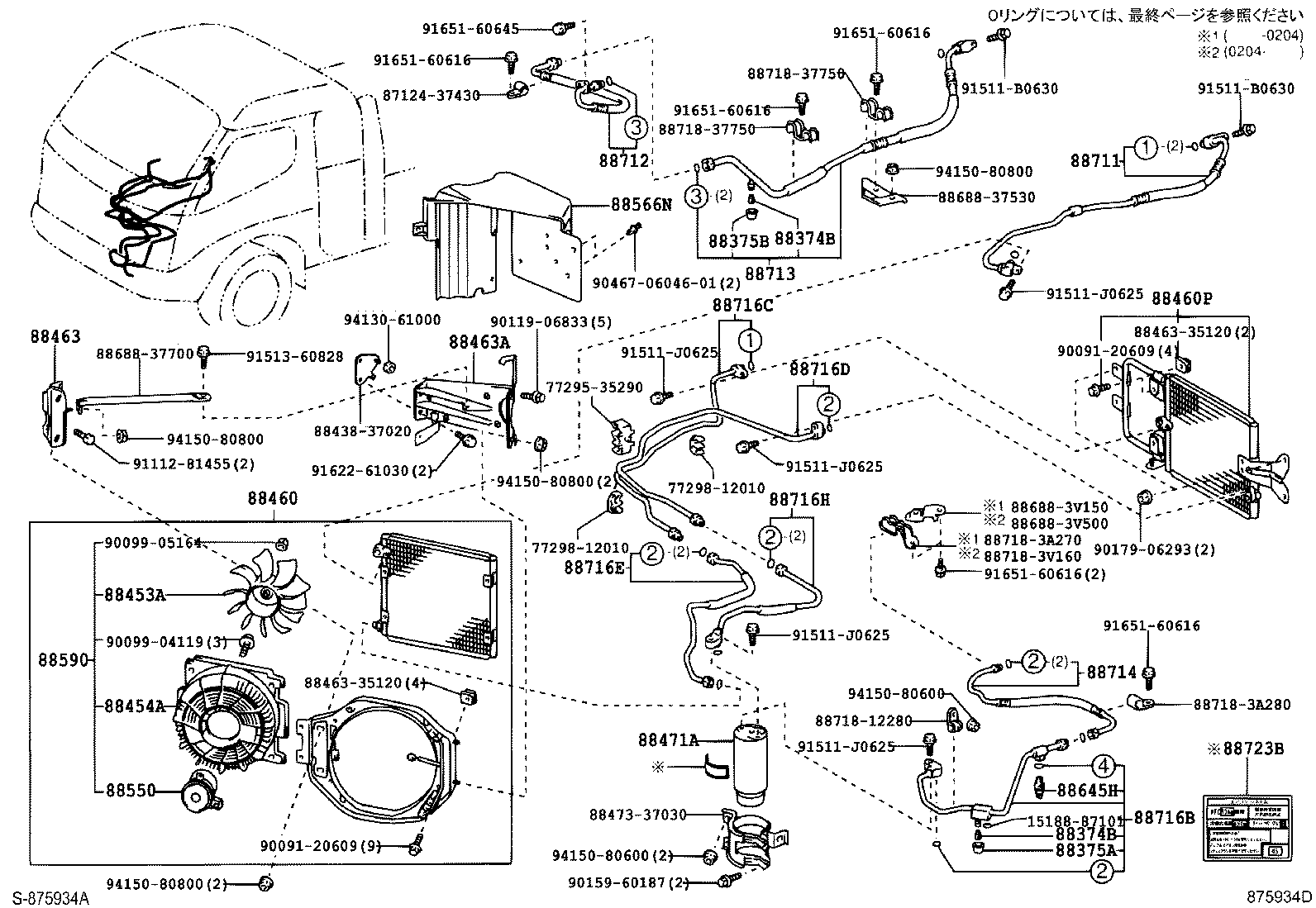

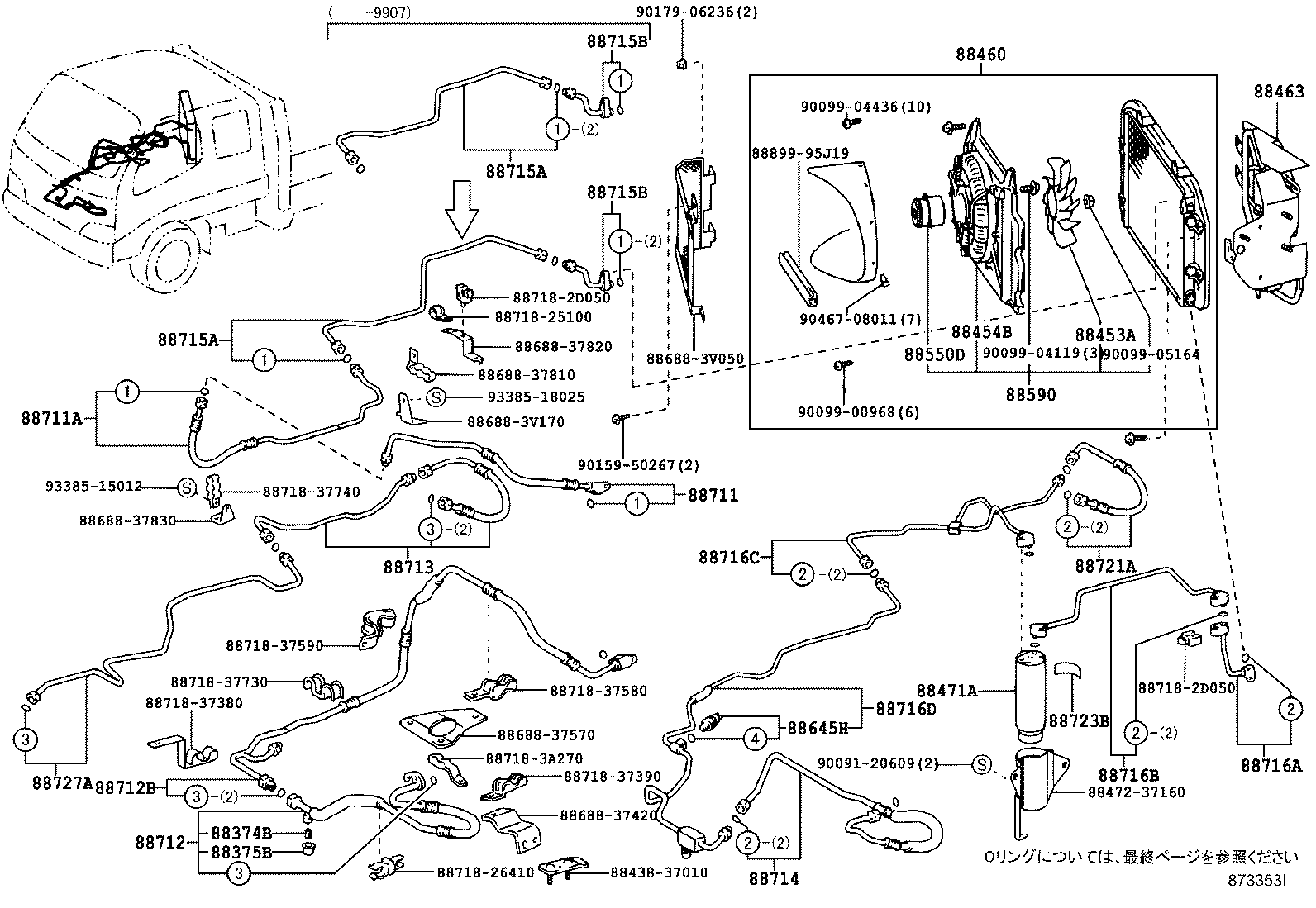

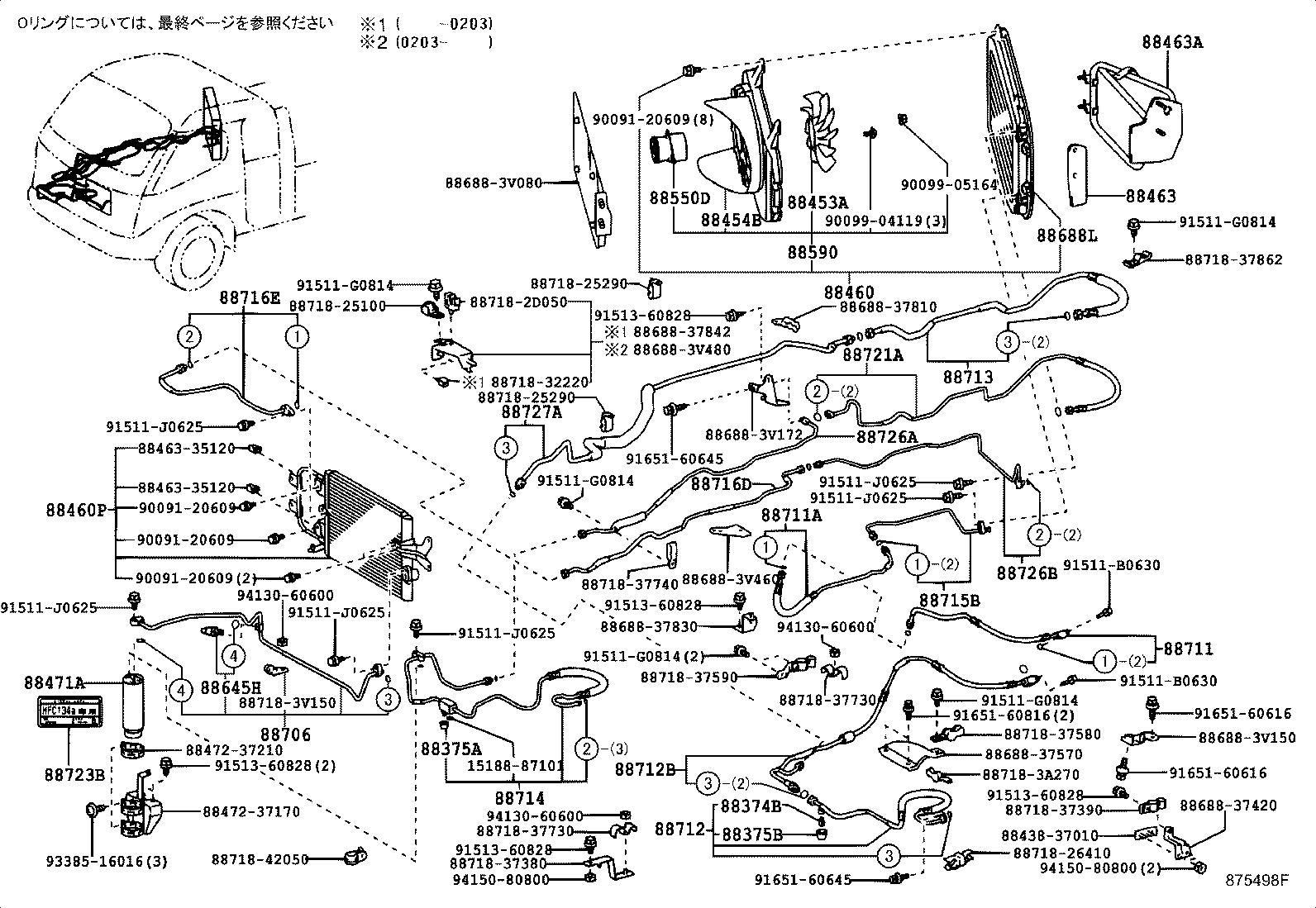

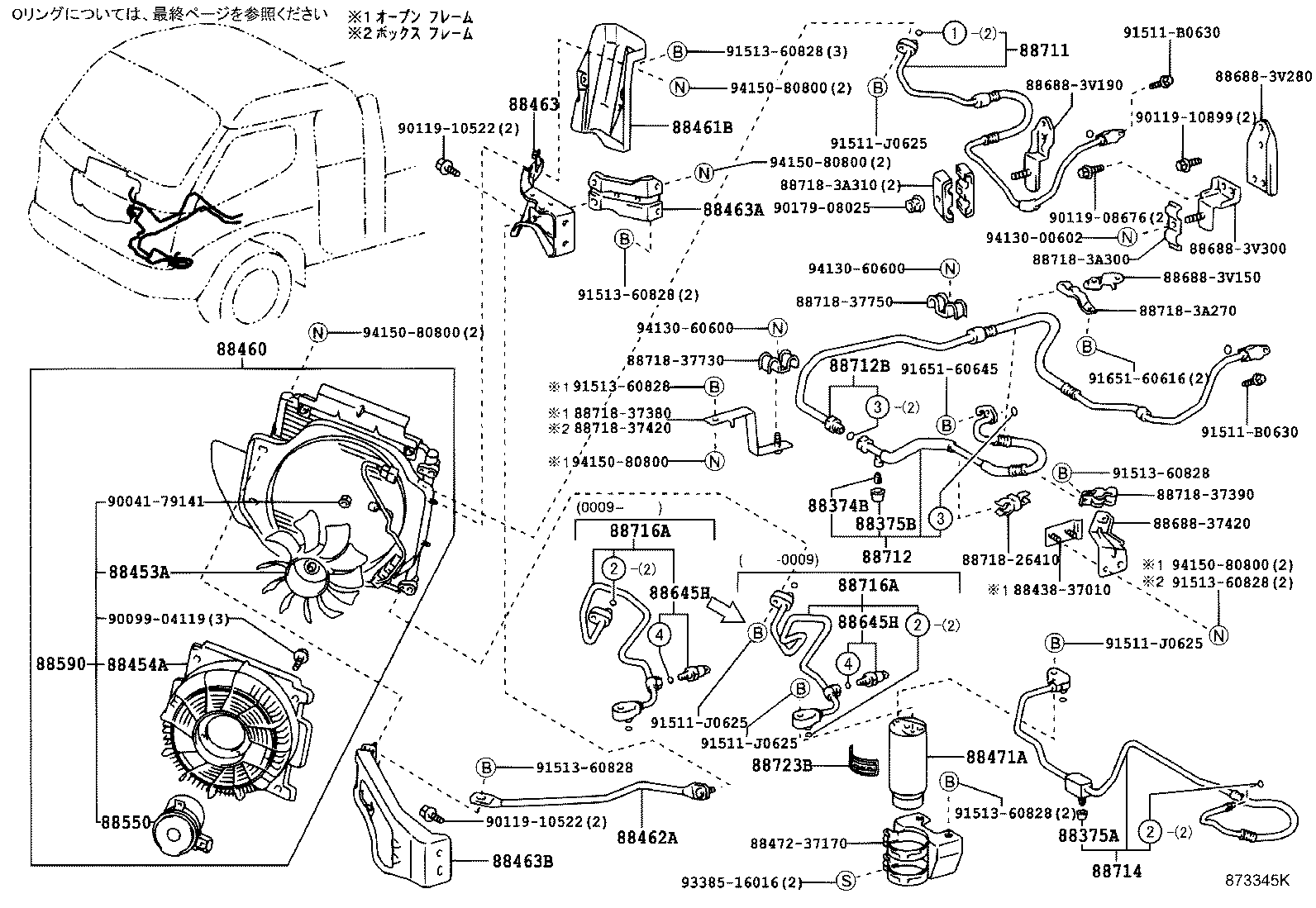

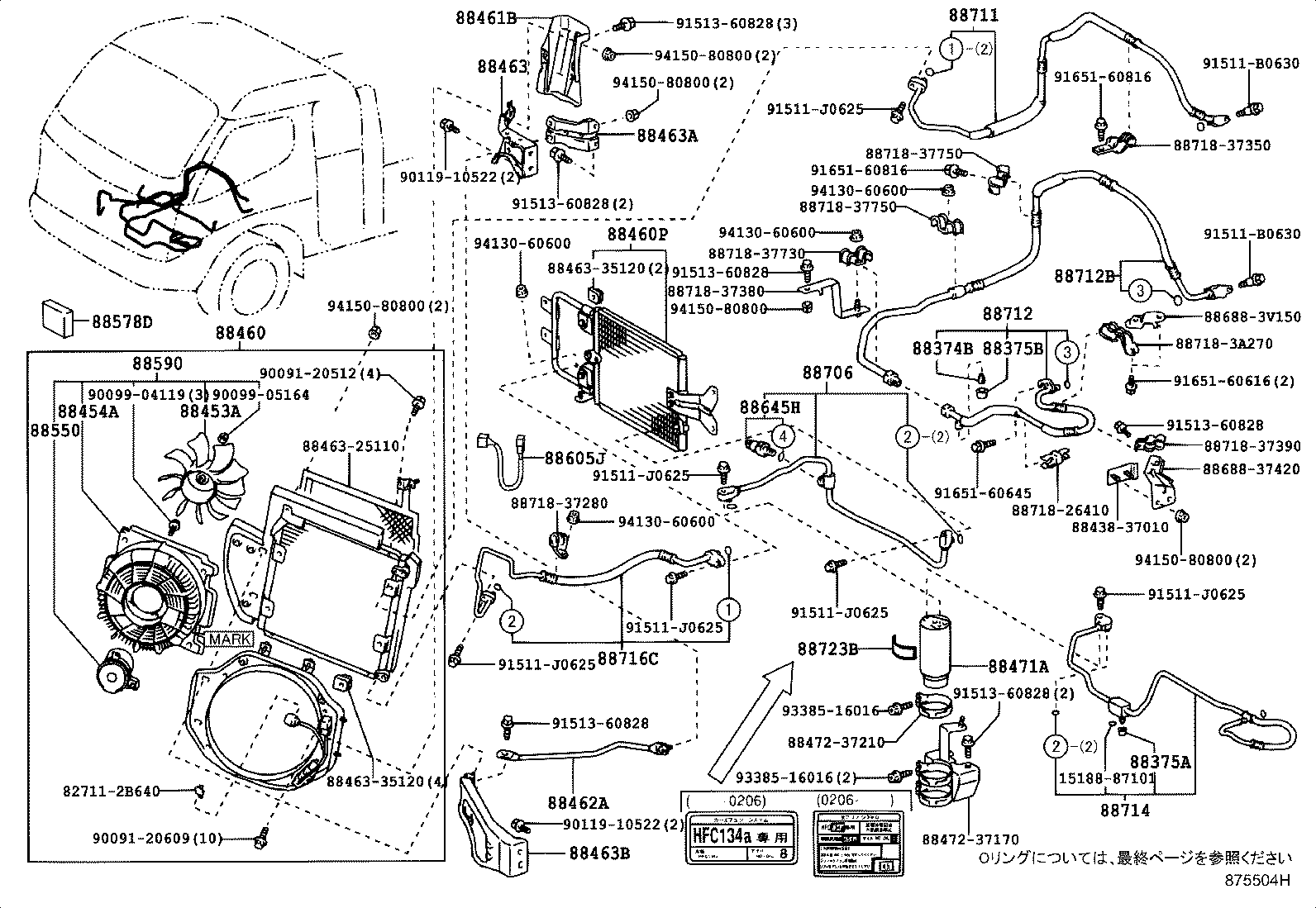

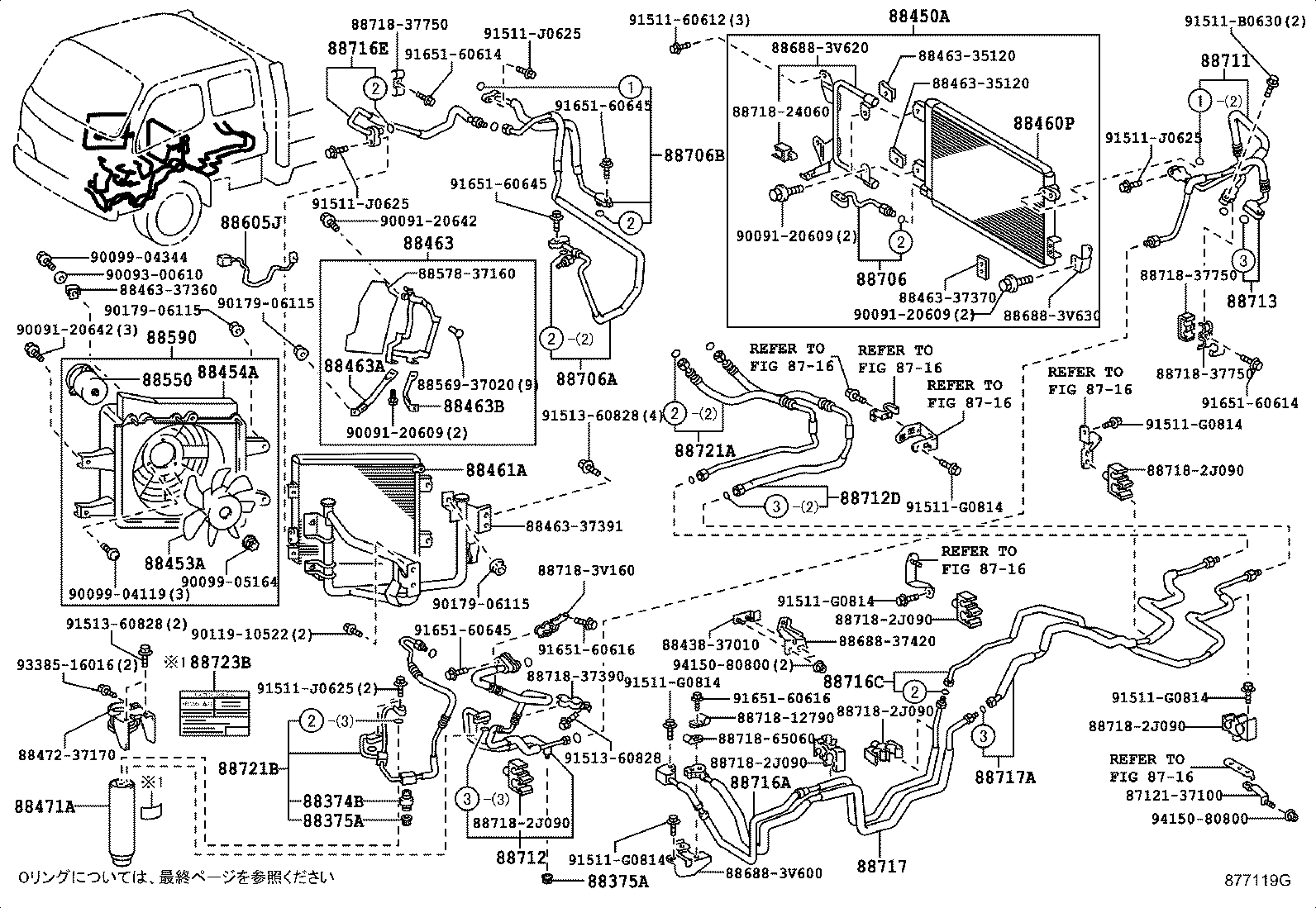

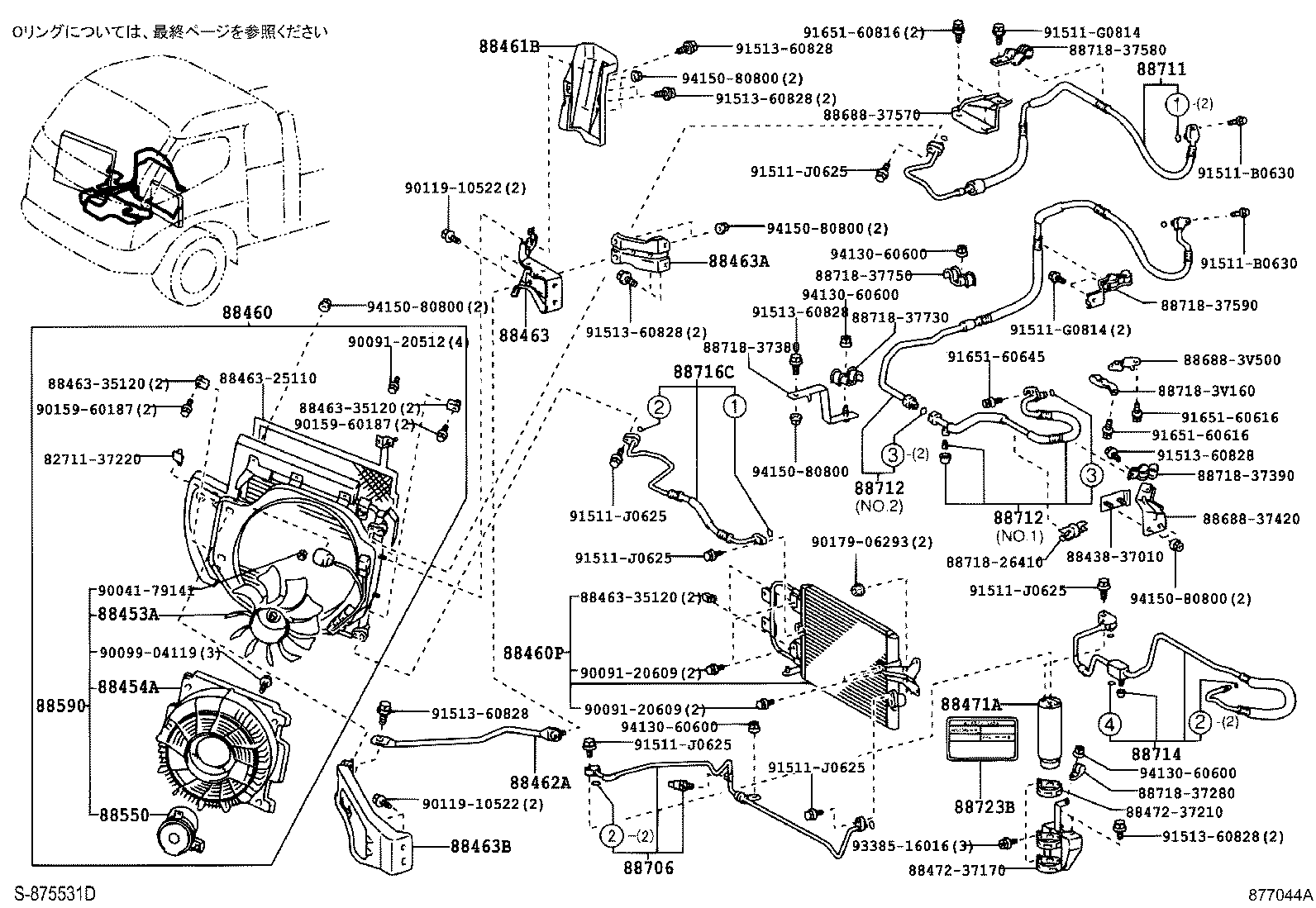

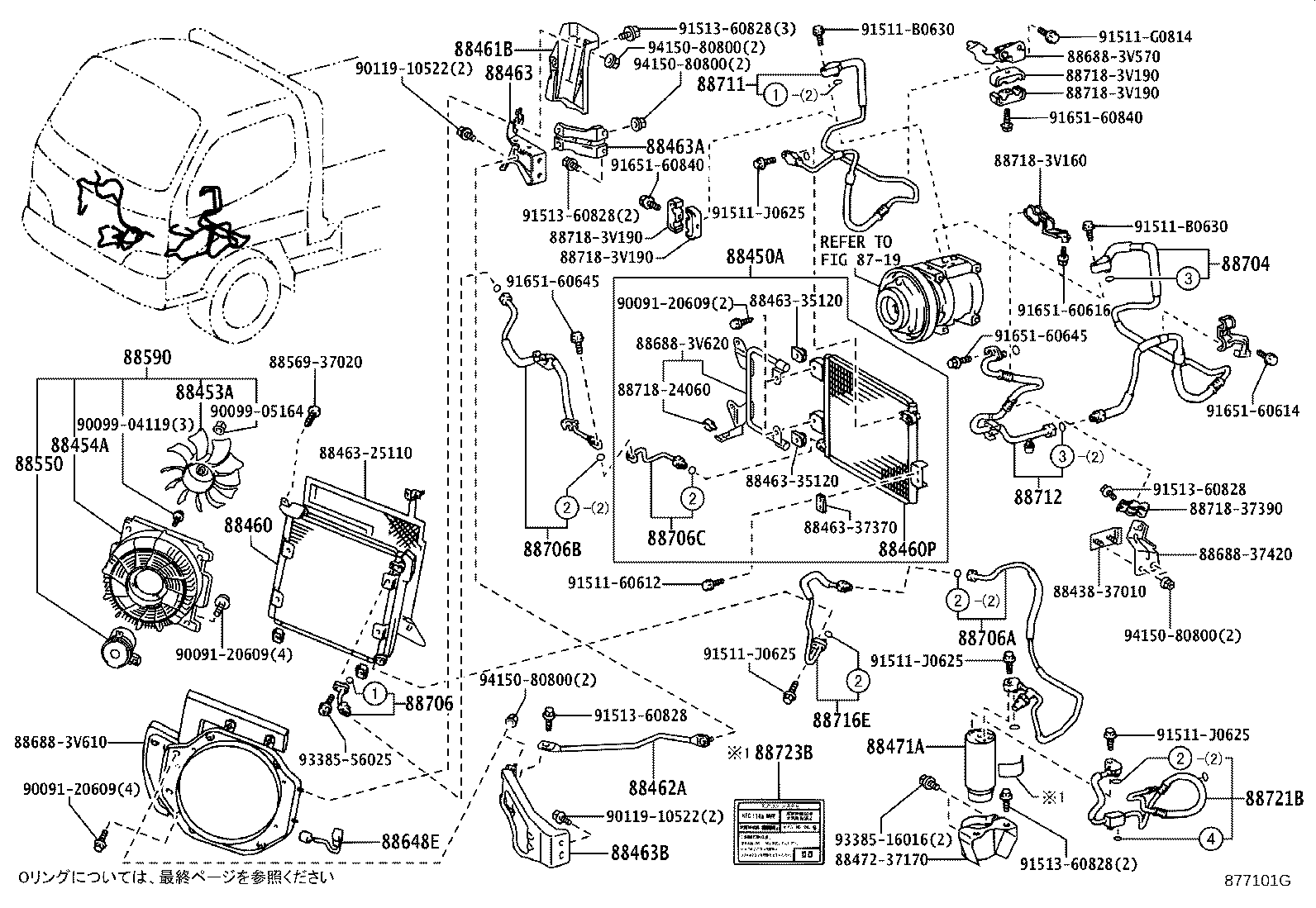

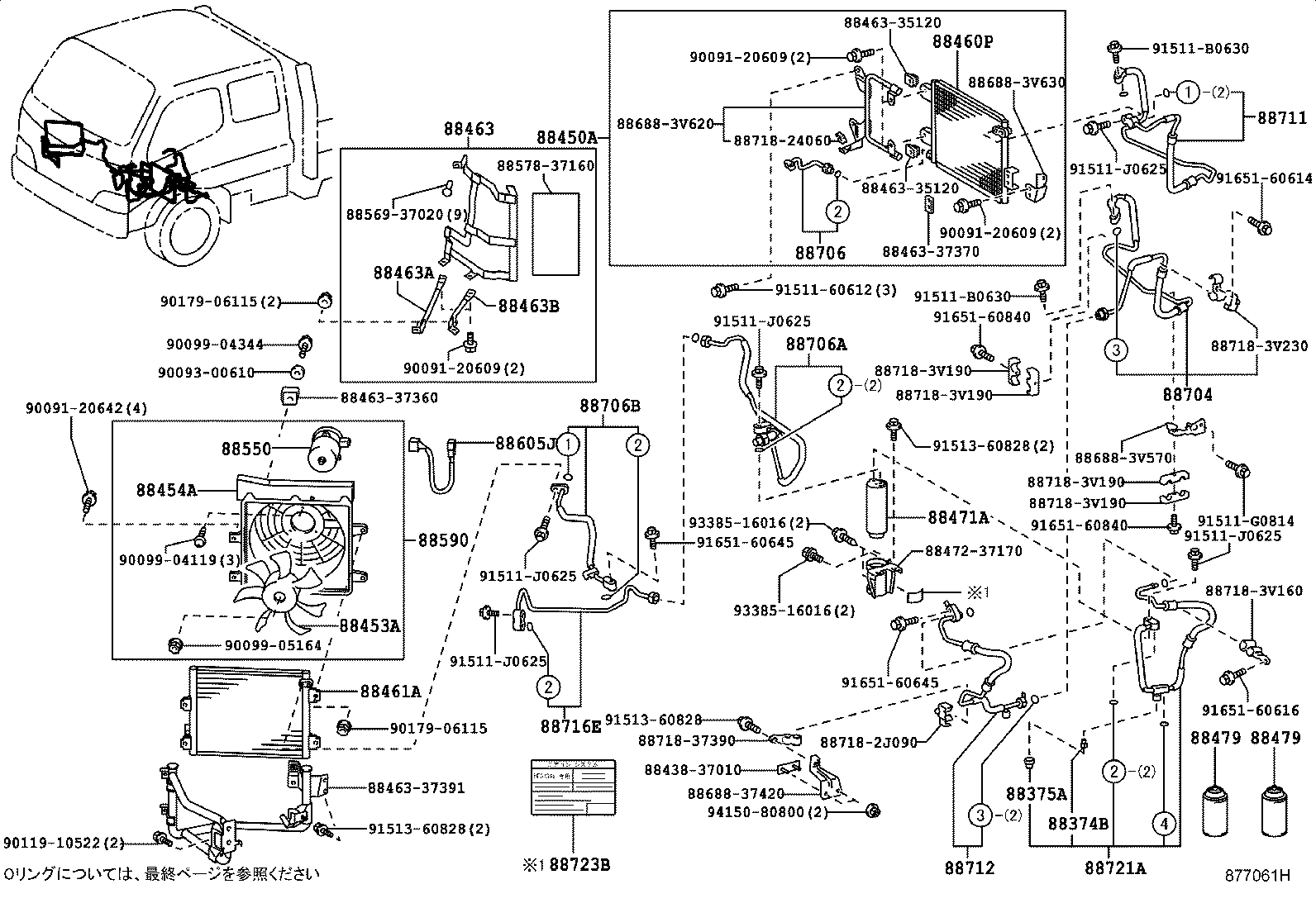

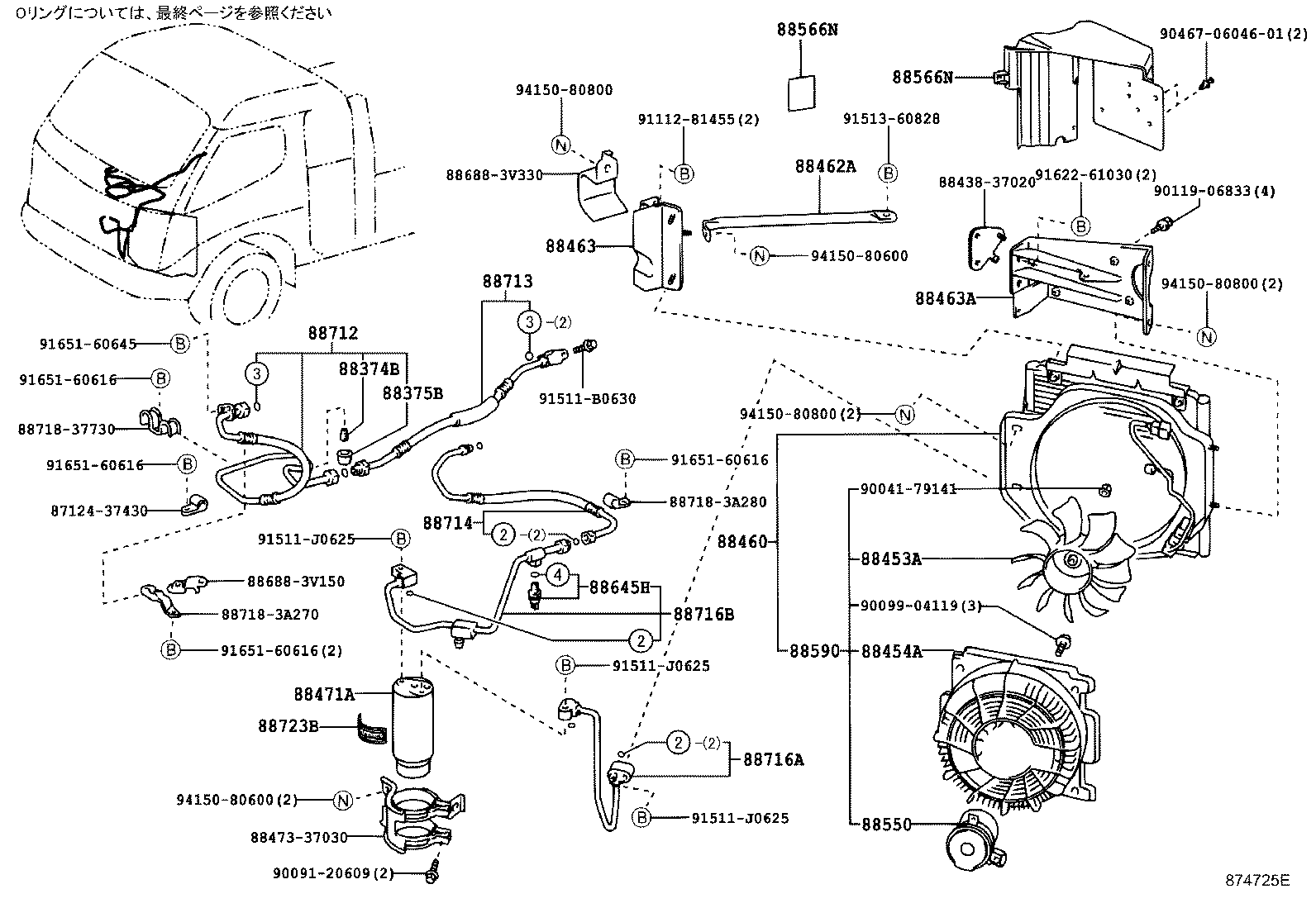

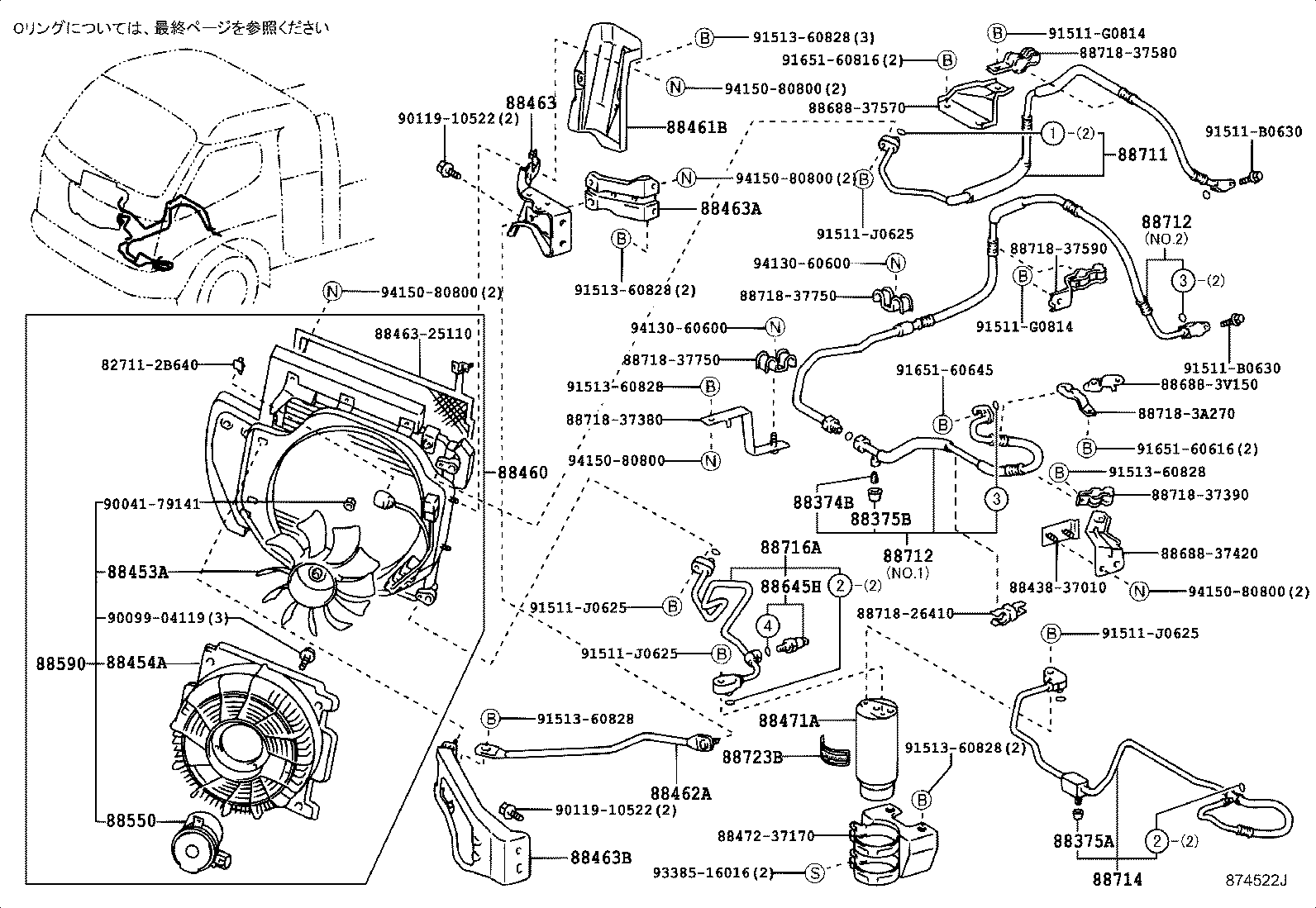

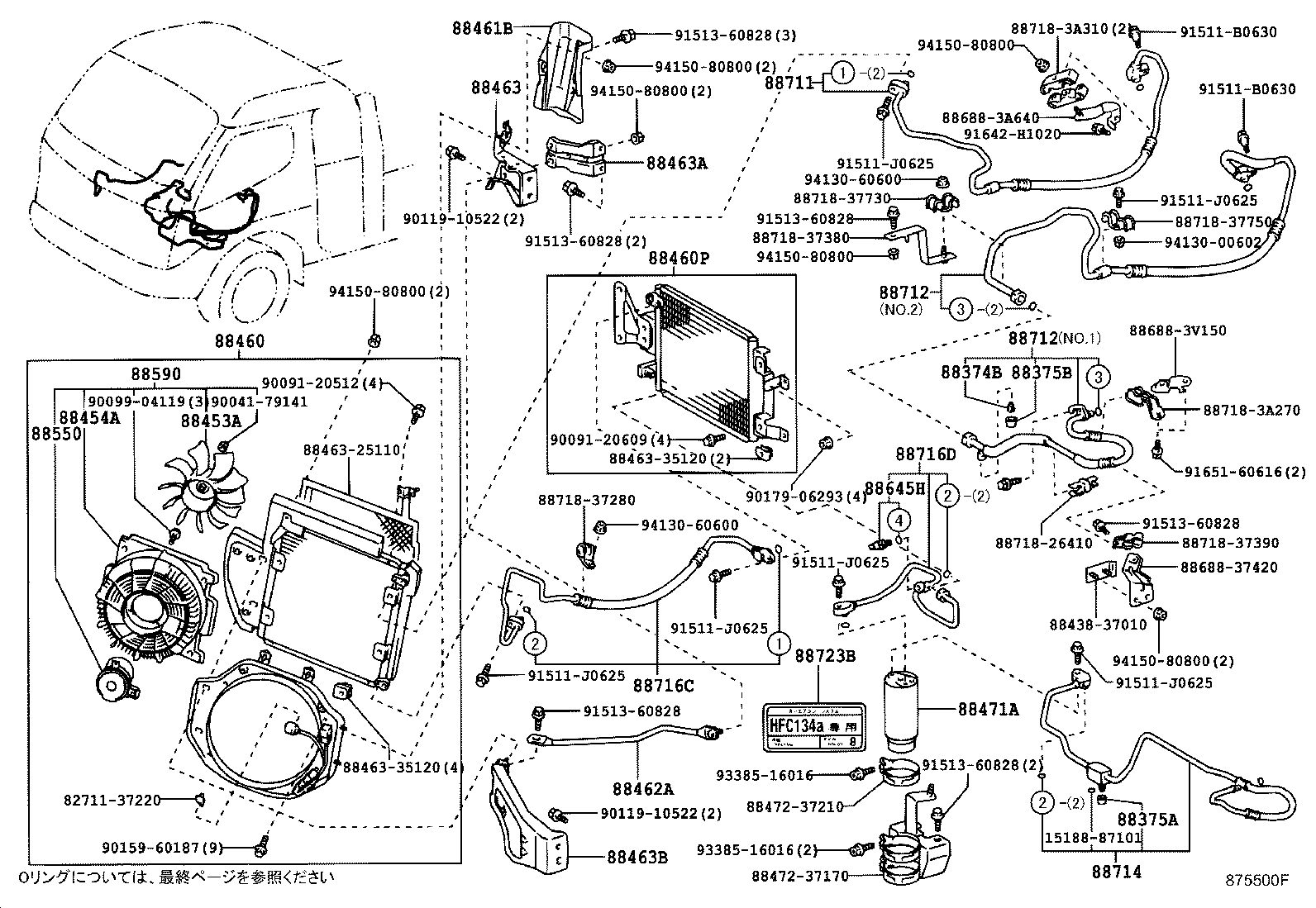

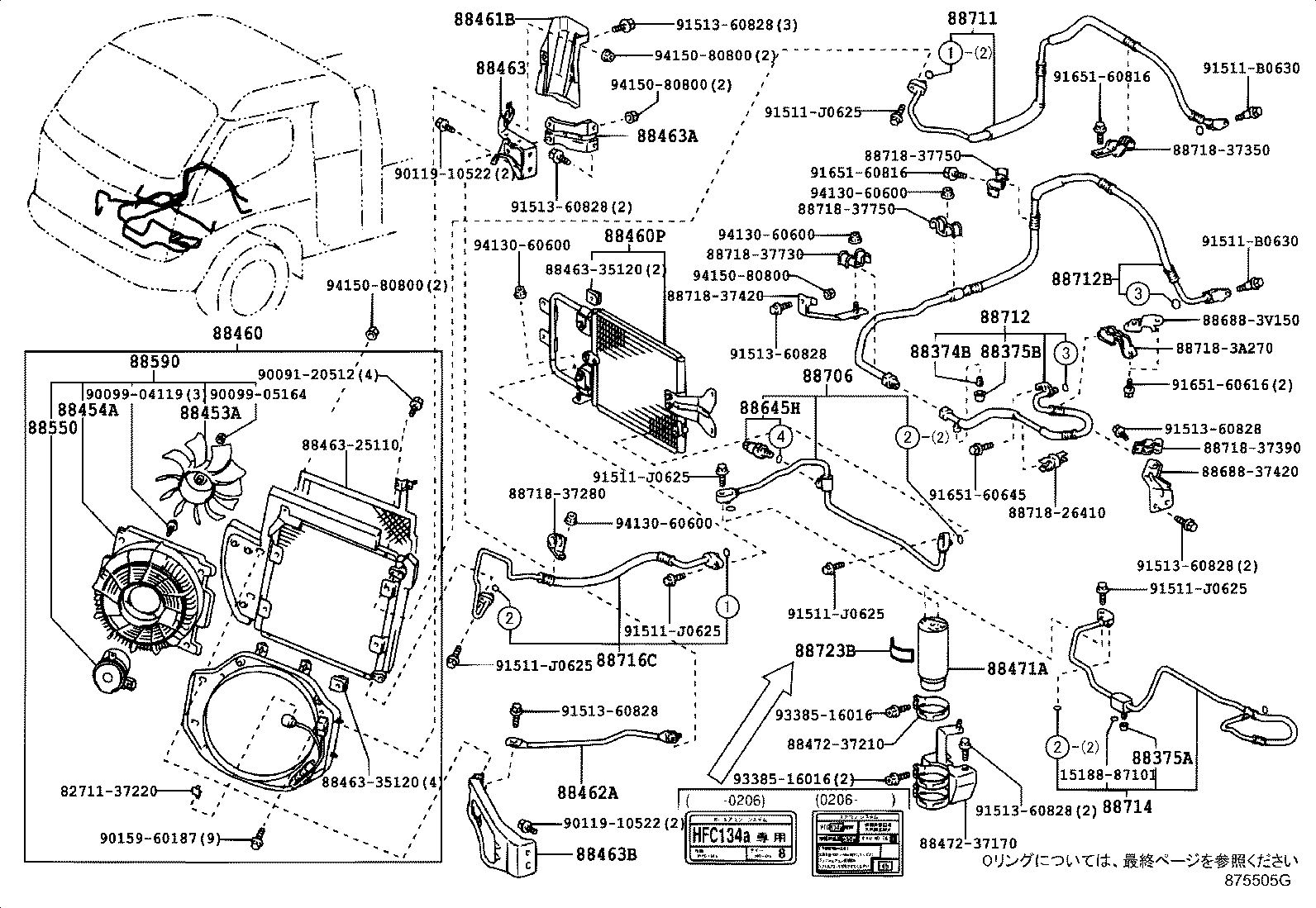

Figure 873344M 873344M 1999-05 → 2004-06 Figure 873345K 873345K 1999-05 → 2001-06 Figure 874725E 874725E 1999-07 → 2001-08 Figure 874712G 874712G 1999-05 → 2002-06 Figure 874712G 874712G 1999-05 → 2004-06 Figure 874712G 874712G 1999-05 → 2004-06 Figure 874712G 874712G 1999-05 → 2004-06 Figure 873348H 873348H 1999-05 → 2001-08 Figure 873349H 873349H 1999-05 → 2001-08 Figure 873350G 873350G 1999-05 → 2004-06 Figure 873351J 873351J 1999-05 → 2004-06 Figure 873352G 873352G 1999-05 → 2001-08 Figure 873353I 873353I 1999-05 → 2001-08 Figure 874520J 874520J 2000-05 → 2001-08 Figure 874521F 874521F 2000-05 → 2001-08 Figure 874522J 874522J 2000-05 → 2004-06 Figure 875495D 875495D 2001-05 → 2004-06 Figure 875496F 875496F 2001-05 → 2004-06 Figure 875497E 875497E 1999-05 → 2004-06 Figure 875498F 875498F 1999-05 → 2004-06 Figure 875504H 875504H 2001-05 → 2004-06 Figure 875505G 875505G 2001-05 → 2002-06 Figure 875505G 875505G 2002-06 → 2004-06 Figure 875500F 875500F 2001-08 → 2004-06 Figure 875501E 875501E 2001-08 → 2004-06 Figure 875531H 875531H 2001-05 → 2004-06 Figure 875525F 875525F 2001-05 → 2002-06 Figure 875525F 875525F 2002-06 → — Figure 875526F 875526F 2002-06 → 2004-06 Figure 875527F 875527F 2002-06 → 2004-06 Figure 875527F 875527F 2002-10 → 2004-06 Figure 875528D 875528D 2002-06 → 2004-06 Figure 875529F 875529F 2002-06 → 2004-06 Figure 875530D 875530D 2002-06 → 2004-06 Figure 875875F 875875F 2001-06 → 2004-06 Figure 875930C 875930C 2001-06 → 2002-06 Figure 875933E 875933E 1999-07 → 2004-06 Figure 875934D 875934D 1999-07 → 2004-06 Figure 876583F 876583F 2003-10 → 2004-06 Figure 877044A 877044A 2004-06 → — Figure 877045B 877045B 2004-06 → — Figure 877046B 877046B 2004-06 → — Figure 877047A 877047A 2004-06 → — Figure 877551C 877551C 2004-06 → — Figure 877552C 877552C 2004-06 → — Figure 877058E 877058E 2004-06 → — Figure 877059D 877059D 2004-06 → — Figure 877101G 877101G 2004-06 → — Figure 877102G 877102G 2004-06 → — Figure 877060H 877060H 2004-06 → — Figure 877061H 877061H 2004-06 → — Figure 877062E 877062E 2004-06 → — Figure 877118F 877118F 2004-06 → — Figure 877063G 877063G 2004-06 → — Figure 877119G 877119G 2004-06 → — Figure 877064G 877064G 2004-06 → — Figure 877120G 877120G 2004-06 → — Figure 877065E 877065E 2004-06 → — Figure 877121C 877121C 2004-06 → — Figure 870233H 870233H 1999-05 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88450A Sub Condenser Assy
88453A Fan, Cooling
88454A Shroud, Fan
88454B Shroud, Fan
88460 Condenser Assy, Cooler
88460P Condenser Assy, Cooler NO.2
88461A Core, Cooler Condenser
88461B Cover, Cooler Condenser
88462A Holder, Condenser
88462B Holder, Condenser, NO.2
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88471A Tank, Receiver
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88550D Motor Assy, Blower
88566N Duct, Cooler Air, NO.1
88578D Packing, Cooler Pipe, NO.1
88590 Blower Assy, W/Shroud
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688L Bracket, Condenser Packing
88704 Hose Sub-assy, Suction
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88712C Hose, Suction
88712D Hose, Suction
88713 Hose, Cooler Refrigerant Suction, NO.2
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88721A Hose, Liquid, A
88721B Hose, Liquid, B
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88727A Pipe, Cooler Refrigerant Suction, A
