Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

23 part groups · 15 illustrations

Illustrations

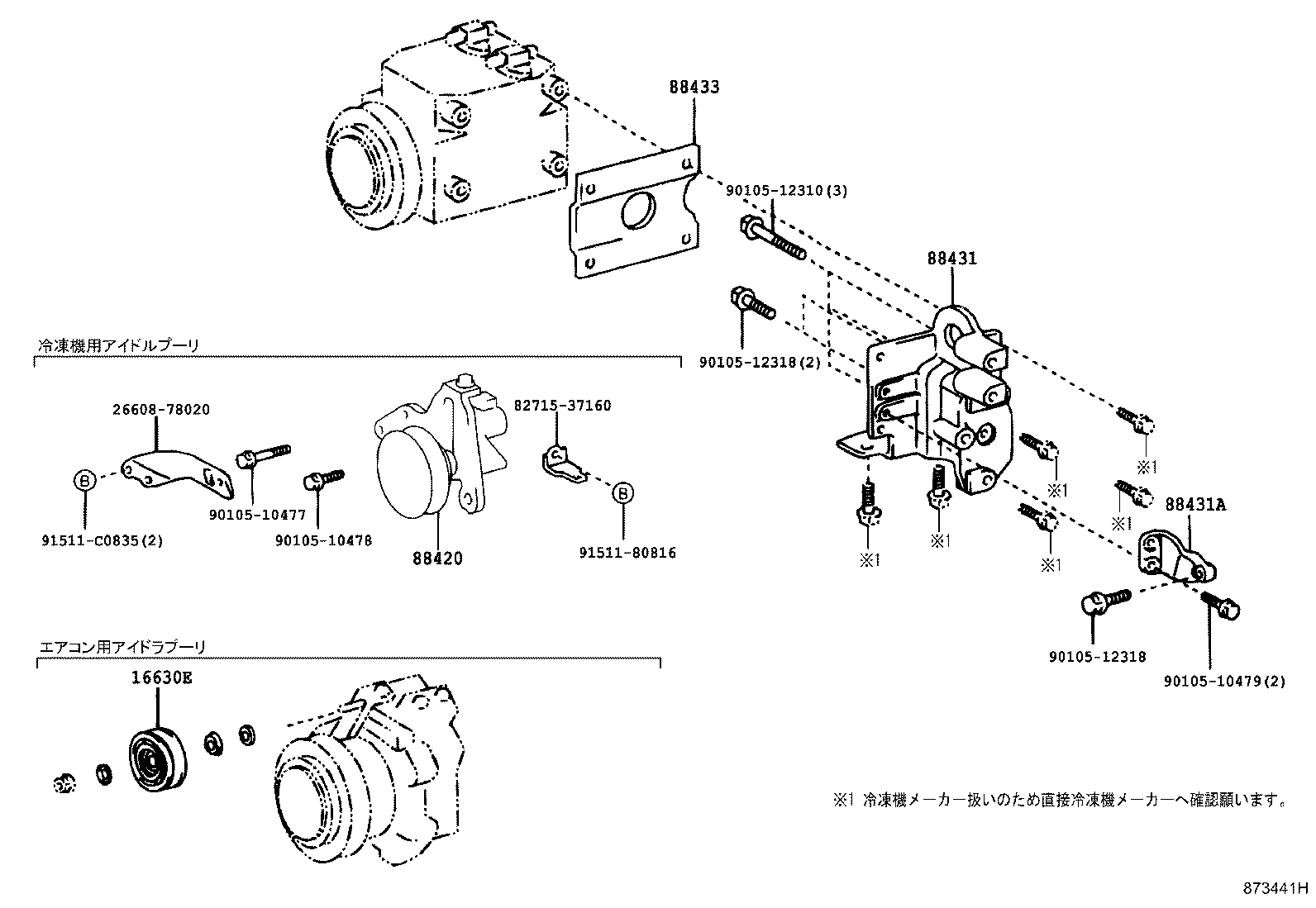

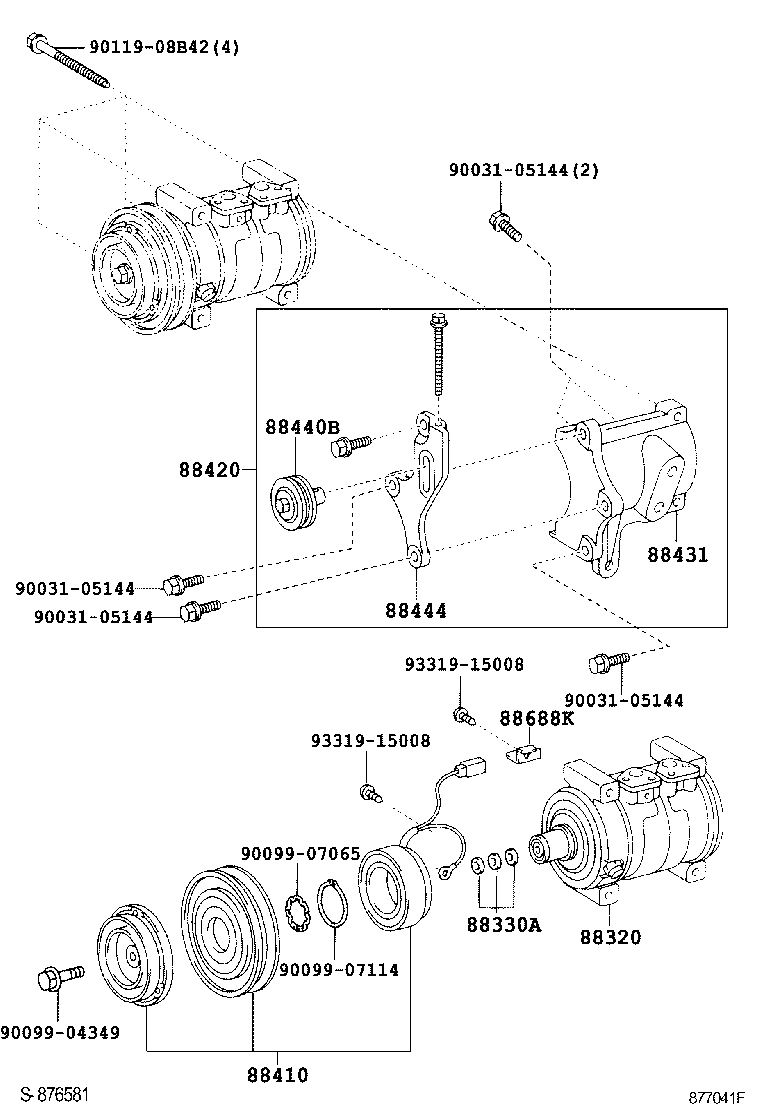

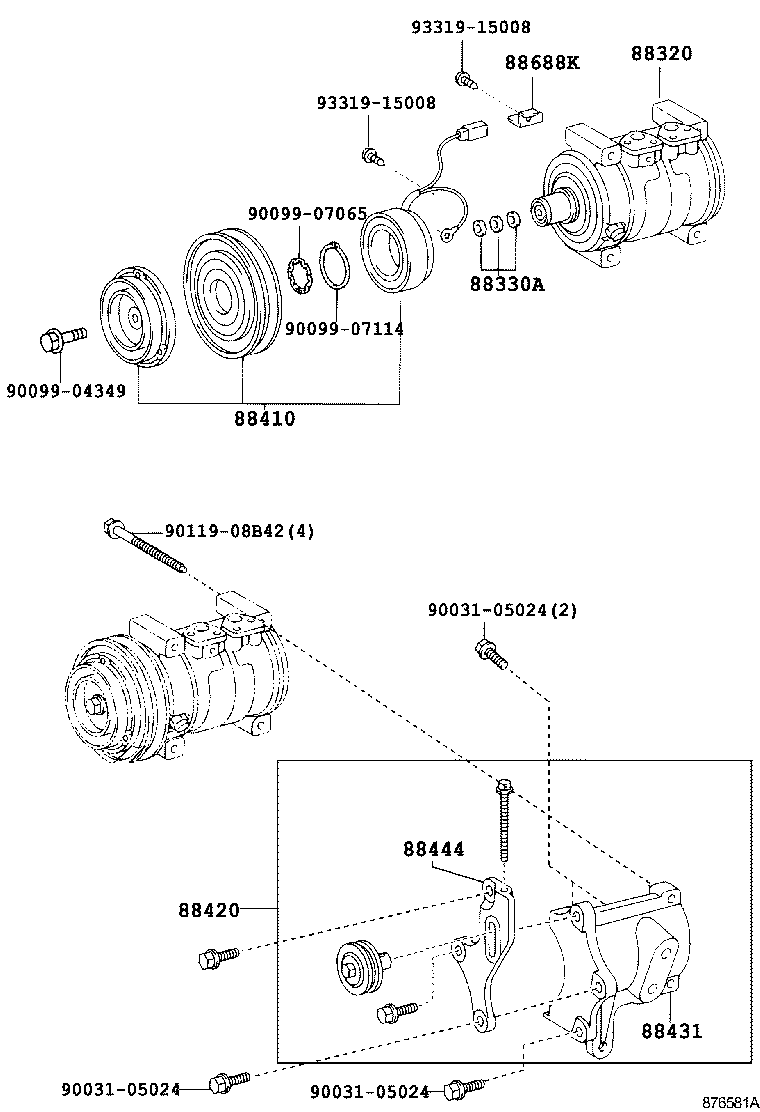

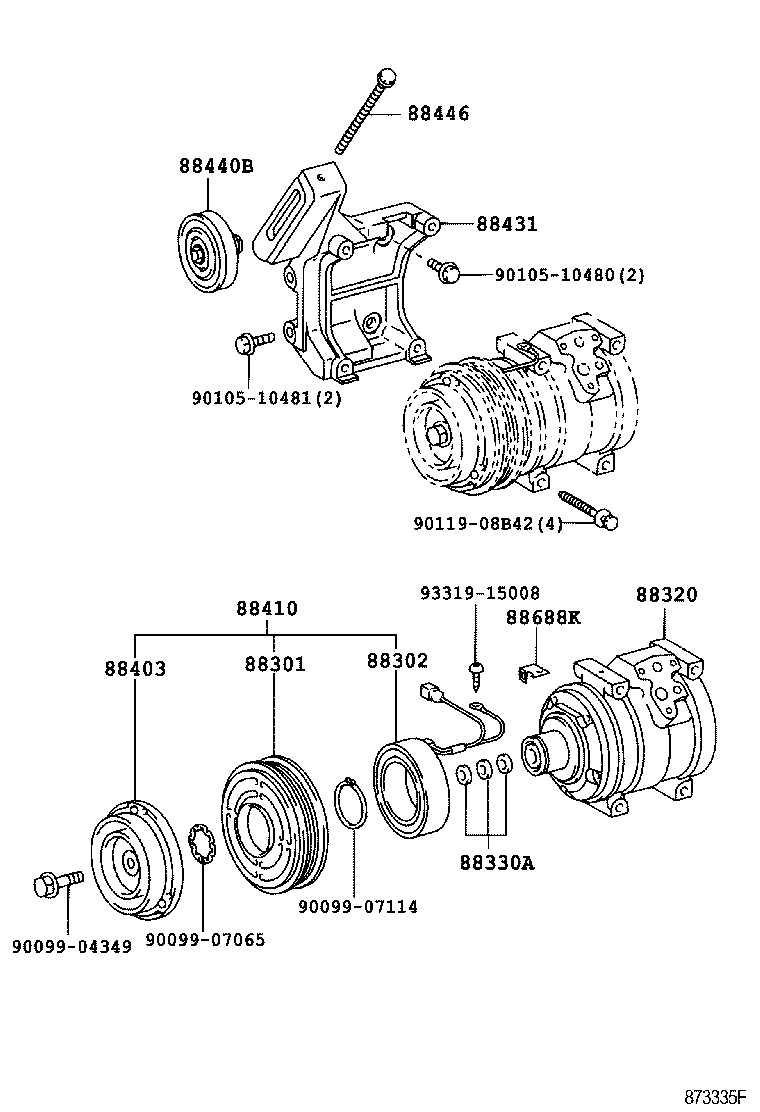

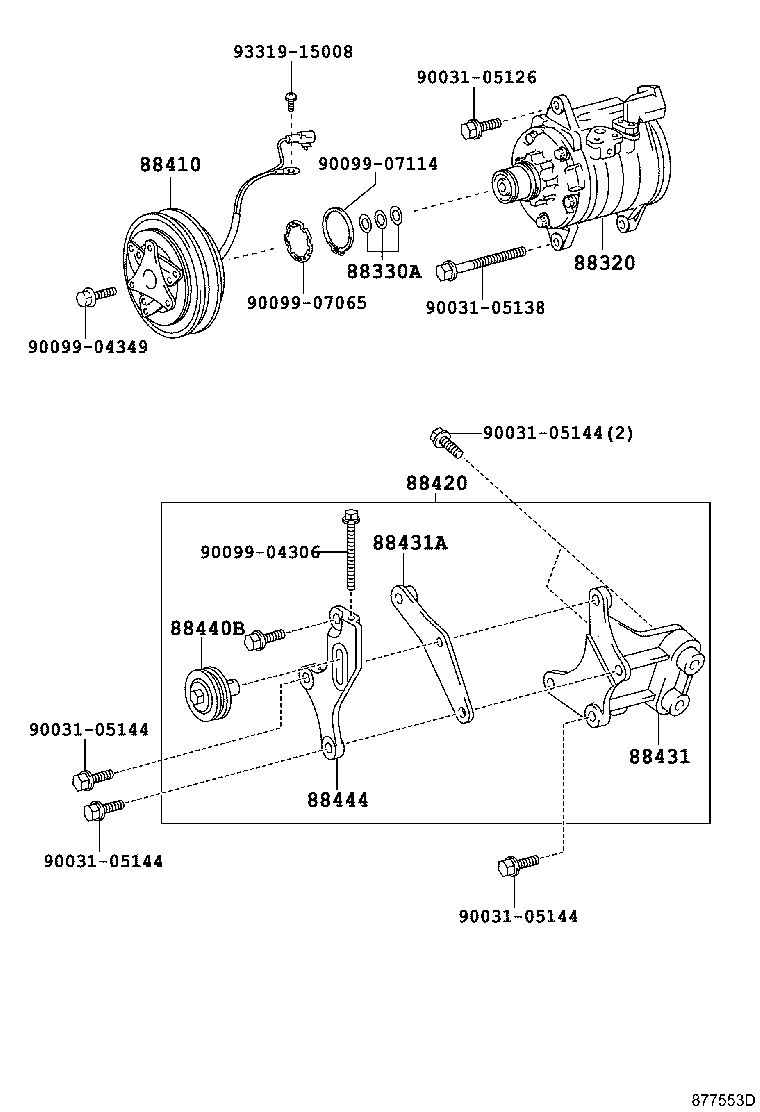

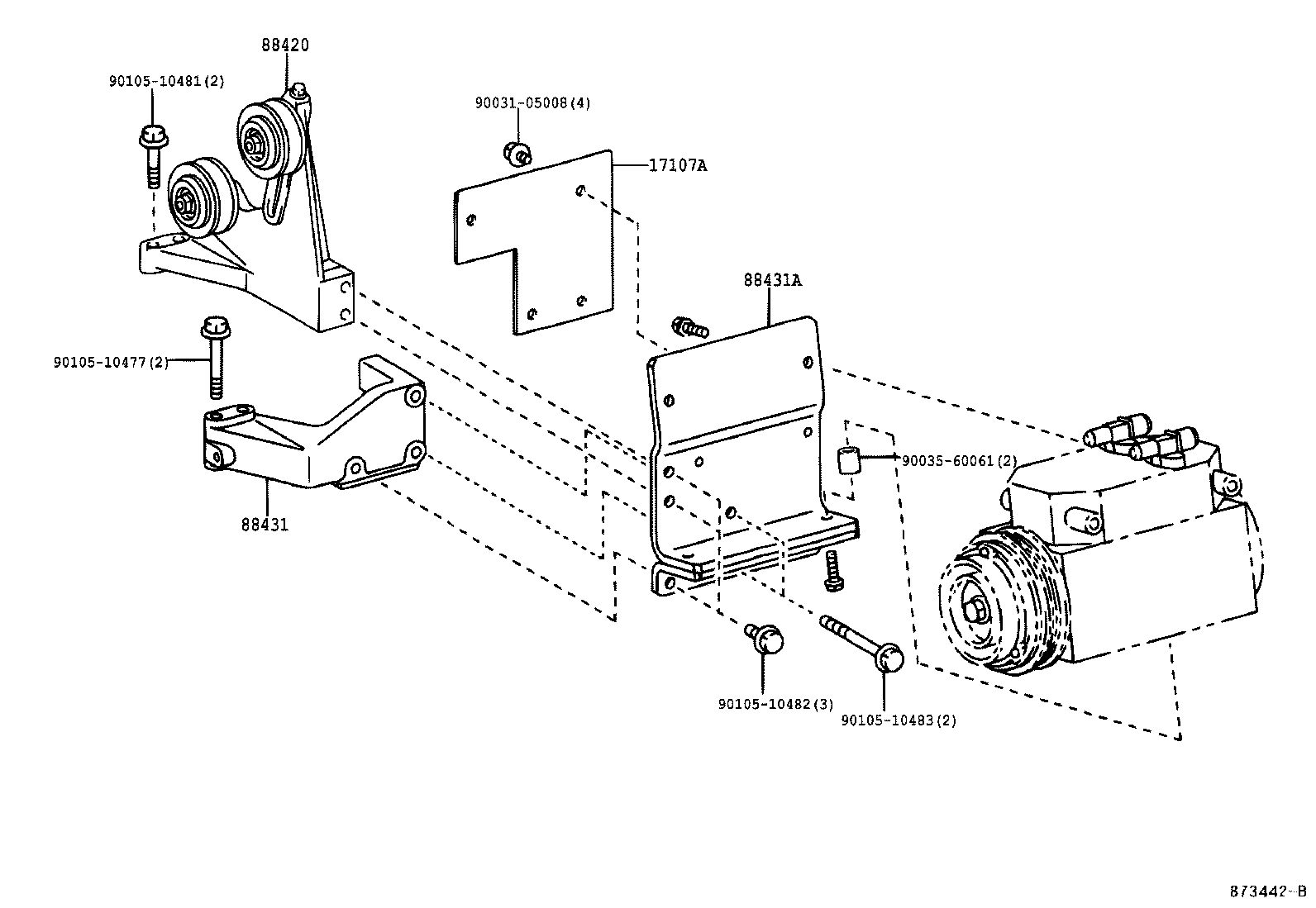

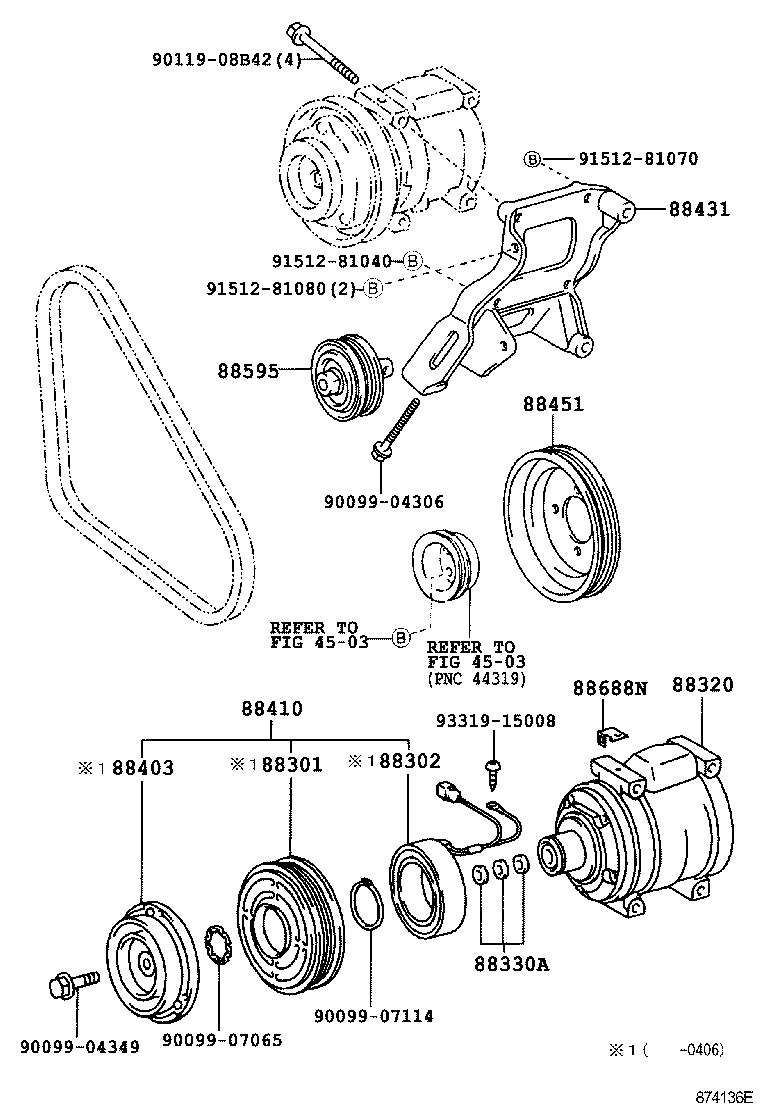

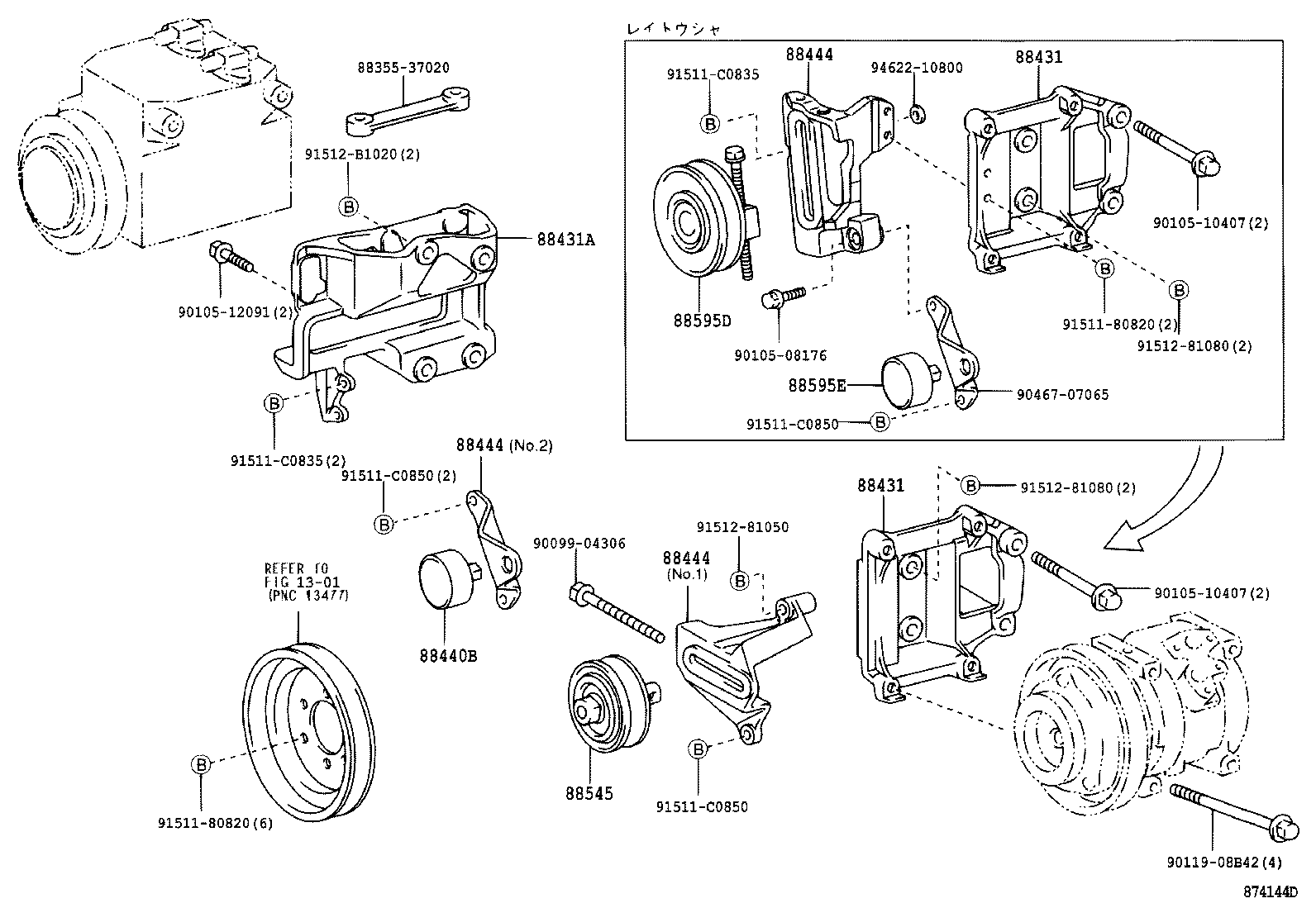

Figure 873334D 873334D 1999-05 → 2004-06 Figure 873335F 873335F 1999-05 → 2004-06 Figure 873335F 873335F 2004-06 → — Figure 873335F 873335F 2004-06 → — Figure 873567C 873567C 1999-05 → 2004-06 Figure 873441H 873441H 1999-05 → 2004-06 Figure 873442B 873442B 1999-07 → 2004-06 Figure 874136E 874136E 2000-05 → — Figure 874137B 874137B 2000-05 → 2004-06 Figure 874137B 874137B 2004-06 → — Figure 874144D 874144D 2000-05 → 2004-06 Figure 874144D 874144D 2004-06 → — Figure 876581A 876581A 2003-10 → 2004-06 Figure 877041F 877041F 2004-06 → — Figure 877553D 877553D 2004-06 → —

Part groups

PNCDescription
16630E Pulley Assy, Idler
17107A Insulator Sub-assy, Exhaust Manifold Heat
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88444A Bracket, Idle Pulley, NO.2
88446 Bolt, Idle Pulley
88451 Pulley, Crankshaft
88545 Pulley Assy, Idle
88595 Pulley, Cooler Compressor Idle
88595D Pulley Assy, Idle
88595E Pulley Assy, Idle
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
