Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01

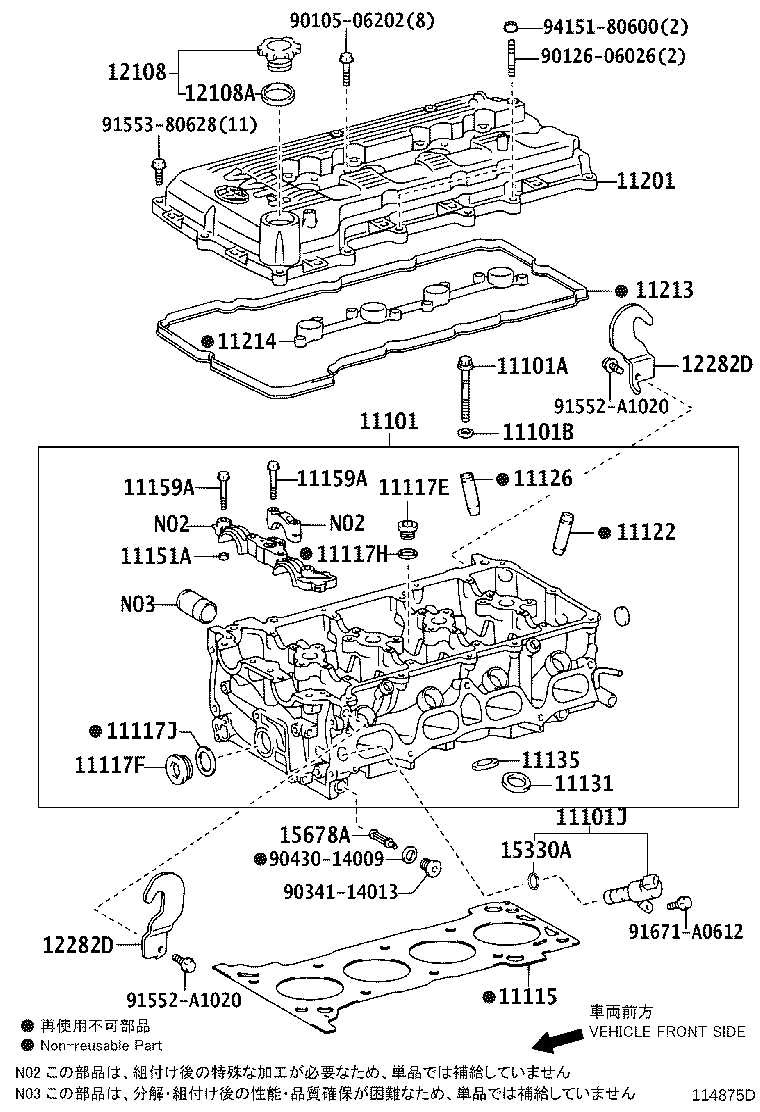

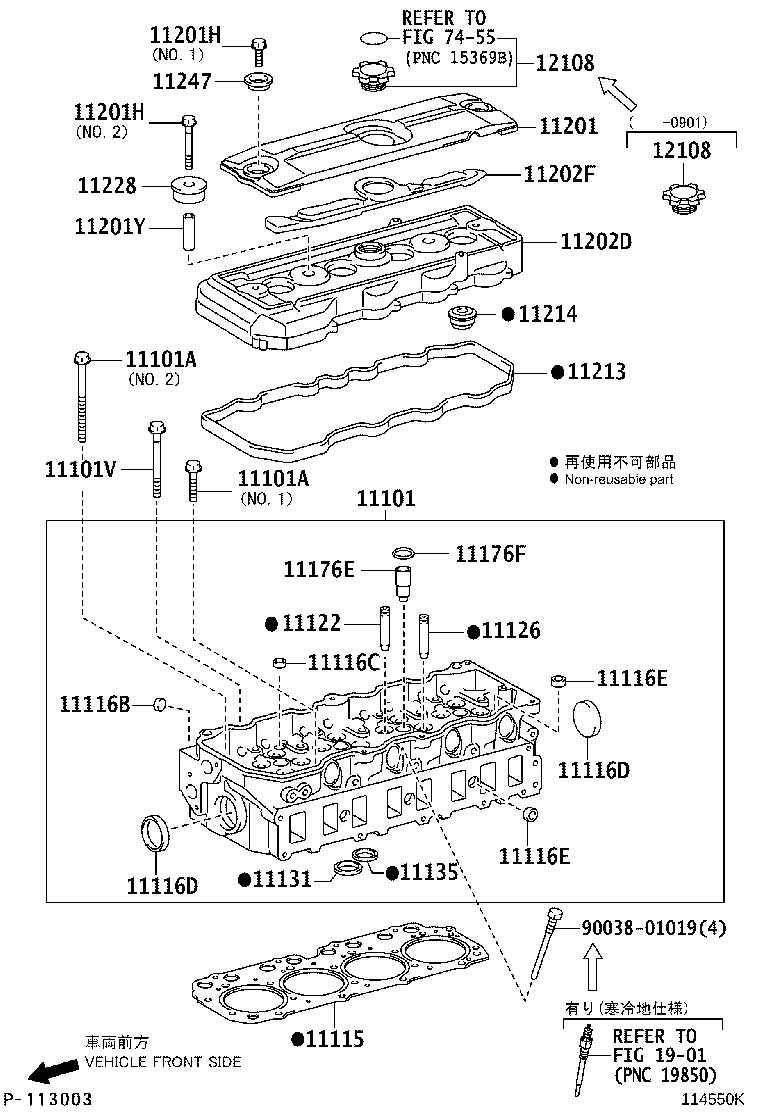

Cylinder Head

43 part groups · 3 illustrations

PNC	Description
11101	Head Sub-assy, Cylinder
11101A	Bolt(FOR CYLINDER HEAD SET)
11101B	Washer, Plate(FOR CYLINDER HEAD SET)
11101G	Union(FOR CYLINDER HEAD)
11101J	Valve Assy, Camshaft Timing Oil Control
11101V	Bolt(FOR CYLINDER HEAD SET SUB)
11114A	Pin, Straight
11115	Gasket, Cylinder Head
11116A	Plug, Tight, NO.1
11116B	Plug, Tight, NO.2
11116C	Plug, Tight, NO.3
11116D	Plug, Tight, NO.4
11116E	Plug, Tight, NO.5
11117E	Plug, W/Head Straight Screw, NO.1
11117F	Plug, W/Head Straight Screw, NO.2
11117H	Gasket(FOR WATER HOLE)
11117J	Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122	Bush, Intake Valve Guide
11126	Bush, Exhaust Valve Guide
11131	Seat, Intake Valve
11135	Seat, Exhaust Valve
11151A	Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11159A	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11176E	Seat, Injection Nozzle
11176F	Gasket (FOR INJECTION NOZZLE SEAT)
11193	Gasket, Spark Plug Tube
11201	Cover Sub-assy, Cylinder Head
11201A	Nut, Cap(FOR CYLINDER HEAD COVER)
11201E	Bolt, Stud(FOR CYLINDER HEAD COVER SET)
11201H	Bolt(FOR CYLINDER HEAD COVER)
11201Y	Spacer(FOR CYLINDER HEAD COVER)
11202D	Cover Sub-assy, Cylinder Head, NO.2
11202F	Rubber, Cushion(FOR CYLINDER HEAD COVER)
11212A	Cushion, Cylinder Head Cover
11213	Gasket, Cylinder Head Cover
11214	Gasket, Cylinder Head Cover, NO.2
11228	Cushion, Cylinder Head Cover
11247	Stay, Cylinder Head Cover
12108	Cap Sub-assy, Oil Filler
12108A	Gasket(FOR OIL FILLER CAP)
12282D	Hanger, Engine, NO.2
15330A	Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A	Filter, Oil Control Valve

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
