Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

13 part groups · 3 illustrations

Illustrations

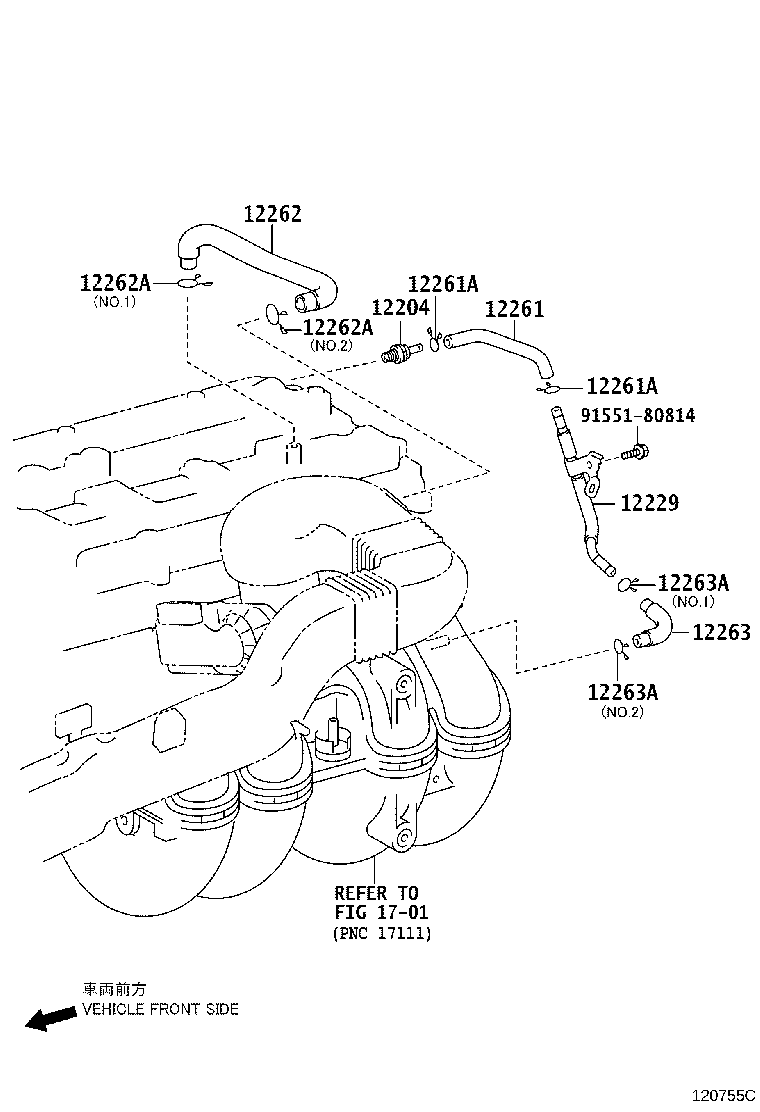

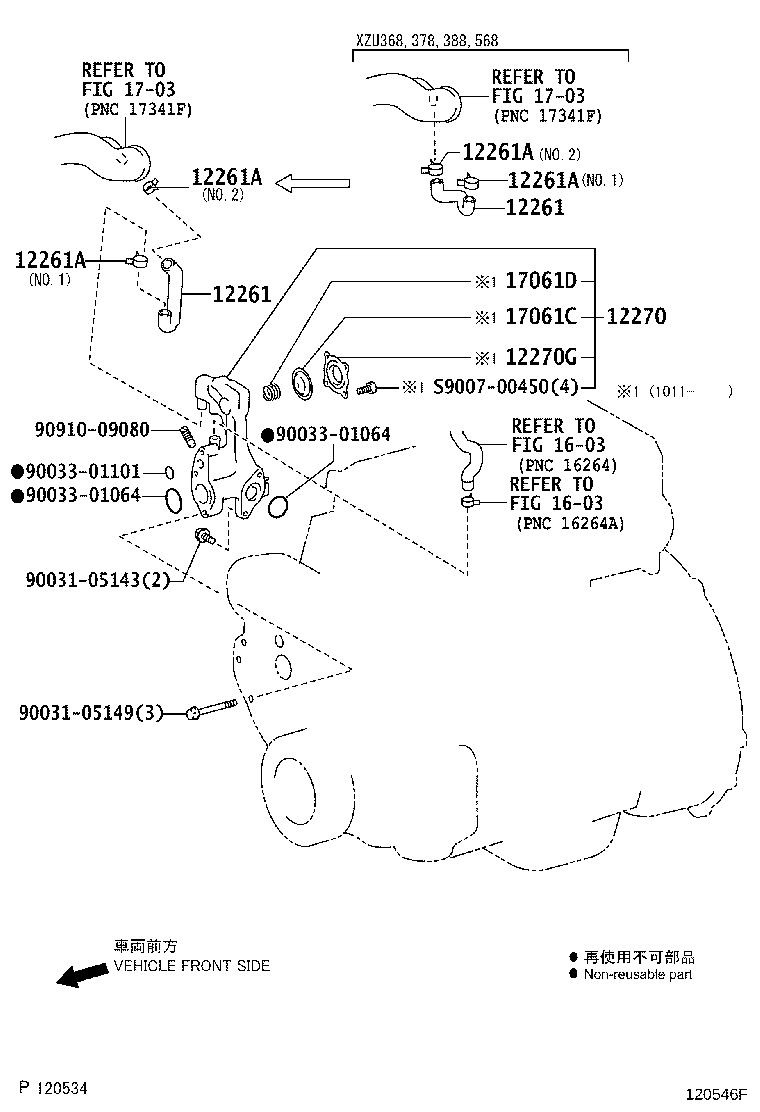

Figure 120581B 120581B 2007-05 → — Figure 120755C 120755C 2007-05 → — Figure 120546F 120546F 2006-10 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12270 Separator Assy, Oil
12270G Cover
17061C Diaphragm Sub-assy
17061D Spring L
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
