Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

19 part groups · 3 illustrations

Illustrations

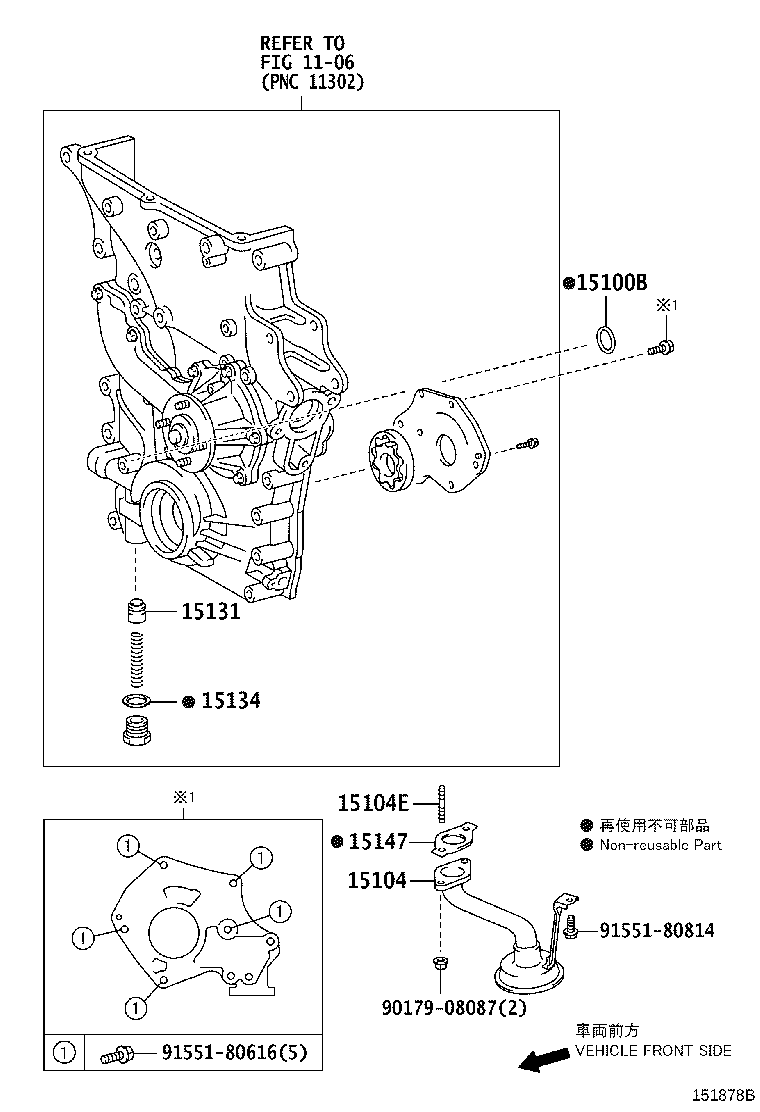

Figure 151335C 151335C 2007-05 → — Figure 151878B 151878B 2007-05 → — Figure 151221B 151221B 2006-10 → —

Part groups

PNCDescription
15100 Pump Assy, Oil
15100B Ring, O(FOR OIL PUMP)
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15119 Gasket, Oil Pump Cover
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
