Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

9 part groups · 3 illustrations

Illustrations

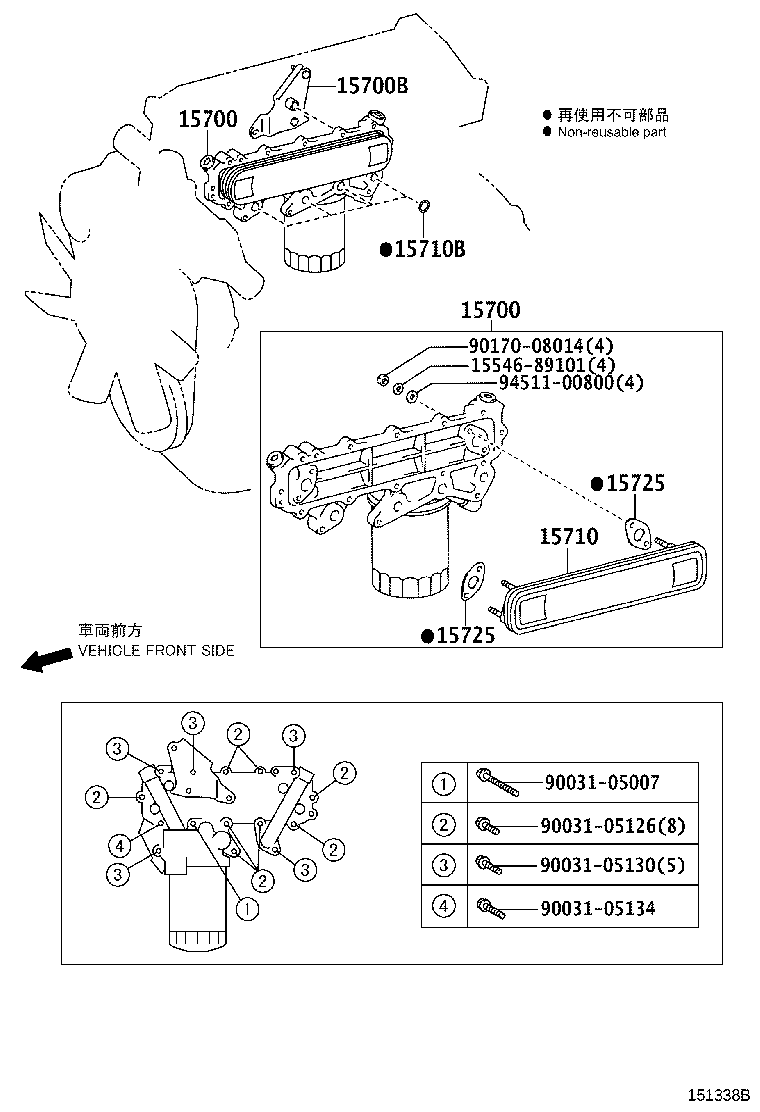

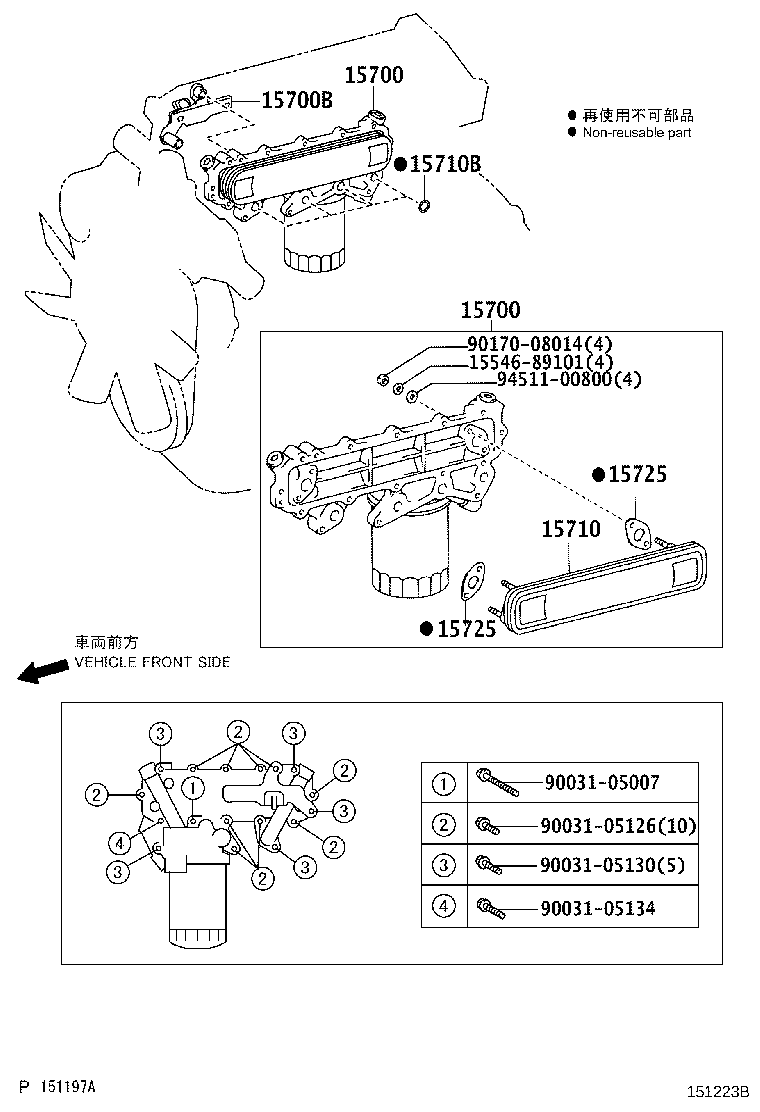

Figure 151337C 151337C 2007-05 → — Figure 151223B 151223B 2006-10 → — Figure 151338B 151338B 2007-05 → —

Part groups

PNCDescription
15529A Plug
15700 Cooler Assy, Oil W/Bracket
15700B Bracket(FOR OIL COOLER)
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15722 Gasket, Oil Cooler
15725 Gasket, Oil Cooler Cover
15791 Case, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
