Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

44 part groups · 34 illustrations

Illustrations

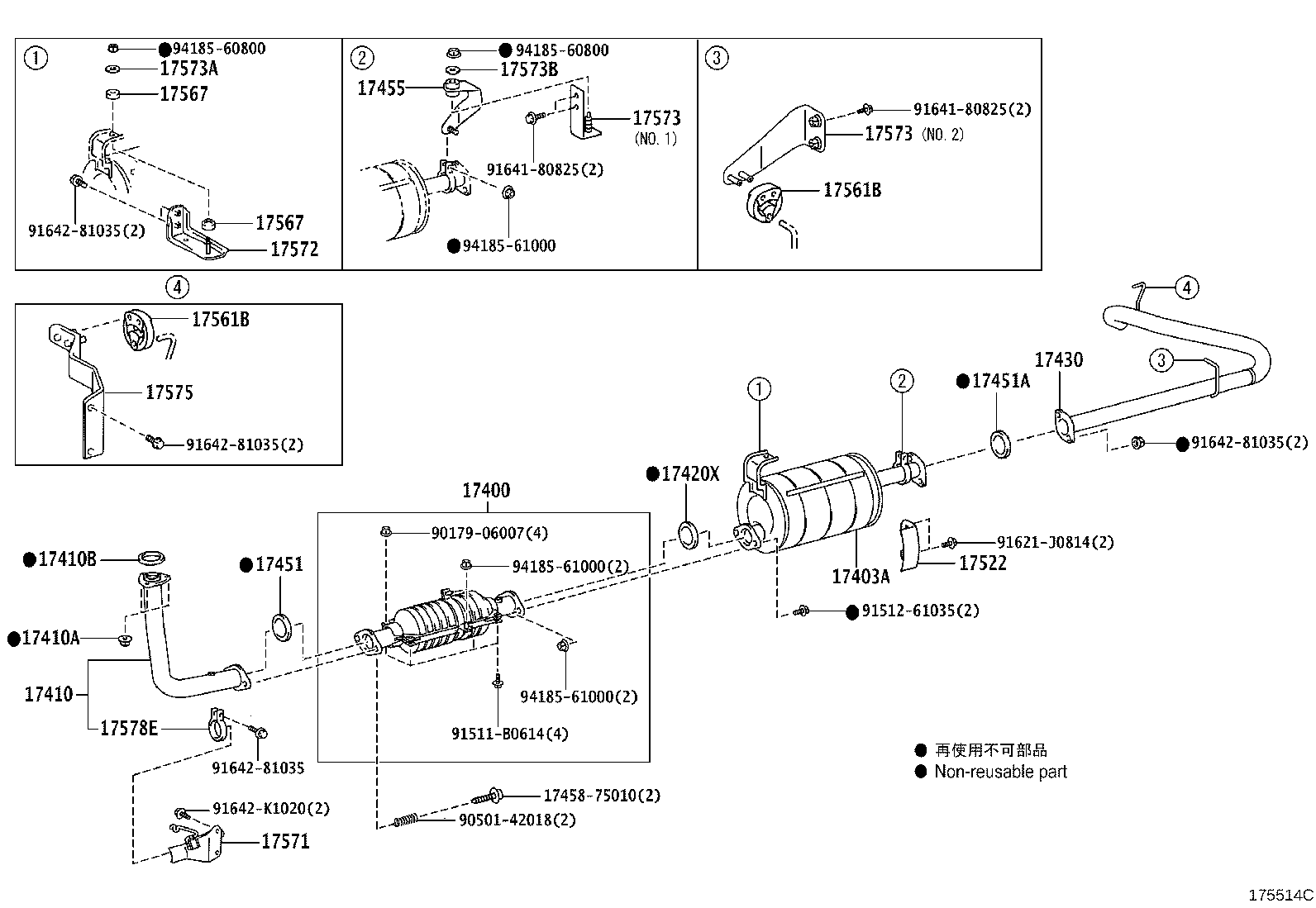

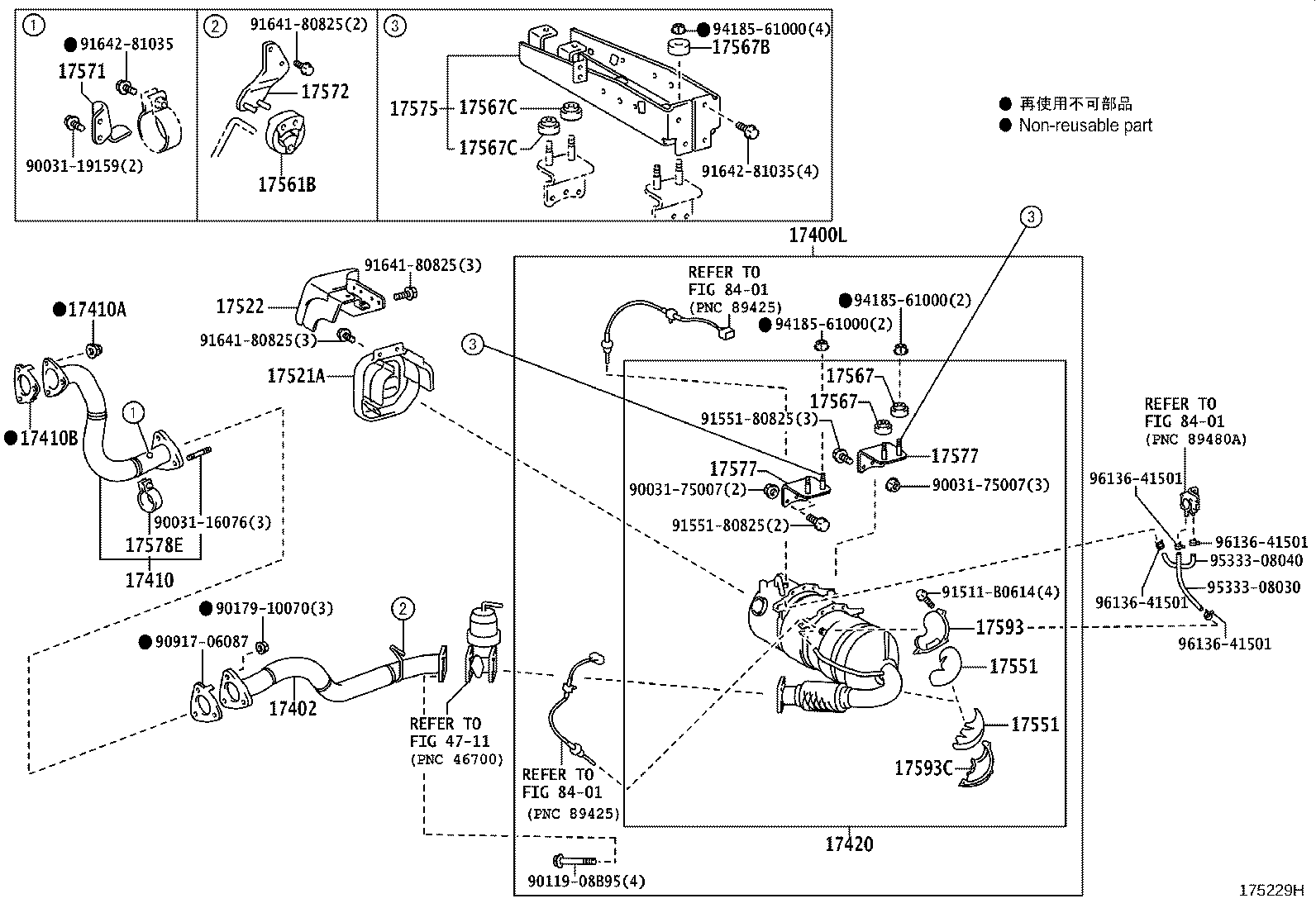

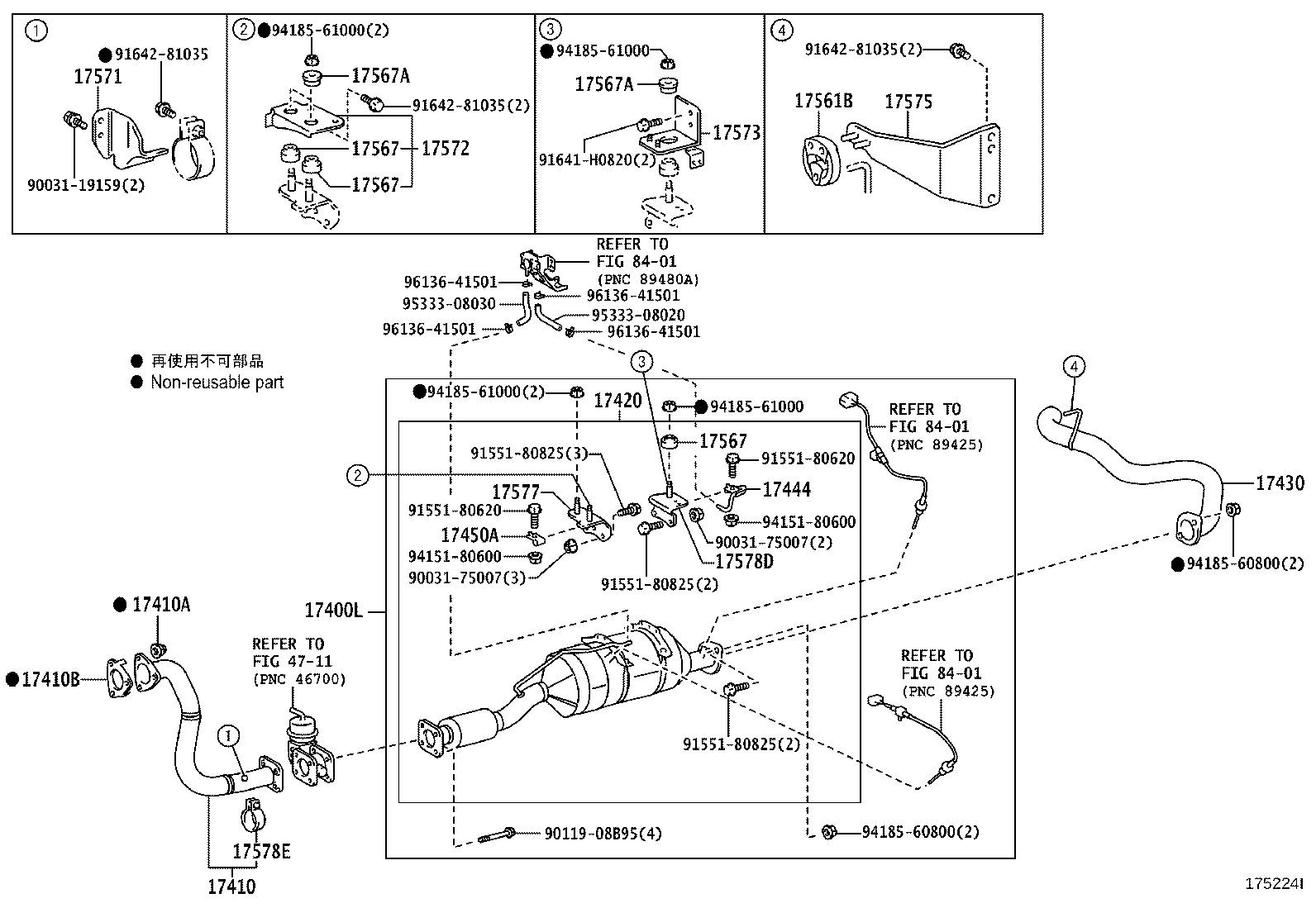

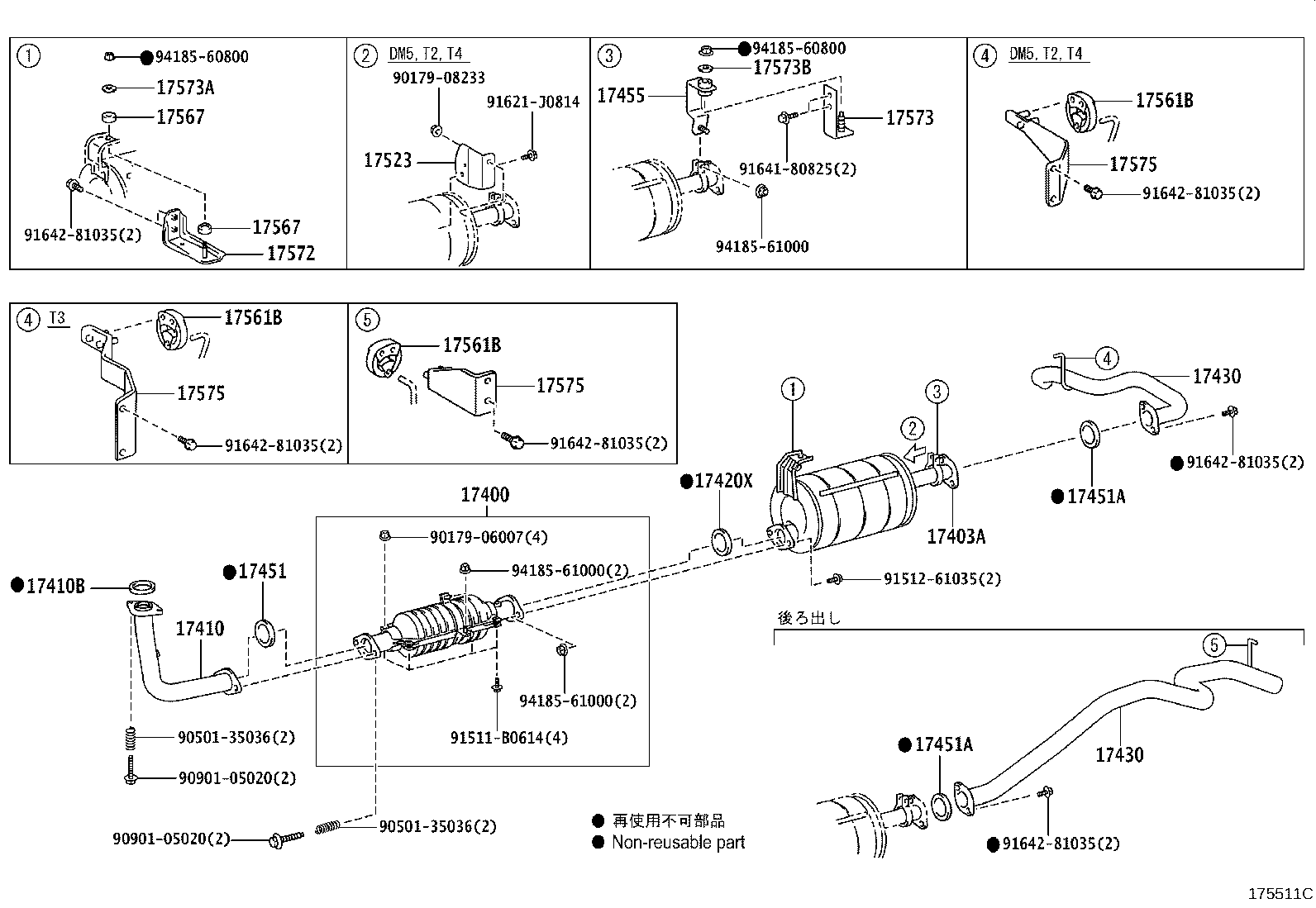

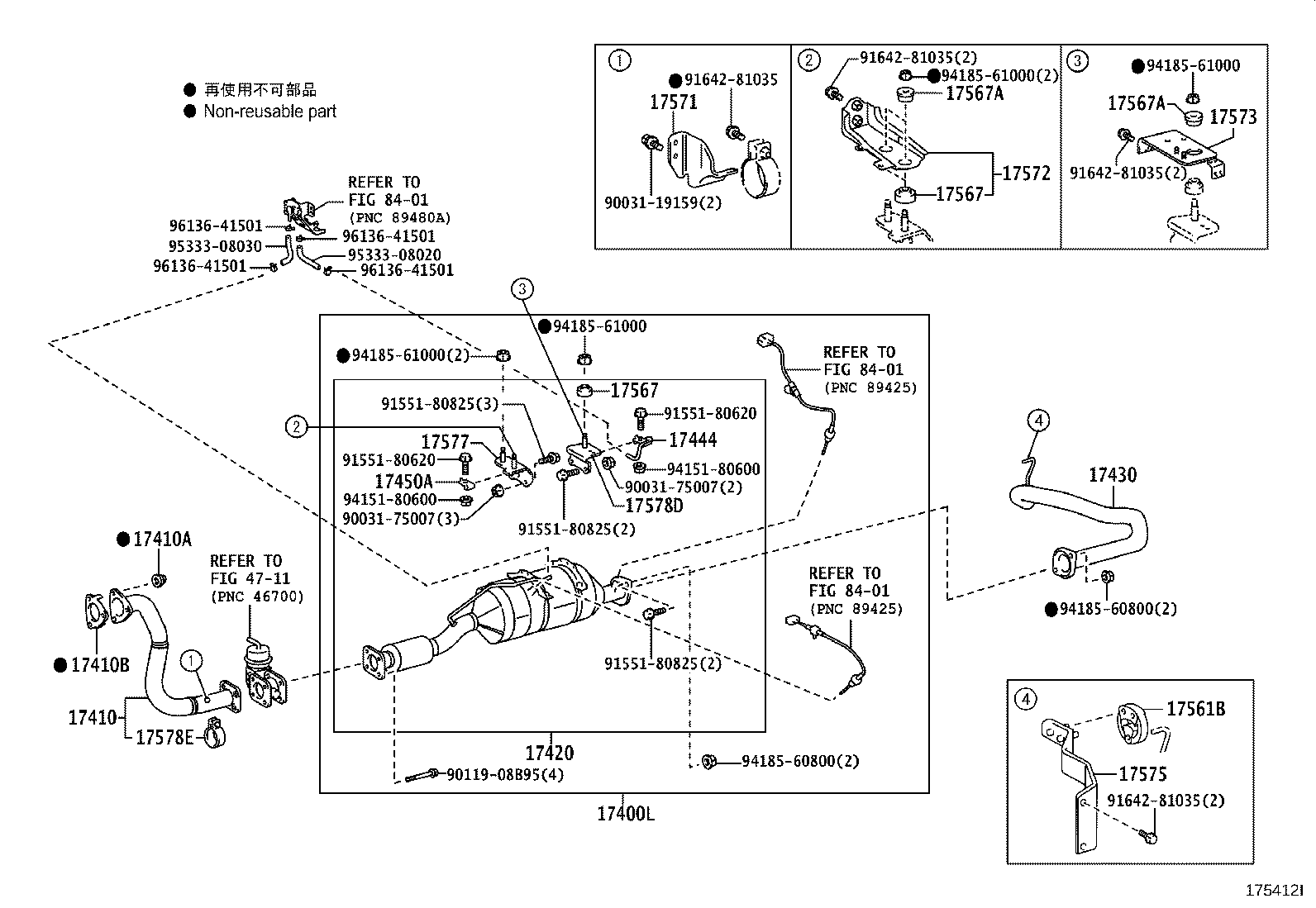

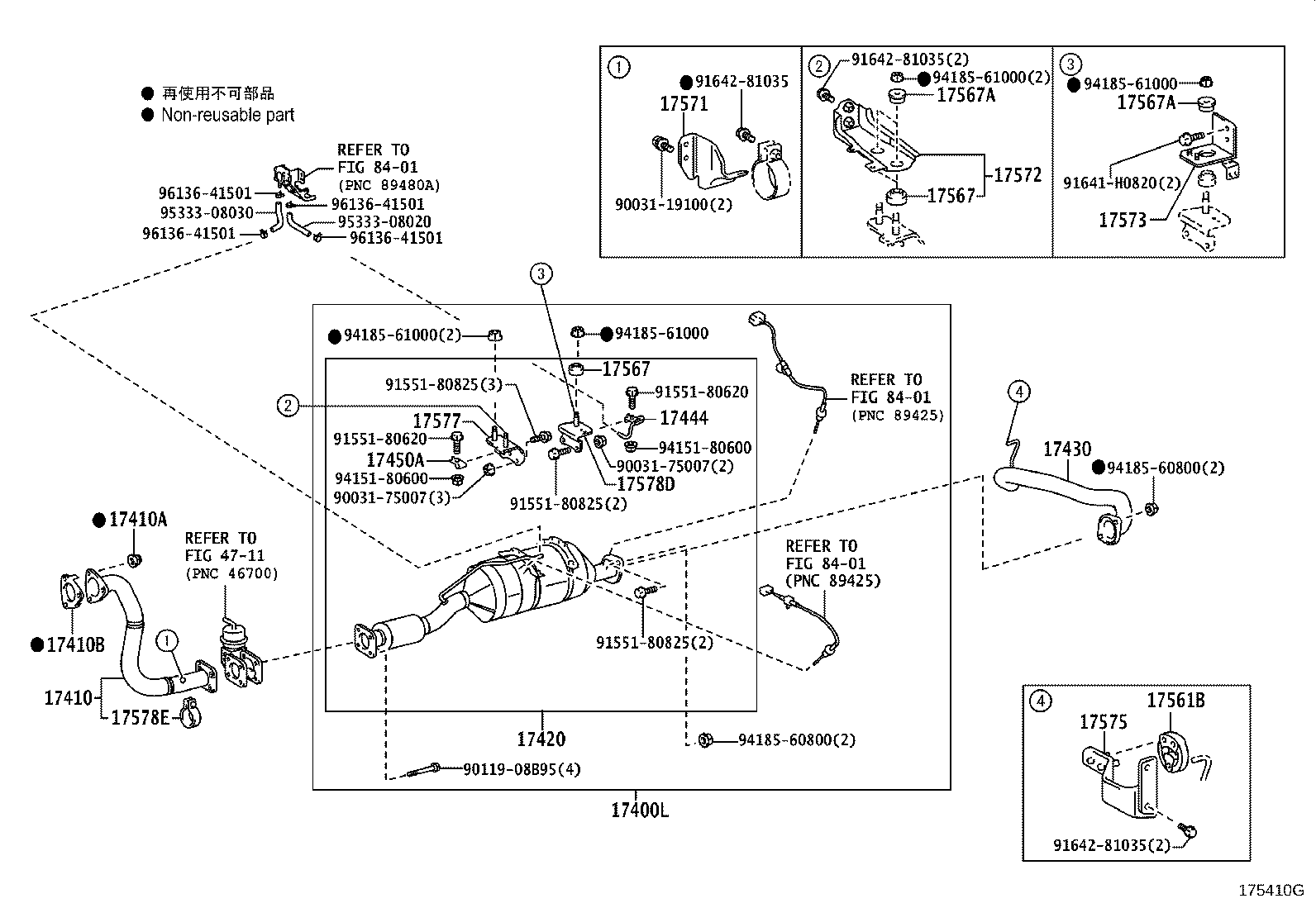

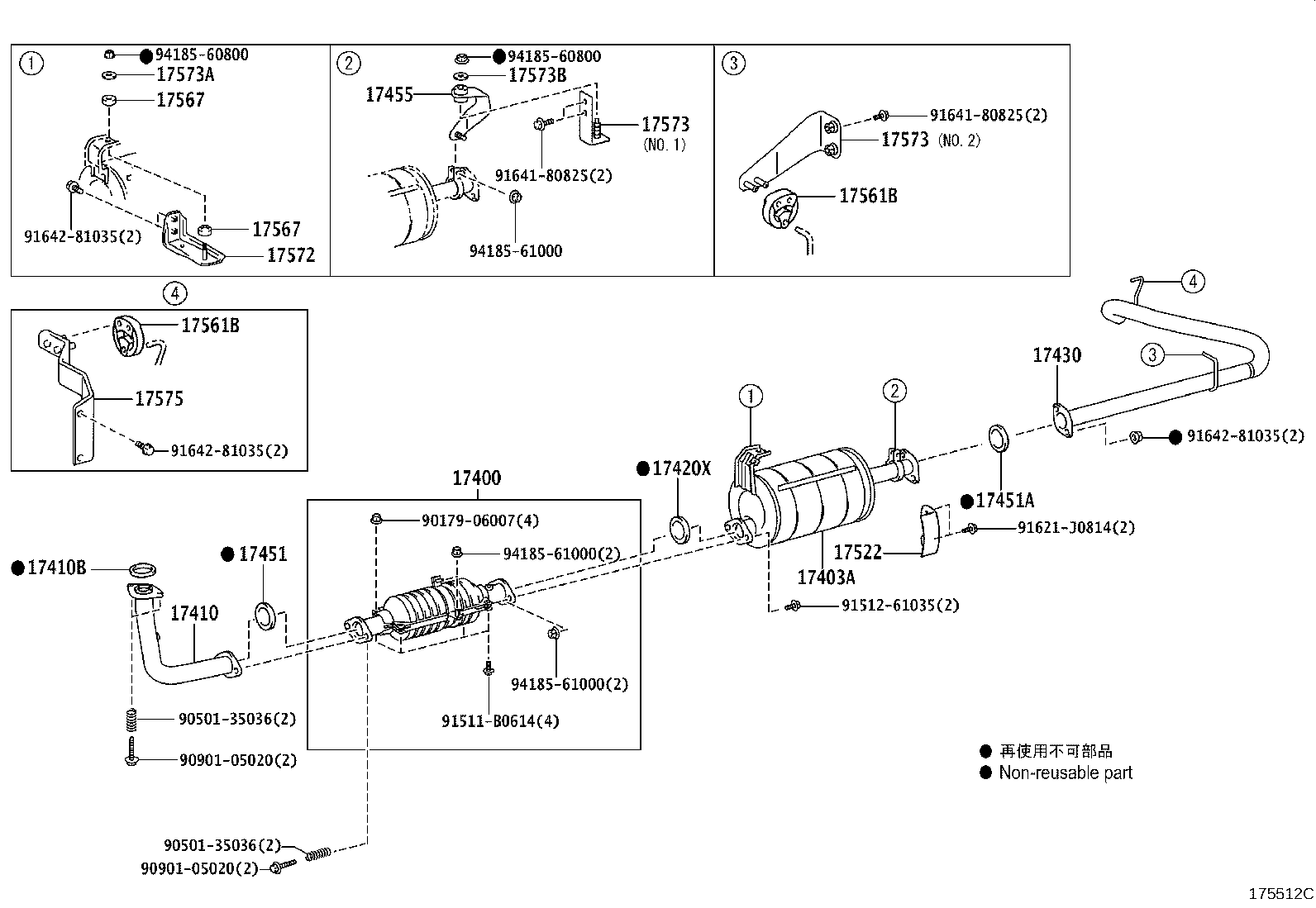

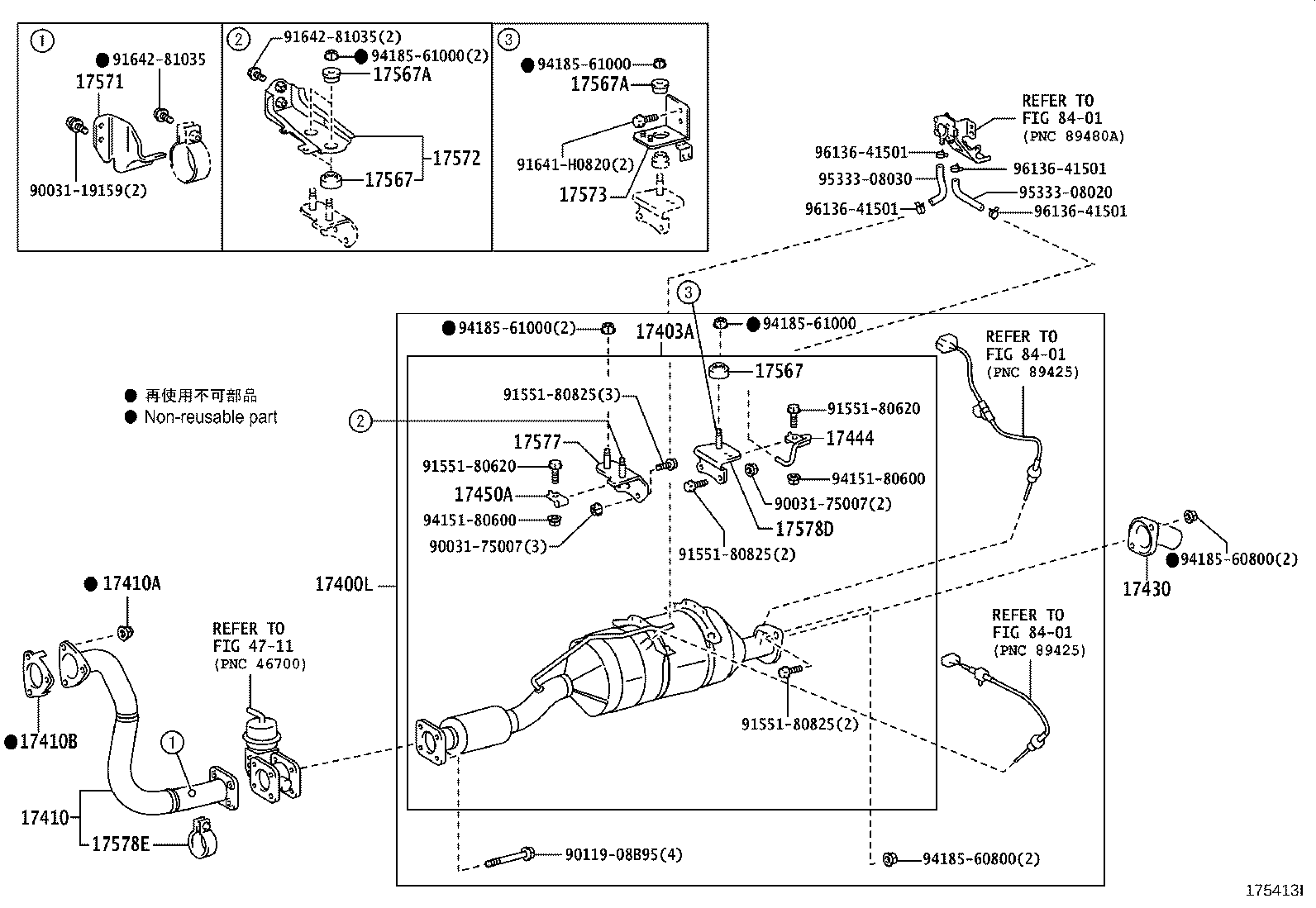

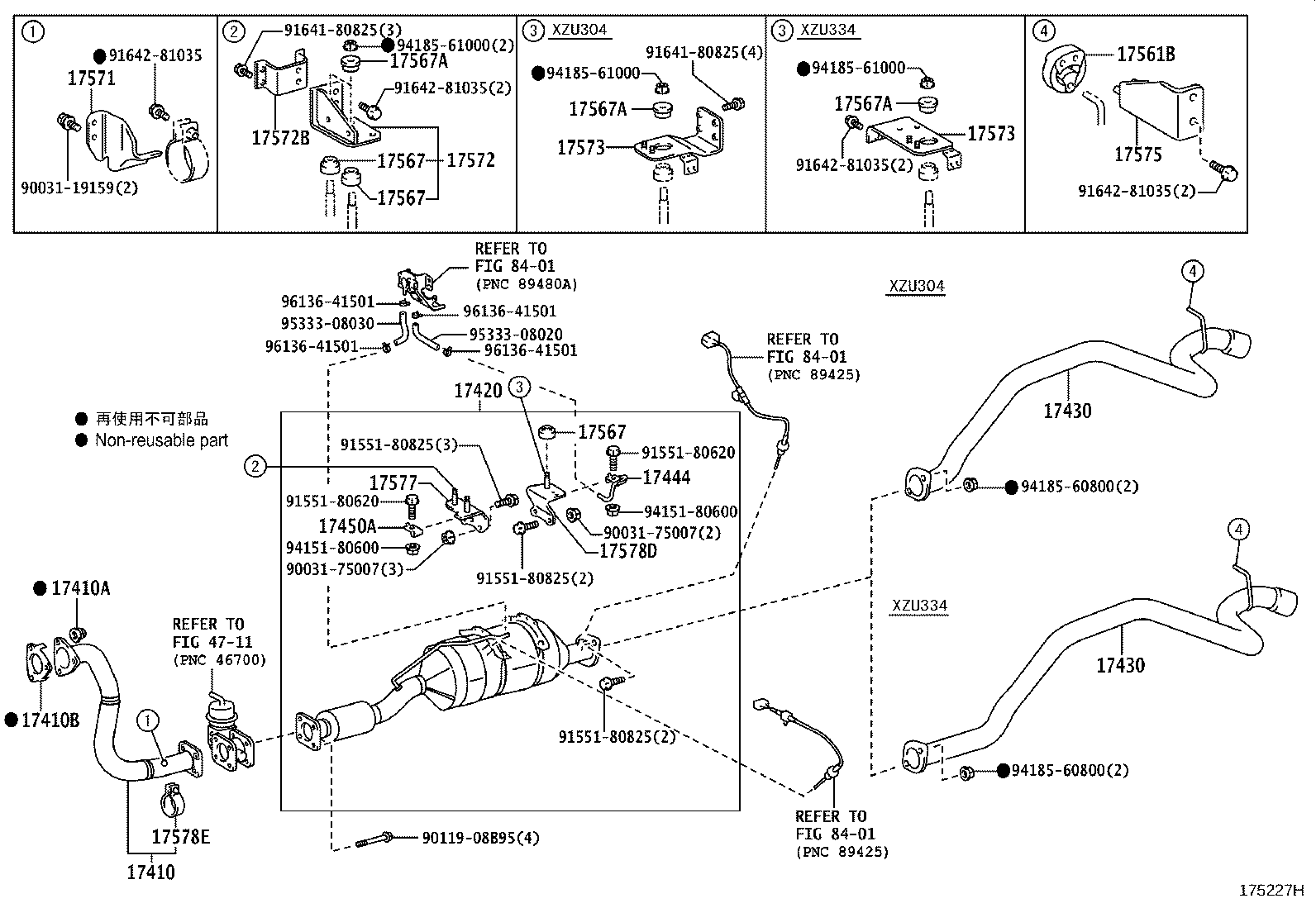

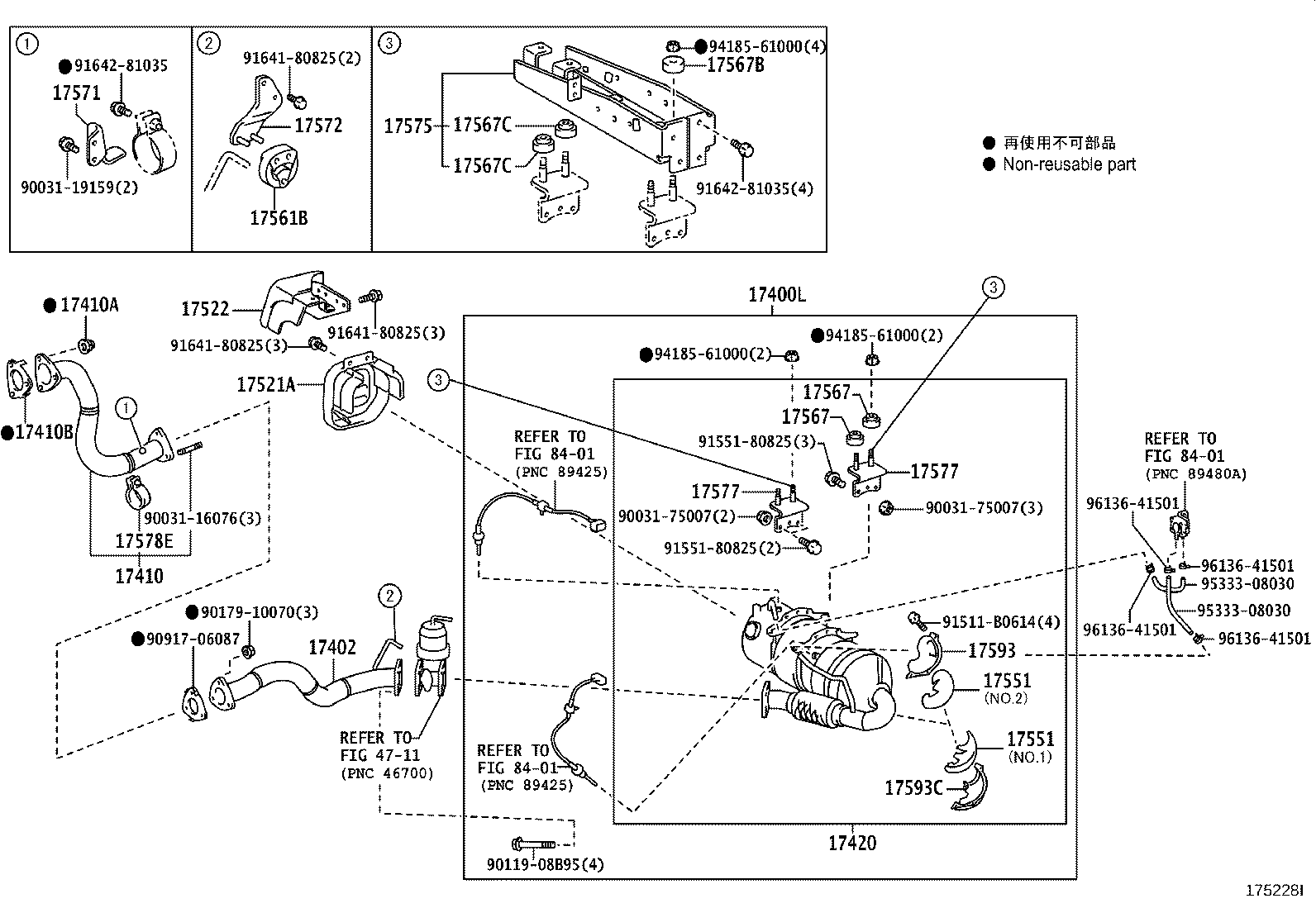

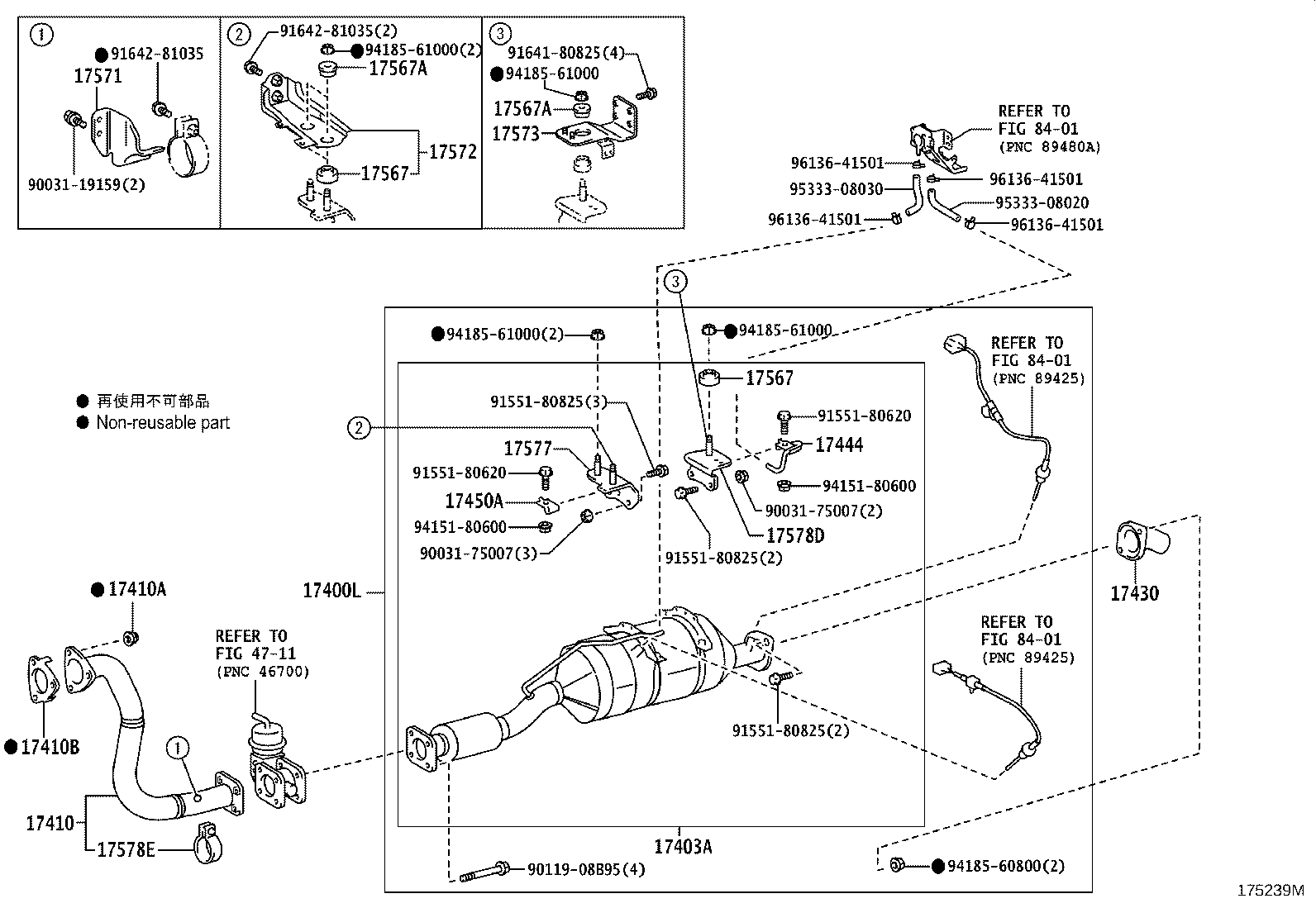

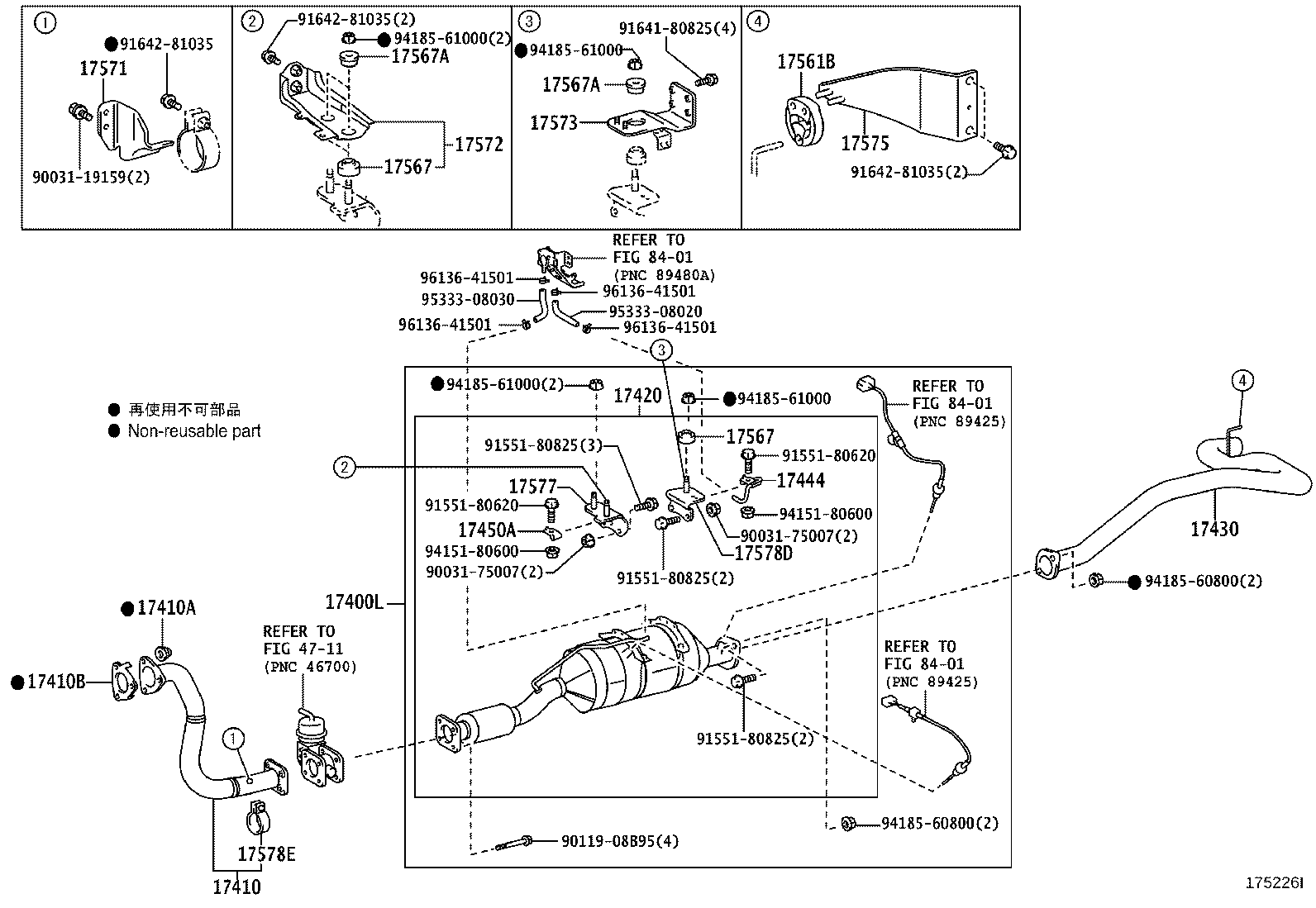

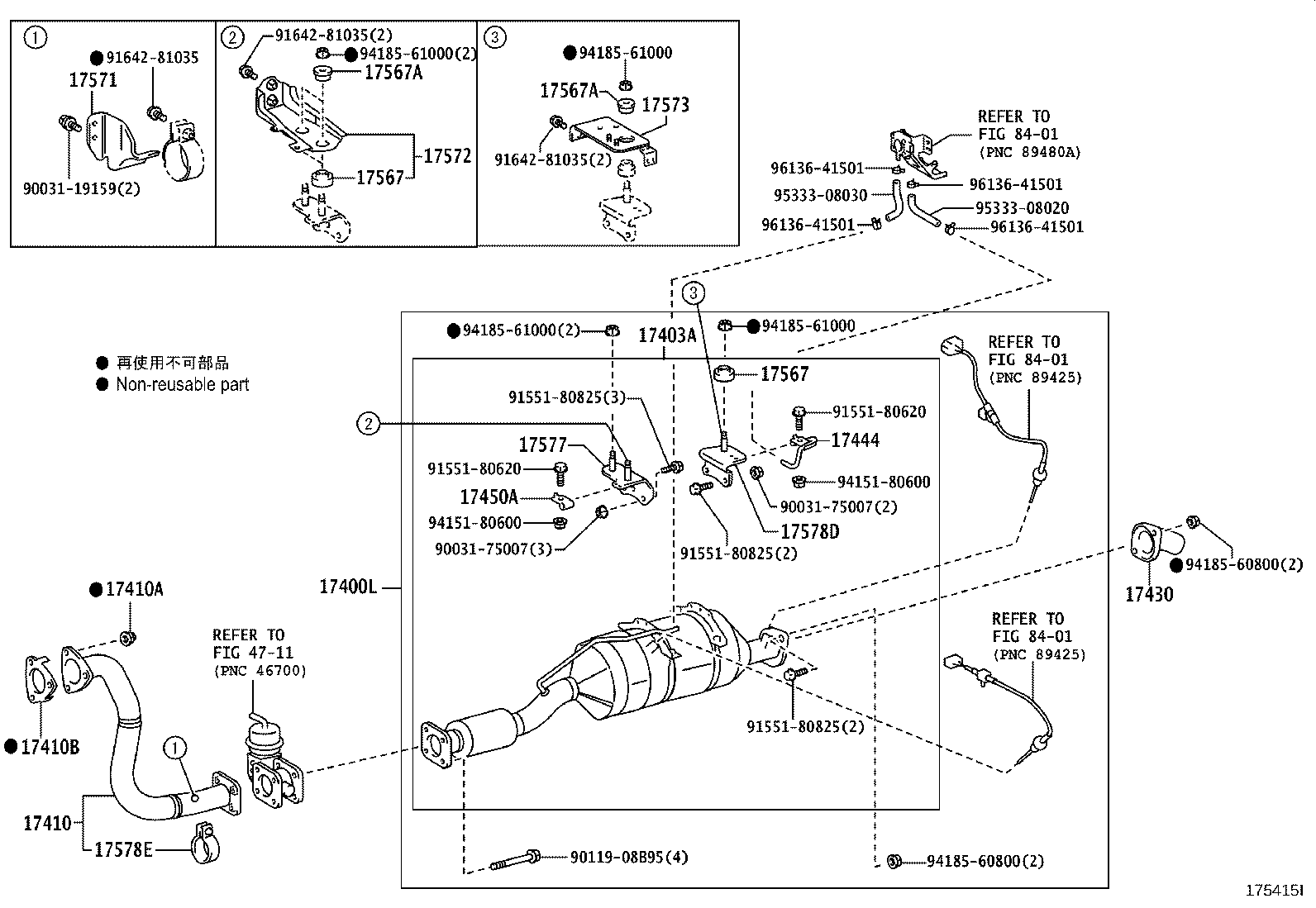

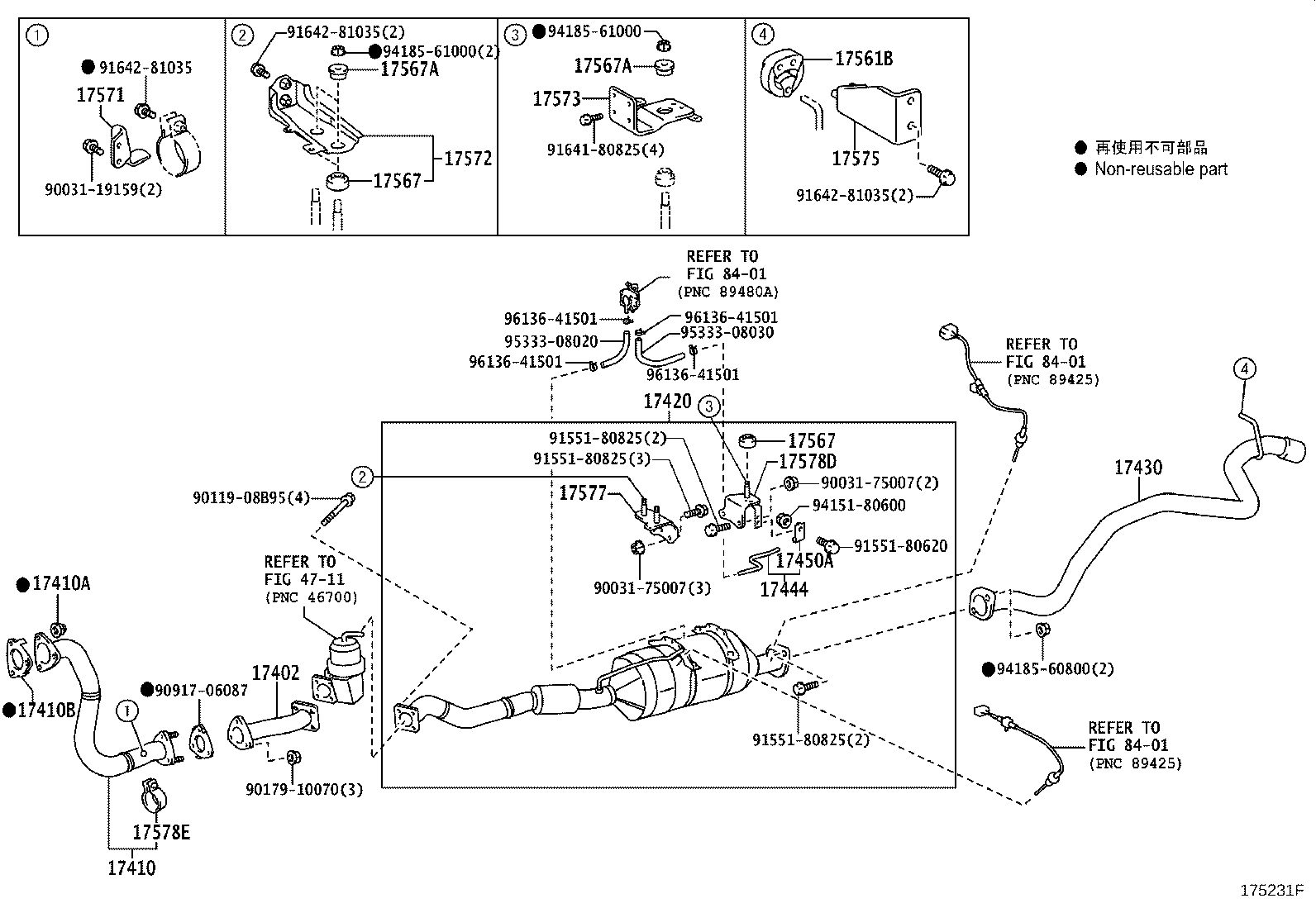

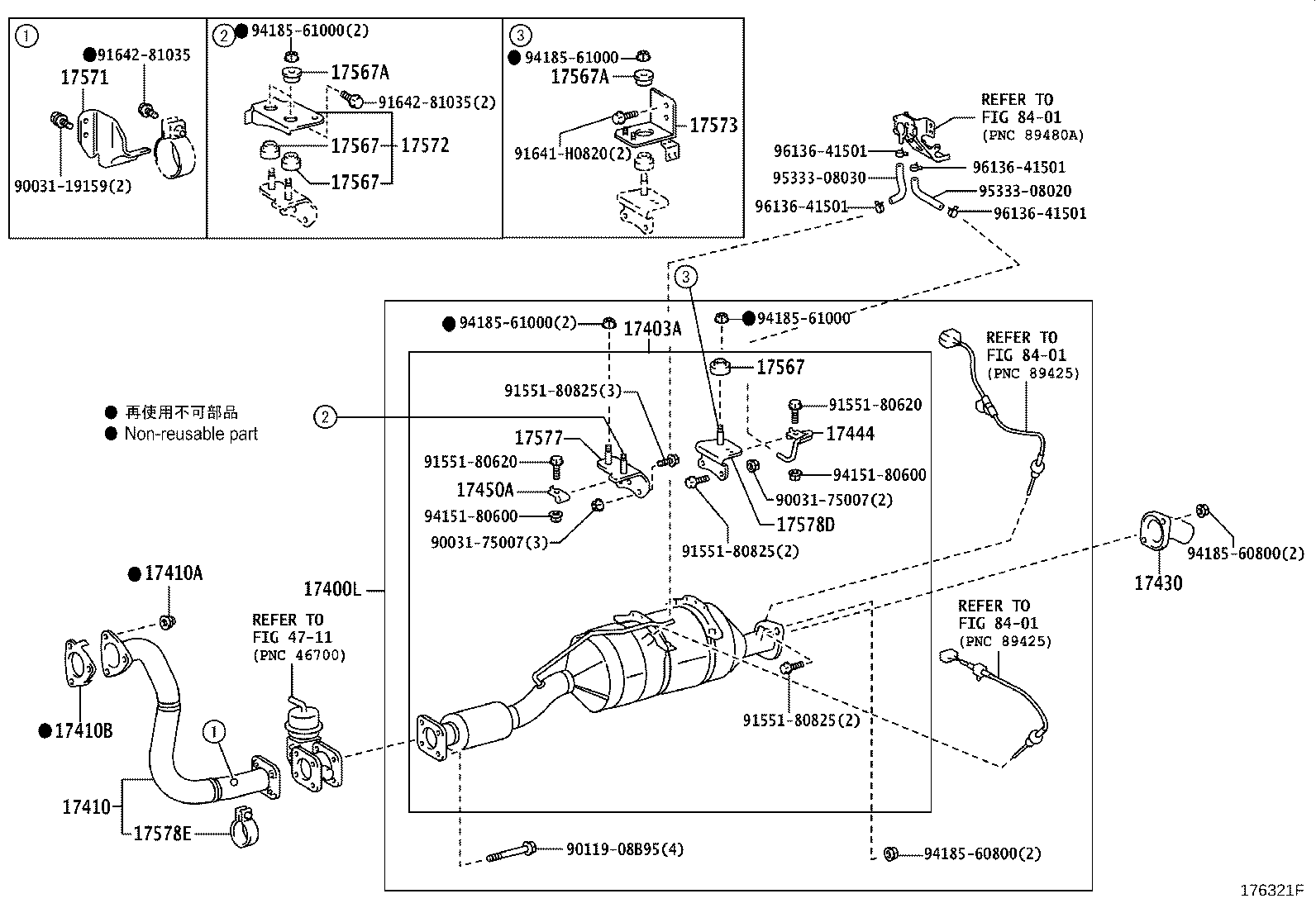

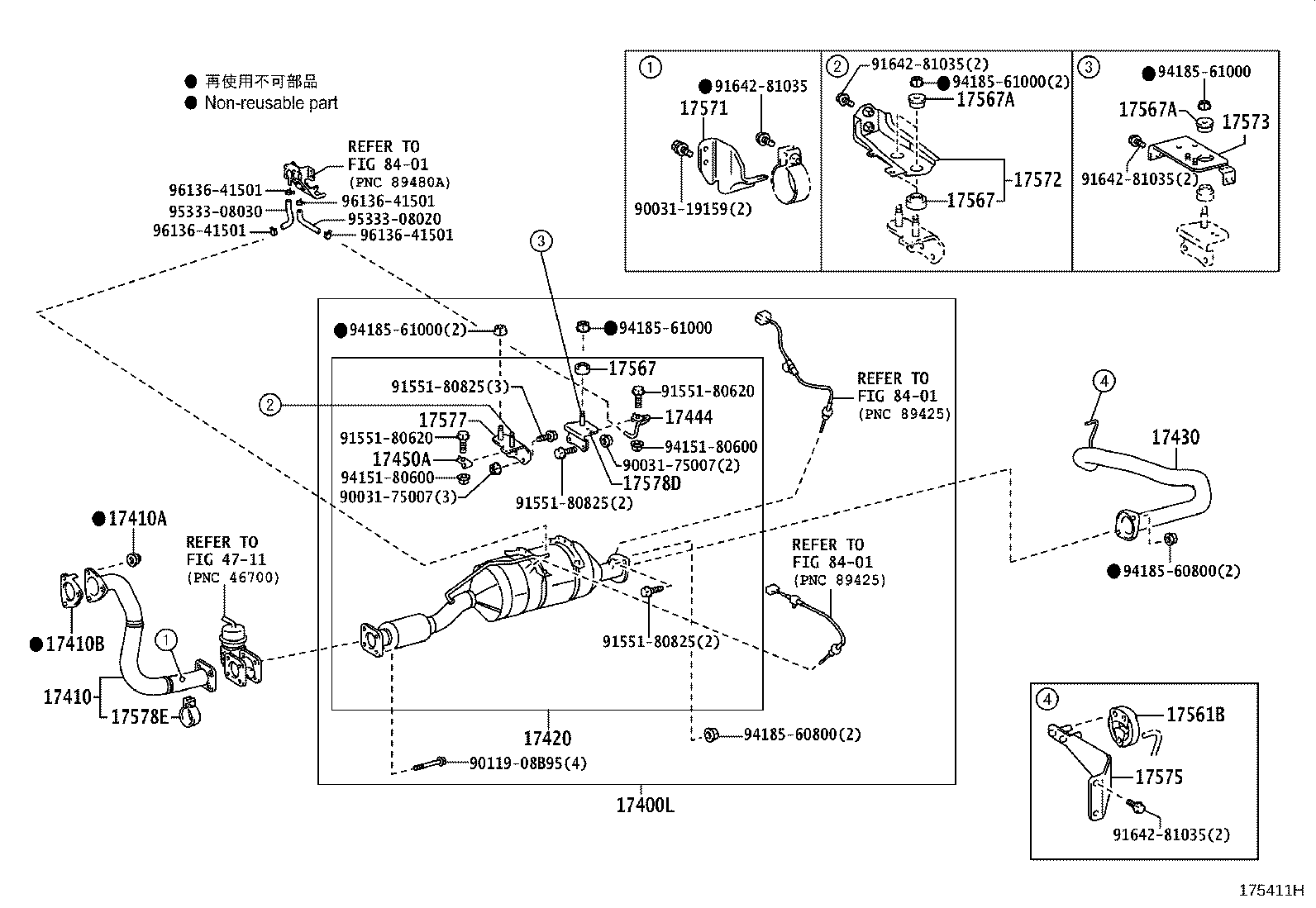

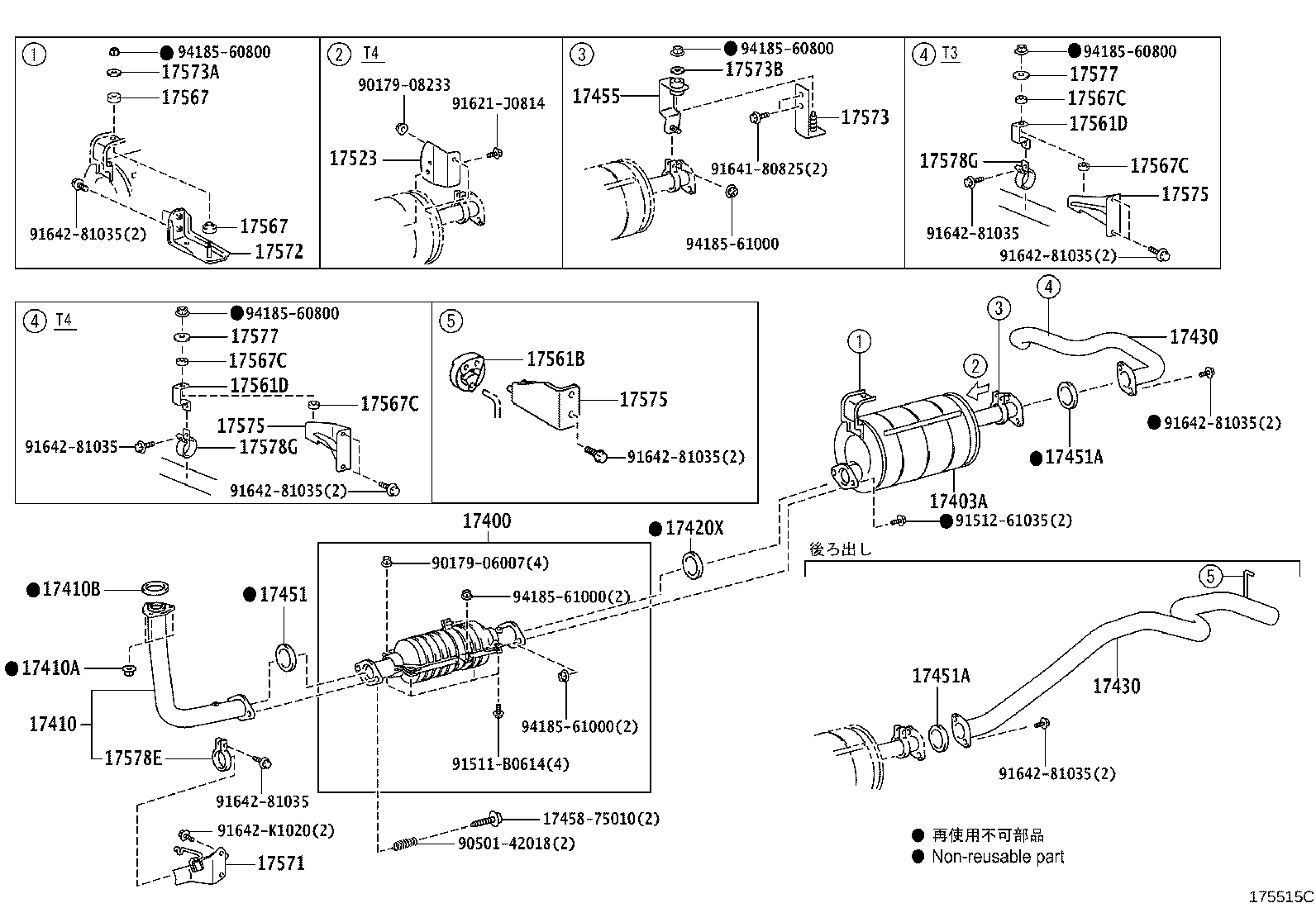

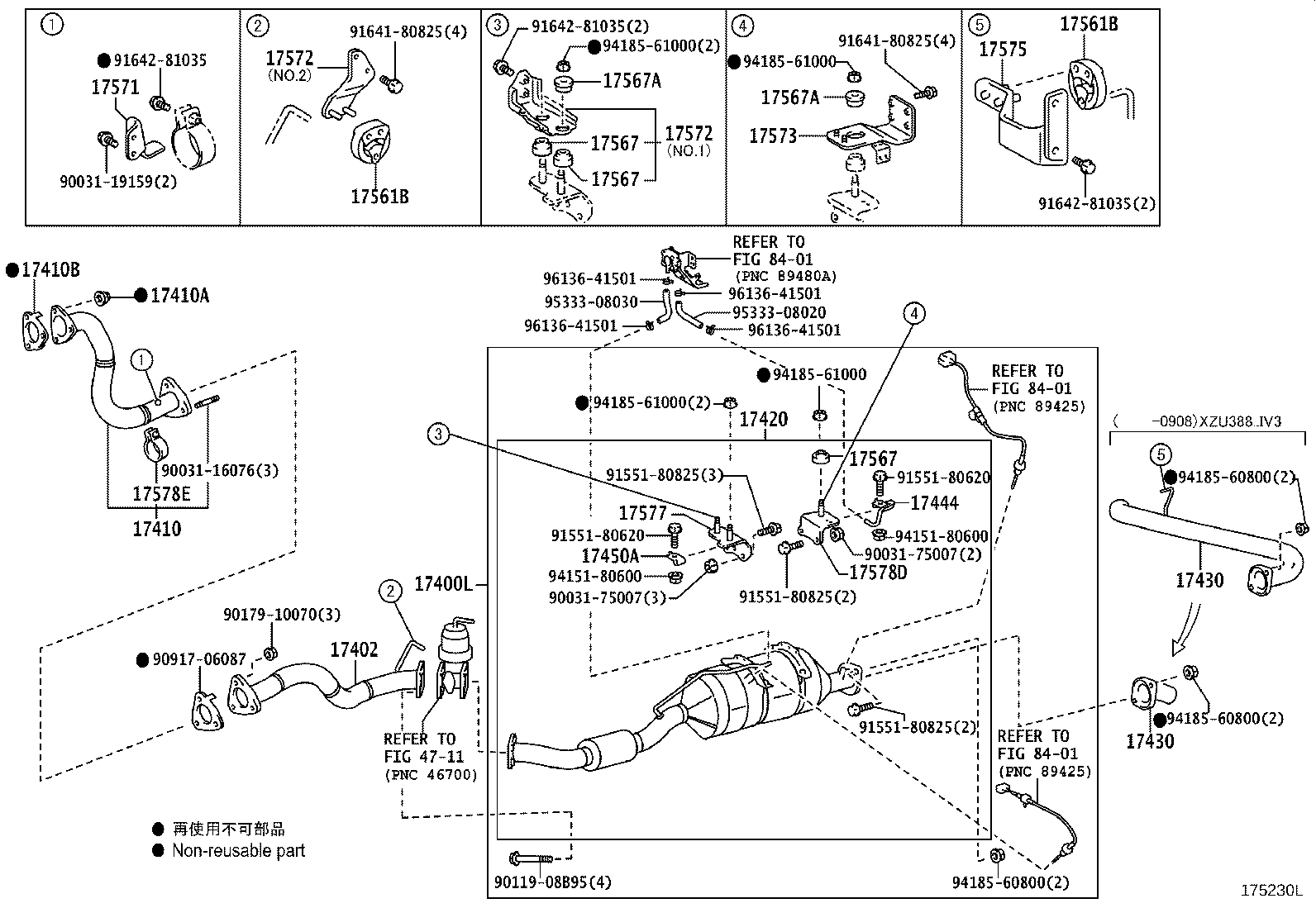

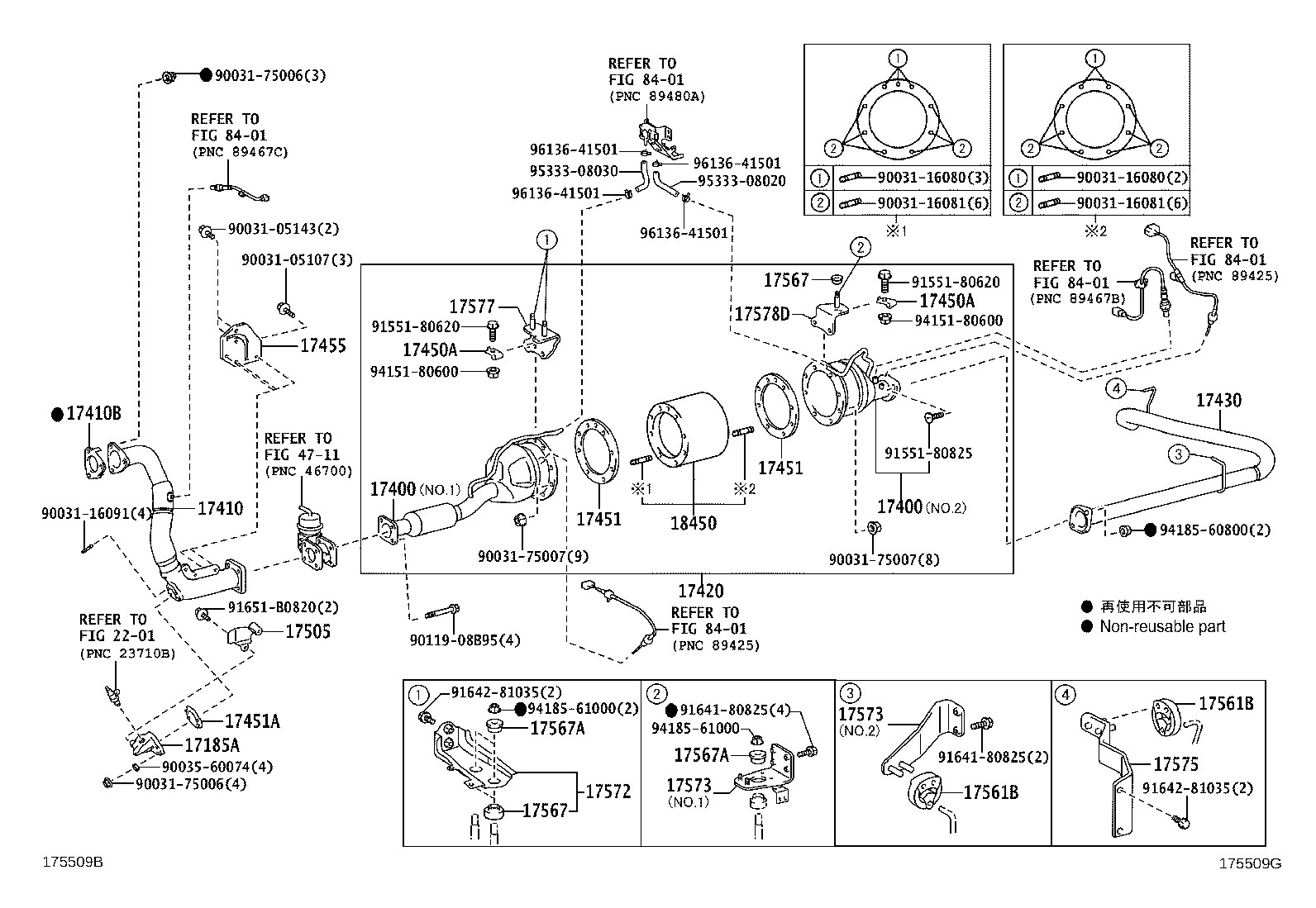

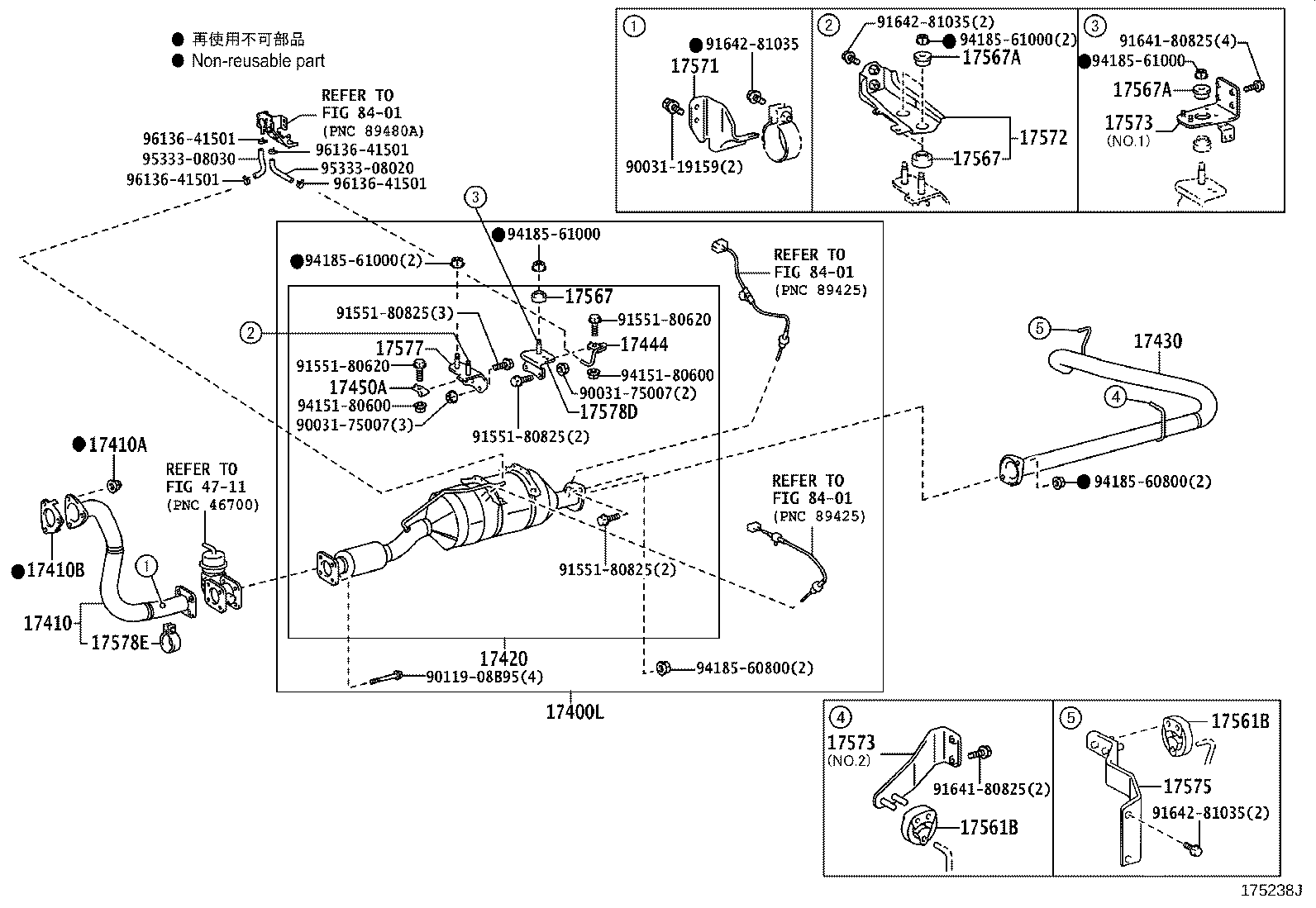

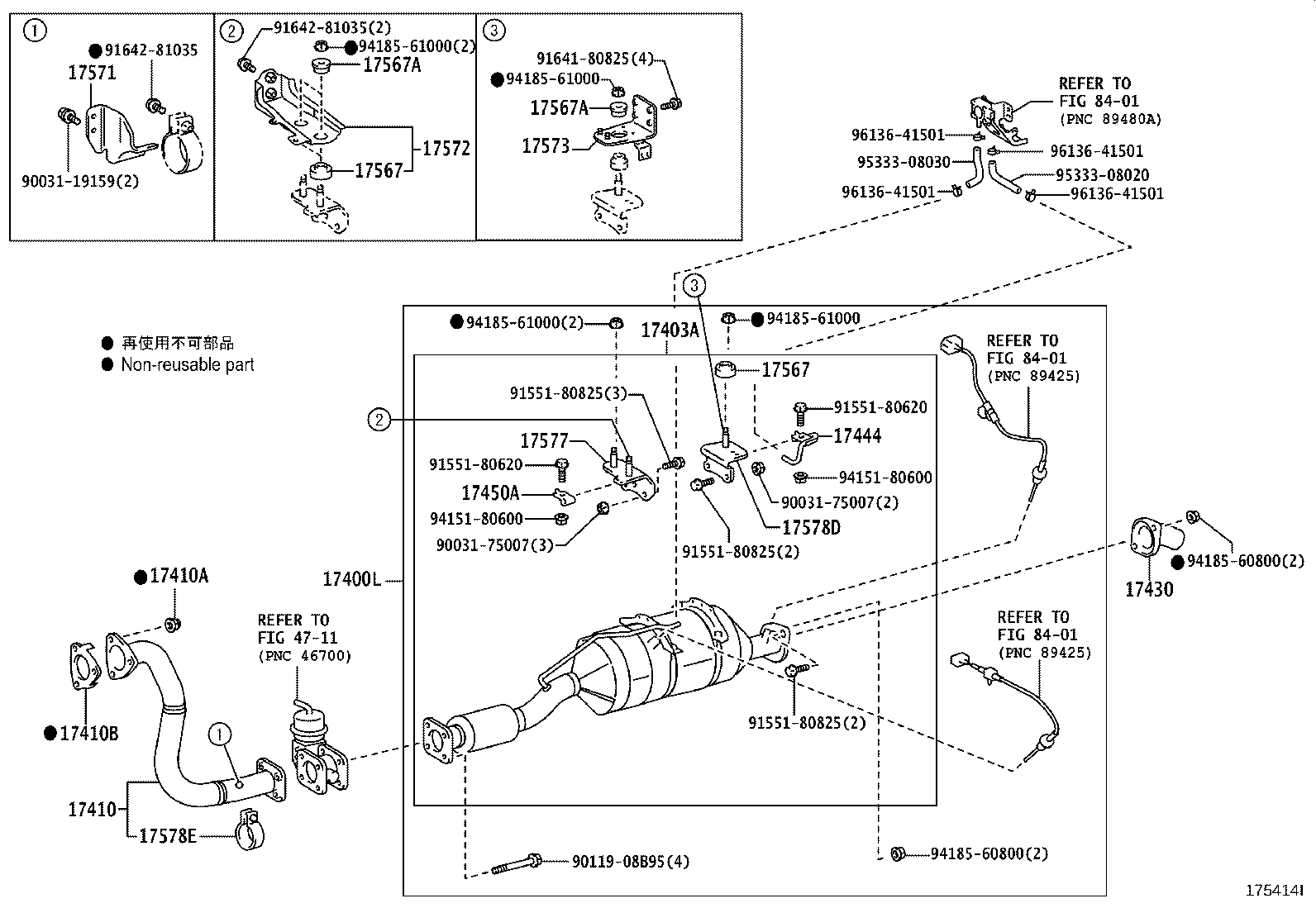

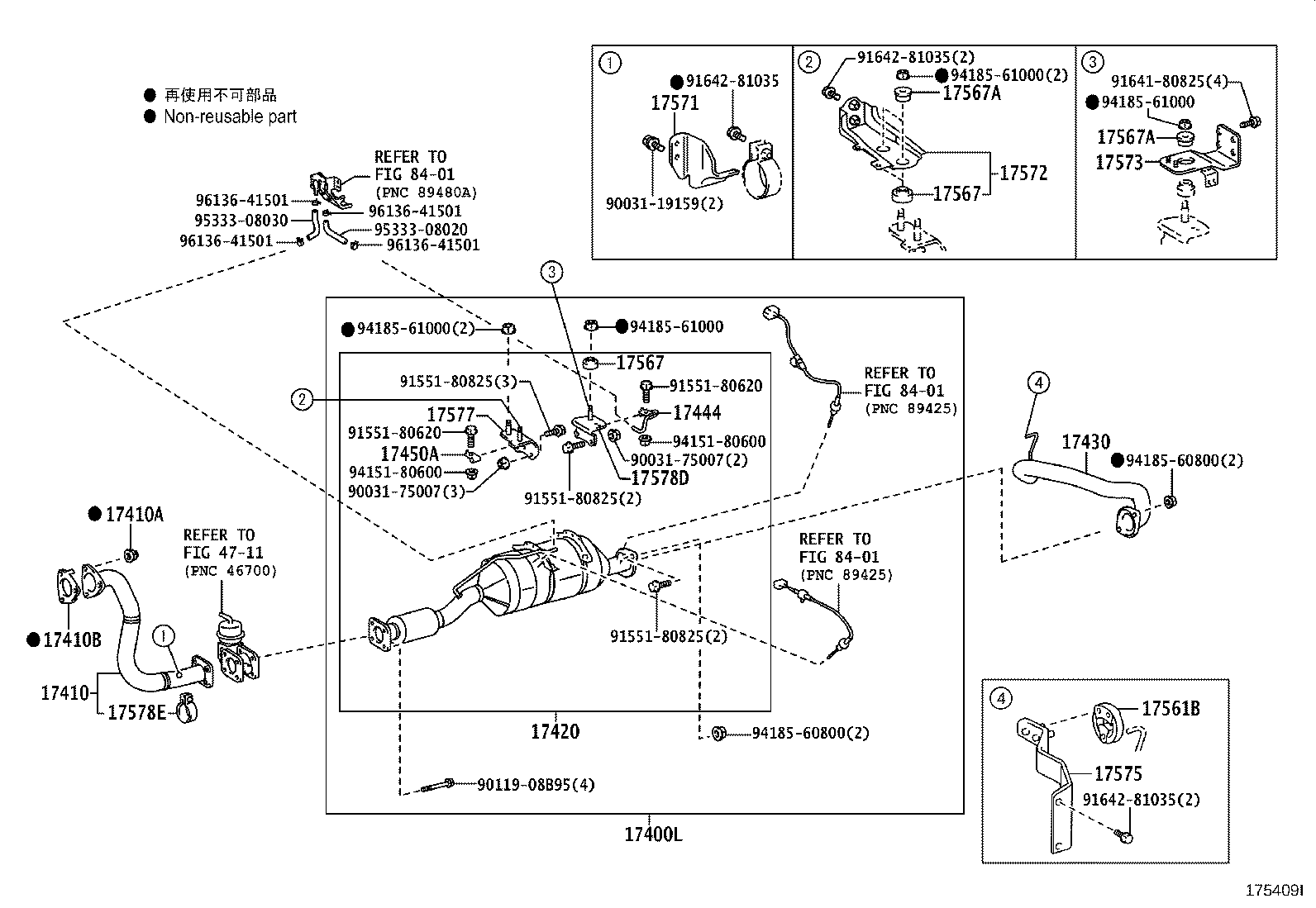

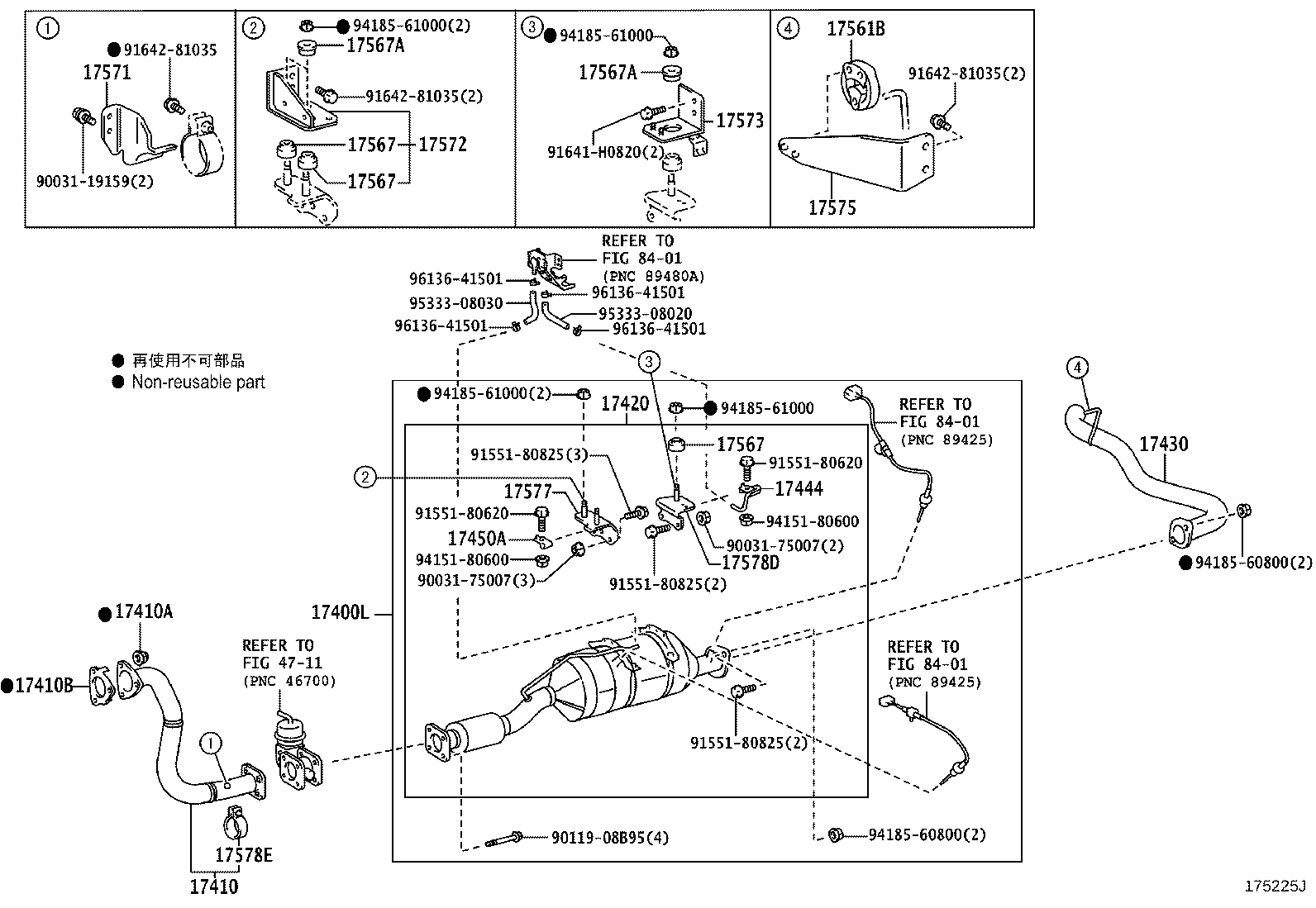

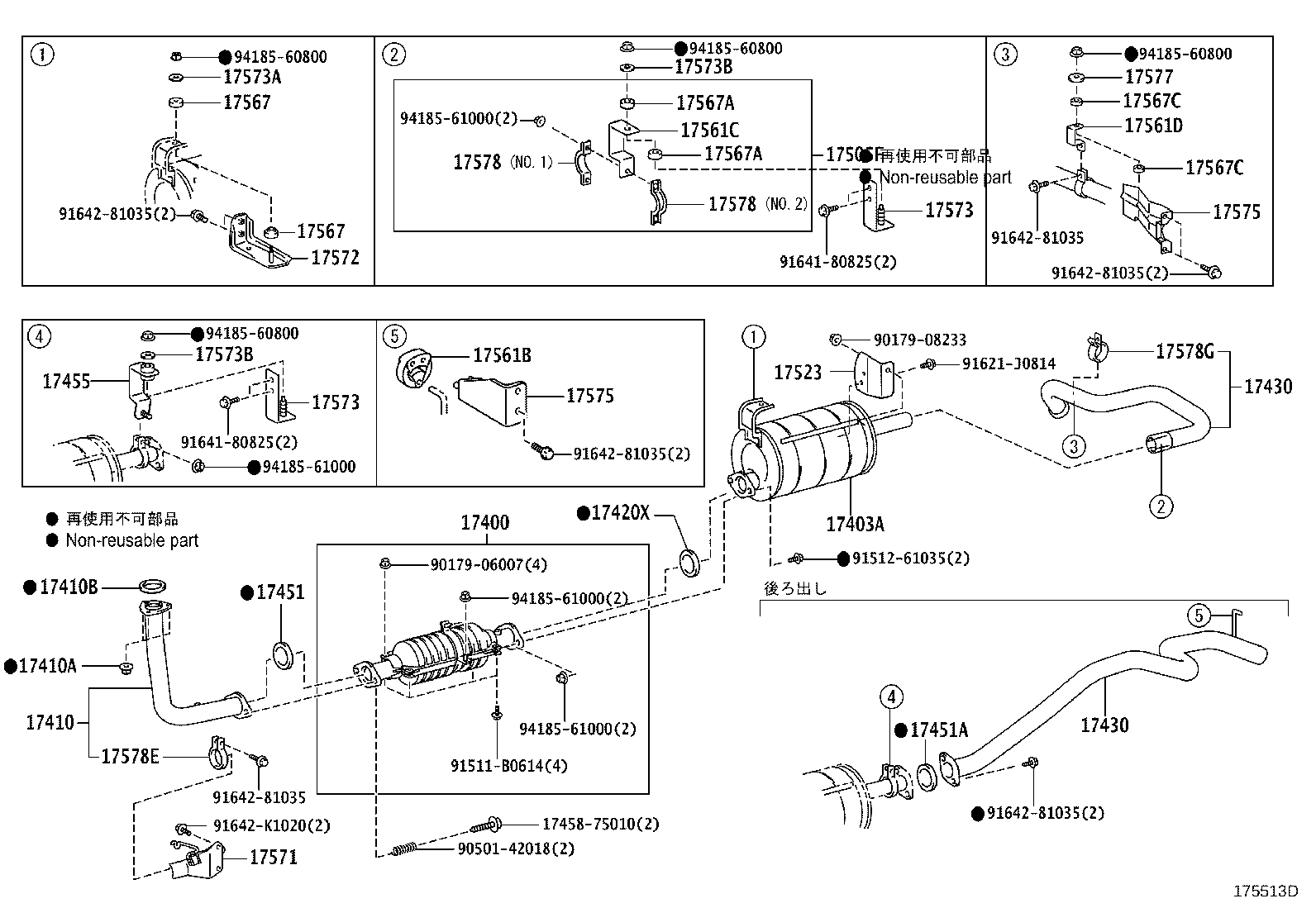

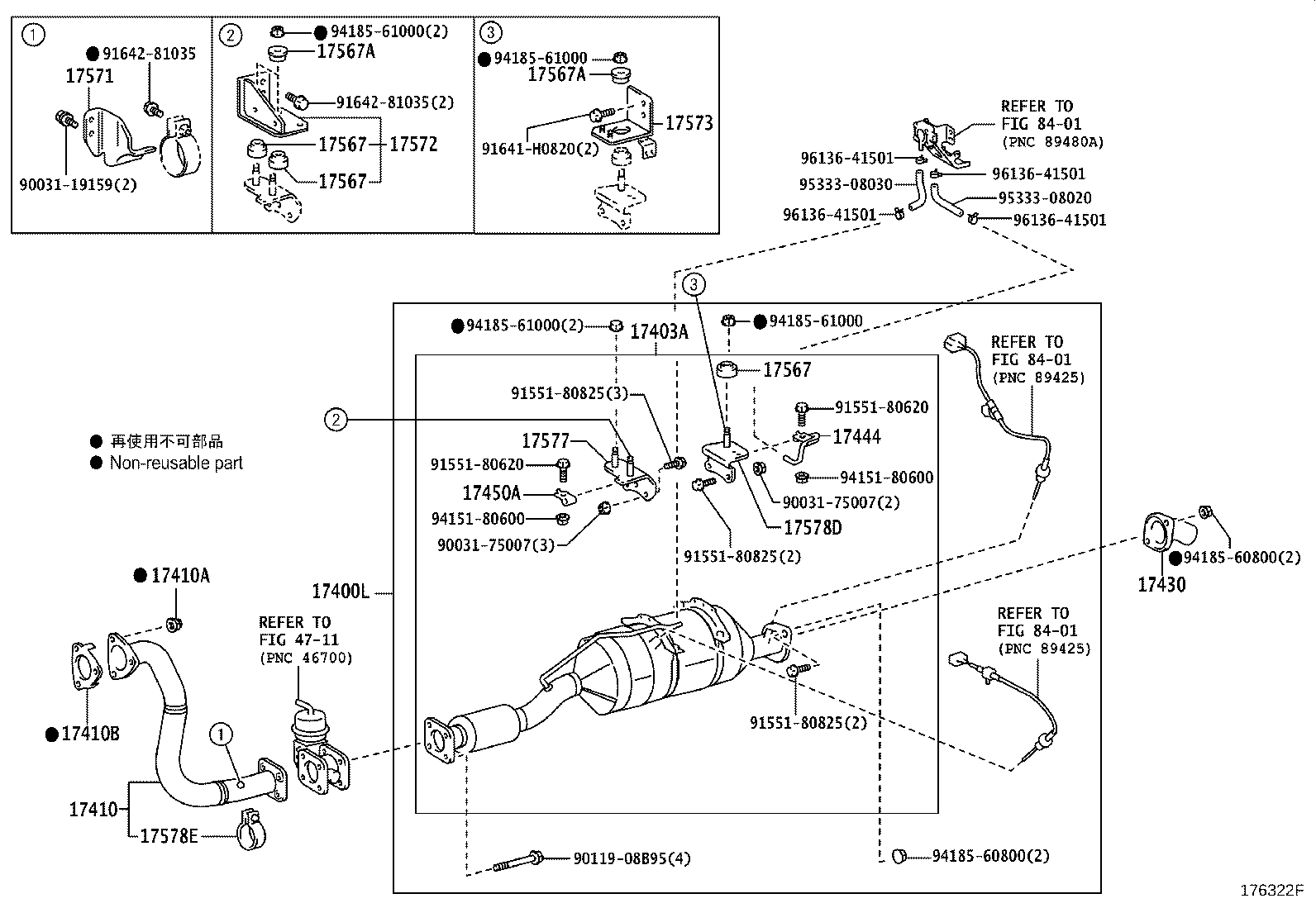

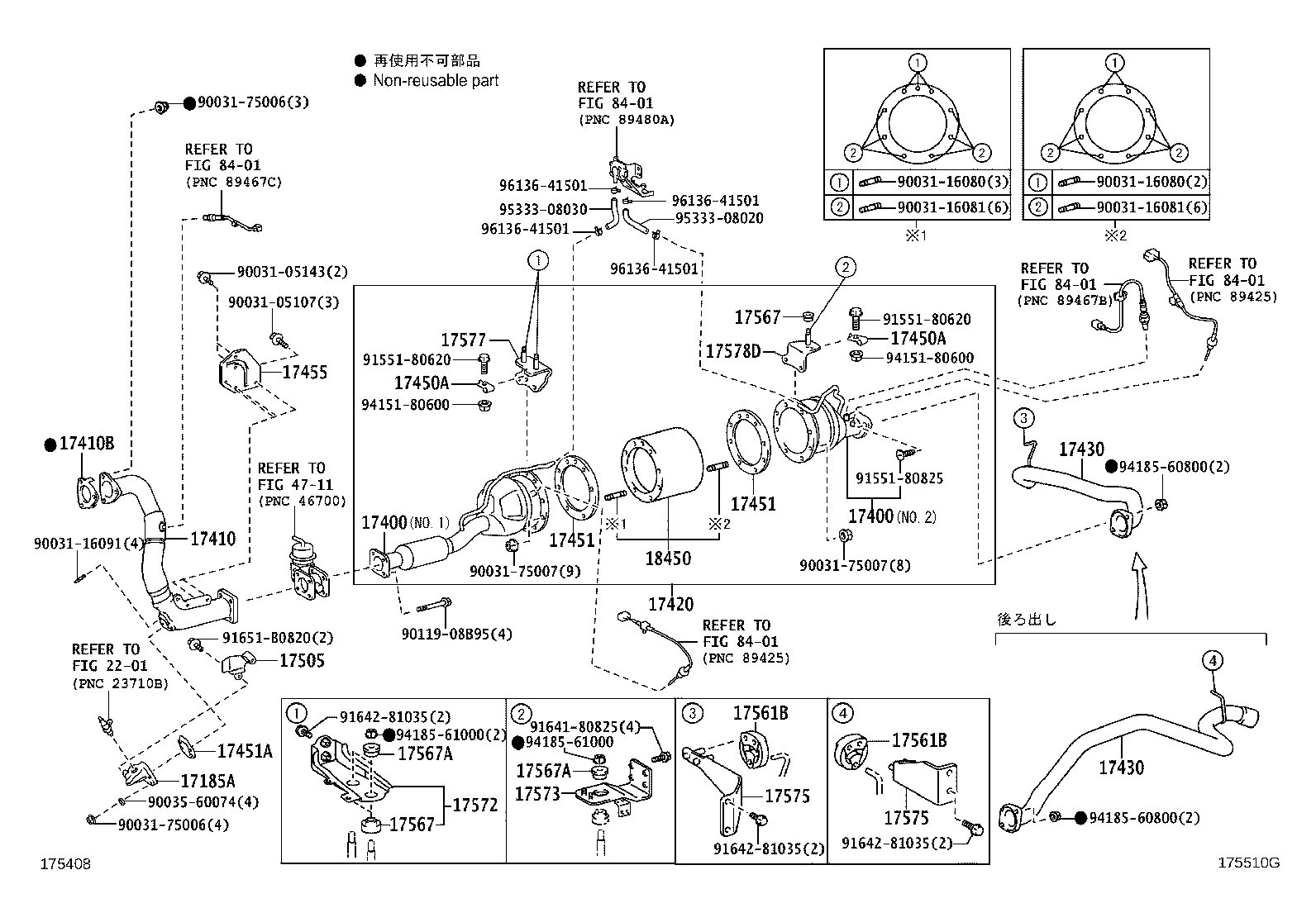

Figure 175408J 175408J 2006-10 → — Figure 175408J 175408J 2006-10 → — Figure 175409I 175409I 2006-10 → — Figure 175410G 175410G 2006-10 → 2009-08 Figure 175411H 175411H 2006-10 → 2009-08 Figure 175411H 175411H 2009-08 → — Figure 175412I 175412I 2006-10 → 2009-08 Figure 175412I 175412I 2009-08 → — Figure 175238J 175238J 2006-10 → 2009-08 Figure 175238J 175238J 2009-08 → — Figure 175239M 175239M 2006-10 → — Figure 175415I 175415I 2006-10 → — Figure 175415I 175415I 2009-08 → — Figure 175414I 175414I 2006-10 → — Figure 175414I 175414I 2009-08 → — Figure 175413I 175413I 2006-10 → — Figure 175413I 175413I 2009-08 → — Figure 175224I 175224I 2006-10 → — Figure 175225J 175225J 2006-10 → — Figure 175226I 175226I 2006-10 → — Figure 175227H 175227H 2006-10 → — Figure 175228I 175228I 2006-10 → — Figure 175229H 175229H 2006-10 → — Figure 175230L 175230L 2006-10 → — Figure 175231F 175231F 2006-10 → — Figure 175509G 175509G 2007-05 → — Figure 175510G 175510G 2007-05 → — Figure 175511C 175511C 2007-05 → — Figure 175512C 175512C 2007-05 → — Figure 175513D 175513D 2007-05 → — Figure 175514C 175514C 2007-05 → — Figure 175515C 175515C 2007-05 → — Figure 176321F 176321F 2009-08 → — Figure 176322F 176322F 2009-08 → —

Part groups

PNCDescription
17185A Pipe, Exhaust Manifold Connecting, NO.1
17400 Converter Assy, W/Catalyst
17400L Pipe Assy, Exhaust
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403A Pipe Sub-assy, Exhaust, Center NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17444 Pipe, Exhaust, NO.4
17450A Clamp, Exhaust Pipe, NO.5
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17455 Bracket, Exhaust Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505F Support Sub-assy, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17523 Protector, Exhaust Pipe, Upper NO.3
17551 Insulator, Exhaust Pipe Heat, NO.1
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17561D Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17575 Bracket, Exhaust Pipe Support, NO.5
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578D Bracket, Exhaust Pipe Support, NO.8
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
17578G Clamp, Pipe(FOR TAILPIPE)
17593 Protector, Exhaust Pipe, NO.1
17593C Protector, Exhaust Pipe, Lower NO.1
18450 Converter Assy, Monolithic
