Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

30 part groups · 3 illustrations

Illustrations

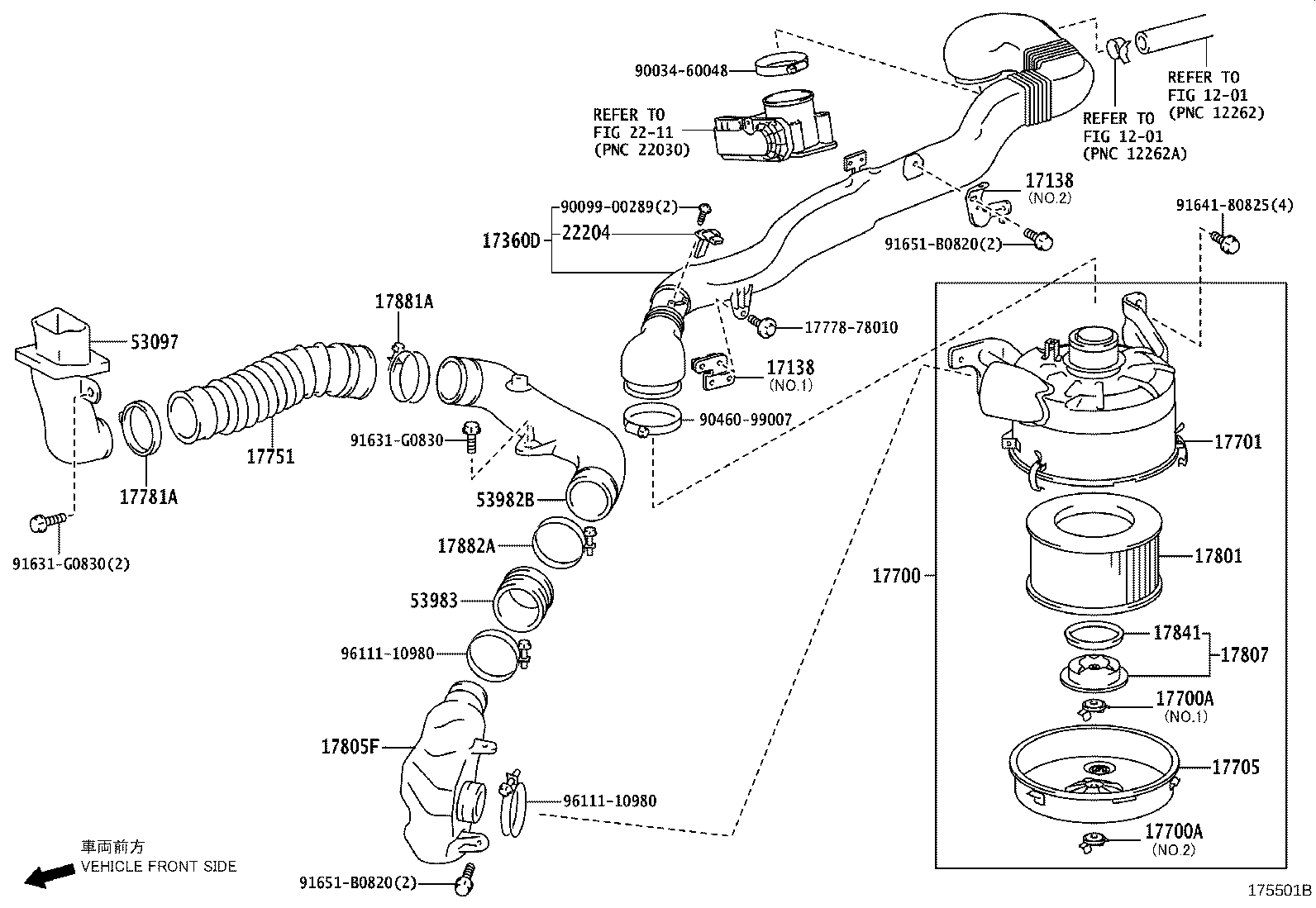

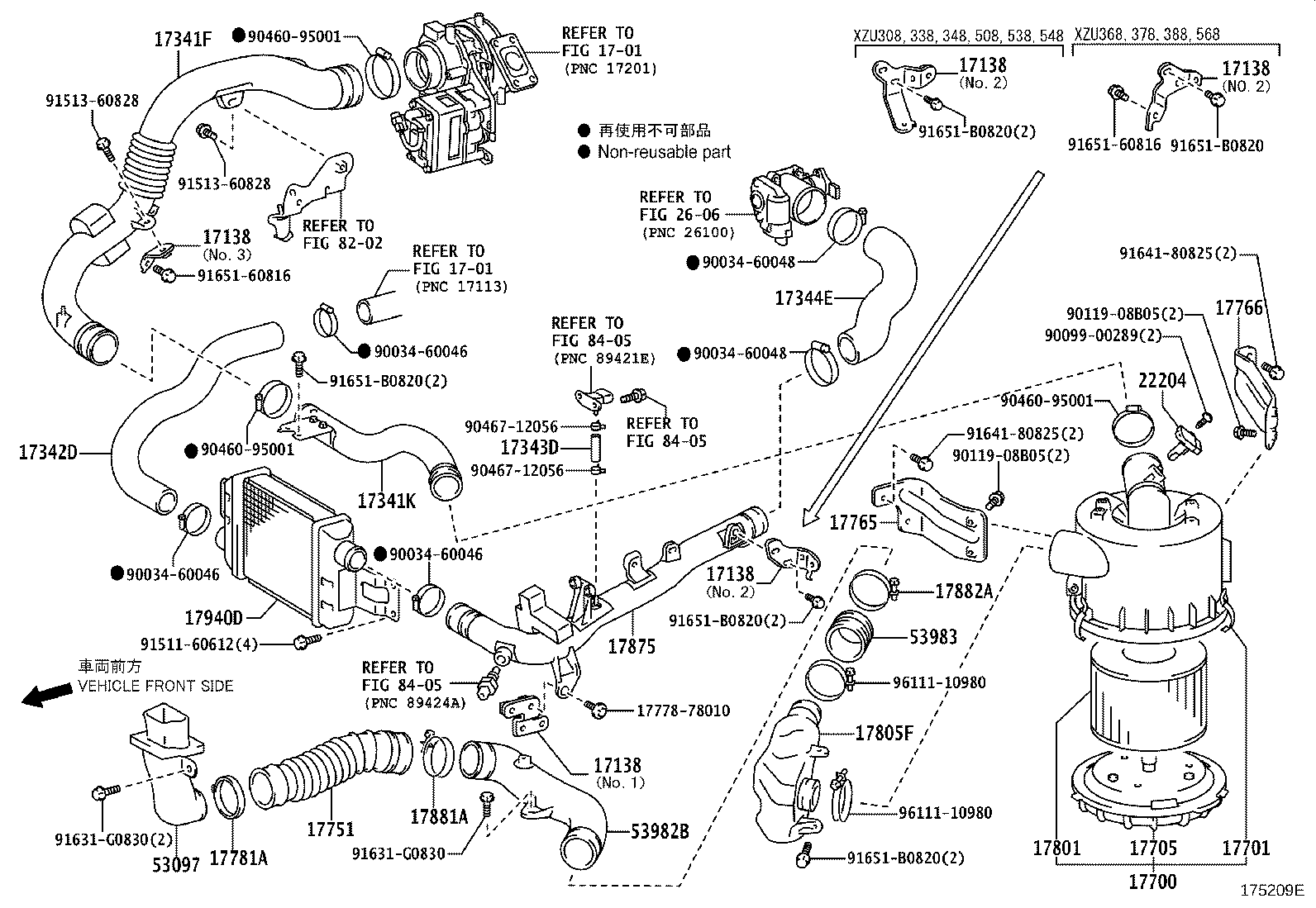

Figure 175497C 175497C 2007-05 → — Figure 175501B 175501B 2007-05 → — Figure 175209E 175209E 2006-10 → —

Part groups

PNCDescription
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17342D Hose, Air, NO.2
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17360A Tube Assy, Air
17360D Pipe Assy, Air
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17766 Stay, Air Cleaner, NO.2
17781A Clamp, Hose
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805F Resonator Sub-assy, Intake Air
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17849 Gasket, Intake Air Connector
17875 Pipe, Intake Air Connector
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
53097 Inlet Sub-assy
53982B Inlet, Air Cleaner Pipe, NO.2
53983 Inlet, Air Cleaner Pipe, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
