Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 2 illustrations

Illustrations

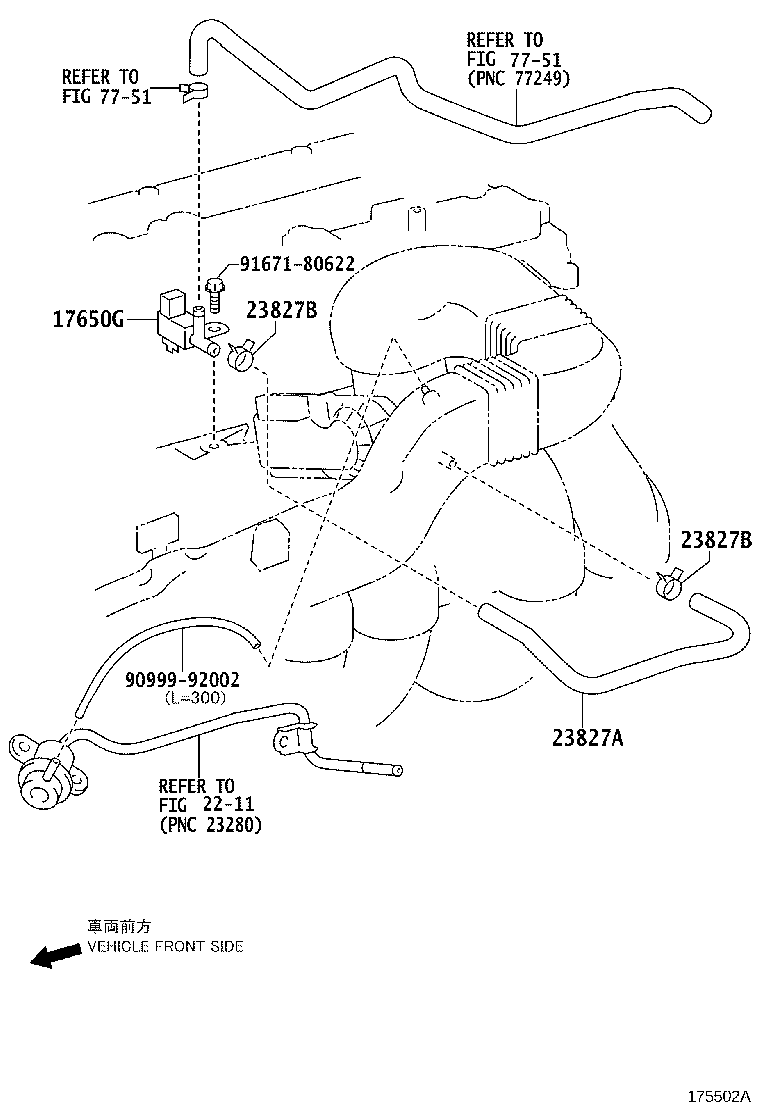

Figure 175498C 175498C 2007-05 → — Figure 175502A 175502A 2007-05 → —

Part groups

PNCDescription
17650G Valve, Duty Vacuum Switching
17810A Filter Assy, Air
22233 Hose, Lpg Auxiliary Air Valve, NO.1
22233A Clip(FOR LPG AUXILIARY AIR VALVE NO.1)
22270K Valve Assy, Lpg Idle Speed Control
22278A Gasket, Lpg Idle Speed Control Valve
23288 Jet, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
