Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

30 part groups · 3 illustrations

Illustrations

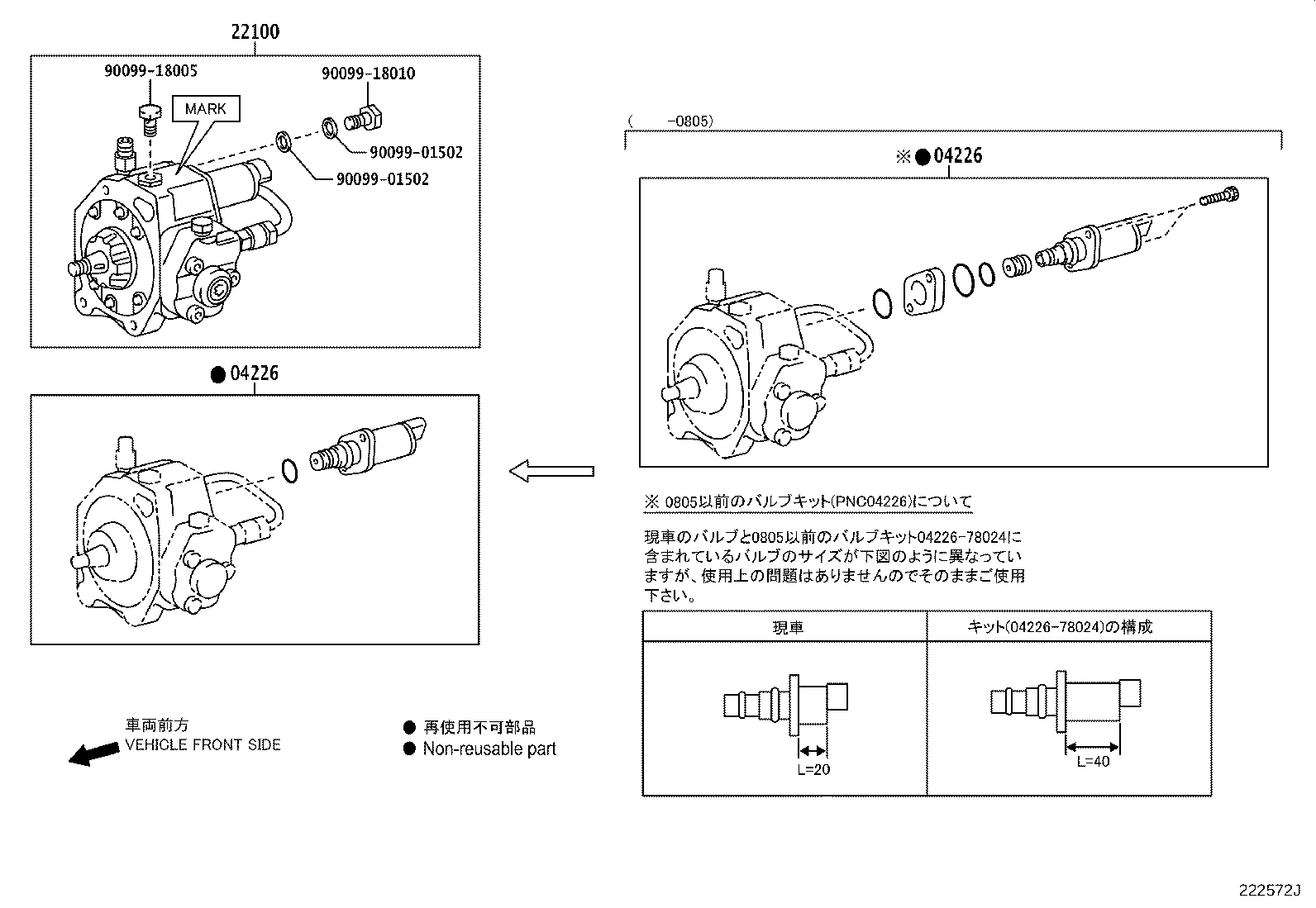

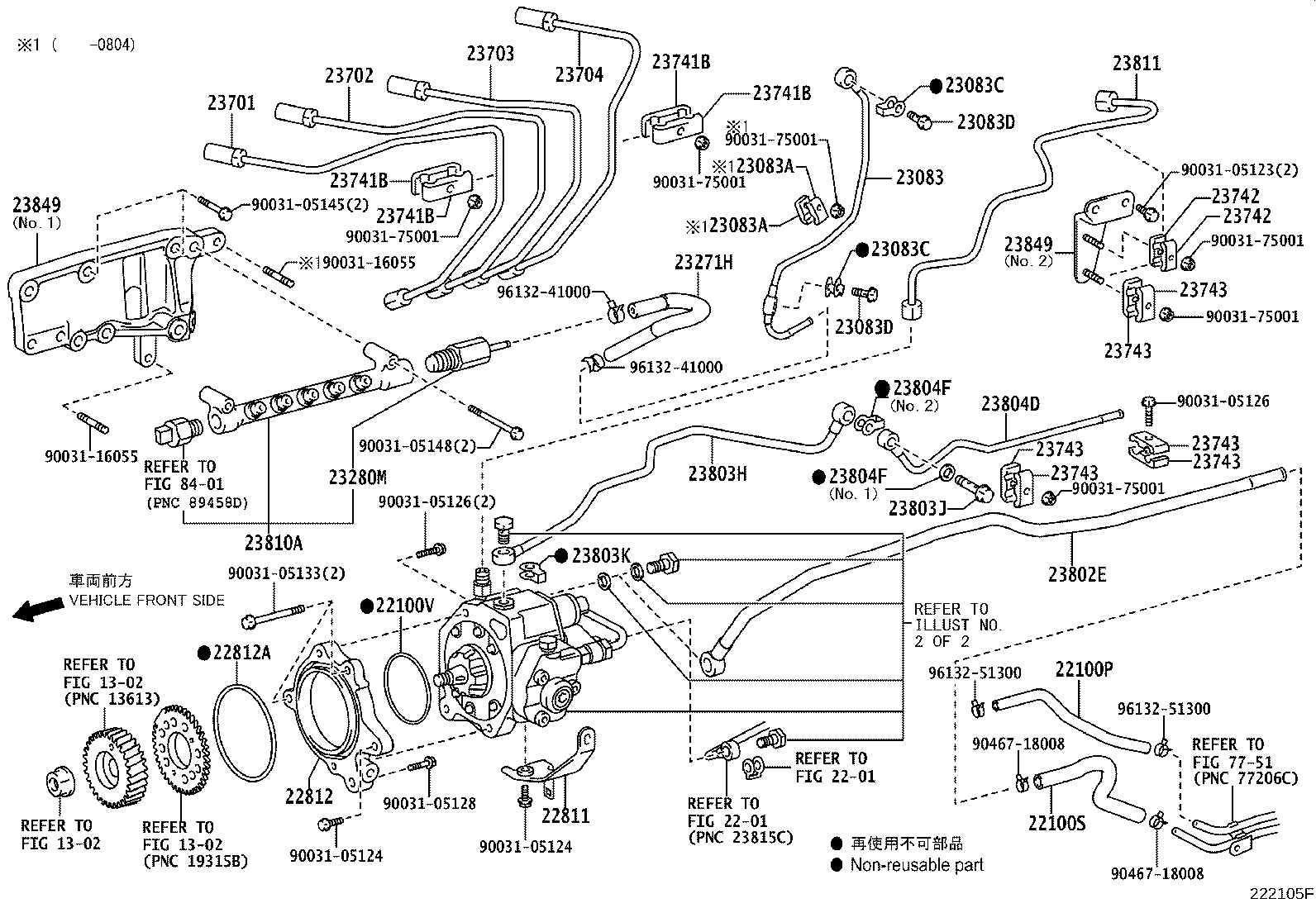

Figure 222011I 222011I 2006-10 → — Figure 222105F 222105F 2007-05 → — Figure 222572J 222572J 2006-10 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100P Hose, Fuel(FOR FUEL PIPE TO FUEL TUBE)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22100V Ring, O(FOR INJECTION PUMP)
22811 Stay, Injection Pump, NO.1
22812 Retainer, Injection Pump
22812A Ring, O
23083 Pipe Sub-assy, Nozzle Leakage, NO.3
23083A Clamp, Nozzle Leakage
23083C Gasket(NOZZLE LEKAGE PIPE NO.3)
23083D Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3)
23271H Hose, Fuel, NO.1
23280M Limitter Assy, Fuel Pressure
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23743 Clamp, Injection Pipe, NO.3
23802E Pipe Sub-assy, Fuel
23803H Pipe Sub-assy, Fuel Return
23803J Bolt, Union(FOR FUEL RETURN PIPE)
23803K Gasket(FOR FUEL RETURN PIPE)
23804D Pipe Sub-assy, Fuel, NO.4
23804F Gasket(FOR FUEL PIPE NO.4)
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23849 Support, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
