Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

7 part groups · 6 illustrations

Illustrations

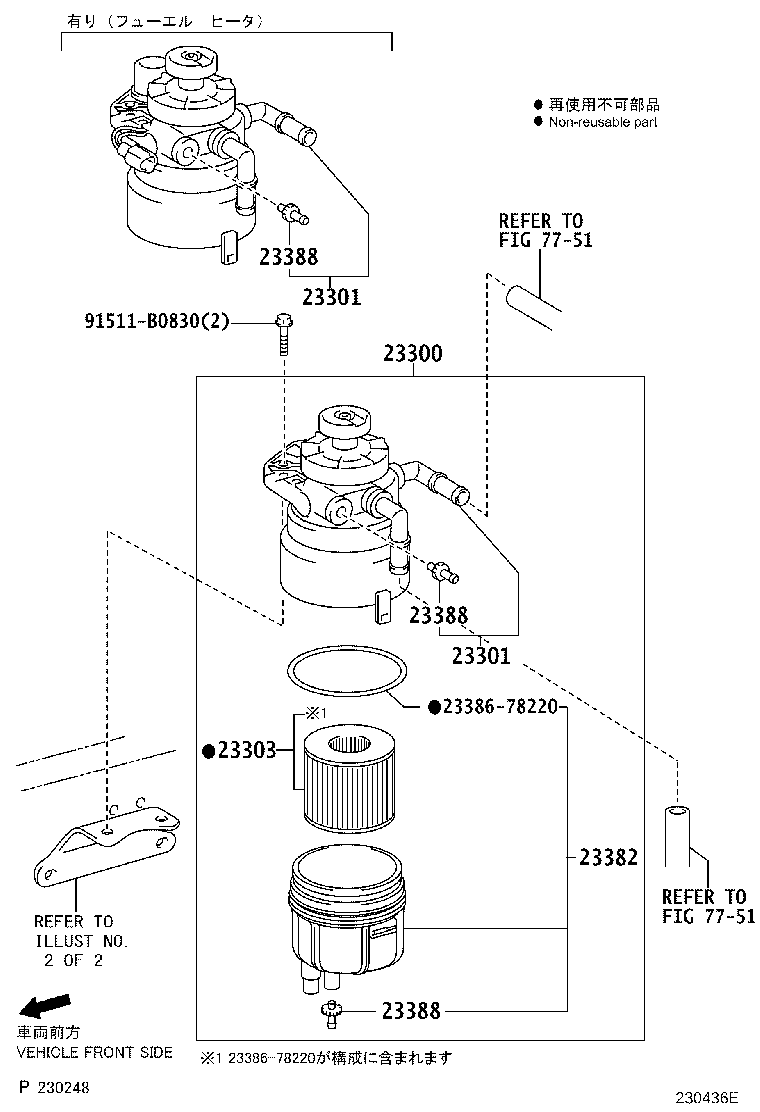

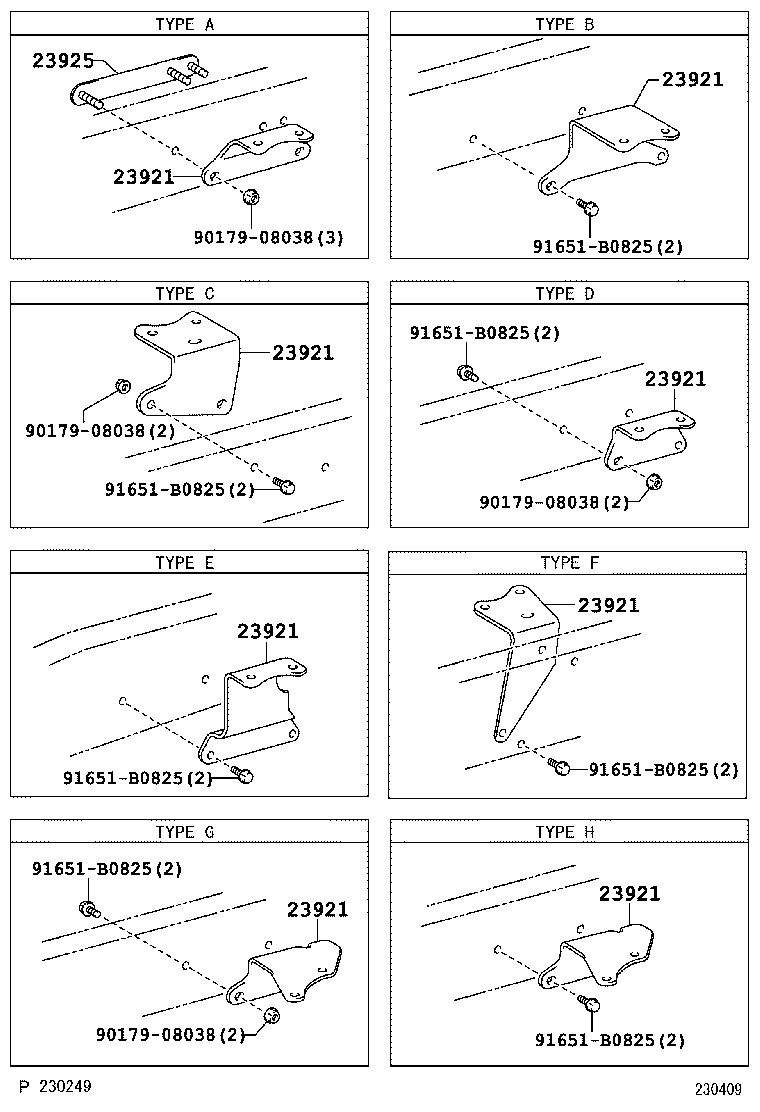

Figure 230408F 230408F 2006-10 → — Figure 230436E 230436E 2006-10 → — Figure 230409 230409 2006-10 → — Figure 230409 230409 2006-10 → — Figure 230410A 230410A 2006-10 → — Figure 230410A 230410A 2009-12 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23301 Body Sub-assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23382 Case, Fuel Filter
23388 Plug, Fuel Filter Drain
23921 Support, Fuel Filter
23925 Stay, Fuel Filter Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
