Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

18 part groups · 17 illustrations

Illustrations

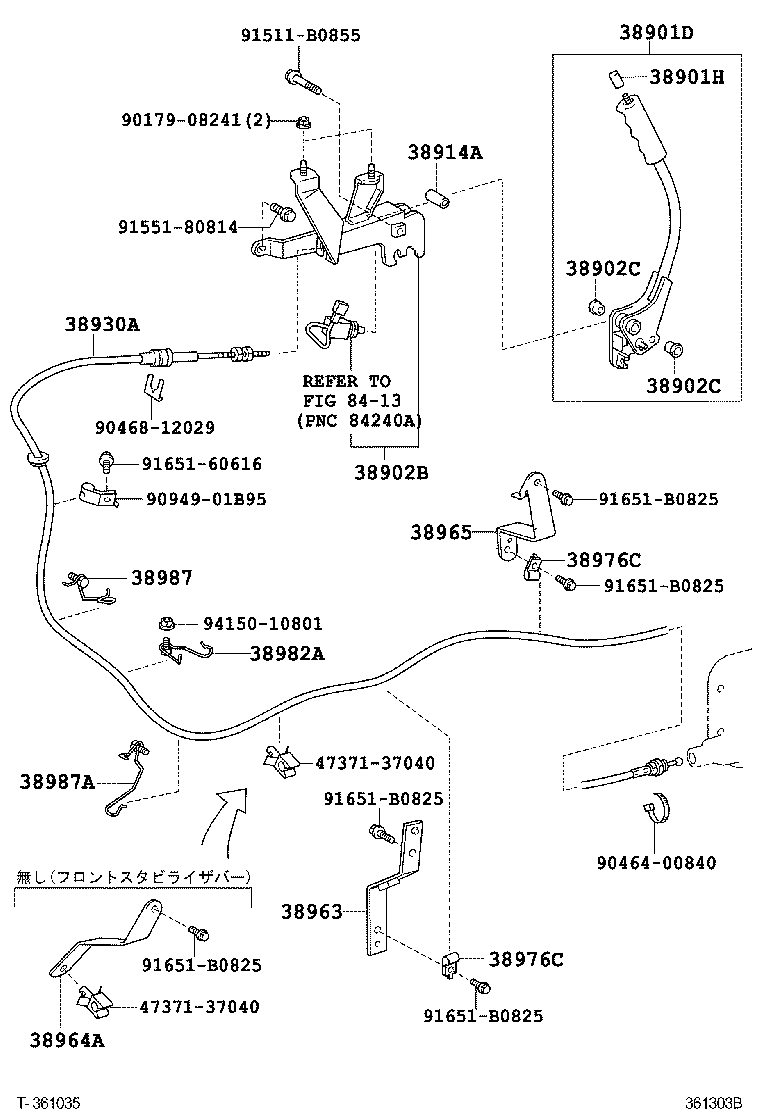

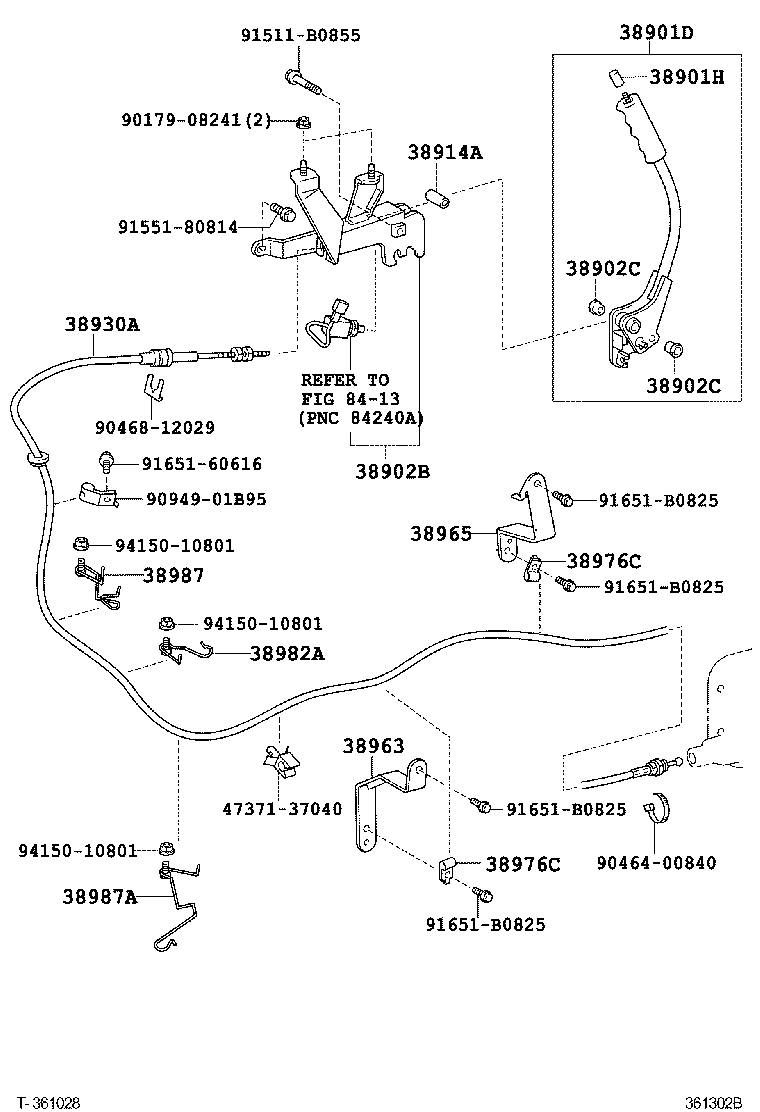

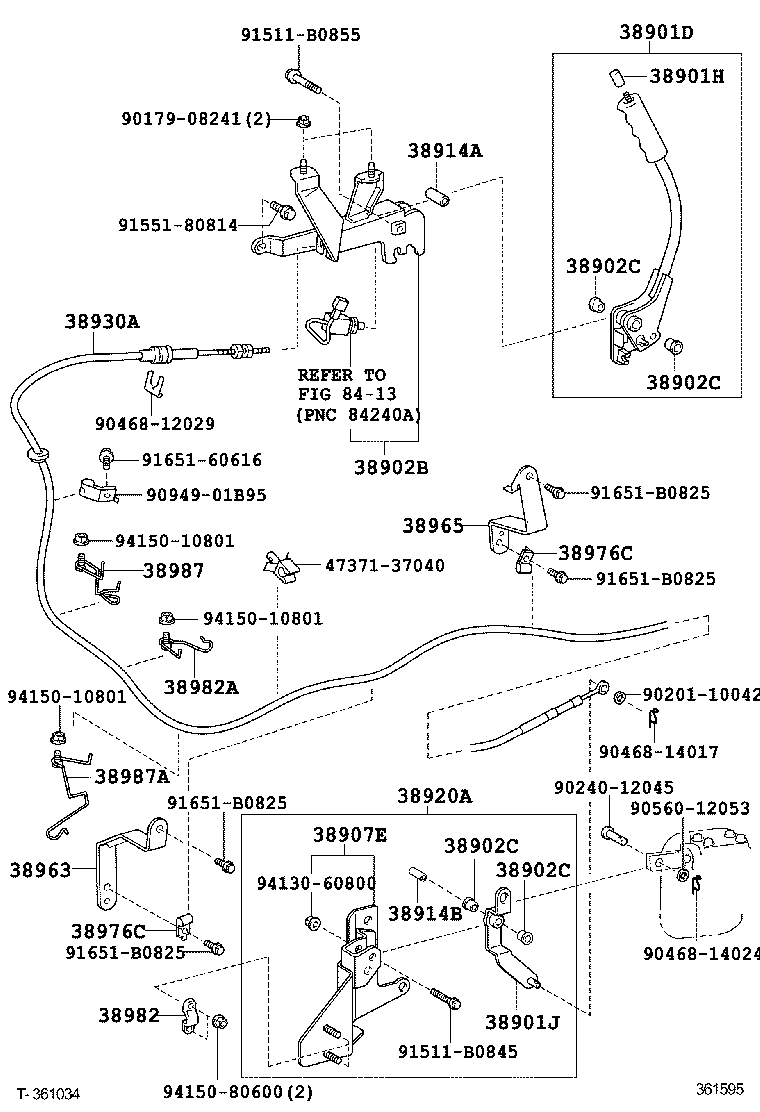

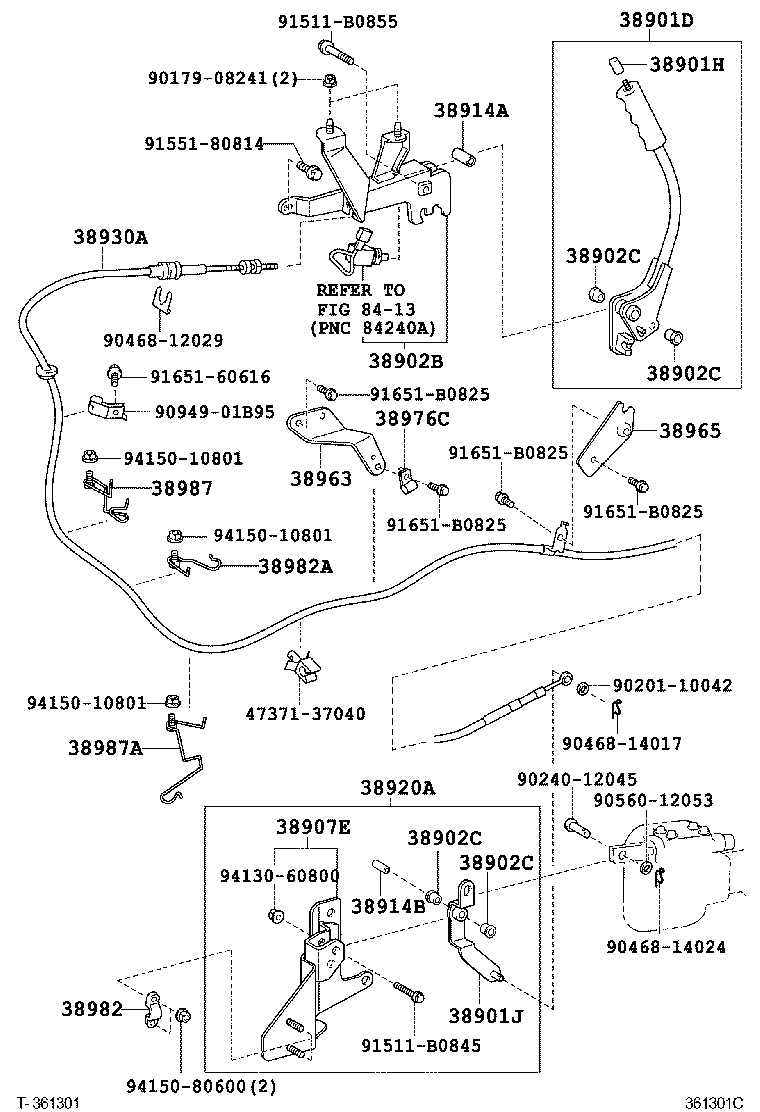

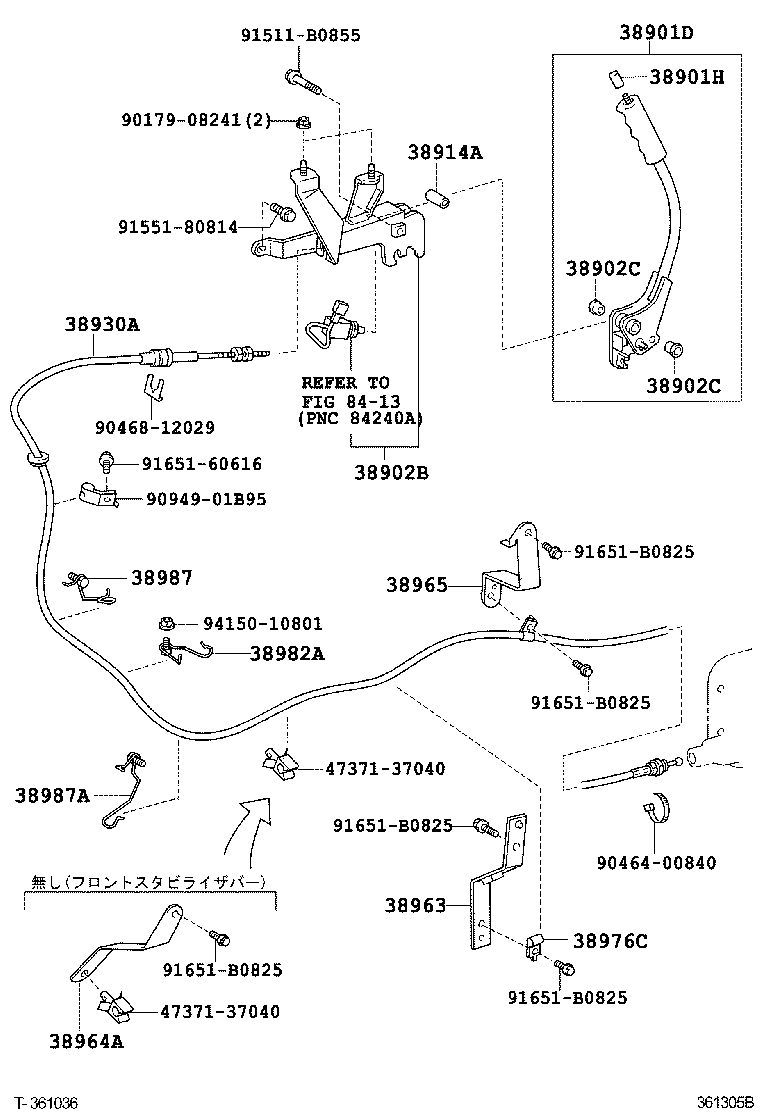

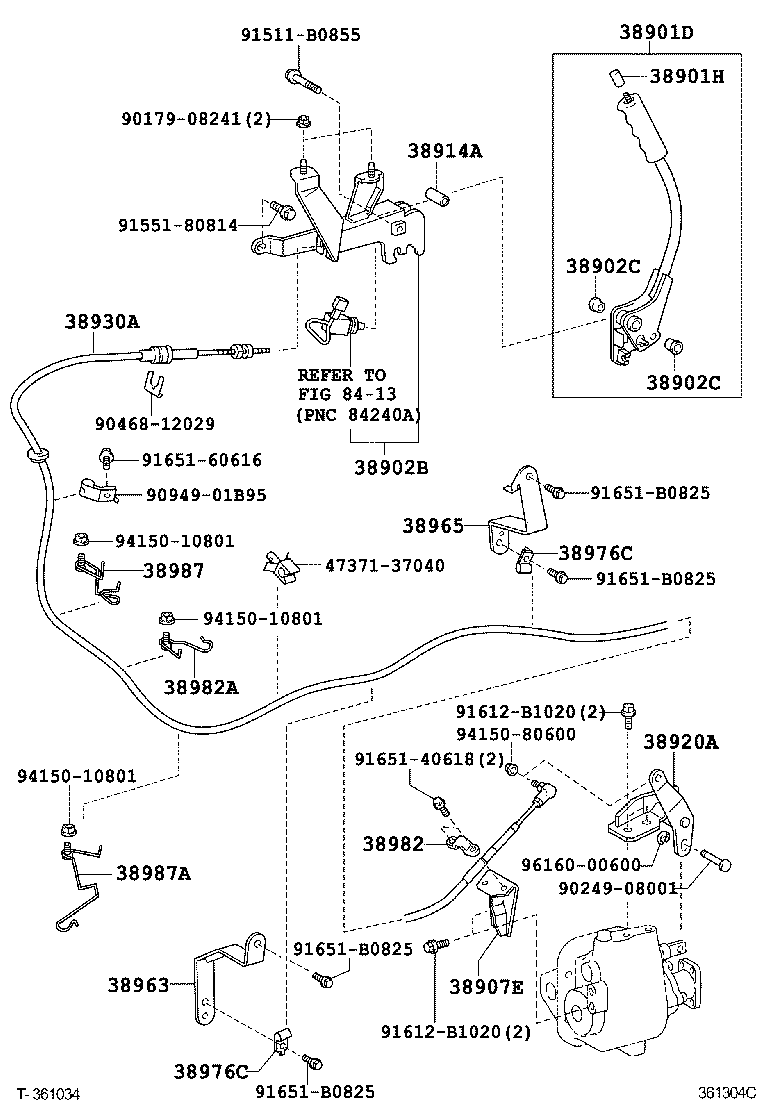

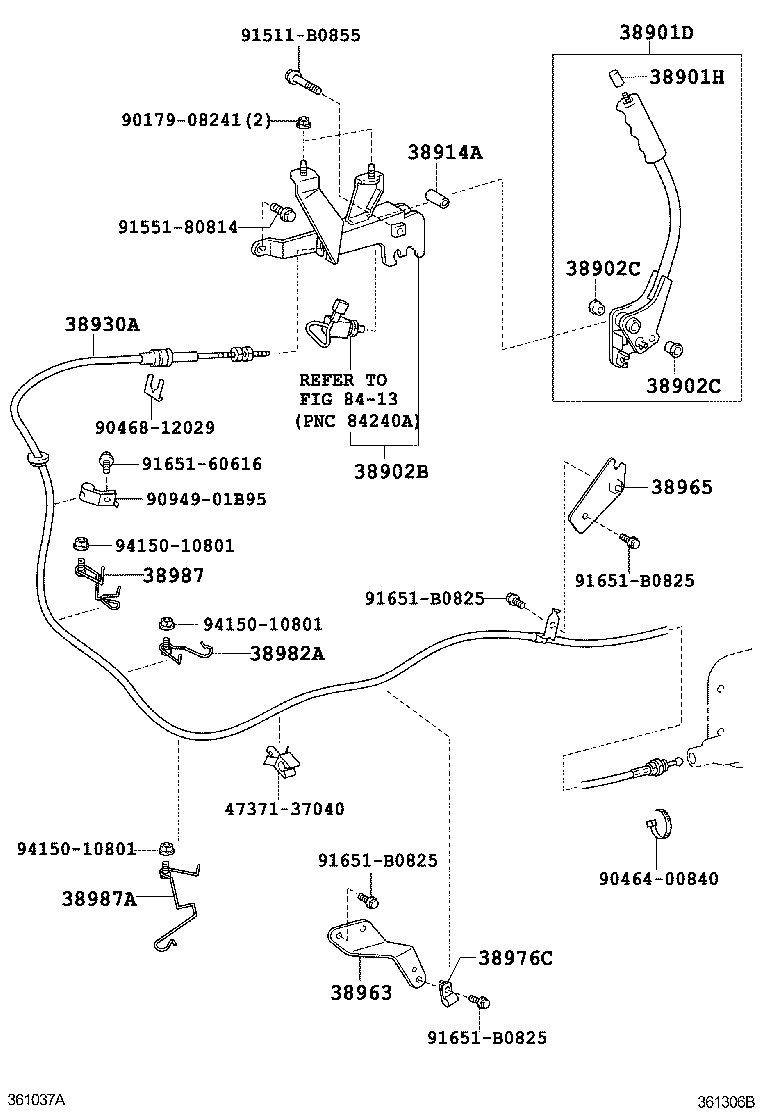

Figure 361300B 361300B 2006-10 → — Figure 361301C 361301C 2006-10 → — Figure 361301C 361301C 2009-05 → — Figure 361302B 361302B 2006-10 → — Figure 361302B 361302B 2009-05 → — Figure 361303B 361303B 2006-10 → — Figure 361304C 361304C 2006-10 → — Figure 361304C 361304C 2008-01 → — Figure 361304C 361304C 2009-05 → — Figure 361305B 361305B 2006-10 → — Figure 361306B 361306B 2006-10 → — Figure 361312B 361312B 2006-10 → — Figure 361312B 361312B 2006-10 → — Figure 361312B 361312B 2006-10 → — Figure 361312B 361312B 2006-10 → — Figure 361311B 361311B 2006-10 → — Figure 361595 361595 2010-03 → —

Part groups

PNCDescription
38901D Lever Sub-assy, Valve Control
38901H Knob, Valve Control Lever
38901J Lever Sub-assy, Valve Control
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38907E Stay Sub-assy, Power Teke-off Control
38914A Pipe, Valve Control Lever
38914B Pipe, Valve Control Lever, NO.2
38920A Lever Assy, Power Take-off Control, NO.1
38930A Cable Assy, Push Pull
38963 Bracket, Cable Clamp, NO.3
38964A Bracket, Cable Clamp, NO.4
38965 Bracket, Cable Clamp, NO.5
38976C Clamp, Push Pull Cable
38982 Clamp, Push Pull Cable, NO.1
38982A Clamp, Push Pull Cable, NO.2
38987 Clamp, Cable Push Pull
38987A Clamp, Push Pull Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
