Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

13 part groups · 7 illustrations

Illustrations

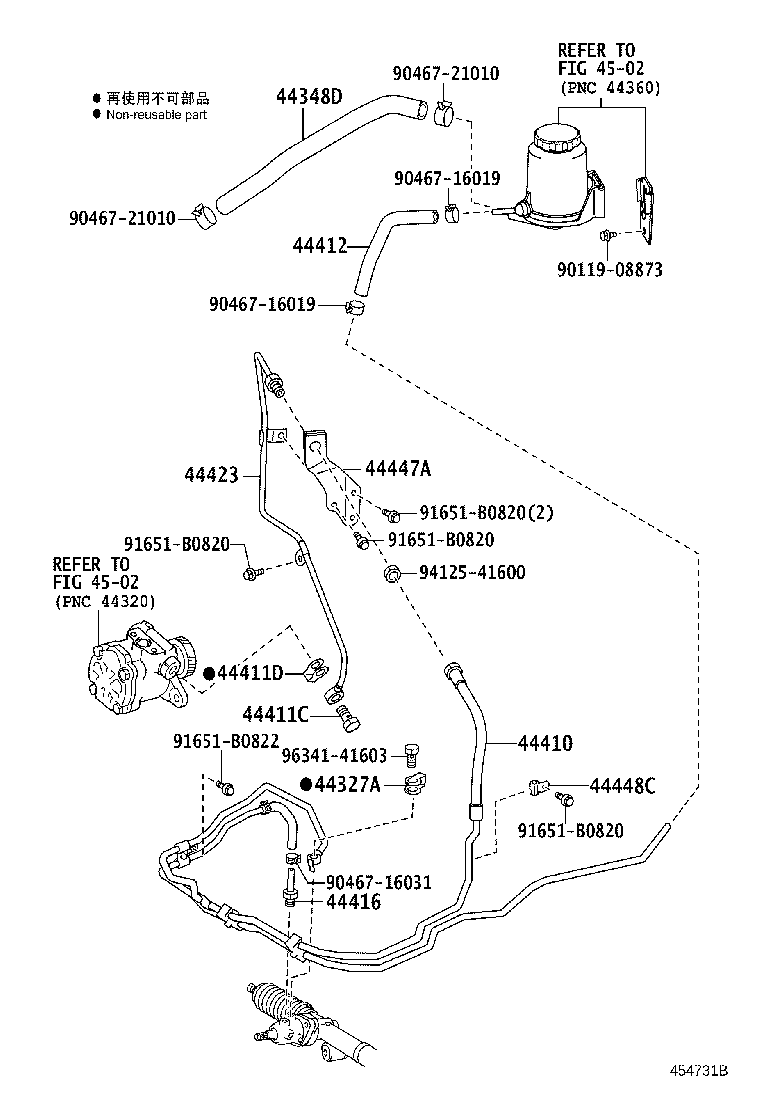

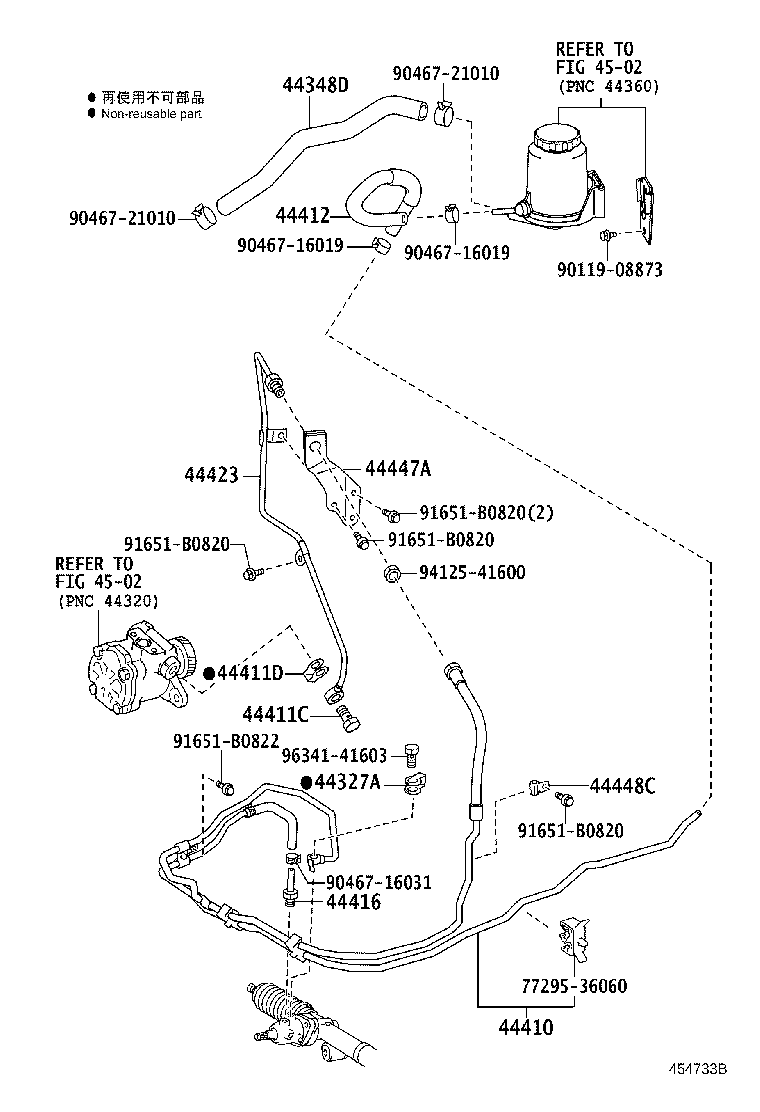

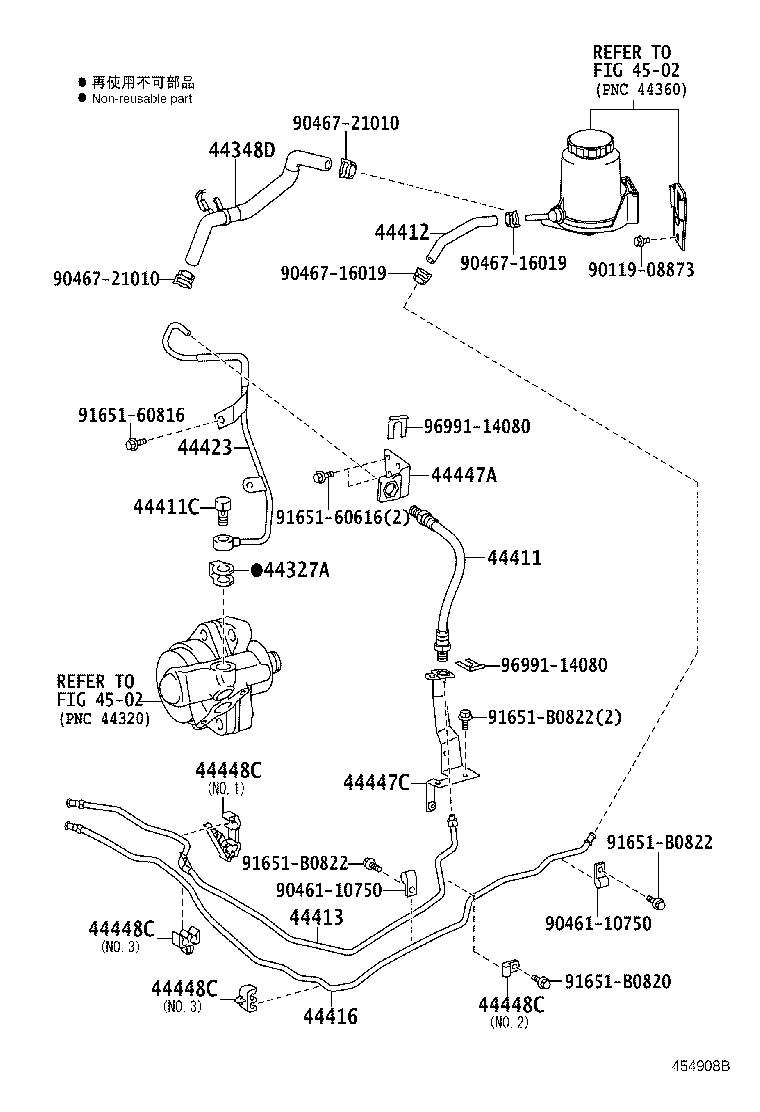

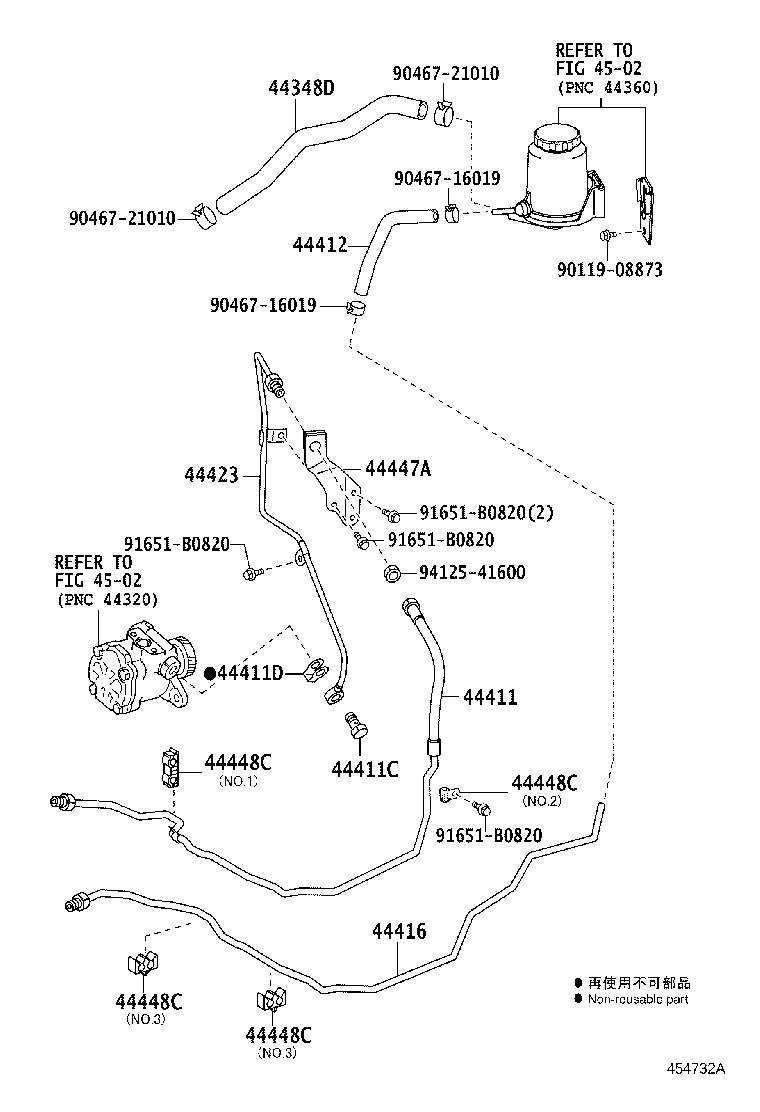

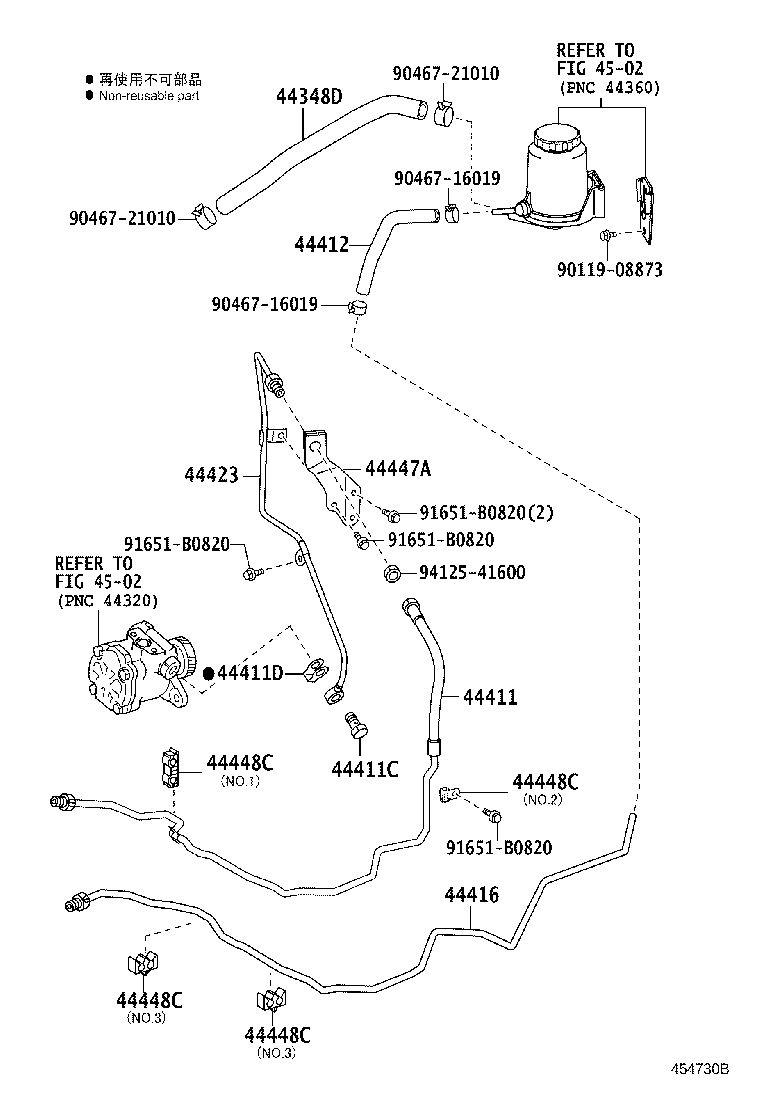

Figure 454729D 454729D 2006-10 → — Figure 454730B 454730B 2006-10 → — Figure 454731B 454731B 2006-10 → — Figure 454732B 454732B 2006-10 → — Figure 454733B 454733B 2006-10 → — Figure 454908B 454908B 2007-05 → — Figure 454909A 454909A 2007-05 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423 Tube, Oil Pump TO Gear Box
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44448C Clamp, Pressure Feed, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
