Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

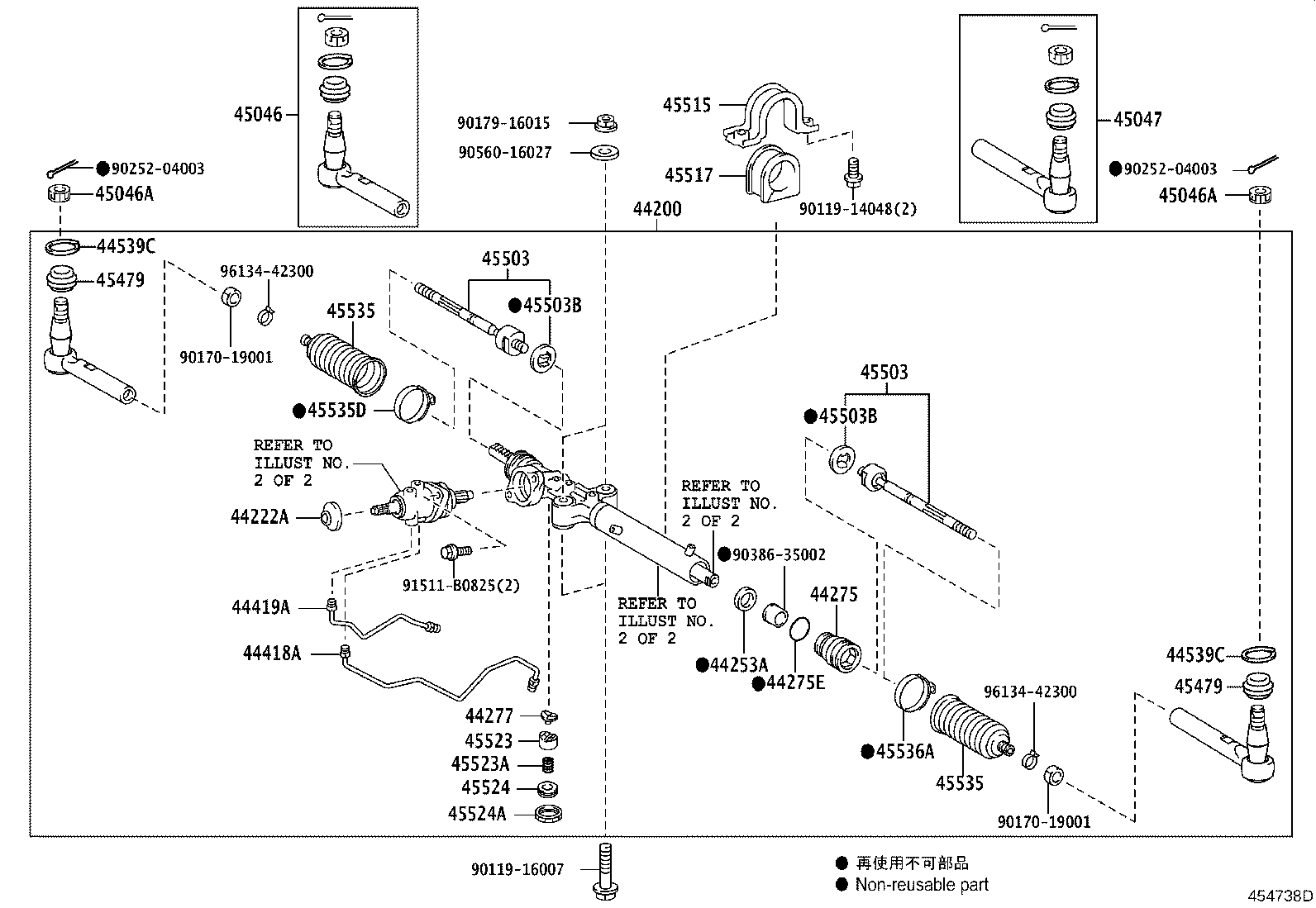

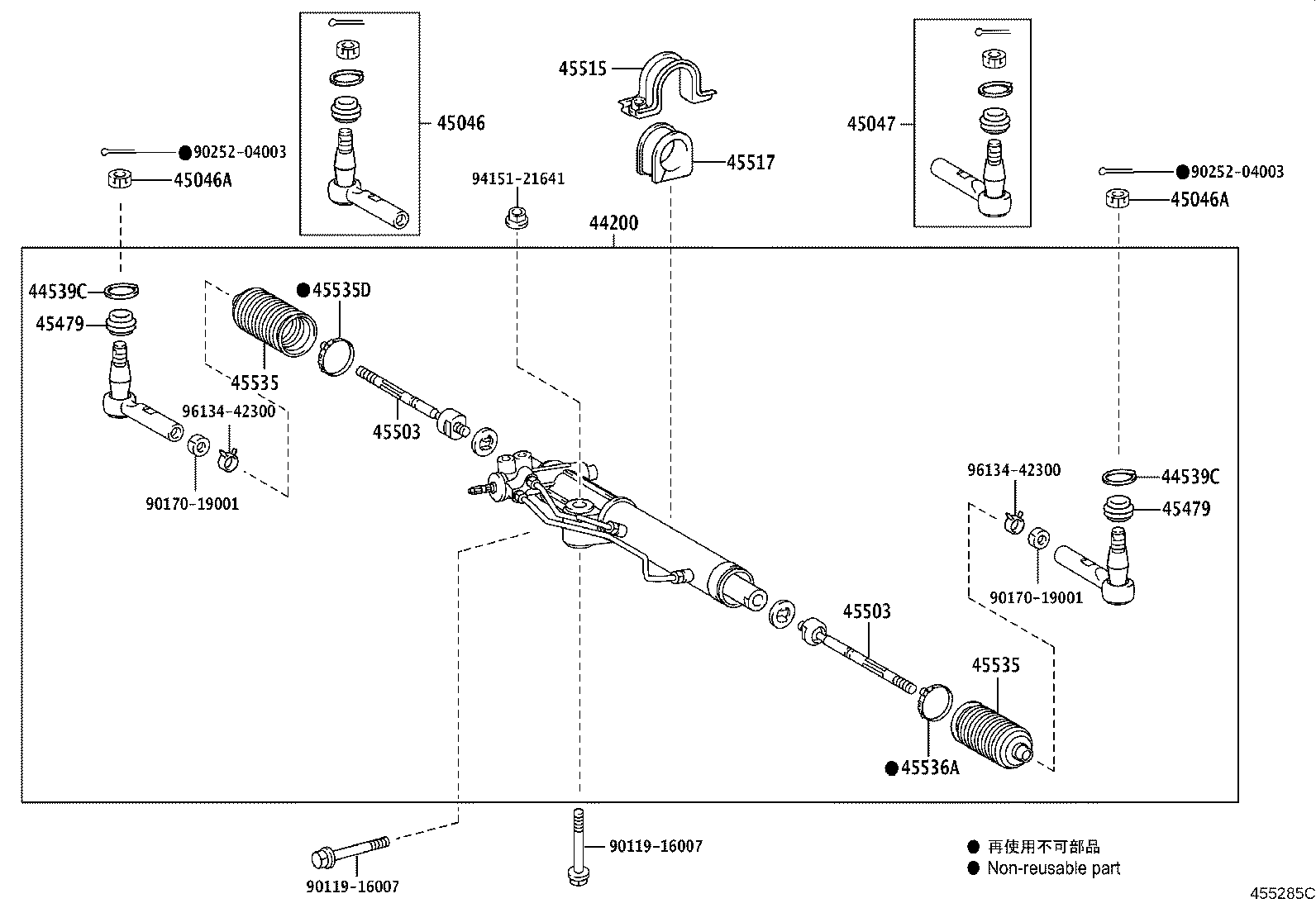

Front Steering Gear & Link
52 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44015A | Nut Sub-assy, Bearing Guide |
| 44015B | Ring, O(FOR BEARING GUIDE NUT) |
| 44015C | Seal, Oil(FOR BEARING GUIDE NUT) |
| 44110 | Gear Assy, Power Steering |
| 44200 | Link Assy, Power Steering |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201C | Ring(FOR POWER STEERING CONTROL VALVE) |
| 44201P | Bearing(FOR POWER STEERING CONTROL VALVE LOWER) |
| 44203 | Housing Sub-assy, Power Steering Rack |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44210 | Valve Assy, Power Steering Control |
| 44210B | Seat, Union(FOR POWER STEERING CONTROL VALVE) |
| 44210C | Ring, O(FOR POWER STEERING CONTROL VALVE) |
| 44210E | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44210F | Bearing(FOR POWER STEERING CONTROL VALVE) |
| 44211 | Housing, Control Valve |
| 44222A | Cover, Dust(FOR POWER STEERING GEAR) |
| 44253A | Seal, Oil(FOR POWER STEERING RACK HOUSING) |
| 44253R | Spacer(FOR POWER STEERING RACK HOUSING) |
| 44275 | Stopper, Cylinder End |
| 44275E | Ring, O(FOR RACK END GUIDE) |
| 44277 | Seat, Rack Guide |
| 44418A | Tube, Steering Right Turn Pressure |
| 44419A | Tube, Steering Left Turn Pressure |
| 44539C | Ring, Set(FOR POWER STEERING RACK END DUST SEAL) |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45411 | Arm, Pitman |
| 45440 | Link Assy, Steering Drag |
| 45440B | Nut, Castle(FOR STEERING DRAG LINK) |
| 45440D | Ring, Set(FOR STEERING DRAG LINK) |
| 45447 | Seal, Drag Link Dust |
| 45460A | Rod Assy, Tie |
| 45461 | Rod, Steering Tie |
| 45479 | Seal, Steering Link Joint Dust |
| 45503 | End Sub-assy, Steering Rack |
| 45503B | Washer, Claw(FOR STEERING RACK END) |
| 45515 | Bracket, Steering Rack Housing, NO.2 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45523 | Guide, Rack(FOR STEERING GEAR) |
| 45523A | Spring(FOR STEERING GEAR RACK GUIDE) |
| 45524 | Cap, Steering Rack Guide Spring |
| 45524A | Nut(FOR STEERING RACK GUIDE SPRING CAP) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
| 45611 | Arm, Steering Knuckle, RH |
| 45611D | Nut(FOR STEERING KNUCKLE ARM) |
| 45611E | Key, Woodruff(FOR STEERING IDLER ARM) |
| 45612 | Arm, Steering Knuckle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
