Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

48 part groups · 37 illustrations

Illustrations

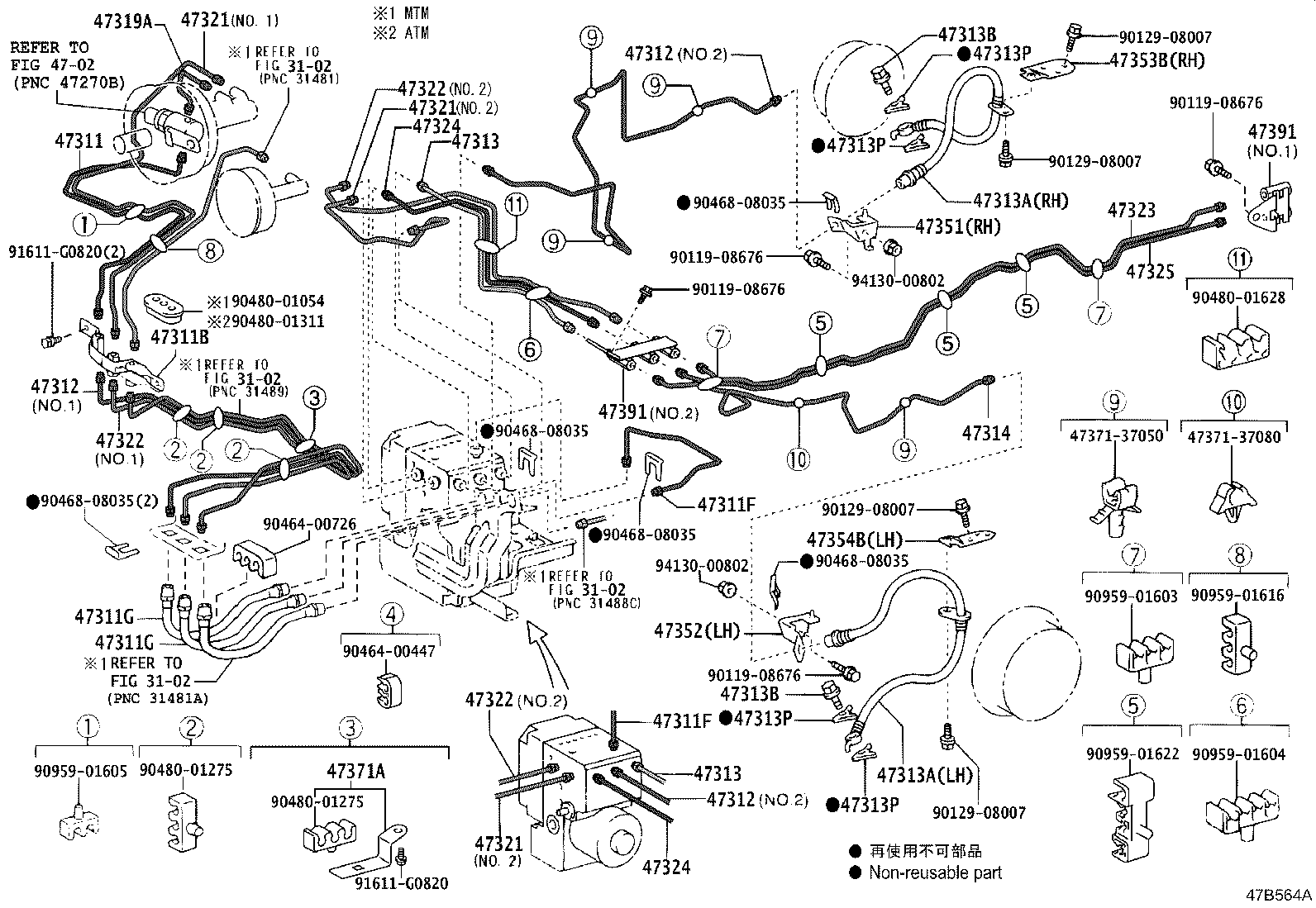

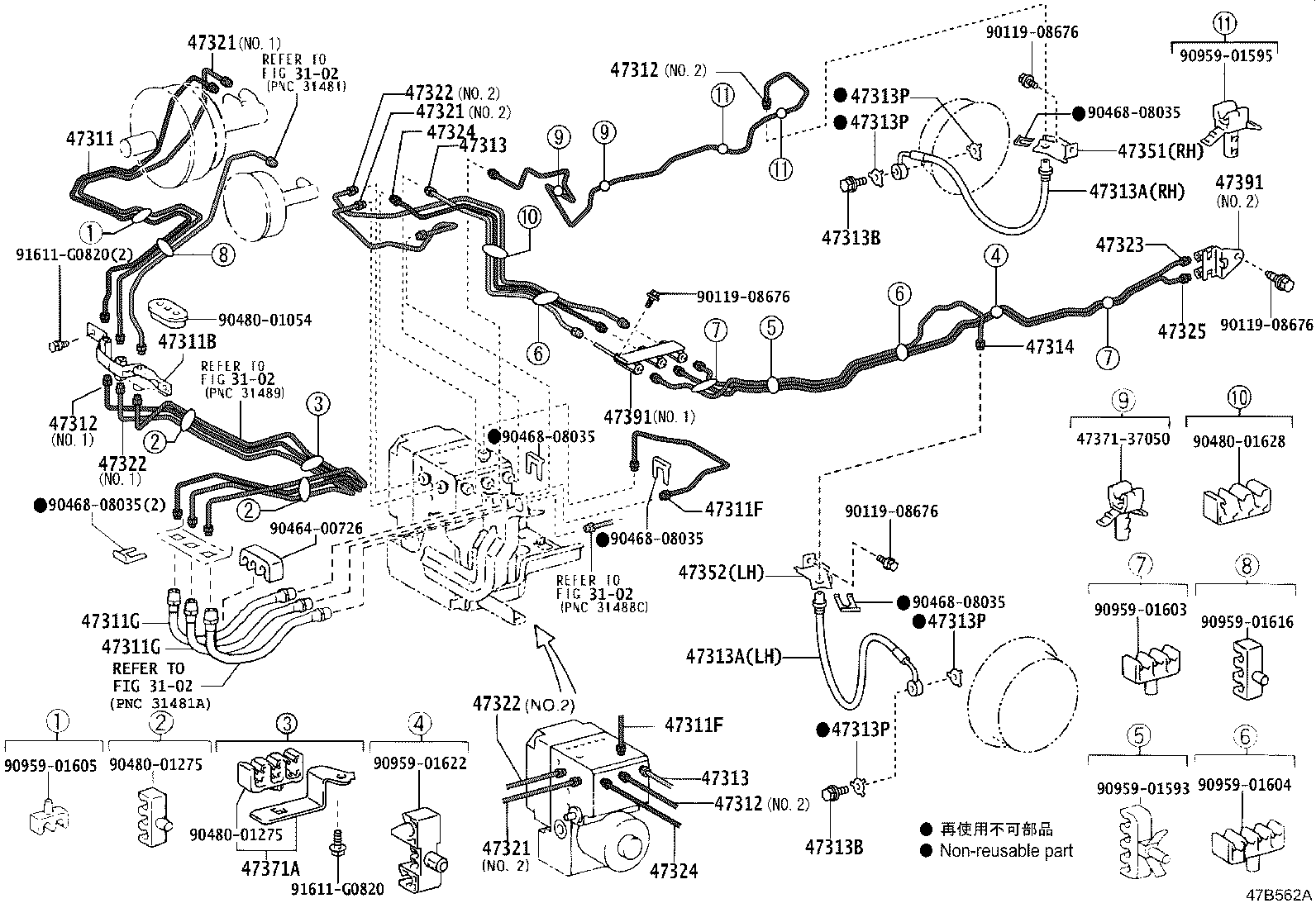

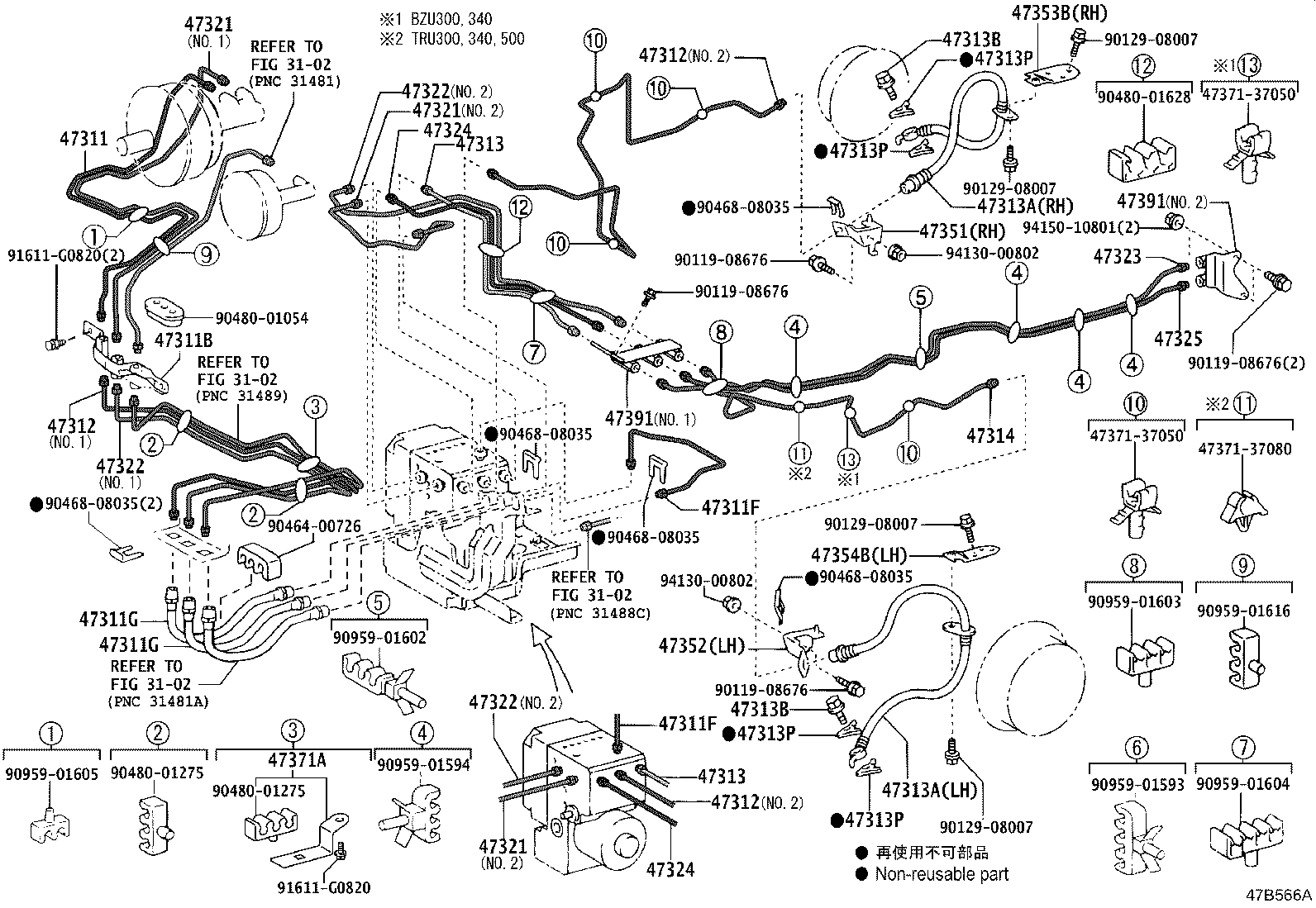

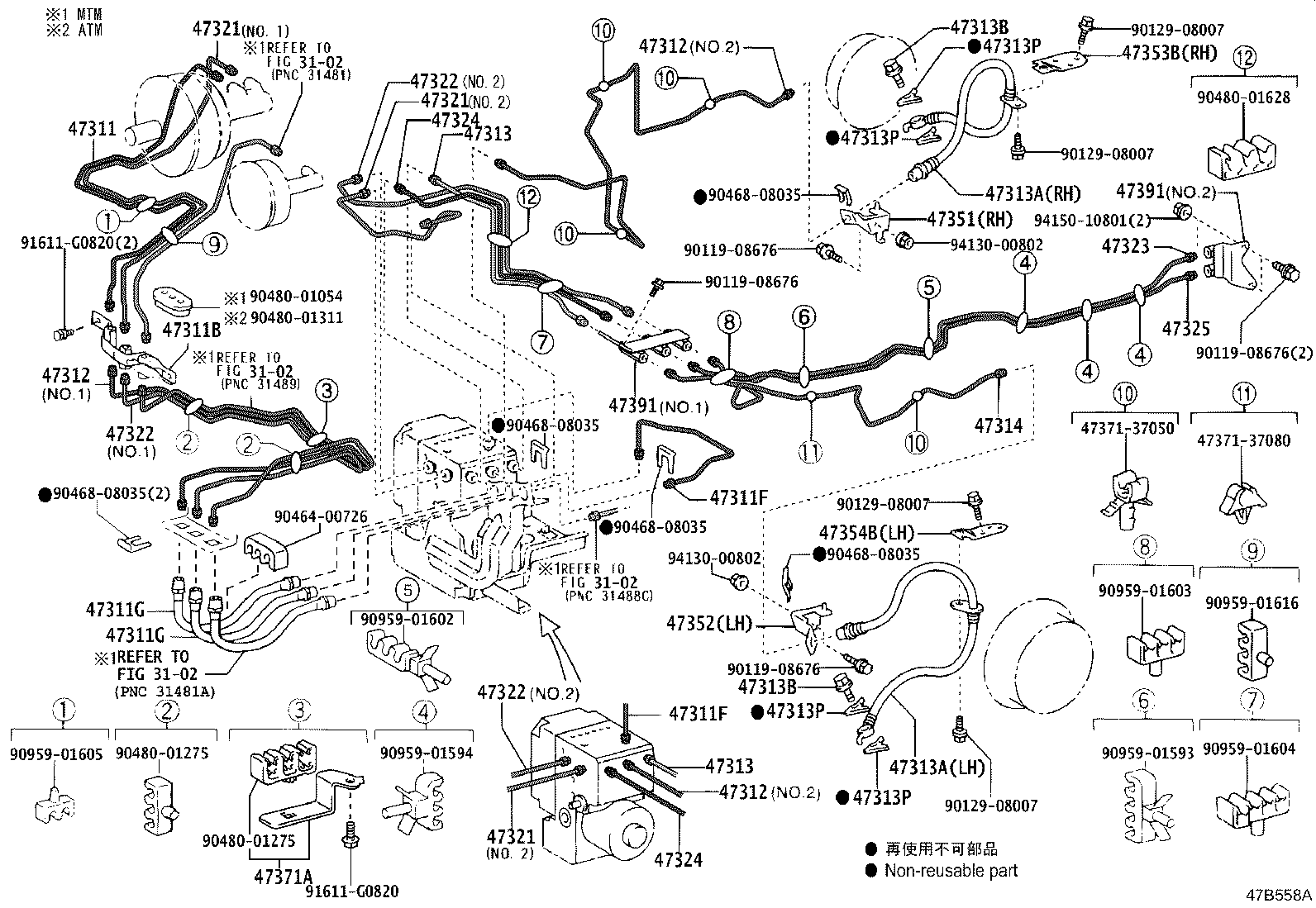

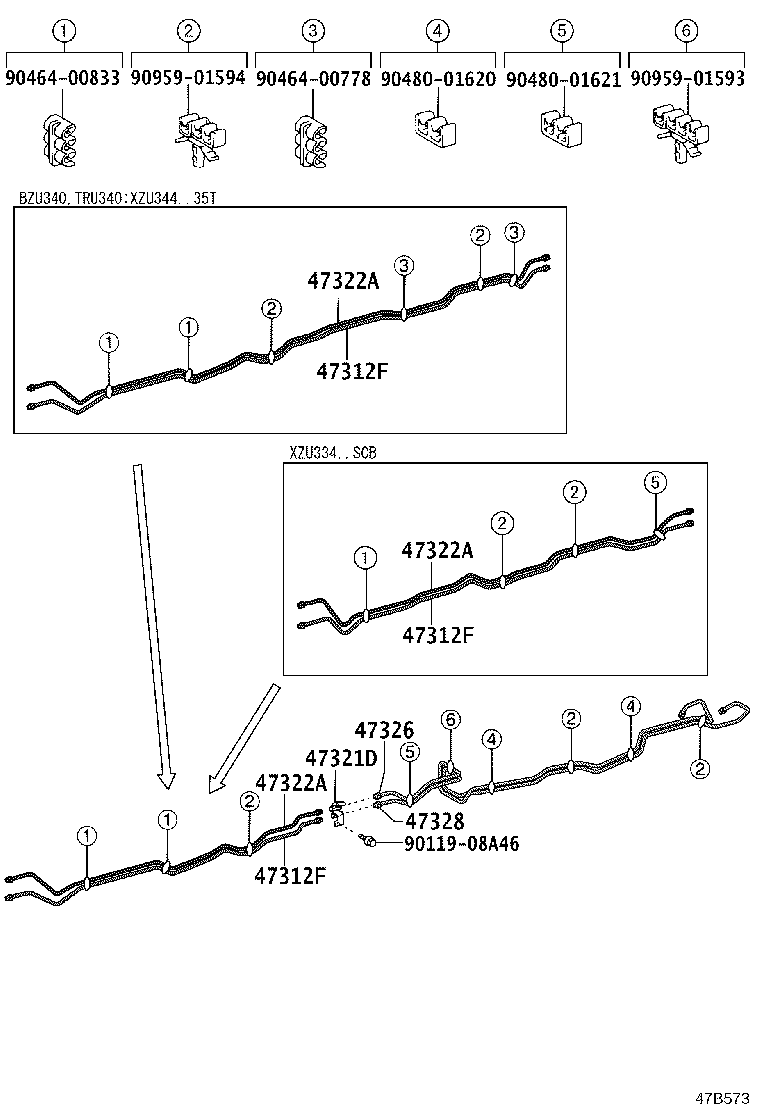

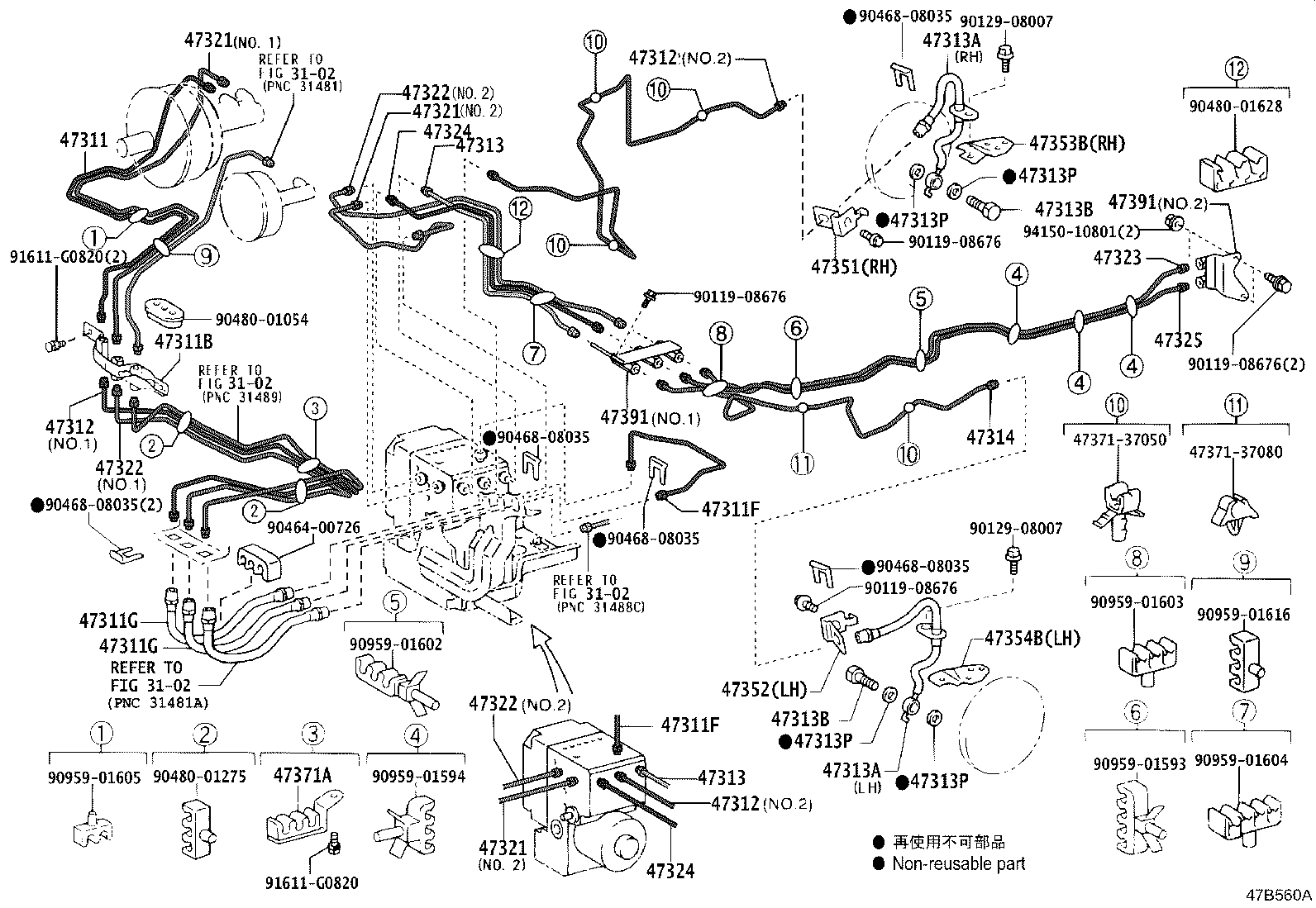

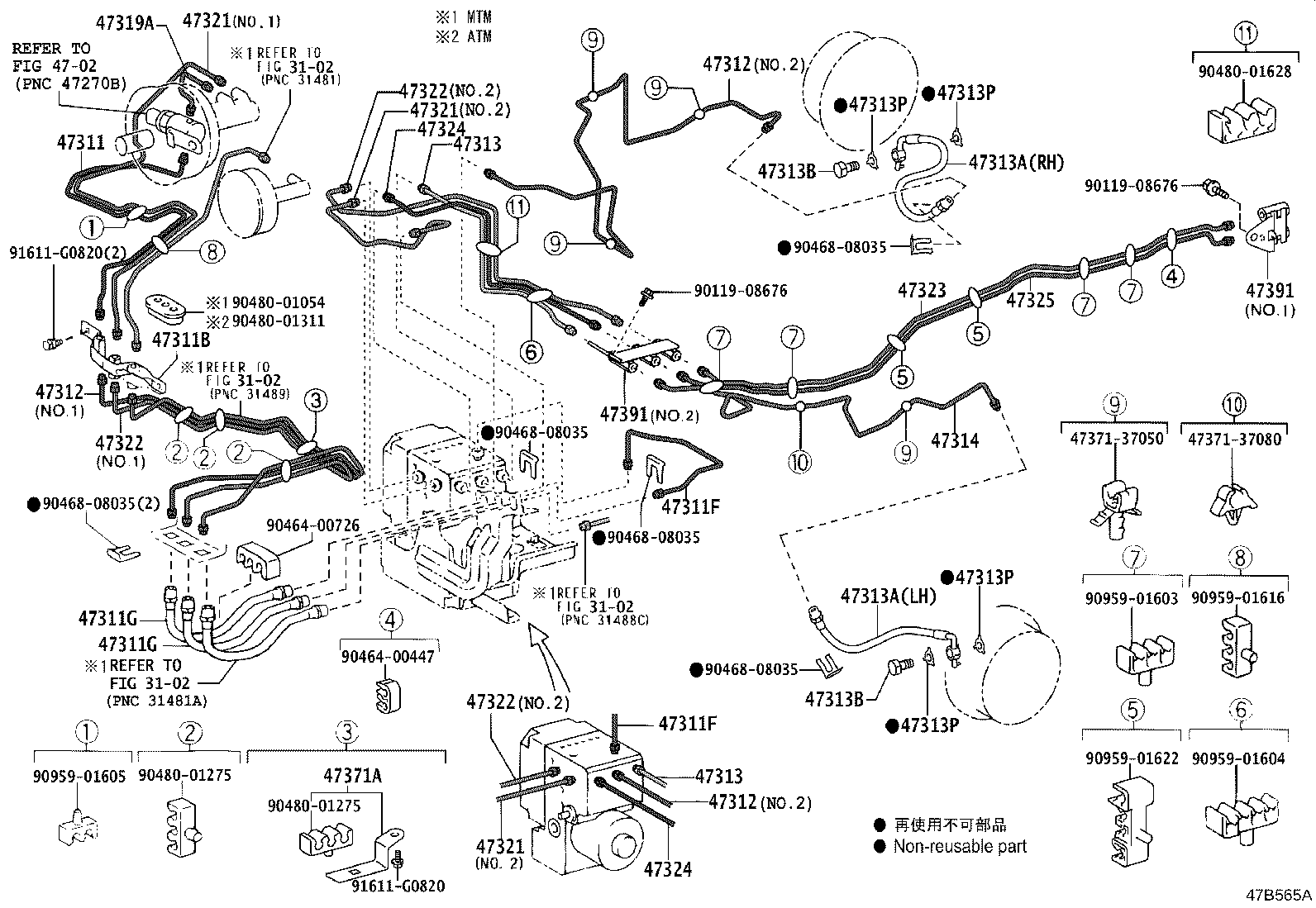

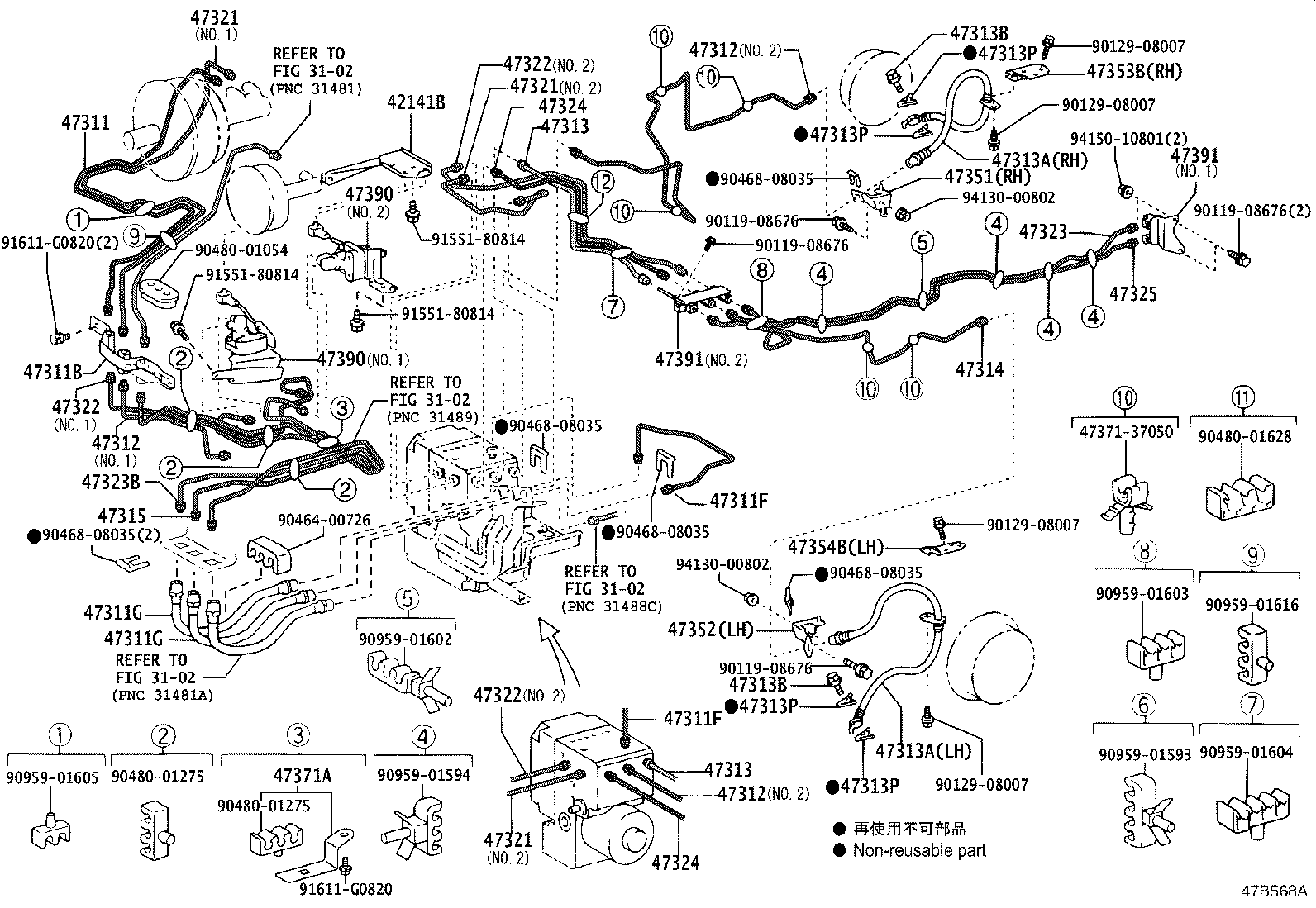

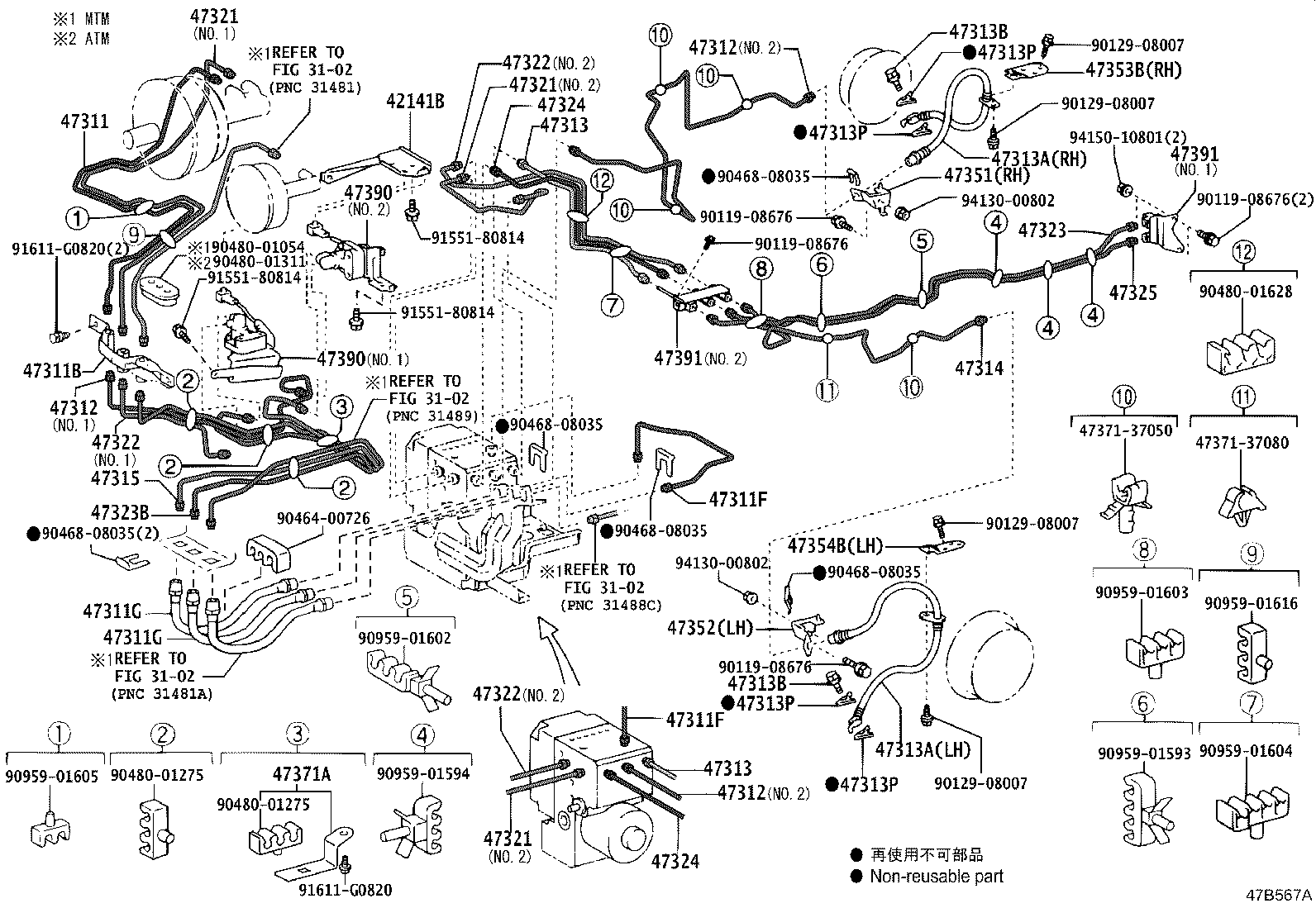

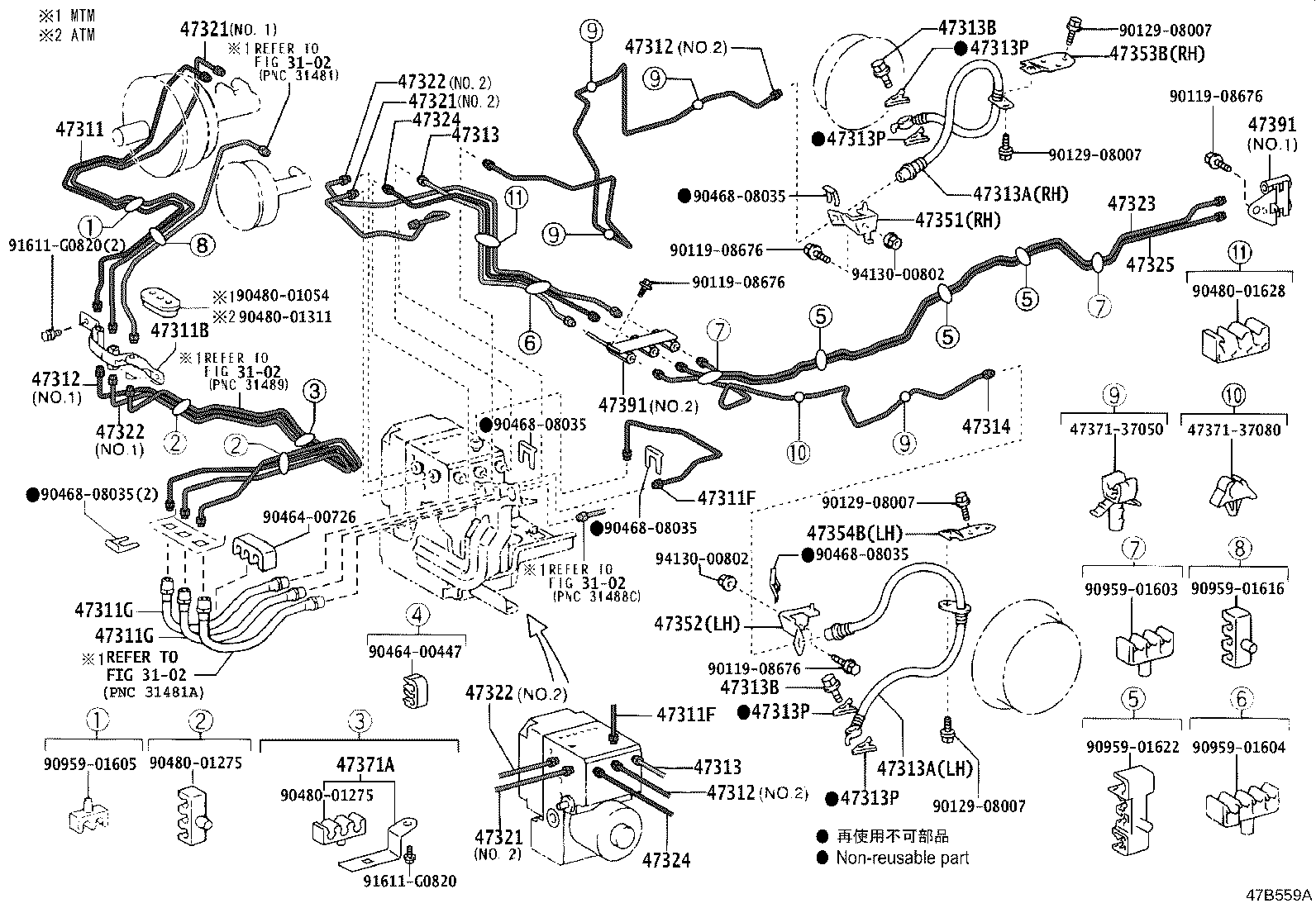

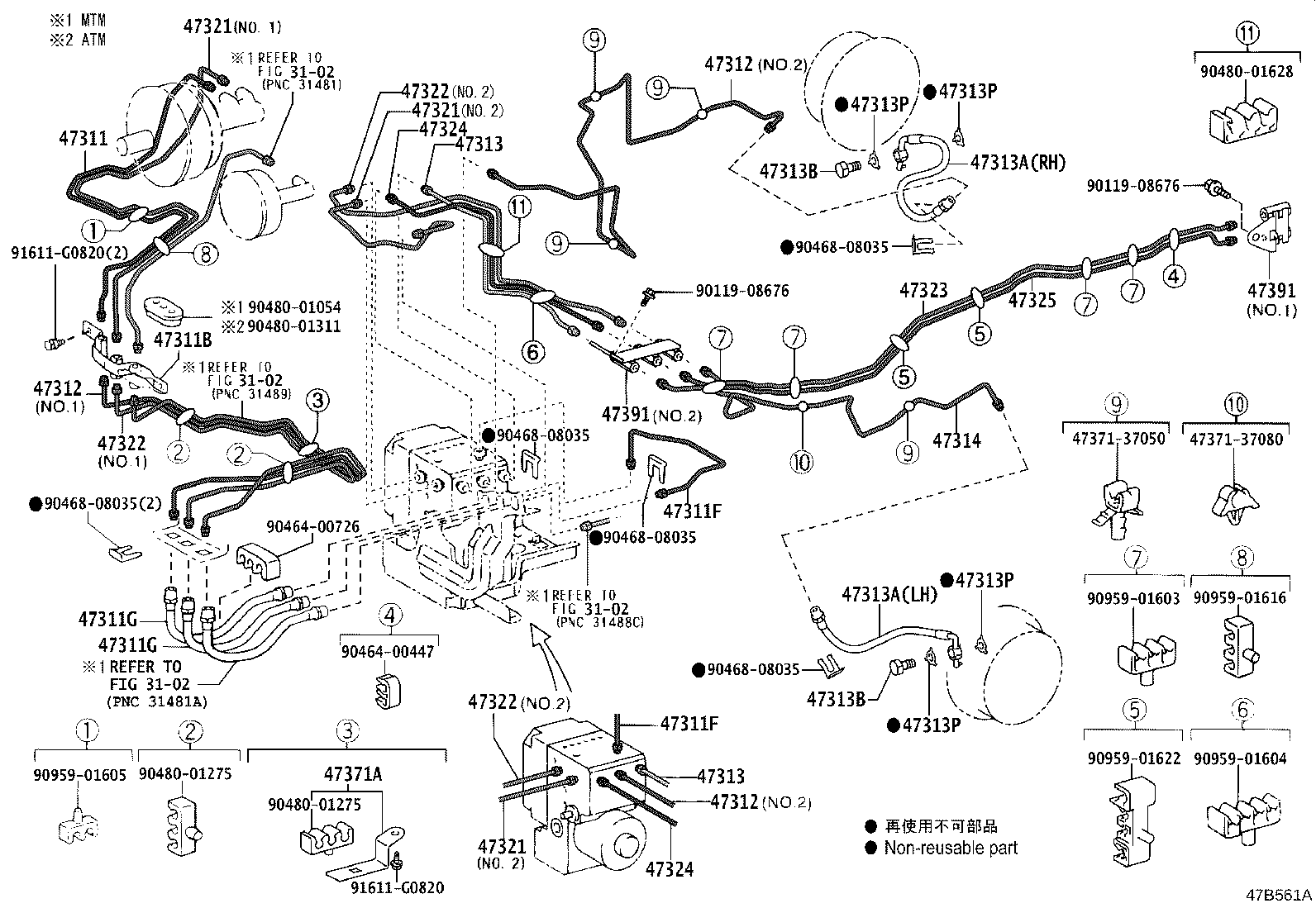

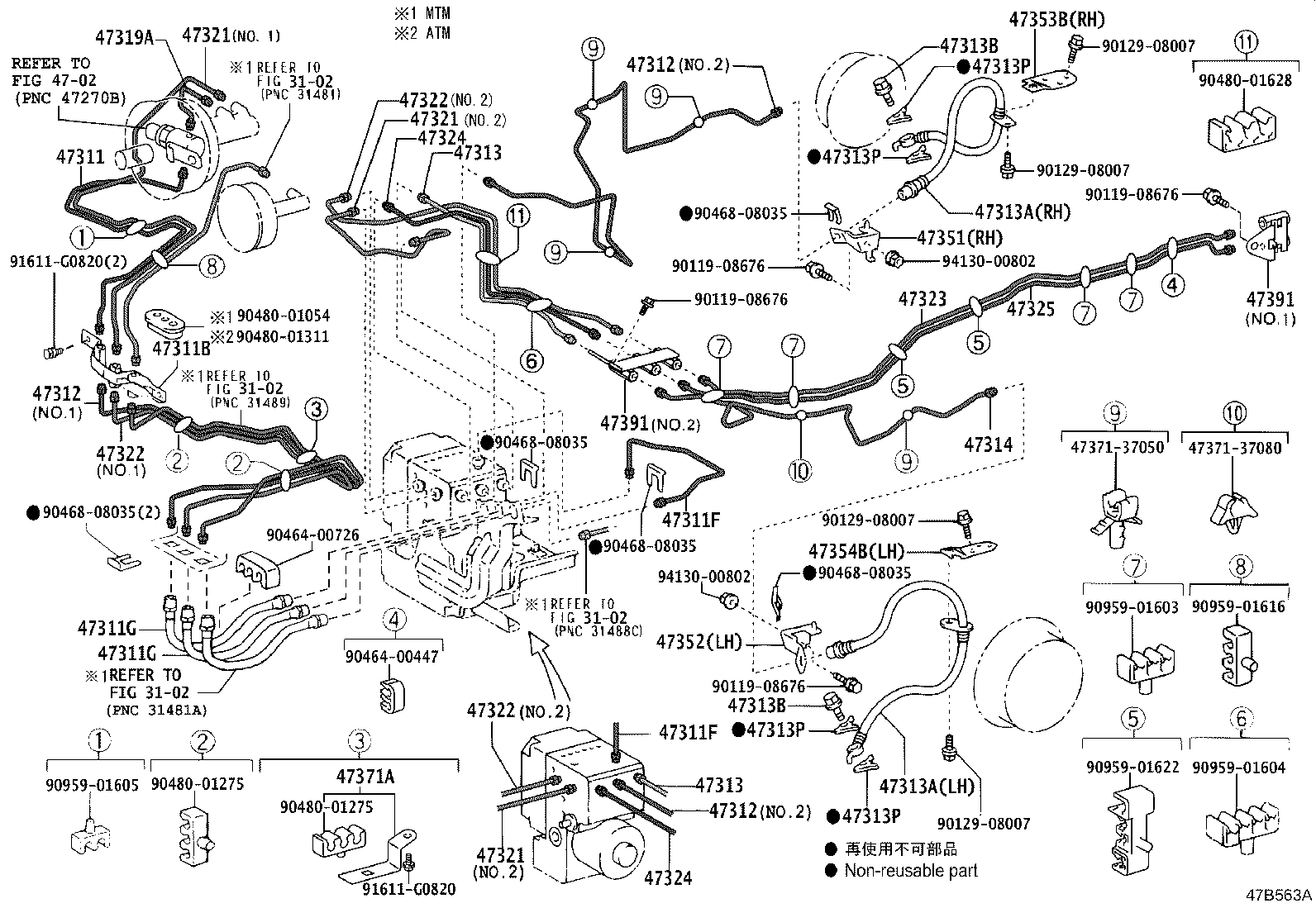

Figure 47B557A 47B557A 2006-10 → — Figure 47B558A 47B558A 2006-10 → — Figure 47B558A 47B558A 2006-10 → — Figure 47B559A 47B559A 2006-10 → — Figure 47B560A 47B560A 2006-10 → — Figure 47B561A 47B561A 2006-10 → — Figure 47B562A 47B562A 2006-10 → — Figure 47B563A 47B563A 2006-10 → — Figure 47B564A 47B564A 2006-10 → — Figure 47B565A 47B565A 2006-10 → — Figure 47B566A 47B566A 2007-05 → — Figure 47B567A 47B567A 2006-10 → — Figure 47B568A 47B568A 2007-05 → — Figure 47B569 47B569 2006-10 → — Figure 47B570 47B570 2006-10 → — Figure 47B571B 47B571B 2006-10 → — Figure 47B572 47B572 2006-10 → — Figure 47B573 47B573 2006-10 → — Figure 47B573 47B573 2006-10 → — Figure 47B574 47B574 2006-10 → — Figure 47B575 47B575 2006-10 → — Figure 47B576 47B576 2006-10 → — Figure 47B577 47B577 2006-10 → — Figure 47B578 47B578 2006-10 → — Figure 47B579 47B579 2006-10 → — Figure 47B580A 47B580A 2006-10 → — Figure 47B581A 47B581A 2006-10 → — Figure 47B582A 47B582A 2006-10 → — Figure 47B583A 47B583A 2006-10 → — Figure 47B584A 47B584A 2006-10 → — Figure 47B584A 47B584A 2006-10 → — Figure 47B585A 47B585A 2006-10 → — Figure 47B586A 47B586A 2006-10 → — Figure 47B587A 47B587A 2006-10 → — Figure 47B587A 47B587A 2006-10 → — Figure 47B588C 47B588C 2006-10 → — Figure 475625A 475625A 2006-10 → —

Part groups

PNCDescription
42141B Attachment, Skid Control Wire, NO.1
44540 Actuator Assy, Abs & Traction
44590 Bracket Assy, Brake Actuator
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311F Tube, Front Brake, Frame NO.1
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312F Tube, Front Brake, Frame, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319A Tube, Front Brake, NO.10
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322A Tube, Rear Brake, Frame NO.2
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47323B Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47381 Bracket, Brake Tube Clamp NO.1
47390 Valve Assy, Hill Holder Brake Lock
47391 Way, Brake Tube
