Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

10 part groups · 10 illustrations

Illustrations

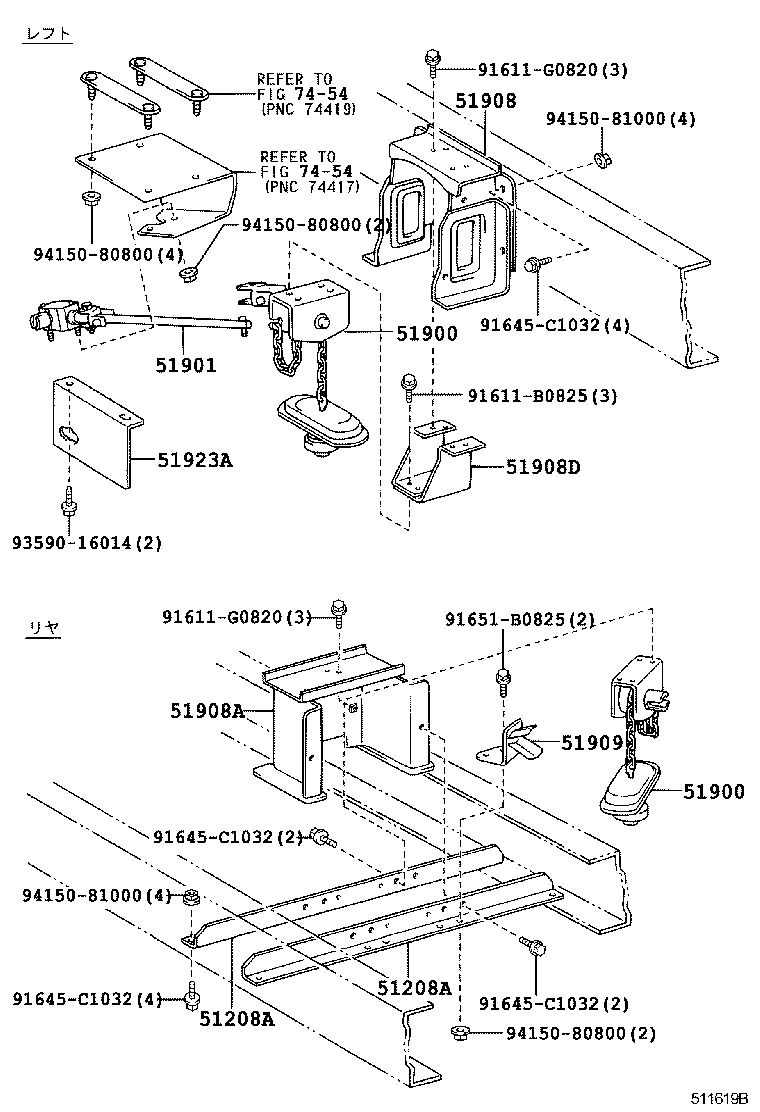

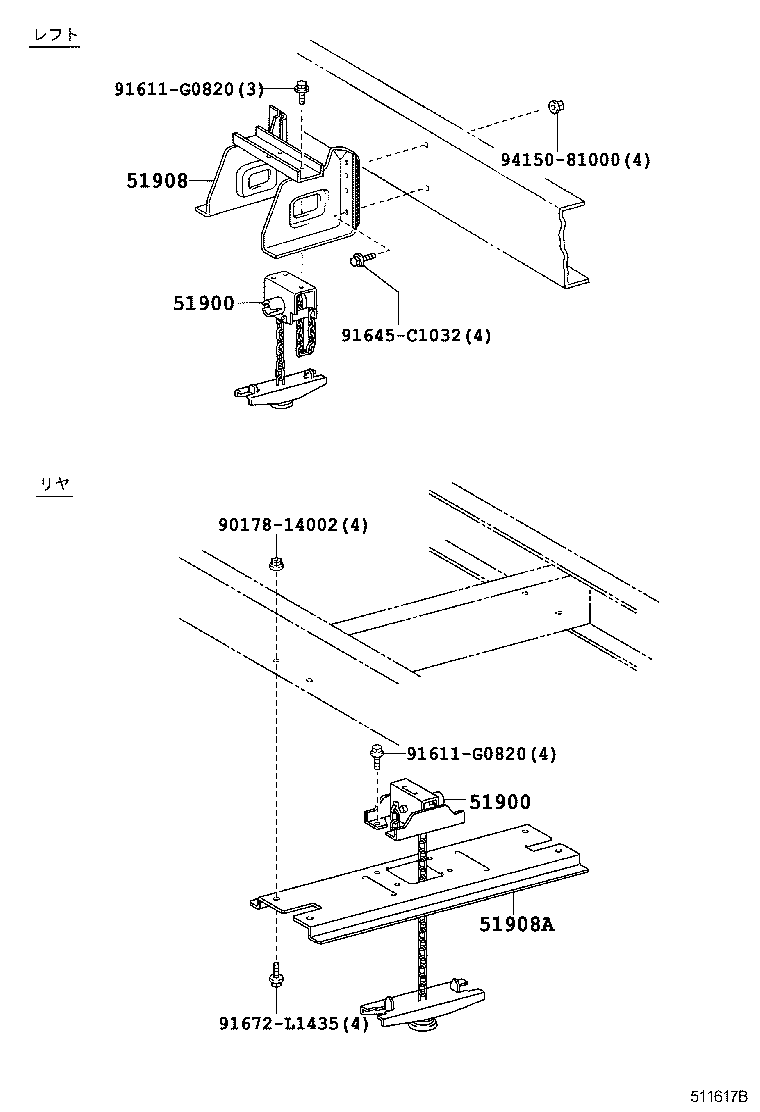

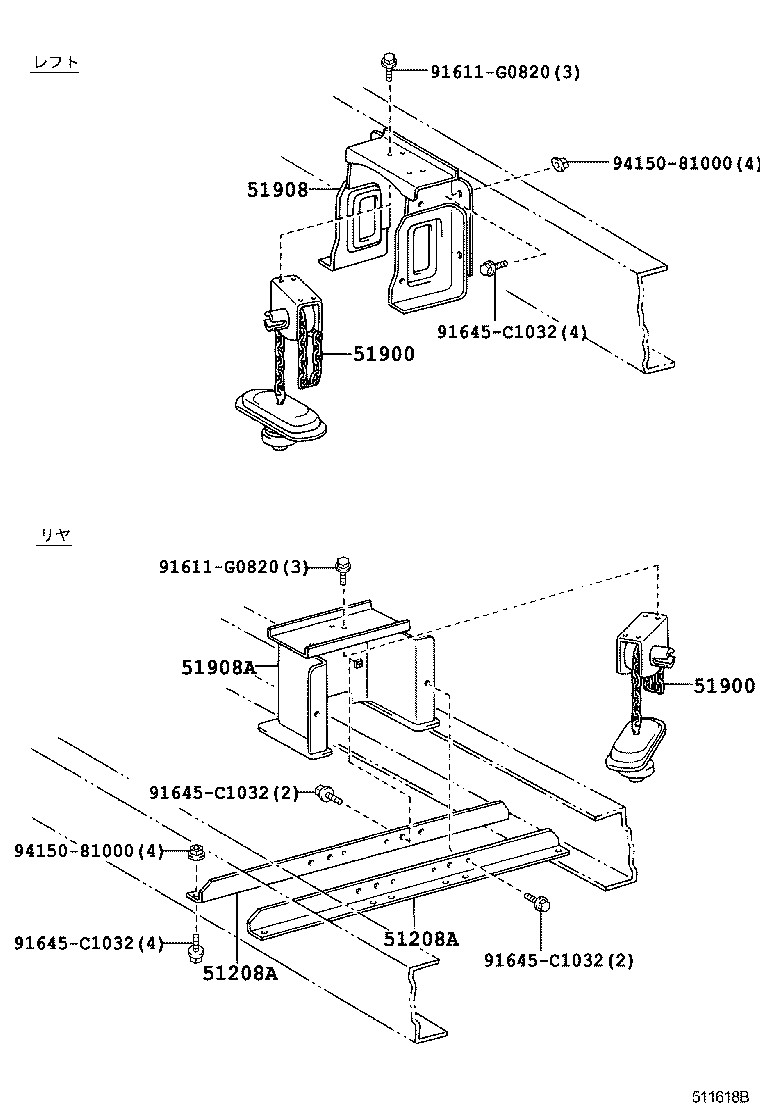

Figure 511620 511620 2006-10 → — Figure 511620 511620 2006-10 → — Figure 511620 511620 2006-10 → — Figure 511619B 511619B 2006-10 → — Figure 511618B 511618B 2006-10 → — Figure 511617B 511617B 2006-10 → — Figure 511616A 511616A 2006-10 → — Figure 511615A 511615A 2006-10 → — Figure 511615A 511615A 2006-10 → — Figure 511614D 511614D 2006-10 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51901 Rod Sub-assy, Spare Wheel Carrier
51907E Retainer Sub-assy, Spare Tire Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51908A Bracket Sub-assy, Spare Wheel Mounting
51908D Bracket Sub-assy, Spare Wheel Carrier, RH
51909 Hinge Sub-assy, Spare Wheel Carrier
51919B Spacer, Spare Wheel Carrier
51923A Guide, Spare Whell Carrier Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
