Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 3 illustrations

Illustrations

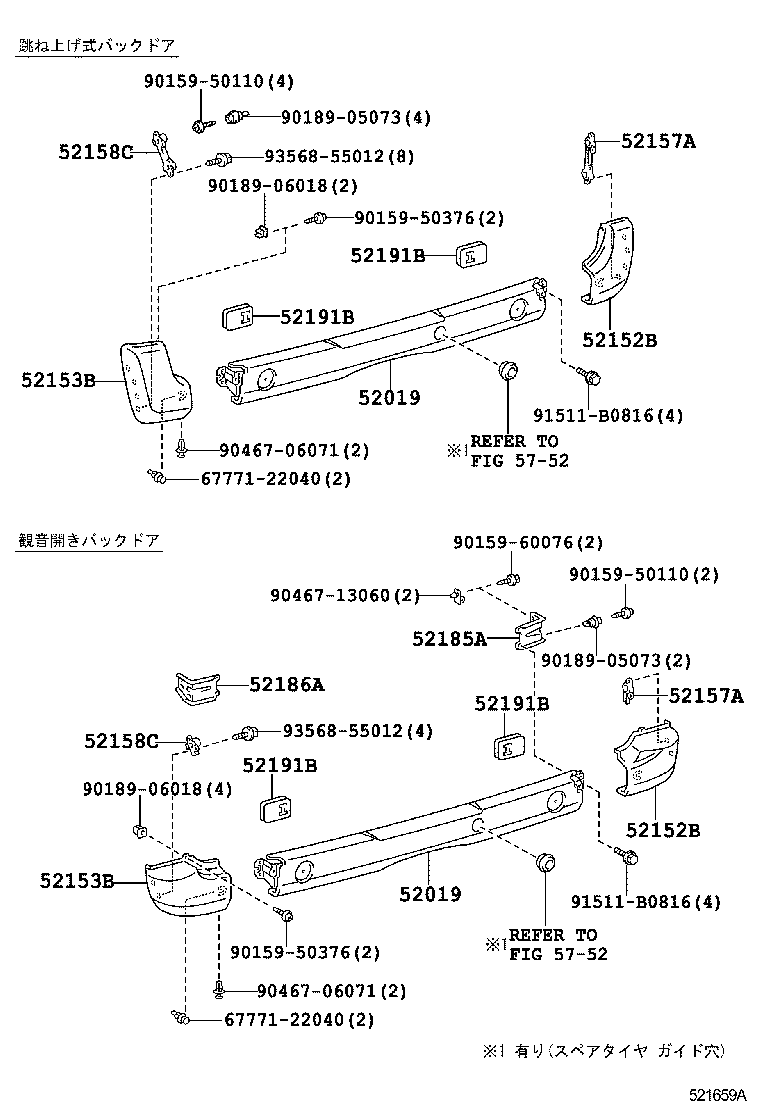

Figure 521893D 521893D 2006-10 → — Figure 521365C 521365C 2006-10 → — Figure 521659A 521659A 2006-10 → —

Part groups

PNCDescription
52019 Bar Sub-assy, Rear Bumper
52087 Stay Sub-assy, Rear Bumper Side, RH
52088 Stay Sub-assy, Rear Bumper Side, LH
52151E Bar, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52157A Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52185A Bracket, Rear Bumper Side, RH
52186A Bracket, Rear Bumper Side, LH
52189A Protector, Rear Bumper Arm Edge, RH
52189G Protector, Rear Bumper Arm Edge, LH
52191B Grommet, Rear Bumper Stay
52561A Clip(FOR REAR BUMPER RETAINER)
65267B Bracket Sub-assy, Tail Gate Bumper Stop, RH
65268B Bracket Sub-assy, Tail Gate Bumper Stop, LH
66321H Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
