Factory parts data · Europe

Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Bumper & Bumper Stay

3 part groups · 3 illustrations

Illustrations

Figure 521748B

521748B 2006-10 → —

521791 2006-10 → —

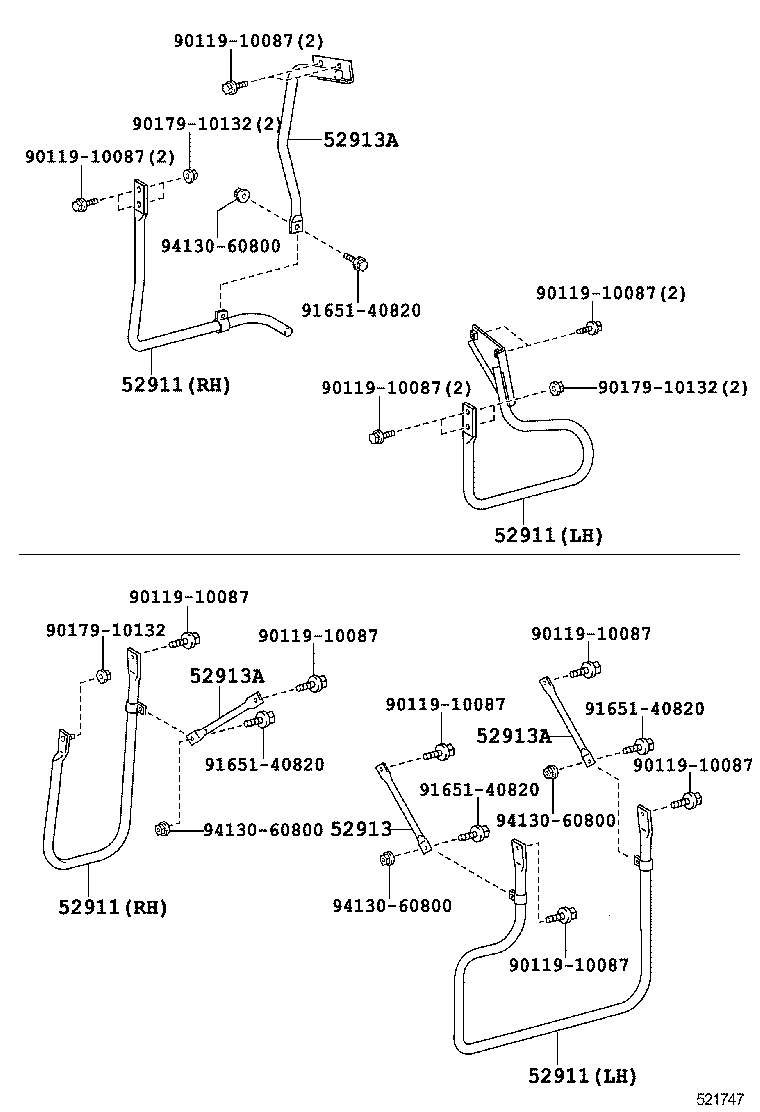

521747 2006-10 → —

Part groups

PNC	Description
52911	Bar, Side Bumper
52913	Stay, Side Bumper, NO.1
52913A	Stay, Side Bumper, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
