Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

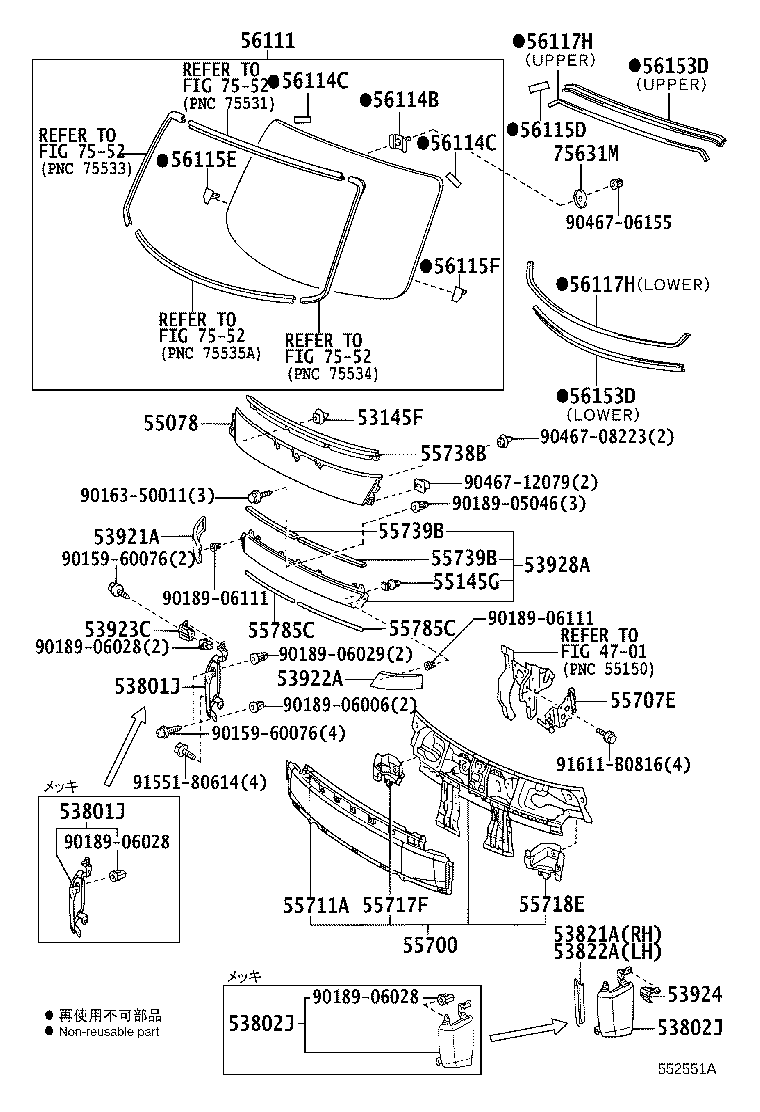

Front Panel & Windshield Glass
46 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 53145F | Clip, Radiator Grille Garnish |
| 53801J | Panel Sub-assy, Front Side, RH |
| 53802J | Panel Sub-assy, Front Side, LH |
| 53821A | Protector, Front Side Panel, NO.1 RH |
| 53822A | Protector, Front Side Panel, NO.1 LH |
| 53921A | Panel, Front Valance, RH |
| 53922A | Panel, Front Valance, LH |
| 53923C | Support, Front Side Garnish, RH |
| 53924 | Plate, Noise Shutter Support, NO.2 |
| 53928A | Garnish, Front Panel, Center |
| 55078 | Cover Sub-assy, Front Panel |
| 55145G | Clip, Radiator Grille Garnish |
| 55700 | Panel Assy, Front |
| 55707E | Bracket Sub-assy, Relay Mounting |
| 55711A | Panel, Front, Lower |
| 55717F | Extension, Front Panel Reinforcement, RH |
| 55718E | Extension, Front Panel Reinforcement, LH |
| 55727A | Retainer, Front Panel Upper Reinforcement |
| 55738B | Protector, Front Panel Cover, NO.1 |
| 55739B | Protector, Front Panel Cover, NO.2 |
| 55785C | Pad, Front Panel Cover |
| 56111 | Glass, Windshield |
| 56114B | Retainer, Windshield Glass |
| 56114C | Retainer, Windshield Glass |
| 56115D | Stopper, Windshield Glass |
| 56115E | Stopper, Windshield Glass |
| 56115F | Stopper, Windshield Glass |
| 56117H | Dam, Window Glass Adhesive |
| 56121 | Weatherstrip, Windshield |
| 56153D | Moulding, Front Window, Inner Center |
| 63273S | Retainer, Roof Window Hinge |
| 63787B | Pad, Roof Air Deflector, NO.1 |
| 74306A | Support Sub-assy, Front Visor |
| 74306C | Support Sub-assy, Side Visor |
| 74310D | Visor Assy |
| 74321B | Visor, Front |
| 74325B | Support, Front Visor, RH |
| 74326B | Support, Front Visor, LH |
| 74327A | Pad, Front Visor |
| 74328A | Pad, Front Visor, NO.2 |
| 74328B | Pad, Front Visor, NO.2 |

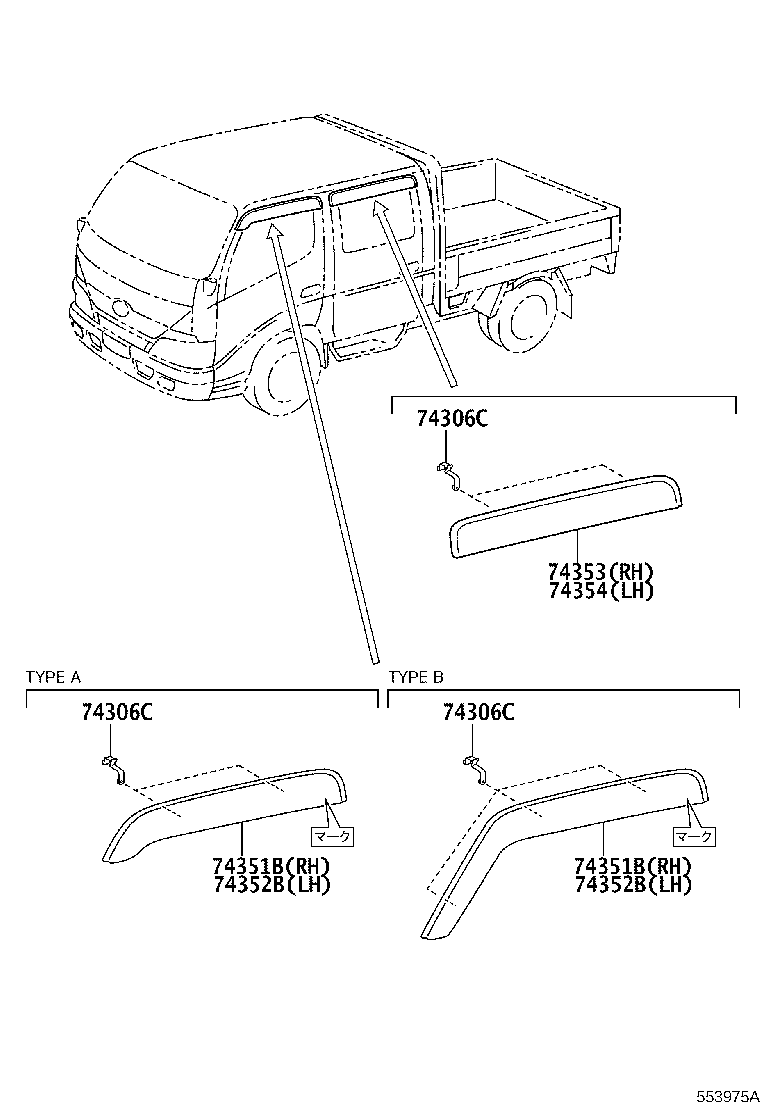

| 74351B | Cover, Visor |
| 74352B | Cover, Visor |
| 74353 | Cover, Visor, C |
| 74354 | Cover, Visor, D |
| 75631M | Garnish, Roof Top, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
