Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

18 part groups · 3 illustrations

Illustrations

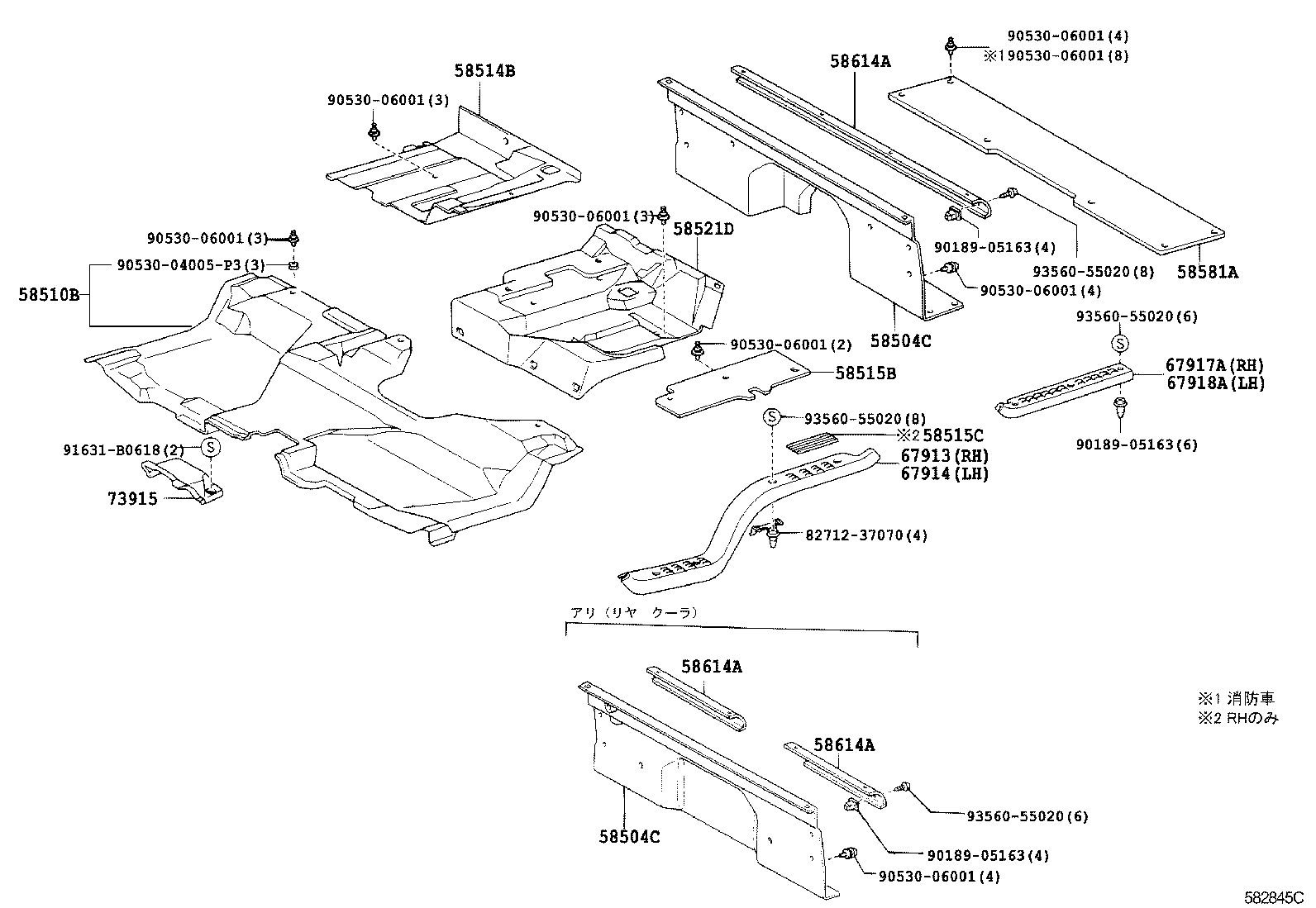

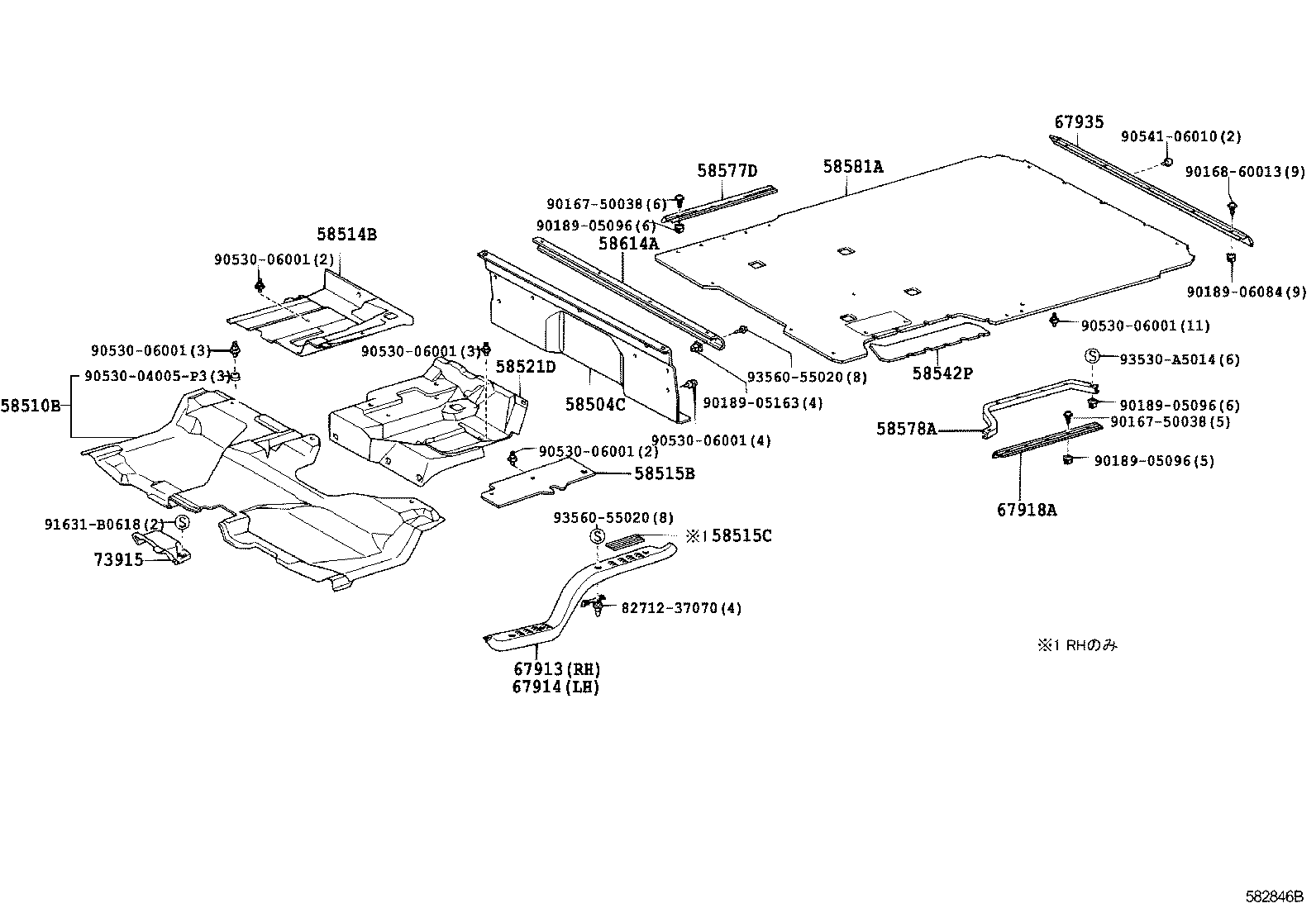

Figure 582844C 582844C 2006-10 → — Figure 582845C 582845C 2006-10 → — Figure 582846B 582846B 2006-10 → —

Part groups

PNCDescription
58504C Mat Sub-assy, Header
58510B Mat, Front Floor, Front
58514B Mat, Floor, Rear RH
58515B Mat, Floor, Rear LH
58515C Mat, Front Floor, Rear NO.1
58521D Mat, Engine Service Hole Cover
58540C Mat Assy, Floor, Rear
58542P Mat, Step, LH
58577D Plate, Rear Floor Mat Support Side, RH
58578A Plate, Rear Floor Mat Support Side, LH
58581A Mat, Rear Floor
58614A Plate, Mat Set, NO.4
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67935 Plate, Back Door Scuff
73915 Cover, Seat Airbag NO.1, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
