Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

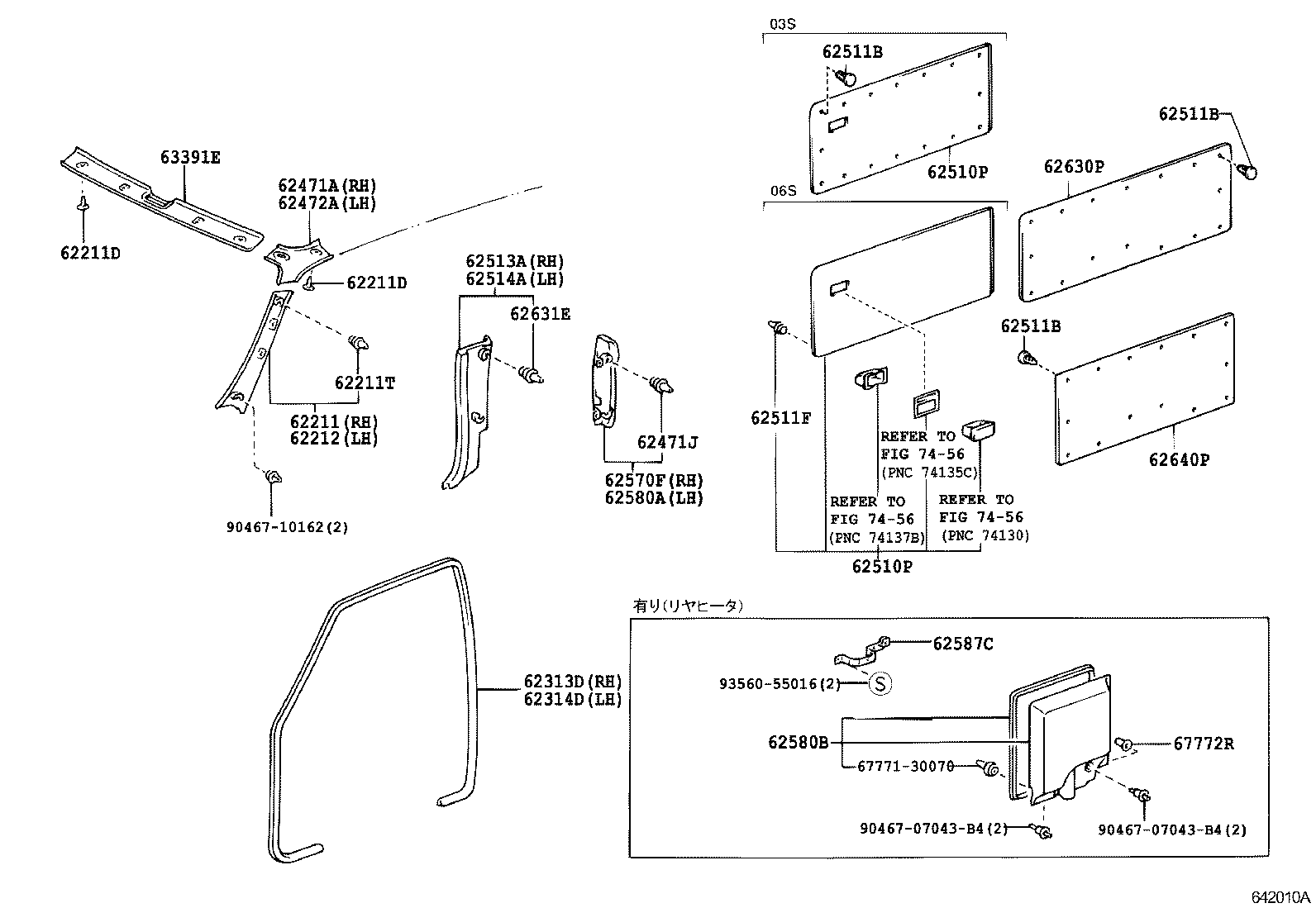

Inside Trim Board
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62213 | Pad, Front Pillar Garnish |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62335A | Cover, Rear Door Opening Trim |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510J | Retainer, Quarter Trim |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62513A | Panel, Quarter Trim, Lower RH |
| 62514A | Panel, Quarter Trim, Lower LH |
| 62570F | Garnish Assy, Roof Side, Inner Lower RH |
| 62580A | Garnish Assy, Roof Side, Inner Lower LH |
| 62580B | Board Assy, Side Heater Cover, RH |
| 62587C | Plate, Quarter Trim Pocket |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62631E | Retainer, Quater Trim |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 63391E | Trim, Roof Headlining, Front |
| 64261C | Garnish, Back Panel, Upper |
| 64271C | Trim, Back Panel |
| 64726B | Clip, Deck Rear Trim |
| 67772R | Cap, Door Trim Retainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
