Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

24 part groups · 7 illustrations

Illustrations

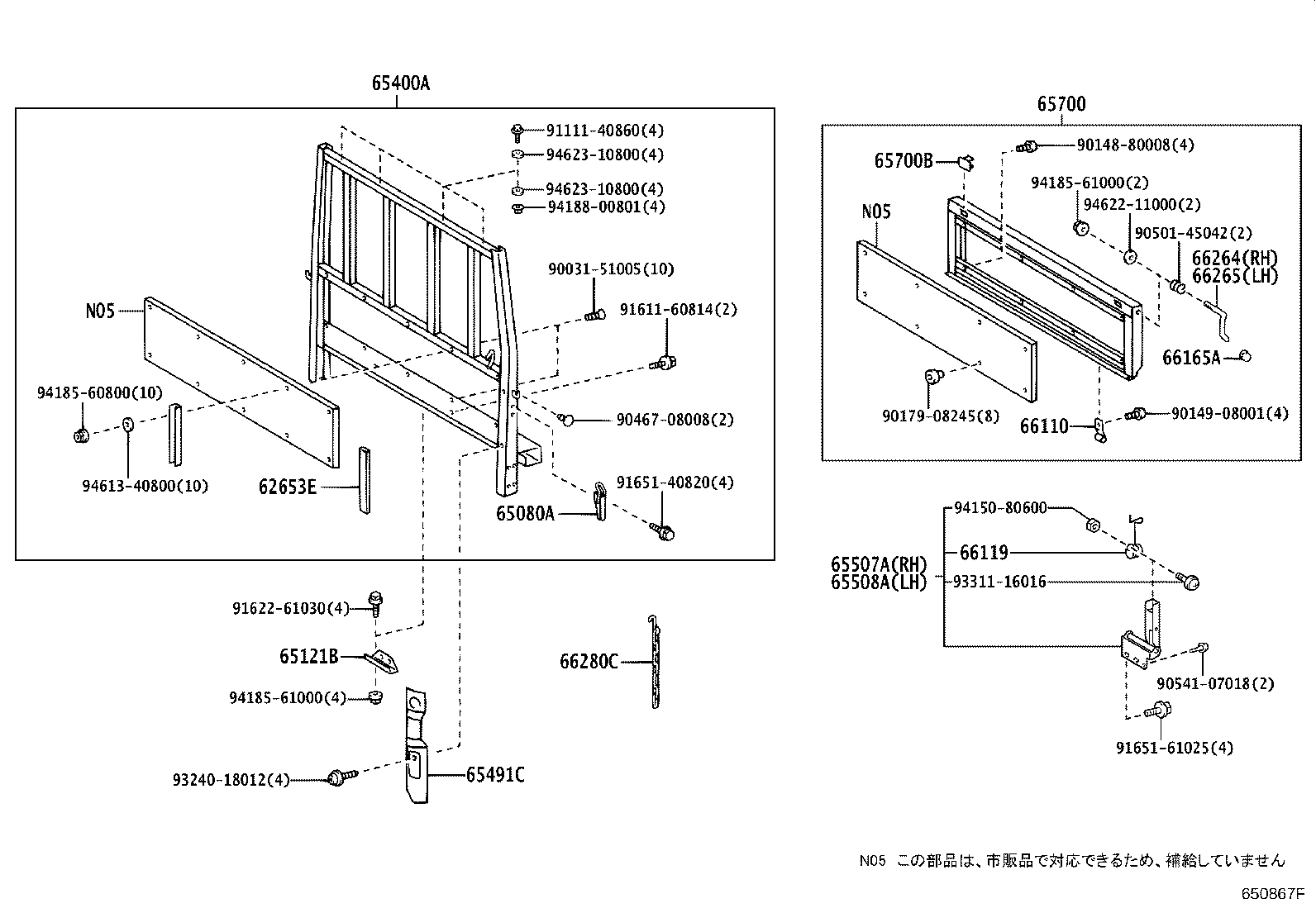

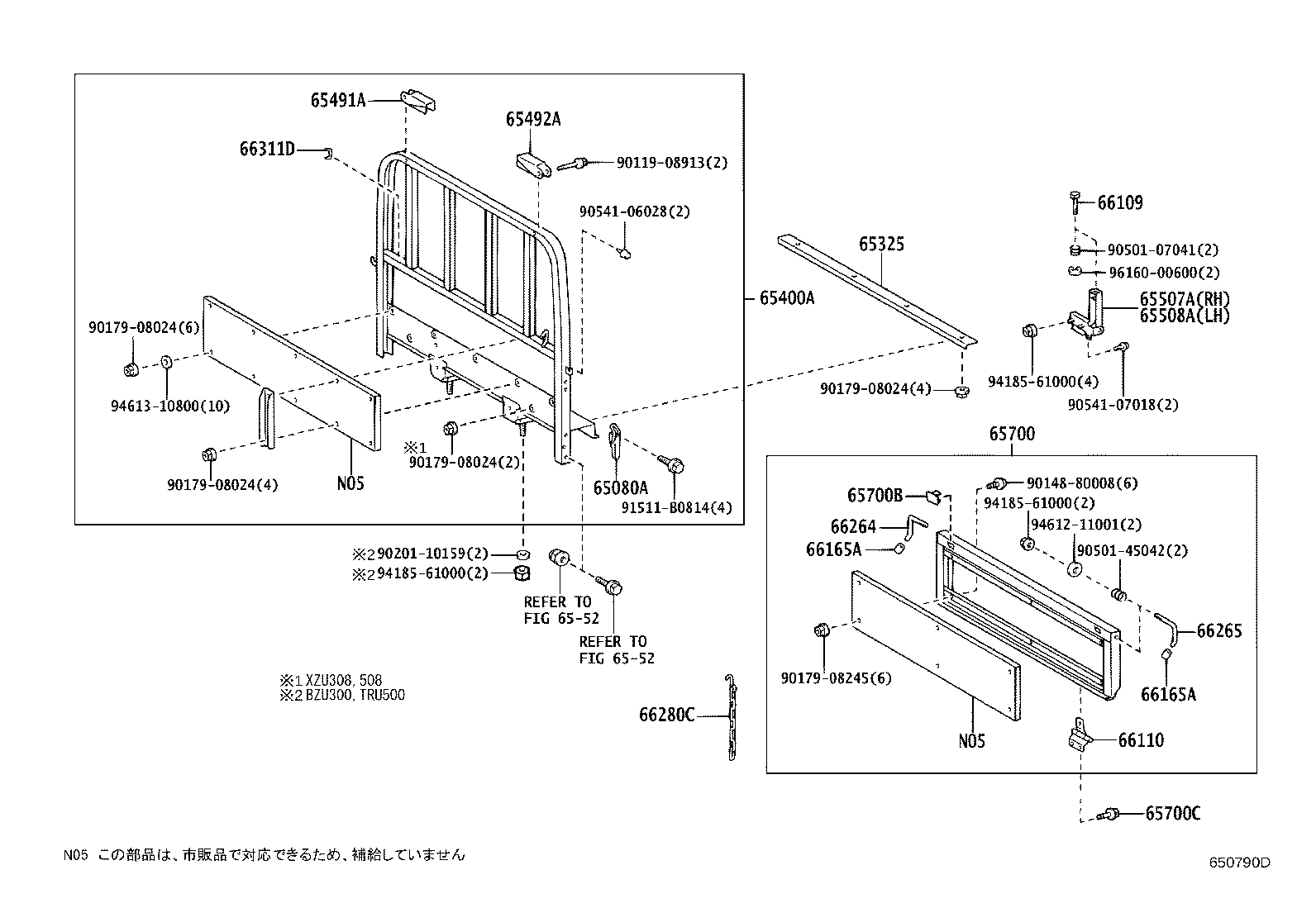

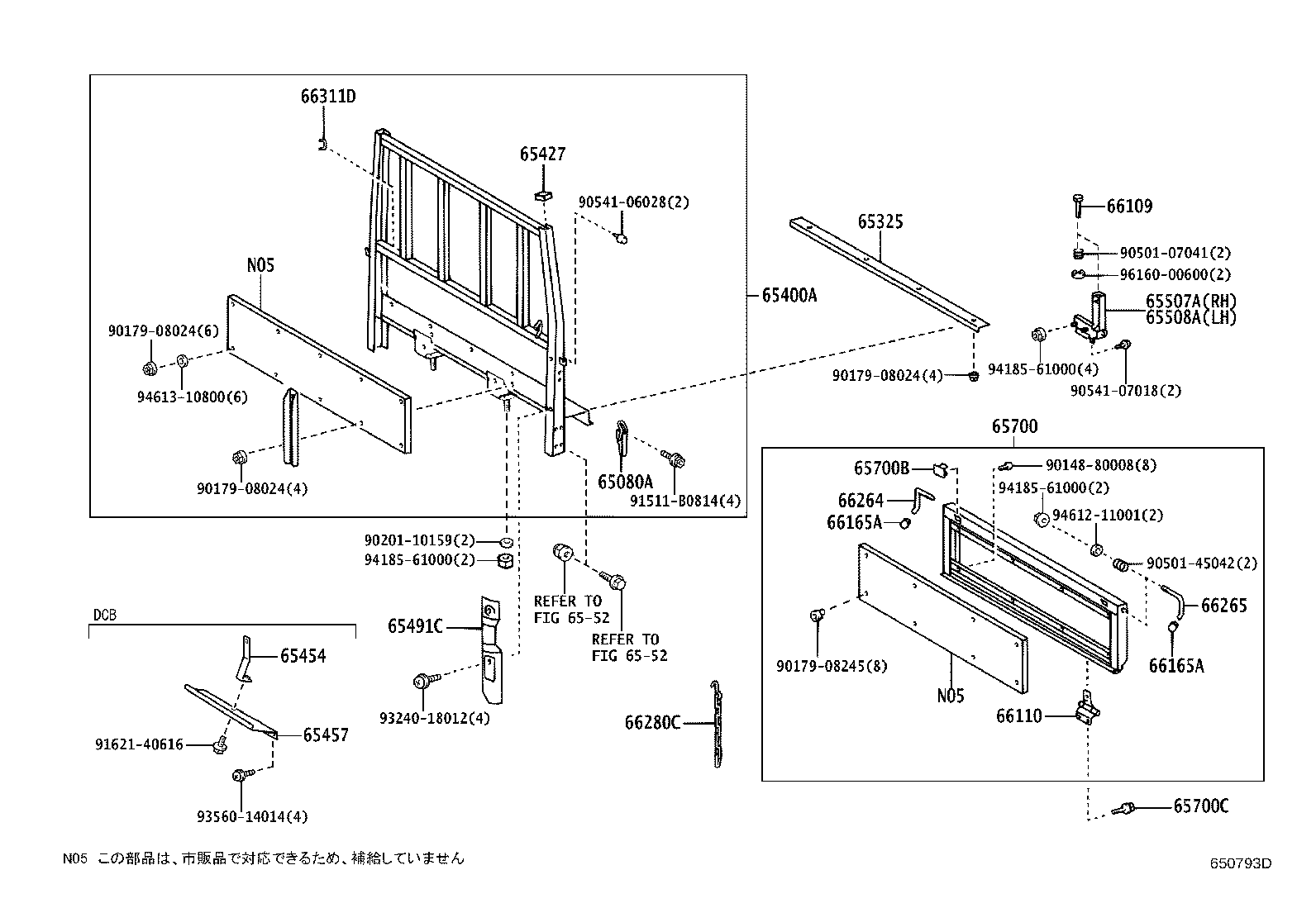

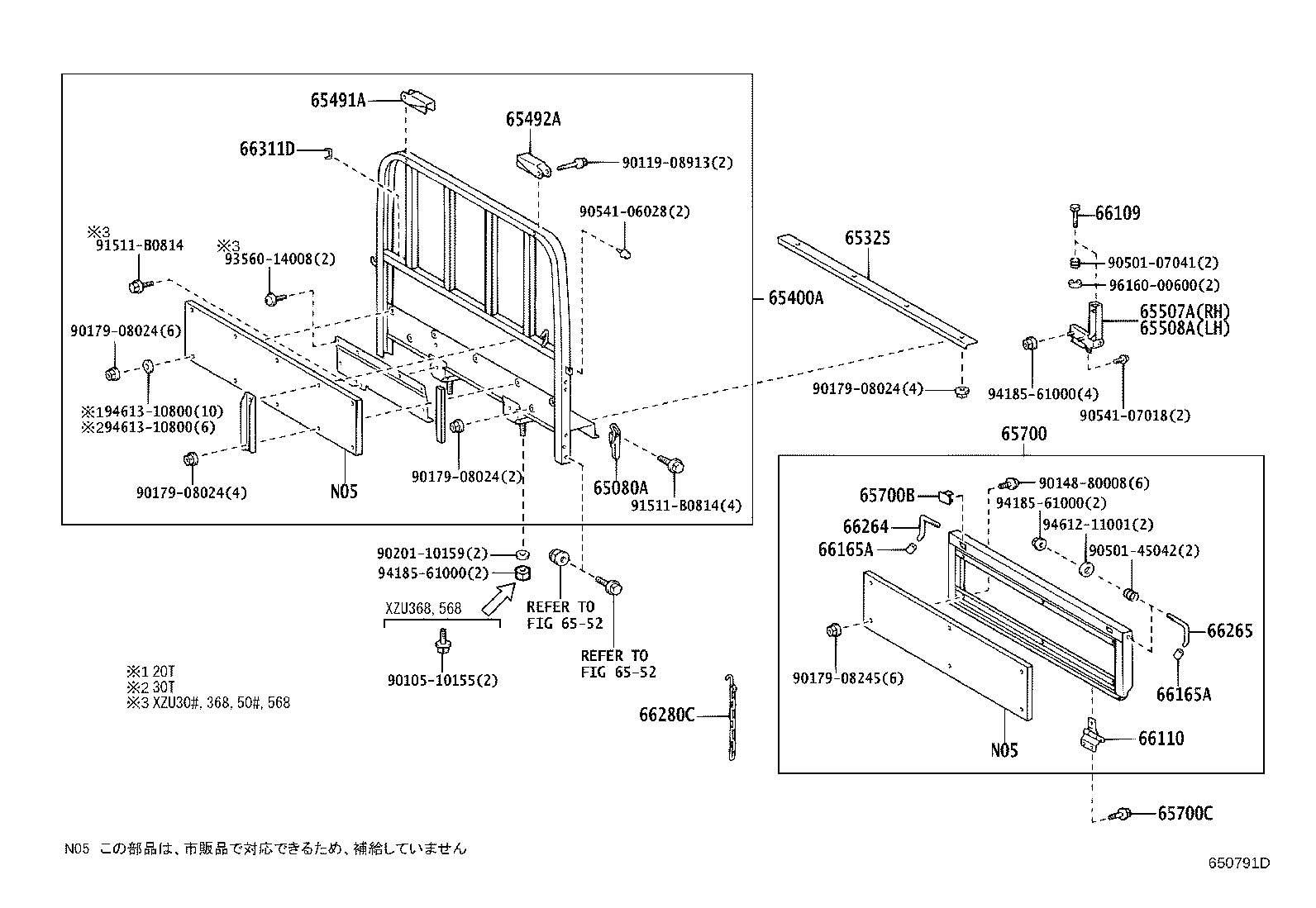

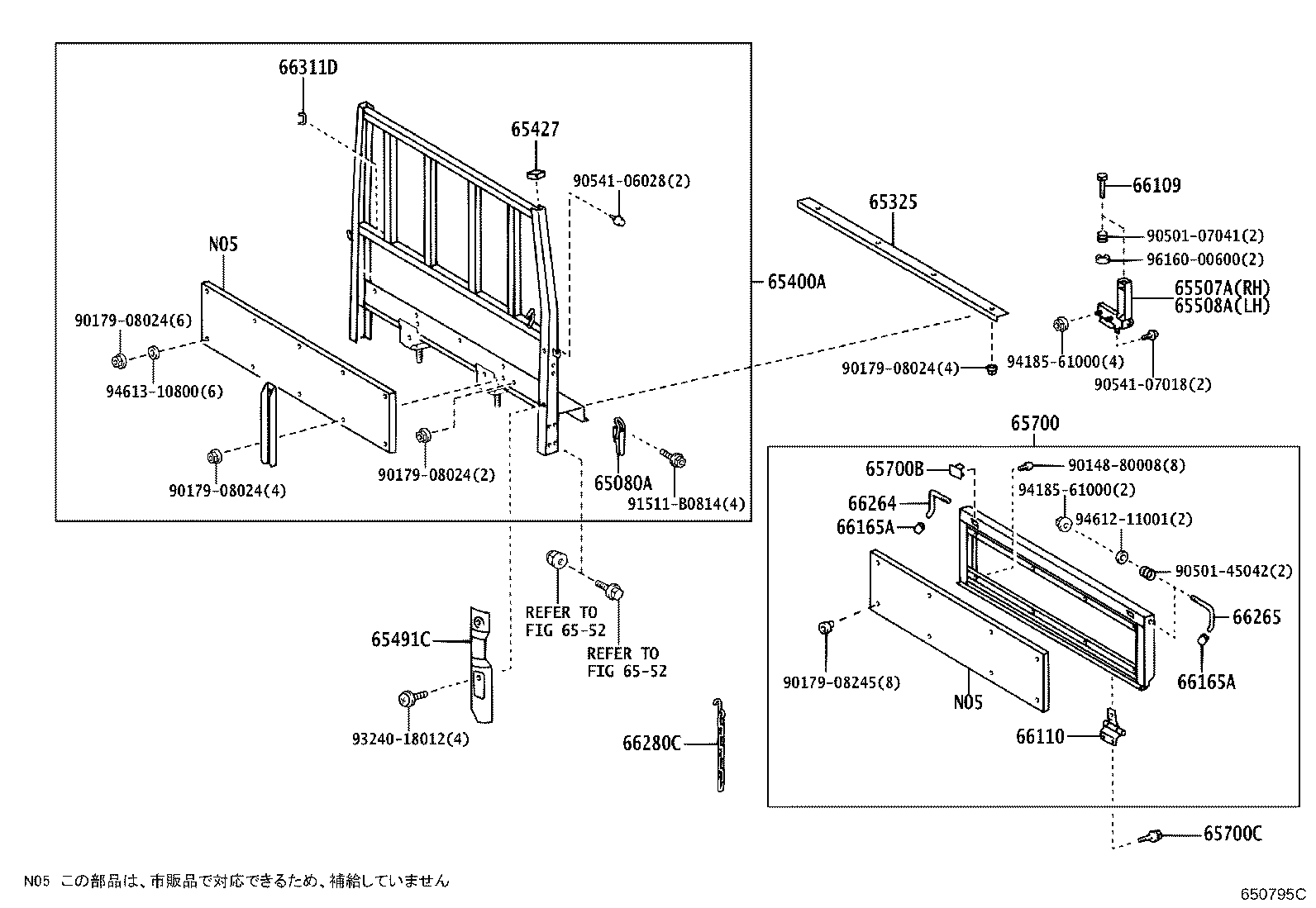

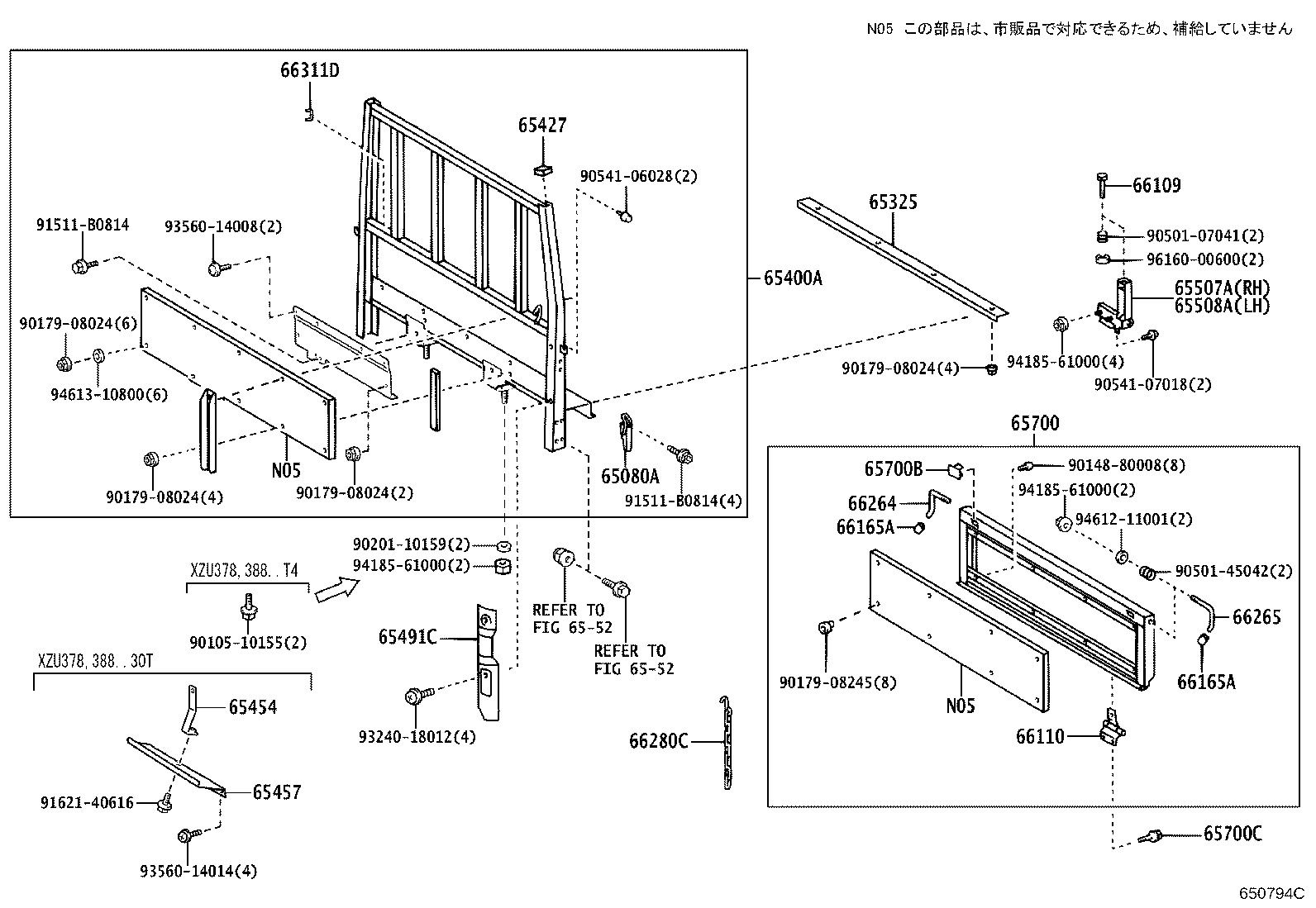

Figure 650789D 650789D 2006-10 → — Figure 650790D 650790D 2006-10 → — Figure 650791D 650791D 2006-10 → — Figure 650793D 650793D 2006-10 → — Figure 650794C 650794C 2006-10 → — Figure 650795C 650795C 2006-10 → — Figure 650867F 650867F 2007-05 → —

Part groups

PNCDescription
62653E Packing
65080A Handle Assy, Side Gate Latch
65121B Bracket, Main Sill Mounting, NO.1
65325 Plate, Floor Board, Front
65400A Guard Assy, Rear Body
65427 Cover, Guard Frame
65454 Stay, Baffle Dust
65457 Plate, Baffle Dust Rear Body
65491A Stop, Guard Frame Load Slide, RH
65491C Protector, Guard Flame, Lower
65492A Stop, Guard Frame Load Slide, LH
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65700 Gate Assy, Rear Body Tail
65700B Plug, Hole(FOR TAIL GATE)
65700C Bolt, W/Washer(FOR TAIL GATE)
66109 Handle Sub-assy, Side Gate Support Corner
66110 Hinge Assy, Tail Gate
66119 Spring, Tail Gate Check Ball
66165A Cap, Gate Latch Handle
66264 Handle, Tail Gate Latch, RH
66265 Handle, Tail Gate Latch, LH
66280C Chain Assy, Tail Gate
66311D Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
