Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

10 part groups · 10 illustrations

Illustrations

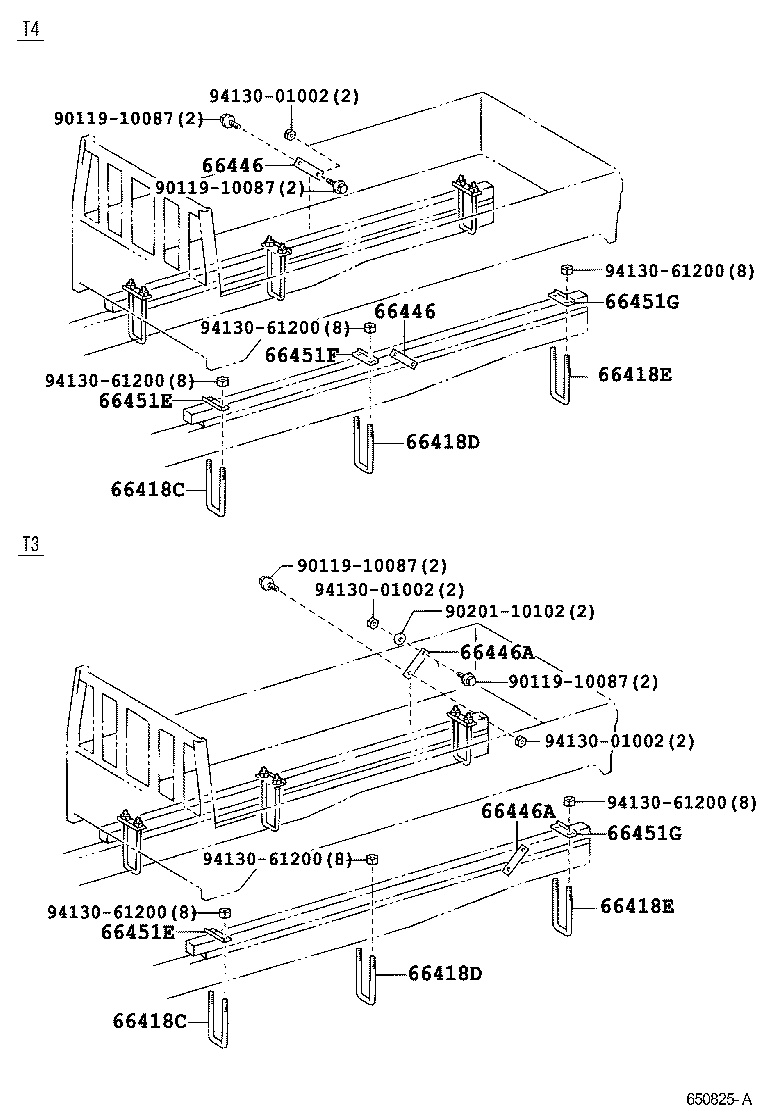

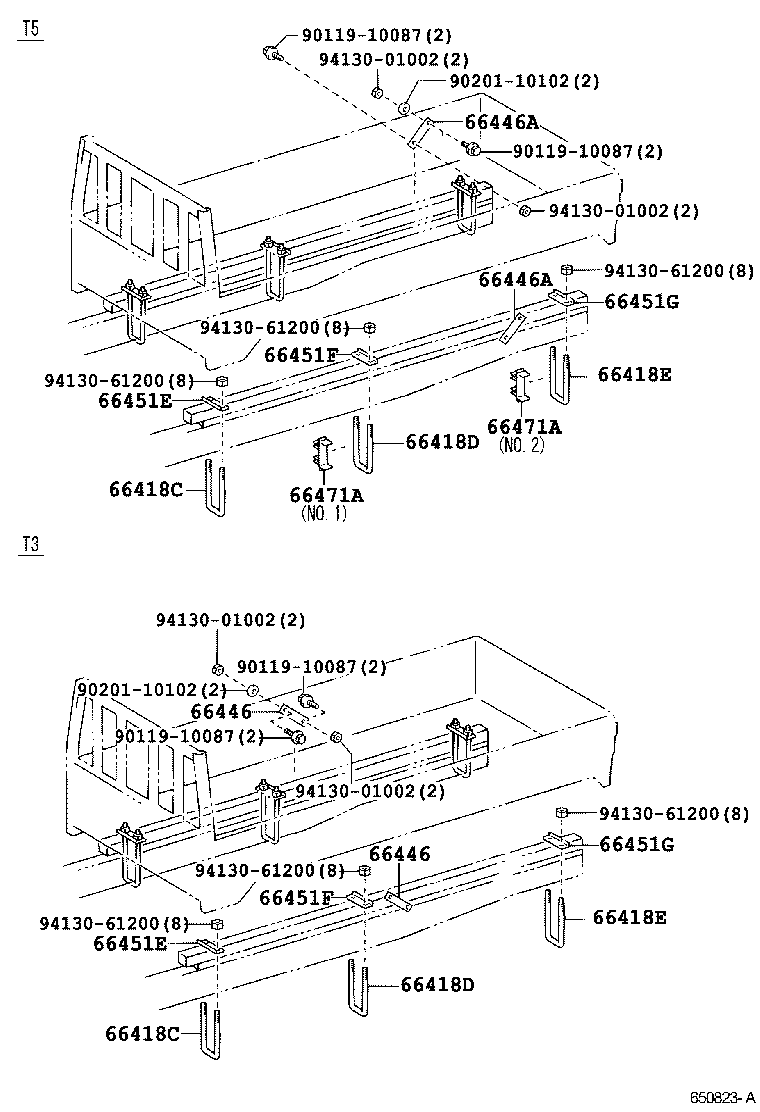

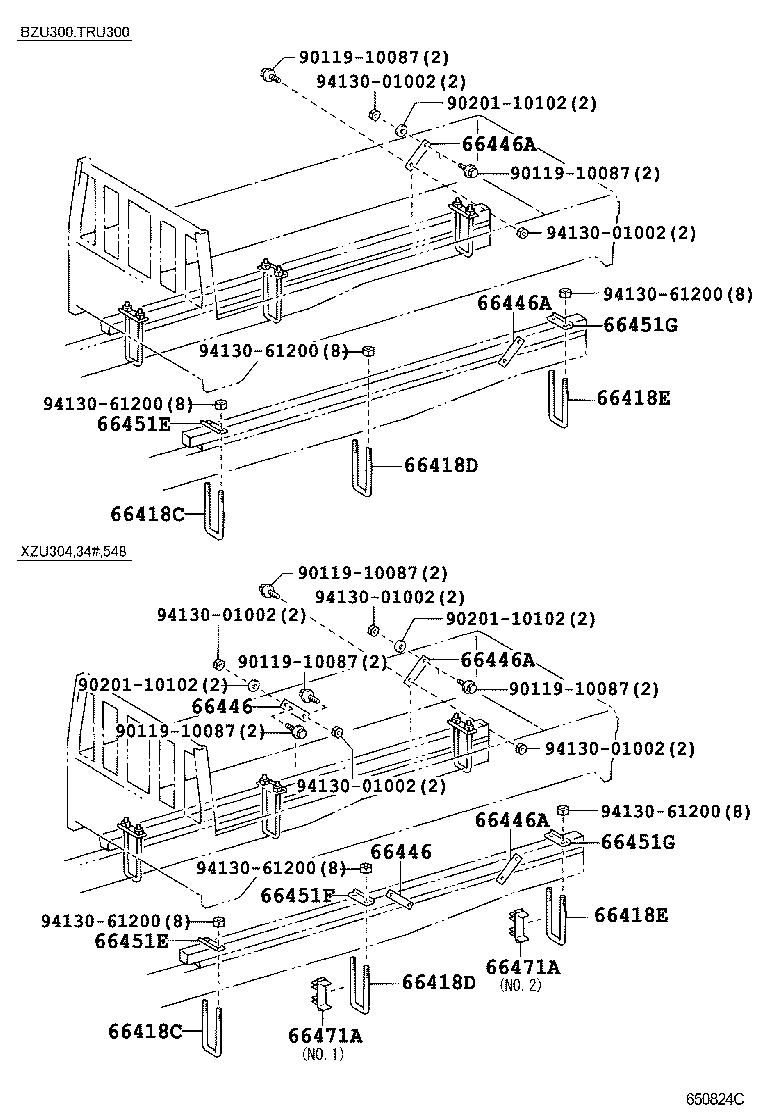

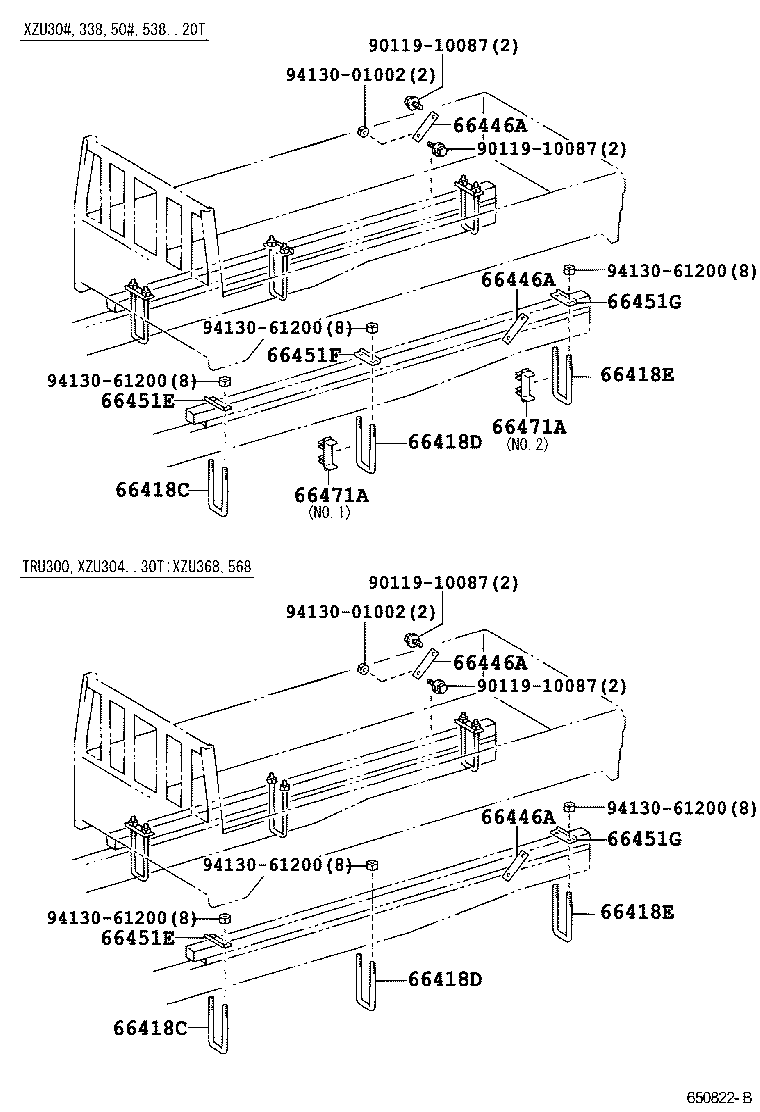

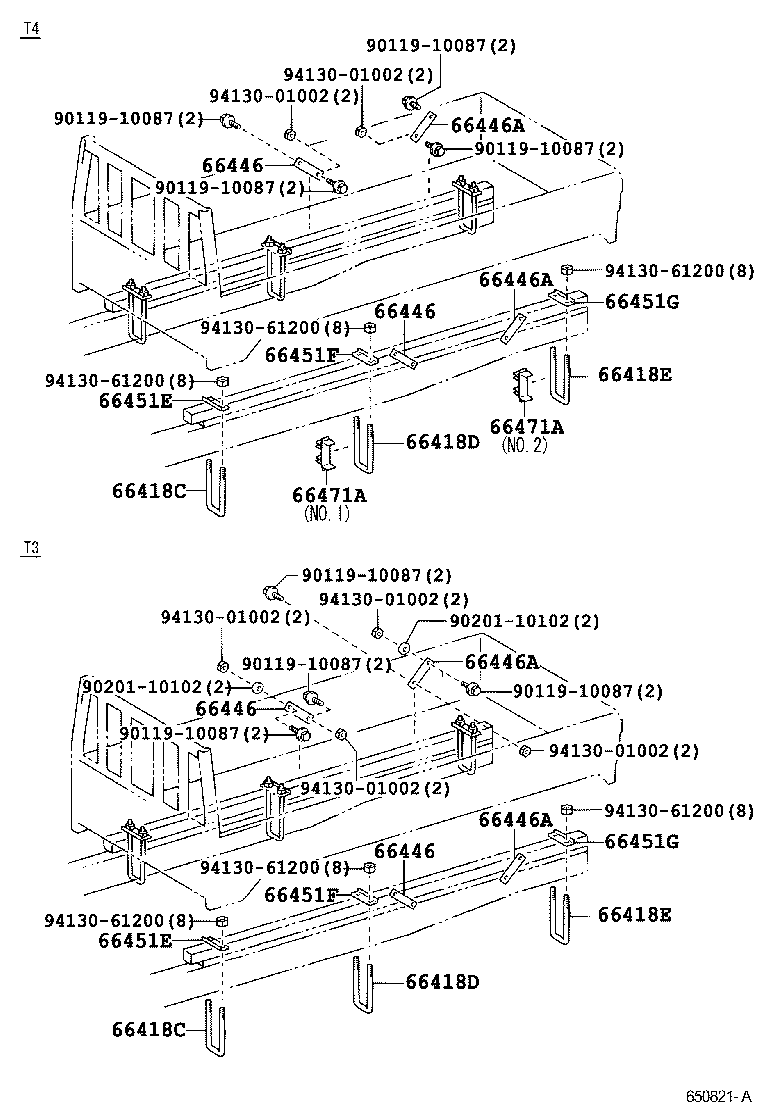

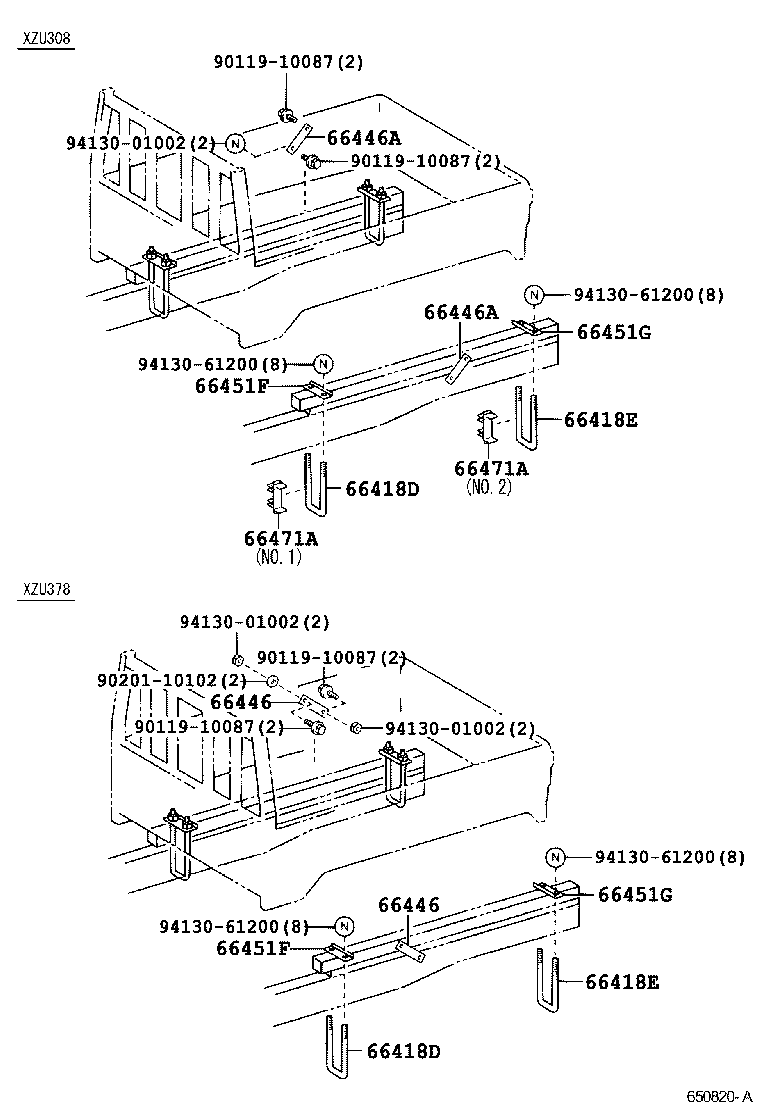

Figure 650813 650813 2006-10 → — Figure 650820A 650820A 2006-10 → — Figure 650821A 650821A 2006-10 → — Figure 650822B 650822B 2006-10 → — Figure 650823A 650823A 2006-10 → — Figure 650824C 650824C 2006-10 → — Figure 650825A 650825A 2006-10 → — Figure 650826A 650826A 2006-10 → — Figure 650856A 650856A 2007-05 → — Figure 650868A 650868A 2007-05 → —

Part groups

PNCDescription
66418C Bolt, U, Front
66418D Bolt, U, Center
66418E Bolt, U, Rear
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66446A Brace, Frame TO Rear Body Floor
66451E Plate, U Bolt, Front
66451F Plate, U Bolt, Center
66451G Plate, U Bolt, Rear
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
