Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01

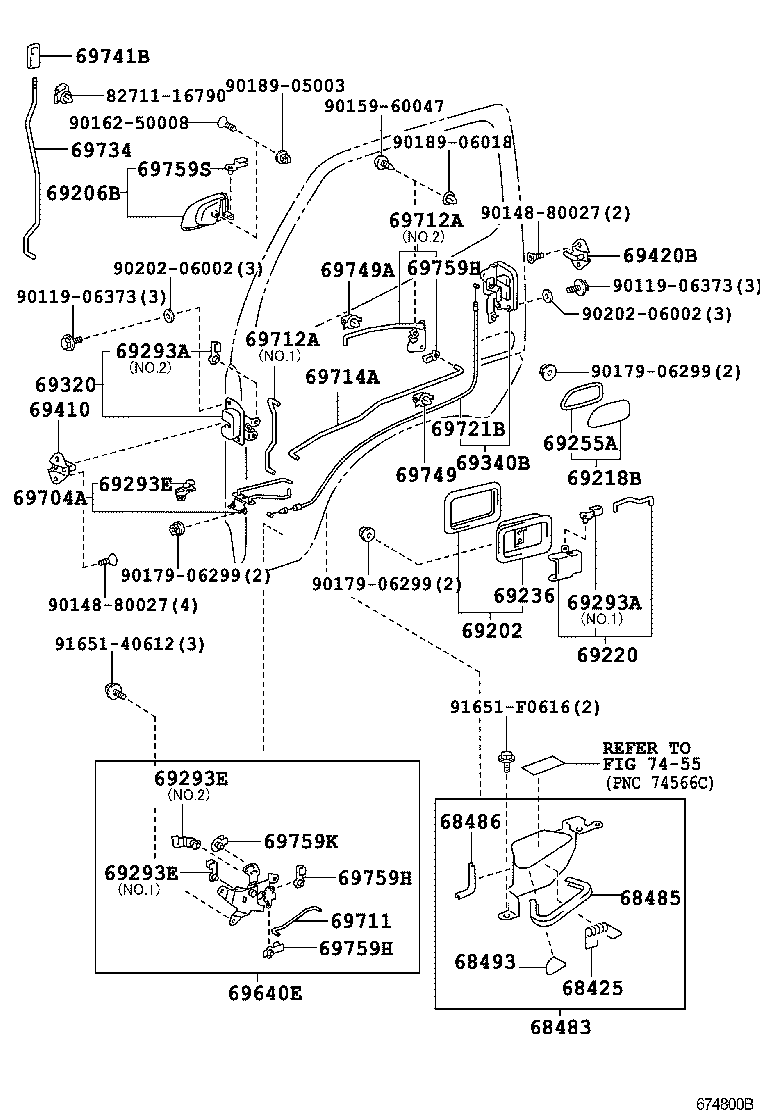

Front Door Lock & Handle

37 part groups · 2 illustrations

PNC	Description
68425	Spring, Front Slide Door Catch
68483	Guard, Front Slide Door Arm
68485	Protector, Front Slide Door Arm Guard
68486	Protector, Front Slide Door Bracket Cover
68493	Cushion, Front Slide Door Arm Guard
69110	Actuator Assy, Front Door Lock, RH
69120A	Actuator Assy, Front Door Lock, LH
69202	Handle Sub-assy, Door Outside, LH
69205	Handle Sub-assy, Front Door Inside, RH
69206B	Handle Sub-assy, Front Door Inside, LH
69210	Handle Assy, Front Door, Outside RH
69210B	Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
69218B	Cover, Slide Door Outside Handle, LH
69220	Handle Assy, Front Door Outside, LH
69236	Bezel, Front Slide Door Outside Handle
69255A	Protector, Front Slide Door Outside Handle Hole
69293A	Snap, Front Door Outside Handle
69293E	Snap, Slide Door Lock Control Link
69310	Lock Assy, Front Door, RH
69320	Lock Assy, Front Door, LH
69340B	Lock Assy, Slide Door, LH
69410	Plate Assy, Front Door Lock Striker
69420B	Plate Assy, Door Lock Striker, Rear
69640E	Control Assy, Slide Door Lock Remote, LH
69704A	Rod Sub-assy, Slide Door Lock Control, LH
69711	Link, Front Slide Door Key Cylinder
69711B	Link, Front Door Lock Remote Control, RH
69712A	Link, Front Door Lock Remote Control, LH
69714A	Link, Door Lock Remote Control, NO.2 LH
69721B	Cable, Front Slide Door Lock Control
69734	Link, Front Door Inside Locking, LH
69741B	Knob, Front Door Lock Control
69749	Clamp, Front Door Lock Link
69749A	Clamp, Front Door Lock Link, NO.1
69759H	Snap, Door Lock Control Link, NO.2
69759K	Snap, Door Lock Control Link
69759S	Snap, Front Door Inside Handle

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
