Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

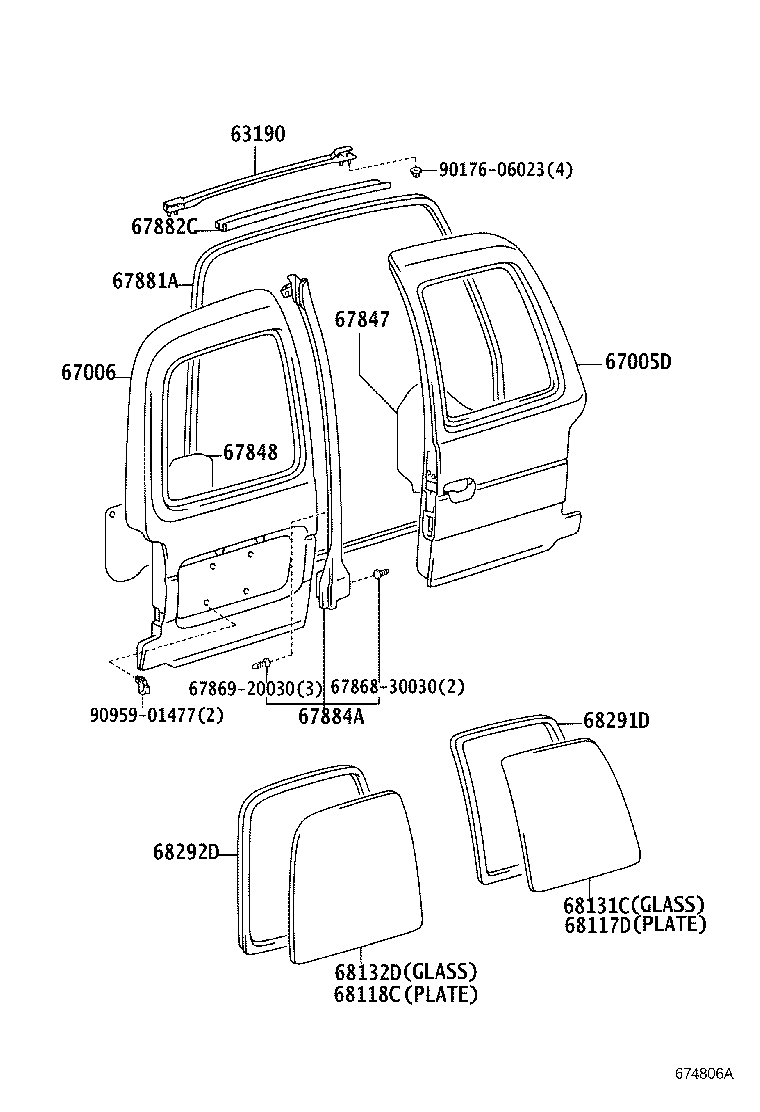

Back Door Panel & Glass
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63190 | Bracket Assy, Back Door Weatherstrip |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 67005 | Panel Sub-assy, Back Door |
| 67005D | Panel Sub-assy, Back Door, RH |
| 67006 | Door Sub-assy, Back, LH |
| 67685 | Packing, Back Door Service Hole, NO.1 |
| 67686 | Packing, Back Door Service Hole, NO.2 |
| 67751 | Board, Back Door Trim |
| 67847 | Cover, Back Door Service Hole, RH |
| 67847C | Cover, Back Door Service Hole, NO.1 |
| 67848 | Cover, Back Door Service Hole, LH |
| 67848C | Cover, Back Door Service Hole, NO.2 |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67884A | Weatherstrip, Back Door, Center |
| 68117D | Plate, Back Door Glass, RH |
| 68118C | Plate, Back Door Glass, LH |
| 68131 | Glass, Back Door |
| 68131C | Glass, Back Door, RH |
| 68132D | Glass, Back Door, LH |
| 68291 | Weatherstrip, Back Door Glass |
| 68291D | Weatherstrip, Back Door Glass, RH |
| 68292D | Weatherstrip, Back Door Glass, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
