Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

83 part groups · 3 illustrations

Illustrations

674839D 2006-10 → —

674840A 2006-10 → —

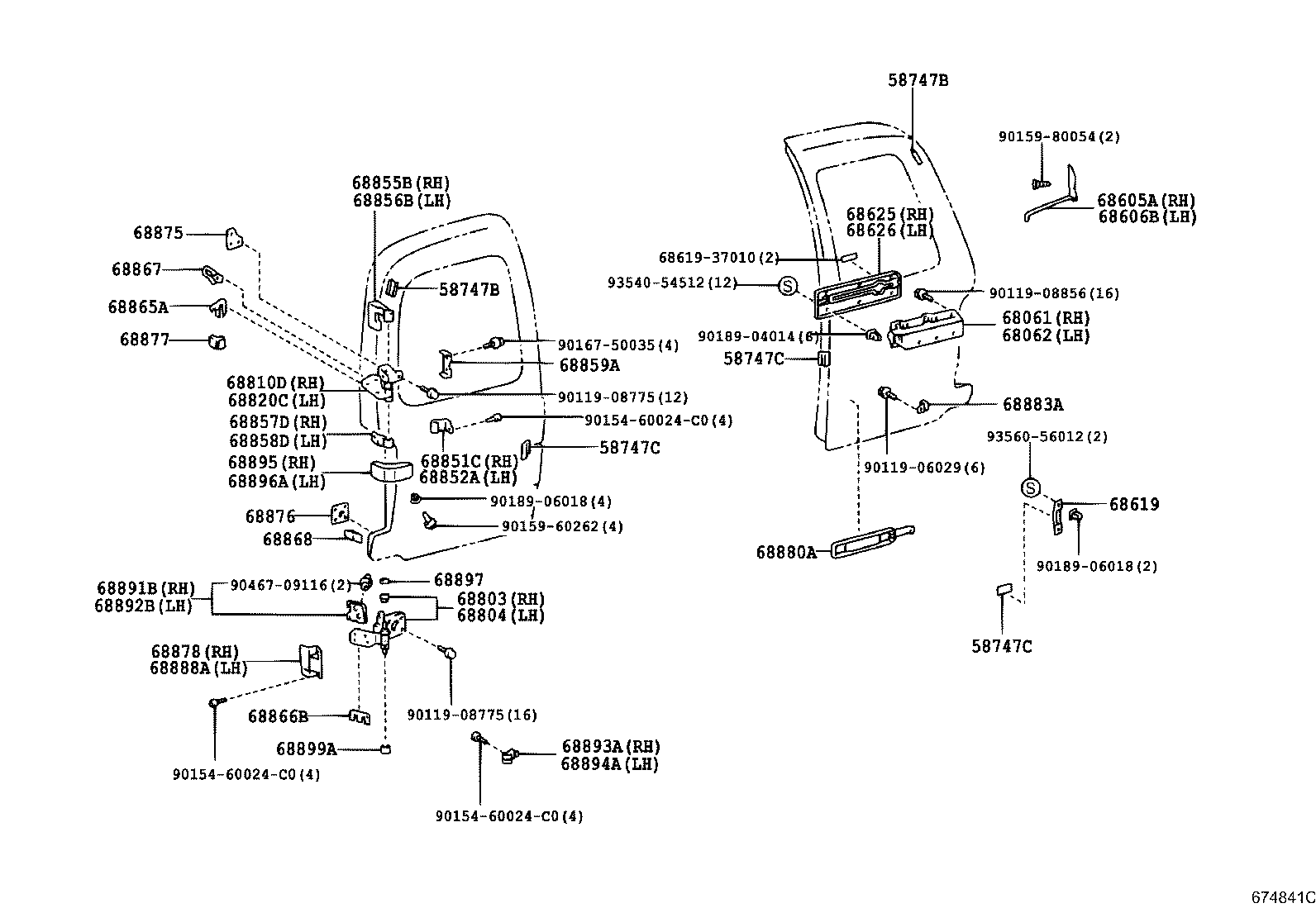

674841C 2006-10 → —

Part groups

PNC	Description
58747B	Protector, Quarter Panel, Rear
58747C	Protector, Quarter Panel, Rear
68061	Guide Sub-assy, Back Door Check, RH
68062	Guide Sub-assy, Back Door Check, LH
68605A	Arm Sub-assy, Back Door Check, RH
68606B	Arm Sub-assy, Back Door Check, LH
68619	Holder, Back Door Check Arm
68625	Cover, Back Door Check Guide, RH
68626	Cover, Back Door Check Guide, LH
68803	Hinge Assy, Back Door, Lower RH
68804	Hinge Assy, Back Door, Lower LH
68810D	Hinge Assy, Back Door, RH
68820C	Hinge Assy, Back Door, LH
68825	Plate, Back Door Hinge
68851C	Cover, Back Door Hinge, RH
68852A	Cover, Back Door Hinge, LH
68855B	Cover, Back Door Upper Hinge Female, NO.1 RH
68856B	Cover, Back Door Upper Hinge Female, NO.1 LH
68857D	Cover, Back Door Upper Hinge Female, NO.2 RH
68858D	Cover, Back Door Upper Hinge Female, NO.2 LH
68859A	Spacer, Back Door Hinge Cover
68865A	Spacer, Back Door Upper Hinge Door Side
68866B	Spacer, Back Door Lower Hinge Door Side
68867	Cushion, Back Door Hinge Male, Upper
68868	Seal, Back Door Hinge
68875	Spacer, Back Door Upper Hinge
68876	Spacer, Back Door Lower Hinge
68877	Cushion, Back Door Hinge Female, Upper
68878	Cushion, Back Door Hinge Female, Lower RH
68880A	Band Assy, Back Door Open Stopper
68883A	Holder, Back Door Open Stopper
68888A	Cushion, Back Door Hinge Female, Lower LH
68890A	Bracket Assy, Back Door Open Stopper
68891B	Cover, Back Door Lower Hinge Male, NO.1 RH
68892B	Cover, Back Door Lower Hinge Male, NO.1 LH
68893A	Cover, Back Door Lower Hinge Male, NO.2 RH
68894A	Cover, Back Door Lower Hinge Male, NO.2 LH
68895	Cover, Back Door Lower Hinge Female, NO.1 RH
68896A	Cover, Back Door Lower Hinge Female, NO.1 LH
68897	Cover, Back Door Lower Hinge Female, NO.2
68899A	Cover, Back Door Lower Hinge Female, NO.3
68907	Stay Sub-assy, Back Door Damper, RH
68908	Stay Sub-assy, Back Door Damper, LH
69035	Guide Sub-assy, Back Door Side Stopper, RH
69036	Guide Sub-assy, Back Door Side Stopper, LH
69041A	Stopper Sub-assy, Back Door, Upper
69042	Stopper Sub-assy, Back Door, Lower
69047	Striker Sub-assy, Back Door Upper Lock
69048	Striker Sub-assy, Back Door Lower Lock
69090	Handle Assy, Back Door, Outside
69090A	Cushion(FOR BACK DOOR OUTSIDE HANDLE)
69150	Actuator Assy, Back Door Lock
69205F	Handle Sub-assy, Front Door Inside
69285C	Handle, Pull
69290F	Handle Assy, Back Door Inside
69291	Handle Assy, Back Door Inside
69293C	Snap, Back Door Handle
69298	Cover, Back Door Inside Handle
69350P	Lock Assy, Back Door, W/Courtesy Lamp Switch
69350T	Lock Assy, Back Door, RH
69360H	Lock Assy, Back Door, Upper LH
69380C	Lock Assy, Back Door, Lower
69403A	Stopper Sub-assy, Back Door Side Female, RH
69404A	Stopper Sub-assy, Back Door Side Female, LH
69410C	Plate Assy, Back Door Lock Striker
69430C	Striker Assy, Back Door Lock
69449A	Shim, Back Door Lock Striker
69453A	Stopper, Back Door Upper Side, RH
69454A	Stopper, Back Door Upper Side, LH
69455A	Cover, Back Door Upper Lock Striker
69461	Stopper, Back Door Side Male, RH
69462	Stopper, Back Door Side Male, LH
69497	Cushion, Back Door Upper Stopper, NO.2
69660	Control Assy, Back Door Lock Remote, LH
69690	Control Assy, Back Door Remote
69706A	Rod Sub-assy, Back Door Lock Remote Control
69717A	Cover, Back Door Lock Control Link
69741D	Knob, Door Lock Control(FOR BACK DOOR)
69741G	Knob, Door Lock Control
69749E	Clamp, Back Door Lock Link
69751D	Holder, Door Lock Control Knob(FOR BACK DOOR)
69751M	Holder, Door Lock Control Knob
69759	Snap, Door Lock Control Link, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
