Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

20 part groups · 4 illustrations

Illustrations

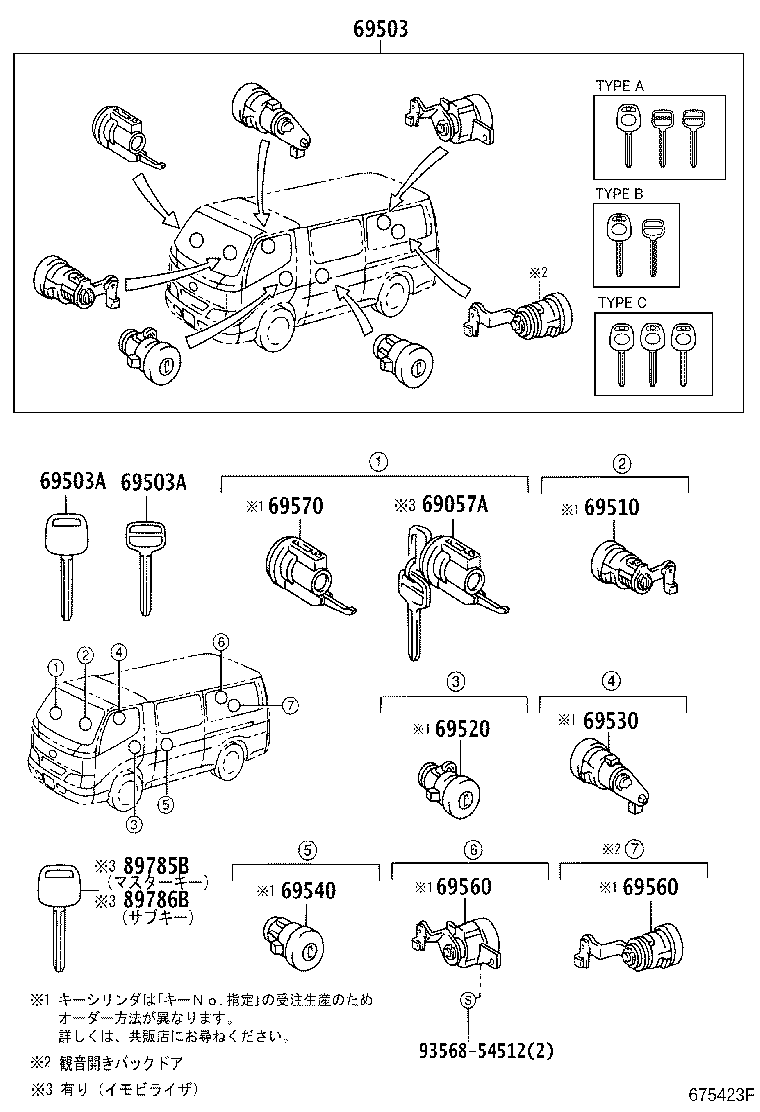

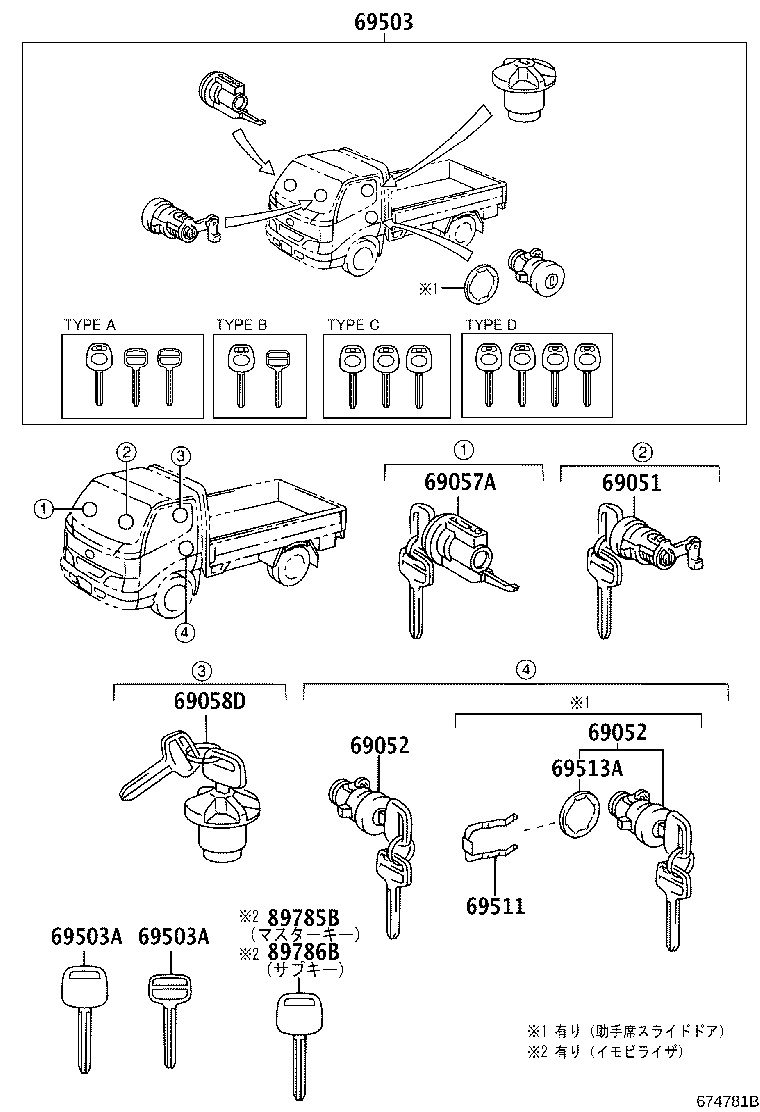

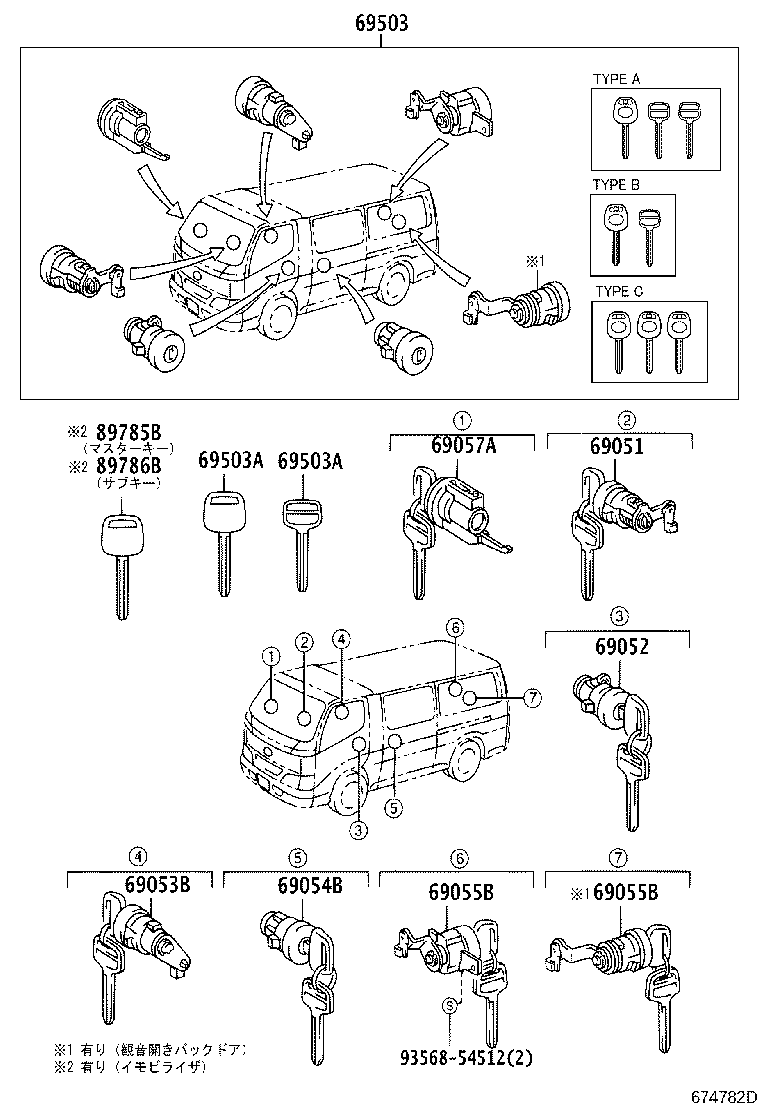

Figure 675422L 675422L 2006-10 → — Figure 674781B 674781B 2006-10 → — Figure 675423F 675423F 2006-10 → — Figure 674782D 674782D 2006-10 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69053B Cylinder & Key Set, Slide Door Lock, RH
69054B Cylinder & Key Set, Slide Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058D Cylinder & Key Set, Fuel Tank Filler
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69511 Retainer, Front Door Lock Cylinder
69513A Pad, Door Cylinder
69520 Cylinder Assy, Front Door Lock, LH
69530 Cylinder Assy, Slide Door Lock, RH
69540 Cylinder Assy, Slide Door Lock, LH
69560 Cylinder Assy, Back Door Lock
69570 Cylinder Assy, Ignition Switch Lock
77310D Cap Assy, Fuel Tank
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
