Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

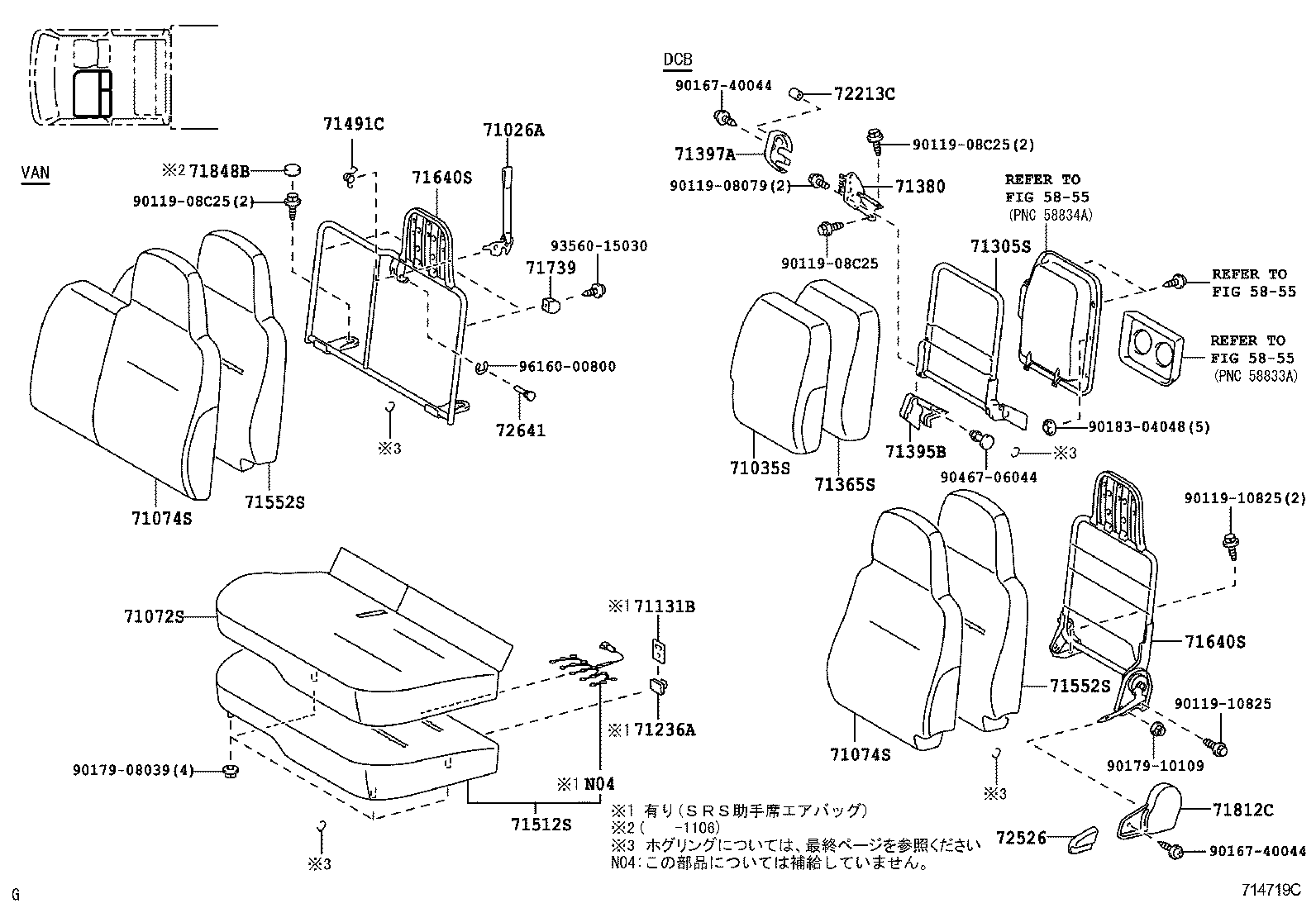

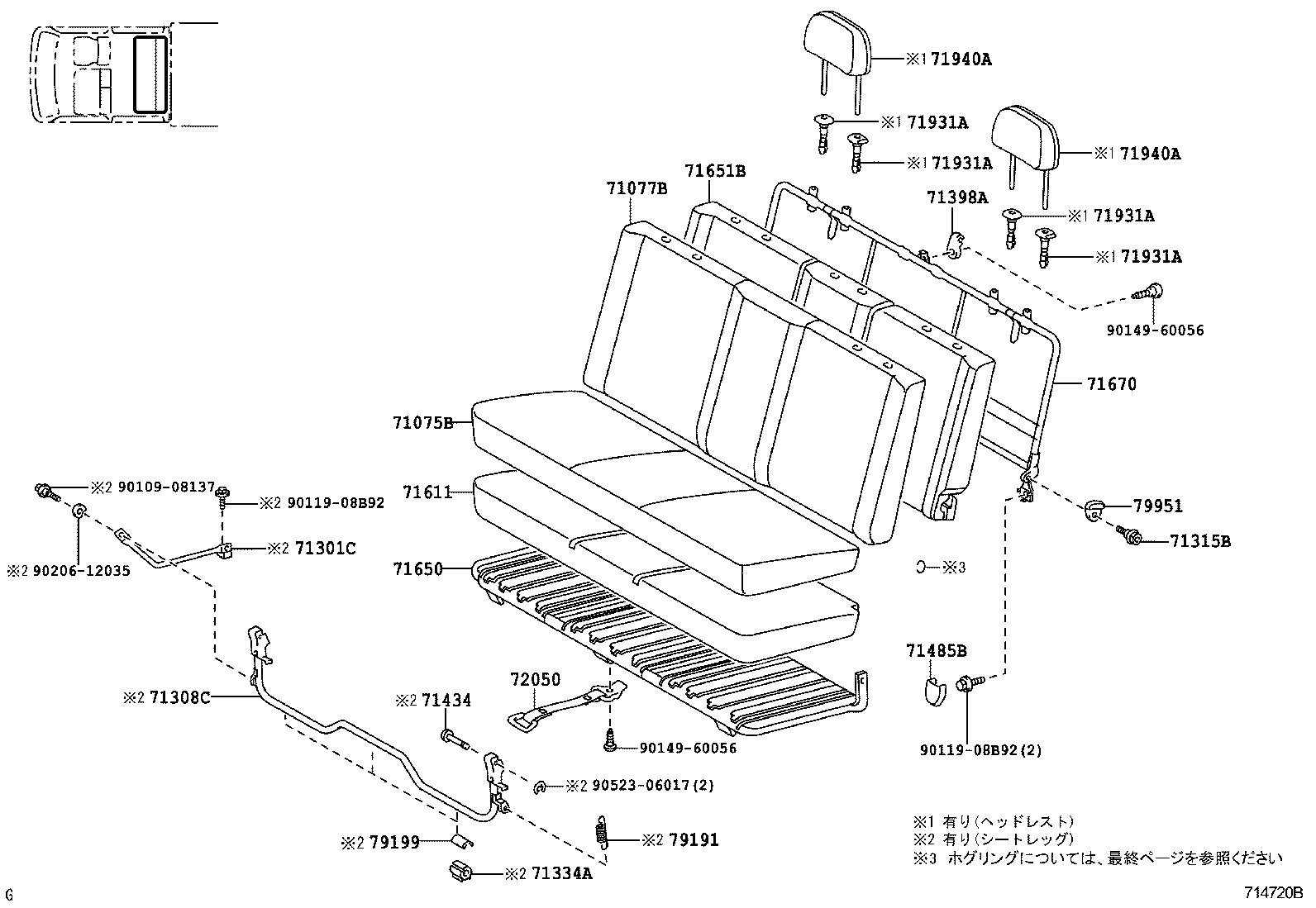

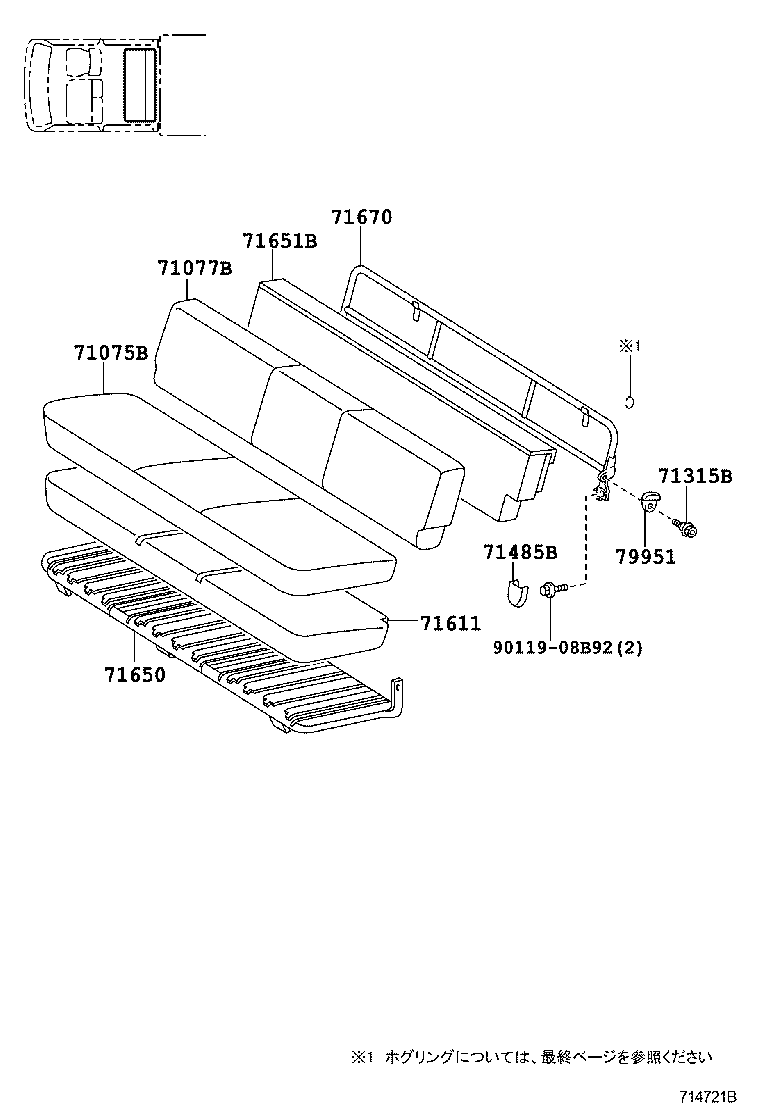

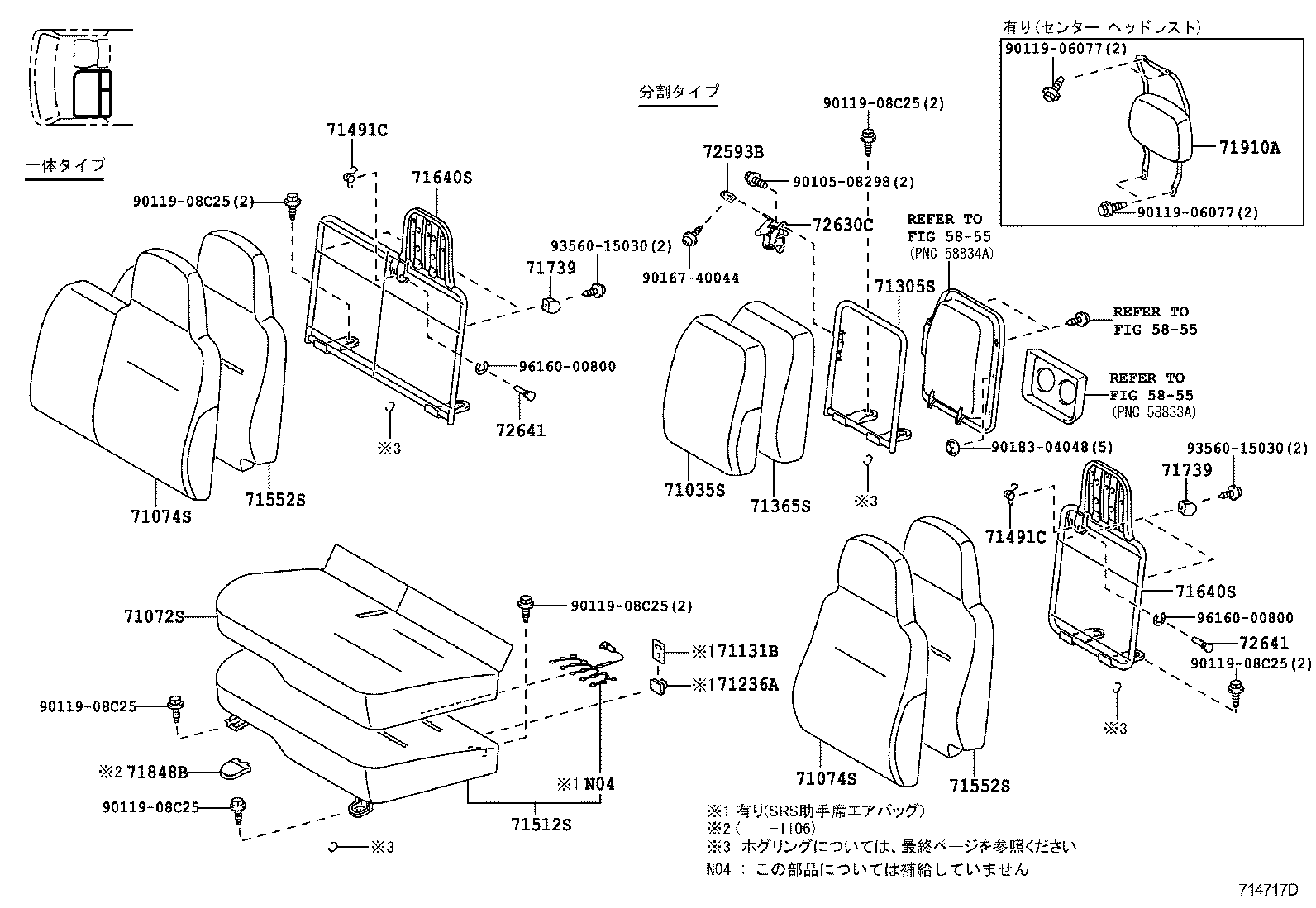

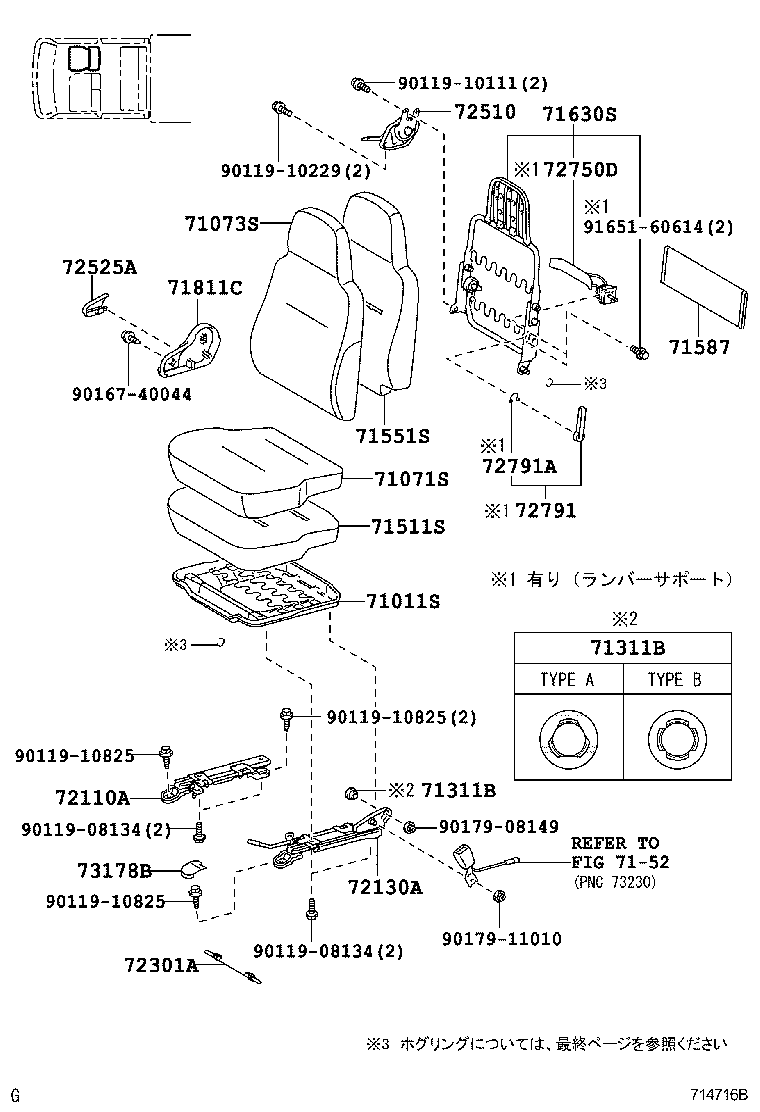

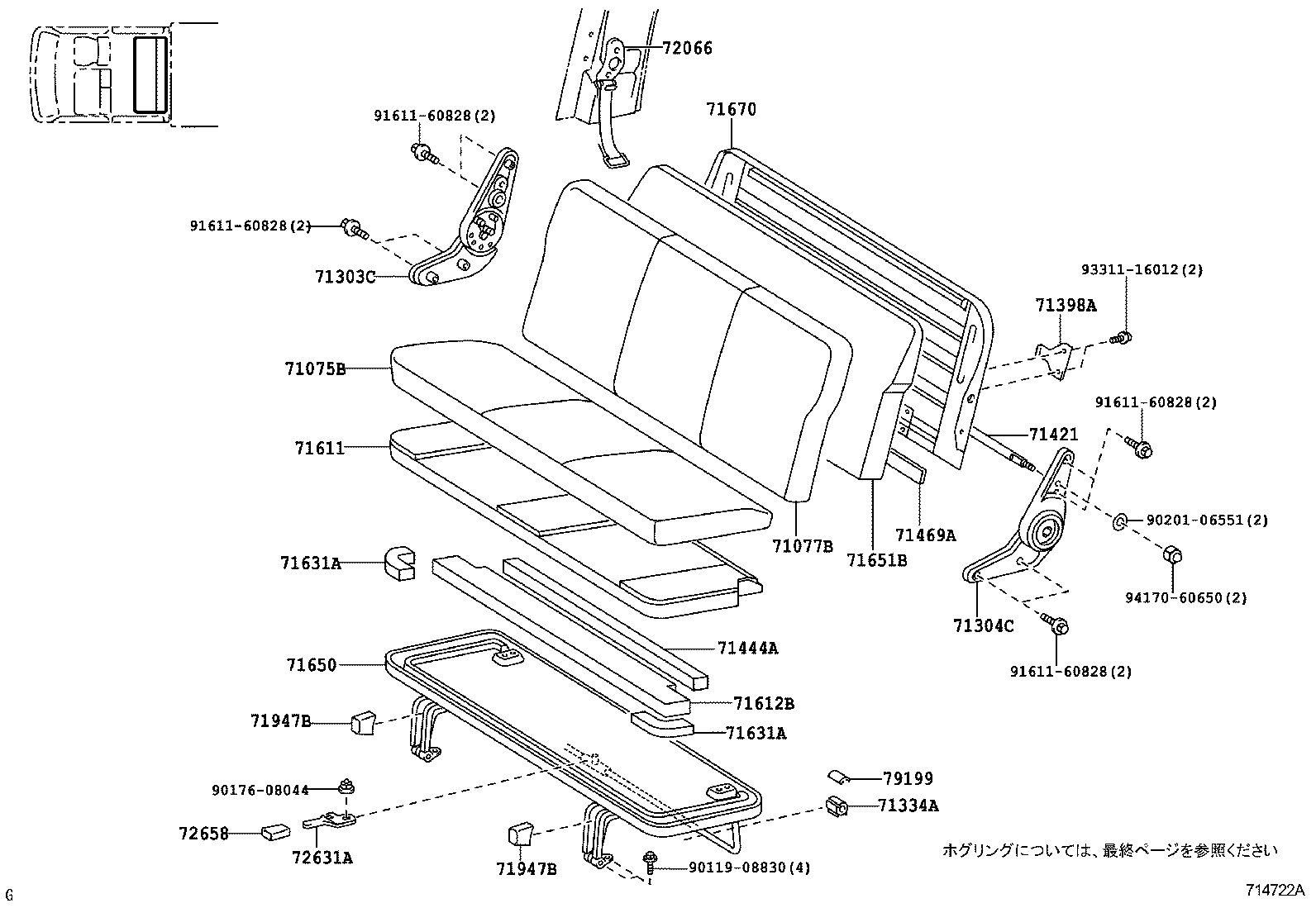

Seat & Seat Track
75 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71026A | Support, Front Seatback, LH |
| 71035S | Cover, Front Seatback, Center |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71131B | Plate, Front Seat Cushion, NO.1 |
| 71236A | Clamp, Rear Seat Cushion Spring |
| 71301C | Link Sub-assy, Rear Seat Cushion |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305S | Frame Sub-assy, Center Seatback |
| 71308C | Leg Sub-assy, Rear Seat, Front |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71315B | Pin, Rear Seat Hinge |
| 71334A | Stopper, Rear Seat Leg |
| 71365S | Pad, Center Seatback |
| 71380 | Hinge Assy, Center Seat, RH |
| 71395B | Cover, Center Seat Hinge, RH |
| 71397A | Cover, Center Seat Hinge |
| 71398A | Holder, Rear Seatback |
| 71421 | Bar, Rear Seatback Equalizing |
| 71434 | Pin, Rear Seat Cushion Leg, Rear |
| 71444A | Pad, Rear Seat Cushion, Rear |
| 71469A | Pad, Rear Seatback |
| 71485B | Cover, Rear Seat Hinge |
| 71491C | Spring, Rear Seat Set |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71611 | Pad, Rear Seat Cushion |
| 71612B | Pad, Rear Seat Cushion, B |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71631A | Pad, Rear Seat Cushion Corner |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71650 | Spring Assy, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71670 | Spring Assy, Rear Seatback(FOR BENCH SEAT) |
| 71739 | Cushion, Seat Support |
| 71811C | Cover, Reclining Adjuster, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71848B | Cap, Seat Adjuster Cover, RH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71910A | Headrest Assy, Front Seat |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71947B | Bumper, Rear Passenger Seat Cushion |
| 72050 | Belt Assy, Rear Seat Hook |
| 72066 | Belt Sub-assy, Rear Seat Hook, LH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72213C | Knob, Seat Track Adjusting Handle, LH |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72593B | Knob, Reclining Remote Control Lever, RH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72631A | Handle, Rear Seat Leg Stopper |
| 72641 | Pin, Rear Seatback Lock |
| 72658 | Knob, Rear Seat Handle |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
| 73178B | Cap, Seat Belt Anchor Cover |
| 79191 | Spring, NO.1 Seat Cushion, NO.1 |
| 79199 | Holder, NO.1 Seat Leg Stopper |
| 79951 | Cover, NO.1 Seat Cushion |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
