Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

12 part groups · 6 illustrations

Illustrations

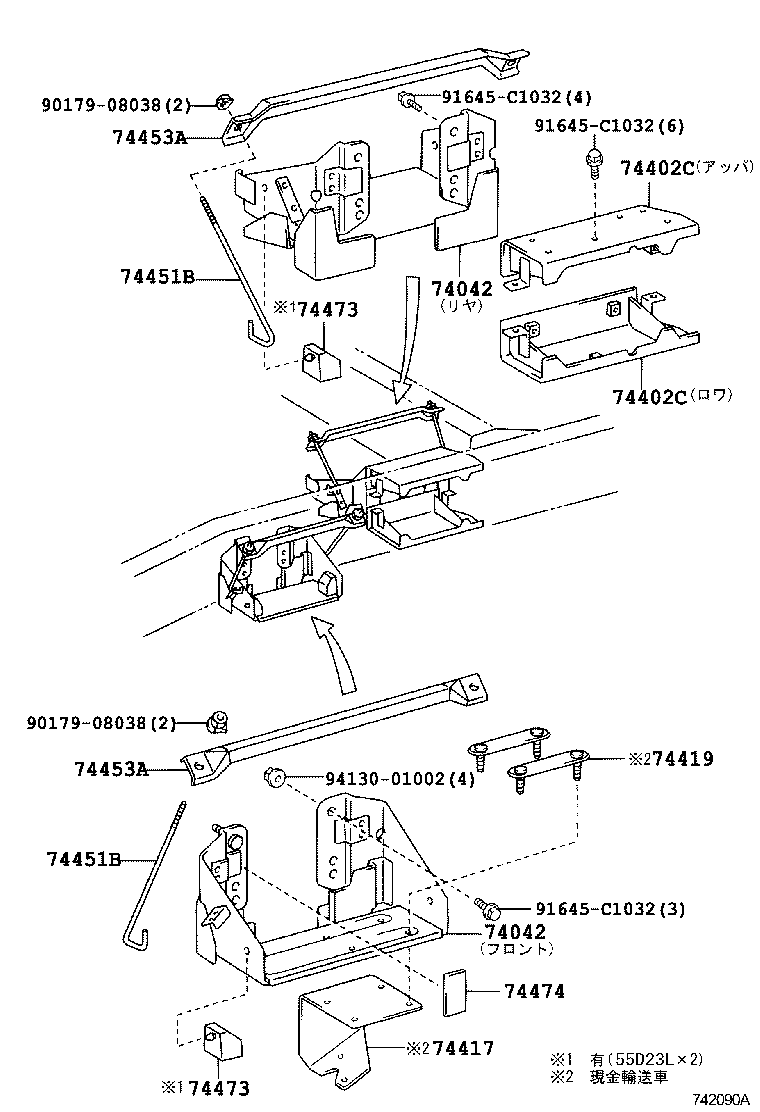

Figure 742092B 742092B 2006-10 → — Figure 742091A 742091A 2006-10 → — Figure 742091A 742091A 2006-10 → — Figure 742090A 742090A 2006-10 → — Figure 742234 742234 2007-05 → — Figure 742233 742233 2007-05 → —

Part groups

PNCDescription
74042 Bracket Sub-assy, Battery
74402C Bracket Sub-assy, Battery Carrier, Rear
74403A Carrier Sub-assy, Battery
74417 Bracket, Battery Carrier
74419 Plate, Battery Seat
74451B Bolt, Battery Clamp
74452 Plate, Battery Set
74453A Bar, Battery Set Plate
74461 Cover, Battery
74473 Spacer, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
