Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

33 part groups · 3 illustrations

Illustrations

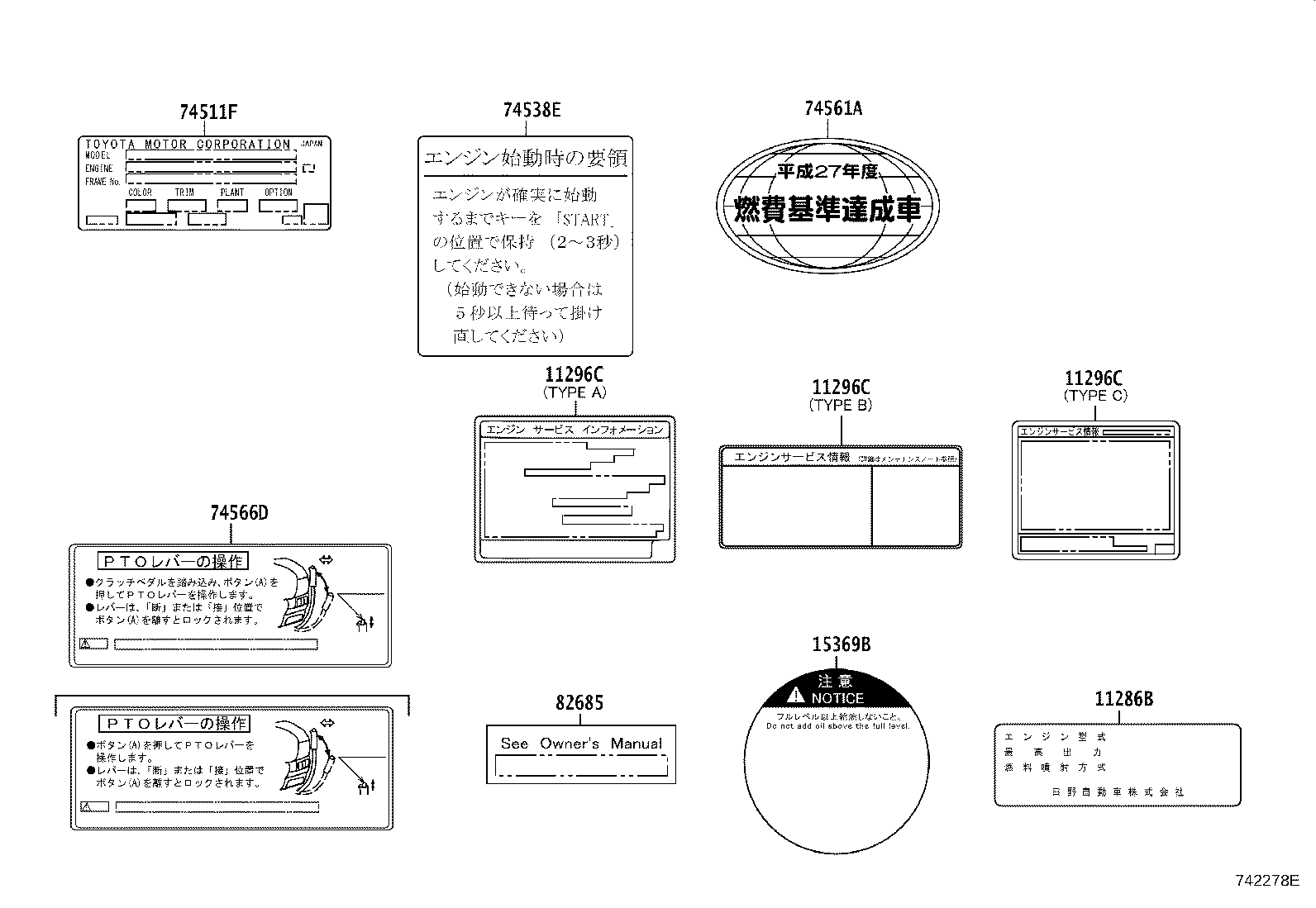

Figure 742077B 742077B 2006-10 → — Figure 742078J 742078J 2006-10 → — Figure 742278E 742278E 2006-10 → —

Part groups

PNCDescription
11286B Plate, Engine Specification
11296C Label, Engine Service Information
15369B Label, Engine Oil Notice
17792D Label, Emission Control Device Information
36369 Label, Transfer Information
46275A Label, Parking Brake Release Information, NO.1
47398A Label, Hill Holder Caution
47399A Label, Brake Lock Caution
54895 Label, Tilt Cab Control Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74517 Plate, Exhaust Temperature Caution
74529E Label, Door Closer Caution, LH
74537C Plate, Dump Lever
74538E Label, Ignition Swich Notice
74541F Label, Slide Door Glass Caution
74541G Plate, Safety Caution
74541L Label, Bottle Holder Information
74544D Plate, Tire Carrier Caution
74552 Plate, Safety Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74566C Plate, Front Slide Door Caution
74566D Label, Power Take Off Valve Link Cover Caution
74571 Plate, Brake Fluid Caution
74574 Plate, Noise Identification
74582A Plate, Safety Caution
74585 Plate, Tire Carrier Caution, NO.2
74586 Plate, Tire Carrier Caution, NO.3
75476A Plate, Tilt Operational Caution
82685 Plate, Caution
89176A Label, Airbag Deployment Information
89176B Label, Airbag Sensor Cover Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
