Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01
Tool Box & License Plate Bracket
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47379 | Spacer, Brake Tube, NO.1 |
| 47379A | Spacer, Brake Tube, NO.2 |

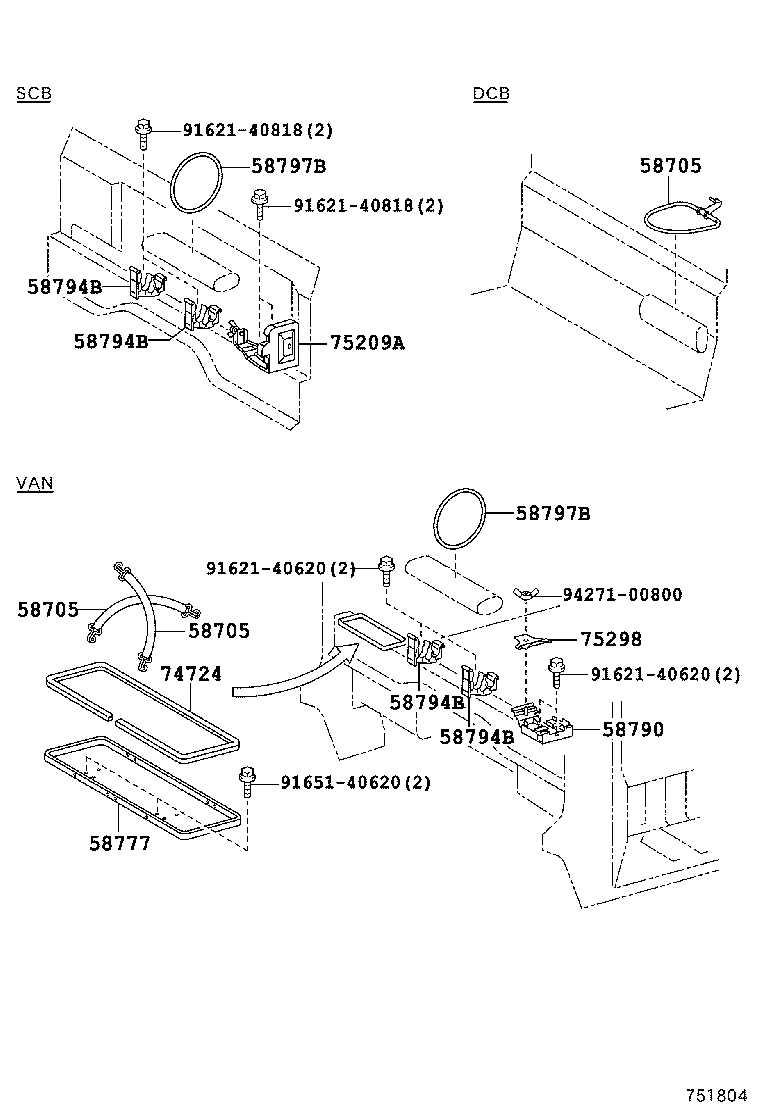

| 58705 | Band Sub-assy, Tool Bag |
| 58777 | Platform, Tool Bag Rest |
| 58790 | Carrier Assy, Jack |
| 58794B | Support, Jack Handle |
| 58797B | Band, Jack Clamp |

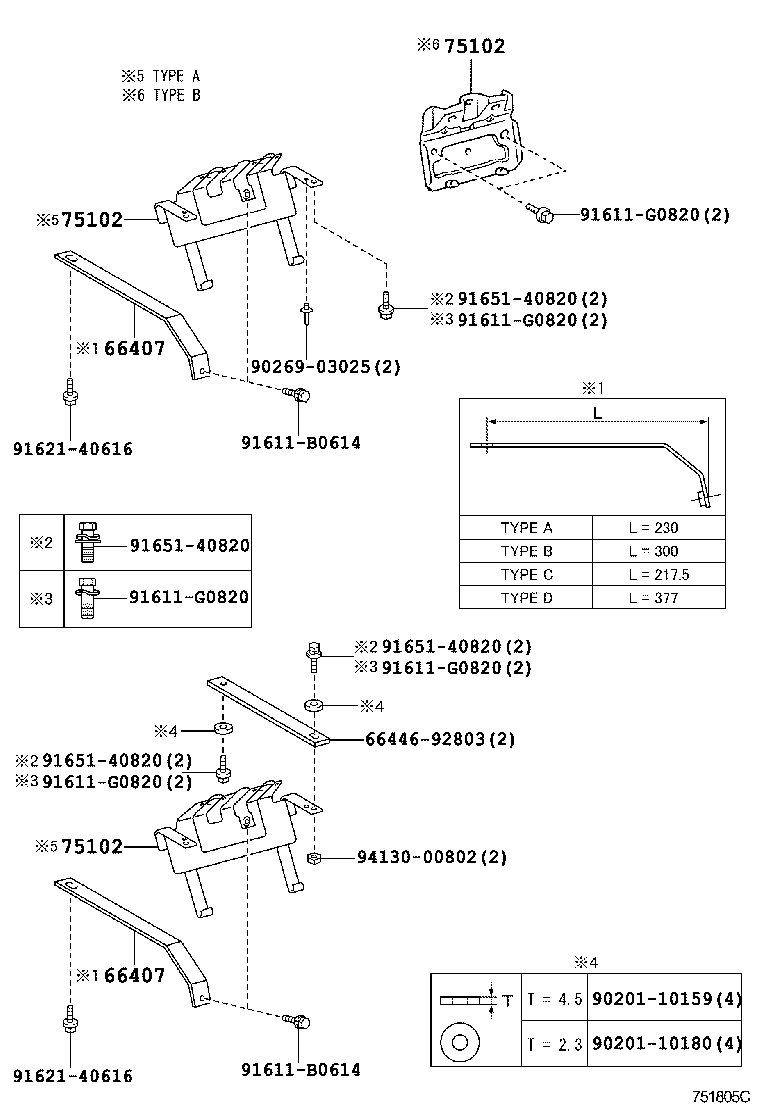

| 66407 | Stay Sub-assy, License Plate Bracket |
| 74724 | Trim, Tool Back Platform |
| 75102 | Bracket Sub-assy, Rear License Plate |

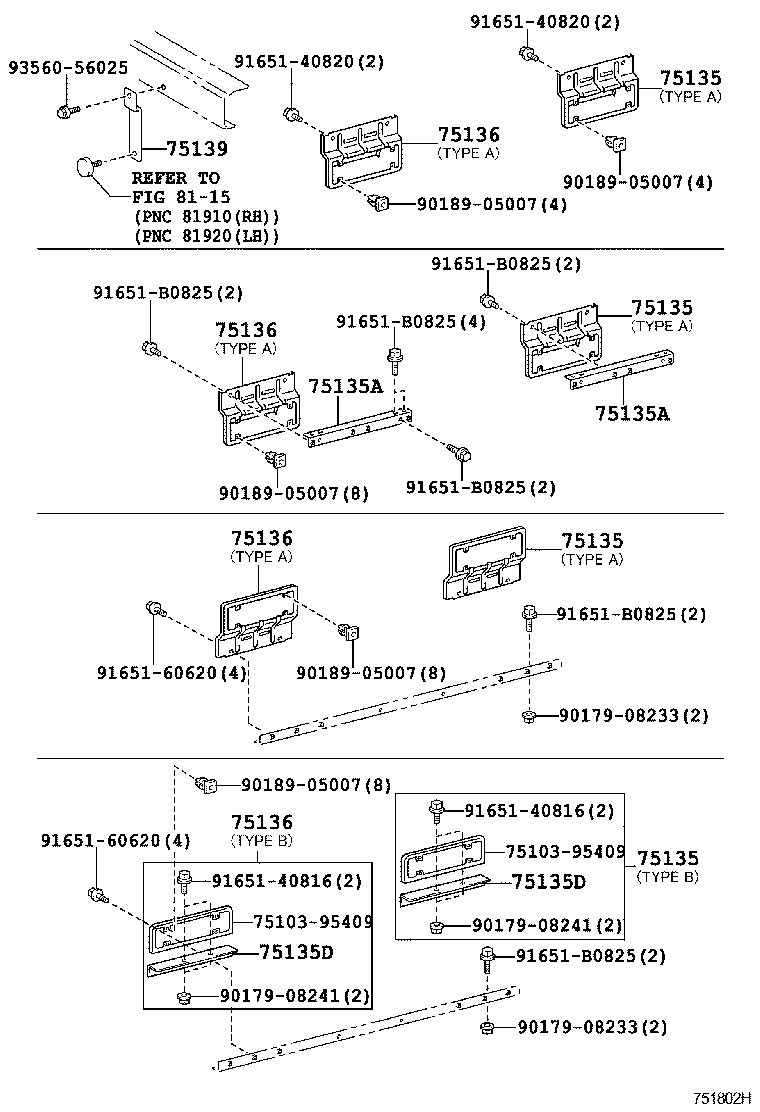

| 75135 | Bracket, Combination Rear Lamp, RH |
| 75135A | Stay, Combination Rear Lamp Bracket |
| 75135D | Bracket, Combination Rear Lamp |
| 75136 | Bracket, Combination Rear Lamp, LH |
| 75139 | Bracket, Reflex Reflector |
| 75204B | Stay Sub-assy, Tool Box |
| 75209A | Base Sub Assy, Jack Holder |
| 75210A | Box Assy, Tool |
| 75247B | Support, Tool Box |
| 75298 | Plate, Jack Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
