Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

86 part groups · 49 illustrations

Illustrations

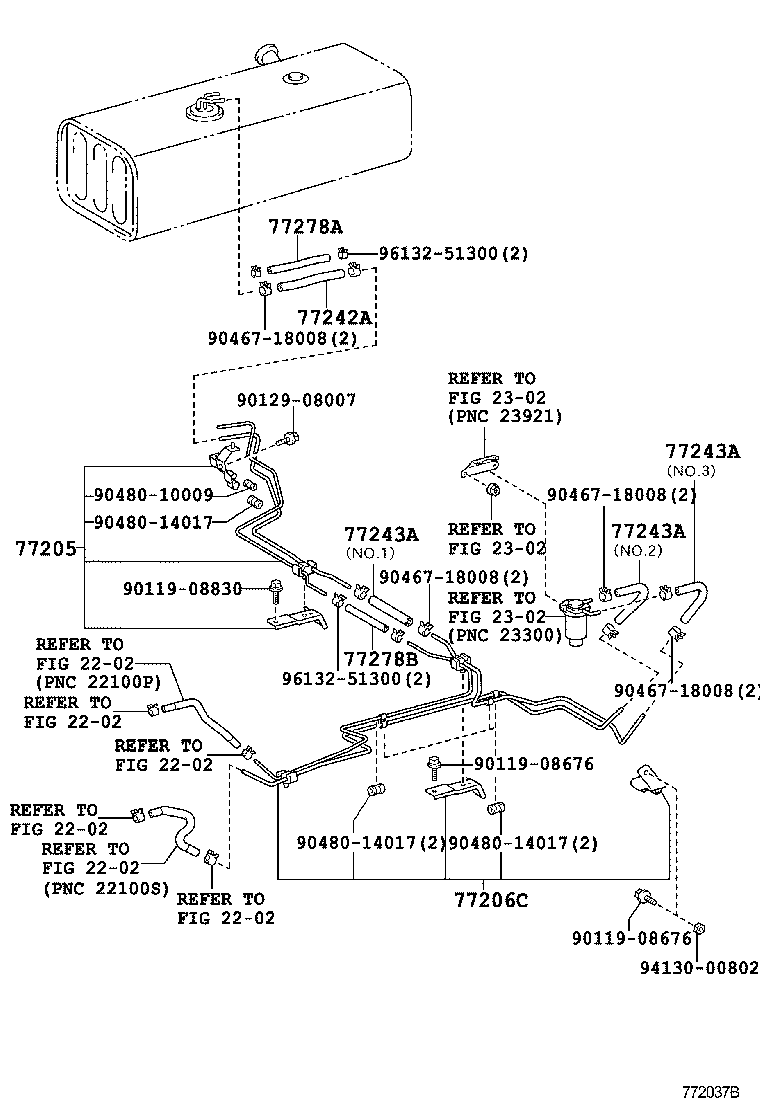

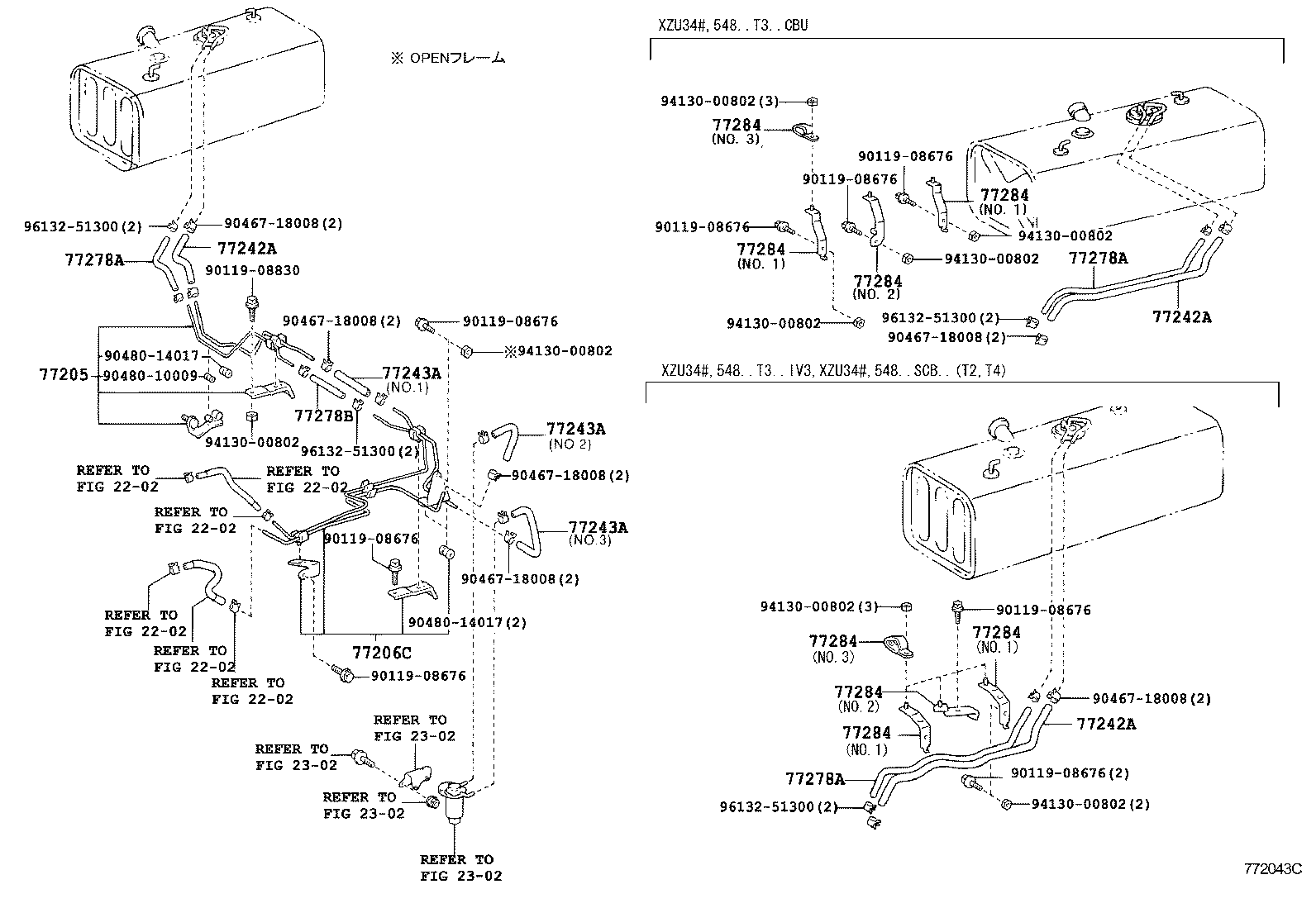

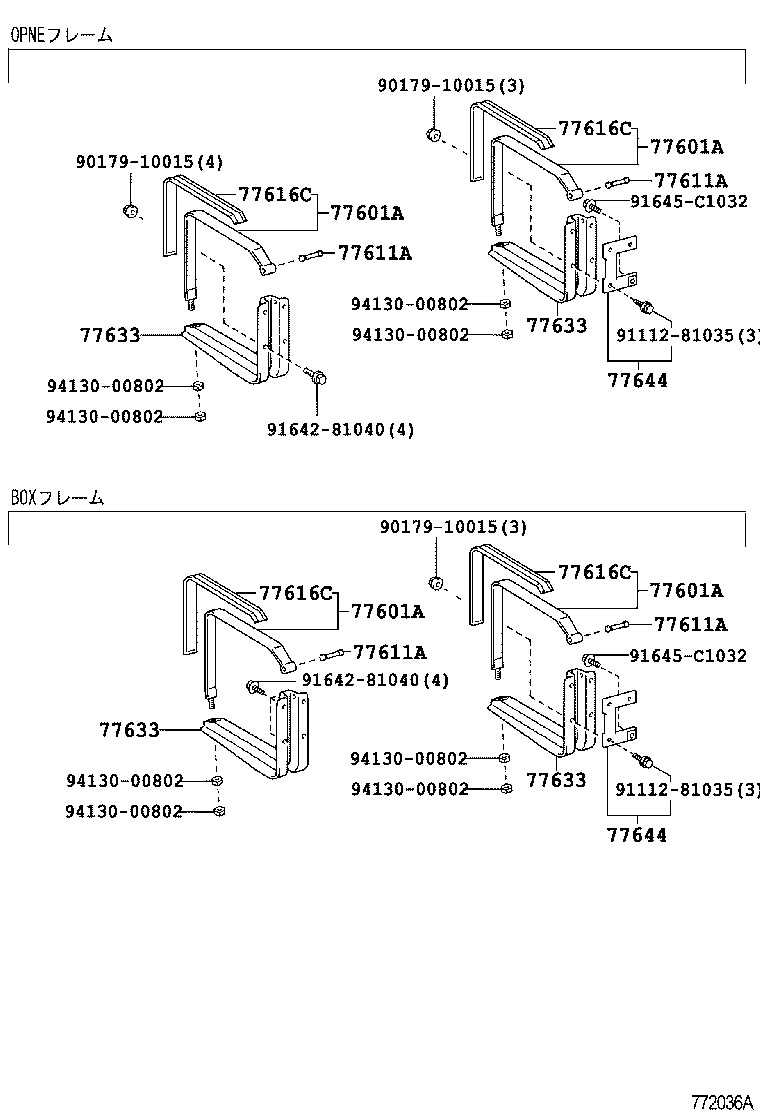

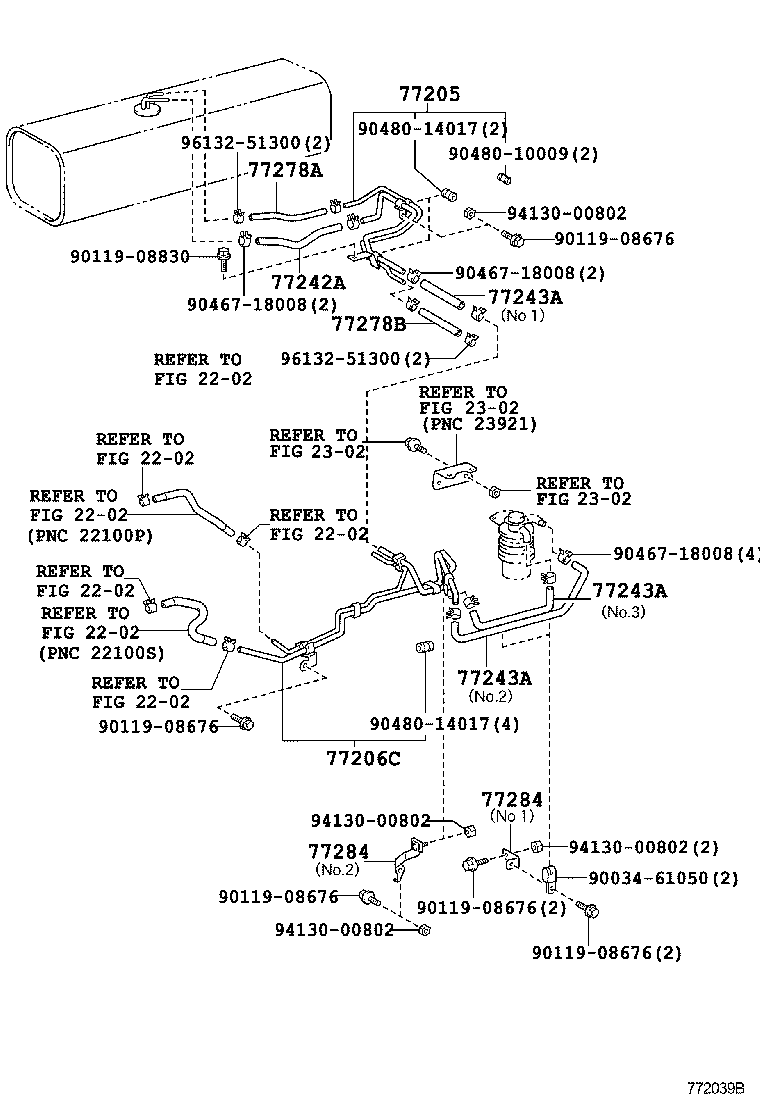

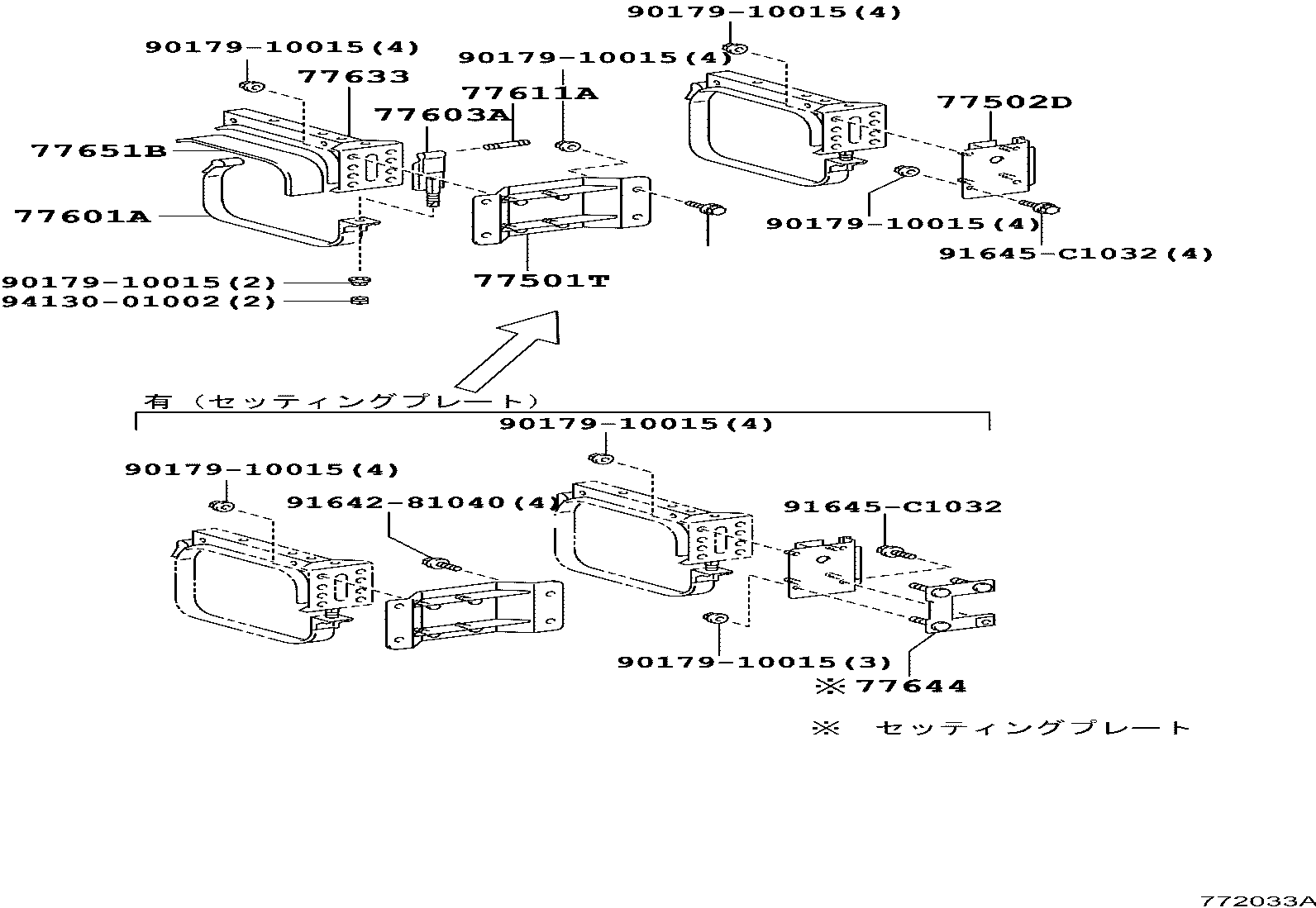

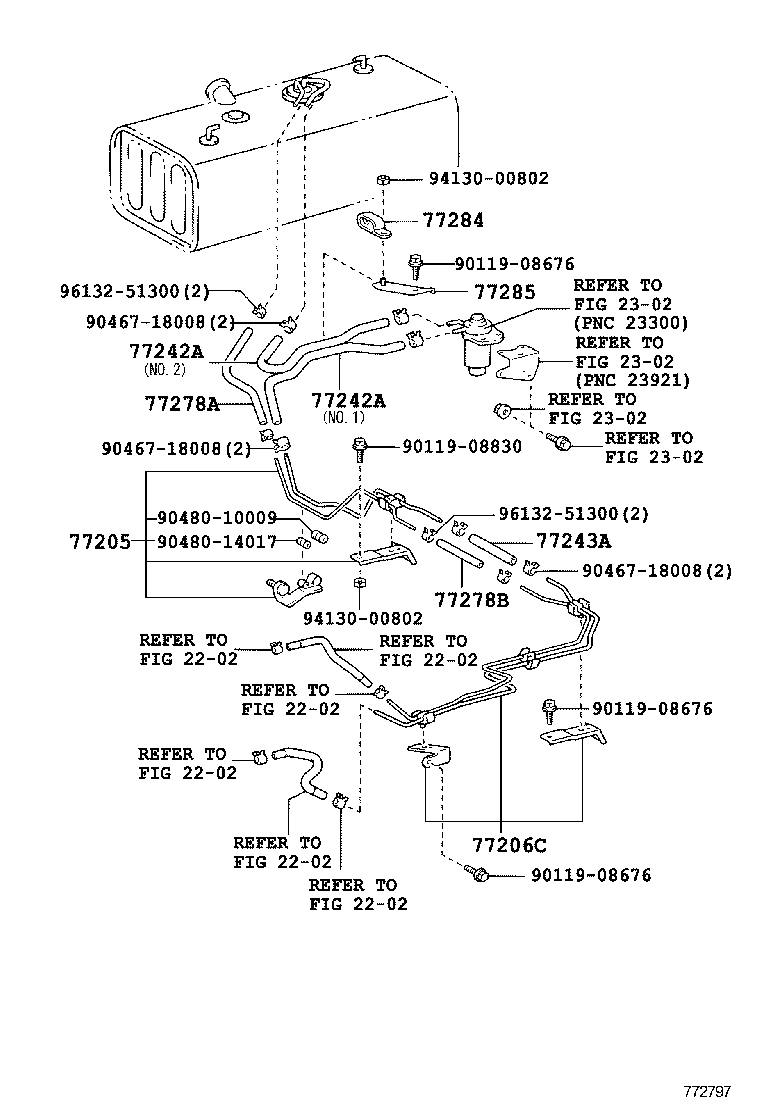

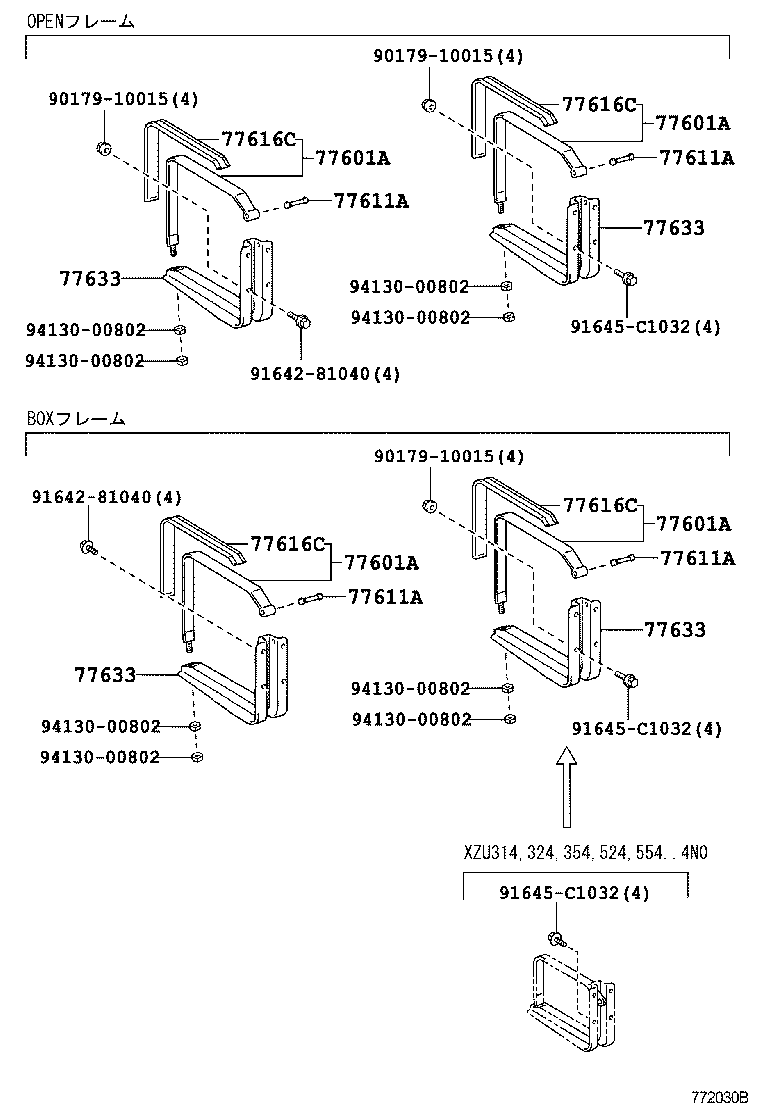

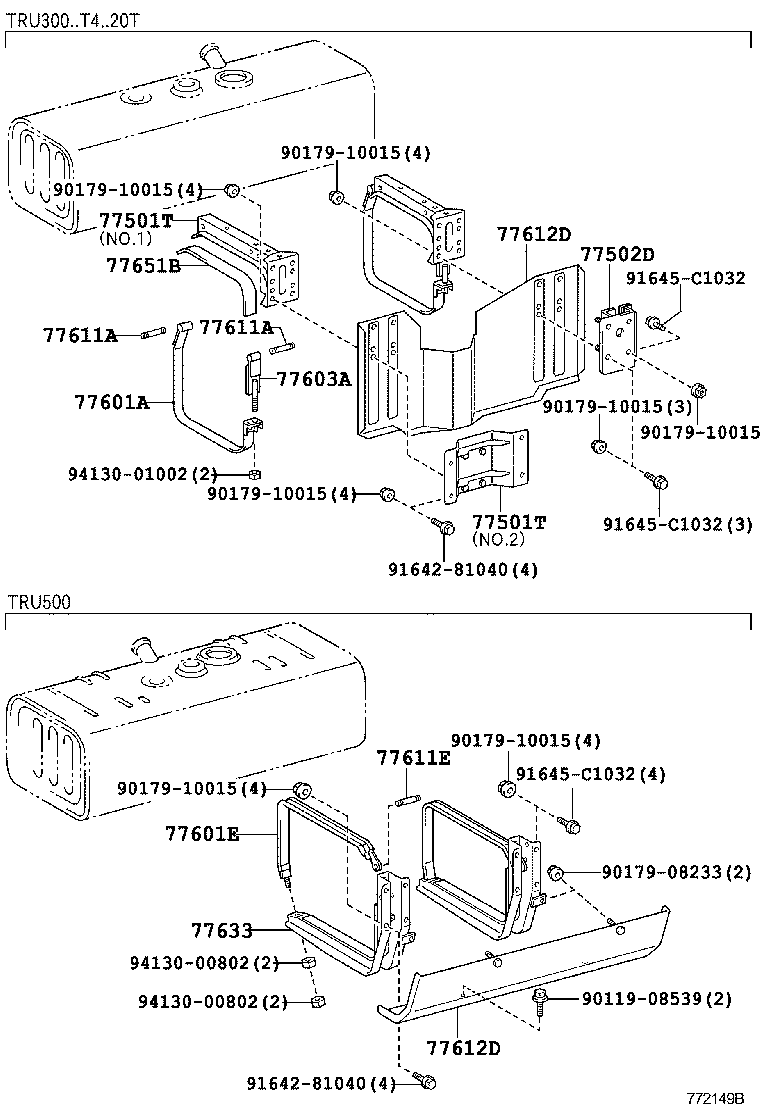

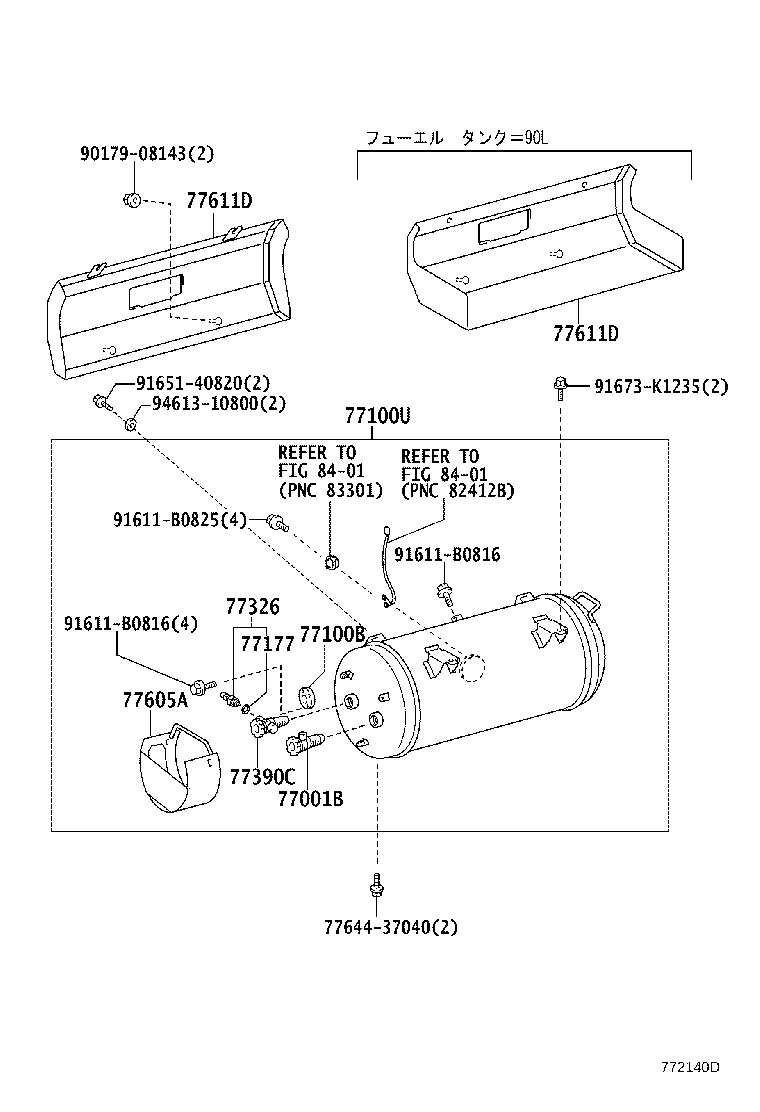

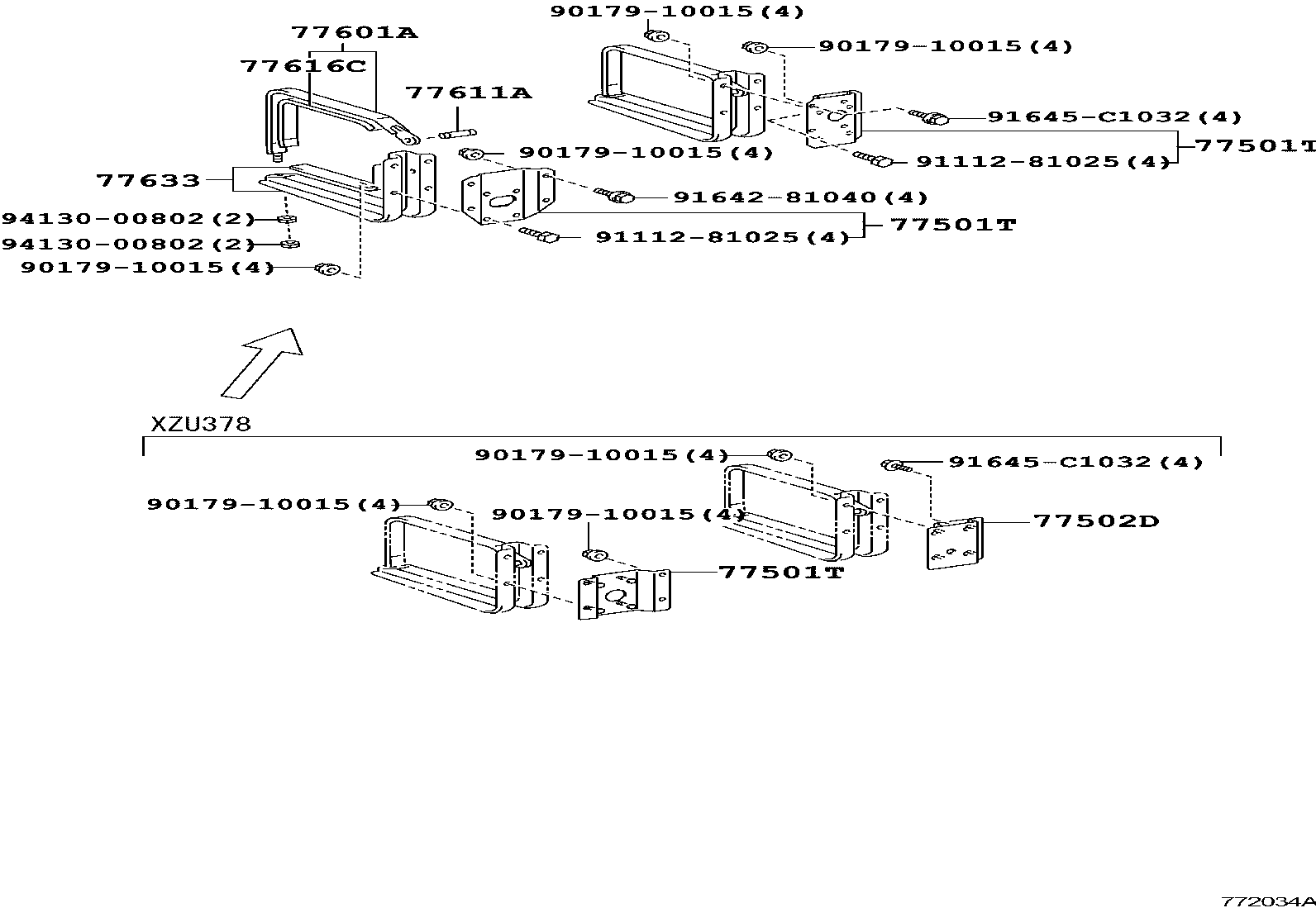

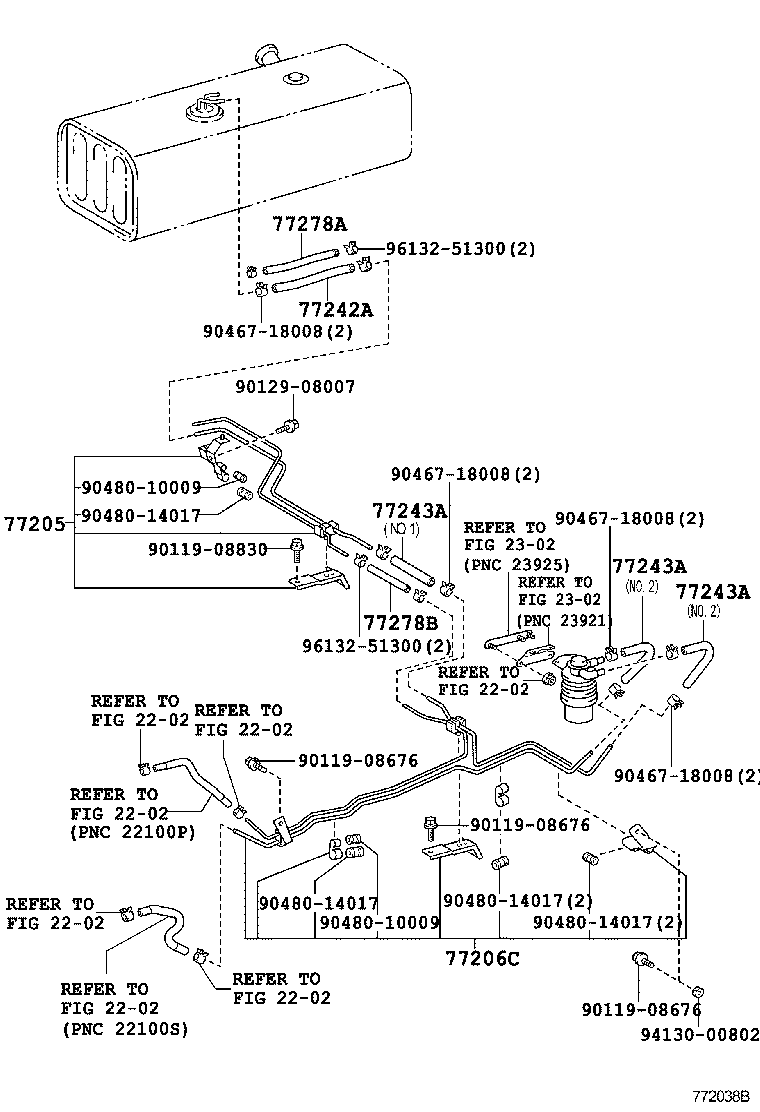

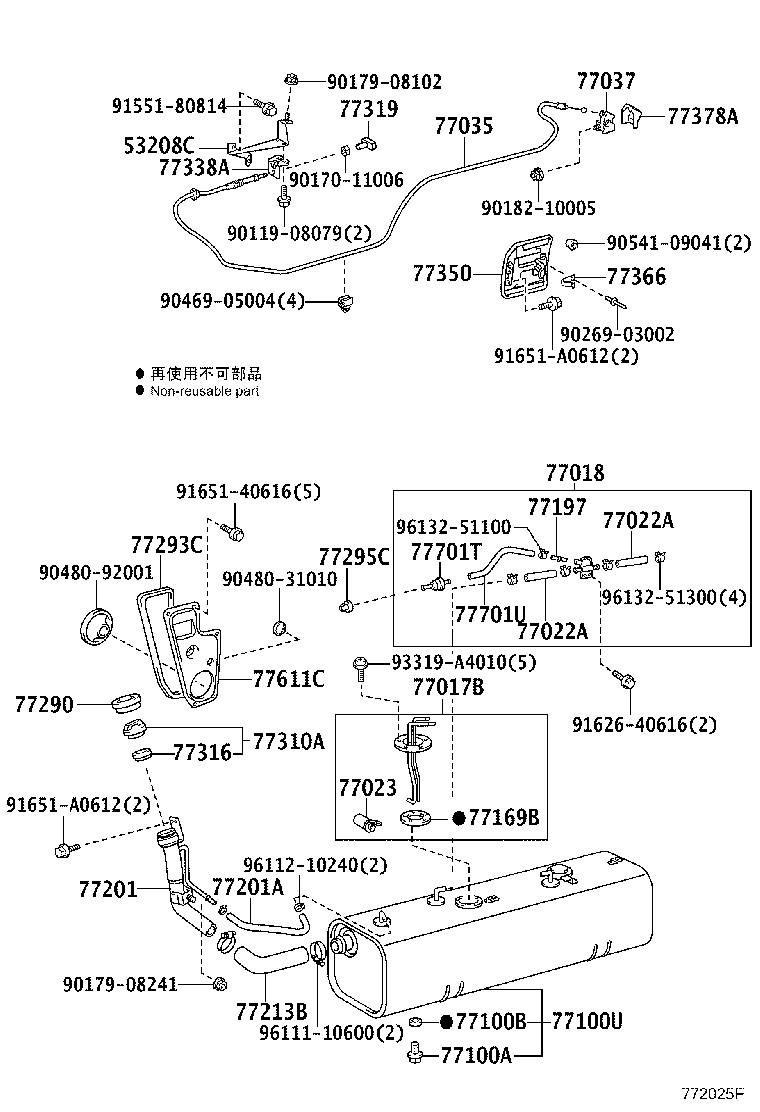

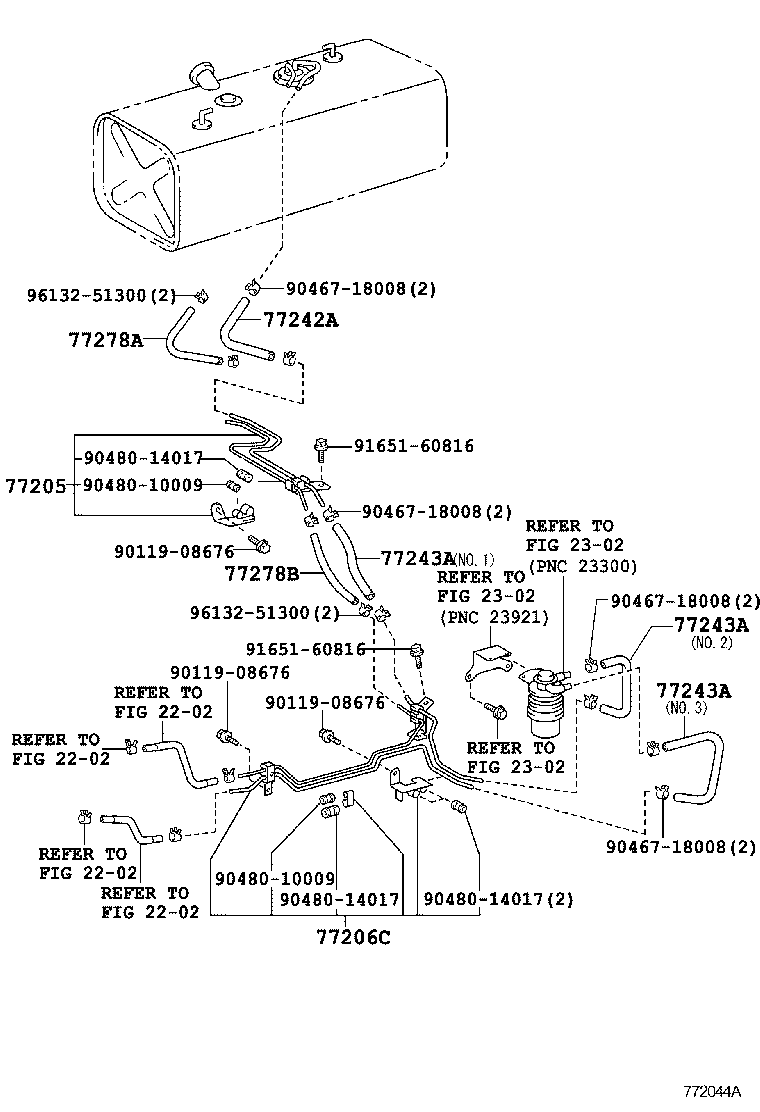

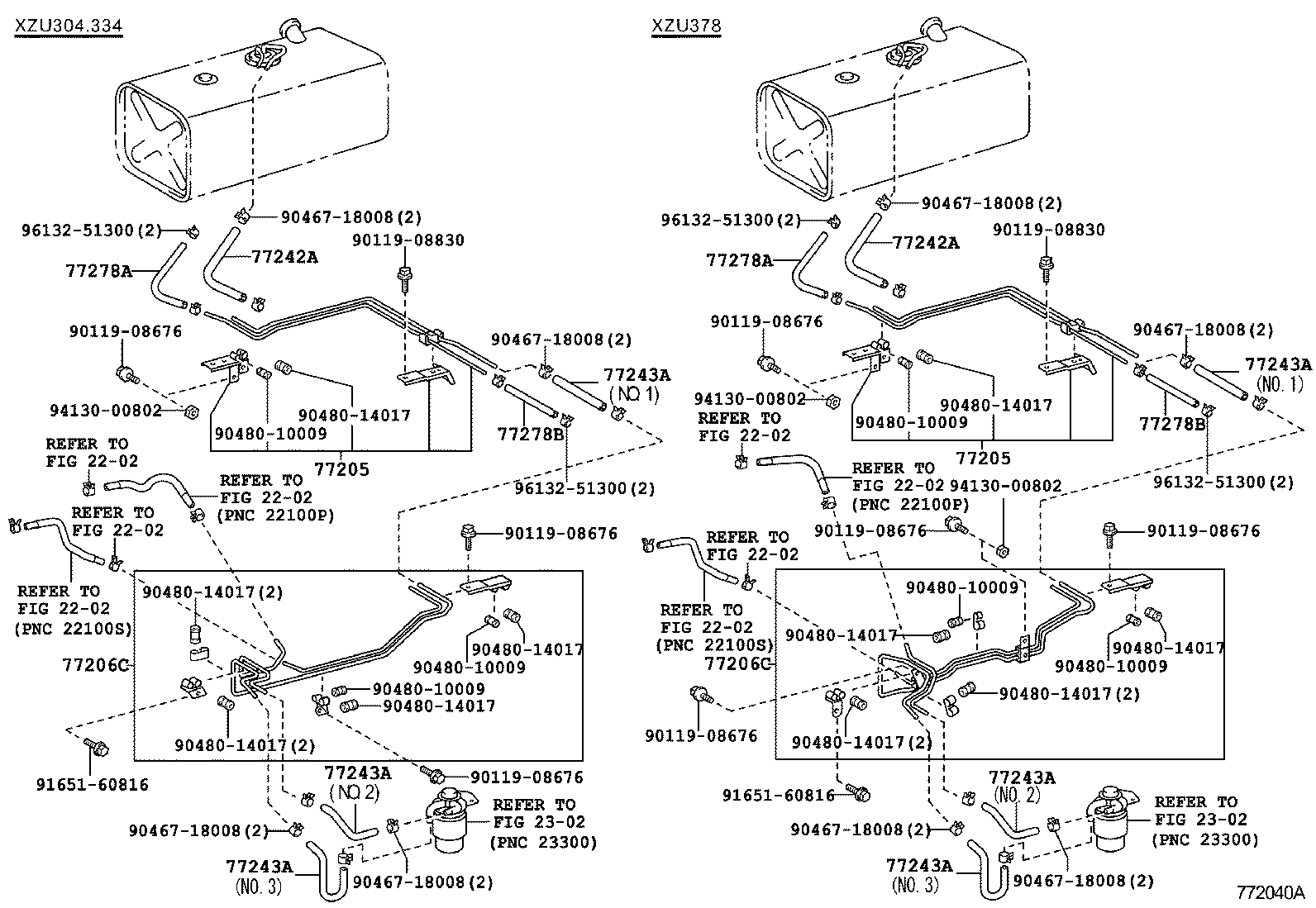

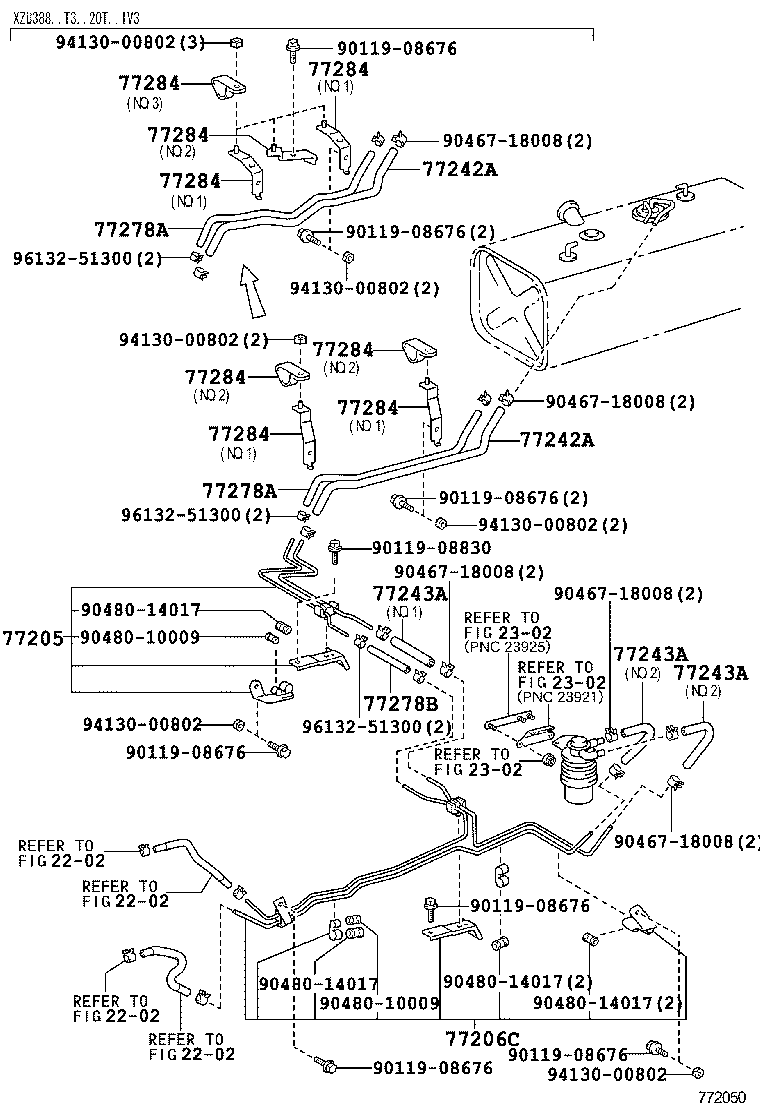

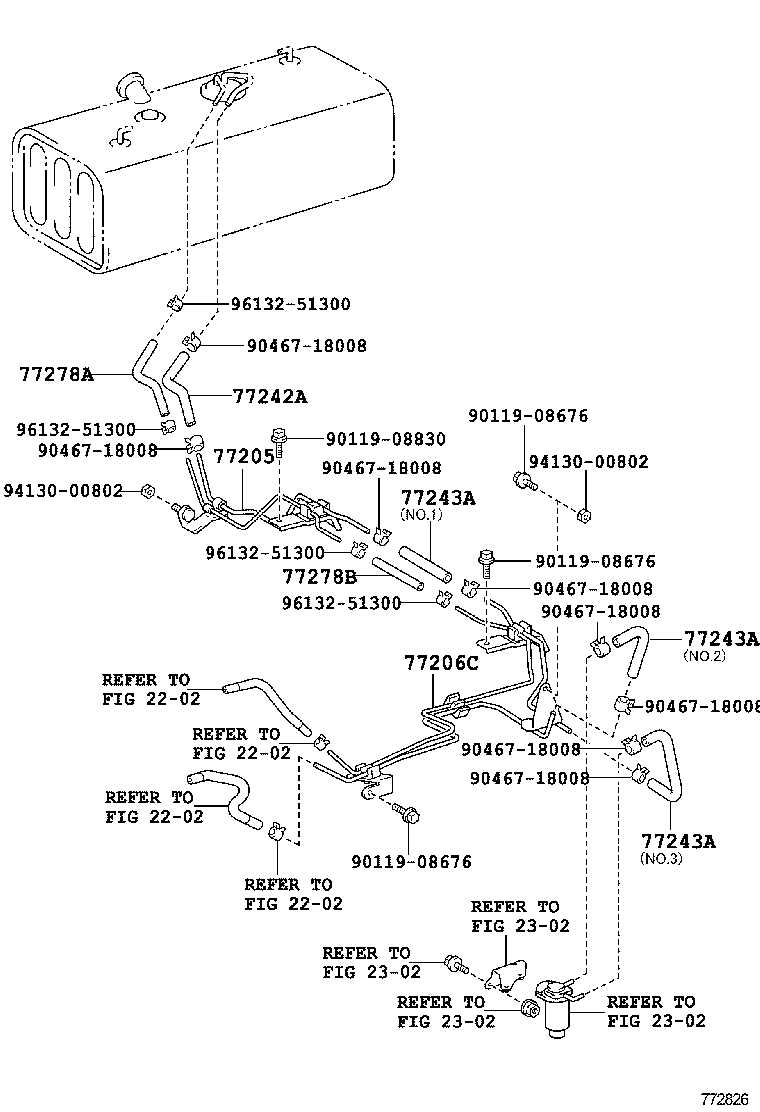

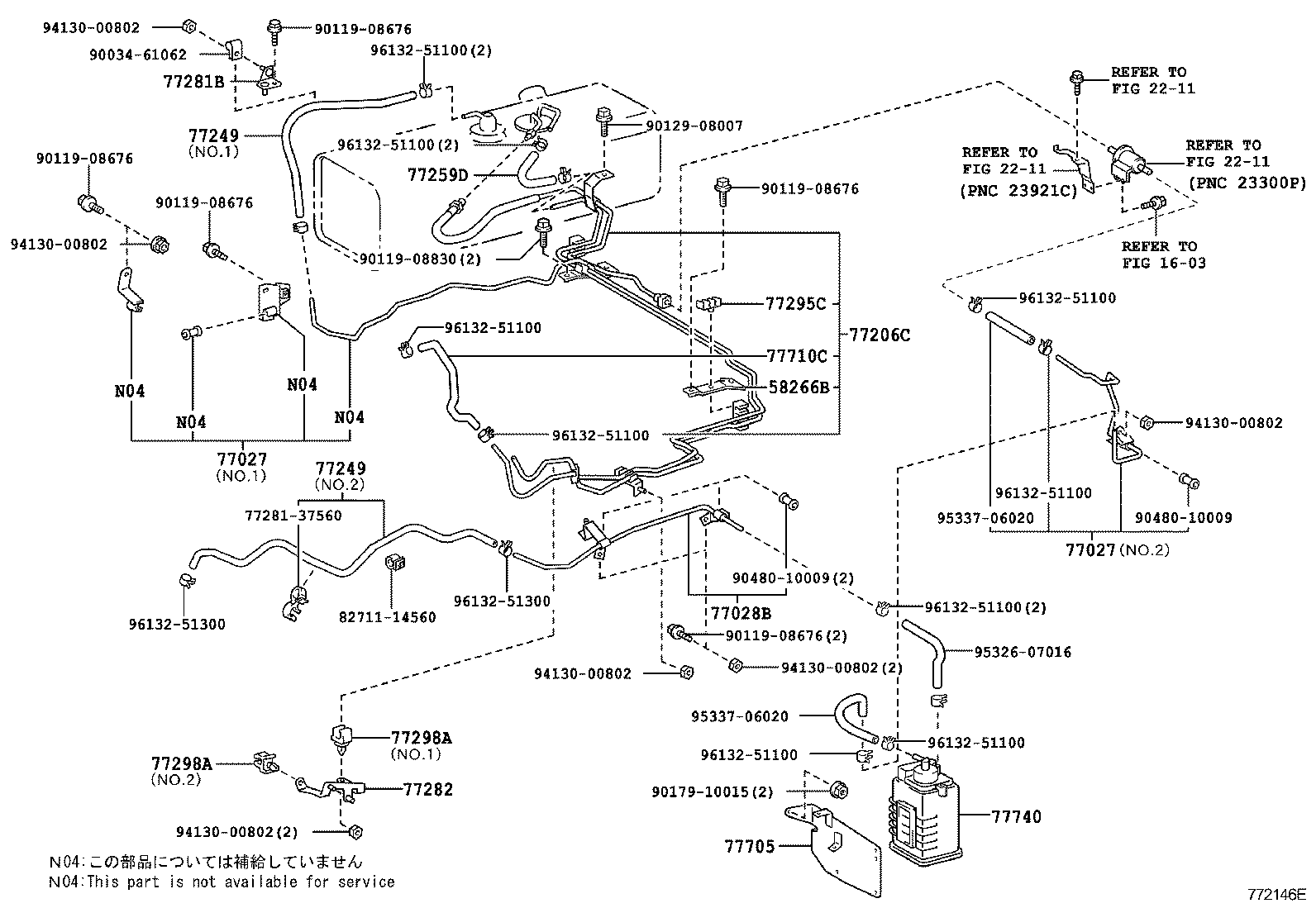

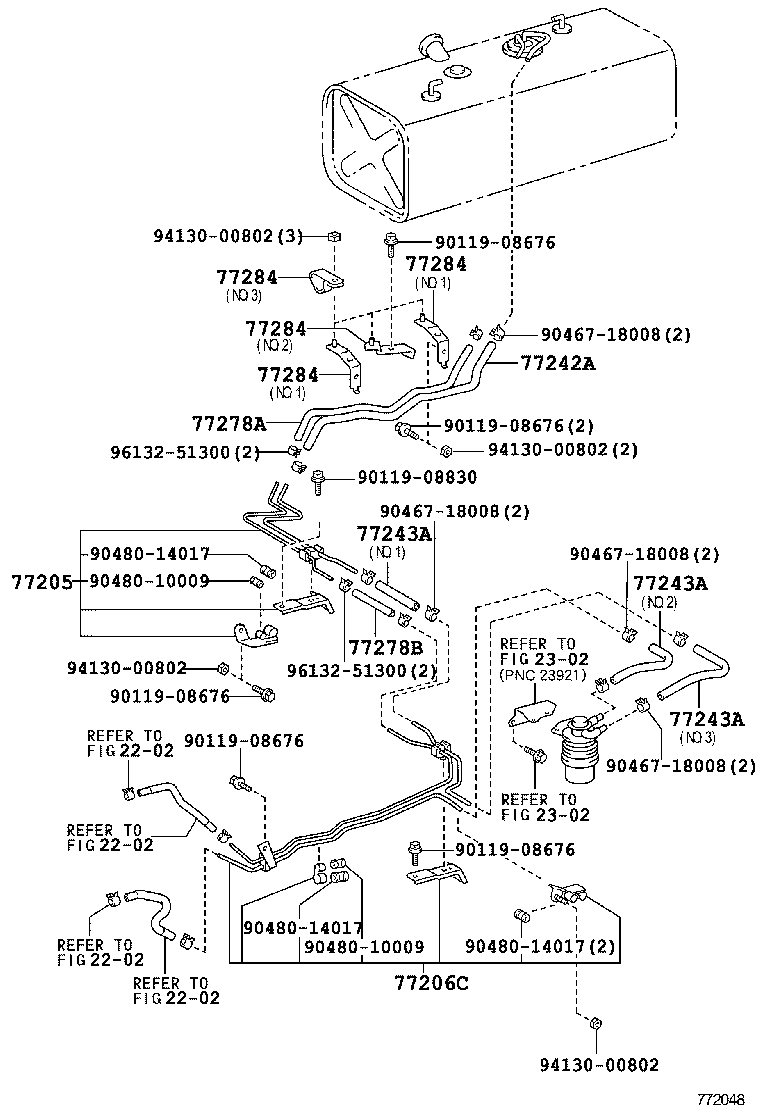

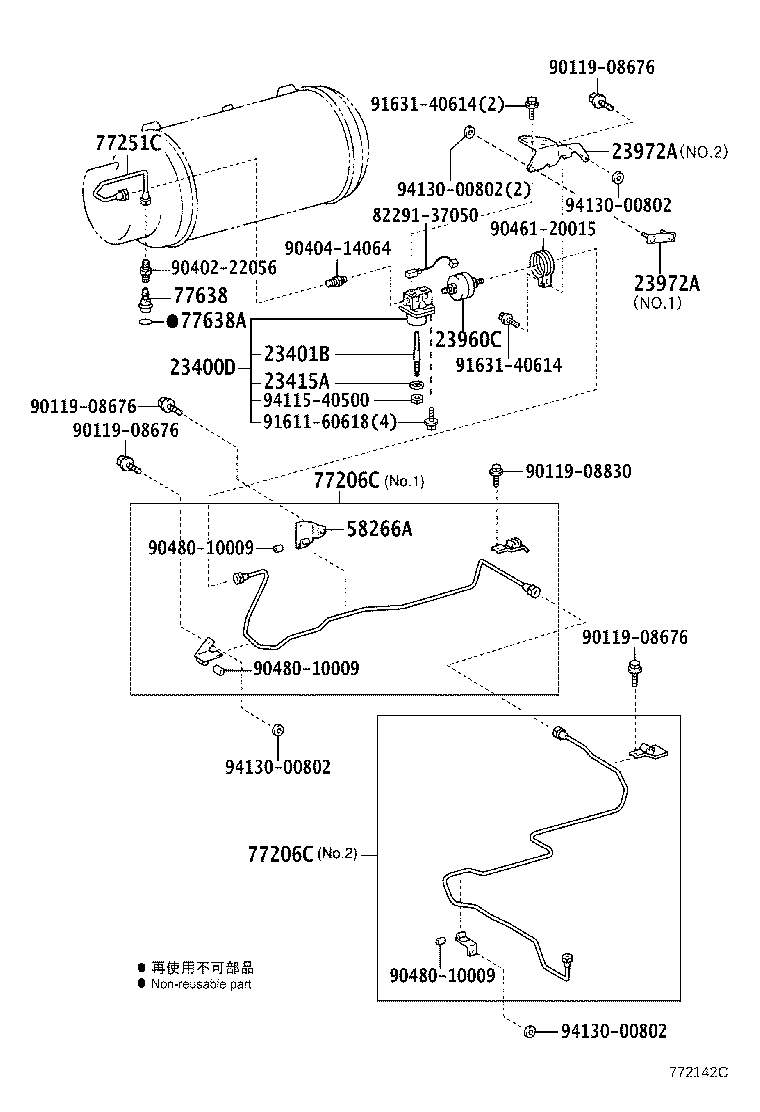

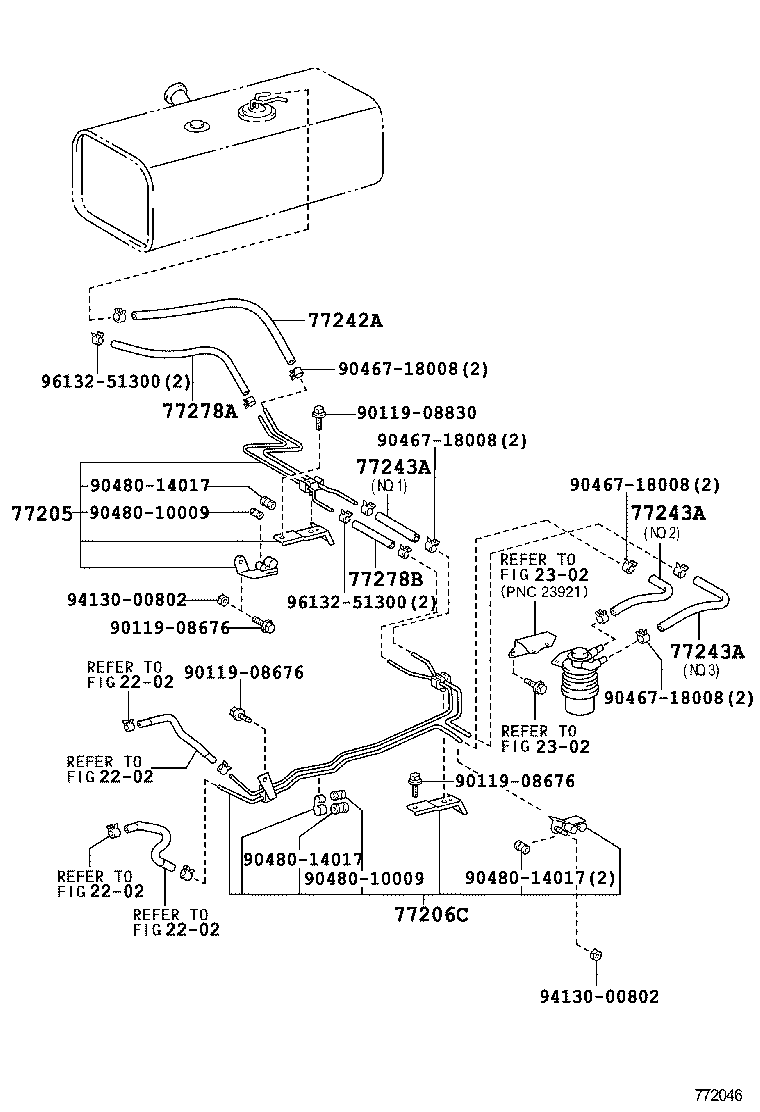

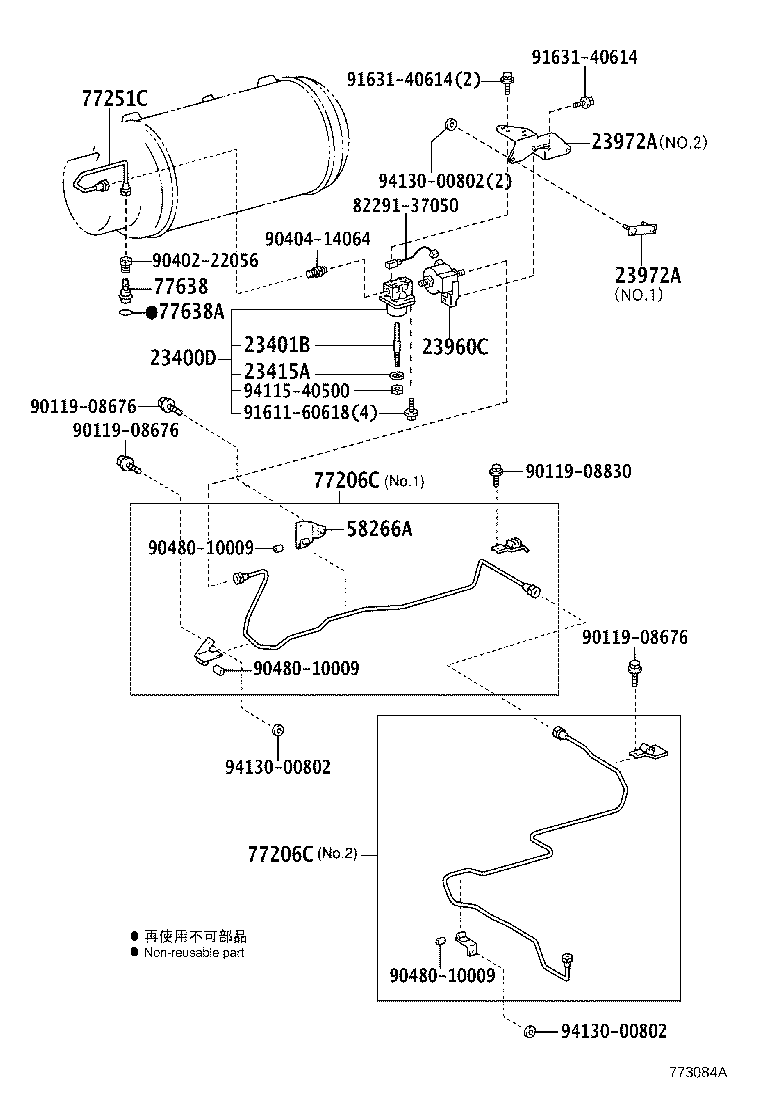

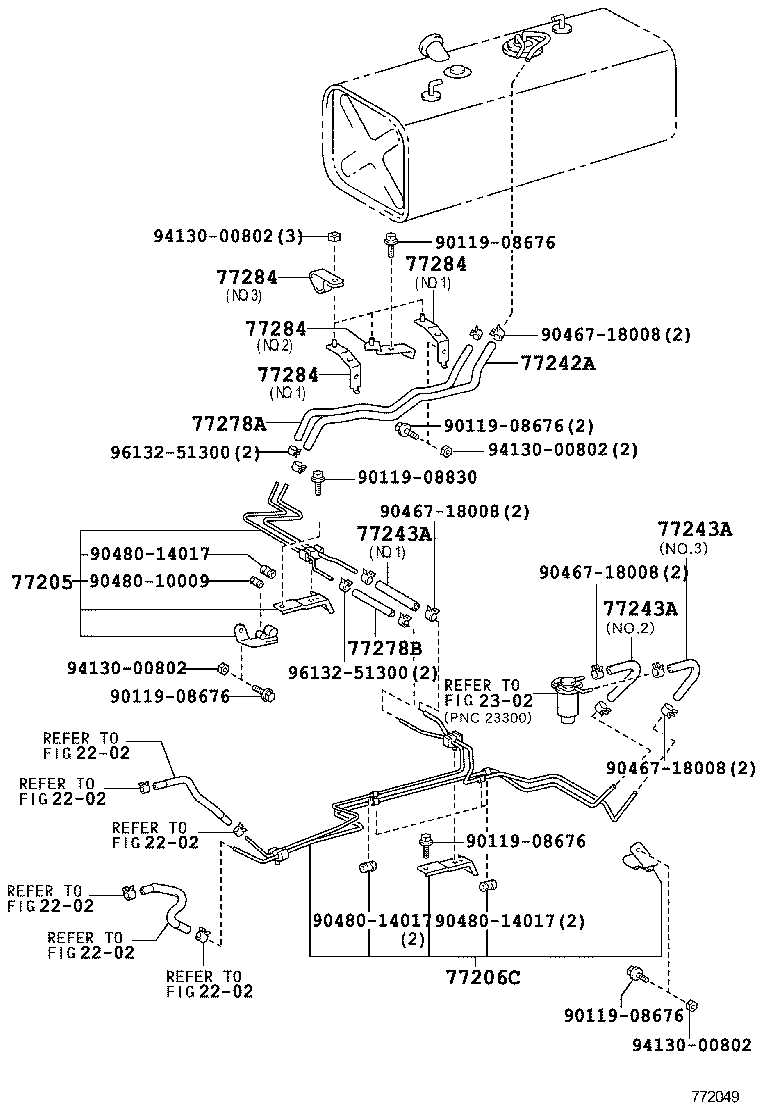

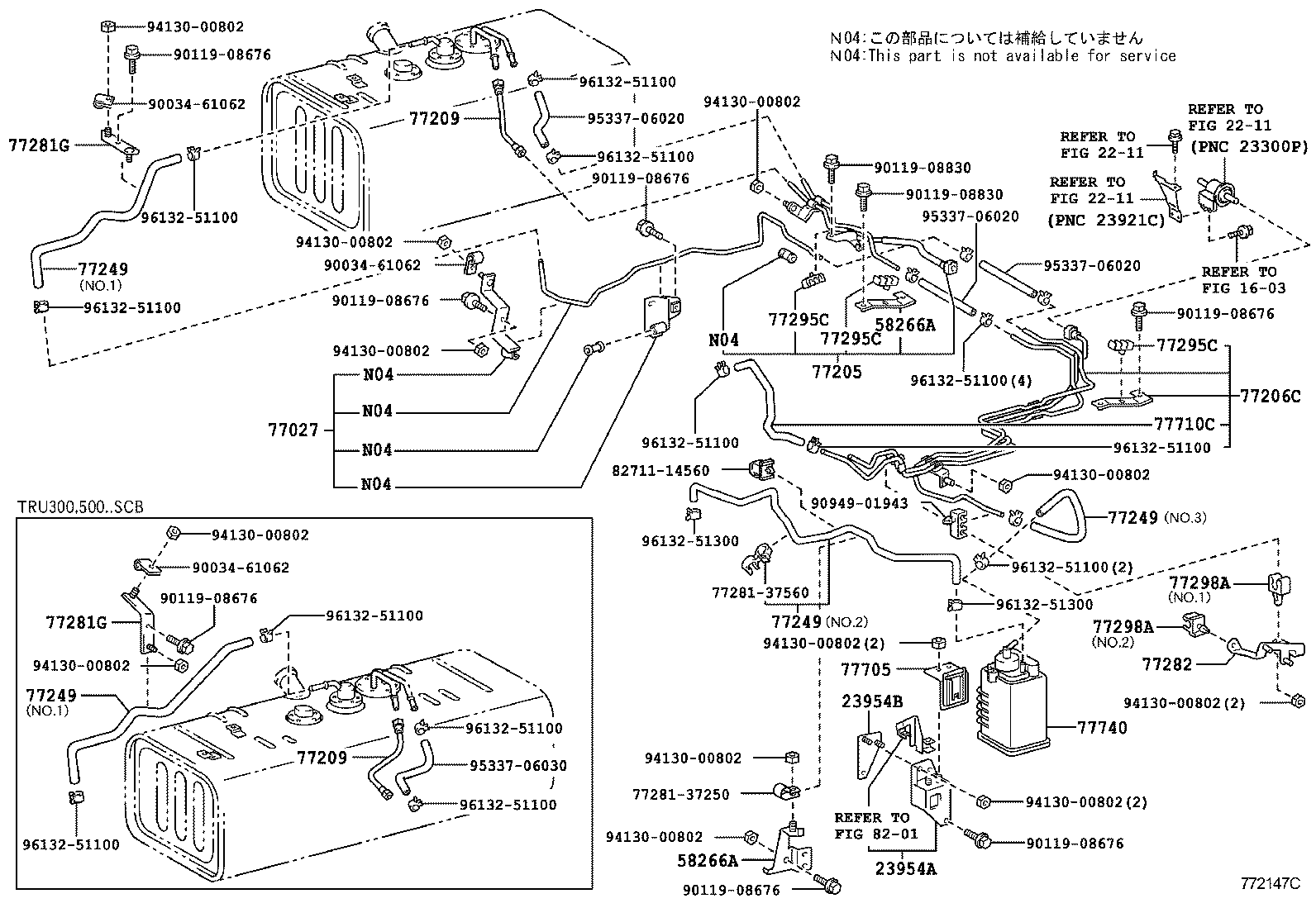

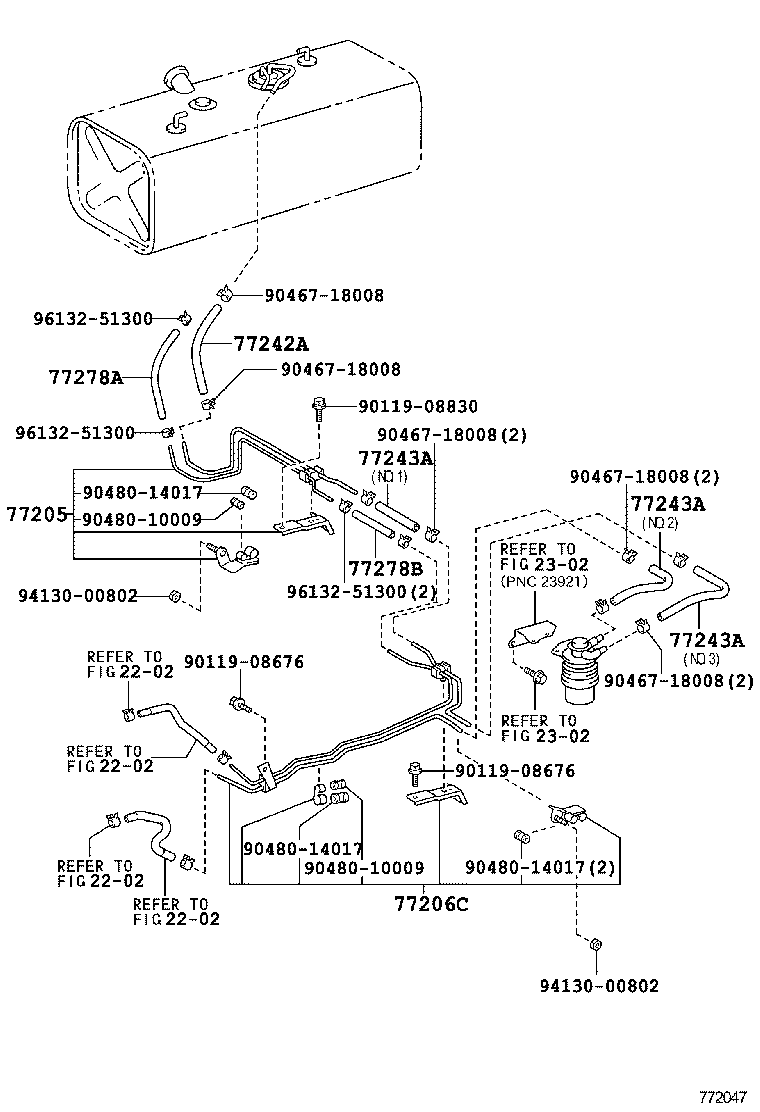

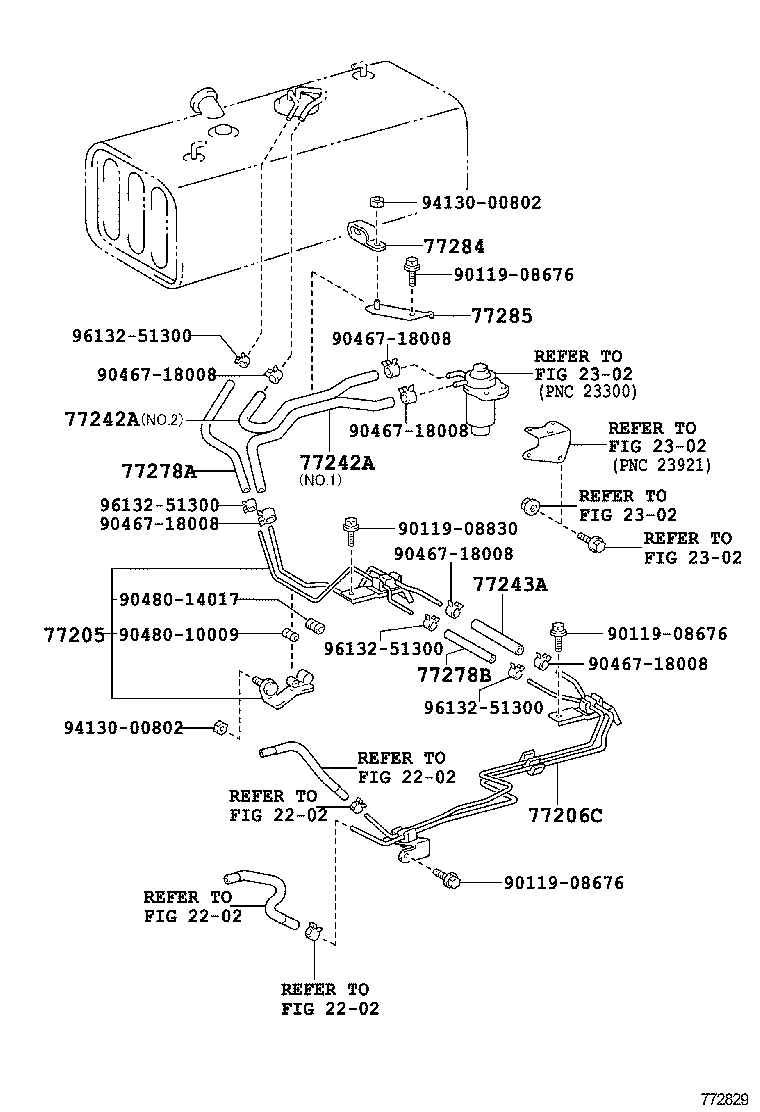

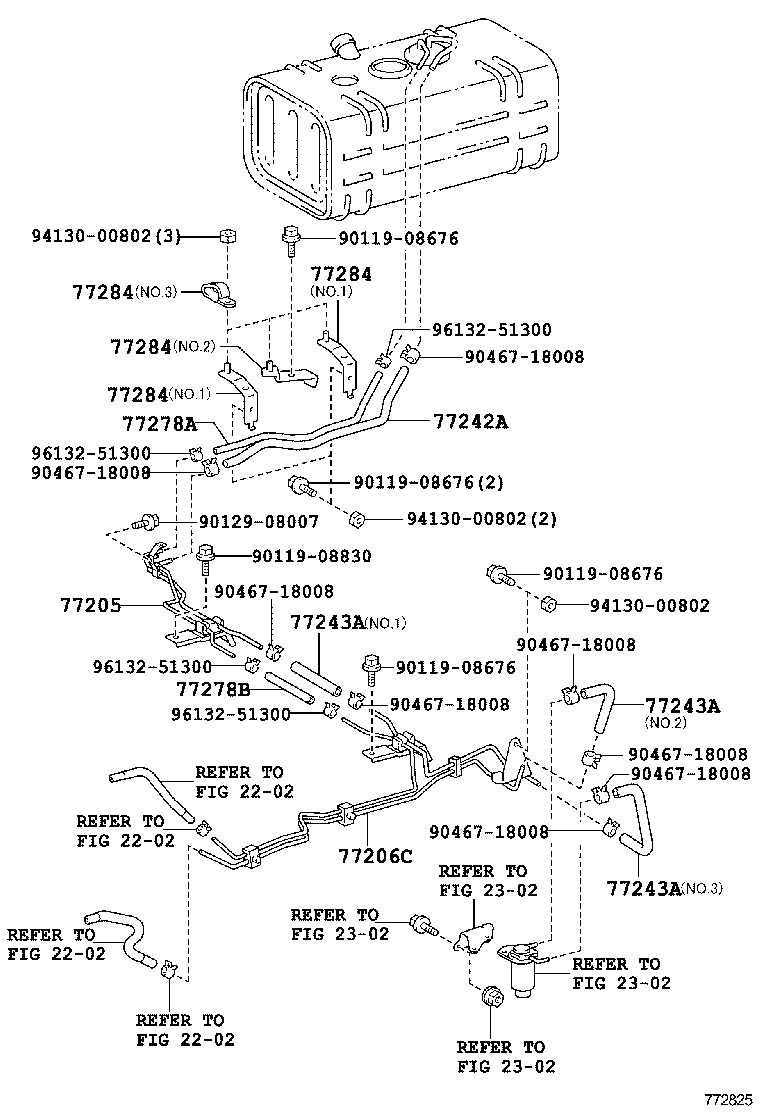

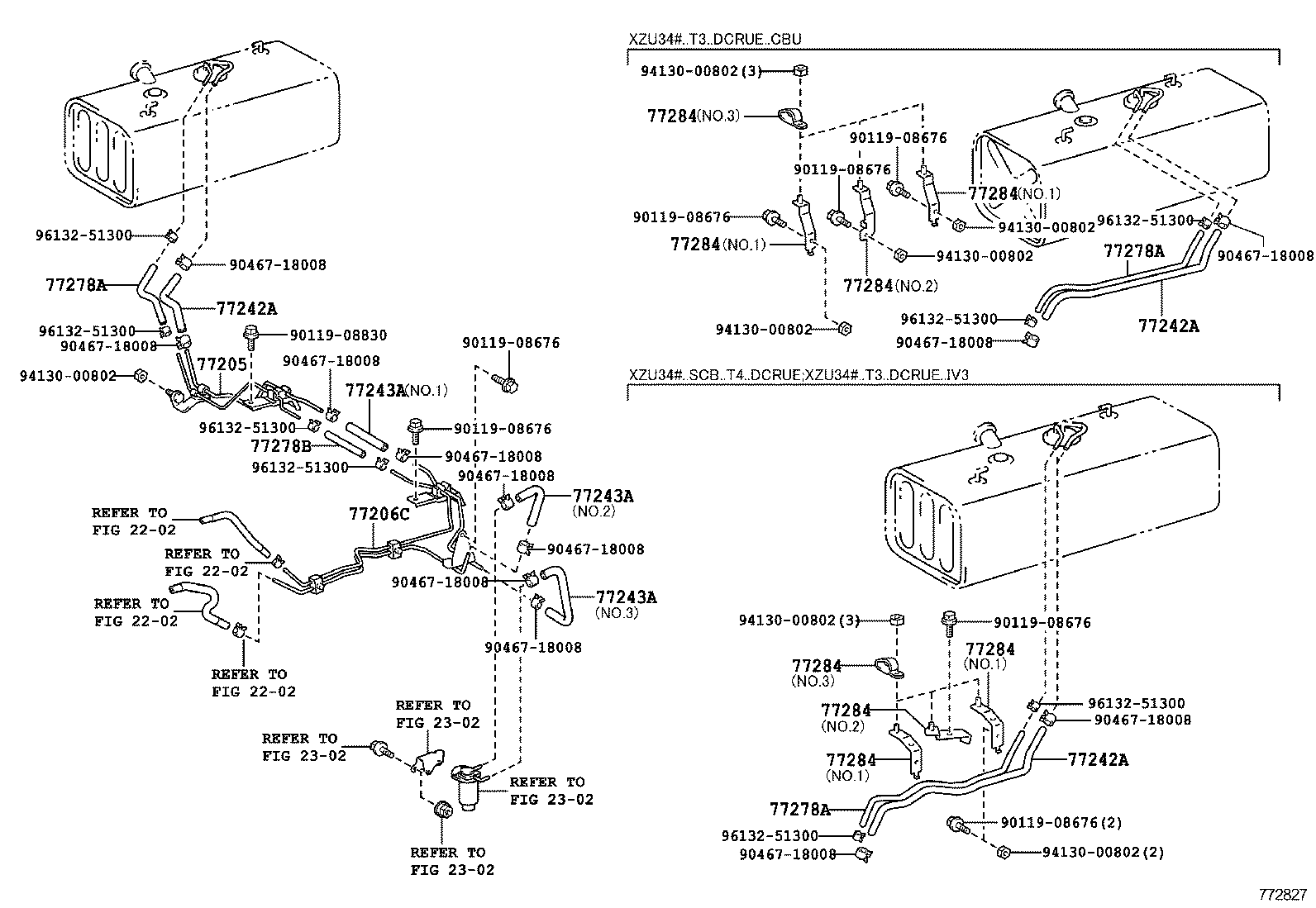

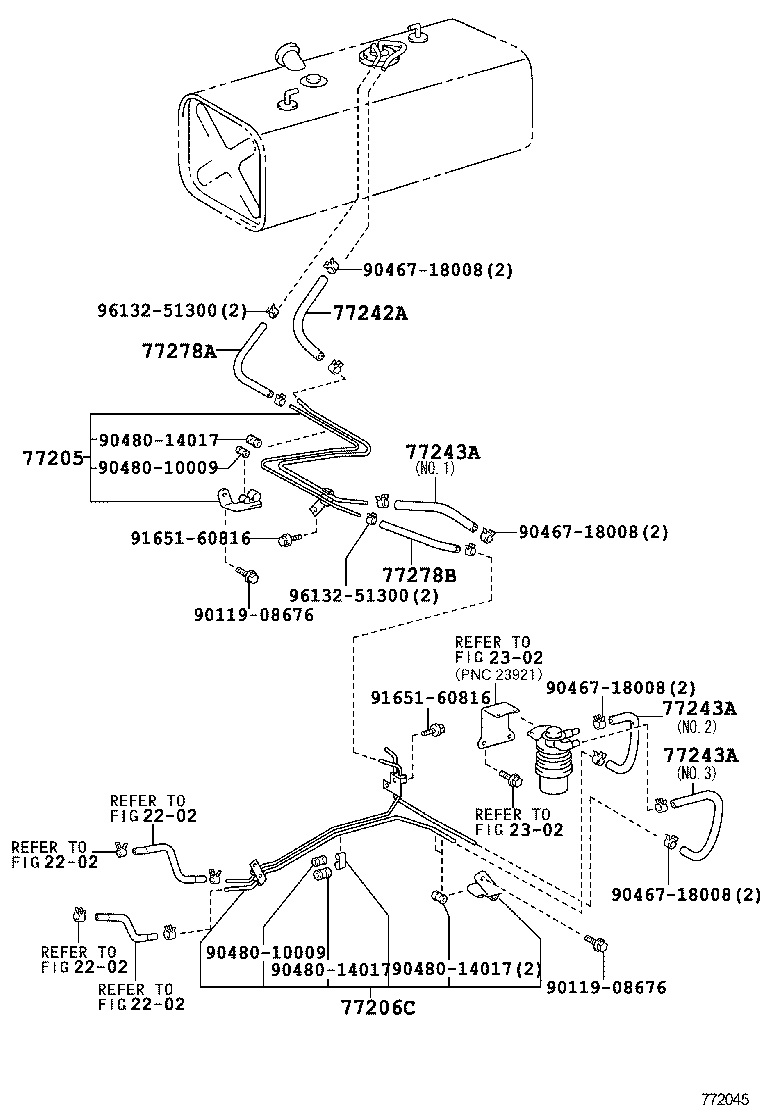

Figure 773087B 773087B 2006-10 → — Figure 772025F 772025F 2006-10 → — Figure 773088B 773088B 2006-10 → — Figure 772027E 772027E 2006-10 → — Figure 772027E 772027E 2006-10 → — Figure 772027E 772027E 2006-10 → — Figure 772028E 772028E 2006-10 → — Figure 772028E 772028E 2006-10 → — Figure 772029E 772029E 2006-10 → — Figure 772140D 772140D 2007-05 → — Figure 772143B 772143B 2007-05 → — Figure 772144B 772144B 2007-05 → — Figure 772145B 772145B 2007-05 → — Figure 772030B 772030B 2006-10 → — Figure 772030B 772030B 2006-10 → — Figure 772030B 772030B 2006-10 → — Figure 772033A 772033A 2006-10 → — Figure 772034A 772034A 2006-10 → — Figure 772035C 772035C 2006-10 → — Figure 772036A 772036A 2006-10 → — Figure 772036A 772036A 2006-10 → — Figure 772036A 772036A 2006-10 → — Figure 772036A 772036A 2006-10 → — Figure 772036A 772036A 2006-10 → — Figure 772141C 772141C 2007-05 → — Figure 772149B 772149B 2007-05 → — Figure 772148C 772148C 2007-05 → — Figure 772040A 772040A 2006-10 → — Figure 772797 772797 2006-10 → — Figure 772797 772797 2006-10 → — Figure 772043C 772043C 2006-10 → — Figure 772037B 772037B 2006-10 → — Figure 772038B 772038B 2006-10 → — Figure 772039B 772039B 2006-10 → — Figure 772044A 772044A 2006-10 → — Figure 772045 772045 2006-10 → — Figure 772046 772046 2006-10 → — Figure 772047 772047 2006-10 → — Figure 772048 772048 2006-10 → — Figure 772049 772049 2006-10 → 2010-03 Figure 772050 772050 2006-10 → — Figure 772142C 772142C 2007-05 → 2010-03 Figure 773084A 773084A 2010-03 → — Figure 772146E 772146E 2007-05 → — Figure 772147C 772147C 2007-05 → — Figure 772827 772827 2010-03 → — Figure 772826 772826 2010-03 → — Figure 772825 772825 2010-03 → — Figure 772829 772829 2010-03 → —

Part groups

PNCDescription
23400D Filter Assy, Lpg
23401B Bolt
23415A Plate
23954A Bracket, Charcoal Canister, NO.1
23954B Bracket, Charcoal Canister, NO.2
23960C Valve Assy, Solenoid Lpg
23972A Bracket, Filter & Solenoid Valve
53208C Support Sub-assy, Hood Lock
58266A Bracket, Fuel Tube Clamp
58266B Bracket, Fuel Tube Clamp
77001B Valve (FOR LPG TANK)
77017B Tube Sub-assy, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77027 Tube Sub-assy, Fuel Evaporation, NO.2
77028B Tube Sub-assy, Fuel Evaporation, NO.3
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100U Tank Sub-assy, Fuel
77154 Plate, Fuel Tank Evap/Vent Tube Support
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77177 Gasket, Check Valve
77178 Gasket, Fuel Tank Filler Pipe, Lower
77197 Orifice, Fuel Vapor
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77203A Tube Sub-assy, Fuel Suction
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77209 Connector Sub-assy, Fuel Tube
77213B Hose, Fuel Tank TO Filler Pipe
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77244C Joint, Fuel Tube, NO.2
77249 Hose, Fuel Emission
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77259D Hose, Fuel, NO.1
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77281B Clamp, Fuel Hose(FOR REAR FUEL MAIN)
77281G Clamp, Fuel Hose
77282 Bracket, Fuel Main Tube, NO.2
77284 Clamp, Fuel Tube
77285 Bracket, Fuel Tube
77290 Shield Assy, Fuel Tank Filler Pipe
77293C Packing, Fuel Tank Outer Filler Pipe
77295C Grommet, Fuel Tube
77298A Clamp, Fuel Tube, NO.4
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77319 Knob, Fuel Tank Cap
77326 Connector, Auxiliary Fuel Tank Cap
77338A Bracket, Fuel Tank Cap Lock Control Rod
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77378A Cover, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77390C Valve, Fuel Tank Inlet
77501T Bracket Sub-assy, Fuel Tank
77502D Bracket Sub-assy, Fuel Tank, Rear
77601A Band Sub-assy, Fuel Tank, NO.1
77601E Band Sub-assy, Fuel Tank
77603A Band Sub-assy, Fuel Tank, NO.2
77605A Cover Sub-assy, Fuel Tank Valve Handle
77611A Pin (FOR FUEL TANK BAND)
77611C Cover, Fuel Tank Guard
77611D Cover, Fuel Tank, RH
77611E Pin, Fuel Tank Band
77612D Cover, Fuel Tank, LH
77616C Seat, Fuel Tank Band
77633 Stay, Fuel Tank
77638 Sleeve, Tank Valve Joint
77638A Ring, O (FOR TANK VALVE JOINT SLEEVE)
77641A Protector, Fuel Tank, NO.1
77644 Bolt, Fuel Tank
77651B Cushion, Fuel Tank
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77705 Bracket Sub-assy, Charcoal Canister
77710C Hose, Fuel
77740 Canister Assy, Charcoal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
