Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

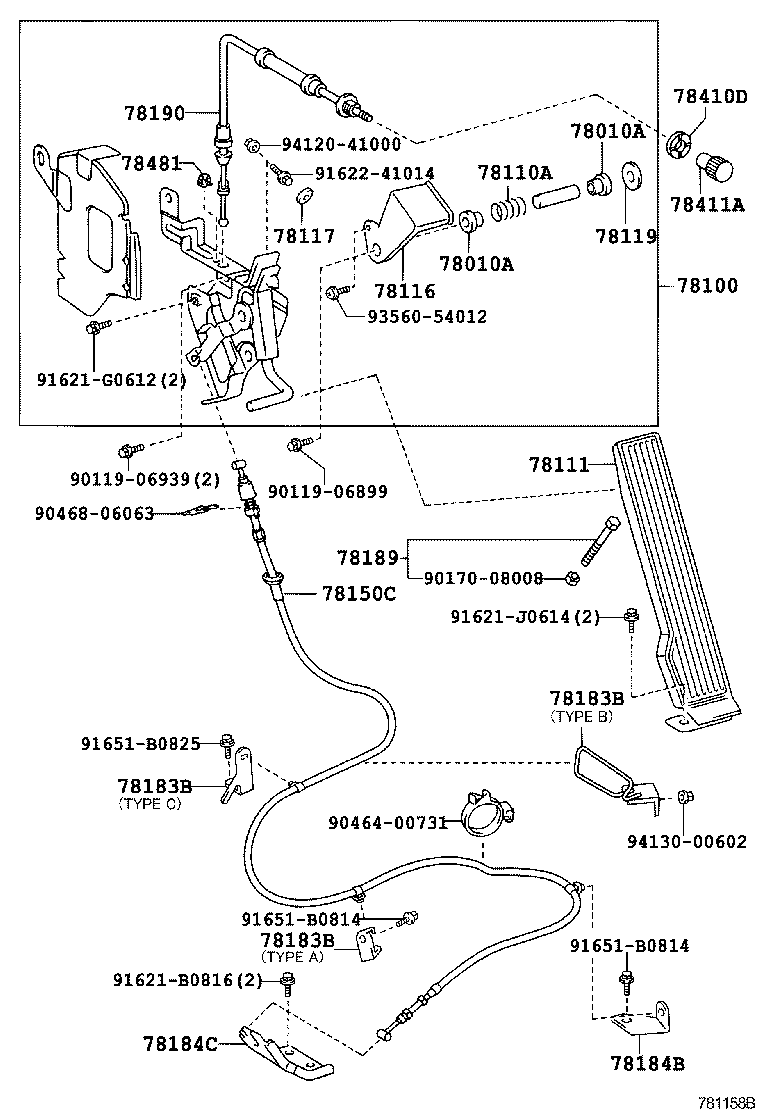

Accelerator Link
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010A | Bush (FOR ACCELERATOR LINK) |
| 78100 | Link Assy, Accelerator |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78110K | Rod Assy, Accelerator Pedal(W/SENSOR) |
| 78111 | Pedal, Accelerator |
| 78116 | Cover, Accelerator Pedal Rod |
| 78117 | Cushion (FOR ACCELERATOR ROD) |
| 78118B | Stopper, Accelerator Pedal |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78130 | Bellcrank Assy, Accelerator |
| 78150C | Wire Assy, Accelerator Flexible |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78184C | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78190 | Cable Assy, Accel Control W/Throttle |
| 78291A | Bracket, Accelerator Link |
| 78410D | Nut, Throttle |
| 78411A | Knob, Throttle Control Cable |
| 78481 | Clamp, Throttle Wire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
